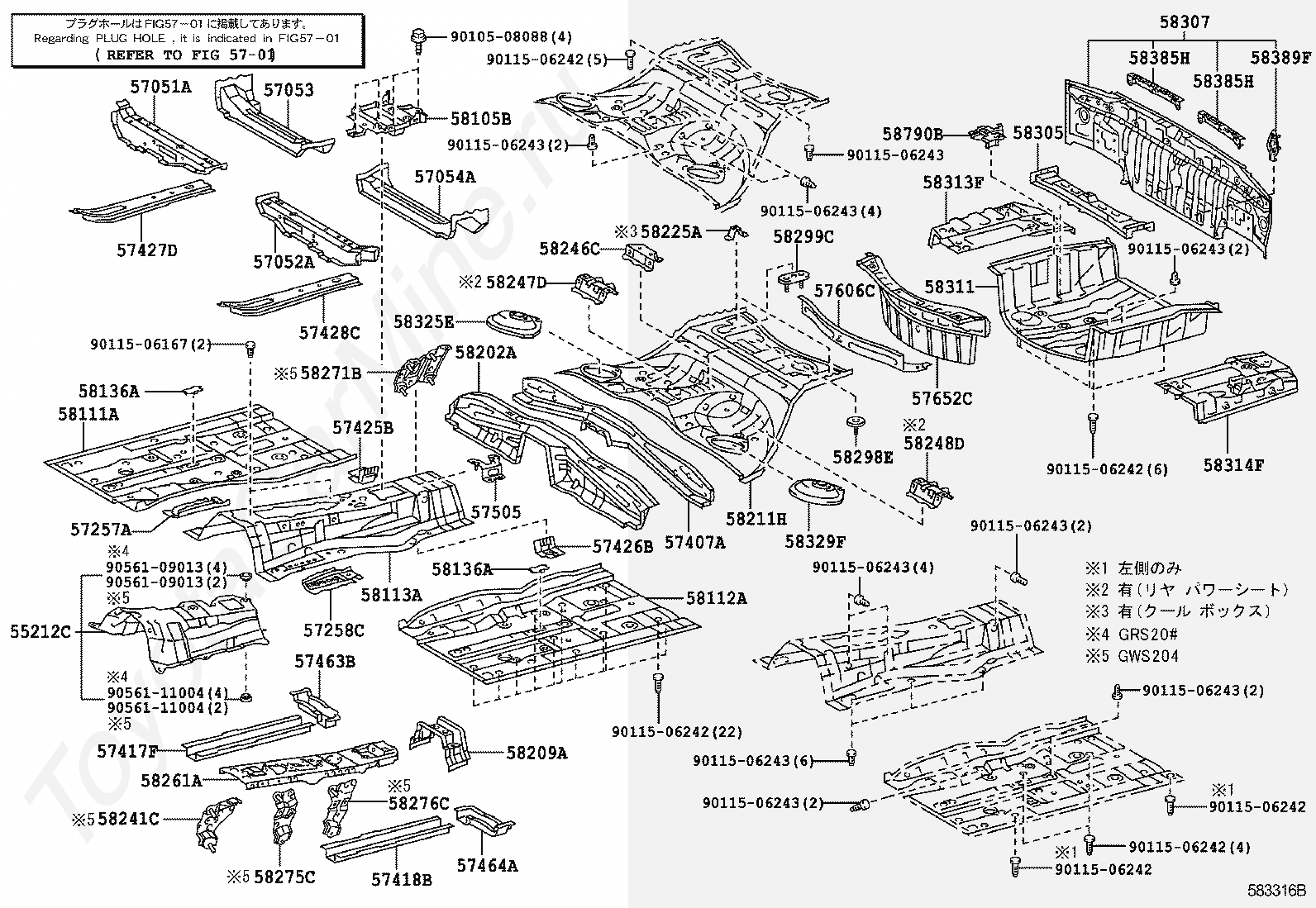

FLOOR PAN & LOWER BACK PANEL TOYOTA CROWN, 2008/02 - 2010/02, 3,5 литра, 24 клапана, DOHC, EFI, ATHLETE,ATHLETE FOUR TYPE, GRS204

Каталог

Япония

Модель

CROWN

Двигатель

3,5 литра, 24 клапана, DOHC, EFI

Класс

ATHLETE,ATHLETE FOUR TYPE

Фрейм

GRS204

Опции

412W

Код

Описание

55212C

SILENCER, FRONT PANEL, LOWER

5701

переход к группе запчастей

57051A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

57052A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

57053

REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH

57054A

REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH

57257A

BRACKET, ENGINE REAR MOUNTING MEMBER, RH

57258C

BRACKET, ENGINE REAR MOUNTING MEMBER, LH

57407A

MEMBER SUB-ASSY, CENTER FLOOR CROSS

57417F

REINFORCEMENT, FRONT FLOOR UNDER, RH

57418B

REINFORCEMENT, FRONT FLOOR UNDER, LH

57425B

REINFORCEMENT, FRONT FLOOR, NO.2 RH

57426B

REINFORCEMENT, FRONT FLOOR, NO.2 LH

57427D

REINFORCEMENT, FRONT FLOOR, NO.3 RH

57428C

REINFORCEMENT, FRONT FLOOR, NO.3 LH

57463B

REINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH

57464A

REINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH

57505

BRACKET SUB-ASSY, PARKING BRAKE, NO.1

57606C

MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

57652C

MEMBER, REAR FLOOR CROSS, NO.1

58105B

PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

58111A

PAN, FRONT FLOOR, RH

58112A

PANEL, FRONT FLOOR, LH

58113A

PANEL, FRONT FLOOR, CENTER

58136A

COVER, FRONT FLOOR SERVICE HOLE

58202A

PAN SUB-ASSY, CENTER FLOOR, FRONT

58209A

REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT

58211H

PAN, CENTER FLOOR

58225A

BRACKET, CENTER MOUNTING

58241C

PANEL, FLOOR SIDE, RH

58246C

BRACKET, REAR SEAT HINGE, CENTER NO.2

58247D

BRACKET, REAR SEAT HINGE, OUTER RH

58248D

BRACKET, REAR SEAT HINGE, OUTER LH

58261A

COVER, TRANSMISSION

58271B

PLATE, FLOOR SIDE, REAR, RH

58275C

BRACKET, WIRE HARNESS PROTECTOR

58276C

REINFORCEMENT, SIDE FLOOR, NO.4

58298E

BRACKET, HOT AIR INTAKE, NO.1

58299C

BRACKET, HOT AIR INTAKE, NO.2

58305

BRACKET SUB-ASSY, SPARE WHEEL CLAMP

58307

PANEL SUB-ASSY, BODY LOWER BACK

58311

PAN, REAR FLOOR

58313F

EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

58314F

EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

58325E

COVER, REAR FLOOR SERVICE HOLE

58329F

COVER, REAR FLOOR SERVICE HOLE, NO.2

58385H

BRACKET, REAR BUMPER COVER, NO.1

58389F

BRACKET, LOWER BACK COVER

58790B

CARRIER ASSY, JACK

9010508088

Крепеж

9011506167

Крепеж

9011506242

Крепеж

9011506243

Крепеж

9056109013

Крепеж

9056111004

Крепеж

Код

Описание

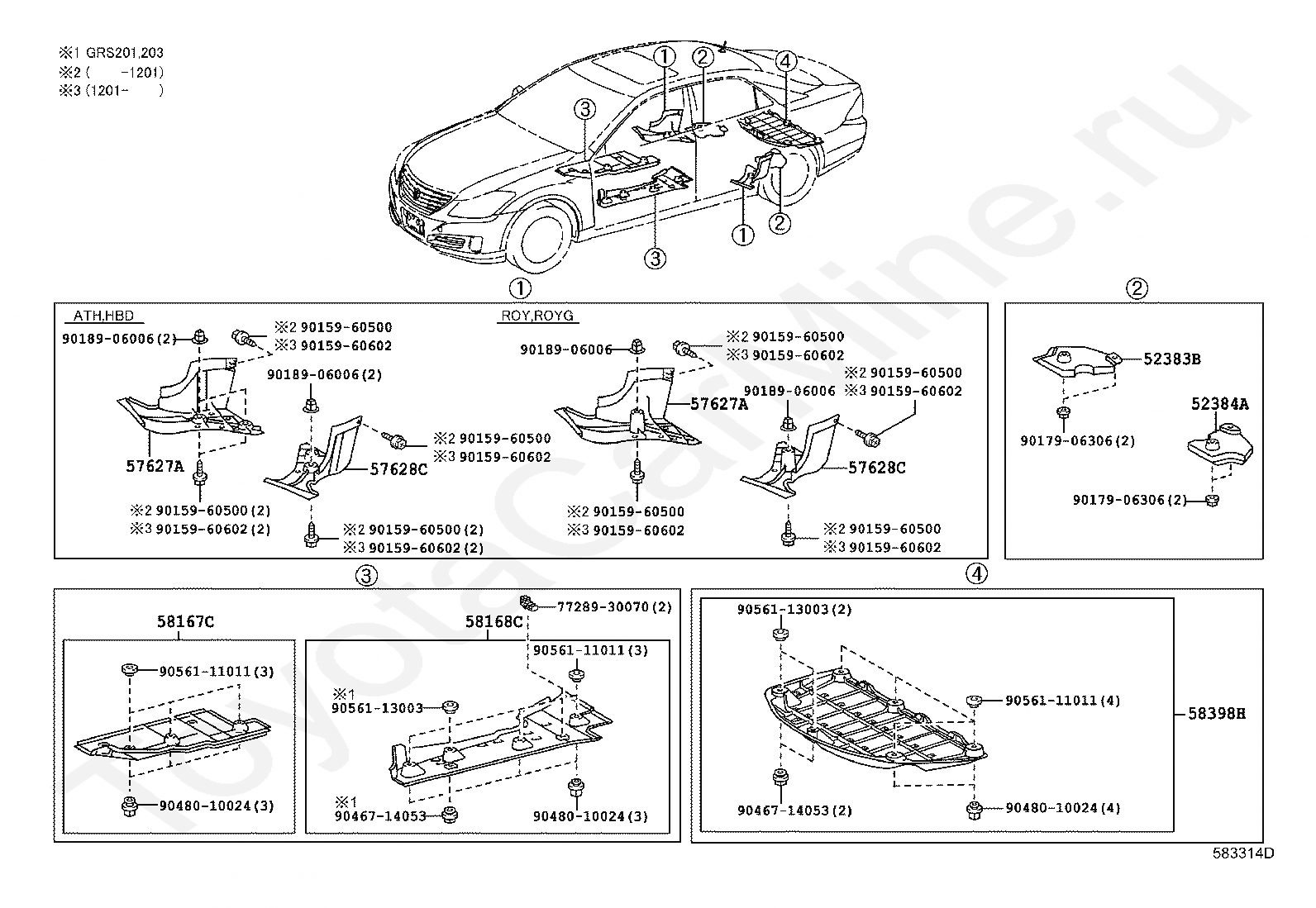

52383B

PROTECTOR, DIFFERENTIAL SUPPORT, NO.1

52384A

PROTECTOR, DIFFERENTIAL SUPPORT, NO.2

57627A

COVER, REAR FLOOR SIDE MEMBER, RH

57628C

COVER, REAR FLOOR SIDE MEMBER, LH

58167C

COVER, FRONT FLOOR, CENTER RH

58168C

COVER, FRONT FLOOR, CENTER LH

58398H

COVER, FLOOR UNDER, NO.1

7728930070

Крепеж

9015960500

Крепеж

9015960602

Крепеж

9017906306

Крепеж

9018906006

Крепеж

9046714053

Крепеж

9048010024

Крепеж

9056111011

Крепеж

9056113003

Крепеж

Код

Описание

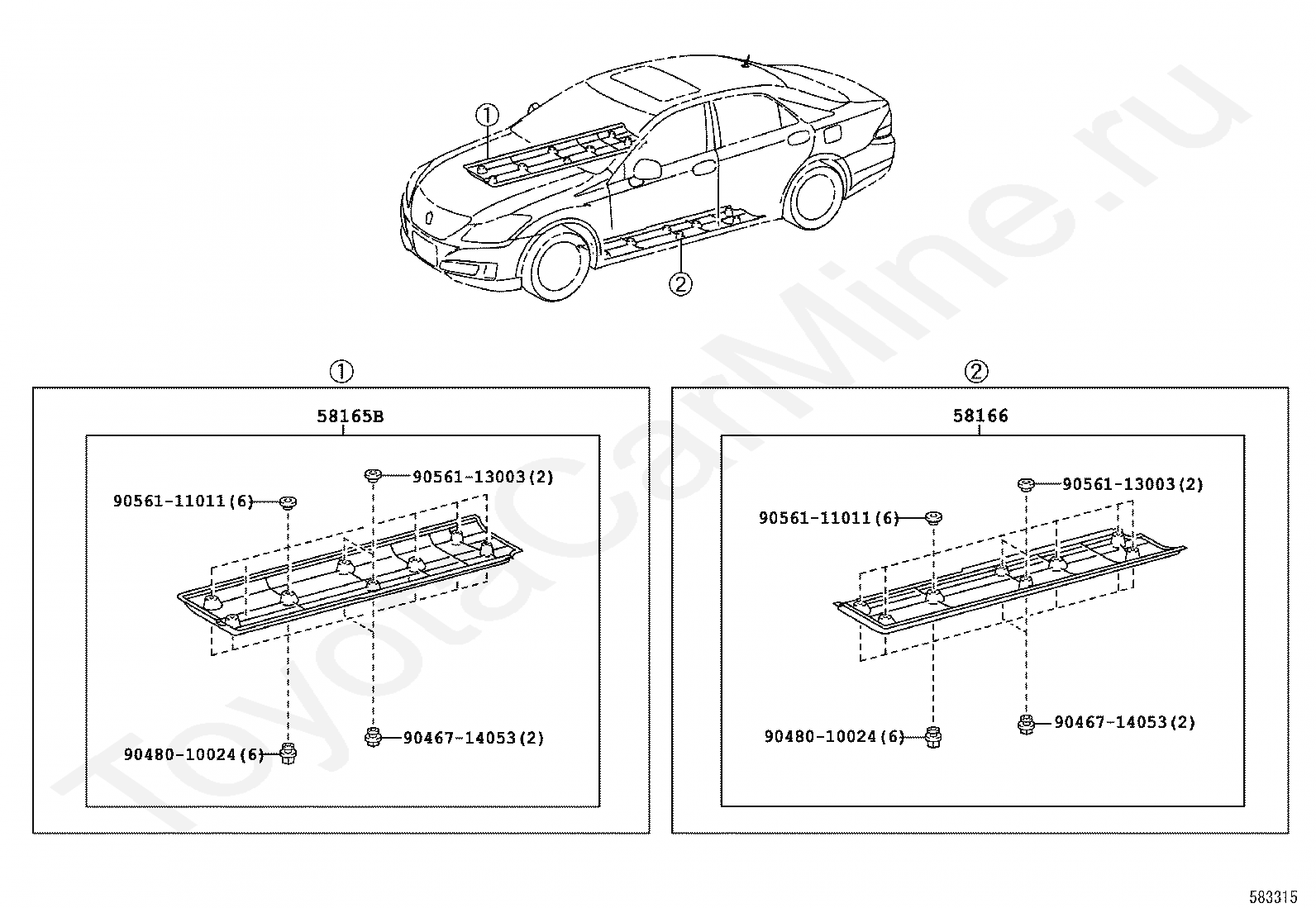

58165B

COVER, FRONT FLOOR, RH

58166

COVER, FRONT FLOOR, LH

9046714053

Крепеж

9048010024

Крепеж

9056111011

Крепеж

9056113003

Крепеж
