Каталог
ЯпонияМодель
CROWNДвигатель
3,5 литра, 24 клапана, DOHC, EFIКласс
ATHLETE,ATHLETE FOUR TYPEФрейм
GRS204Опции
412W

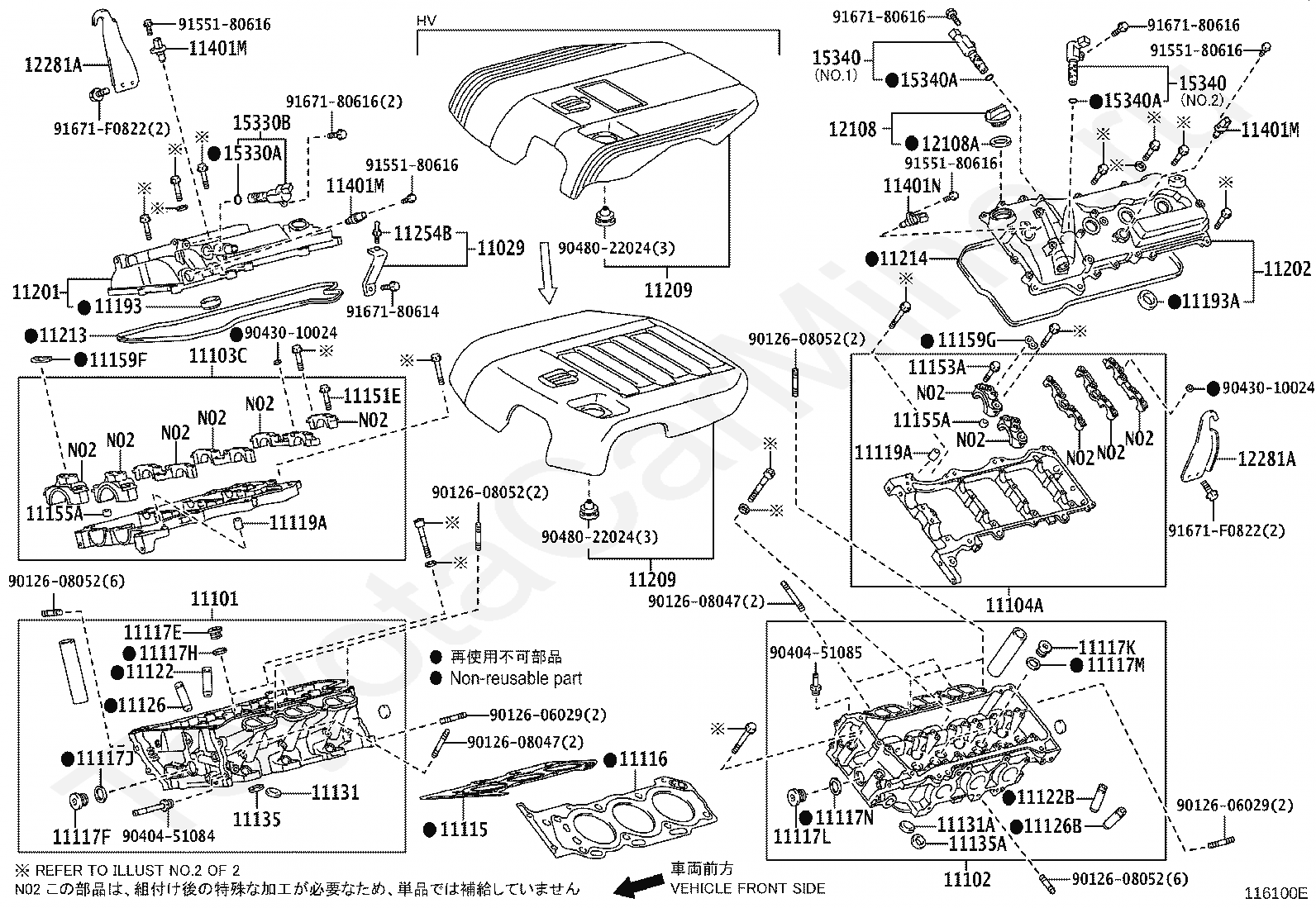

Код
Описание
11029
BRACKET SUB-ASSY, V-BANK COVER
11101
HEAD SUB-ASSY, CYLINDER
11102
HEAD, CYLINDER, LH
11103C
HOUSING SUB-ASSY, CAMSHAFT, RH
11104A
HOUSING SUB-ASSY, CAMSHAFT, LH
11115
GASKET, CYLINDER HEAD
11116
GASKET, CYLINDER HEAD, NO.2
11117E
PLUG, W/HEAD STRAIGHT SCREW, NO.1
11117F
PLUG, W/HEAD STRAIGHT SCREW, NO.2
11117H
GASKET(FOR WATER HOLE)
11117J
GASKET(FOR CYLINDER HEAD SCREW PLUG)
11117K
PLUG, W/HEAD STRAIGHT SCREW, LH NO.1
11117L
PLUG, W/HEAD STRAIGHT SCREW, LH NO.2
11117M
GASKET(FOR WATER HOLE NO.2)
11117N
GASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
11119A
PIN, STRAIGHT, NO.1
11122
BUSH, INTAKE VALVE GUIDE
11122B
BUSH, INTAKE VALVE GUIDE, NO.2
11126
BUSH, EXHAUST VALVE GUIDE
11126B
BUSH, EXHAUST VALVE GUIDE, NO.2
11131
SEAT, INTAKE VALVE
11131A
SEAT, INTAKE VALVE, NO.2
11135
SEAT, EXHAUST VALVE
11135A
SEAT, EXHAUST VALVE, NO.2
11151E
BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1)
11153A
BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1)
11155A
PIN, RING W/HEAD
11159F
GASKET, CAMSHAFT BEARING CAP OIL HOLE, RH
11159G
GASKET, CAMSHAFT BEARING CAP OIL HOLE, LH
11193
GASKET, SPARK PLUG TUBE
11193A
GASKET, SPARK PLUG TUBE, LH
11201
COVER SUB-ASSY, CYLINDER HEAD
11202
COVER SUB-ASSY, CYLINDER HEAD, LH
11209
COVER SUB-ASSY, V-BANK
11213
GASKET, CYLINDER HEAD COVER
11214
GASKET, CYLINDER HEAD COVER, NO.2
11254B
BOLT, V-BANK COVER
11401M
SENSOR, CRANK POSITION, NO.2
11401N
SENSOR, CRANK POSITION, NO.3
12108
CAP SUB-ASSY, OIL FILLER
12108A
GASKET(FOR OIL FILLER CAP)
12281A
HANGER, ENGINE, NO.1
15330A
RING, O(FOR CAM TIMING OIL CONTROL VALVE)
15330B
VALVE ASSY, CAM TIMING OIL CONTROL, RH
15340
VALVE ASSY, CAM TIMING OIL CONTROL, LH
15340A
RING, O(FOR CAM TIMING OIL CONTROL VALVE)
9012606029
Крепеж
9012608047
Крепеж
9012608052
Крепеж
9040451084
Крепеж
9040451085
Крепеж
9043010024
Крепеж
9048022024
Крепеж
9155180616
Крепеж
9167180614
Крепеж
9167180616
Крепеж
91671F0822
Крепеж

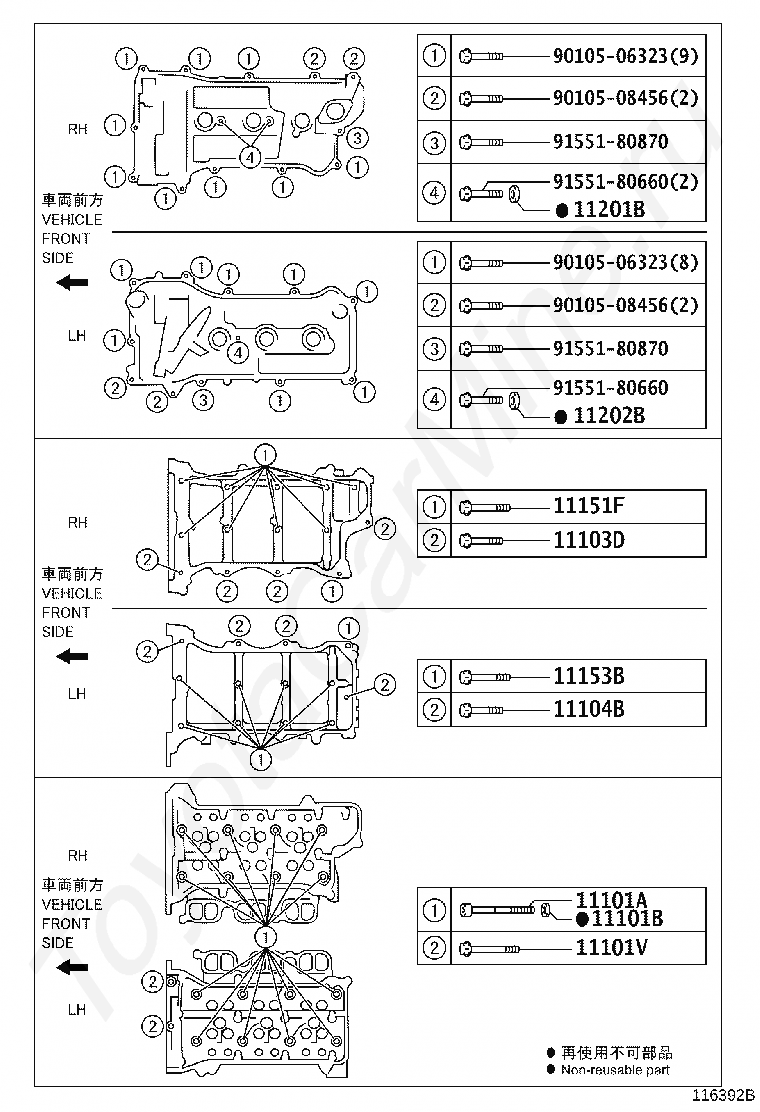

Код
Описание
11101A
BOLT(FOR CYLINDER HEAD SET)
11101B
WASHER, PLATE(FOR CYLINDER HEAD SET)
11101V
BOLT(FOR CYLINDER HEAD SET SUB)
11103D
BOLT(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, RH)
11104B
BOLT(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, LH)
11151F
BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2)
11153B
BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2)
11201B
WASHER, SEAL(FOR CYLINDER HEAD COVER)
11202B
WASHER, SEAL(FOR CYLINDER HEAD COVER, LH)
9010506323
Крепеж
9010508456
Крепеж
9155180660
Крепеж
9155180870
Крепеж
