Каталог
Ближний ВостокМодель
CROWNДвигатель
2,8 литраКузов
седанКласс
ROYAL SALOON TYPEФрейм
MS122Трансмиссия
автомат АКПП, 4 ступениОпции
правый руль GENERAL COUNTRIES

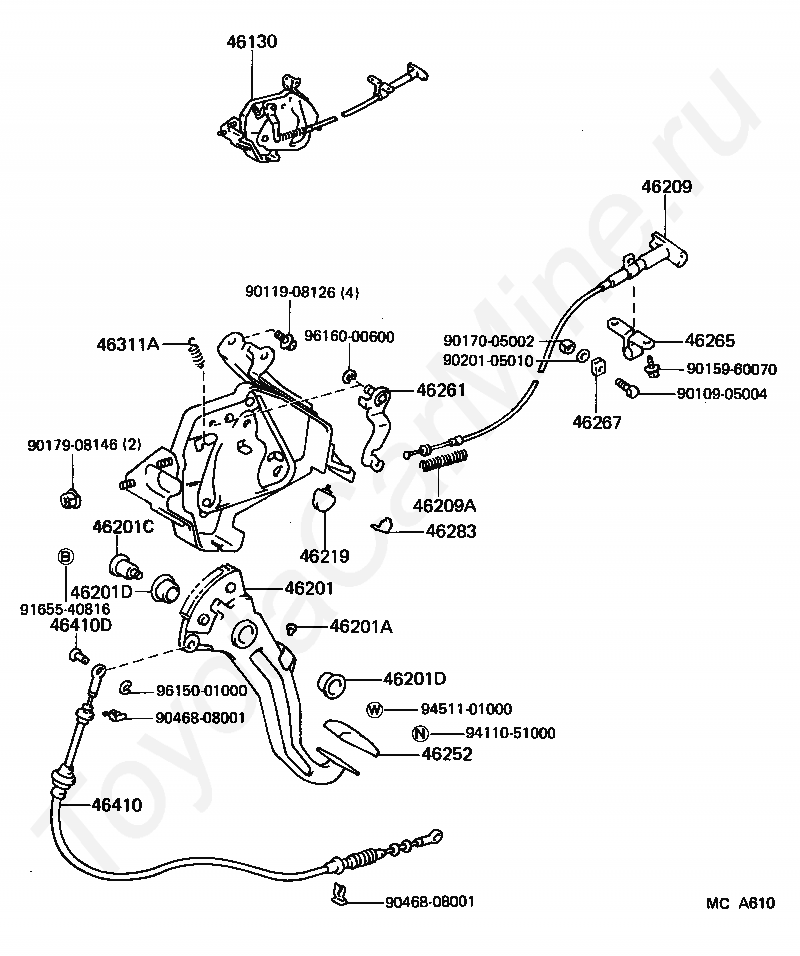

Код
Описание
46130
BRACKET ASSY, PARKING BRAKE PEDAL
46201
PEDAL SUB-ASSY, PARKING BRAKE
46201A
CUSHION(FOR PARKING BRAKE PEDAL)
46201C
SHAFT, PEDAL
46201D
BUSH(FOR PARKING BRAKE PEDAL)
46209
CABLE SUB-ASSY, PARKING BRAKE RELEASE
46209A
SPRING, COMPRESSION(FOR PARKING BRAKE RELEASE CABLE)
46219
STOPPER, PARKING PEDAL
46252
PAD, PARKING PEDAL
46261
LEVER, PARKING BRAKE RELEASE INTERMEDIATE
46265
GUIDE, PARKING BRAKE RELEASE ROD
46267
CUSHION, RELEASE ROD GUIDE INTERMEDIATE
46283
PROTECTOR, PARKING BRAKE SIGNAL SWITCH
46311A
SPRING(FOR PARKING BRAKE PAWL)
46410
CABLE ASSY, PARKING BRAKE, NO.1
46410D
PIN(FOR PARKING BRAKE FRONT CABLE)
9010905004
Крепеж
9011908126
Крепеж
9015960070
Крепеж
9017005002
Крепеж
9017908146
Крепеж
9020105010
Крепеж
9046808001
Крепеж
9165540816
Крепеж
9411051000
Крепеж
9451101000
Крепеж
9615001000
Крепеж
9616000600
Крепеж
Код
Описание
46301
LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301C
SPRING, TENSION(FOR INTERMEDIATE LEVER)
46301E
PIN, W/HOLE(FOR INTERMEDIATE LEVER)
46304
EQUALIZER SUB-ASSY, PARKING BRAKE
46304A
SPRING, TENSION(FOR PARKING BRAKE EQUALIZER)
46304B
BUSH(FOR PARKING BRAKE EQUALIZER)
46306
BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE)
46339B
HANGER, INTERMEDIATE LEVER RETURN SPRING
46353
CUSHION, INTERMEDIATE LEVER
46420
CABLE ASSY, PARKING BRAKE, NO.2
46420C
PIN, W/HOLE(FOR PARKING BRAKE CABLE)
46441
NUT, WIRE ADJUSTING, NO.1
46458
RETAINER, CABLE
46459
GUIDE, CABLE
46469
LEVER, CABLE GUIDE SUPPORT
46479
LEVER, CABLE GUIDE SAPPORT, NO.2
9010908102
Крепеж
9017908146
Крепеж
9020608016
Крепеж
9046808001
Крепеж
9161140614
Крепеж
9161140816
Крепеж
9165140816
Крепеж
9165640822
Крепеж
9411040600
Крепеж
9538102020
Крепеж
9611540616
Крепеж

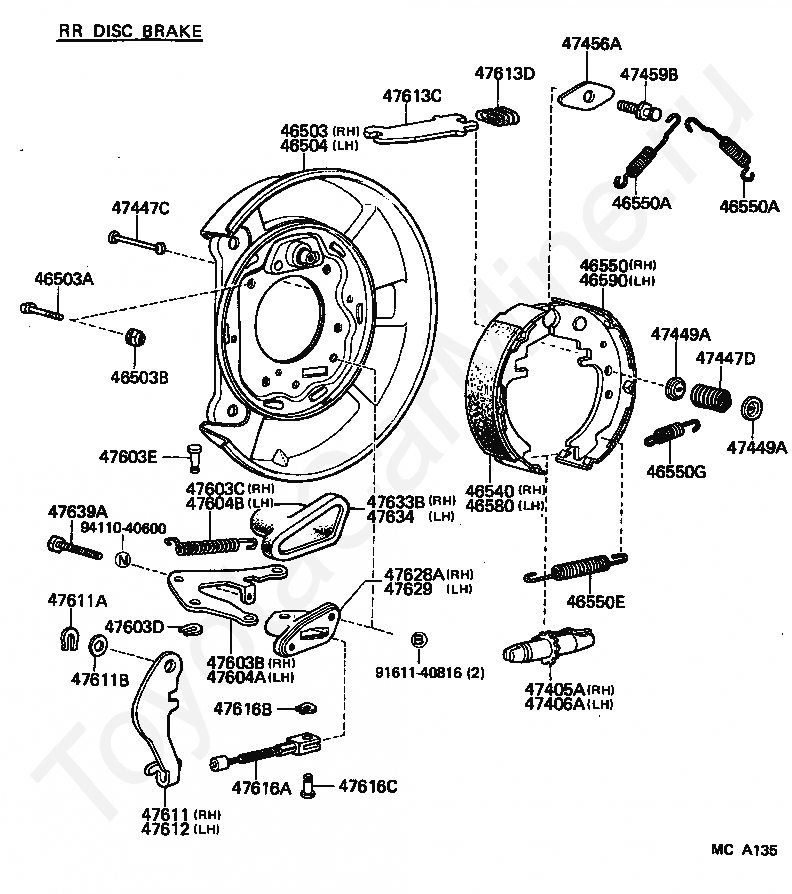

Код
Описание
46503
PLATE SUB-ASSY, PARKING BRAKE, RH
46503A
BOLT(FOR PARKING BRAKE PLATE TO REAR AXLE HOUSING)
46503B
NUT(FOR PARKING BRAKE PLATE TO REAR AXLE HOUSING)
46504
PLATE SUB-ASSY, PARKING BRAKE, LH
46540
SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46550
SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550A
SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
46550E
SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
46550G
SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN)
46580
SHOE ASSY, PARKING BRAKE, LH NO.1
46590
SHOE ASSY, PARKING BRAKE, LH NO.2
47405A
SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE)
47406A
SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE)
47447C
PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE)
47447D
SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN)
47449A
CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47456A
PLATE, SHOE GUIDE(FOR PARKING BRAKE)
47459B
BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE)
47603B
CRANK SUB-ASSY, PARKING BRAKE BELL, RH
47603C
SPRING, TENSION(FOR PARKING BRAKE BELL CRANK RH)
47603D
WASHER, TYPE C(FOR PARKING BRAKE BELL CRANK)
47603E
PIN(FOR PARKING BRAKE BELL CRANK)
47604A
CRANK SUB-ASSY, PARKING BRAKE BELL,LH
47604B
SPRING, TENSION(FOR PARKING BRAKE BELL CRANK LH)
47611
LEVER, PARKING BRAKE SHOE, RH
47611A
WASHER, TYPE C(FOR PARKING BRAKE SHOE LEVER)
47611B
SHIM(FOR PARKING BRAKE SHOE LEVER)
47612
LEVER, PARKING BRAKE SHOE, LH
47613C
STRUT, PARKING BRAKE SHOE
47613D
SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
47616A
WIRE, PARKING BRAKE
47616B
WASHER, TYPE C(FOR PARKING BRAKE WIRE)
47616C
PIN(FOR PARKING BRAKE WIRE)
47628A
BRACKET, BELLCRANK, RH(FOR PARKING BRAKE)
47629
BRACKET, BELLCRANK, LH(FOR PARKING BRAKE)
47633B
BOOT, BELLCRANK, RH(FOR PARKING BRAKE)
47634
BOOT, BELLCRANK, LH(FOR PARKING BRAKE)
47639A
BOLT, BELLCRANK STOPPER(FOR PARKING BRAKE)
9161140816
Крепеж
9411040600
Крепеж
