FLOOR PAN & LOWER BACK PANEL TOYOTA CROWN, 1991/10 - 1999/04, 2,5 литра, 24 клапана DOHC, EFI, фургон, SUPER SALOON EXTRA TYPE, JZS130, автомат, АКПП, 4 ступени

Каталог

Япония

Модель

CROWN

Двигатель

2,5 литра, 24 клапана DOHC, EFI

Кузов

фургон

Класс

SUPER SALOON EXTRA TYPE

Фрейм

JZS130

Трансмиссия

автомат АКПП, 4 ступени

Опции

TWIN CAM

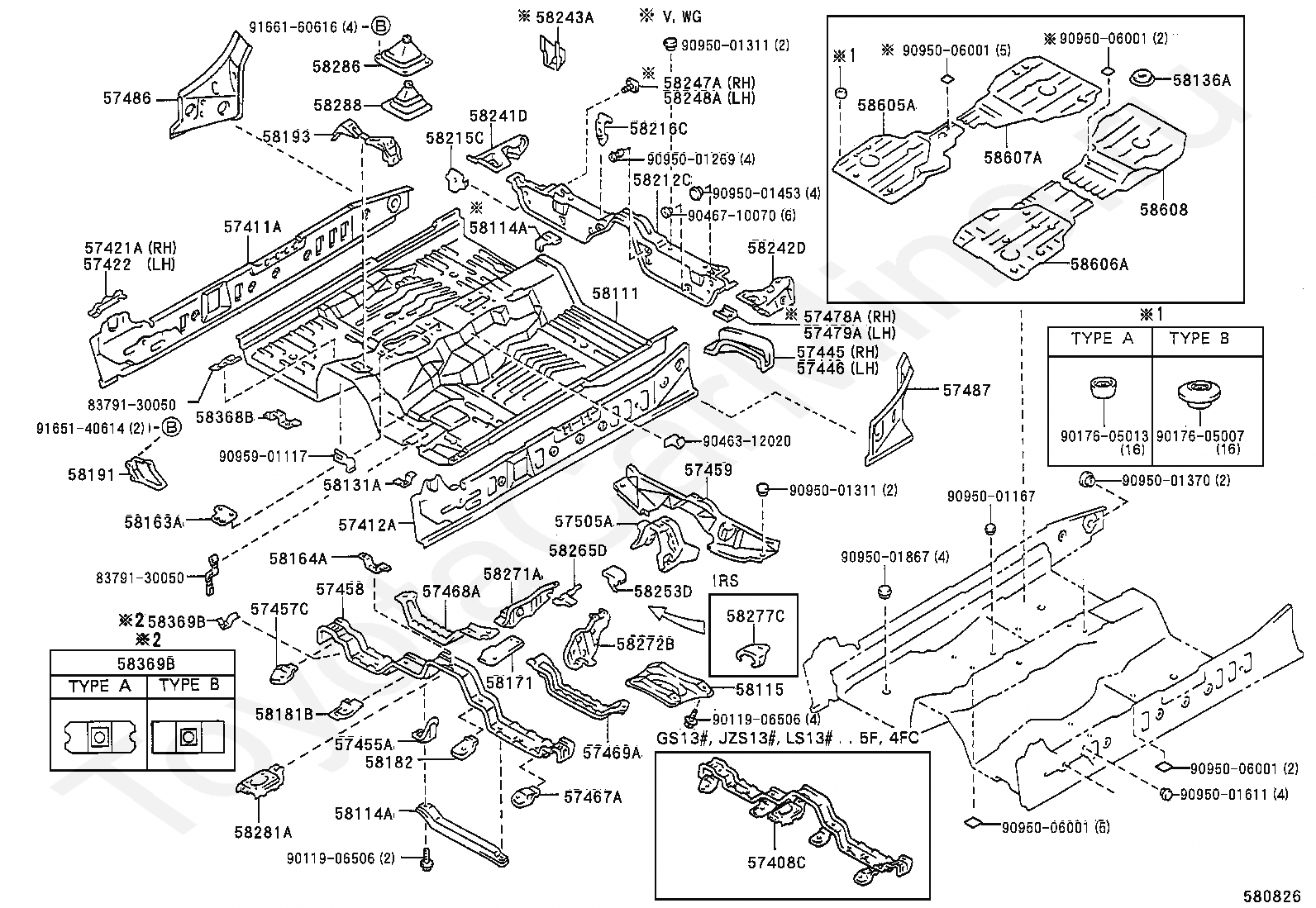

Код

Описание

57408C

MEMBER SUB-ASSY, FRONT FLOOR CROSS

57411A

MEMBER, FLOOR SIDE, INNER RH

57412A

MEMBER, FLOOR SIDE, INNER LH

57421A

PLATE, FLOOR SIDE RAIL, RH

57422

PLATE, FLOOR SIDE RAIL, LH

57445

REINFORCEMENT, NO.5 BODY MOUNTING, RH

57446

REINFORCEMENT, NO.5 BODY MOUNTING, LH

57455A

BRACKET, FRONT FLOOR CROSSMEMBER

57457C

BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT RH

57458

MEMBER, FRONT FLOOR CROSS, NO.1

57459

MEMBER, FRONT FLOOR CROSS, NO.2

57467A

BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH

57468A

BRACKET, FRONT SEAT, OUTSIDE, REAR RH

57469A

BRACKET, FRONT SEAT, OUTSIDE, REAR LH

57478A

REINFORCEMENT, FRONT FLOOR NO.2 CROSSMEMBER, RH

57479A

REINFORCEMENT, FRONT FLOOR NO.2 CROSSMEMBER, LH

57486

REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH

57487

REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH

57505A

REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER

58111

PAN, FRONT FLOOR

58114A

REINFORCEMENT, FRONT FLOOR PANEL

58115

REINFORCEMENT, FRONT FLOOR PANEL, FRONT

58131A

BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

58136A

COVER, FRONT FLOOR SERVICE HOLE

58163A

RETAINER, CONSOLE BOX MOUNTING, NO.1

58164A

RETAINER, CONSOLE BOX MOUNTING

58171

REINFORCEMENT, PARKING BRAKE BASE

58181B

BRACKET, FRONT SEAT INSIDE MOUNTING, FRONT RH

58182

BRACKET, FRONT SEAT INSIDE MOUNTING, FRONT LH

58191

FOOTREST, FRONT FLOOR

58193

BRACKET, INSTRUMENT PANEL BRACE MOUNTING

58212C

PAN, CENTER FLOOR, FRONT

58215C

REINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH

58216C

REINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH

58241D

GUSSET, WHEELHOUSE INNER, FRONT RH

58242D

GUSSET, WHEELHOUSE INNER, FRONT LH

58243A

BRACKET, REAR SEAT HINGE FRONT

58247A

REINFORCEMENT, REAR SEAT CUSHION HINGE, RH

58248A

REINFORCEMENT, REAR SEAT CUSHION HINGE, LH

58253D

BRACKET, PARKING BRAKE CABLE

58265D

BRACKET, PARKING BRAKE CABLE GUIDE, NO.2

58271A

REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3

58272B

REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.4

58277C

BRACKET, PARKING BRAKE CABLE GUIDE, NO.4

58281A

COVER, TRANSMISSION AUXILIARY

58286

BOOT, SHIFT & SELECT LEVER, NO.1

58288

SEAL, SHIFT LEVER BOOT

58368B

BRACKET, FUEL TUBE, NO.2

58369B

BRACKET, FUEL TUBE, NO.3

58605A

PANEL SUB-ASSY, FRONT FLOOR SILENCER, FRONT RH

58606A

PANEL SUB-ASSY, FRONT FLOOR SILENCER, FRONT LH

58607A

PANEL SUB-ASSY, FRONT FLOOR SILENCER, REAR RH

58608

PANEL SUB-ASSY, FRONT FLOOR SILENCER, REAR LH

8379130050

Крепеж

9011906506

Крепеж

9017605007

Крепеж

9017605013

Крепеж

9046312020

Крепеж

9046710070

Крепеж

9095001167

Крепеж

9095001269

Крепеж

9095001311

Крепеж

9095001370

Крепеж

9095001453

Крепеж

9095001611

Крепеж

9095001867

Крепеж

9095006001

Крепеж

9095901117

Крепеж

9165140614

Крепеж

9166160616

Крепеж

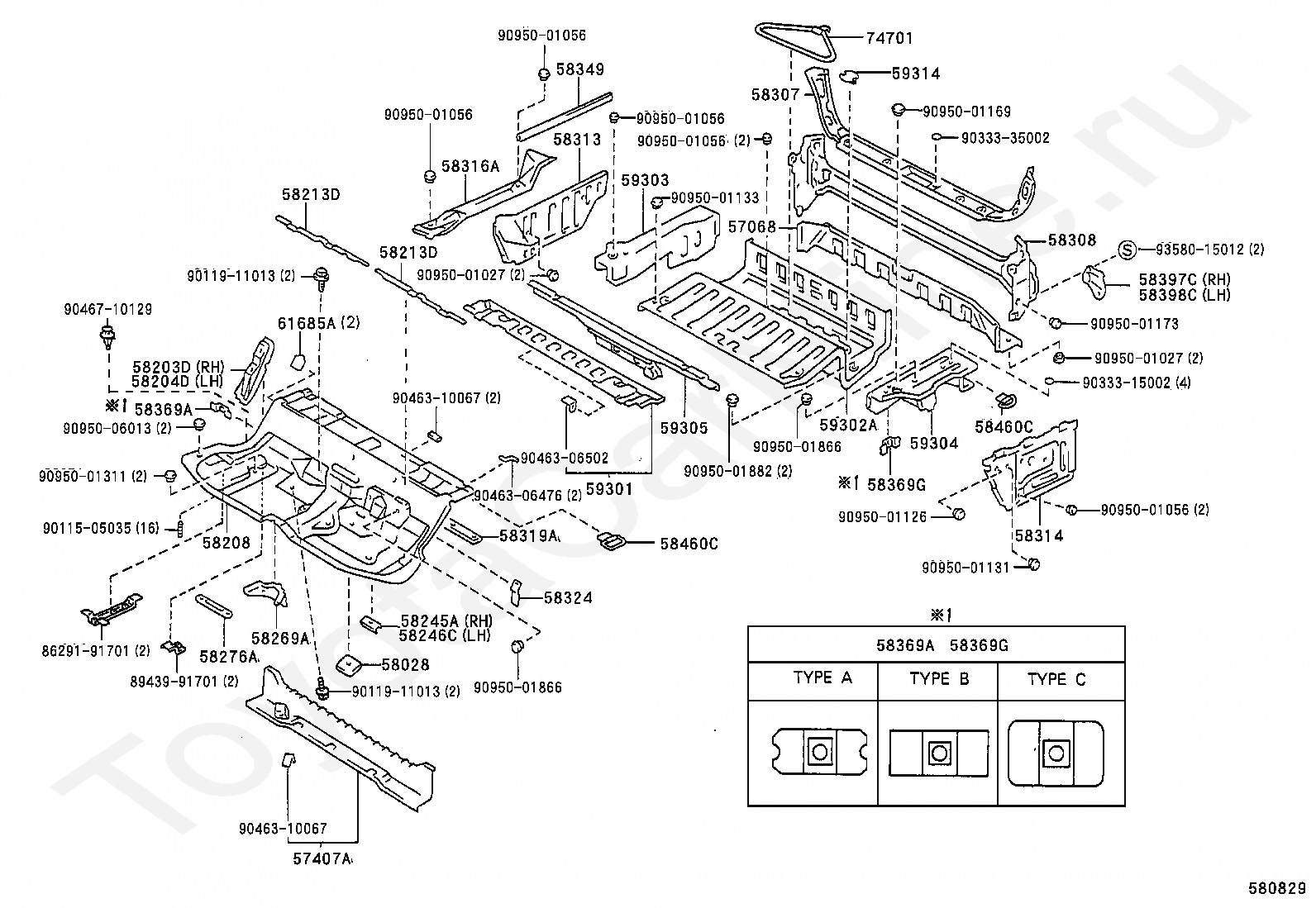

Код

Описание

57068

MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

57407A

MEMBER SUB-ASSY, CENTER FLOOR CROSS

58028

REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, NO.2

58203D

BRACKET SUB-ASSY, REAR SEAT HINGE, OUTER RH

58204D

BRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH

58208

PAN, CENTER FLOOR

58213D

REINFORCEMENT, CENTER FLOOR PANEL

58245A

BRACKET, REAR SEAT HINGE, CENTER NO.1

58246C

BRACKET, REAR SEAT HINGE, CENTER NO.2

58269A

BRACKET, PARKING BRAKE CABLE GUIDE, NO.3

58276A

BRACKET, PARKING BRAKE CABLE GUIDE, NO.2 LH

58307

PANEL SUB-ASSY, BODY LOWER BACK

58308

PANEL SUB-ASSY, BODY LOWER BACK, INNER

58313

PANEL, REAR FLOOR SIDE, RH

58314

PANEL, REAR FLOOR SIDE, LH

58316A

EXTENSION, REAR FLOOR SIDE PANEL, REAR RH

58319A

PLATE, REAR FLOOR PANEL, FRONT

58324

BRACKET, FLEXIBLE HOSE

58349

CUSHION, REAR FLOOR SIDE

58369A

BRACKET, FUEL TUBE, NO.3

58369G

BRACKET, FUEL TUBE, NO.3

58397C

COVER, BODY LOWER BACK, RH

58398C

COVER, BODY LOWER BACK, LH

58460C

STRIKER ASSY, LUGGAGE HOLD BELT

59301

PANEL SUB-ASSY, 3RD SEAT FLOOR

59302A

PANEL SUB-ASSY, 3RD SEAT FLOOR, RR

59303

PANEL SUB-ASSY, 3RD SEAT FLOOR SIDE, RH

59304

PANEL SUB-ASSY, 3RD SEAT FLOOR SIDE, LH

59305

MEMBER SUB-ASSY, 3RD SEAT FLOOR CROSS

59314

COVER, 3RD SEAT FLOOR HOLE

61685A

BRACKET, REAR SEAT BACK MOUNTING

74701

CLAMP SUB-ASSY, TOOL BAG

8629191701

Крепеж

8943991701

Крепеж

9011505035

Крепеж

9011911013

Крепеж

9033315002

Крепеж

9033335002

Крепеж

9046306476

Крепеж

9046306502

Крепеж

9046310067

Крепеж

9046710129

Крепеж

9095001027

Крепеж

9095001056

Крепеж

9095001126

Крепеж

9095001131

Крепеж

9095001133

Крепеж

9095001169

Крепеж

9095001173

Крепеж

9095001311

Крепеж

9095001866

Крепеж

9095001882

Крепеж

9095006013

Крепеж

9358015012

Крепеж

FLOOR PAN & LOWER BACK PANEL TOYOTA CROWN, 1991/10 - 1999/04, 2,5 литра, 24 клапана DOHC, EFI, фургон, SUPER SALOON EXTRA TYPE, JZS130, автомат, АКПП, 4 ступени
