Каталог
ЕвропаМодель
CRESSIDAДвигатель
2 литраКузов
седанКласс
XL SPECIFICATIONФрейм
RX70Трансмиссия
механика МКПП, 5 скоростейОпции
правый руль STANDARD CARBURETOR SPECIFICATION Южная Африка
Код
Описание

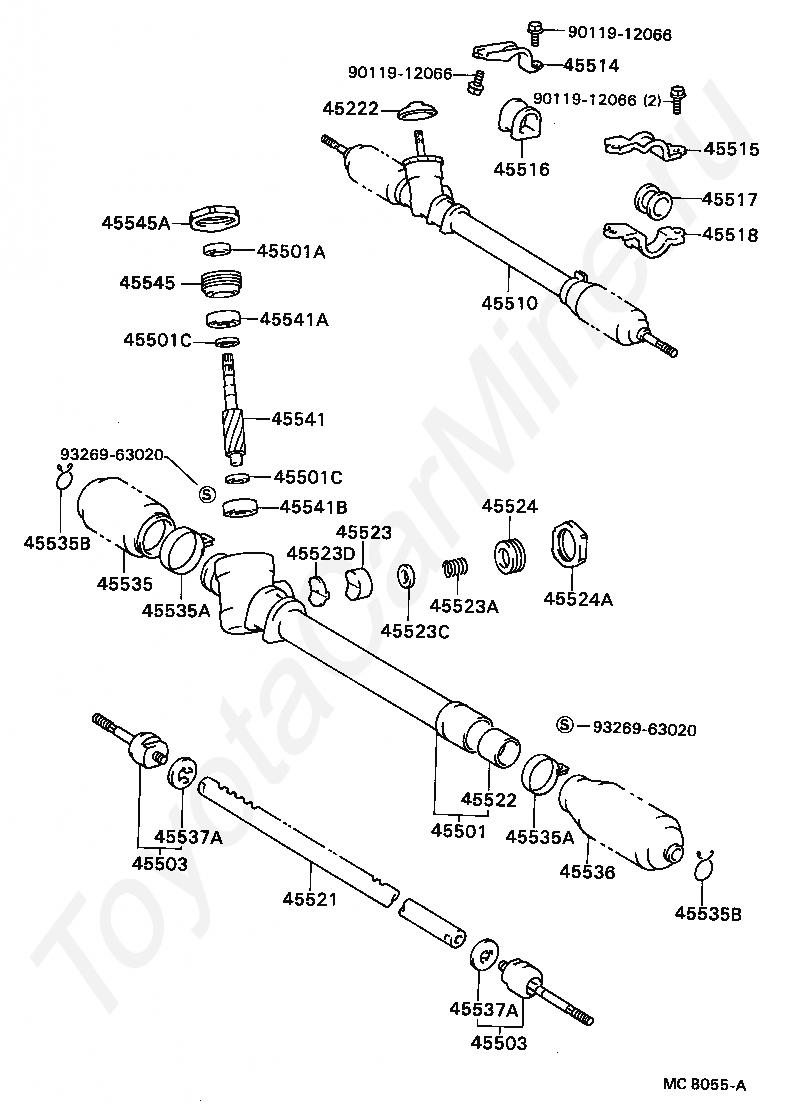

45222
COVER, STEERING GEAR DUST
45501
HOUSING SUB-ASSY, STEERING RACK
45501A
SEAL, TYPE T OIL(FOR STEERING RACK HOUSING)
45501C
SPACER(FOR STEERING RACK HOUSING)
45503
END SUB-ASSY, STEERING RACK
45510
GEAR ASSY, STEERING
45514
BRACKET, STEERING RACK HOUSING, NO.1
45515
BRACKET, STEERING RACK HOUSING, NO.2
45516
GROMMET, STEERING RACK HOUSING, NO.1
45517
GROMMET, STEERING RACK HOUSING, NO.2
45518
BRACKET, STEERING RACK HOUSING, NO.3
45521
RACK, STEERING
45522
BUSH, STEERING RACK
45523
GUIDE, RACK(FOR STEERING GEAR)
45523A
SPRING(FOR STEERING GEAR RACK GUIDE)
45523C
SPACER(FOR RACK GUIDE)
45523D
SEAT, RACK GUIDE
45524
CAP, STEERING RACK GUIDE SPRING
45524A
NUT(FOR STEERING RACK GUIDE SPRING CAP)
45535
BOOT, STEERING RACK, NO.1
45535A
CLAMP(FOR STEERING RACK BOOT)
45535B
CLIP(FOR STEERING RACK BOOT)
45536
BOOT, STEERING RACK, NO.2
45537A
WASHER, CLAW(FOR STEERING RACK END LOCK)
45541
PINION, STEERING
45541A
BEARING, RADIAL BALL(FOR STEERING PINION UPPER)
45541B
BEARING, RADIAL BALL(FOR STEERING PINION LOWER)
45545
SCREW, PINION BEARING ADJUSTING
45545A
NUT(FOR PINION BEARING ADJUSTING SCREW)
9011912066
Крепеж
9326963020
Крепеж
Код
Описание

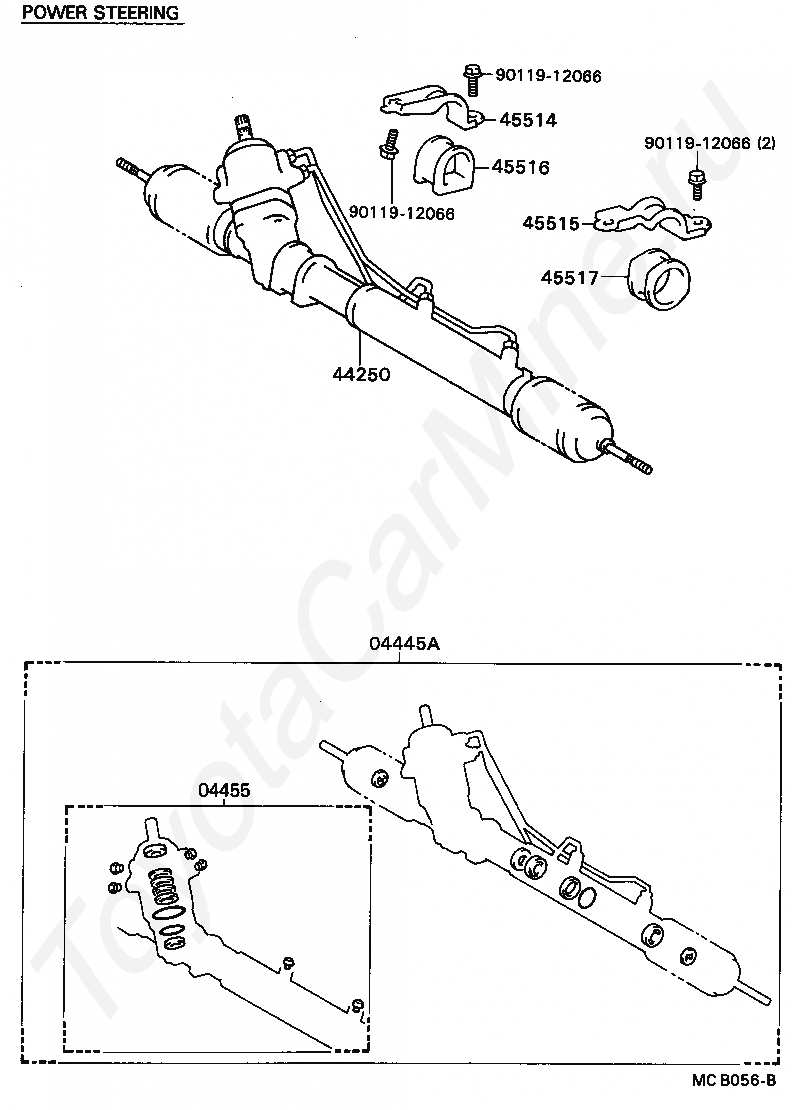

04445A
GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04455
GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
44250
GEAR ASSY, POWER STEERING(FOR RACK & PINION)
45514
BRACKET, STEERING RACK HOUSING, NO.1
45515
BRACKET, STEERING RACK HOUSING, NO.2
45516
GROMMET, STEERING RACK HOUSING, NO.1
45517
GROMMET, STEERING RACK HOUSING, NO.2
9011912066
Крепеж
Код
Описание

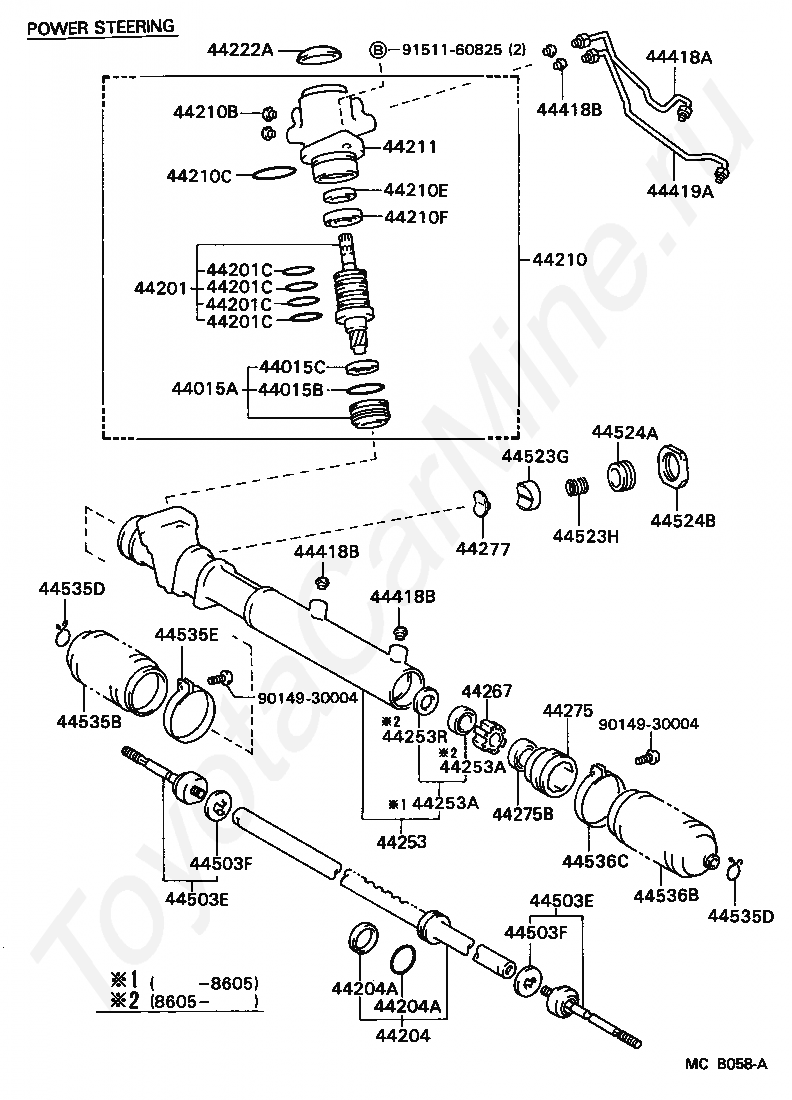

44015A
NUT SUB-ASSY, BEARING GUIDE
44015B
RING, O(FOR BEARING GUIDE NUT)
44015C
SEAL, OIL(FOR BEARING GUIDE NUT)
44201
VALVE SUB-ASSY, POWER STEERING CONTROL
44201C
RING(FOR POWER STEERING CONTROL VALVE)
44204
RACK SUB-ASSY, POWER STEERING
44204A
RING(FOR RACK STEERING PISTON)
44210
VALVE ASSY, POWER STEERING CONTROL
44210B
SEAT, UNION(FOR POWER STEERING CONTROL VALVE)
44210C
RING, O(FOR POWER STEERING CONTROL VALVE)
44210E
SEAL, OIL(FOR POWER STEERING CONTROL VALVE)
44210F
BEARING(FOR POWER STEERING CONTROL VALVE)
44211
HOUSING, CONTROL VALVE
44222A
COVER, DUST(FOR POWER STEERING GEAR)
44253
HOUSING, POWER STEERING RACK
44253A
SEAL, OIL(FOR POWER STEERING RACK HOUSING)
44253R
SPACER(FOR POWER STEERING RACK HOUSING)
44267
GUIDE, RACK END
44275
STOPPER, CYLINDER END
44275B
SEAL, OIL(FOR CYLINDER END STOPPER)
44277
SEAT, RACK GUIDE
44418A
TUBE, STEERING RIGHT TURN PRESSURE
44418B
SEAT, UNION(FOR STEERING TURN PRESSURE TUBE)
44419A
TUBE, STEERING LEFT TURN PRESSURE
44503E
END SUB-ASSY, STEERING RACK(FOR POWER STEERING)
44503F
WASHER, CLAW(FOR POWER STEERING RACK END)
44523G
GUIDE, RACK(FOR POWER STEERING)
44523H
SPRING(FOR POWER STEERING RACK GUIDE)
44524A
CAP, RACK GUIDE SPRING(FOR POWER STEERING)
44524B
NUT(FOR POWER STEERING RACK GUIDE CAP)
44535B
BOOT, STEERING RACK NO.1(FOR POWER STEERING)
44535D
CLIP(FOR POWER STEERING RACK BOOT)
44535E
CLAMP(FOR POWER STEERING RACK BOOT NO.1)
44536B
BOOT, STEERING RACK NO.2(FOR POWER STEERING)
44536C
CLAMP(FOR POWER STEERING RACK BOOT NO.2)
9014930004
Крепеж
9151160825
Крепеж
Код
Описание

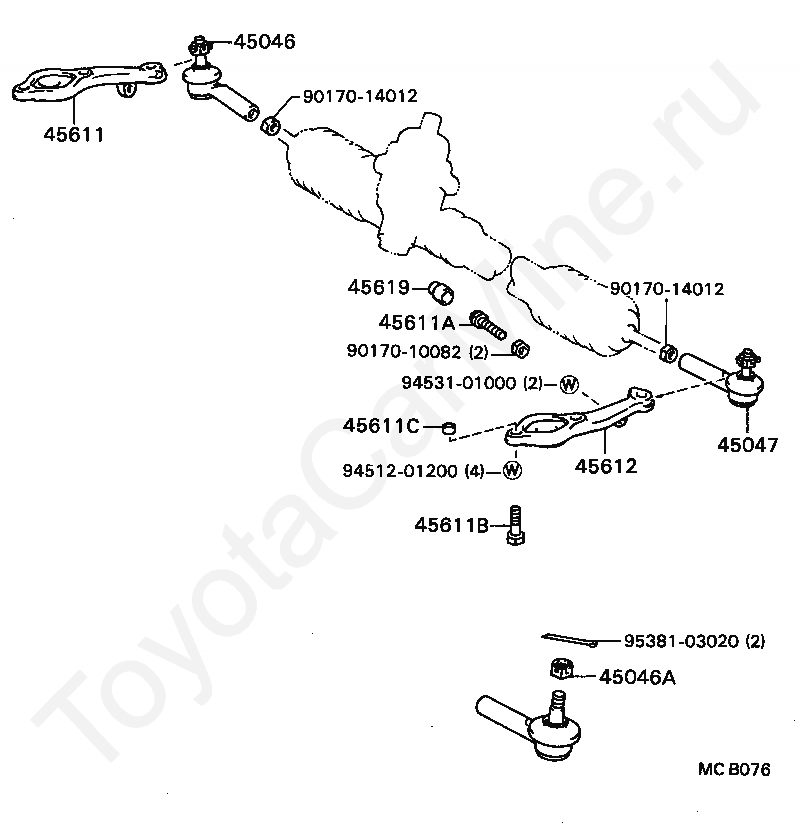

45046
END SUB-ASSY, TIE ROD, RH
45046A
NUT, CASTLE(FOR TIE ROD END)
45047
END SUB-ASSY, TIE ROD, LH
45611
ARM, STEERING KNUCKLE, RH
45611A
BOLT, KNUCKLE STOPPER
45611B
BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
45611C
PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
45612
ARM, STEERING KNUCKLE, LH
45619
COVER, KNUCKLE STOPPER
9017010082
Крепеж
9017014012
Крепеж
9451201200
Крепеж
9453101000
Крепеж
9538103020
Крепеж
