Каталог
ЯпонияМодель
CORSA/TERCELДвигатель
1,5 литра, турбо-дизельКласс
AX-X TYPEФрейм
NL40Трансмиссия
механика МКПП, 5 скоростейОпции
CLEARANCE SONER 4 двери дизель

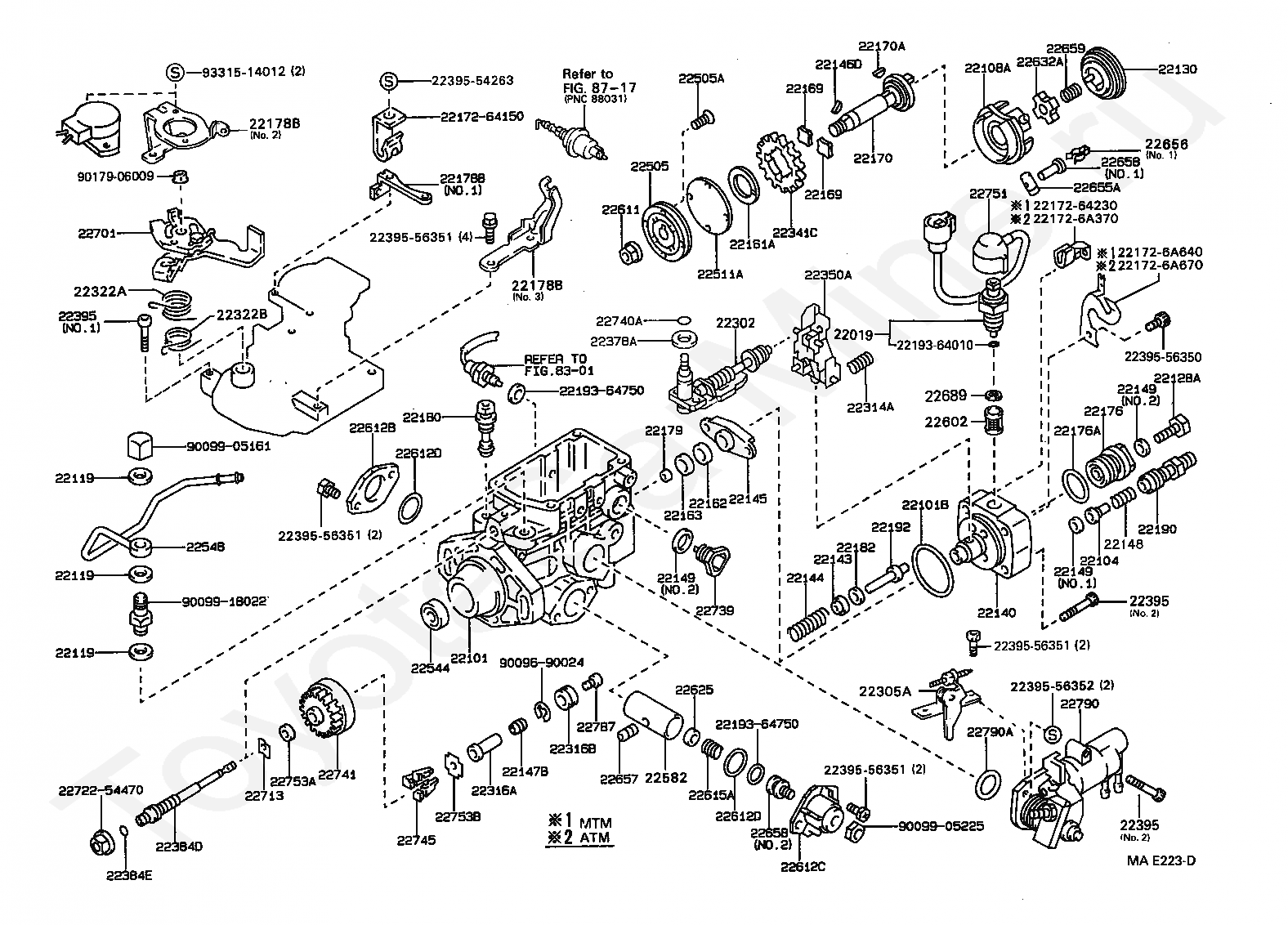

Код
Описание
22019
SOLENOID ASSY, FUEL CUT
22101
HOUSING SUB-ASSY, INJECTION PUMP
22101B
RING, O(FOR INJECTION PUMP HOUSING)
22104
VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22108A
RING SUB-ASSY, ROLLER
22119
WASHER, AIR BLEEDER NIPPLE
22128A
BOLT, DISTRIBUTIVE HEAD
22130
CAMPLATE SUB-ASSY, FACE
22140
HEAD SUB-ASSY, DISTRIBUTIVE PUMP
22143
SEAT, SPRING UPPER
22144
SPRING, PUMP PLUNGER
22145
SEAT, SPRING, LOWER
22146D
KEY(FOR DRIVE GEAR)
22147B
RING, GOVERNOR SLEEVE
22148
SPRING, DELIVERY VALVE
22149
GASKET, DELIVERY VALVE
22161A
WASHER, DRIVE SHAFT
22162
PLATE, PLUNGER UPPER
22163
PLATE, PLUNGER LOWER
22169
JOINT, RUBBER
22170
SHAFT SUB-ASSY, DRIVE
22170A
KEY(FOR DRIVE SHAFT)
2217264150
Крепеж
2217264230
Крепеж
221726A370
Крепеж
221726A640
Крепеж
221726A670
Крепеж
22176
PLUG, DISTRIBUTIVE HEAD
22176A
RING, O(FOR DISTRIBUTIVE HEAD PLUG)
22178B
BRACKET(FOR INJECTION PUMP ASSY)
22179
SHIM, PLUNGER ADJUSTING
22180
VALVE SUB-ASSY, REGULATOR
22182
PLATE, TAPPET ADJUSTING SHIM
22190
VALVE SUB-ASSY, SNUBBER
22192
GUIDE SUB-ASSY, PLUNGER SPRING
2219364010
Крепеж
2219364750
Крепеж
22302
SHAFT SUB-ASSY, SPEED CONTROL
22305A
IDLE-UP SUB-ASSY
22314A
SPRING, LEVER SUPPORT
22316A
SLEEVE, GOVERNOR
22316B
BEARING, BALL(FOR GOVERNOR SLEEVE)
22322A
SPRING, RETURN
22322B
SPRING, RETURN(INNER)
22341C
GEAR, GOVERNOR DRIVE
22350A
GOVERNOR ASSY, TORQUE CONTROL
22378A
WASHER, GOVERNOR THRUST
22384D
SHAFT, GOVERNOR
22384E
RING, O(FOR GOVERNOR MAIN SHAFT)
22395
BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
2239554263
Крепеж
2239556350
Крепеж
2239556351
Крепеж
2239556352
Крепеж
22505
PUMP SUB-ASSY, FUEL FEED
22505A
SCREW(FOR FUEL FEED PUMP)
22511A
COVER, FEED PUMP
22544
SEAL, OIL(FOR INJECTION PUMP DRIVE SHAFT)
22548
NIPPLE, SWIVEL
22582
PISTON ASSY, TIMER
22602
FILTER SUB-ASSY, FUEL INJECTION PUMP
22611
NUT, TIMER ROUND
22612B
COVER, TIMER
22612C
COVER, TIMER
22612D
RING, O(FOR TIMER COVER)
22615A
SPRING, TIMER OUTER
22625
WASHER, TIMER SENSOR ADJUSTING
22632A
COUPLING, INJECTION PUMP
22655A
PIN, TIMER SLIDE
22656
CLIP, TIMER
22657
CLIP, TIMER
22658
STOPPER, TIMER
22659
SPRING, COUPLING
22689
WASHER(FOR SWIVEL NIPPLE)
22701
LEVER SUB-ASSY, ADJUSTING
22713
WASHER, GOVERNOR GEAR ADJUSTING
2272254470
Крепеж
22739
BOLT, GOVERNOR LINK SUPPORT
22740A
RING, O(FOR GOVERNOR ADJUSTING SHAFT)
22741
HOLDER SUB-ASSY, FLYWEIGHT
22745
FLYWEIGHT, DISTRIBUTIVE PUMP
22751
WIRE SUB-ASSY, FUEL CUT SOLENOID
22753A
WASHER, FLYWEIGHT, NO.1
22753B
WASHER, FLYWEIGHT, NO.2
22787
PLUG, GOVERNOR SLEEVE
22790
COVER SUB-ASSY, TIMER
22790A
RING, O(FOR TIMER COVER)
8301
переход к группе запчастей
8717
переход к группе запчастей
9009690024
Крепеж
9009905161
Крепеж
9009905225
Крепеж
9009918022
Крепеж
9017906009
Крепеж
9331514012
Крепеж

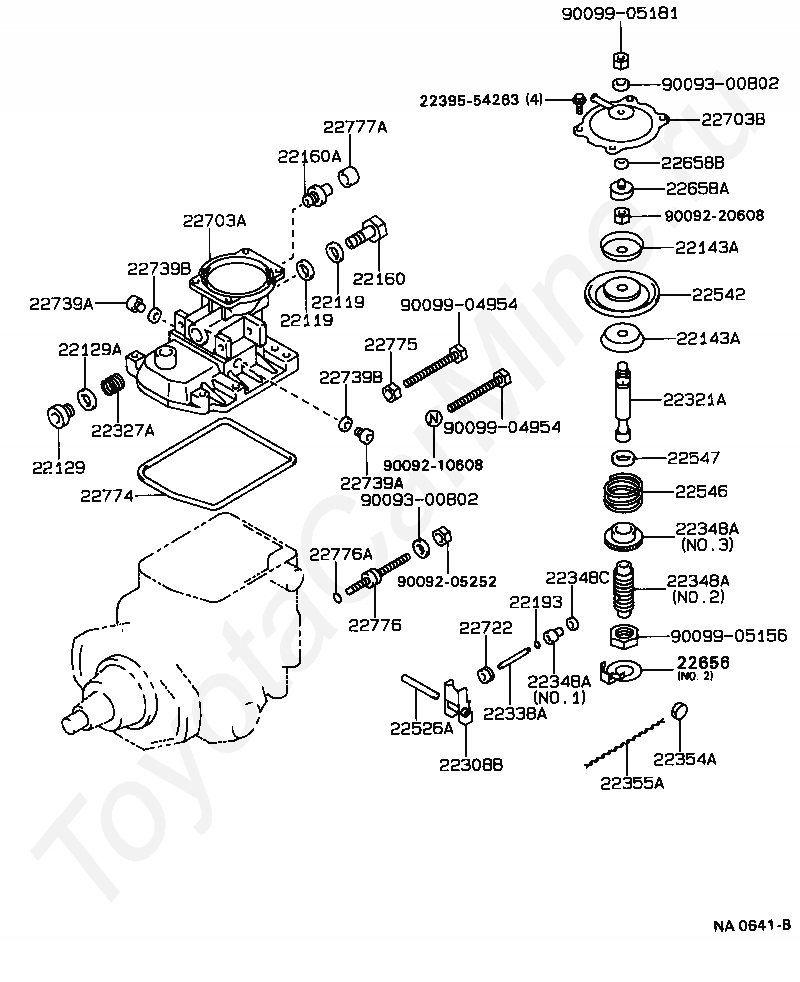

Код
Описание
22119
WASHER, AIR BLEEDER NIPPLE
22129
PLUG, SCREW
22129A
WASHER, AIR BLEEDER NIPPLE(FOR SCREW PLUG)
22143A
SEAT, SPRING UPPER, NO.2
22160
SCREW SUB-ASSY, OVERFLOW
22160A
SCREW SUB-ASSY, OVER FLOW, NO.2
22193
RING, O(FOR LEVER CONNECTING PIN)
22308B
LEVER SUB-ASSY, CONTROL
22321A
ROD, PUSH
22327A
SPRING(FOR BELLOWS)
22338A
PIN, LEVER CONNECTING
22348A
BUSHING, GUIDE
22348C
WASHER(FOR GUIDE BUSHING)
22354A
SEAL, ROD
22355A
WIRE, GOVERNOR HOUSING SEAL
2239554263
Крепеж
22526A
PIN, LEVER SUPPORT
22542
DIAPHRAGM(FOR BOOST COMPENSATOR)
22546
SPRING, BOOST COMPENSATOR
22547
SHIM, BOOST COMPENSATOR
22656
CLIP, TIMER
22658A
STOPPER, TIMER SLIDE
22658B
RING, O(FOR TIMER SLIDE STOPPER)
22703A
COVER SUB-ASSY, GOVERNOR
22703B
COVER, GOVERNOR
22722
NUT, GOVERNOR SHAFT ROCK
22739A
BOLT, GOVERNOR LINK SUPPORT NO.2
22739B
WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2)
22774
GASKET, GOVERNOR COVER
22775
NUT, LOCK(FOR INJECTION PUMP)
22776
SCREW, SMOKE SET ADJUSTING
22776A
RING, O(FOR SMOKE SET SCREW)
22777A
CAP, RUBBER(FOR ALTITUDE COMPENSATING TIMER ADVANCER)
9009205252
Крепеж
9009210608
Крепеж
9009220608
Крепеж
9009300802
Крепеж
9009904954
Крепеж
9009905156
Крепеж
9009905181
Крепеж
