Каталог
Ближний ВостокМодель
CORONA/CARINA 2Двигатель
2 литраКузов
фургонКласс
XL SPECIFICATIONФрейм
ST171Трансмиссия
механика МКПП, 5 скоростейОпции

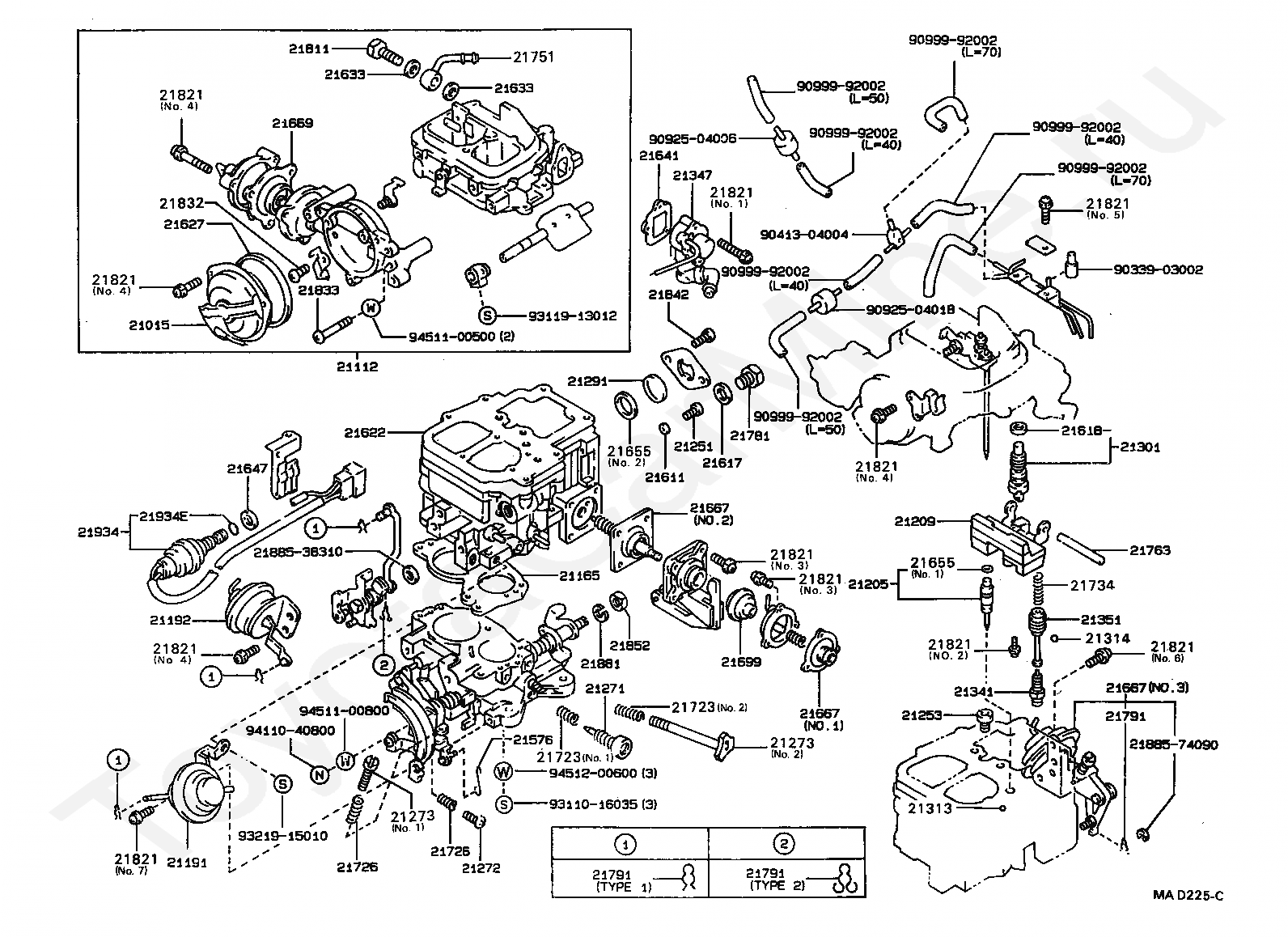

правый руль GENERAL COUNTRIES STANDARD CARBURETOR SPECIFICATION
Код
Описание
21015
HOUSING SUB-ASSY, COIL
21112
HORN, AIR
21165
INSULATOR
21191
OPENER
21192
BREAKER
21205
JET SUB-ASSY, SLOW
21209
FLOAT SUB-ASSY
21251
JET, 1ST MAIN
21253
JET, 2ND MAIN
21271
SCREW, IDLE ADJUSTING
21272
SCREW, 1ST IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21291
GLASS, LEVEL GAGE
21301
VALVE SUB-ASSY, NEEDLE
21313
BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314
BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21341
VALVE, POWER
21347
VALVE, SOLENOID
21351
PISTON, POWER
21576
CLIP, PUMP STRAINER
21611
GASKET, MAIN JET
21617
GASKET, MAIN PASSAGE PLUG
21618
GASKET, NEEDLE VALVE SEAT
21622
GASKET, AIR HORN
21627
GASKET, COIL HOUSING
21633
GASKET, UNION NIPPLE
21641
GASKET(FOR THERMOSTATIC VALVE COVER)
21647
GASKET, DIAPHRAGM HOUSING CAP
21655
RING, O(FOR LIFTER ROD)
21667
DIAPHRAGM
21669
DIAPHRAGM
21699
BOOT(FOR PUMP PLUNGER)
21723
SPRING, IDLE ADJUSTING
21726
SPRING, 1ST IDLE ADJUSTING
21734
SPRING, POWER PISTON
21751
UNION, NIPPLE
21763
PIN, FLOAT LEVER
21781
PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
21811
BOLT, UNION NIPPLE
21821
SCREW, 2ND THROTTLE VALVE SET
21832
SCREW(FOR CHOKE LEVER ADAPTER SET)
21833
SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21842
SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21852
NUT, THROTTLE LEVER SET
21881
WASHER, LOCK(FOR THROTTLE SHAFT)
2188538310
Крепеж
2188574090
Крепеж
21934
SOLENOID, THROTTLE VALVE
21934E
RING, O(FOR SOLENOID VALVE)
9033903002
Крепеж
9041304004
Крепеж
9092504006
Крепеж
9092504018
Крепеж
9099992002
Крепеж
9311016035
Крепеж
9311913012
Крепеж
9321915010
Крепеж
9411040800
Крепеж
9451100500
Крепеж
9451100800
Крепеж
9451200600
Крепеж
