Каталог
Ближний ВостокМодель
CORONA/CARINA 2Двигатель
2 литраКузов
фургонКласс
XL SPECIFICATIONФрейм
ST171Трансмиссия
механика МКПП, 5 скоростейОпции
правый руль GENERAL COUNTRIES STANDARD CARBURETOR SPECIFICATION

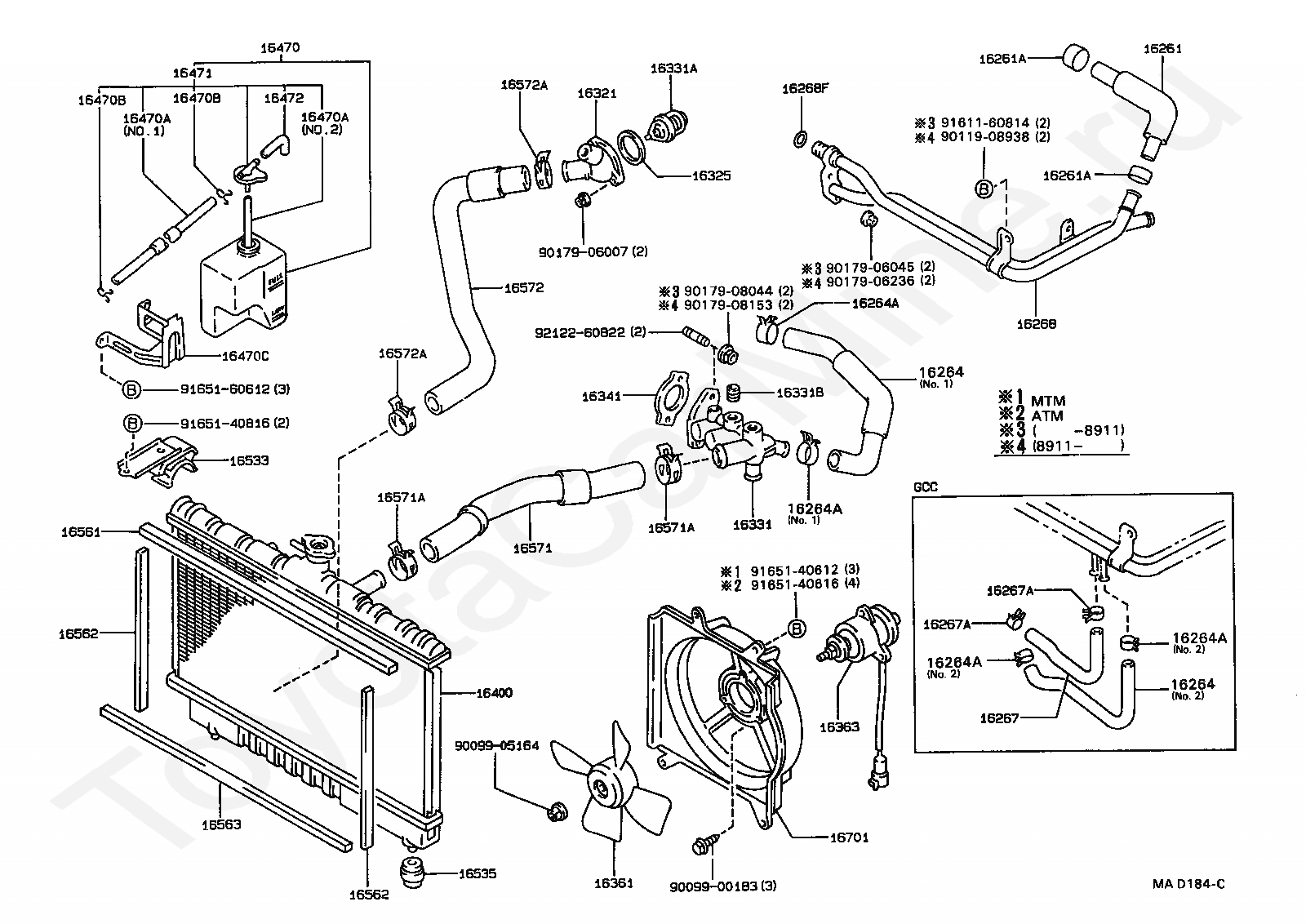

Код
Описание
16261
HOSE, WATER BY-PASS
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16267
HOSE, WATER BY-PASS, NO.3
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16268
PIPE, WATER BY-PASS, NO.1
16268F
RING, O(FOR WATER BY-PASS PIPE)
16321
INLET, WATER
16325
GASKET, WATER INLET HOUSING, NO.1
16331
OUTLET, WATER
16331A
THERMOSTAT
16331B
PLUG(FOR WATER OUTLET)
16341
GASKET, WATER OUTLET
16361
FAN
16363
MOTOR, COOLING FAN
16400
RADIATOR ASSY
16470
TANK ASSY, RADIATOR RESERVE
16470A
HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470B
CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470C
BRACKET(FOR RADIATOR RESERVE TANK)
16471
CAP SUB-ASSY, RESERVE TANK
16472
HOSE, BREATHER
16533
SUPPORT, RADIATOR, UPPER
16535
SUPPORT, RADIATOR, LOWER
16561
SEAL, RADIATOR TO SUPPORT, NO.1
16562
SEAL, RADIATOR TO SUPPORT, NO.2
16563
SEAL, RADIATOR TO SUPPORT, NO.3
16571
HOSE, RADIATOR, INLET
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572
HOSE, RADIATOR, OUTLET
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16701
SHROUD SUB-ASSY, FAN
9009900183
Крепеж
9009905164
Крепеж
9011908938
Крепеж
9017906007
Крепеж
9017906045
Крепеж
9017906236
Крепеж
9017908044
Крепеж
9017908153
Крепеж
9161160814
Крепеж
9165140612
Крепеж
9165140616
Крепеж
9165140816
Крепеж
9165160612
Крепеж
9212260822
Крепеж

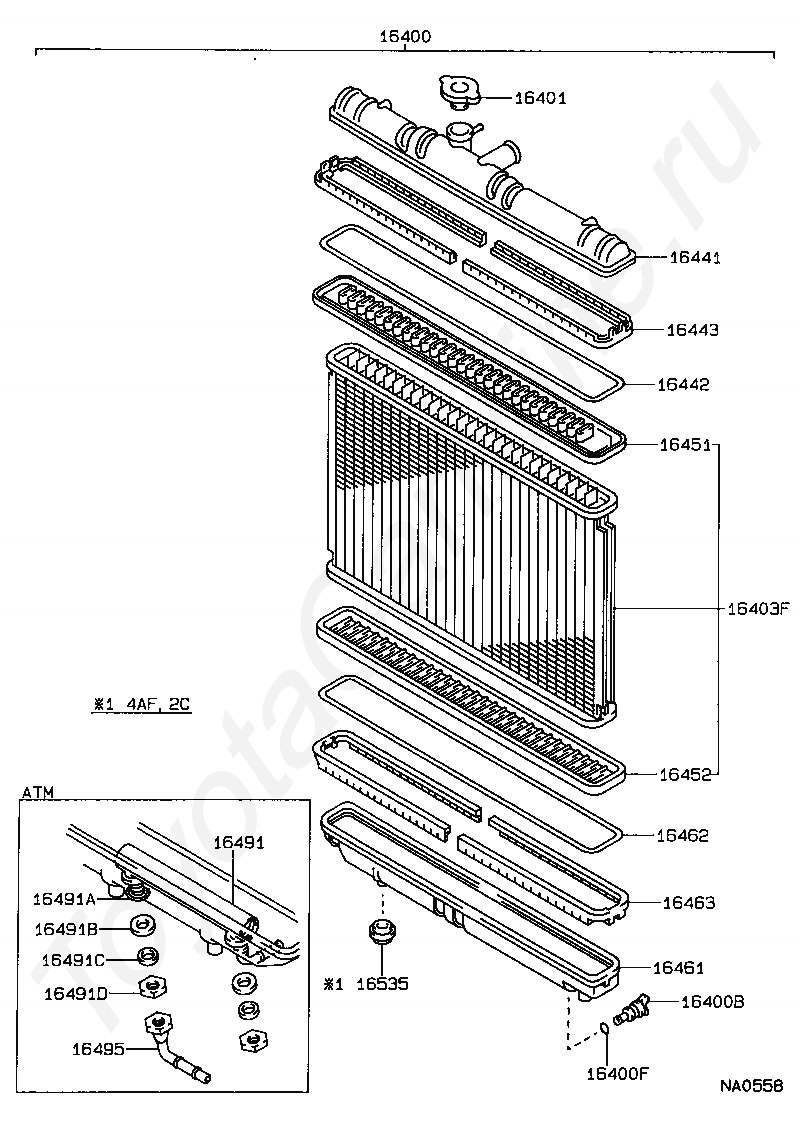

Код
Описание
16400
RADIATOR ASSY
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16401
CAP SUB-ASSY, RADIATOR
16403F
CORE SUB-ASSY, RADIATOR
16441
TANK, RADIATOR, UPPER
16442
RING, O(FOR RADIATOR UPPER TANK)
16443
PLATE, RADIATOR TANK, LOCK, UPPER
16451
PLATE, RADIATOR CORE, UPPER
16452
PLATE, RADIATOR CORE, LOWER
16461
TANK, RADIATOR, LOWER
16462
RING, O(FOR RADIATOR LOWER TANK)
16463
PLATE, RADIATOR TANK, LOCK, LOWER
16491
COOLER, OIL(FOR ATM)
16491A
RING, O(FOR ATM OIL COOLER)
16491B
WASHER, PLATE(FOR ATM OIL COOLER)
16491C
WASHER, SPRING(FOR ATM OIL COOLER)
16491D
NUT(FOR ATM OIL COOLER)
16495
NUT, FLARE(FOR ATM OIL COOLER)
16535
SUPPORT, RADIATOR, LOWER
Код
Описание
16261
HOSE, WATER BY-PASS
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16267
HOSE, WATER BY-PASS, NO.3
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16268
PIPE, WATER BY-PASS, NO.1
16268F
RING, O(FOR WATER BY-PASS PIPE)
16321
INLET, WATER
16325
GASKET, WATER INLET HOUSING, NO.1
16331
OUTLET, WATER
16331A
THERMOSTAT
16331B
PLUG(FOR WATER OUTLET)
16341
GASKET, WATER OUTLET
16361
FAN
16363
MOTOR, COOLING FAN
16400
RADIATOR ASSY
16470
TANK ASSY, RADIATOR RESERVE
16470A
HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470B
CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470C
BRACKET(FOR RADIATOR RESERVE TANK)
16471
CAP SUB-ASSY, RESERVE TANK
16472
HOSE, BREATHER
16533
SUPPORT, RADIATOR, UPPER
16535
SUPPORT, RADIATOR, LOWER
16561
SEAL, RADIATOR TO SUPPORT, NO.1
16562
SEAL, RADIATOR TO SUPPORT, NO.2
16563
SEAL, RADIATOR TO SUPPORT, NO.3
16571
HOSE, RADIATOR, INLET
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572
HOSE, RADIATOR, OUTLET
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16701
SHROUD SUB-ASSY, FAN
9009900183
Крепеж
9009905164
Крепеж
9011908938
Крепеж
9017906007
Крепеж
9017906045
Крепеж
9017906236
Крепеж
9017908044
Крепеж
9017908153
Крепеж
9161160814
Крепеж
9165140612
Крепеж
9165140616
Крепеж
9165140816
Крепеж
9165160612
Крепеж
9212260822
Крепеж
Код
Описание
16400
RADIATOR ASSY
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16401
CAP SUB-ASSY, RADIATOR
16403F
CORE SUB-ASSY, RADIATOR
16441
TANK, RADIATOR, UPPER
16442
RING, O(FOR RADIATOR UPPER TANK)
16443
PLATE, RADIATOR TANK, LOCK, UPPER
16451
PLATE, RADIATOR CORE, UPPER
16452
PLATE, RADIATOR CORE, LOWER
16461
TANK, RADIATOR, LOWER
16462
RING, O(FOR RADIATOR LOWER TANK)
16463
PLATE, RADIATOR TANK, LOCK, LOWER
16491
COOLER, OIL(FOR ATM)
16491A
RING, O(FOR ATM OIL COOLER)
16491B
WASHER, PLATE(FOR ATM OIL COOLER)
16491C
WASHER, SPRING(FOR ATM OIL COOLER)
16491D
NUT(FOR ATM OIL COOLER)
16495
NUT, FLARE(FOR ATM OIL COOLER)
16535
SUPPORT, RADIATOR, LOWER
Код
Описание
16261
HOSE, WATER BY-PASS
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16267
HOSE, WATER BY-PASS, NO.3
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16268
PIPE, WATER BY-PASS, NO.1
16268F
RING, O(FOR WATER BY-PASS PIPE)
16321
INLET, WATER
16325
GASKET, WATER INLET HOUSING, NO.1
16331
OUTLET, WATER
16331A
THERMOSTAT
16331B
PLUG(FOR WATER OUTLET)
16341
GASKET, WATER OUTLET
16361
FAN
16363
MOTOR, COOLING FAN
16400
RADIATOR ASSY
16470
TANK ASSY, RADIATOR RESERVE
16470A
HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470B
CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470C
BRACKET(FOR RADIATOR RESERVE TANK)
16471
CAP SUB-ASSY, RESERVE TANK
16472
HOSE, BREATHER
16533
SUPPORT, RADIATOR, UPPER
16535
SUPPORT, RADIATOR, LOWER
16561
SEAL, RADIATOR TO SUPPORT, NO.1
16562
SEAL, RADIATOR TO SUPPORT, NO.2
16563
SEAL, RADIATOR TO SUPPORT, NO.3
16571
HOSE, RADIATOR, INLET
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572
HOSE, RADIATOR, OUTLET
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16701
SHROUD SUB-ASSY, FAN
9009900183
Крепеж
9009905164
Крепеж
9011908938
Крепеж
9017906007
Крепеж
9017906045
Крепеж
9017906236
Крепеж
9017908044
Крепеж
9017908153
Крепеж
9161160814
Крепеж
9165140612
Крепеж
9165140616
Крепеж
9165140816
Крепеж
9165160612
Крепеж
9212260822
Крепеж
Код
Описание
16400
RADIATOR ASSY
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16401
CAP SUB-ASSY, RADIATOR
16403F
CORE SUB-ASSY, RADIATOR
16441
TANK, RADIATOR, UPPER
16442
RING, O(FOR RADIATOR UPPER TANK)
16443
PLATE, RADIATOR TANK, LOCK, UPPER
16451
PLATE, RADIATOR CORE, UPPER
16452
PLATE, RADIATOR CORE, LOWER
16461
TANK, RADIATOR, LOWER
16462
RING, O(FOR RADIATOR LOWER TANK)
16463
PLATE, RADIATOR TANK, LOCK, LOWER
16491
COOLER, OIL(FOR ATM)
16491A
RING, O(FOR ATM OIL COOLER)
16491B
WASHER, PLATE(FOR ATM OIL COOLER)
16491C
WASHER, SPRING(FOR ATM OIL COOLER)
16491D
NUT(FOR ATM OIL COOLER)
16495
NUT, FLARE(FOR ATM OIL COOLER)
16535
SUPPORT, RADIATOR, LOWER
Код
Описание
16261
HOSE, WATER BY-PASS
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16267
HOSE, WATER BY-PASS, NO.3
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16268
PIPE, WATER BY-PASS, NO.1
16268F
RING, O(FOR WATER BY-PASS PIPE)
16321
INLET, WATER
16325
GASKET, WATER INLET HOUSING, NO.1
16331
OUTLET, WATER
16331A
THERMOSTAT
16331B
PLUG(FOR WATER OUTLET)
16341
GASKET, WATER OUTLET
16361
FAN
16363
MOTOR, COOLING FAN
16400
RADIATOR ASSY
16470
TANK ASSY, RADIATOR RESERVE
16470A
HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470B
CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470C
BRACKET(FOR RADIATOR RESERVE TANK)
16471
CAP SUB-ASSY, RESERVE TANK
16472
HOSE, BREATHER
16533
SUPPORT, RADIATOR, UPPER
16535
SUPPORT, RADIATOR, LOWER
16561
SEAL, RADIATOR TO SUPPORT, NO.1
16562
SEAL, RADIATOR TO SUPPORT, NO.2
16563
SEAL, RADIATOR TO SUPPORT, NO.3
16571
HOSE, RADIATOR, INLET
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572
HOSE, RADIATOR, OUTLET
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16701
SHROUD SUB-ASSY, FAN
9009900183
Крепеж
9009905164
Крепеж
9011908938
Крепеж
9017906007
Крепеж
9017906045
Крепеж
9017906236
Крепеж
9017908044
Крепеж
9017908153
Крепеж
9161160814
Крепеж
9165140612
Крепеж
9165140616
Крепеж
9165140816
Крепеж
9165160612
Крепеж
9212260822
Крепеж
Код
Описание
16400
RADIATOR ASSY
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16401
CAP SUB-ASSY, RADIATOR
16403F
CORE SUB-ASSY, RADIATOR
16441
TANK, RADIATOR, UPPER
16442
RING, O(FOR RADIATOR UPPER TANK)
16443
PLATE, RADIATOR TANK, LOCK, UPPER
16451
PLATE, RADIATOR CORE, UPPER
16452
PLATE, RADIATOR CORE, LOWER
16461
TANK, RADIATOR, LOWER
16462
RING, O(FOR RADIATOR LOWER TANK)
16463
PLATE, RADIATOR TANK, LOCK, LOWER
16491
COOLER, OIL(FOR ATM)
16491A
RING, O(FOR ATM OIL COOLER)
16491B
WASHER, PLATE(FOR ATM OIL COOLER)
16491C
WASHER, SPRING(FOR ATM OIL COOLER)
16491D
NUT(FOR ATM OIL COOLER)
16495
NUT, FLARE(FOR ATM OIL COOLER)
16535
SUPPORT, RADIATOR, LOWER
Код
Описание
16261
HOSE, WATER BY-PASS
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16267
HOSE, WATER BY-PASS, NO.3
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16268
PIPE, WATER BY-PASS, NO.1
16268F
RING, O(FOR WATER BY-PASS PIPE)
16321
INLET, WATER
16325
GASKET, WATER INLET HOUSING, NO.1
16331
OUTLET, WATER
16331A
THERMOSTAT
16331B
PLUG(FOR WATER OUTLET)
16341
GASKET, WATER OUTLET
16361
FAN
16363
MOTOR, COOLING FAN
16400
RADIATOR ASSY
16470
TANK ASSY, RADIATOR RESERVE
16470A
HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470B
CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470C
BRACKET(FOR RADIATOR RESERVE TANK)
16471
CAP SUB-ASSY, RESERVE TANK
16472
HOSE, BREATHER
16533
SUPPORT, RADIATOR, UPPER
16535
SUPPORT, RADIATOR, LOWER
16561
SEAL, RADIATOR TO SUPPORT, NO.1
16562
SEAL, RADIATOR TO SUPPORT, NO.2
16563
SEAL, RADIATOR TO SUPPORT, NO.3
16571
HOSE, RADIATOR, INLET
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572
HOSE, RADIATOR, OUTLET
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16701
SHROUD SUB-ASSY, FAN
9009900183
Крепеж
9009905164
Крепеж
9011908938
Крепеж
9017906007
Крепеж
9017906045
Крепеж
9017906236
Крепеж
9017908044
Крепеж
9017908153
Крепеж
9161160814
Крепеж
9165140612
Крепеж
9165140616
Крепеж
9165140816
Крепеж
9165160612
Крепеж
9212260822
Крепеж
Код
Описание
16400
RADIATOR ASSY
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16401
CAP SUB-ASSY, RADIATOR
16403F
CORE SUB-ASSY, RADIATOR
16441
TANK, RADIATOR, UPPER
16442
RING, O(FOR RADIATOR UPPER TANK)
16443
PLATE, RADIATOR TANK, LOCK, UPPER
16451
PLATE, RADIATOR CORE, UPPER
16452
PLATE, RADIATOR CORE, LOWER
16461
TANK, RADIATOR, LOWER
16462
RING, O(FOR RADIATOR LOWER TANK)
16463
PLATE, RADIATOR TANK, LOCK, LOWER
16491
COOLER, OIL(FOR ATM)
16491A
RING, O(FOR ATM OIL COOLER)
16491B
WASHER, PLATE(FOR ATM OIL COOLER)
16491C
WASHER, SPRING(FOR ATM OIL COOLER)
16491D
NUT(FOR ATM OIL COOLER)
16495
NUT, FLARE(FOR ATM OIL COOLER)
16535
SUPPORT, RADIATOR, LOWER
Код
Описание
16261
HOSE, WATER BY-PASS
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16267
HOSE, WATER BY-PASS, NO.3
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16268
PIPE, WATER BY-PASS, NO.1
16268F
RING, O(FOR WATER BY-PASS PIPE)
16321
INLET, WATER
16325
GASKET, WATER INLET HOUSING, NO.1
16331
OUTLET, WATER
16331A
THERMOSTAT
16331B
PLUG(FOR WATER OUTLET)
16341
GASKET, WATER OUTLET
16361
FAN
16363
MOTOR, COOLING FAN
16400
RADIATOR ASSY
16470
TANK ASSY, RADIATOR RESERVE
16470A
HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470B
CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470C
BRACKET(FOR RADIATOR RESERVE TANK)
16471
CAP SUB-ASSY, RESERVE TANK
16472
HOSE, BREATHER
16533
SUPPORT, RADIATOR, UPPER
16535
SUPPORT, RADIATOR, LOWER
16561
SEAL, RADIATOR TO SUPPORT, NO.1
16562
SEAL, RADIATOR TO SUPPORT, NO.2
16563
SEAL, RADIATOR TO SUPPORT, NO.3
16571
HOSE, RADIATOR, INLET
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572
HOSE, RADIATOR, OUTLET
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16701
SHROUD SUB-ASSY, FAN
9009900183
Крепеж
9009905164
Крепеж
9011908938
Крепеж
9017906007
Крепеж
9017906045
Крепеж
9017906236
Крепеж
9017908044
Крепеж
9017908153
Крепеж
9161160814
Крепеж
9165140612
Крепеж
9165140616
Крепеж
9165140816
Крепеж
9165160612
Крепеж
9212260822
Крепеж
Код
Описание
16400
RADIATOR ASSY
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16401
CAP SUB-ASSY, RADIATOR
16403F
CORE SUB-ASSY, RADIATOR
16441
TANK, RADIATOR, UPPER
16442
RING, O(FOR RADIATOR UPPER TANK)
16443
PLATE, RADIATOR TANK, LOCK, UPPER
16451
PLATE, RADIATOR CORE, UPPER
16452
PLATE, RADIATOR CORE, LOWER
16461
TANK, RADIATOR, LOWER
16462
RING, O(FOR RADIATOR LOWER TANK)
16463
PLATE, RADIATOR TANK, LOCK, LOWER
16491
COOLER, OIL(FOR ATM)
16491A
RING, O(FOR ATM OIL COOLER)
16491B
WASHER, PLATE(FOR ATM OIL COOLER)
16491C
WASHER, SPRING(FOR ATM OIL COOLER)
16491D
NUT(FOR ATM OIL COOLER)
16495
NUT, FLARE(FOR ATM OIL COOLER)
16535
SUPPORT, RADIATOR, LOWER
Код
Описание
16261
HOSE, WATER BY-PASS
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16267
HOSE, WATER BY-PASS, NO.3
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16268
PIPE, WATER BY-PASS, NO.1
16268F
RING, O(FOR WATER BY-PASS PIPE)
16321
INLET, WATER
16325
GASKET, WATER INLET HOUSING, NO.1
16331
OUTLET, WATER
16331A
THERMOSTAT
16331B
PLUG(FOR WATER OUTLET)
16341
GASKET, WATER OUTLET
16361
FAN
16363
MOTOR, COOLING FAN
16400
RADIATOR ASSY
16470
TANK ASSY, RADIATOR RESERVE
16470A
HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470B
CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470C
BRACKET(FOR RADIATOR RESERVE TANK)
16471
CAP SUB-ASSY, RESERVE TANK
16472
HOSE, BREATHER
16533
SUPPORT, RADIATOR, UPPER
16535
SUPPORT, RADIATOR, LOWER
16561
SEAL, RADIATOR TO SUPPORT, NO.1
16562
SEAL, RADIATOR TO SUPPORT, NO.2
16563
SEAL, RADIATOR TO SUPPORT, NO.3
16571
HOSE, RADIATOR, INLET
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572
HOSE, RADIATOR, OUTLET
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16701
SHROUD SUB-ASSY, FAN
9009900183
Крепеж
9009905164
Крепеж
9011908938
Крепеж
9017906007
Крепеж
9017906045
Крепеж
9017906236
Крепеж
9017908044
Крепеж
9017908153
Крепеж
9161160814
Крепеж
9165140612
Крепеж
9165140616
Крепеж
9165140816
Крепеж
9165160612
Крепеж
9212260822
Крепеж
Код
Описание
16400
RADIATOR ASSY
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16401
CAP SUB-ASSY, RADIATOR
16403F
CORE SUB-ASSY, RADIATOR
16441
TANK, RADIATOR, UPPER
16442
RING, O(FOR RADIATOR UPPER TANK)
16443
PLATE, RADIATOR TANK, LOCK, UPPER
16451
PLATE, RADIATOR CORE, UPPER
16452
PLATE, RADIATOR CORE, LOWER
16461
TANK, RADIATOR, LOWER
16462
RING, O(FOR RADIATOR LOWER TANK)
16463
PLATE, RADIATOR TANK, LOCK, LOWER
16491
COOLER, OIL(FOR ATM)
16491A
RING, O(FOR ATM OIL COOLER)
16491B
WASHER, PLATE(FOR ATM OIL COOLER)
16491C
WASHER, SPRING(FOR ATM OIL COOLER)
16491D
NUT(FOR ATM OIL COOLER)
16495
NUT, FLARE(FOR ATM OIL COOLER)
16535
SUPPORT, RADIATOR, LOWER
Код
Описание
16261
HOSE, WATER BY-PASS
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16267
HOSE, WATER BY-PASS, NO.3
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16268
PIPE, WATER BY-PASS, NO.1
16268F
RING, O(FOR WATER BY-PASS PIPE)
16321
INLET, WATER
16325
GASKET, WATER INLET HOUSING, NO.1
16331
OUTLET, WATER
16331A
THERMOSTAT
16331B
PLUG(FOR WATER OUTLET)
16341
GASKET, WATER OUTLET
16361
FAN
16363
MOTOR, COOLING FAN
16400
RADIATOR ASSY
16470
TANK ASSY, RADIATOR RESERVE
16470A
HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470B
CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470C
BRACKET(FOR RADIATOR RESERVE TANK)
16471
CAP SUB-ASSY, RESERVE TANK
16472
HOSE, BREATHER
16533
SUPPORT, RADIATOR, UPPER
16535
SUPPORT, RADIATOR, LOWER
16561
SEAL, RADIATOR TO SUPPORT, NO.1
16562
SEAL, RADIATOR TO SUPPORT, NO.2
16563
SEAL, RADIATOR TO SUPPORT, NO.3
16571
HOSE, RADIATOR, INLET
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572
HOSE, RADIATOR, OUTLET
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16701
SHROUD SUB-ASSY, FAN
9009900183
Крепеж
9009905164
Крепеж
9011908938
Крепеж
9017906007
Крепеж
9017906045
Крепеж
9017906236
Крепеж
9017908044
Крепеж
9017908153
Крепеж
9161160814
Крепеж
9165140612
Крепеж
9165140616
Крепеж
9165140816
Крепеж
9165160612
Крепеж
9212260822
Крепеж
Код
Описание
16400
RADIATOR ASSY
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16401
CAP SUB-ASSY, RADIATOR
16403F
CORE SUB-ASSY, RADIATOR
16441
TANK, RADIATOR, UPPER
16442
RING, O(FOR RADIATOR UPPER TANK)
16443
PLATE, RADIATOR TANK, LOCK, UPPER
16451
PLATE, RADIATOR CORE, UPPER
16452
PLATE, RADIATOR CORE, LOWER
16461
TANK, RADIATOR, LOWER
16462
RING, O(FOR RADIATOR LOWER TANK)
16463
PLATE, RADIATOR TANK, LOCK, LOWER
16491
COOLER, OIL(FOR ATM)
16491A
RING, O(FOR ATM OIL COOLER)
16491B
WASHER, PLATE(FOR ATM OIL COOLER)
16491C
WASHER, SPRING(FOR ATM OIL COOLER)
16491D
NUT(FOR ATM OIL COOLER)
16495
NUT, FLARE(FOR ATM OIL COOLER)
16535
SUPPORT, RADIATOR, LOWER
Наш менеджер перезвонит в ближайшее время
