Топливный бак и горловина TOYOTA COROLLA, 1994/01 - 2002/06, 1,3 литра, 16 клапанов, DOHC, EFI, V(MODEL MARK), DX-J TYPE, EE102, автомат, АКПП, 3 ступени

Каталог

Япония

Модель

COROLLA

Двигатель

1,3 литра, 16 клапанов, DOHC, EFI

Кузов

V(MODEL MARK)

Класс

DX-J TYPE

Фрейм

EE102

Трансмиссия

автомат АКПП, 3 ступени

Опции

5-местный

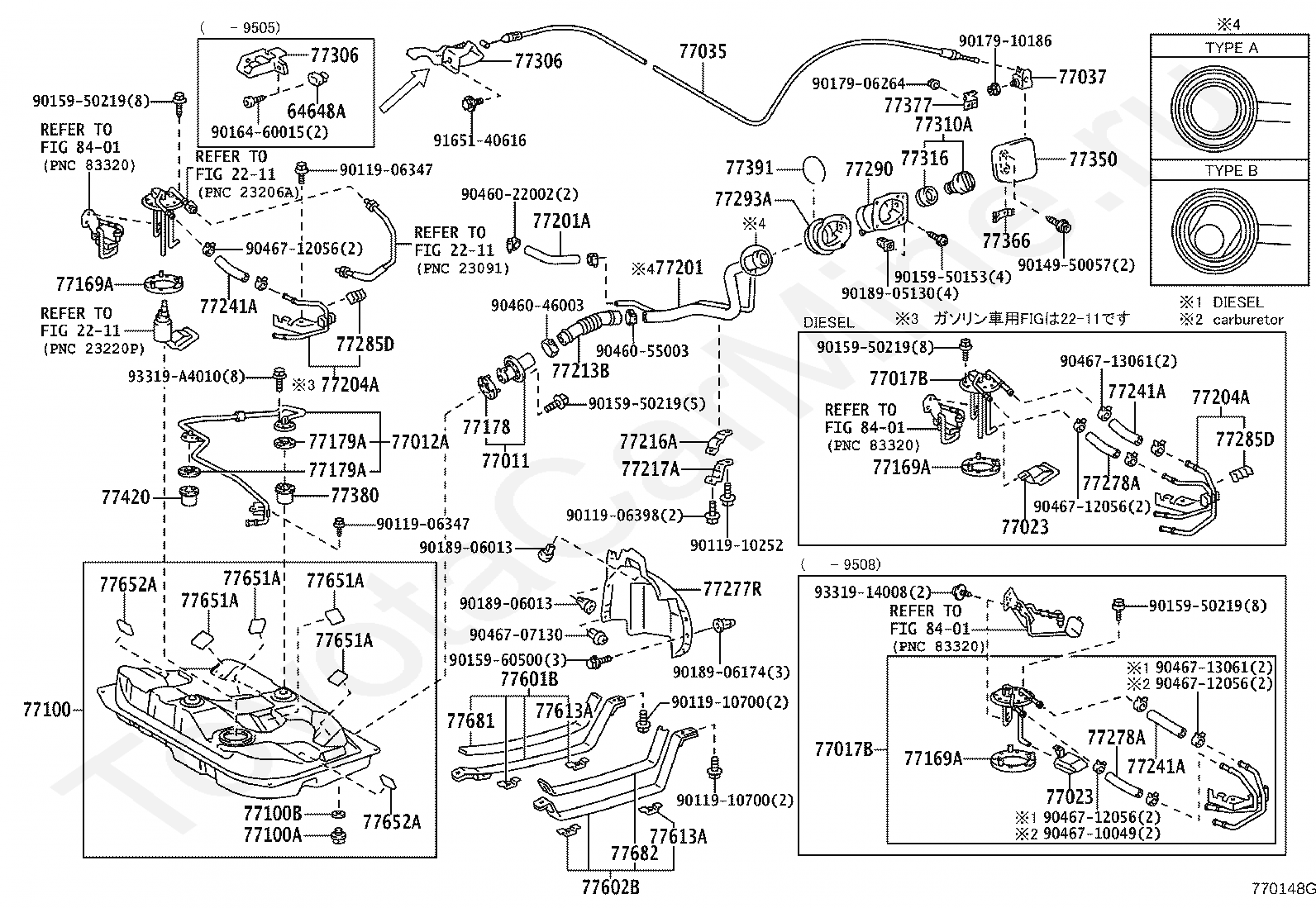

Код

Описание

2211

переход к группе запчастей

64648A

GROMMET, LUGGAGE DOOR LOCK OPENER

77011

PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

77012A

TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

77017B

TUBE SUB-ASSY, FUEL TANK VENT

77023

FILTER SUB-ASSY, FUEL SUCTION TUBE

77035

CABLE SUB-ASSY, FUEL LID LOCK CONTROL

77037

LOCK SUB-ASSY, FUEL FILLER OPENING LID

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77169A

GASKET, FUEL SUCTION TUBE SET

77178

GASKET, FUEL TANK FILLER PIPE, LOWER

77179A

GASKET, FUEL TANK BREATHER TUBE

77201

PIPE SUB-ASSY, FUEL TANK INLET

77201A

HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

77204A

TUBE, FUEL TANK RETURN

77213B

HOSE, FUEL TANK TO FILLER PIPE

77216A

SUPPORT, FUEL TANK FILLER PIPE, NO.1

77217A

SUPPORT, FUEL TANK FILLER PIPE, NO.2

77241A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

77277R

PROTECTOR, FUEL TANK FILLER PIPE

77278A

HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)

77285D

CLAMP, FUEL TUBE, NO.1

77290

SHIELD ASSY, FUEL TANK FILLER PIPE

77293A

SHIELD, FUEL TANK FILLER PIPE, NO.3

77306

LEVER SUB-ASSY, FUEL LID LOCK OPEN

77310A

CAP ASSY, FUEL TANK

77316

GASKET, FUEL TANK CAP

77350

LID ASSY, FUEL FILLER OPENING

77366

SPRING, FUEL FILLER OPENING LID HINGE

77377

RETAINER, FUEL FILLER OPENING LID LOCK

77380

VALVE ASSY, FUEL CUT OFF

77391

RING, FUEL INLET BOX

77420

VALVE ASSY, FUEL CUT OFF, NO.2

77601B

BAND SUB-ASSY, FUEL TANK, NO.1 RH

77602B

BAND SUB-ASSY, FUEL TANK, NO.1 LH

77613A

BRACKET, FUEL TANK BAND, NO.1

77651A

CUSHION, FUEL TANK, NO.1

77652A

CUSHION, FUEL TANK, NO.2

77681

SEAT, FUEL TANK BAND, RH

77682

SEAT, FUEL TANK BAND, LH

8401

переход к группе запчастей

9011906347

Крепеж

9011906398

Крепеж

9011910252

Крепеж

9011910700

Крепеж

9014950057

Крепеж

9015950153

Крепеж

9015950219

Крепеж

9015960500

Крепеж

9016460015

Крепеж

9017906264

Крепеж

9017910186

Крепеж

9018905130

Крепеж

9018906013

Крепеж

9018906174

Крепеж

9046022002

Крепеж

9046046003

Крепеж

9046055003

Крепеж

9046707130

Крепеж

9046710049

Крепеж

9046712056

Крепеж

9046713061

Крепеж

9165140616

Крепеж

9331914008

Крепеж

93319A4010

Крепеж

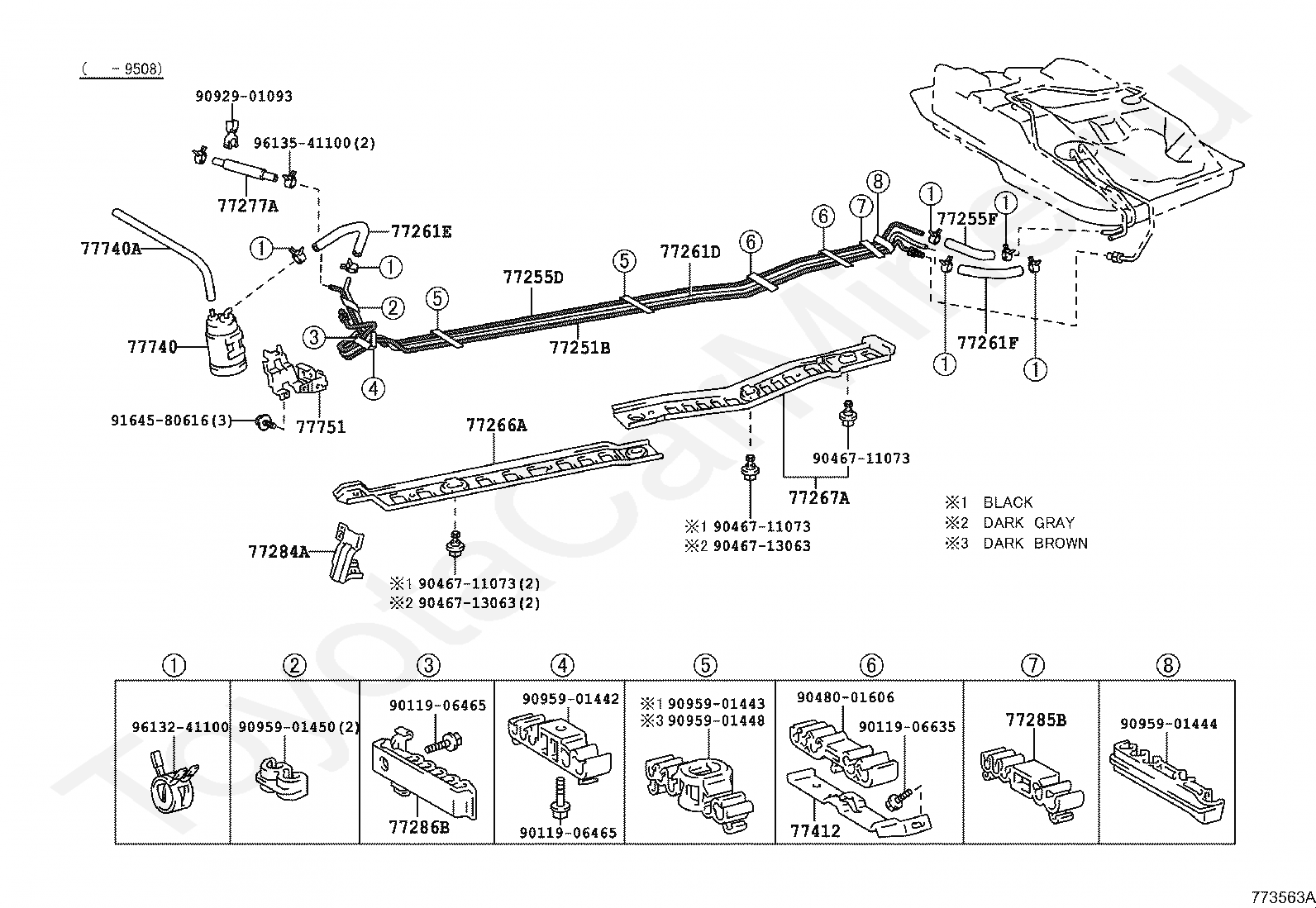

Код

Описание

77251B

TUBE, FUEL MAIN

77255D

TUBE, FUEL RETURN

77255F

HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)

77261D

TUBE, FUEL TANK TO CANISTER

77261E

HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)

77261F

HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)

77266A

PROTECTOR, FUEL TUBE, NO.1

77267A

PROTECTOR, FUEL TUBE, NO.2

77277A

HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

77284A

PROTECTOR, FUEL TUBE, NO.3

77285B

CLAMP, FUEL TUBE W/GROMMET, NO.1

77286B

CLAMP, FUEL TUBE W/GROMMET, NO.2

77412

SUPPORT, FUEL TUBE GROMMET, NO.2

77740

CANISTER ASSY, CHARCOAL

77740A

HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

77751

BRACKET, CHARCOAL CANISTER BASE

9011906465

Крепеж

9011906635

Крепеж

9046711073

Крепеж

9046713063

Крепеж

9048001606

Крепеж

9092901093

Крепеж

9095901442

Крепеж

9095901443

Крепеж

9095901444

Крепеж

9095901448

Крепеж

9095901450

Крепеж

9164580616

Крепеж

9613241100

Крепеж

9613541100

Крепеж

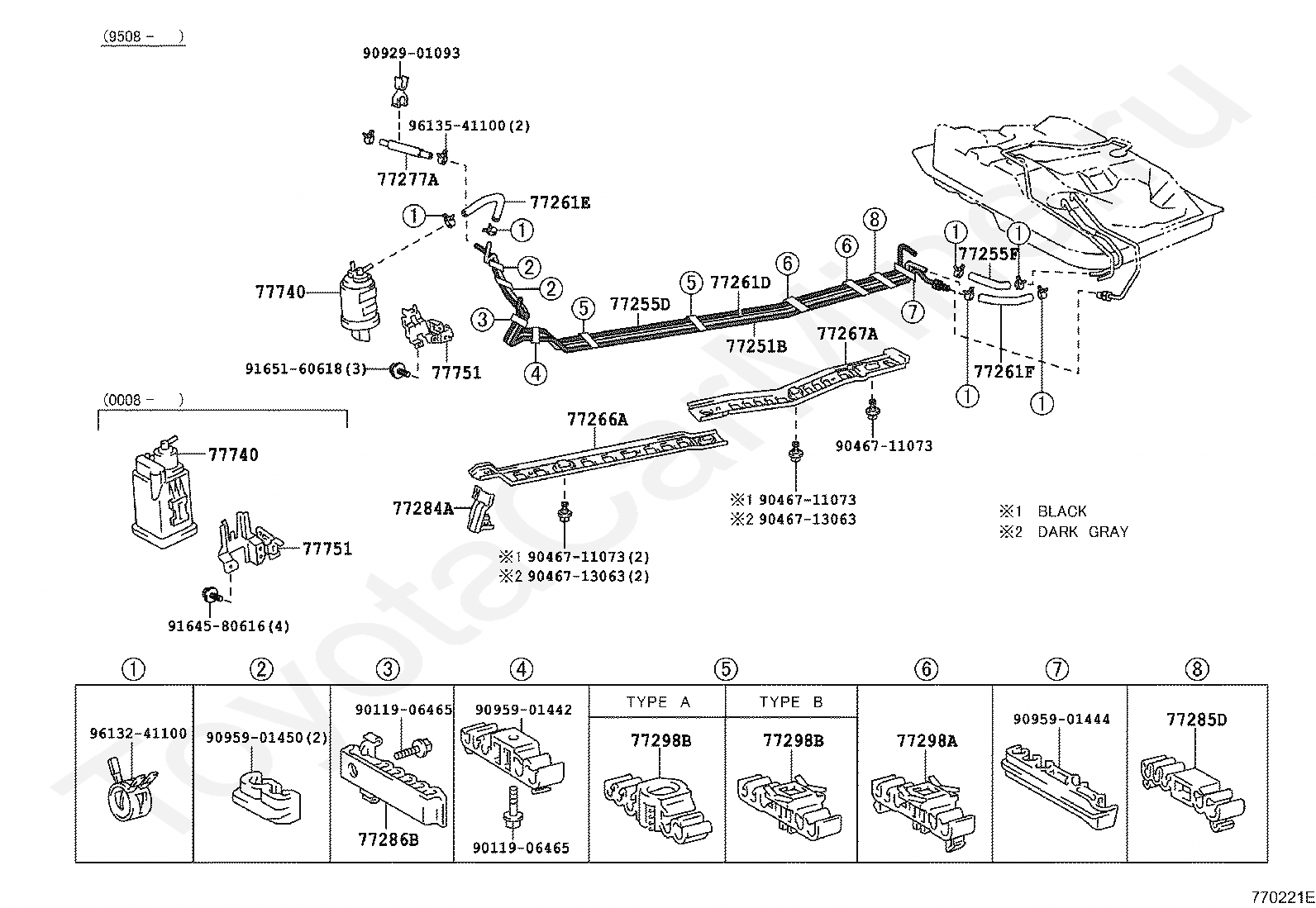

Код

Описание

77251B

TUBE, FUEL MAIN

77255D

TUBE, FUEL RETURN

77255F

HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)

77261D

TUBE, FUEL TANK TO CANISTER

77261E

HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)

77261F

HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)

77266A

PROTECTOR, FUEL TUBE, NO.1

77267A

PROTECTOR, FUEL TUBE, NO.2

77277A

HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

77284A

PROTECTOR, FUEL TUBE, NO.3

77285D

CLAMP, FUEL TUBE, NO.1

77286B

CLAMP, FUEL TUBE W/GROMMET, NO.2

77298A

CLAMP, FUEL TUBE, NO.4

77298B

CLAMP, FUEL TUBE, NO.4

77740

CANISTER ASSY, CHARCOAL

77751

BRACKET, CHARCOAL CANISTER BASE

9011906465

Крепеж

9046711073

Крепеж

9046713063

Крепеж

9092901093

Крепеж

9095901442

Крепеж

9095901444

Крепеж

9095901450

Крепеж

9164580616

Крепеж

9165160618

Крепеж

9613241100

Крепеж

9613541100

Крепеж
