Фары TOYOTA COROLLA SED (JPP), 2011/10 - 2013/04, 1,4 литра, турбо-дизель, D(MODEL MARK), NDE150, механика, МКПП, 6 скоростей

Каталог

Европа

Модель

COROLLA SED (JPP)

Двигатель

1,4 литра, турбо-дизель

Класс

D(MODEL MARK)

Фрейм

NDE150

Трансмиссия

механика МКПП, 6 скоростей

Опции

левый руль система впрыска дизельного топлива (низкое загрязнение) 474W

Код

Описание

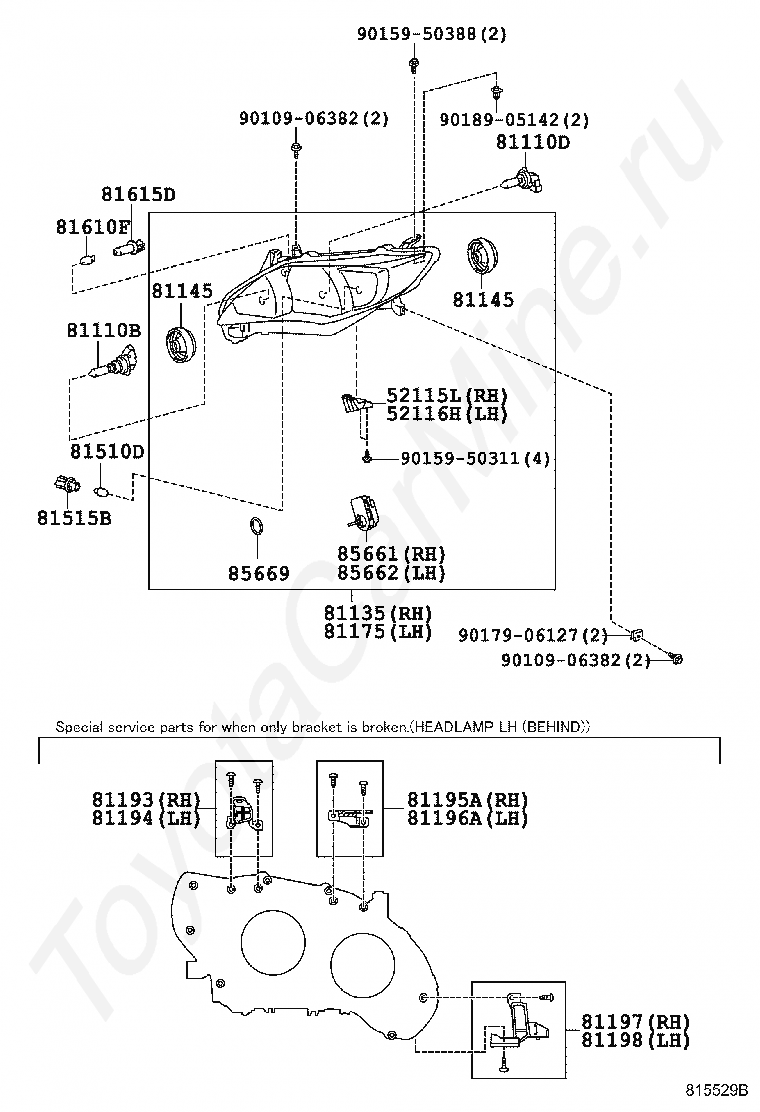

81107

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

81108

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

81110B

BULB(FOR HEADLAMP, NO.1)

81110D

BULB(FOR HEADLAMP, NO.2)

81110L

BULB, DISCHARGE HEADLAMP

81125

CORD, HEADLAMP

81134

GASKET, HEADLAMP

81135

UNIT ASSY, HEADLAMP, RH

81144

COVER, HEADLAMP, NO.1

81145

COVER, HEADLAMP, NO.2

81175

UNIT ASSY, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81197

BRACKET, HEADLAMP, LOWER RH

81198

BRACKET, HEADLAMP, LWR LH

81510D

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615D

SOCKET, CLEARANCE LAMP

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9007502056

Крепеж

9010906382

Крепеж

9015950388

Крепеж

9017906127

Крепеж

9018905142

Крепеж

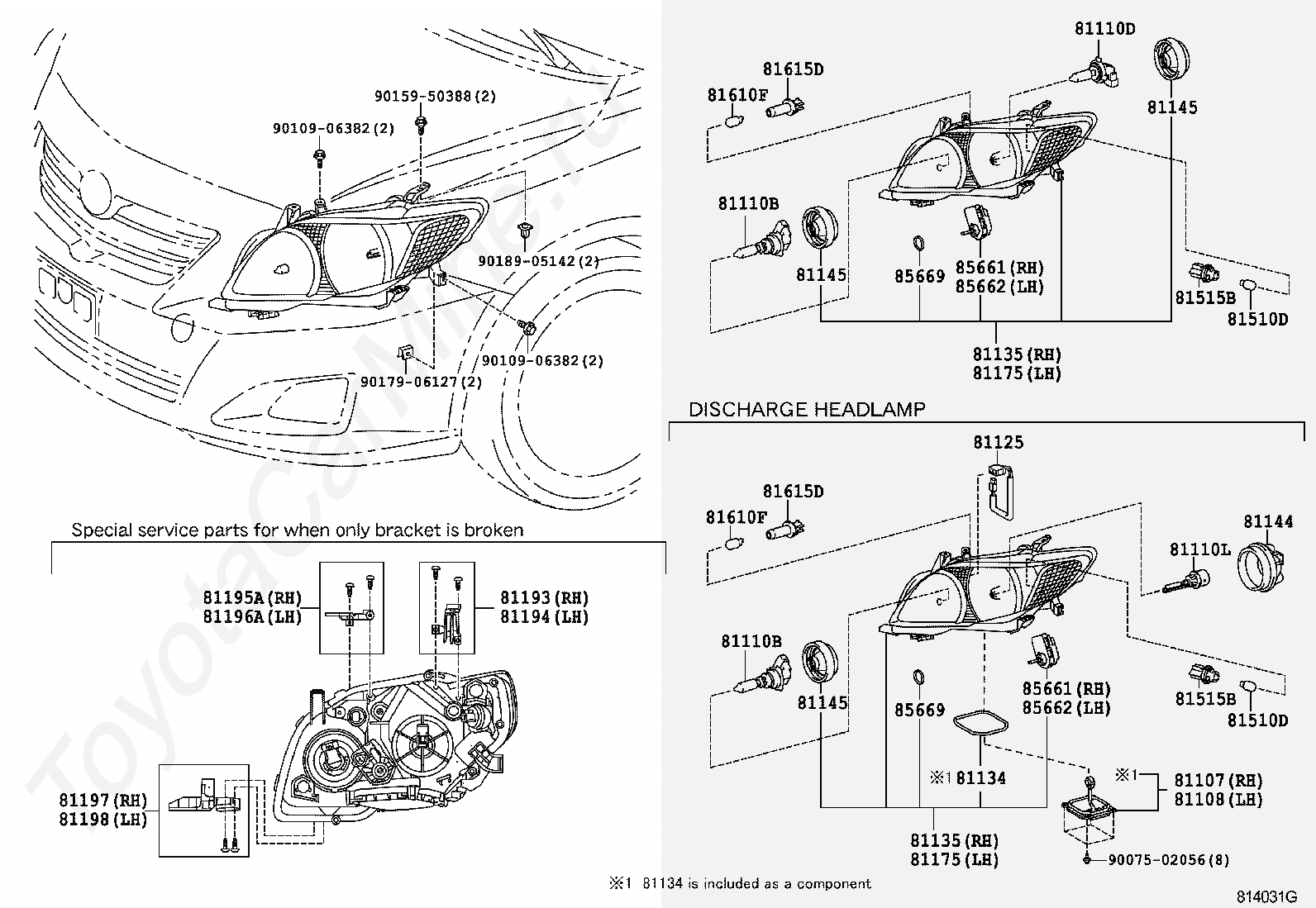

Код

Описание

52115L

SUPPORT, FRONT BUMPER SIDE, RH

52116H

SUPPORT, FRONT BUMPER SIDE, LH

81110B

BULB(FOR HEADLAMP, NO.1)

81110D

BULB(FOR HEADLAMP, NO.2)

81135

UNIT ASSY, HEADLAMP, RH

81145

COVER, HEADLAMP, NO.2

81175

UNIT ASSY, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81197

BRACKET, HEADLAMP, LOWER RH

81198

BRACKET, HEADLAMP, LWR LH

81510D

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615D

SOCKET, CLEARANCE LAMP

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9010906382

Крепеж

9015950311

Крепеж

9015950388

Крепеж

9017906127

Крепеж

9018905142

Крепеж

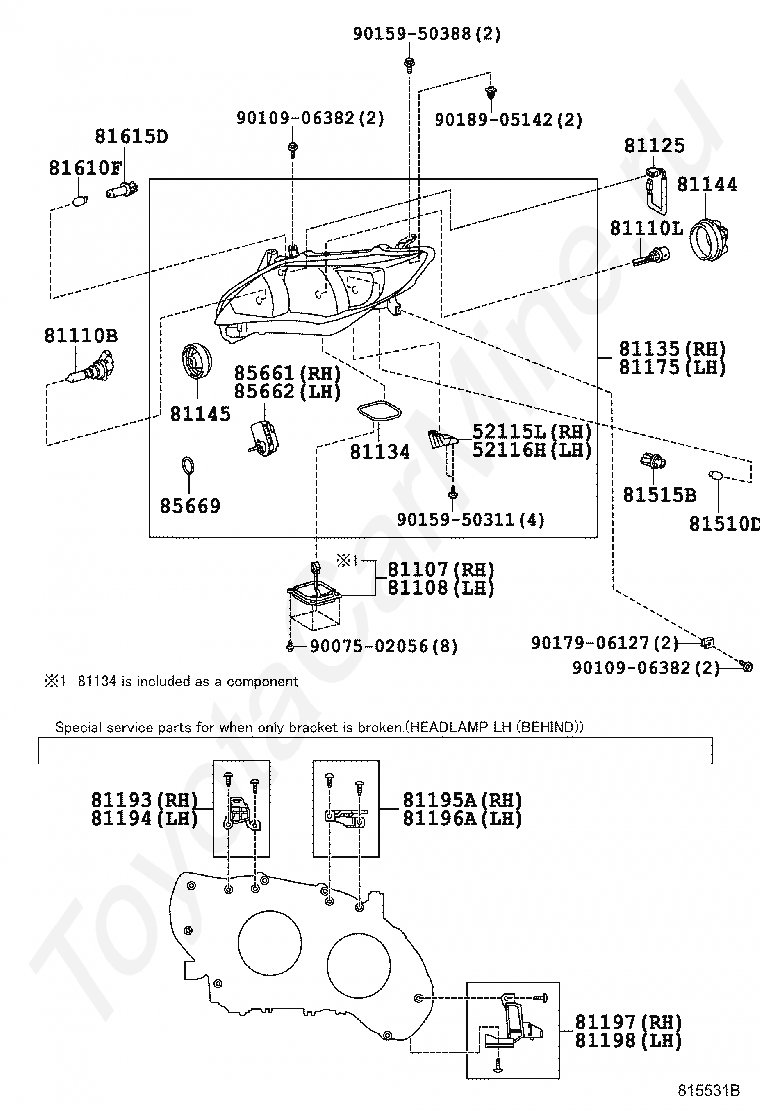

Код

Описание

52115L

SUPPORT, FRONT BUMPER SIDE, RH

52116H

SUPPORT, FRONT BUMPER SIDE, LH

81107

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

81108

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

81110B

BULB(FOR HEADLAMP, NO.1)

81110L

BULB, DISCHARGE HEADLAMP

81125

CORD, HEADLAMP

81134

GASKET, HEADLAMP

81135

UNIT ASSY, HEADLAMP, RH

81144

COVER, HEADLAMP, NO.1

81145

COVER, HEADLAMP, NO.2

81175

UNIT ASSY, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81197

BRACKET, HEADLAMP, LOWER RH

81198

BRACKET, HEADLAMP, LWR LH

81510D

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615D

SOCKET, CLEARANCE LAMP

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9007502056

Крепеж

9010906382

Крепеж

9015950311

Крепеж

9015950388

Крепеж

9017906127

Крепеж

9018905142

Крепеж
