Задние кресла TOYOTA COROLLA/ALTIS, 2014/05 - 2025, 1,8 литра, 16 клапанов, DOHC, EFI, седан, J SPECIFICATION, ZRE172, механика, МКПП, 6 скоростей

Каталог

Ближний Восток

Модель

COROLLA/ALTIS

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Класс

J SPECIFICATION

Фрейм

ZRE172

Трансмиссия

механика МКПП, 6 скоростей

Опции

правый руль 4 двери HIGH EFFICIENCY TWIN CAM Индия 588W

Код

Описание

7104

переход к группе запчастей

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077B

COVER, REAR SEAT BACK (FOR BENCH TYPE)

71281A

HINGE, REAR SEAT CENTER ARMREST

71611

PAD, REAR SEAT CUSHION

71651B

PAD, REAR SEAT BACK(FOR BENCH TYPE)

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72693

HOOK, REAR SEAT CUSHION LOCK

72806B

HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

72830

ARMREST ASSY, REAR SEAT, CENTER

72830B

BUSH(FOR REAR SEAT CENTER ARMREST)

72830T

BUSH (FOR REAR SEAT CENTER ARMREST)

73705

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

9010906023

Крепеж

9011908C42

Крепеж

90119T0031

Крепеж

90119T0318

Крепеж

9017906129

Крепеж

9353055012

Крепеж

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71303

HINGE SUB-ASSY, REAR SEAT BACK

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71480A

CLIP (FOR REAR SEAT BACK)

71611

PAD, REAR SEAT CUSHION

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72646

GROMMET, REAR SEAT BACK STOP BUTTON

72661C

BUTTON, REAR SEAT BACK LOCK RELEASE

72693

HOOK, REAR SEAT CUSHION LOCK

72806B

HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

72830

ARMREST ASSY, REAR SEAT, CENTER

72830B

BUSH(FOR REAR SEAT CENTER ARMREST)

72830T

BUSH (FOR REAR SEAT CENTER ARMREST)

72868B

COVER, CENTER ARMREST HINGE

73705

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

9010508372

Крепеж

90105T0196

Крепеж

9010906023

Крепеж

9011908B13

Крепеж

90119T0318

Крепеж

9018308005

Крепеж

9020610018

Крепеж

9020612064

Крепеж

9155180630

Крепеж

9353055012

Крепеж

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71332B

SPACER, REAR SEAT BACK HINGE

71439A

CLIP

71480A

CLIP (FOR REAR SEAT BACK)

71611

PAD, REAR SEAT CUSHION

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71701B

BOARD SUB-ASSY, REAR SEAT BACK, RH

71702B

BOARD SUB-ASSY, REAR SEAT BACK, LH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71878A

COVER, REAR SEAT RECLINING, INNER RH

71879A

COVER, REAR SEAT RECLINING, INNER LH

71885D

CARPET, REAR SEAT BACK, RH

71886

CARPET, REAR SEAT BACK, LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72057

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

72058A

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH

72693

HOOK, REAR SEAT CUSHION LOCK

7270268040

Крепеж

72806B

HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

72830

ARMREST ASSY, REAR SEAT, CENTER

72868B

COVER, CENTER ARMREST HINGE

9010908163

Крепеж

9011910945

Крепеж

90119T0392

Крепеж

9020610016

Крепеж

9038610033

Крепеж

9353055012

Крепеж

Код

Описание

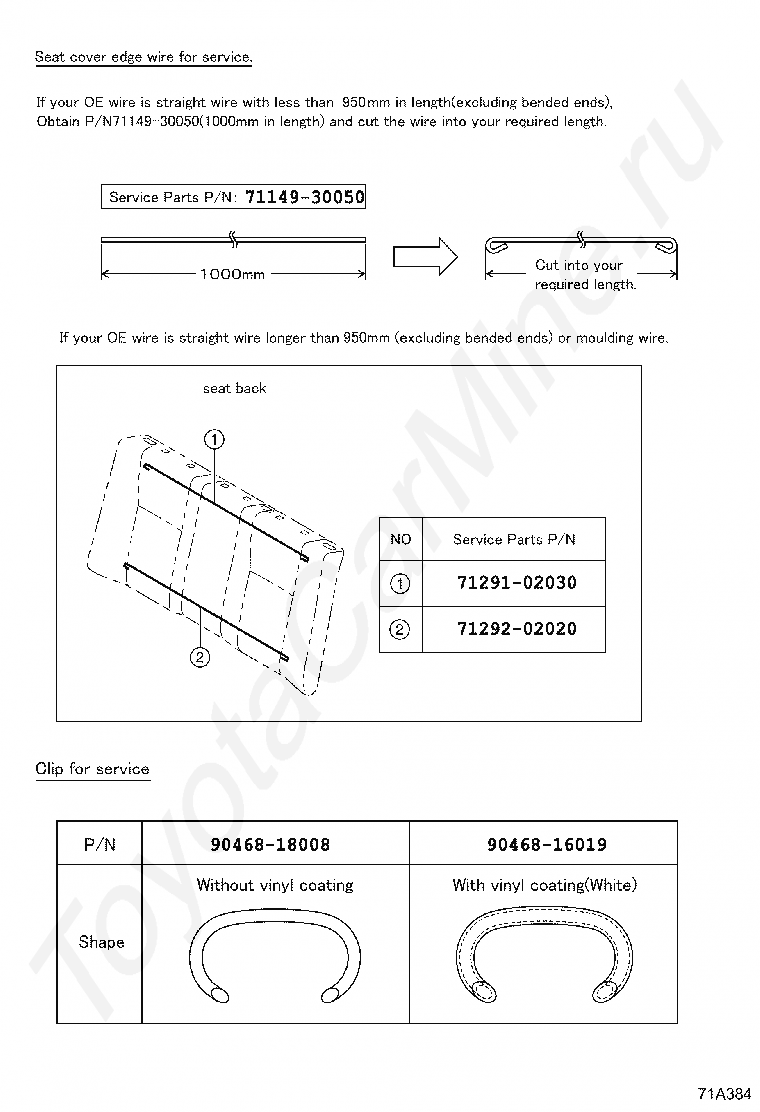

7114930050

Крепеж

7129102030

Крепеж

7129202020

Крепеж

9046816019

Крепеж

9046818008

Крепеж
