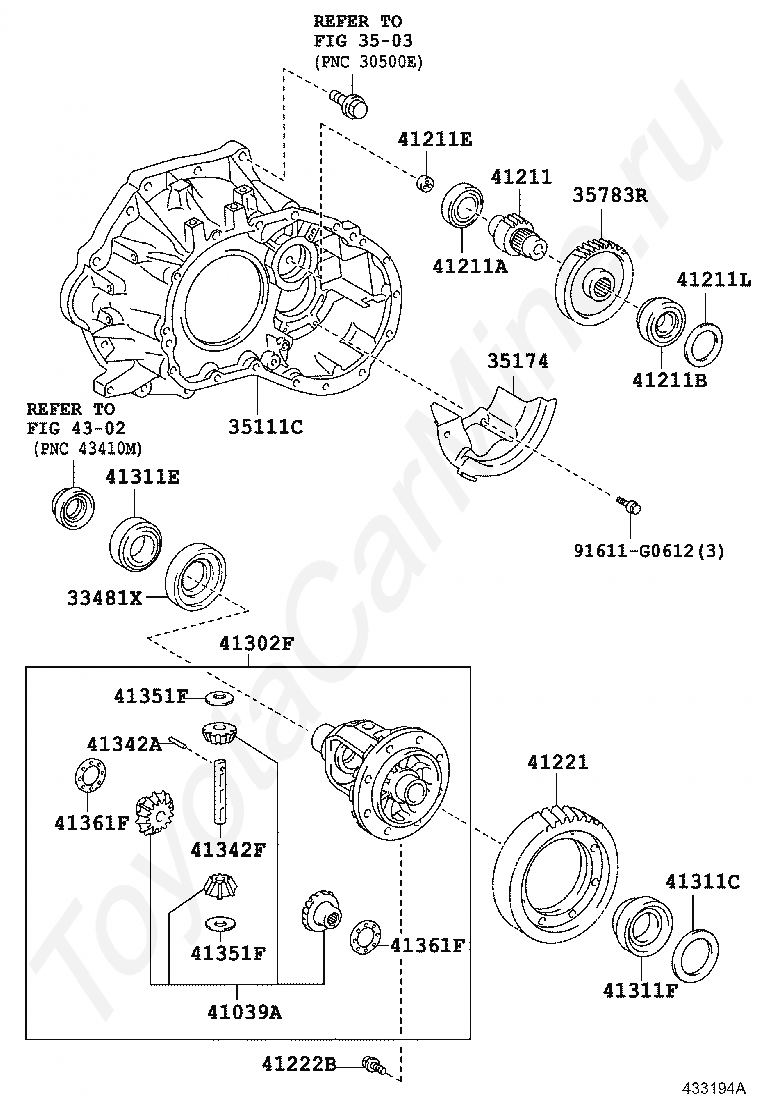

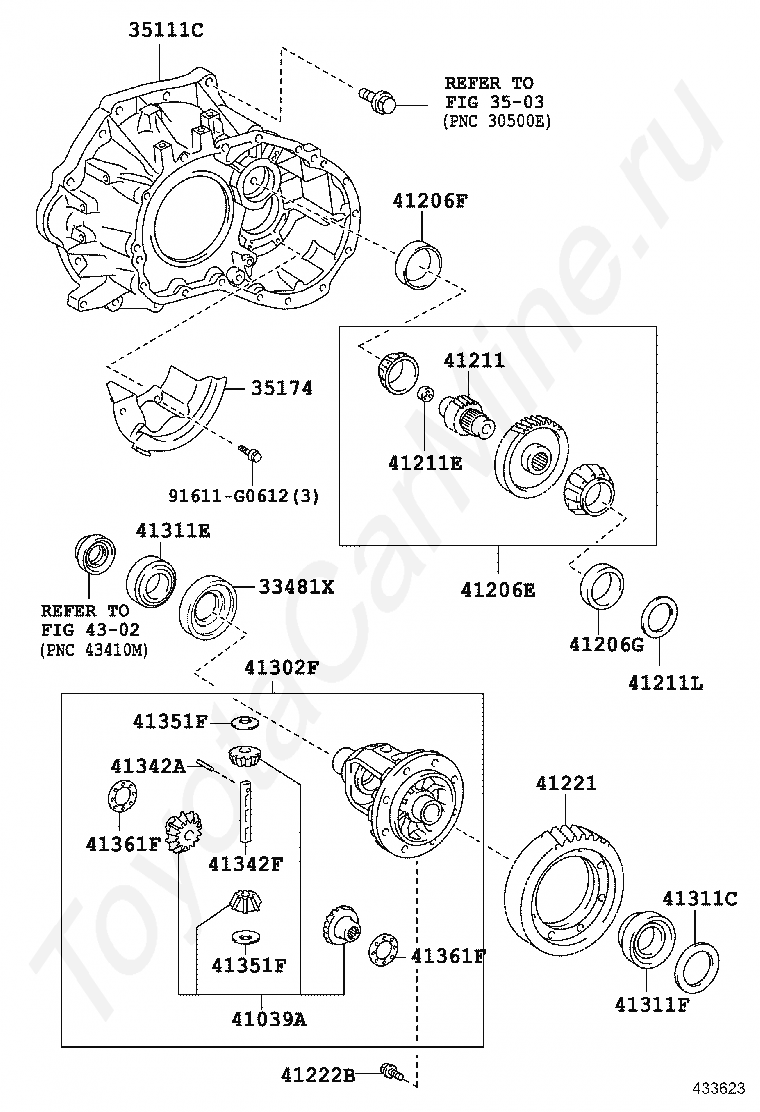

Раздаточная коробка и дифференциал TOYOTA COROLLA/ALTIS, 2014/07 - 2025, 1,3 литра, 16 клапанов, DOHC, EFI, седан, GLI TYPE, NZE170, автомат, АКПП, 4 ступени

Каталог

Ближний Восток

Модель

COROLLA/ALTIS

Двигатель

1,3 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Класс

GLI TYPE

Фрейм

NZE170

Трансмиссия

автомат АКПП, 4 ступени

Опции

правый руль 4 двери HIGH EFFICIENCY TWIN CAM Пакистан 588W

Код

Описание

33481X

GEAR, SPEEDOMETER DRIVE

3503

переход к группе запчастей

35111C

HOUSING, TRANSAXLE

35174

SEPARATOR, TRANSAXLE HOUSING OIL

35783R

GEAR, COUNTER DRIVEN

41039A

GEAR KIT, DIFFERENTIAL

41211

PINION, DIFFERENTIAL DRIVE

41211A

BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

41211B

BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

41211E

PLUG(FOR DIFFERENTIAL DRIVE PINION)

41211L

SHIM (FOR DIFFERENTIAL DRIVE PINION)

41221

GEAR, FRONT DIFFERENTIAL RING

41222B

BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

41302F

CASE SUB-ASSY, FRONT DIFFERENTIAL

41311C

SHIM (FOR FRONT DIFFERENTIAL CASE REAR)

41311E

BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

41311F

BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

41342A

PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

41342F

SHAFT, FRONT DIFFERENTIAL PINION, NO.1

41351F

WASHER, FRONT DIFFERENTIAL PINION THRUST

41361F

WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

4302

переход к группе запчастей

91611G0612

Крепеж

Код

Описание

33481X

GEAR, SPEEDOMETER DRIVE

3503

переход к группе запчастей

35111C

HOUSING, TRANSAXLE

35174

SEPARATOR, TRANSAXLE HOUSING OIL

41039A

GEAR KIT, DIFFERENTIAL

41206E

GEAR SUB-ASSY, PINION & COUNTER DRIVEN

41206F

OUTER RACE, TAPERED ROLLER BEARING RH

41206G

OUTER RACE, TAPERED ROLLER BEARING LH

41211

PINION, DIFFERENTIAL DRIVE

41211E

PLUG(FOR DIFFERENTIAL DRIVE PINION)

41211L

SHIM (FOR DIFFERENTIAL DRIVE PINION)

41221

GEAR, FRONT DIFFERENTIAL RING

41222B

BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

41302F

CASE SUB-ASSY, FRONT DIFFERENTIAL

41311C

SHIM (FOR FRONT DIFFERENTIAL CASE REAR)

41311E

BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

41311F

BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

41342A

PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

41342F

SHAFT, FRONT DIFFERENTIAL PINION, NO.1

41351F

WASHER, FRONT DIFFERENTIAL PINION THRUST

41361F

WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

4302

переход к группе запчастей

91611G0612

Крепеж
