Каталог
ЕвропаМодель
COROLLA SED/LBДвигатель
1,3 литраКузов
седанКласс
DELUX SPECIFICATIONФрейм
EE80Трансмиссия
механика МКПП, 5 скоростейОпции
4 двери левый руль Европа Европа

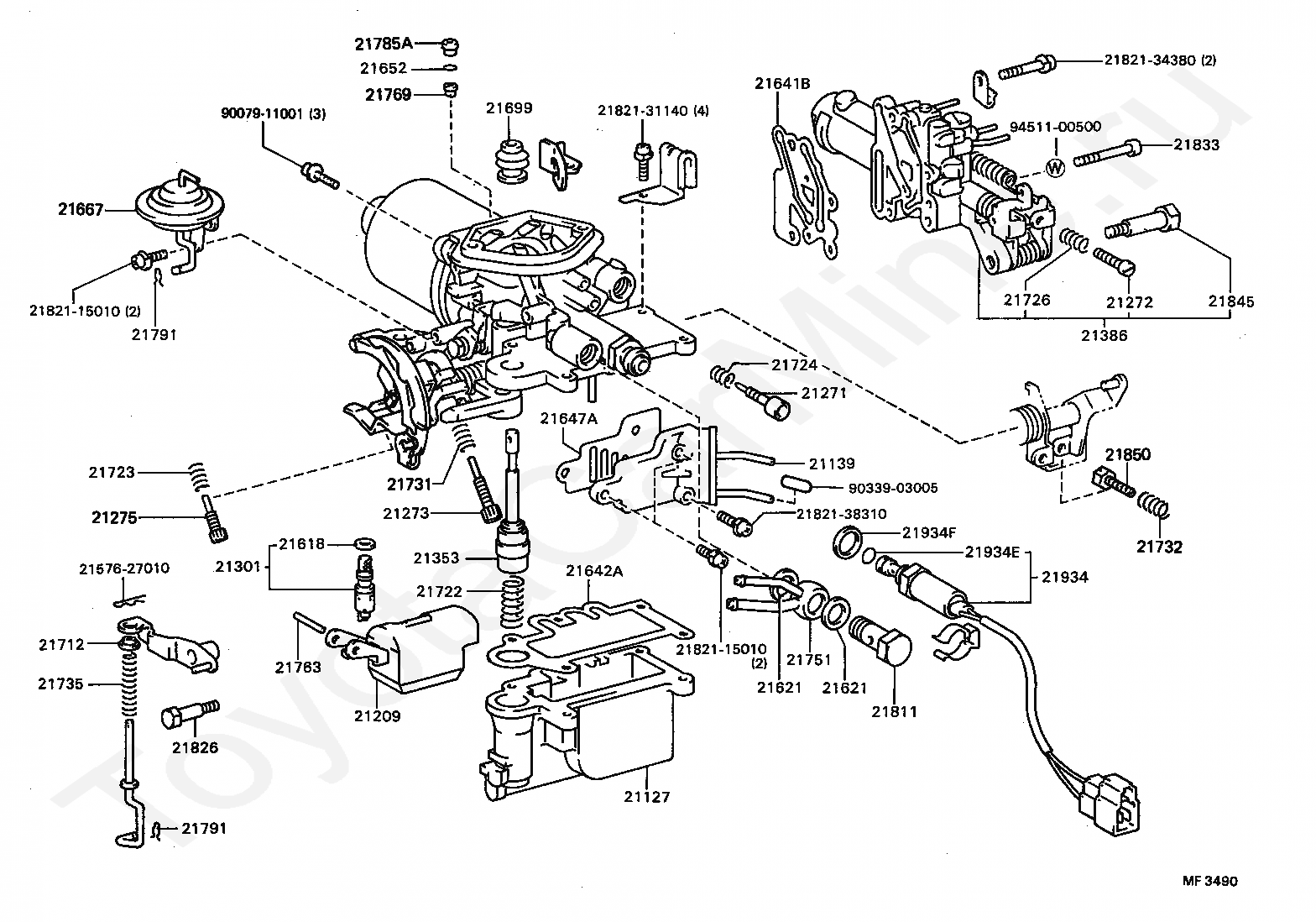

Код
Описание
21127
BOWL, FLOAT
21139
ADAPTER(FOR CARBURETOR CONNECTING PIPE)
21209
FLOAT SUB-ASSY
21271
SCREW, IDLE ADJUSTING
21272
SCREW, 1ST IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21275
SCREW, ADJUSTING
21301
VALVE SUB-ASSY, NEEDLE
21353
PLUNGER, PUMP
21386
COMPENSATOR
2157627010
Крепеж
21618
GASKET, NEEDLE VALVE SEAT
21621
GASKET, UNION NIPPLE
21641B
GASKET, COMPENSATOR
21642A
GASKET, FLOAT BOWL
21647A
GASKET, ADAPTER
21652
RING, O(FOR SUCTION CHANBER ADJUSTING)
21667
DIAPHRAGM
21699
BOOT(FOR PUMP PLUNGER)
21712
BUSH, SLIDING ROD
21722
SPRING, PUMP DAMPING
21723
SPRING, IDLE ADJUSTING
21724
SPRING, THROTTLE ADJUSTING
21726
SPRING, 1ST IDLE ADJUSTING
21731
SPRING, DASH POT OR POSITIONER ADJUSTING
21732
SPRING, THROTTLE ADJUSTING
21735
SPRING, PUMP ARM
21751
UNION, NIPPLE
21763
PIN, FLOAT LEVER
21769
PIN(FOR SUCTION CHANBER ADJUSTING)
21785A
PLUG, PLATE(FOR SUCTION CHANBER ADJUSTING)
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
21811
BOLT, UNION NIPPLE
2182115010
Крепеж
2182131140
Крепеж
2182134380
Крепеж
2182138310
Крепеж
21826
SCREW, PUMP ARM SET
21833
SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21845
SCREW(FOR LEVER SET)
21850
SCREW, THROTTLE SWITCH ADJUSTING
21934
SOLENOID, THROTTLE VALVE
21934E
RING, O(FOR SOLENOID VALVE)
21934F
GASKET
9007911001
Крепеж
9033903005
Крепеж
9451100500
Крепеж

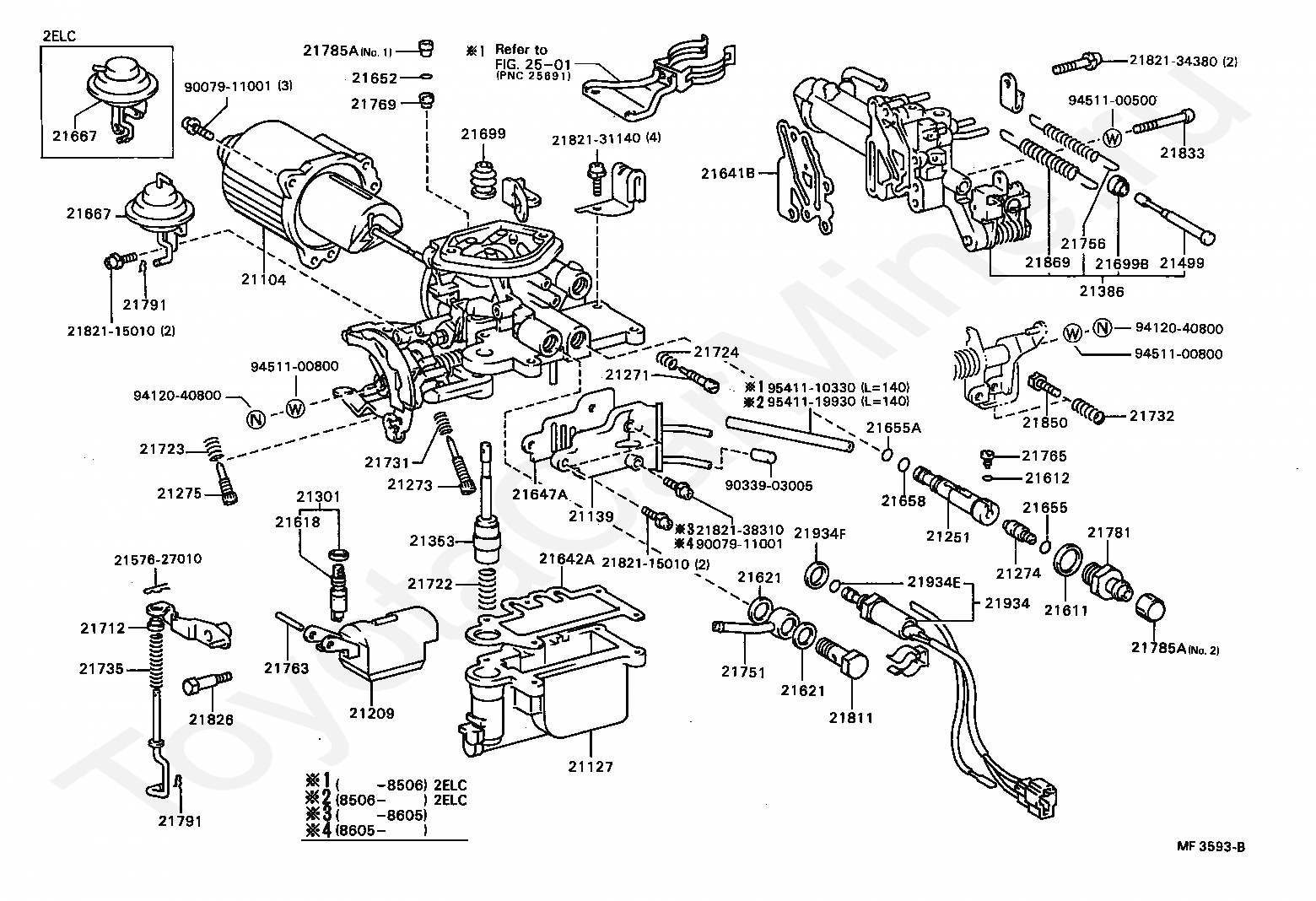

Код
Описание
21104
CHAMBER SUB-ASSY, SUCTION
21127
BOWL, FLOAT
21139
ADAPTER(FOR CARBURETOR CONNECTING PIPE)
21209
FLOAT SUB-ASSY
21251
JET, 1ST MAIN
21271
SCREW, IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21274
SCREW, 1ST THROTTLE ADJUSTING
21275
SCREW, ADJUSTING
21301
VALVE SUB-ASSY, NEEDLE
21353
PLUNGER, PUMP
21386
COMPENSATOR
21499
ROD, PUSH(FOR CARBURETOR)
2157627010
Крепеж
21611
GASKET, MAIN JET
21612
GASKET, POWER VALVE
21618
GASKET, NEEDLE VALVE SEAT
21621
GASKET, UNION NIPPLE
21641B
GASKET, COMPENSATOR
21642A
GASKET, FLOAT BOWL
21647A
GASKET, ADAPTER
21652
RING, O(FOR SUCTION CHANBER ADJUSTING)
21655
RING, O(FOR LIFTER ROD)
21655A
RING, O(FOR SLOW JET)
21658
RING, O(FOR MAIN GUIDE UPPER)
21667
DIAPHRAGM
21699
BOOT(FOR PUMP PLUNGER)
21699B
BOOT(FOR COMPENSATOR)
21712
BUSH, SLIDING ROD
21722
SPRING, PUMP DAMPING
21723
SPRING, IDLE ADJUSTING
21724
SPRING, THROTTLE ADJUSTING
21731
SPRING, DASH POT OR POSITIONER ADJUSTING
21732
SPRING, THROTTLE ADJUSTING
21735
SPRING, PUMP ARM
21751
UNION, NIPPLE
21756
SPRING, BACK(FOR THROTTLE SHAFT)
21763
PIN, FLOAT LEVER
21765
PIN(FOR PUMP PLUNGER)
21769
PIN(FOR SUCTION CHANBER ADJUSTING)
21781
PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21785A
PLUG, PLATE(FOR SUCTION CHANBER ADJUSTING)
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
21811
BOLT, UNION NIPPLE
2182115010
Крепеж
2182131140
Крепеж
2182134380
Крепеж
2182138310
Крепеж
21826
SCREW, PUMP ARM SET
21833
SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21850
SCREW, THROTTLE SWITCH ADJUSTING
21869
SPRING(FOR MAIN JET)
21934
SOLENOID, THROTTLE VALVE
21934E
RING, O(FOR SOLENOID VALVE)
21934F
GASKET
2501
переход к группе запчастей
9007911001
Крепеж
9033903005
Крепеж
9412040800
Крепеж
9451100500
Крепеж
9451100800
Крепеж
9541110330
Крепеж
9541119930
Крепеж
