Тормозная магистраль TOYOTA COROLLA HB/LB, 1992/05 - 1995/05, 1,3 литра, 16 клапанов, DOHC, EFI, POUNDS, GLI TYPE, EE101, механика, МКПП, 5 скоростей

Каталог

Европа

Модель

COROLLA HB/LB

Двигатель

1,3 литра, 16 клапанов, DOHC, EFI

Кузов

POUNDS

Класс

GLI TYPE

Фрейм

EE101

Трансмиссия

механика МКПП, 5 скоростей

Опции

5 дверей правый руль

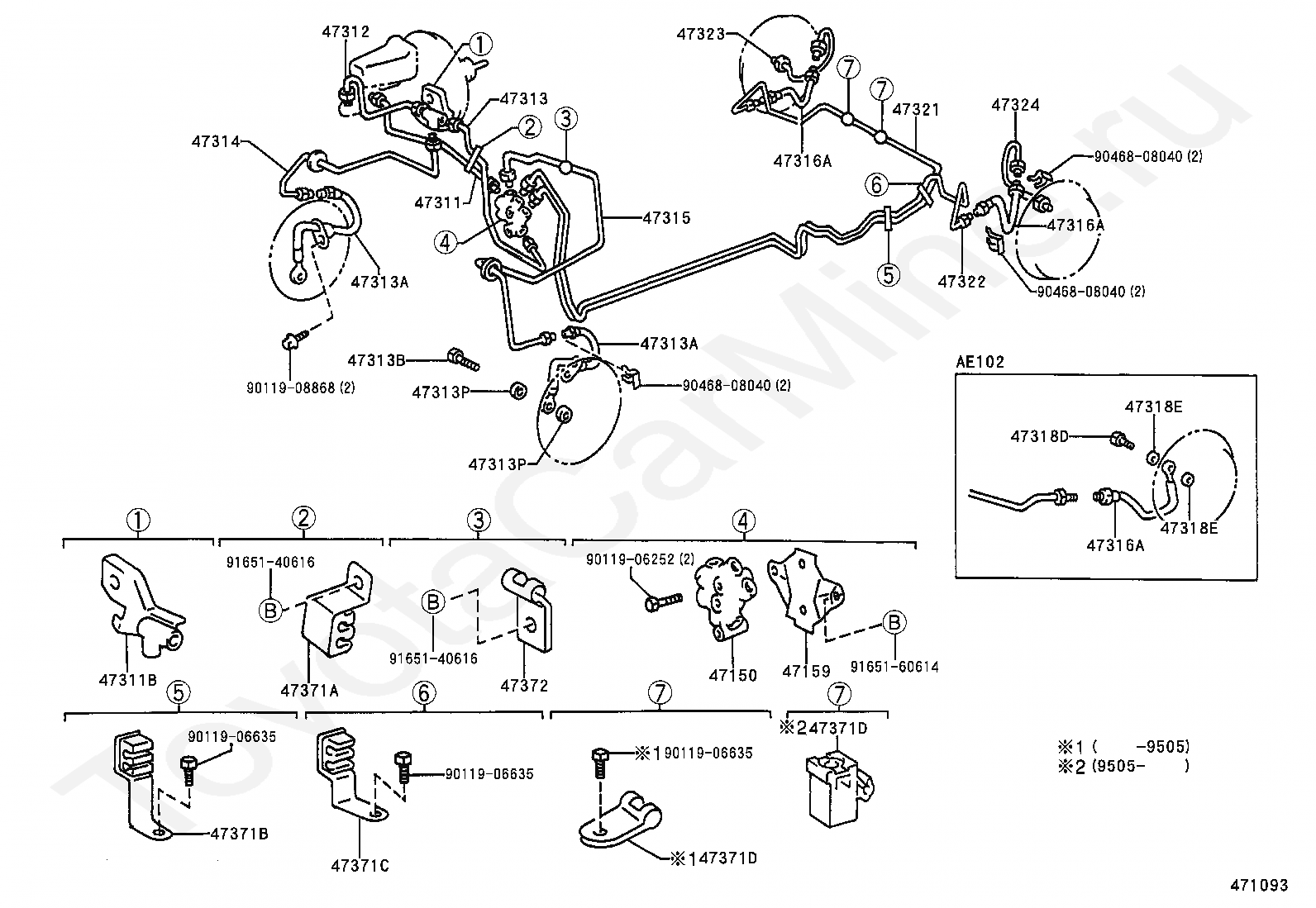

Код

Описание

47150

VALVE ASSY, PROPORTIONING

47159

BRACKET, PROPORTIONING VALVE

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47371A

CLAMP, BRAKE TUBE, NO.1

47371B

CLAMP, BRAKE TUBE, NO.6

47371C

CLAMP, BRAKE TUBE, NO.7

47371D

CLAMP, BRAKE TUBE, NO.8

47372

CLAMP, BRAKE TUBE, NO.2

9011906252

Крепеж

9011906635

Крепеж

9011908868

Крепеж

9046808040

Крепеж

9165140616

Крепеж

9165160614

Крепеж

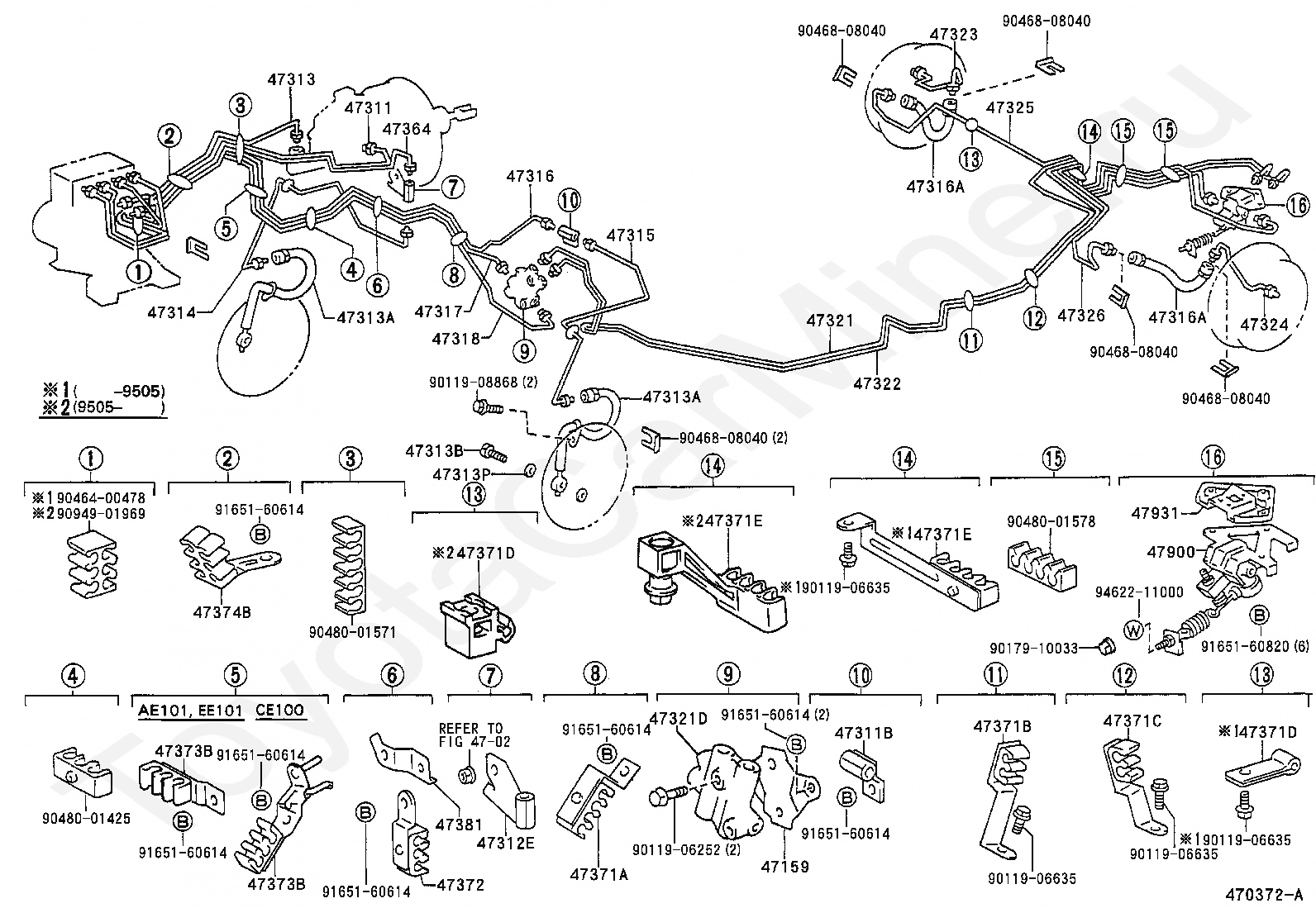

Код

Описание

4702

переход к группе запчастей

47159

BRACKET, PROPORTIONING VALVE

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312E

WAY, NO.2(FOR FRONT BRAKE TUBE)

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47316

TUBE, FRONT BRAKE, NO.6

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47317

TUBE, FRONT BRAKE, NO.7

47318

TUBE, FRONT BRAKE, NO.8

47321

TUBE, REAR BRAKE, NO.1

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47325

TUBE, REAR BRAKE, NO.5

47326

TUBE, REAR BRAKE, NO.6

47364

TUBE, FRONT BRAKE, NO.13

47371A

CLAMP, BRAKE TUBE, NO.1

47371B

CLAMP, BRAKE TUBE, NO.6

47371C

CLAMP, BRAKE TUBE, NO.7

47371D

CLAMP, BRAKE TUBE, NO.8

47371E

CLAMP, BRAKE TUBE, NO.9

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

47374B

CLAMP, BRAKE TUBE, NO.4

47381

BRACKET, BRAKE TUBE CLAMP NO.1

47900

VALVE ASSY, LOAD SENSING W/SPRING

47931

BRACKET, LOAD SENSING VALVE

9011906252

Крепеж

9011906635

Крепеж

9011908868

Крепеж

9017910033

Крепеж

9046400478

Крепеж

9046808040

Крепеж

9048001425

Крепеж

9048001571

Крепеж

9048001578

Крепеж

9094901969

Крепеж

9165160614

Крепеж

9165160820

Крепеж

9462211000

Крепеж

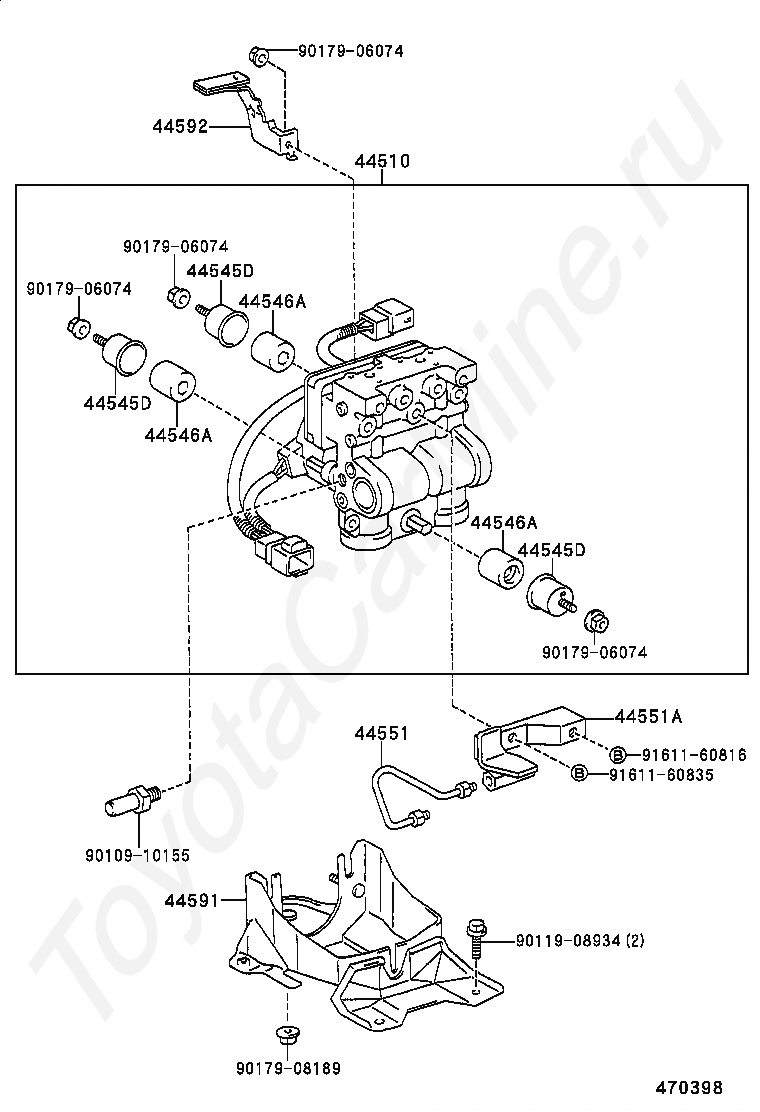

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44551

TUBE, BRAKE ACTUATOR, NO.1

44551A

WAY, NO.1(FOR BRAKE ACTUATOR)

44591

BRACKET, BRAKE ACTUATOR, NO.1

44592

BRACKET, BRAKE ACTUATOR, NO.2

9011908966

Крепеж

9017906074

Крепеж

9017908189

Крепеж

9161160814

Крепеж

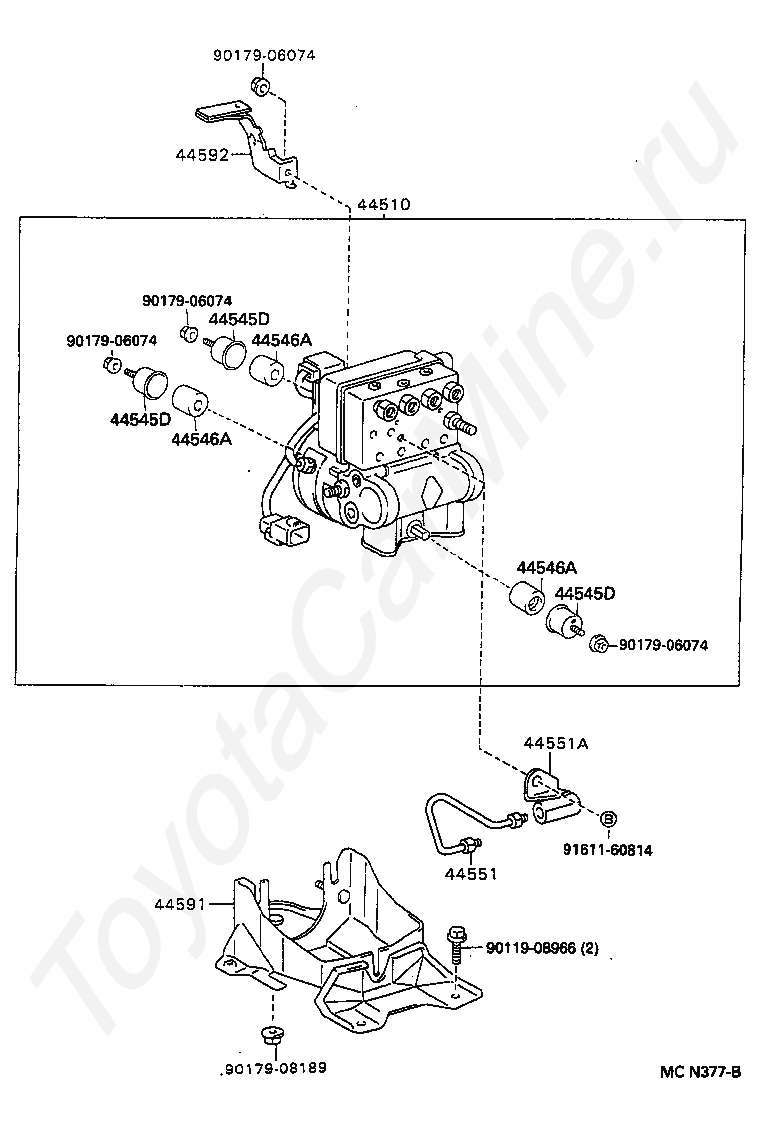

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44551

TUBE, BRAKE ACTUATOR, NO.1

44551A

WAY, NO.1(FOR BRAKE ACTUATOR)

44591

BRACKET, BRAKE ACTUATOR, NO.1

44592

BRACKET, BRAKE ACTUATOR, NO.2

9010910155

Крепеж

9011908934

Крепеж

9017906074

Крепеж

9017908189

Крепеж

9161160816

Крепеж

9161160835

Крепеж
