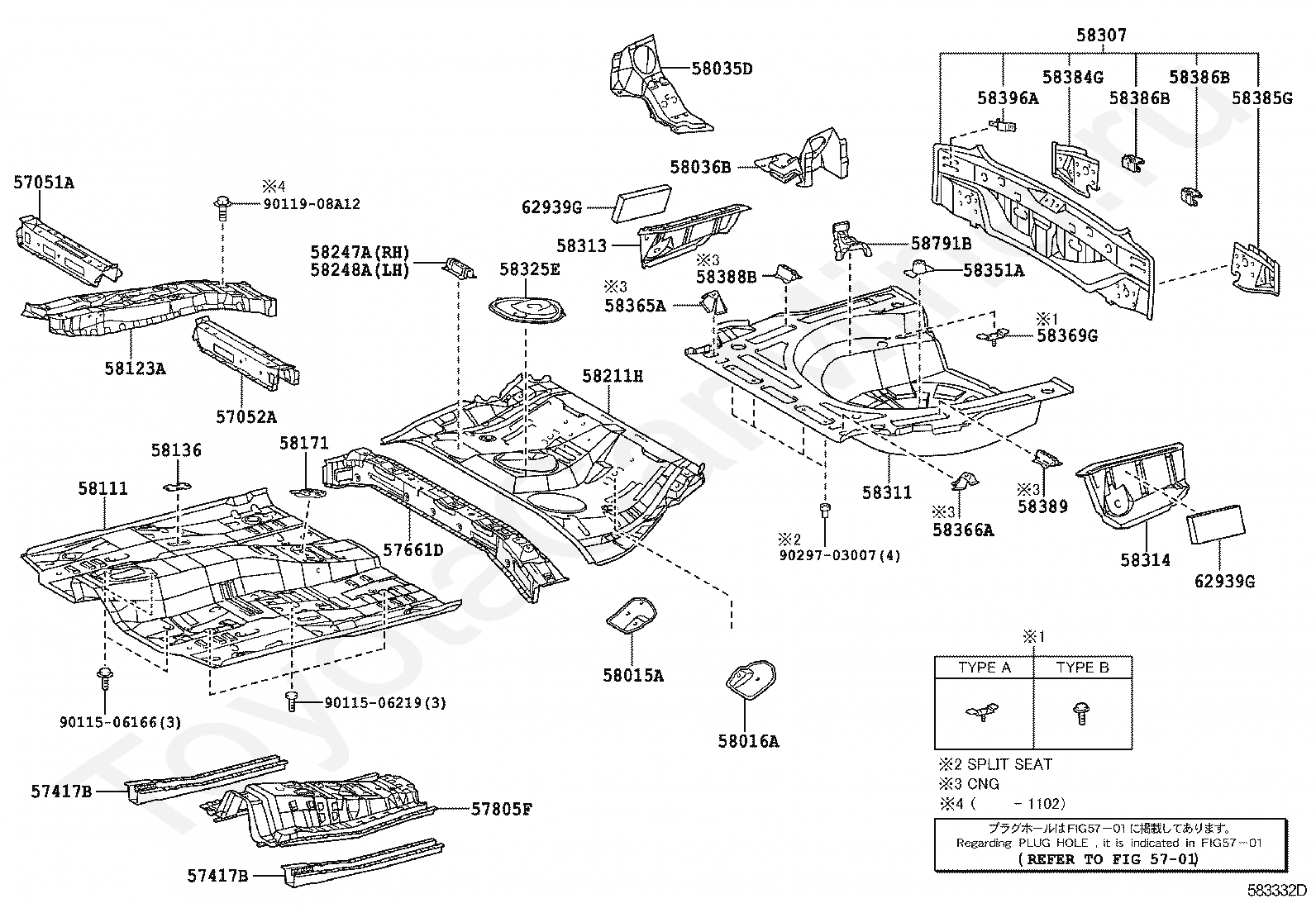

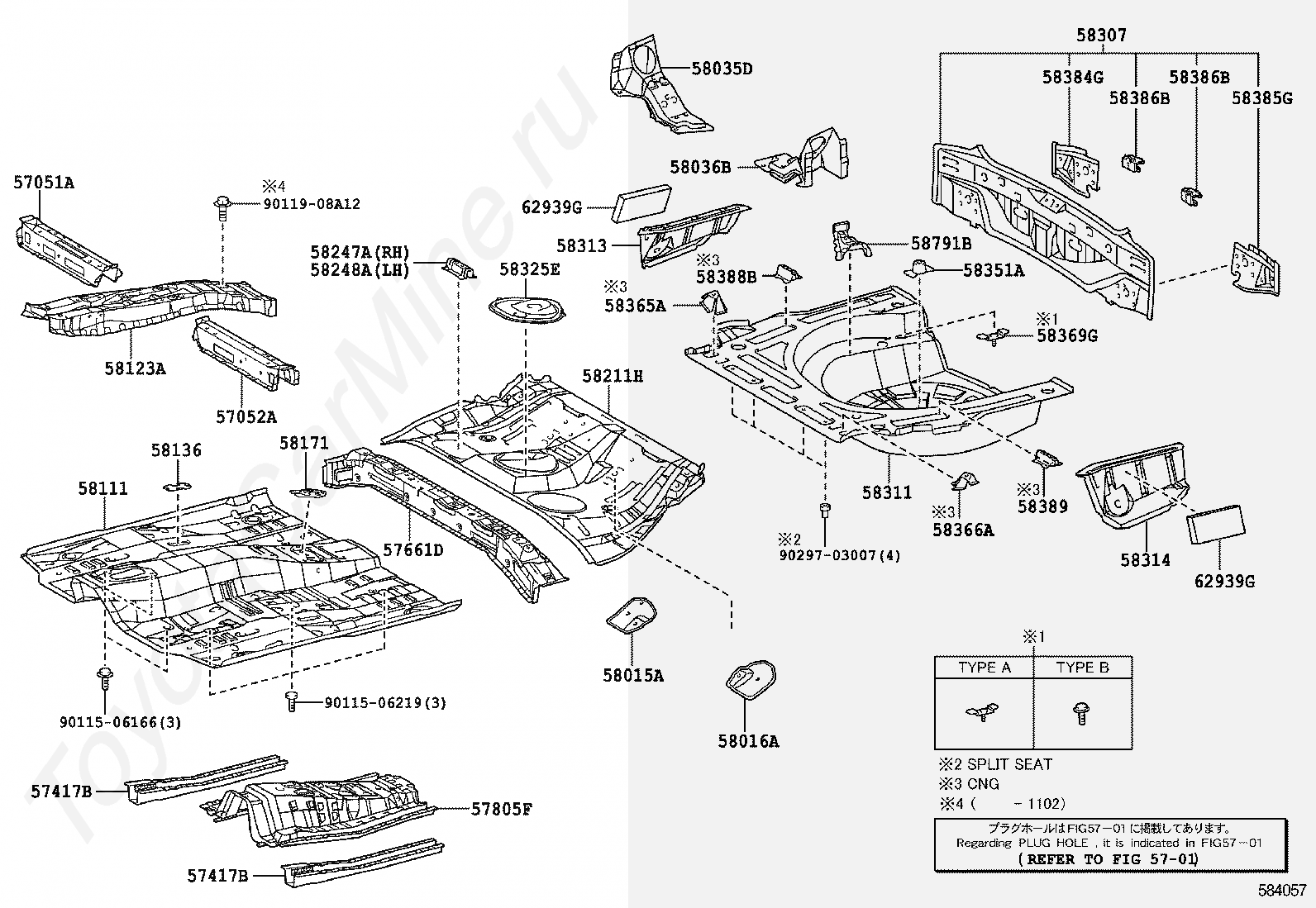

FLOOR PAN & LOWER BACK PANEL TOYOTA COROLLA (S.AMERICA), 2011/05 - 2025, 1,8 литра, 16 клапанов DOHC, EFI, XEI TYPE, ZZE142, механика

Каталог

Ближний Восток

Модель

COROLLA (S.AMERICA)

Двигатель

1,8 литра, 16 клапанов DOHC, EFI

Класс

XEI TYPE

Фрейм

ZZE142

Трансмиссия

механика

Опции

левый руль сжатый газ Венесуэла 487W

Код

Описание

5701

переход к группе запчастей

57051A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

57052A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

57417B

REINFORCEMENT, FRONT FLOOR UNDER

57661D

MEMBER, REAR FLOOR CROSS, FRONT

57805F

REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

58015A

REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

58016A

REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

58035D

EXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, RH

58036B

EXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, LH

58111

PAN, FRONT FLOOR

58123A

SUPPORT, SHIFT & SELECT LEVER

58136

COVER, FRONT FLOOR HOLE

58171

REINFORCEMENT, PARKING BRAKE BASE

58211H

PAN, CENTER FLOOR

58247A

REINFORCEMENT, REAR SEAT CUSHION HINGE, RH

58248A

REINFORCEMENT, REAR SEAT CUSHION HINGE, LH

58307

PANEL SUB-ASSY, BODY LOWER BACK

58311

PAN, REAR FLOOR

58313

PANEL, REAR FLOOR SIDE, RH

58314

PANEL, REAR FLOOR SIDE, LH

58325E

COVER, REAR FLOOR SERVICE HOLE

58351A

BRACKET, SPARE WHEEL CARRIER

58365A

BRACKET, FUEL TANK SUPPORT, RH

58366A

BRACKET, FUEL TANK SUPPORT, LH

58369G

BRACKET, FUEL TUBE, NO.3

58384G

GUSSET, LOWER BACK, UPPER RH

58385G

GUSSET, LOWER BACK, UPPER LH

58386B

BRACKET, REAR BUMPER COVER, NO.2

58388B

BRACKET, PLATE REAR FLOOR

58389

BRACKET, REAR WASHER TANK MOUNTING, NO.2

58396A

BRACKET, WIRE HARNESS CLAMP

58791B

CARRIER, JACK

62939G

SILENCER, QUARTER VENT

9011506166

Крепеж

9011506219

Крепеж

9011908A12

Крепеж

9029703007

Крепеж
