Шрус TOYOTA COROLLA SED/LB/WG, 1987/08 - 1992/05, 1,8 литра, дизель, фургон, XL SPECIFICATION, CE90, механика, МКПП, 5 скоростей

Каталог

Европа

Модель

COROLLA SED/LB/WG

Двигатель

1,8 литра, дизель

Кузов

фургон

Класс

XL SPECIFICATION

Фрейм

CE90

Трансмиссия

механика МКПП, 5 скоростей

Опции

левый руль дизель

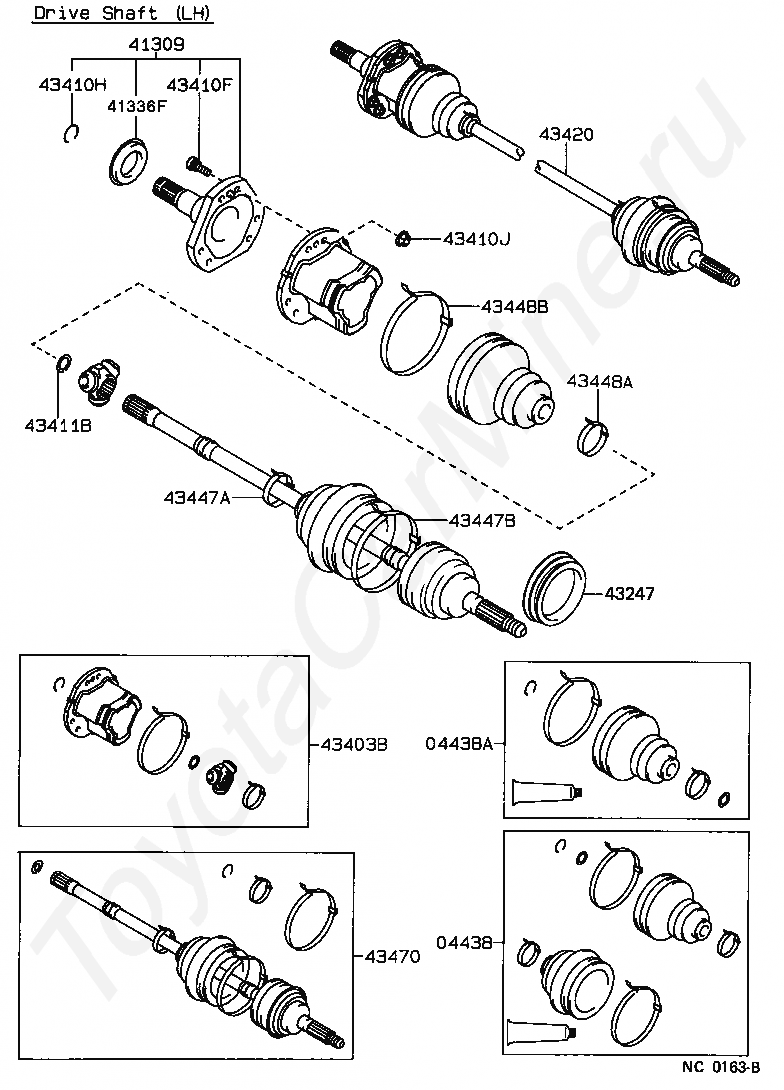

Код

Описание

04438

BOOT KIT, FRONT DRIVE SHAFT

04438A

BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

41309

SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH

41336F

COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)

43247

DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

43403B

JOINT SET, FRONT AXLE INBOARD, LH

43410F

BOLT, SERRATION (FOR FRONT DRIVE SHAFT)

43410H

RING, HOLE SNAP (FOR FRONT DRIVE SHAFT)

43410J

NUT (FOR FRONT DRIVE SHAFT)

43411B

RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

43420

SHAFT ASSY, FRONT DRIVE, LH

43447A

CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

43447B

CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

43448A

CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

43448B

CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

43470

SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

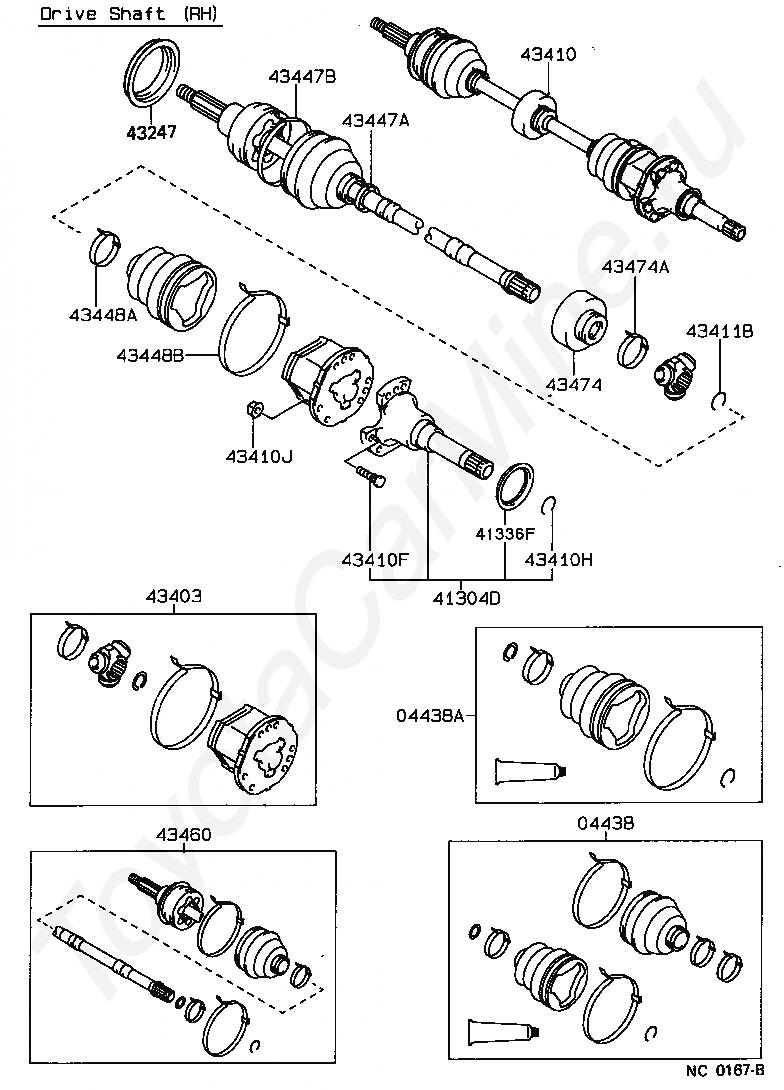

Код

Описание

04438

BOOT KIT, FRONT DRIVE SHAFT

04438A

BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

41304D

SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH

41336F

COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)

43247

DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

43403

JOINT SET, FRONT AXLE INBOARD, RH

43410

SHAFT ASSY, FRONT DRIVE, RH

43410F

BOLT, SERRATION (FOR FRONT DRIVE SHAFT)

43410H

RING, HOLE SNAP (FOR FRONT DRIVE SHAFT)

43410J

NUT (FOR FRONT DRIVE SHAFT)

43411B

RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

43447A

CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

43447B

CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

43448A

CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

43448B

CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

43460

SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

43474

DAMPER, DRIVE SHAFT

43474A

CLAMP (FOR DRIVE SHAFT DAMPER SETTING)

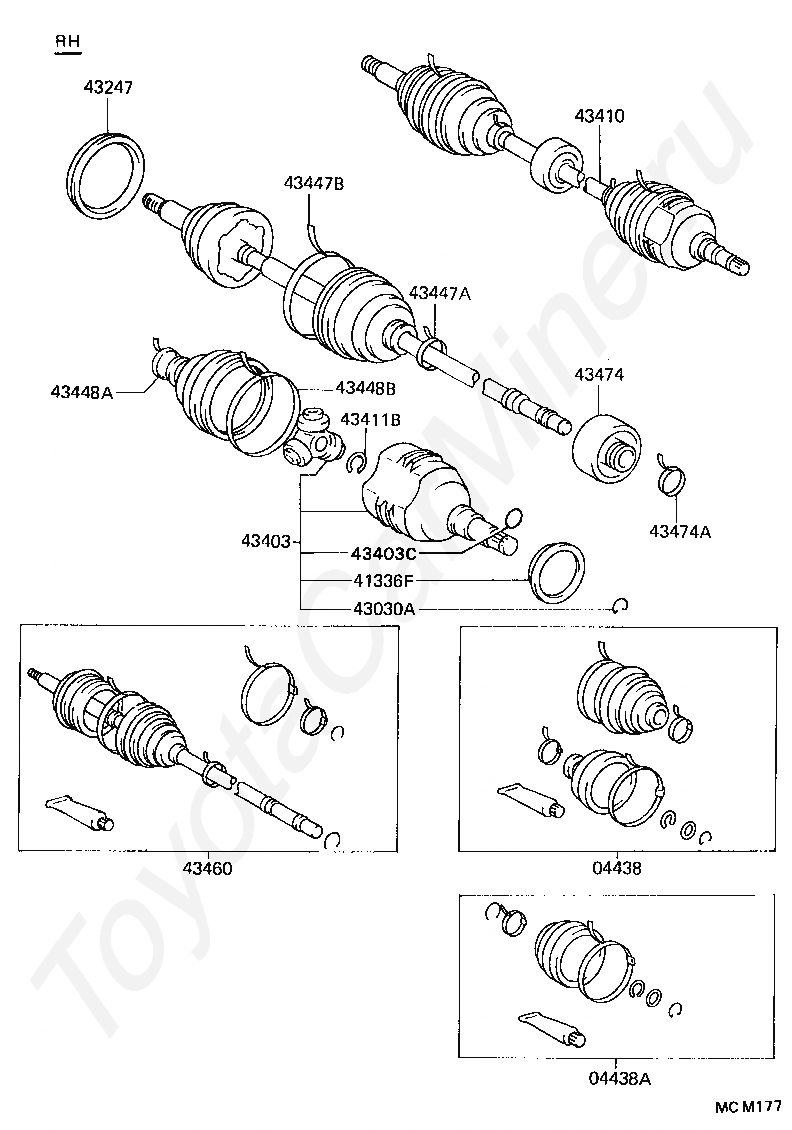

Код

Описание

04438

BOOT KIT, FRONT DRIVE SHAFT

04438A

BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

41336F

COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)

43030A

RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT)

43247

DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

43403

JOINT SET, FRONT AXLE INBOARD, RH

43403C

RING, O (FOR FRONT DRIVE INBOARD JOINT)

43410

SHAFT ASSY, FRONT DRIVE, RH

43411B

RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

43447A

CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

43447B

CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

43448A

CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

43448B

CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

43460

SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

43474

DAMPER, DRIVE SHAFT

43474A

CLAMP (FOR DRIVE SHAFT DAMPER SETTING)

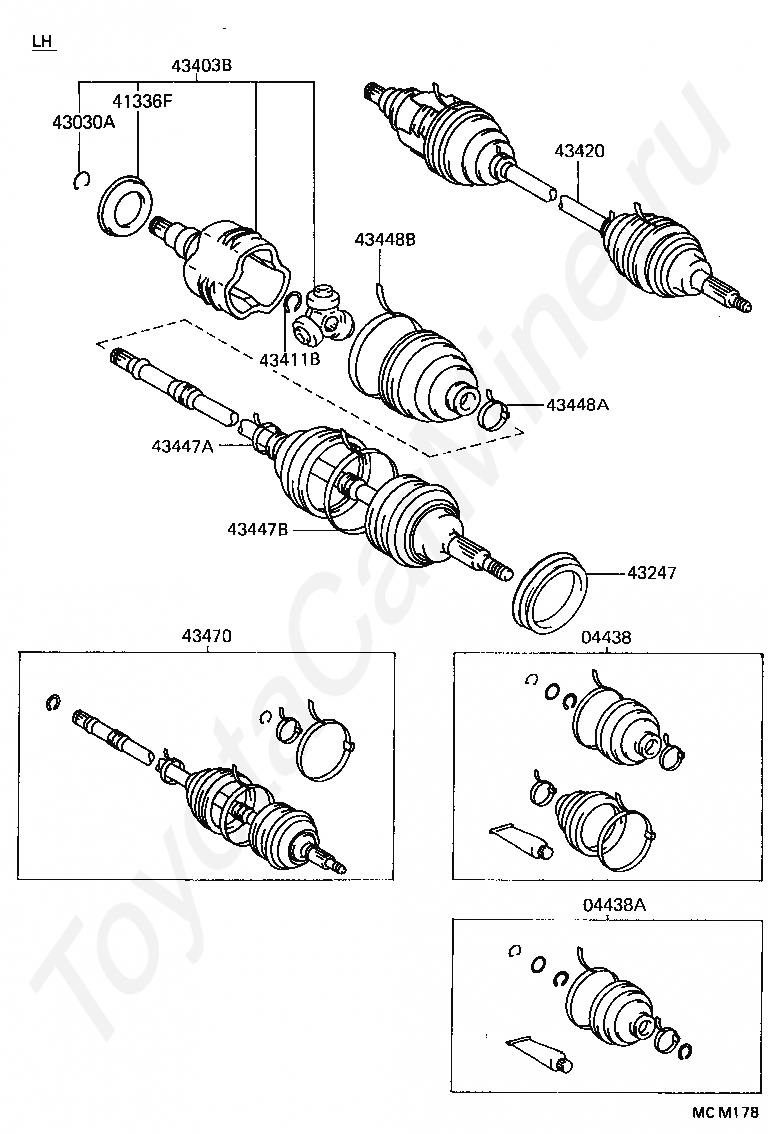

Код

Описание

04438

BOOT KIT, FRONT DRIVE SHAFT

04438A

BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

41336F

COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)

43030A

RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT)

43247

DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

43403B

JOINT SET, FRONT AXLE INBOARD, LH

43411B

RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

43420

SHAFT ASSY, FRONT DRIVE, LH

43447A

CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

43447B

CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

43448A

CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

43448B

CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

43470

SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
