Задние кресла TOYOTA COROLLA 5D, 2001/10 - 2007/02, 1,8 литра, 16 клапанов DOHC, EFI, LEVIN MODEL, ZZE122, механика

Каталог

Ближний Восток

Модель

COROLLA 5D

Двигатель

1,8 литра, 16 клапанов DOHC, EFI

Класс

LEVIN MODEL

Фрейм

ZZE122

Трансмиссия

механика

Опции

правый руль

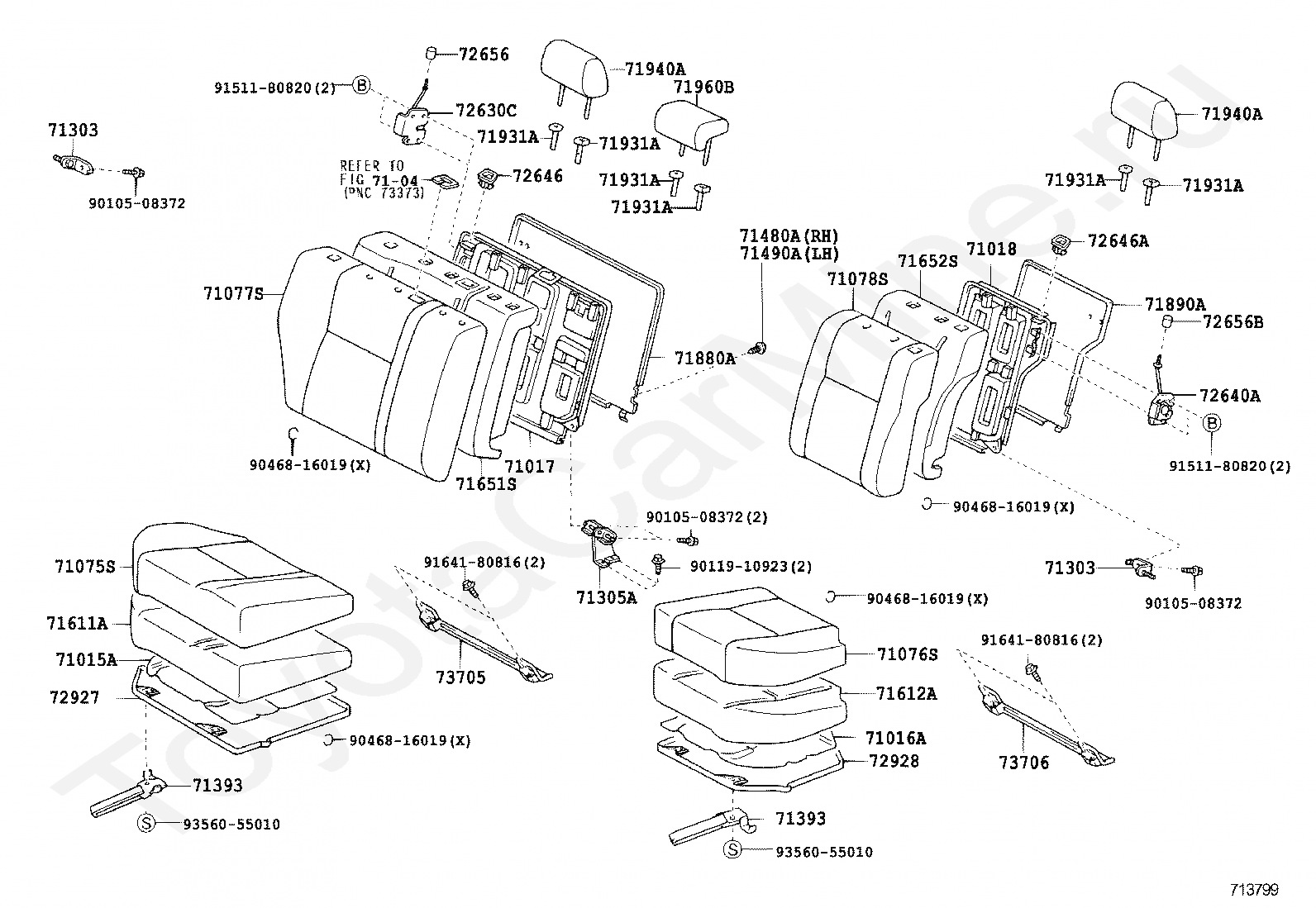

Код

Описание

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71303

HINGE SUB-ASSY, REAR SEAT BACK

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71393

BAND, REAR SEAT CUSHION

71480A

CLIP (FOR REAR SEAT BACK)

71490A

CLIP, REAR SEAT BACK, LH

71611A

PAD, REAR SEAT CUSHION, RH

71612A

PAD, REAR SEAT CUSHION, LH

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71880A

CARPET ASSY, REAR SEAT BACK BOARD, RH

71890A

CARPET ASSY, REAR SEAT BACK BOARD, LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72646

GROMMET, REAR SEAT BACK STOP BUTTON

72646A

GROMMET, REAR SEAT BACK STOP BUTTON

72656

BUTTON, REAR SEAT BACK STOP RELEASE

72656B

BUTTON, REAR SEAT BACK STOP RELEASE

72927

COVER, REAR SEAT CUSHION UNDER, RH

72928

COVER, REAR SEAT CUSHION UNDER, LH

73705

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

73706

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

9010508372

Крепеж

9011910923

Крепеж

9046816019

Крепеж

9151180820

Крепеж

9164180816

Крепеж

9356055010

Крепеж

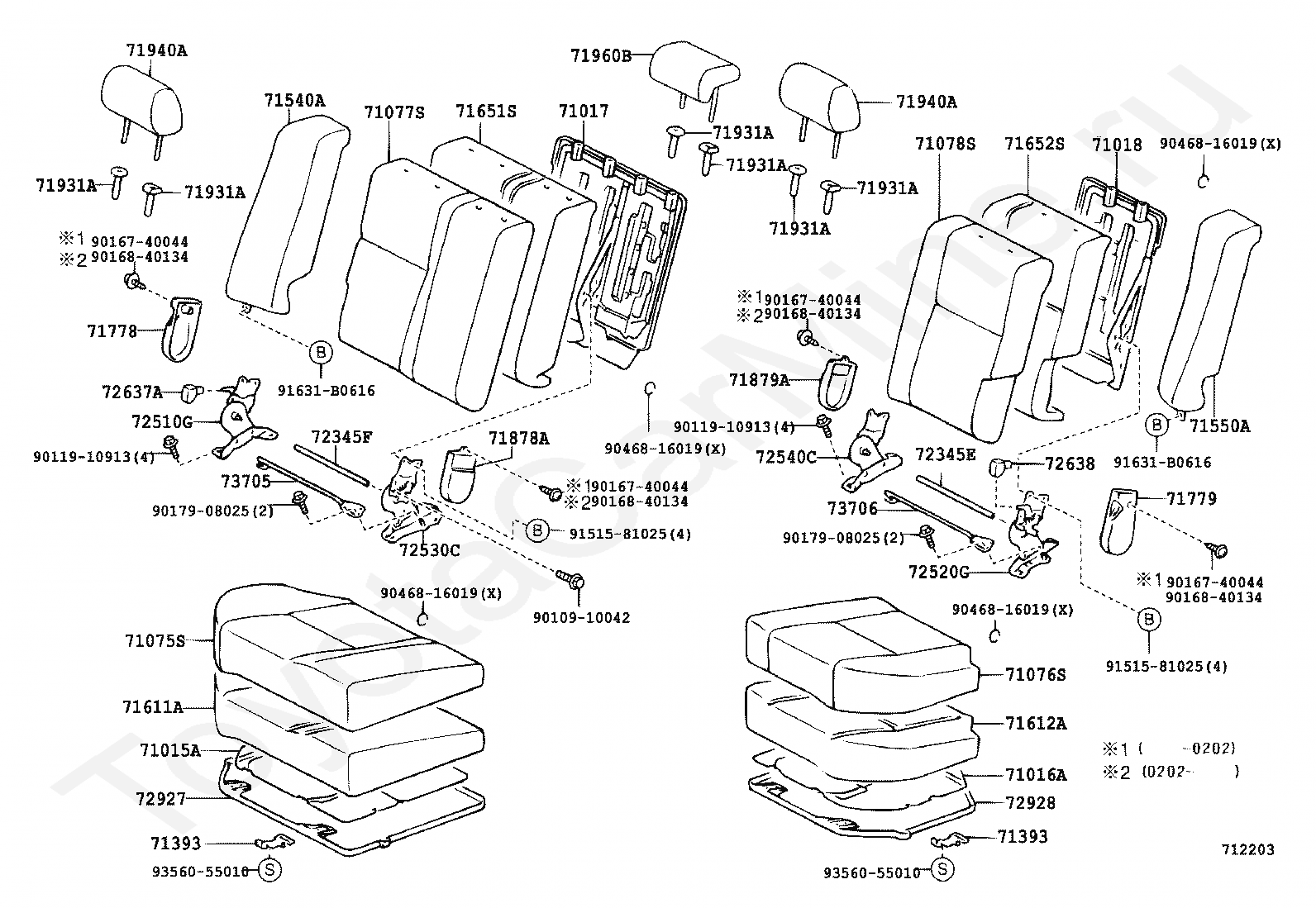

Код

Описание

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71393

BAND, REAR SEAT CUSHION

71540A

BACK ASSY, REAR SIDE SEAT, RH

71550A

BACK ASSY, REAR SIDE SEAT, LH

71611A

PAD, REAR SEAT CUSHION, RH

71612A

PAD, REAR SEAT CUSHION, LH

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71778

COVER, REAR SEAT SIDE HINGE MALE, RH

71779

COVER, REAR SEAT SIDE HINGE MALE, LH

71878A

COVER, REAR SEAT RECLINING, INNER RH

71879A

COVER, REAR SEAT RECLINING, INNER LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72345E

PIPE, RECLINING CONNECTING

72345F

PIPE, RECLINING CONNECTING, RH

72510G

ADJUSTER ASSY, REAR RECLINING SEAT, OUTER RH

72520G

ADJUSTER ASSY, REAR RECLINING SEAT, OUTER LH

72530C

ADJUSTER ASSY, REAR RECLINING SEAT, INNER RH

72540C

ADJUSTER ASSY, REAR RECLINING SEAT, INNER LH

72637A

HANDLE, REAR SEAT LOCK

72638

HANDLE, REAR SEAT LOCK, LH

72927

COVER, REAR SEAT CUSHION UNDER, RH

72928

COVER, REAR SEAT CUSHION UNDER, LH

73705

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

73706

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

9010910042

Крепеж

9011910913

Крепеж

9016740044

Крепеж

9016840134

Крепеж

9017908025

Крепеж

9046816019

Крепеж

9151581025

Крепеж

91631B0616

Крепеж

9356055010

Крепеж

Задние кресла TOYOTA COROLLA 5D, 2001/10 - 2007/02, 1,8 литра, 16 клапанов DOHC, EFI, LEVIN MODEL, ZZE122, механика
