Каталог
Ближний ВостокМодель
COROLLA (S.AMERICA)Двигатель
1,8 литра, 16 клапанов DOHC, EFIКузов
универсалКласс
SE-G TYPEФрейм
ZZE122Трансмиссия
автоматОпции
левый руль Бразилия HIGH EFFICIENCY TWIN CAM(FLEX FUEL)

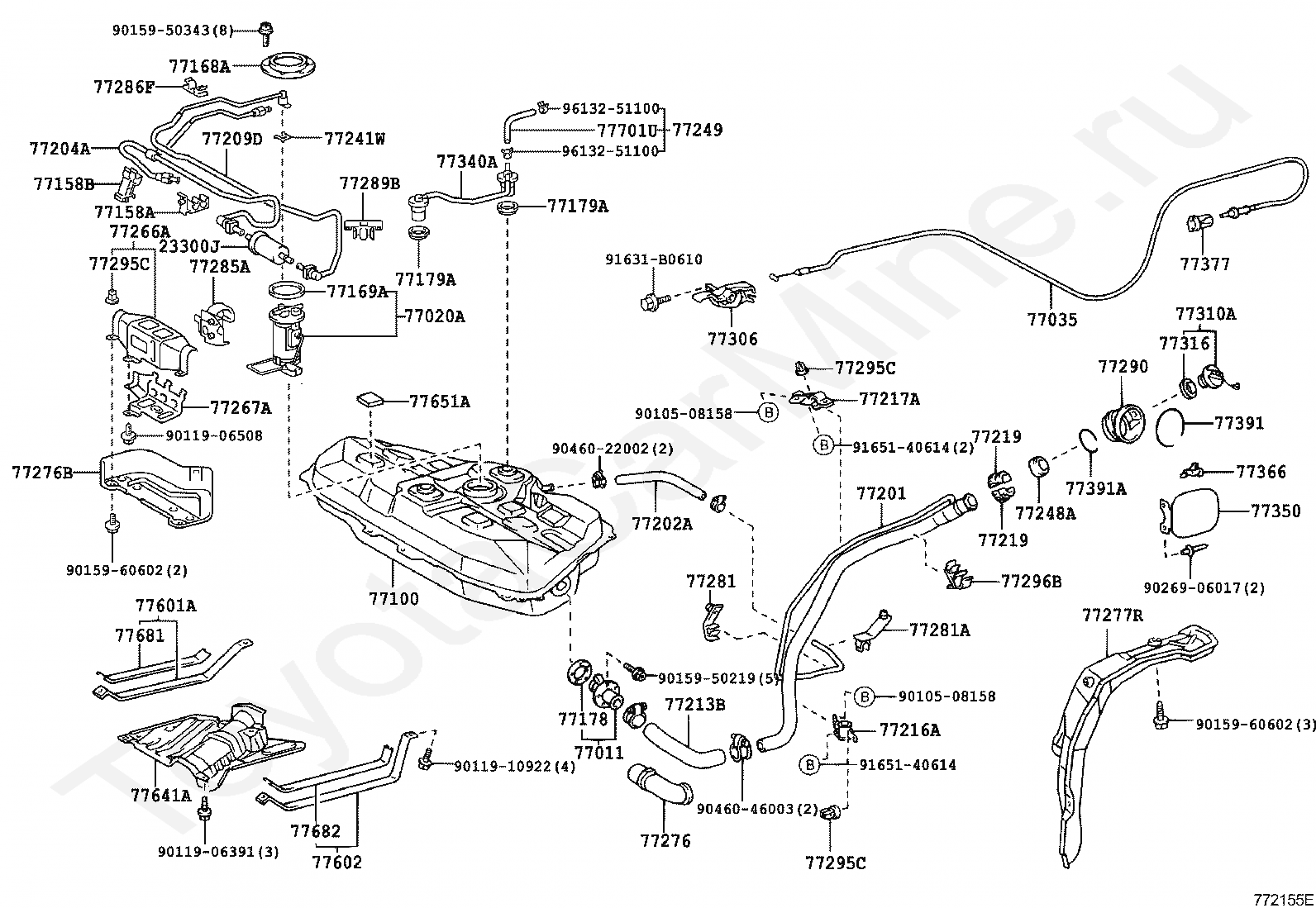

Код
Описание
23300J
FILTER ASSY, FUEL
77011
PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77020A
TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100
TANK ASSY, FUEL
77158A
SUPPORT, TANK SUCTION TUBE
77158B
SUPPORT, TANK SUCTION TUBE, NO.1
77168A
PLATE, FUEL TANK VENT TUBE SET
77169A
GASKET, FUEL SUCTION TUBE SET
77178
GASKET, FUEL TANK FILLER PIPE, LOWER
77179A
GASKET, FUEL TANK BREATHER TUBE
77201
PIPE SUB-ASSY, FUEL TANK INLET
77202A
HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77204A
TUBE, FUEL TANK RETURN
77209D
TUBE SUB-ASSY, FUEL TANK MAIN
77213B
HOSE, FUEL TANK TO FILLER PIPE
77216A
SUPPORT, FUEL TANK FILLER PIPE, NO.1
77217A
SUPPORT, FUEL TANK FILLER PIPE, NO.2
77219
COVER, FUEL TANK FILLER PIPE
77241W
CLIP, TUBE JOINT
77248A
HOLDER, FUEL TANK FILLER PIPE COVER
77249
HOSE, FUEL EMISSION
77266A
PROTECTOR, FUEL TUBE, NO.1
77267A
PROTECTOR, FUEL TUBE, NO.2
77276
PROTECTOR, FUEL HOSE
77276B
PROTECTOR, FUEL HOSE
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77281
BRACKET, FUEL MAIN TUBE, NO.1
77281A
CLAMP, FUEL FILLER PIPE
77285A
SUPPORT, FUEL RETURN AND MAIN TUBE
77286F
CLAMP, FUEL TUBE, NO.2
77289B
CLAMP, FUEL TUBE, NO.3
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77295C
GROMMET, FUEL TUBE
77296B
SUPPORT, FUEL TUBE PROTECTOR, NO.1
77306
LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77340A
VALVE ASSY, FUEL CUT OFF W/TUBE
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77391
RING, FUEL INLET BOX
77391A
RING, FUEL INLET BOX
77601A
BAND SUB-ASSY, FUEL TANK, NO.1
77602
CASE SUB-ASSY, FUEL TANK, UPPER
77641A
PROTECTOR, FUEL TANK, NO.1
77651A
CUSHION, FUEL TANK, NO.1
77681
SEAT, FUEL TANK BAND, RH
77682
SEAT, FUEL TANK BAND, LH
77701U
HOSE, FUEL (FOR CHECK VALVE)
9010508158
Крепеж
9011906391
Крепеж
9011906508
Крепеж
9011910922
Крепеж
9015950219
Крепеж
9015950343
Крепеж
9015960602
Крепеж
9026906017
Крепеж
9046022002
Крепеж
9046046003
Крепеж
91631B0610
Крепеж
9165140614
Крепеж
9613251100
Крепеж

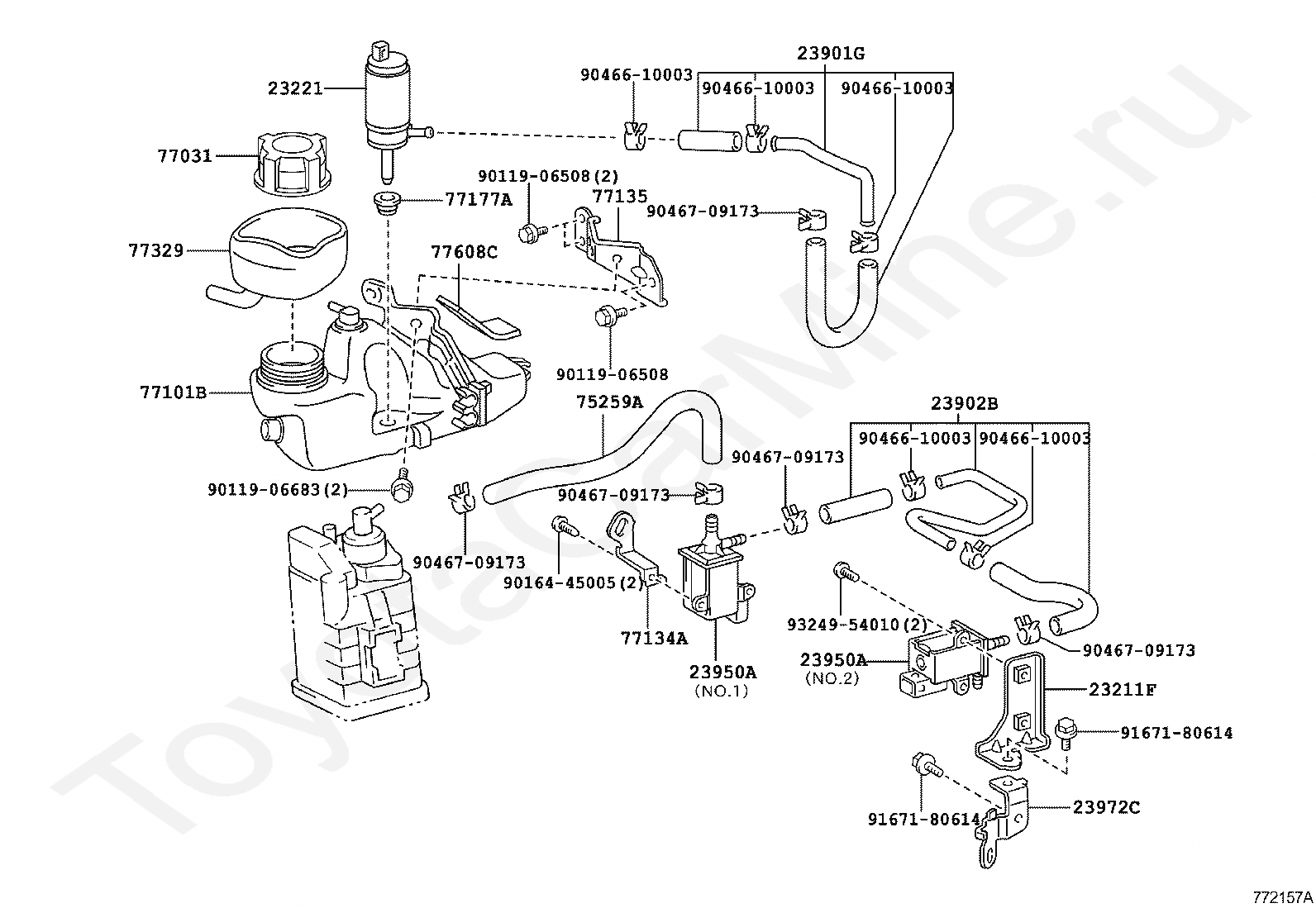

Код
Описание
23211F
BRACKET
23221
PUMP, FUEL
23901G
TUBE SUB-ASSY, FUEL
23902B
TUBE SUB-ASSY, FUEL, NO.2
23950A
VALVE ASSY, SOLENOID
23972C
BRACKET, FILTER & SOLENOID VALVE
75259A
HOSE, FUEL
77031
CAP ASSY, FUEL TANK
77101B
TANK SUB-ASSY, FUEL, UPPER
77134A
SUPPORT, FUEL SUB TANK, NO.2
77135
BRACKET, CHECK VALVE
77177A
GASKET, CHECK VALVE
77329
COVER, FUEL TANK CAP
77608C
CUSHION SET, FUEL TANK
9011906508
Крепеж
9011906683
Крепеж
9016445005
Крепеж
9046610003
Крепеж
9046709173
Крепеж
9167180614
Крепеж
9324954010
Крепеж

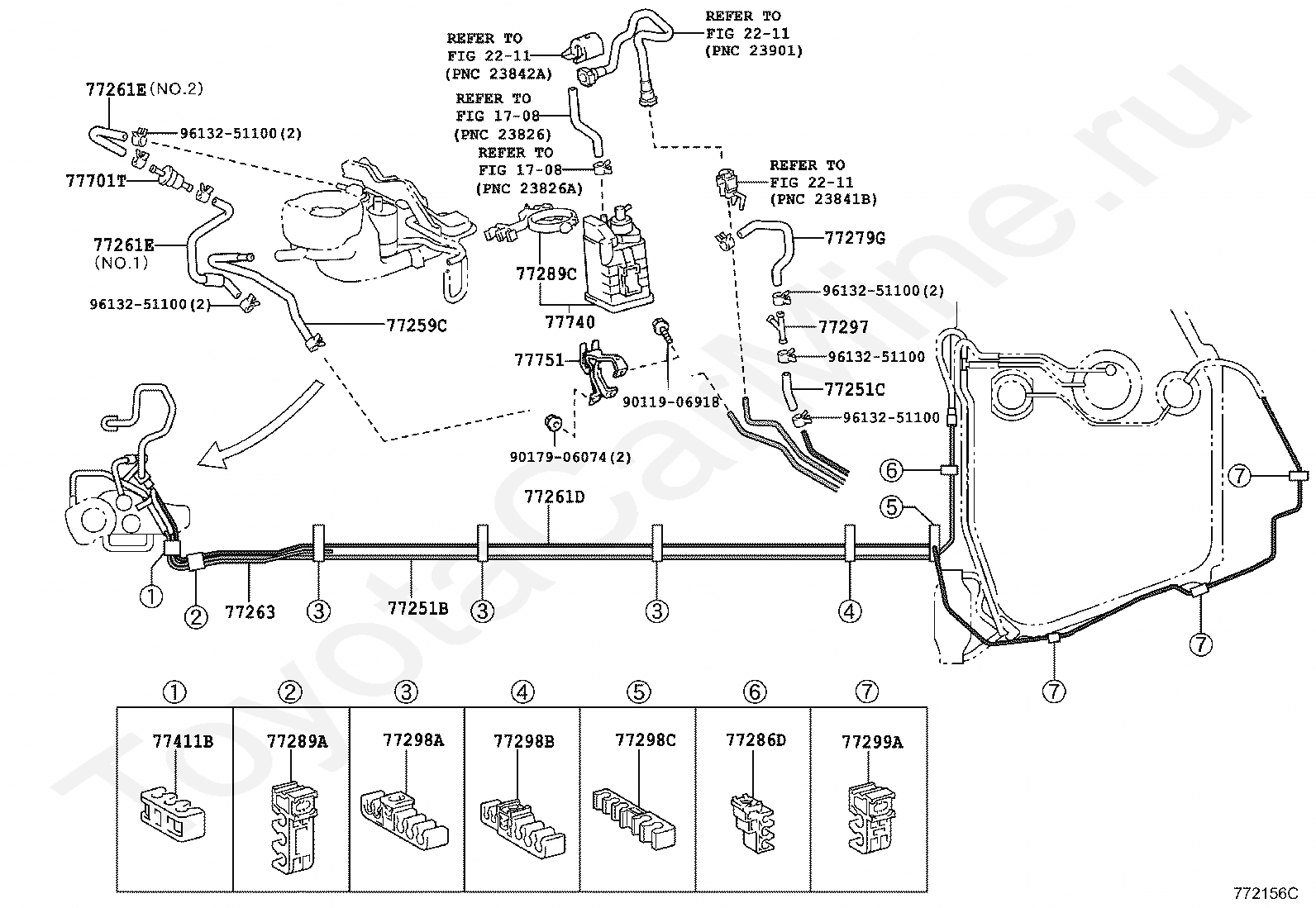

Код
Описание
1708
переход к группе запчастей
2211
переход к группе запчастей
77251B
TUBE, FUEL MAIN
77251C
HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77259C
HOSE, FUEL
77261D
TUBE, FUEL TANK TO CANISTER
77261E
HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77263
TUBE, FUEL TANK TO CANISTER, NO.3
77279G
HOSE, FUEL, NO.2
77286D
CLAMP, FUEL TUBE, NO.2
77289A
CLAMP, FUEL TUBE W/GROMMET, NO.3
77289C
CLAMP, FUEL TUBE, NO.4
77297
CONNECTOR, FUEL TUBE
77298A
CLAMP, FUEL TUBE, NO.4
77298B
CLAMP, FUEL TUBE, NO.4
77298C
CLAMP, FUEL TUBE, NO.4
77299A
CLAMP, FUEL TUBE, NO.5
77411B
SUPPORT, FUEL TUBE GROMMET, NO.1
77701T
VALVE, CHECK (FOR MAIN FUEL TANK)
77740
CANISTER ASSY, CHARCOAL
77751
BRACKET, CHARCOAL CANISTER BASE
9011906918
Крепеж
9017906074
Крепеж
9613251100
Крепеж
