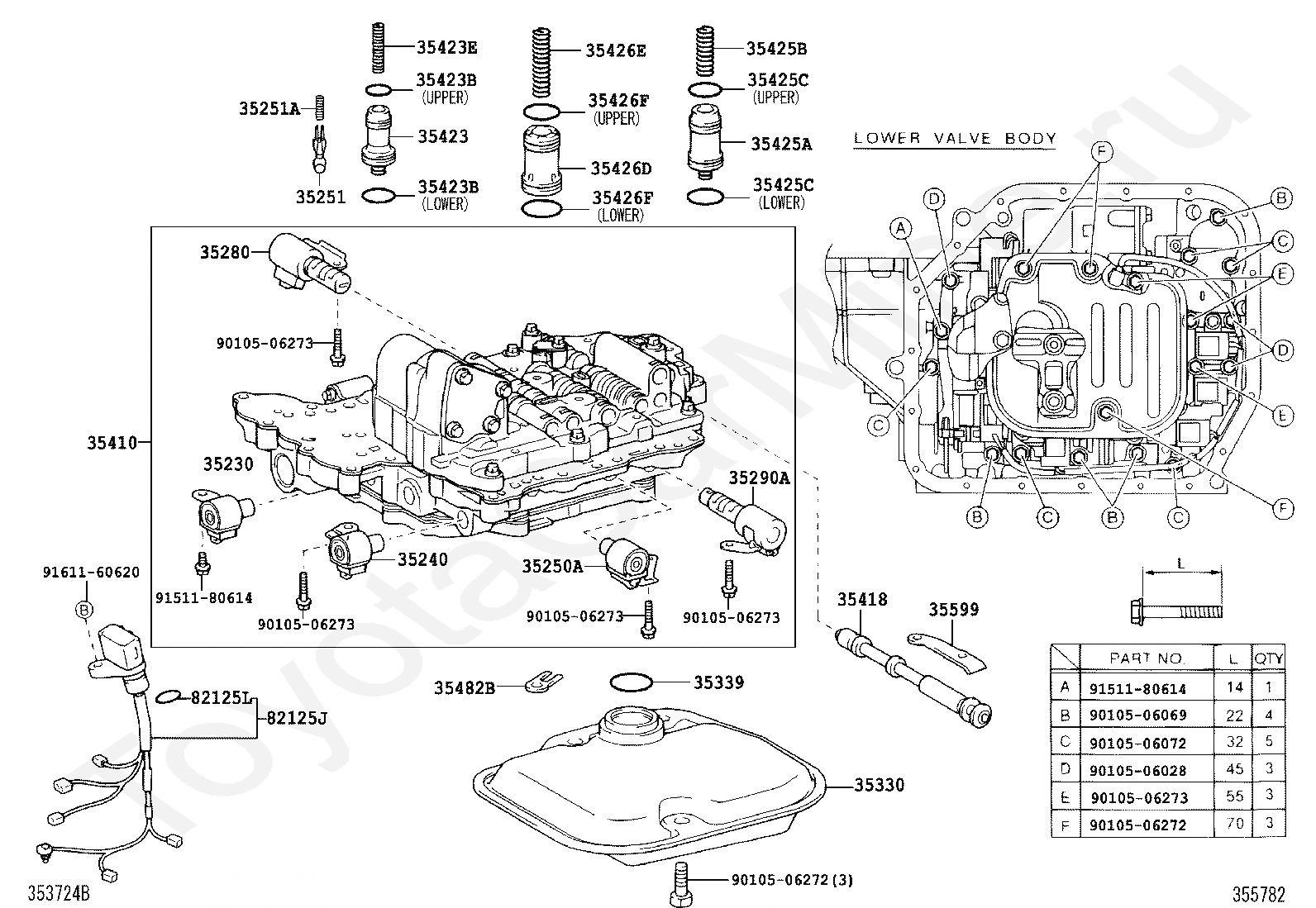

VALVE BODY & OIL STRAINER (ATM) TOYOTA COROLLA (S.AMERICA), 2002/05 - 2008/03, 1,8 литра, 16 клапанов DOHC, EFI, седан, SE-G TYPE, ZZE122, автомат

Каталог

Ближний Восток

Модель

COROLLA (S.AMERICA)

Двигатель

1,8 литра, 16 клапанов DOHC, EFI

Кузов

седан

Класс

SE-G TYPE

Фрейм

ZZE122

Трансмиссия

автомат

Опции

левый руль Бразилия HIGH EFFICIENCY TWIN CAM

Код

Описание

35156A

PLATE, TRANSMISSION CASE, NO.2

35156B

BOLT(FOR TRANSMISSION CASE NO.2 PLATE)

35156C

SCREW(FOR TRANSMISSION CASE NO.2 PLATE)

35158

GASKET, TRANSMISSION CASE, NO.2 PLATE

35208

SPRING SUB-ASSY, B-2 ACCUMULATOR

35208A

RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

35250A

SOLENOID ASSY, TRANSMISSION, NO.3

35250B

RING, O NO.3(FOR TRANSMISSION SOLENOID)

35250C

SOLENOID ASSY, TRANSMISSION NO.1

35250D

SOLENOID ASSY, TRANSMISSION NO.2

35251

BODY, CHECK BALL

35251A

SPRING, COMPRESSION (FOR CHECK BALL BODY)

35285

PLATE, SOLENOID LOCK

35290A

SOLENOID ASSY, LINE PRESSURE CONTROL

35330

STRAINER ASSY, VALVE BODY OIL

35339

GASKET, OIL STRAINER

35409

SPRING SUB-ASSY, MANUAL DETENT

35410

BODY ASSY, TRANSMISSION VALVE

35423

PISTON, B-2 ACCUMULATOR

35423A

SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35424C

PISTON, C-1 ACCUMULATOR

35424D

SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

35424E

RING, O (FOR C-1 ACCUMULATOR PISTON)

35425A

PISTON, C-2 ACCUMULATOR

35425B

SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35426D

PISTON, C-3 ACCUMULATOR

35426E

SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

35426F

RING, O (FOR C-3 ACCUMULATOR PISTON)

35427A

SPRING, COMPRESSION (FOR B-4 ACCUMULATOR PISTON)

35427B

RING, O (FOR B-4 ACCUMULATOR PISTON)

35427C

PISTON, B-4 ACCUMULATOR

35599

COVER, MANUAL DETENT SPRING

82125J

WIRE, TRANSMISSION

82125L

RING, O(FOR TRANSMISSION WIRE)

9010505005

Крепеж

9010506015

Крепеж

9010506018

Крепеж

9010506049

Крепеж

9010506053

Крепеж

9010506202

Крепеж

91511C0625

Крепеж

91511H0620

Крепеж

91611B0616

Крепеж

Код

Описание

35195A

CLAMP, TRANSAXLE APPLY TUBE, NO.1

35196

CLAMP, TRANSAXLE APPLY TUBE, NO.2

35197

CLAMP, TRANSAXLE APPLY TUBE, NO.3

35847

TUBE, TRANSMISSION LUBE APPLY

35882A

TUBE, DIFFERENTIAL GEAR LUBE APPLY

35899

TUBE, GOVERNOR PRESSURE

91611B0614

Крепеж

91611G0612

Крепеж

Код

Описание

35230

SOLENOID ASSY, TRANSMISSION 3WAY, NO.2

35240

SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

35250A

SOLENOID ASSY, TRANSMISSION, NO.3

35251

BODY, CHECK BALL

35251A

SPRING, COMPRESSION (FOR CHECK BALL BODY)

35280

SOLENOID ASSY, LOCK UP CONTROL

35290A

SOLENOID ASSY, LINE PRESSURE CONTROL

35330

STRAINER ASSY, VALVE BODY OIL

35339

GASKET, OIL STRAINER

35410

BODY ASSY, TRANSMISSION VALVE

35418

VALVE, MANUAL

35423

PISTON, B-2 ACCUMULATOR

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35423E

SPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON)

35425A

PISTON, C-2 ACCUMULATOR

35425B

SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35426D

PISTON, C-3 ACCUMULATOR

35426E

SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

35426F

RING, O (FOR C-3 ACCUMULATOR PISTON)

35482B

CLAMP, TEMPERATURE SENSOR

35599

COVER, MANUAL DETENT SPRING

82125J

WIRE, TRANSMISSION

82125L

RING, O(FOR TRANSMISSION WIRE)

9010506028

Крепеж

9010506069

Крепеж

9010506072

Крепеж

9010506272

Крепеж

9010506273

Крепеж

9151180614

Крепеж

9161160620

Крепеж

VALVE BODY & OIL STRAINER (ATM) TOYOTA COROLLA (S.AMERICA), 2002/05 - 2008/03, 1,8 литра, 16 клапанов DOHC, EFI, седан, SE-G TYPE, ZZE122, автомат
