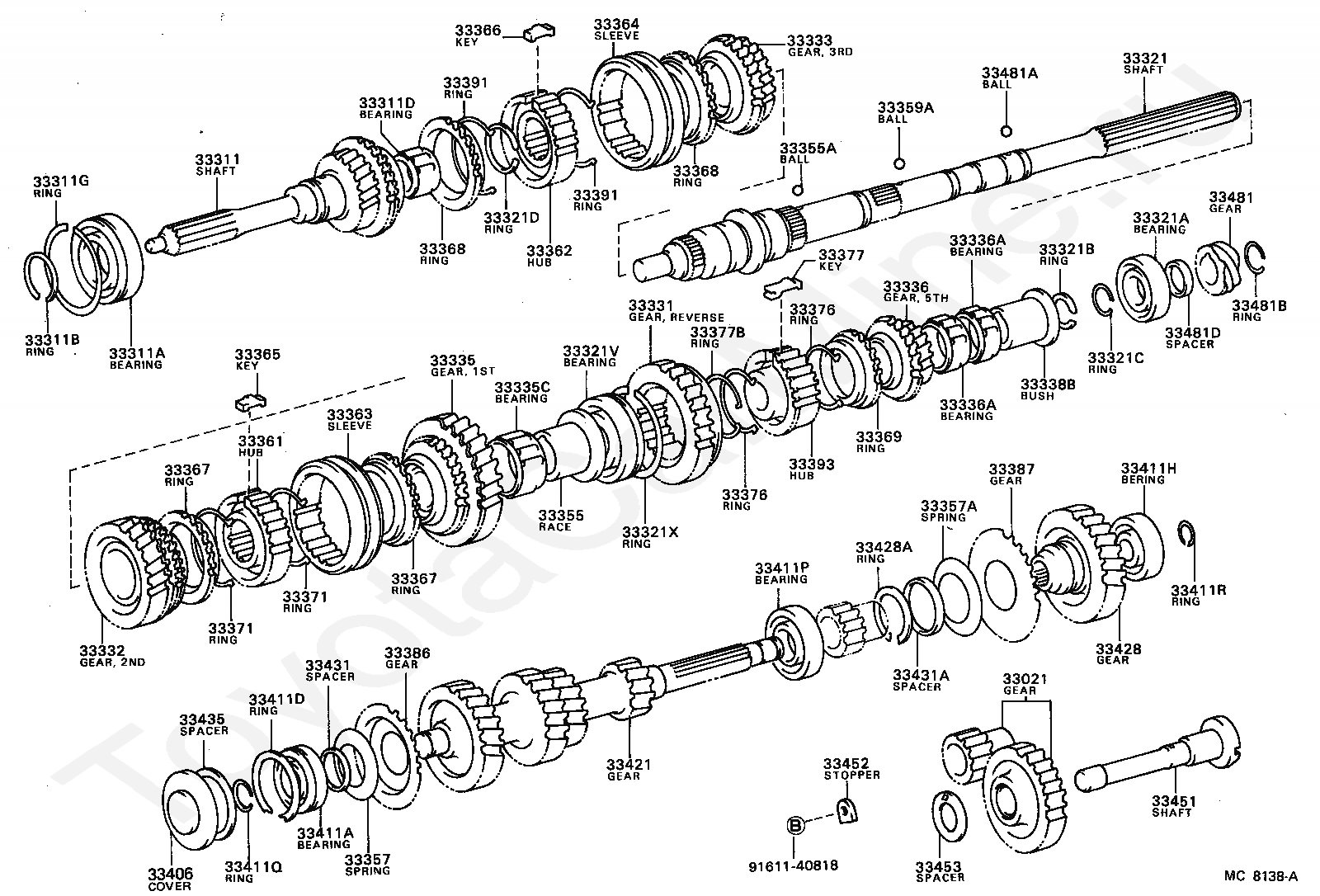

TRANSMISSION GEAR (MTM) TOYOTA COROLLA, 1985/01 - 1987/07, 1,8 литра, дизель, фургон, DELUX SPECIFICATION, CE70, механика, МКПП, 5 скоростей

Каталог

Европа

Модель

COROLLA

Двигатель

1,8 литра, дизель

Кузов

фургон

Класс

DELUX SPECIFICATION

Фрейм

CE70

Трансмиссия

механика МКПП, 5 скоростей

Опции

правый руль 4 двери Европа Европа

Код

Описание

33021

GEAR SET, REVERSE

33311

SHAFT, INPUT

33311A

BEARING (FOR INPUT SHAFT FRONT)

33311B

RING, SHAFT SNAP (FOR FRONT BEARING)

33311D

BEARING, INPUT SHAFT

33311G

RING, SHAFT SNAP (FOR FRONT BEARING)

33321

SHAFT, OUTPUT

33321A

BEARING (FOR OUTPUT SHAFT REAR)

33321B

RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

33321C

RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

33321D

RING, SHAFT SNAP (FOR CLUTCH HUB SET)

33321V

BEARING (FOR OUTPUT SHAFT CENTER)

33321X

RING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING)

33331

GEAR, REVERSE

33332

GEAR, 2ND

33333

GEAR, 3RD

33335

GEAR, 1ST

33335C

BEARING, NEEDLE ROLLER(FOR 1ST GEAR)

33336

GEAR, 5TH

33336A

BEARING, NEEDLE ROLLER (FOR 5TH GEAR)

33338B

BUSH, 5TH GEAR

33355

RACE, 1ST GEAR BEARING INNER

33355A

KEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK

33357

SPRING, SUB-GEAR THRUST, NO.1

33357A

SPRING, SUB-GEAR THRUST, NO.2

33359A

BALL, 5TH GEAR BEARING INNER RACE LOCK

33361

HUB, TRANSMISSION CLUTCH, NO.1

33362

HUB, TRANSMISSION CLUTCH, NO.2

33363

SLEEVE, TRANSMISSION HUB, NO.1

33364

SLEEVE, TRANSMISSION HUB, NO.2

33365

KEY, SYNCHROMESH SHIFTING, NO.1

33366

KEY, SYNCHROMESH SHIFTING, NO.2

33367

RING, SYNCHRONIZER, NO.1

33368

RING, SYNCHRONIZER, NO.2

33369

RING, SYNCHRONIZER, NO.3

33371

SPRING, SYNCHROMESH SHIFTING KEY, NO.1

33376

SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)

33377

KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)

33377B

RING, SNAP (FOR SYNCHROMESH SHIFTING KEY)

33386

SUB-GEAR, NO.1

33387

SUB-GEAR, NO.2

33391

SPRING, SYNCHROMESH SHIFTING KEY, NO.2

33393

HUB, TRANSMISSION CLUTCH, NO.3

33406

COVER SUB-ASSY, COUNTER SHAFT

33411A

BEARING OR ROLLER(FOR COUNTER GEAR FRONT)

33411D

RING, COUNTER GEAR FRONT BEARING SNAP, NO.1

33411H

BEARING OR ROLLER(FOR COUNTER GEAR REAR)

33411P

BEARING, COUNTER SHAFT CENTER

33411Q

RING, COUNTER GEAR FRONT BEARING SNAP, NO.2

33411R

RING, SNAP, COUNTER GEAR REAR BEARING

33421

GEAR, COUNTER

33428

GEAR, COUNTERSHAFT 5TH

33428A

RING, SHAFT SNAP (FOR COUNTER 5TH GEAR)

33431

SPACER, COUNTER GEAR, NO.1

33431A

SPACER, COUNTER GEAR, NO.2

33435

WASHER, COUNTER GEAR CASE SIDE THRUST

33451

SHAFT, REVERSE IDLER GEAR

33452

STOPPER, REVERSE IDLER GEAR SHAFT

33453

SPACER, REVERSE IDLER GEAR SHAFT

33481

GEAR, SPEEDOMETER DRIVE (MTM)

33481A

KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)

33481B

RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)

33481D

SPACER (FOR SPEEDOMETER DRIVE GEAR)

9161140818

Крепеж

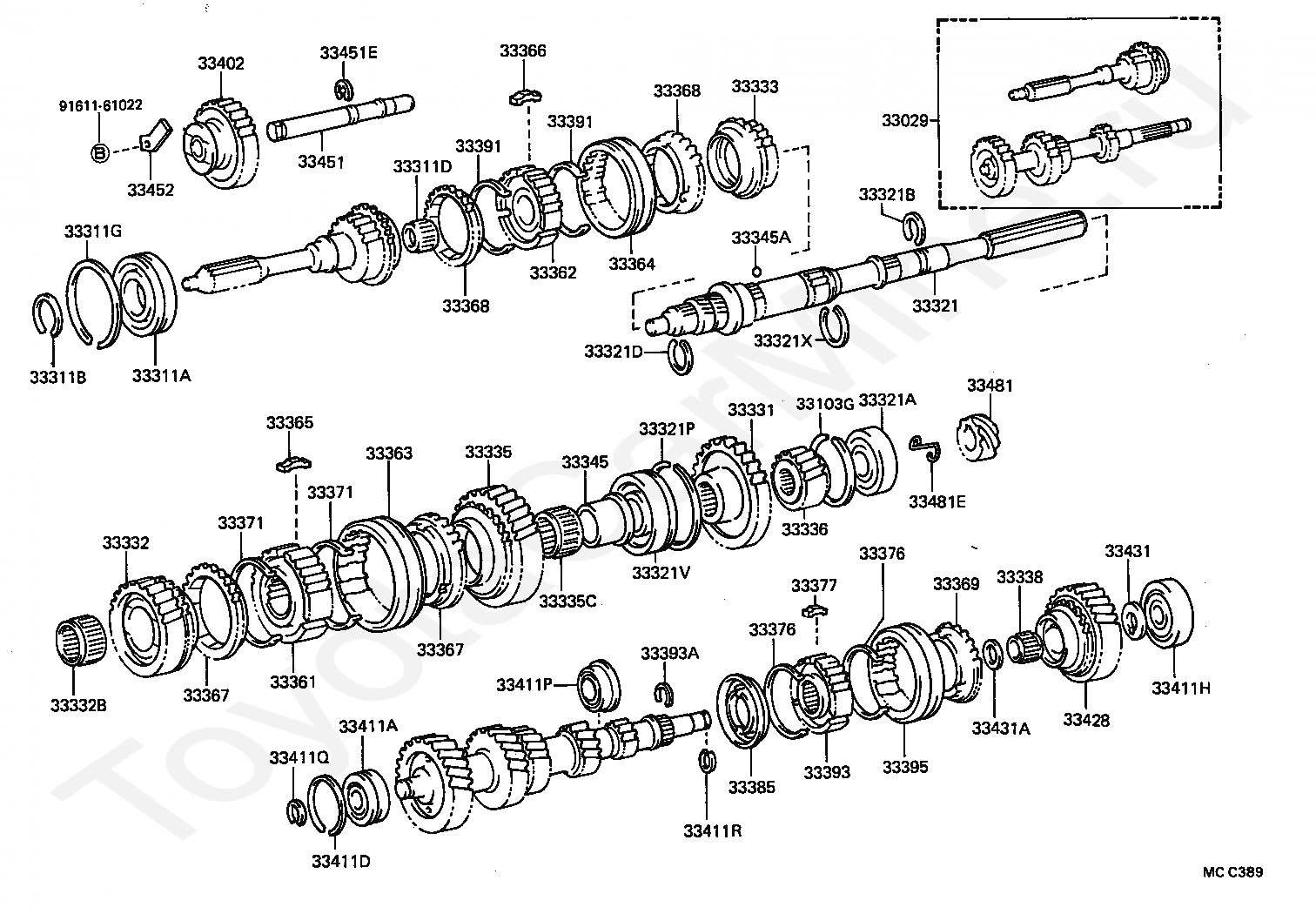

Код

Описание

33029

SHAFT SET, INPUT

33103G

RING, HOLE SNAP(FOR REAR BEARING SET)

33311A

BEARING (FOR INPUT SHAFT FRONT)

33311B

RING, SHAFT SNAP (FOR FRONT BEARING)

33311D

BEARING, INPUT SHAFT

33311G

RING, SHAFT SNAP (FOR FRONT BEARING)

33321

SHAFT, OUTPUT

33321A

BEARING (FOR OUTPUT SHAFT REAR)

33321B

RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

33321D

RING, SHAFT SNAP (FOR CLUTCH HUB SET)

33321P

RING, SNAP (FOR OUTPUT SHAFT CENTER BEARING)

33321V

BEARING (FOR OUTPUT SHAFT CENTER)

33321X

RING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING)

33331

GEAR, REVERSE

33332

GEAR, 2ND

33332B

BEARING, NEEDLE ROLLER (FOR 2ND GEAR)

33333

GEAR, 3RD

33335

GEAR, 1ST

33335C

BEARING, NEEDLE ROLLER(FOR 1ST GEAR)

33336

GEAR, 5TH

33338

BUSH OR BEARING, 5TH GEAR

33345

BUSH, 1ST GEAR

33345A

BALL (FOR 1ST GEAR BUSH)

33361

HUB, TRANSMISSION CLUTCH, NO.1

33362

HUB, TRANSMISSION CLUTCH, NO.2

33363

SLEEVE, TRANSMISSION HUB, NO.1

33364

SLEEVE, TRANSMISSION HUB, NO.2

33365

KEY, SYNCHROMESH SHIFTING, NO.1

33366

KEY, SYNCHROMESH SHIFTING, NO.2

33367

RING, SYNCHRONIZER, NO.1

33368

RING, SYNCHRONIZER, NO.2

33369

RING, SYNCHRONIZER, NO.3

33371

SPRING, SYNCHROMESH SHIFTING KEY, NO.1

33376

SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)

33377

KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)

33385

RETAINER, SHIFTING KEY

33391

SPRING, SYNCHROMESH SHIFTING KEY, NO.2

33393

HUB, TRANSMISSION CLUTCH, NO.3

33393A

RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)

33395

SLEEVE, TRANSMISSION HUB, NO.3

33402

GEAR SUB-ASSY, REVERSE IDLER

33411A

BEARING OR ROLLER(FOR COUNTER GEAR FRONT)

33411D

RING, COUNTER GEAR FRONT BEARING SNAP, NO.1

33411H

BEARING OR ROLLER(FOR COUNTER GEAR REAR)

33411P

BEARING, COUNTER SHAFT CENTER

33411Q

RING, COUNTER GEAR FRONT BEARING SNAP, NO.2

33411R

RING, SNAP, COUNTER GEAR REAR BEARING

33428

GEAR, COUNTERSHAFT 5TH

33431

SPACER, COUNTER GEAR, NO.1

33431A

SPACER, COUNTER GEAR, NO.2

33451

SHAFT, REVERSE IDLER GEAR

33451E

RING, E (FOR REVERSE IDLER GEAR SHAFT)

33452

STOPPER, REVERSE IDLER GEAR SHAFT

33481

GEAR, SPEEDOMETER DRIVE (MTM)

33481E

CLIP (FOR SPEEDOMETER DRIVE GEAR)

9161161022

Крепеж

TRANSMISSION GEAR (MTM) TOYOTA COROLLA, 1985/01 - 1987/07, 1,8 литра, дизель, фургон, DELUX SPECIFICATION, CE70, механика, МКПП, 5 скоростей
