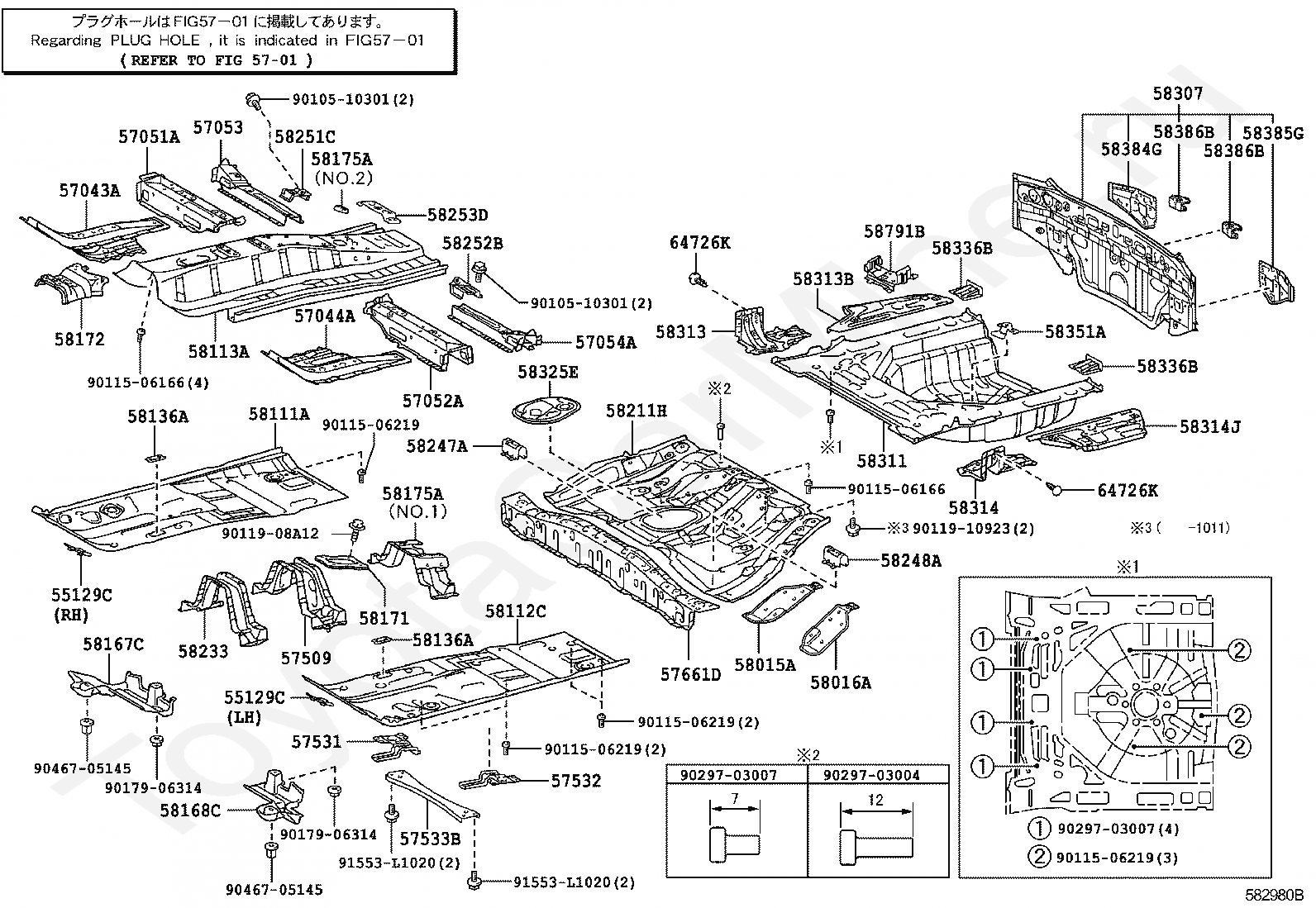

FLOOR PAN & LOWER BACK PANEL TOYOTA COROLLA SED, 2010/04 - 2013/11, 1,8 литра, 16 клапанов, DOHC, EFI, N(MODEL MARK), ZRE152, автомат, АКПП, 4 ступени

Каталог

Ближний Восток

Модель

COROLLA SED

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Класс

N(MODEL MARK)

Фрейм

ZRE152

Трансмиссия

автомат АКПП, 4 ступени

Опции

правый руль HIGH EFFICIENCY TWIN CAM 474W

Код

Описание

55129C

COVER, DASH PANEL HOLE

5701

переход к группе запчастей

57043A

REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

57044A

REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

57051A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

57052A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

57053

REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH

57054A

REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH

57509

REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

57531

BRACKET, FRONT FLOOR CENTER BRACE, RH

57532

BRACKET, FRONT FLOOR CENTER BRACE, LH

57533B

BRACE, FRONT FLOOR, CENTER

57661D

MEMBER, REAR FLOOR CROSS, FRONT

58015A

REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

58016A

REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

58111A

PAN, FRONT FLOOR, RH

58112C

PAN, FRONT FLOOR, LH

58113A

PANEL, FRONT FLOOR, CENTER

58136A

COVER, FRONT FLOOR SERVICE HOLE

58167C

COVER, FRONT FLOOR, CENTER RH

58168C

COVER, FRONT FLOOR, CENTER LH

58171

REINFORCEMENT, PARKING BRAKE BASE

58172

BRACKET, COMPUTER MOUNTING, NO.3

58175A

REINFORCEMENT, PARKING BRAKE BASE, NO.1

58211H

PAN, CENTER FLOOR

58233

BRACKET, EXHAUST PIPE MOUNTING

58247A

REINFORCEMENT, REAR SEAT CUSHION HINGE, RH

58248A

REINFORCEMENT, REAR SEAT CUSHION HINGE, LH

58251C

BRACE, FLOOR PANEL, FRONT RH

58252B

BRACE, FLOOR PANEL, FRONT LH

58253D

BRACKET, PARKING BRAKE CABLE

58307

PANEL SUB-ASSY, BODY LOWER BACK

58311

PAN, REAR FLOOR

58313

PANEL, REAR FLOOR SIDE, RH

58313B

PANEL, REAR FLOOR SIDE, RH

58314

PANEL, REAR FLOOR SIDE, LH

58314J

PANEL, REAR FLOOR SIDE, LH

58325E

COVER, REAR FLOOR SERVICE HOLE

58336B

REINFORCEMENT, REAR FLOOR PAN

58351A

BRACKET, SPARE WHEEL CARRIER

58384G

GUSSET, LOWER BACK, UPPER RH

58385G

GUSSET, LOWER BACK, UPPER LH

58386B

BRACKET, REAR BUMPER COVER, NO.2

58791B

CARRIER, JACK

64726K

CLIP, LUGGAGE TRIM, REAR

9010510301

Крепеж

9011506166

Крепеж

9011506219

Крепеж

9011908A12

Крепеж

9011910923

Крепеж

9017906314

Крепеж

9029703004

Крепеж

9029703007

Крепеж

9046705145

Крепеж

91553L1020

Крепеж

FLOOR PAN & LOWER BACK PANEL TOYOTA COROLLA SED, 2010/04 - 2013/11, 1,8 литра, 16 клапанов, DOHC, EFI, N(MODEL MARK), ZRE152, автомат, АКПП, 4 ступени
