Каталог
АмерикаМодель
COROLLA SED/LBДвигатель
1,6 литраКузов
POUNDSКласс
LE TYPEФрейм
AE82Трансмиссия
автомат АКПП, 4 ступениОпции
Канада

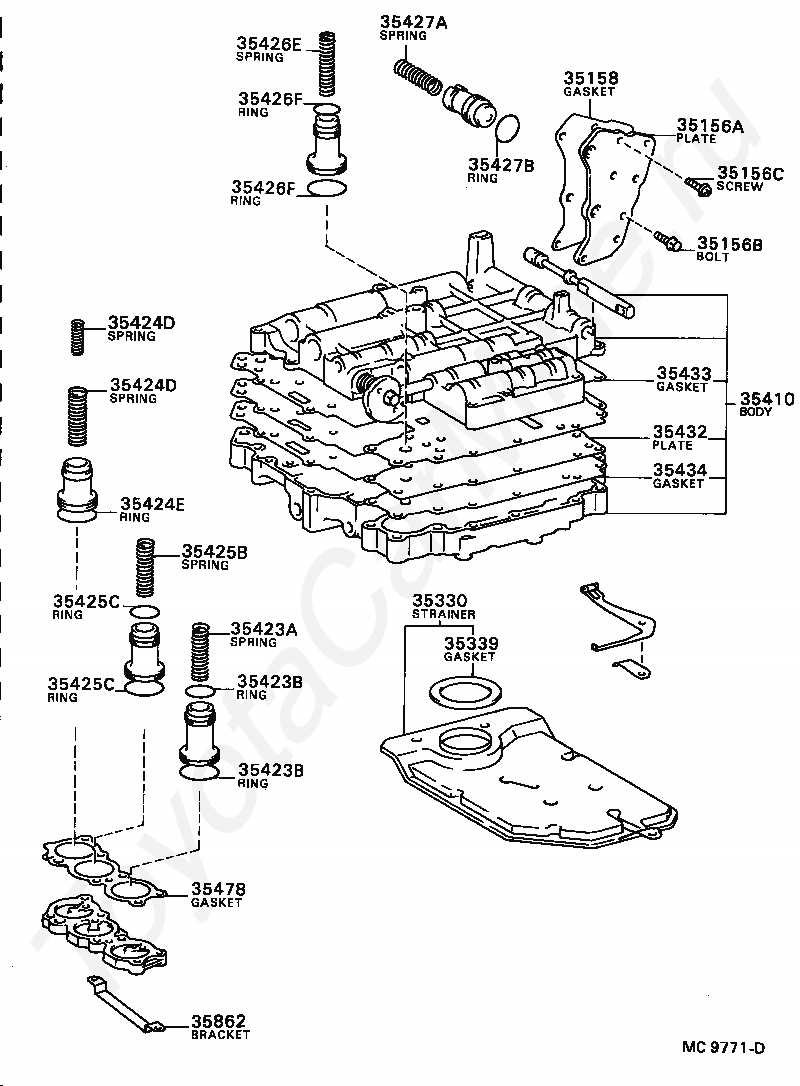

Код
Описание
35156A
PLATE, TRANSMISSION CASE, NO.2
35156B
BOLT(FOR TRANSMISSION CASE NO.2 PLATE)
35156C
SCREW(FOR TRANSMISSION CASE NO.2 PLATE)
35158
GASKET, TRANSMISSION CASE, NO.2 PLATE
35330
STRAINER ASSY, VALVE BODY OIL
35339
GASKET, OIL STRAINER
35410
BODY ASSY, TRANSMISSION VALVE
35423A
SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
35423B
RING, O (FOR B-2 ACCUMULATOR PISTON)
35424D
SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
35424E
RING, O (FOR C-1 ACCUMULATOR PISTON)
35425B
SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
35425C
RING, O (FOR C-2 ACCUMULATOR PISTON)
35426E
SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)
35426F
RING, O (FOR C-3 ACCUMULATOR PISTON)
35427A
SPRING, COMPRESSION (FOR B-4 ACCUMULATOR PISTON)
35427B
RING, O (FOR B-4 ACCUMULATOR PISTON)
35432
PLATE, VALVE BODY, NO.1
35433
GASKET, VALVE BODY, NO.1
35434
GASKET, VALVE BODY, NO.2
35478
GASKET, ACCUMULATOR COVER
35862
BRACKET, ACCUMULATOR APPLY TUBE

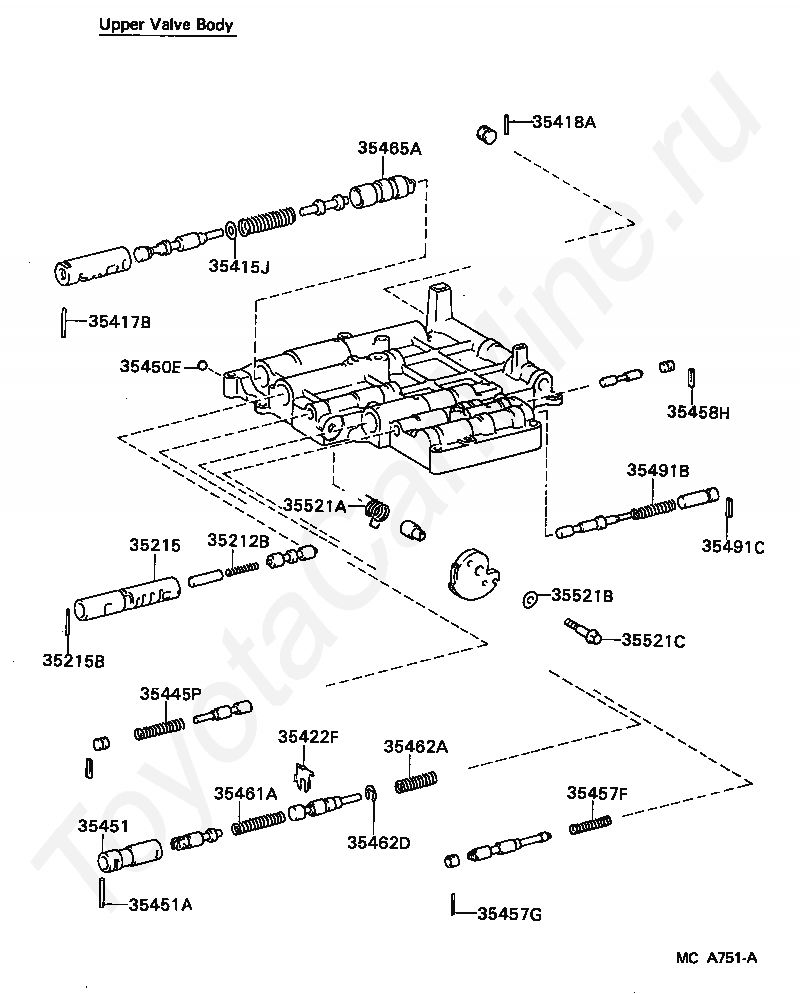

Код
Описание
35212B
SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE)
35215
SLEEVE, LOCK UP RELAY VALVE
35215B
PIN, STRAIGHT (FOR LOCK UP RELAY VALVE SLEEVE)
35415J
WASHER (FOR PRIMARY REGULATOR VALVE)
35417B
PIN, STRAIGHT (FOR PRIMARY REGULATOR VALVE SLEEVE)
35418A
PIN, STRAIGHT (FOR MANUAL VALVE)
35422F
STOPPER, VALVE VIBRATING
35445P
SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE)
35450E
BALL (FOR UPPER VALVE BODY)
35451
SLEEVE, THROTTLE VALVE
35451A
PIN, STRAIGHT (FOR THROTTLE VALVE SLEEVE)
35457F
SPRING, COMPRESSION (FOR THROTTLE MODULATOR VALVE)
35457G
PIN, STRAIGHT (FOR THROTTLE MODULATOR VALVE)
35458H
KEY, STRAIGHT (FOR CUT BACK VALVE)
35461A
SPRING, COMPRESSION (FOR DOWN SHIFT PLUG)
35462A
SPRING, COMPRESSION (FOR THROTTLE VALVE)
35462D
RING, E (FOR THROTTLE VALVE)
35465A
SLEEVE, PRIMARY REGULATOR VALVE PLUNGER
35491B
SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491C
KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1)
35521A
SPRING (FOR THROTTLE VALVE CAM RETURN)
35521B
WASHER (FOR THROTTLE VALVE CAM SET)
35521C
BOLT (FOR THROTTLE VALVE CAM SET)

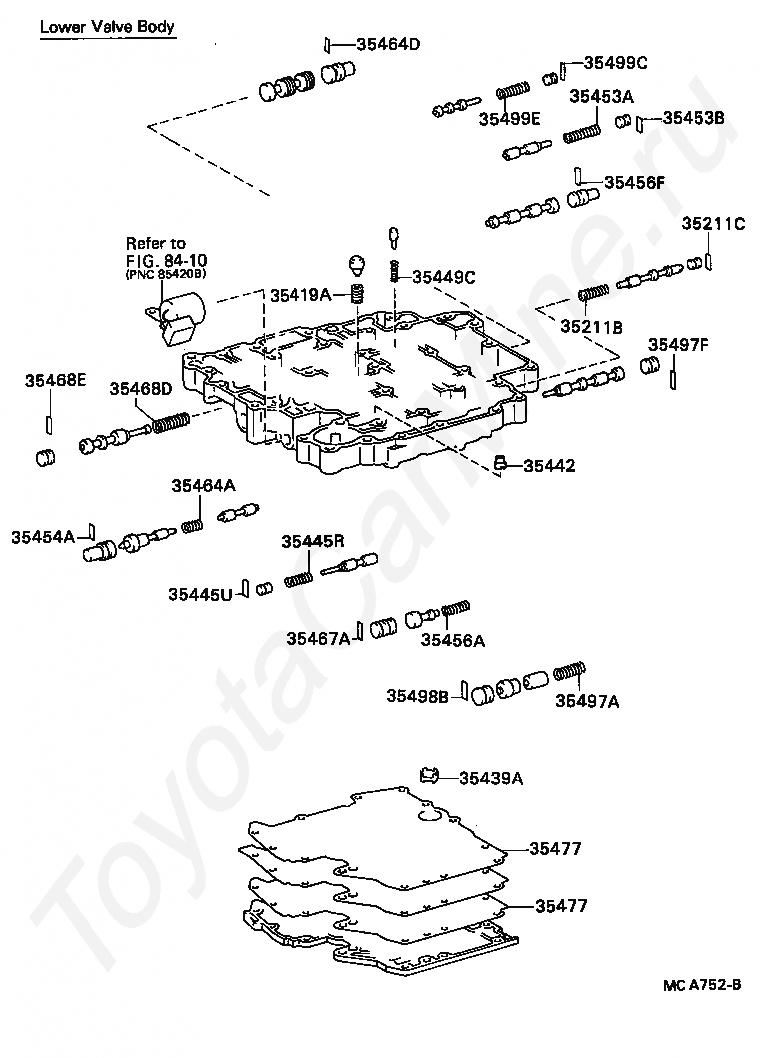

Код
Описание
35211B
SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE)
35211C
KEY, STRAIGHT (FOR LOCK UP SIGNAL VALVE)
35419A
SPRING, COMPRESSION (FOR CHECK VALVE)
35439A
STRAINER, LINE PRESSURE OIL
35442
STRAINER, THROTTLE MODULATOR OIL
35445R
SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE)
35445U
KEY, STRAIGHT (FOR LOW COAST MODULATOR VALVE)
35449C
SPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF)
35453A
SPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)
35453B
KEY, STRAIGHT (FOR DETENT REGULATOR VALVE)
35454A
KEY, STRAIGHT (FOR LOW COAST SHIFT VALVE)
35456A
SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)
35456F
KEY, STRAIGHT (FOR 2-3 SHIFT VALVE)
35464A
SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)
35464D
KEY, STRAIGHT (FOR 1-2 SHIFT VALVE)
35467A
KEY, STRAIGHT (FOR INTERMEDIATE SHIFT VALVE)
35468D
SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)
35468E
KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE)
35477
GASKET, VALVE BODY COVER
35497A
SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)
35497F
KEY, STRAIGHT (FOR 3-4 SHIFT VALVE)
35498B
KEY, STRAIGHT (FOR 3-4 COAST SHIFT VALVE)
35499C
KEY, STRAIGHT (FOR OVERDRIVE SEQUENCE VALVE)
35499E
SPRING, COMPRESSION (FOR OVERDRIVE SEQUENCE VALVE)
8410
переход к группе запчастей

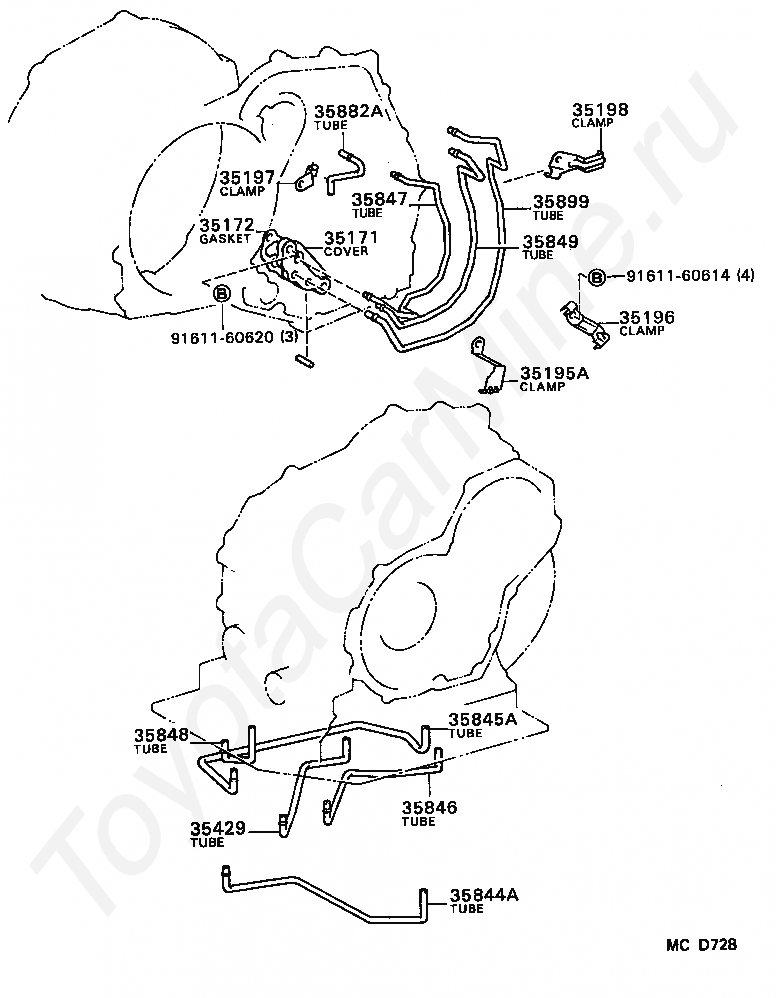

Код
Описание
35171
COVER, TRANSAXLE HOUSING
35172
GASKET, TRANSAXLE HOUSING COVER
35195A
CLAMP, TRANSAXLE APPLY TUBE, NO.1
35196
CLAMP, TRANSAXLE APPLY TUBE, NO.2
35197
CLAMP, TRANSAXLE APPLY TUBE, NO.3
35198
CLAMP, TRANSAXLE APPLY TUBE, NO.4
35429
TUBE, LINE PRESSURE
35844A
TUBE, ACCUMULATOR BACK PRESSURE, NO.1
35845A
TUBE, DIRECT CLUTCH ACCUMULATOR
35846
TUBE, BRAKE ACCUMULATOR
35847
TUBE, TRANSMISSION LUBE APPLY
35848
TUBE, FORWARD CLUTCH ACCUMULATOR
35849
TUBE, GOVERNOR APPLY
35882A
TUBE, DIFFERENTIAL GEAR LUBE APPLY
35899
TUBE, GOVERNOR PRESSURE
9161160614
Крепеж
9161160620
Крепеж
