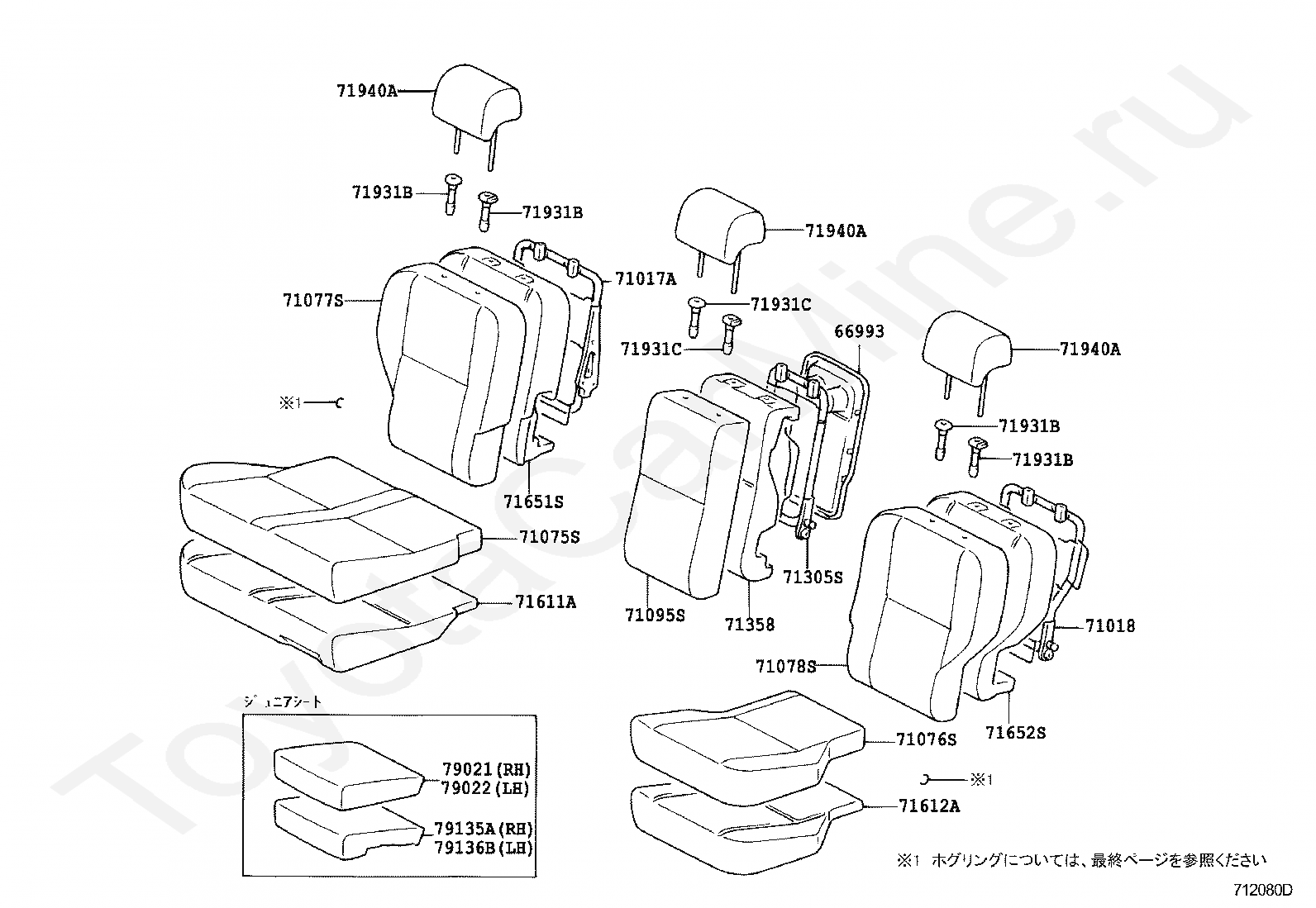

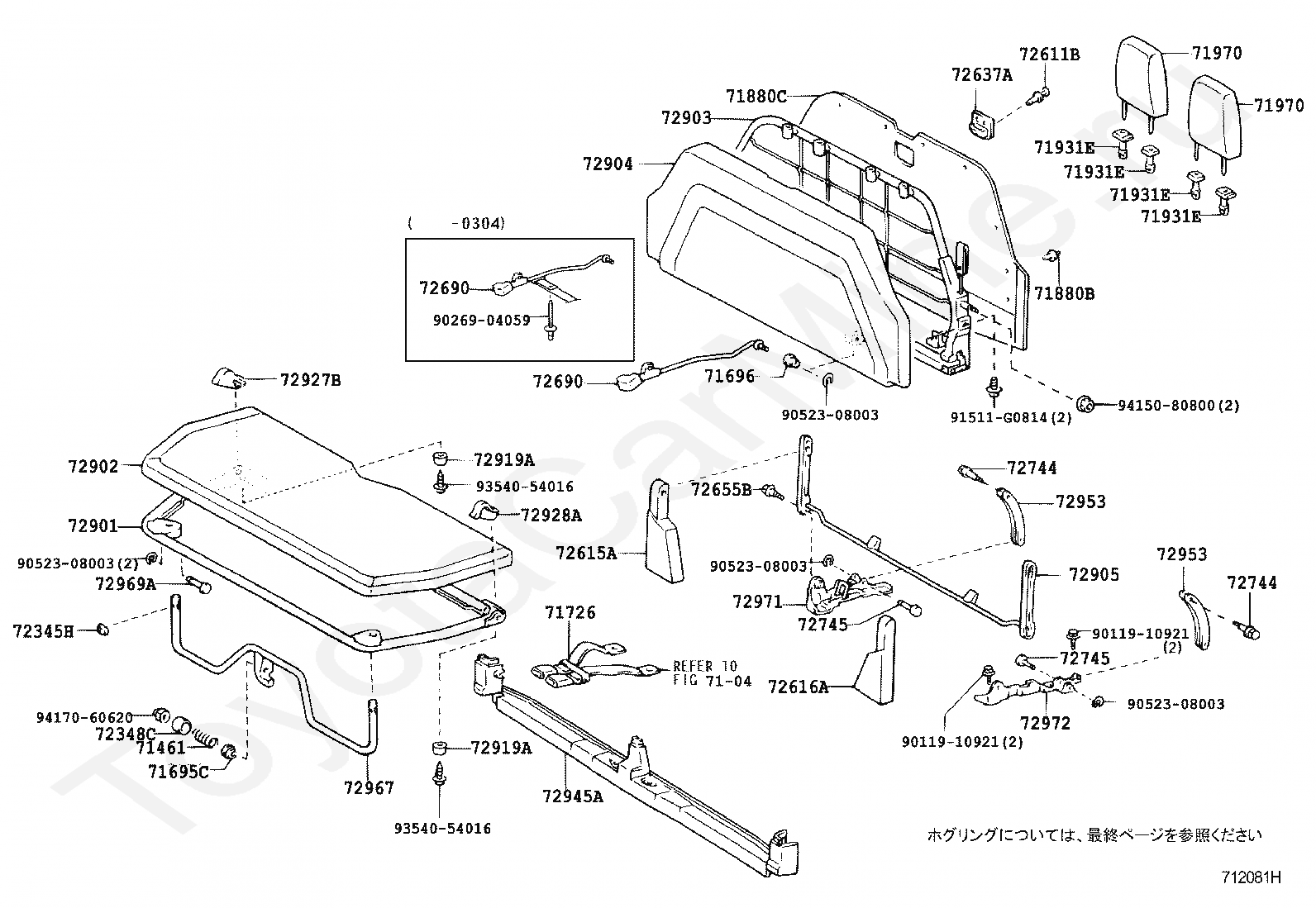

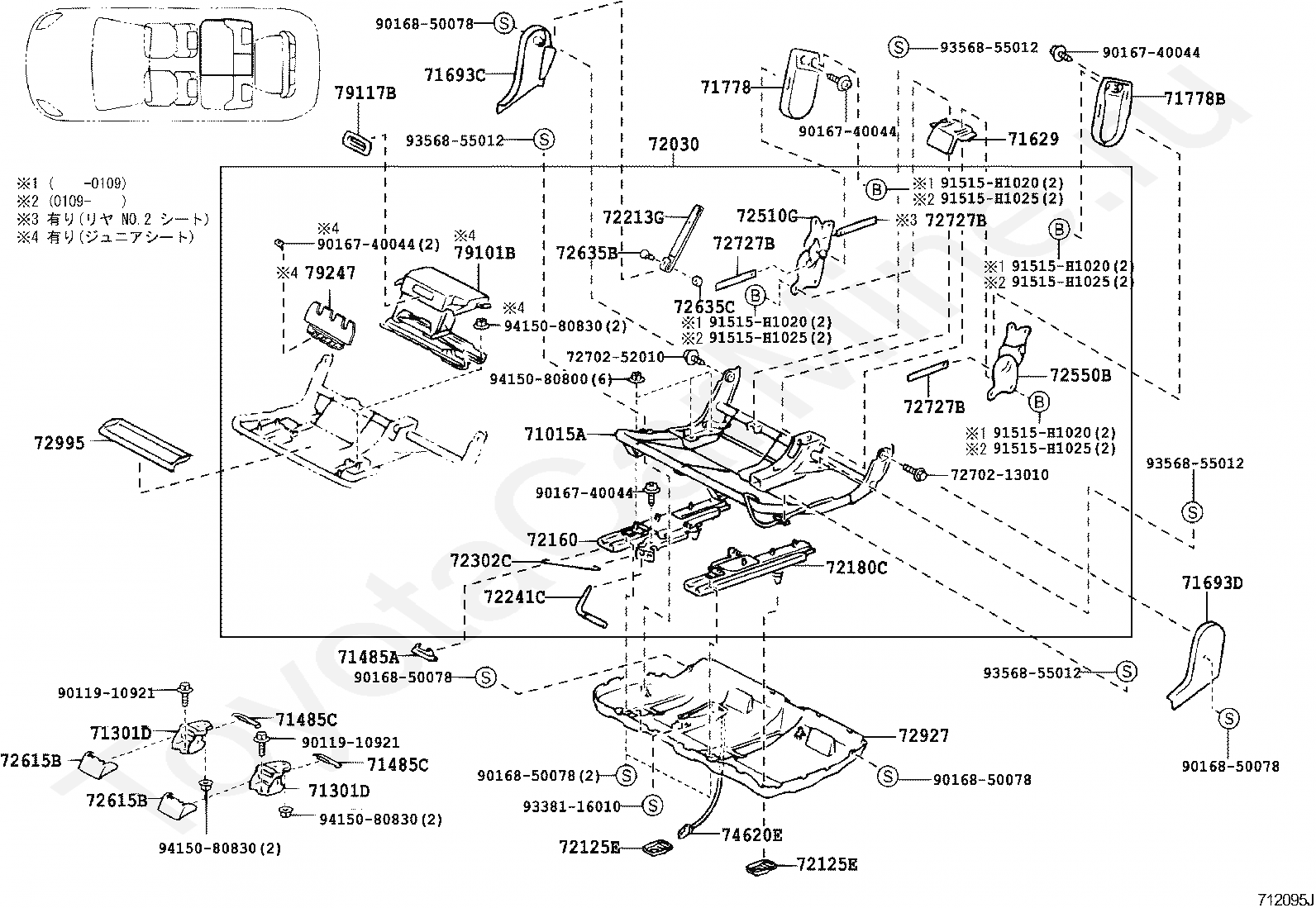

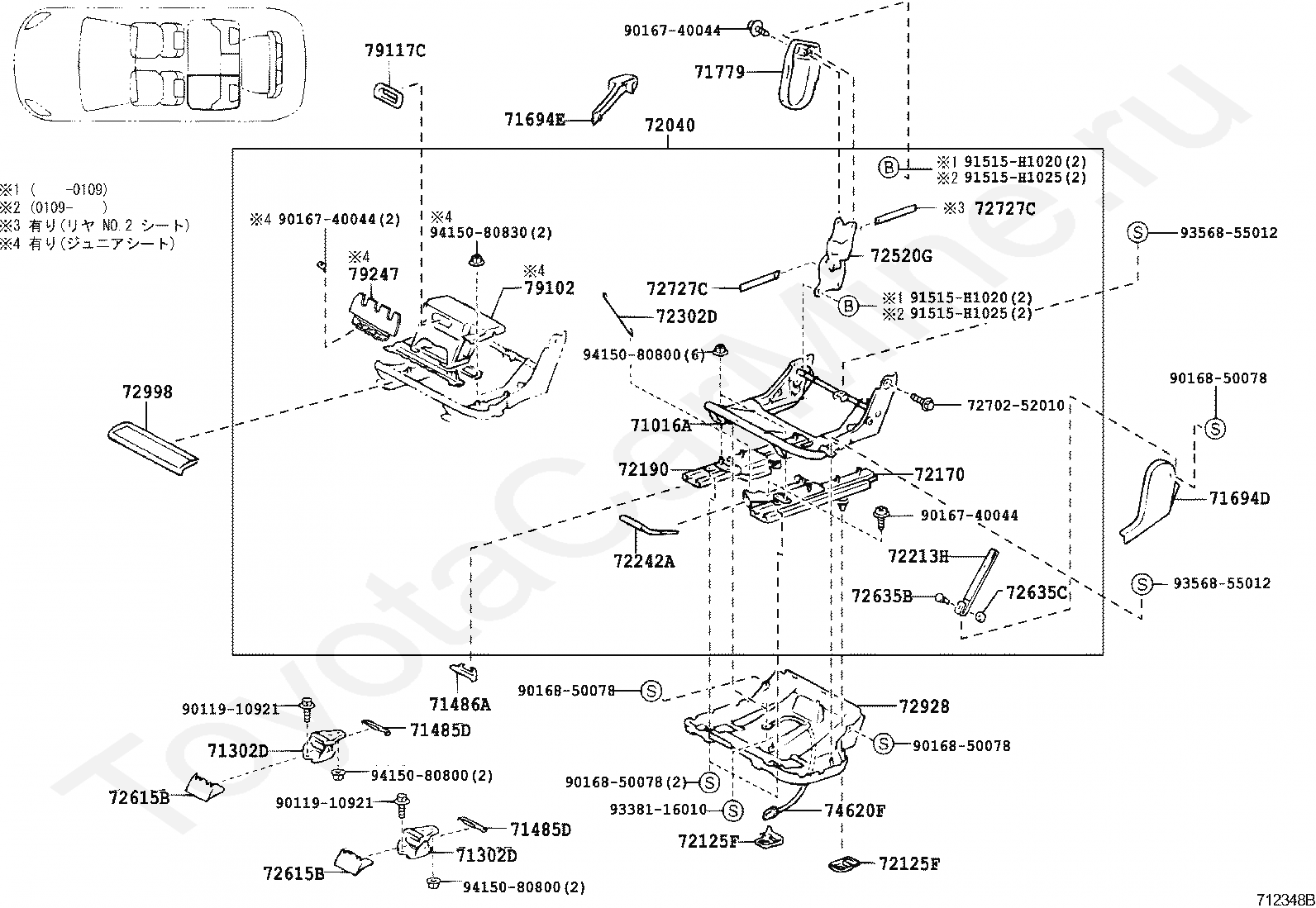

Задние кресла TOYOTA COROLLA SPACIO, 2001/08 - 2003/04, 1,8 литра, 16 клапанов DOHC, EFI, V(MODEL MARK), ZZE124

Каталог

Япония

Модель

COROLLA SPACIO

Двигатель

1,8 литра, 16 клапанов DOHC, EFI

Класс

V(MODEL MARK)

Фрейм

ZZE124

Опции

5-местный

Код

Описание

66993

TRAY, REAR CENTER SEAT CUP HOLDER

71017A

FRAME SUB-ASSY, REAR SEAT BACK

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71095S

COVER SUB-ASSY, CENTER SEAT BACK

71305S

FRAME SUB-ASSY, CENTER SEAT BACK

71358

PAD, CENTER SEAT BACK

71611A

PAD, REAR SEAT CUSHION, RH

71612A

PAD, REAR SEAT CUSHION, LH

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79135A

PAD, NO.1 SEAT CUSHION, RH

79136B

PAD, NO.1 SEAT CUSHION, LH

Код

Описание

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71301D

HINGE SUB-ASSY, REAR SEAT, RH

71485A

COVER, REAR SEAT HINGE, NO.2 RH

71485C

COVER, REAR SEAT HINGE, RH

71629

COVER, REAR SEAT CUSHION HINGE

71693C

COVER, REAR SEAT CUSHION HINGE, OUTER RH

71693D

COVER, REAR SEAT CUSHION HINGE, INNER RH

71778

COVER, REAR SEAT SIDE HINGE MALE, RH

71778B

COVER, REAR SEAT SIDE HINGE MALE, RH

72030

ADJUSTER ASSY, REAR NO.1 SEAT

72125E

COVER, SEAT TRACK, UPPER REAR RH

72160

TRACK ASSY, REAR SEAT, OUTER RH

72180C

TRACK ASSY, REAR SEAT, INNER RH

72213G

KNOB, SEAT TRACK ADJUSTING HANDLE, RH

72241C

LEVER, OUTER SEAT TRACK LOCK, RH

72302C

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, RH

72510G

ADJUSTER ASSY, REAR RECLINING SEAT, OUTER RH

72550B

ADJUSTER ASSY, RECLINING SEAT, CENTER RH

72615B

COVER, REAR SEAT LOCK STRIKER, RH

72635B

HOOK, REAR SEAT BACK LOCK(MALE)

72635C

HOOK, REAR SEAT BACK LOCK(FEMALE)

7270213010

Крепеж

7270252010

Крепеж

72727B

KNOB, REAR SEAT RECLINING CONTROL LEVER, RH

72927

COVER, REAR SEAT CUSHION UNDER, RH

72995

COVER, REAR SEAT CUSHION, RH

74620E

STRAP ASSY, ASSIST, RH

79101B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

79117B

COVER, NO.1 SEAT CUSHION, RH

79247

PAD, JUNIOR SEAT CUSHION COVER, A

9011910921

Крепеж

9016740044

Крепеж

9016850078

Крепеж

91515H1020

Крепеж

91515H1025

Крепеж

9338116010

Крепеж

9356855012

Крепеж

9415080800

Крепеж

9415080830

Крепеж

Код

Описание

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71302D

HINGE SUB-ASSY, REAR SEAT, LH

71485D

COVER, REAR SEAT HINGE, LH

71486A

COVER, REAR SEAT HINGE, NO.2 LH

71694D

COVER, REAR SEAT CUSHION HINGE, OUTER LH

71694E

COVER, REAR SEAT CUSHION HINGE, INNER LH

71779

COVER, REAR SEAT SIDE HINGE MALE, LH

72040

ADJUSTER ASSY, REAR NO.2 SEAT

72125F

COVER, SEAT TRACK, UPPER REAR LH

72170

TRACK ASSY, REAR SEAT, OUTER LH

72190

TRACK ASSY, REAR SEAT INNER, LH

72213H

KNOB, SEAT TRACK ADJUSTING HANDLE, LH

72242A

LEVER, OUTER SEAT TRACK LOCK, LH

72302D

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, LH

72520G

ADJUSTER ASSY, REAR RECLINING SEAT, OUTER LH

72615B

COVER, REAR SEAT LOCK STRIKER, RH

72635B

HOOK, REAR SEAT BACK LOCK(MALE)

72635C

HOOK, REAR SEAT BACK LOCK(FEMALE)

7270252010

Крепеж

72727C

KNOB, REAR SEAT RECLINING CONTROL LEVER, LH

72928

COVER, REAR SEAT CUSHION UNDER, LH

72998

COVER, REAR SEAT CUSHION, LH

74620F

STRAP ASSY, ASSIST, LH

79102

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79117C

COVER, NO.1 SEAT CUSHION, LH

79247

PAD, JUNIOR SEAT CUSHION COVER, A

9011910921

Крепеж

9016740044

Крепеж

9016850078

Крепеж

91515H1020

Крепеж

91515H1025

Крепеж

9338116010

Крепеж

9356855012

Крепеж

9415080800

Крепеж

9415080830

Крепеж

Код

Описание

7104

переход к группе запчастей

71461

SPRING, REAR SEAT CUSHION

71695C

PROTECTOR, REAR SEAT, NO.1

71696

PROTECTOR, REAR SEAT, NO.2

71726

STRAP, REAR SEAT BELT GUIDE

71880B

CLIP(FOR REAR SEAT BACK CARPET)

71880C

CARPET ASSY, REAR SEAT BACK BOARD

71931E

SUPPORT ASSY, REAR NO.3 SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

72345H

CAP, SEAT STAND FRAME

72348C

BRACKET, SEAT STAND SPRING SET

72611B

CLIP(FOR REAR SEAT LOCK BASE)

72615A

COVER, REAR SEAT BACK LOCK STRIKER, RH

72616A

COVER, REAR SEAT BACK LOCK STRIKER, LH

72637A

HANDLE, REAR SEAT LOCK

72655B

PIN, REAR SEAT BACK ROD

72690

LEVER ASSY, SEAT CUSHION LOCK RELEASE

72744

PIN, REAR SEAT RECLINING PAWL LOCK

72745

PIN, REAR SEAT RECLINING HINGE

72901

FRAME SUB-ASSY, 3RD SEAT CUSHION

72902

COVER SUB-ASSY, 3RD SEAT CUSHION

72903

FRAME SUB-ASSY, 3RD SEAT BACK

72904

COVER SUB-ASSY, 3RD SEAT BACK

72905

LINK SUB-ASSY, 3RD SEAT, RH

72919A

STOPPER, 3RD SEAT CUSHION

72927B

COVER, REAR SEAT CUSHION UNDER

72928A

COVER, REAR SEAT CUSHION UNDER, NO.2

72945A

CARPET, 3RD SEAT LEG

72953

LINK, 3RD SEAT, LOWER

72967

LEG, 3RD SEAT

72969A

PIN, SEAT TURN LOCK GUIDE

72971

PLATE, REAR SEAT TURN SIDE, RH

72972

PLATE, REAR SEAT TURN SIDE, LH

9011910921

Крепеж

9026904059

Крепеж

9052308003

Крепеж

91511G0814

Крепеж

9354054016

Крепеж

9415080800

Крепеж

9417060620

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж
