Каталог
ЯпонияМодель
COROLLA CROSSДвигатель
1,8 литра, 16 клапанов, DOHC, EFIКласс
Z TYPEФрейм
ZSG10Трансмиссия
вариаторОпции
HIGH EFFICIENCY TWIN CAM (VALVEMATIC) 879W

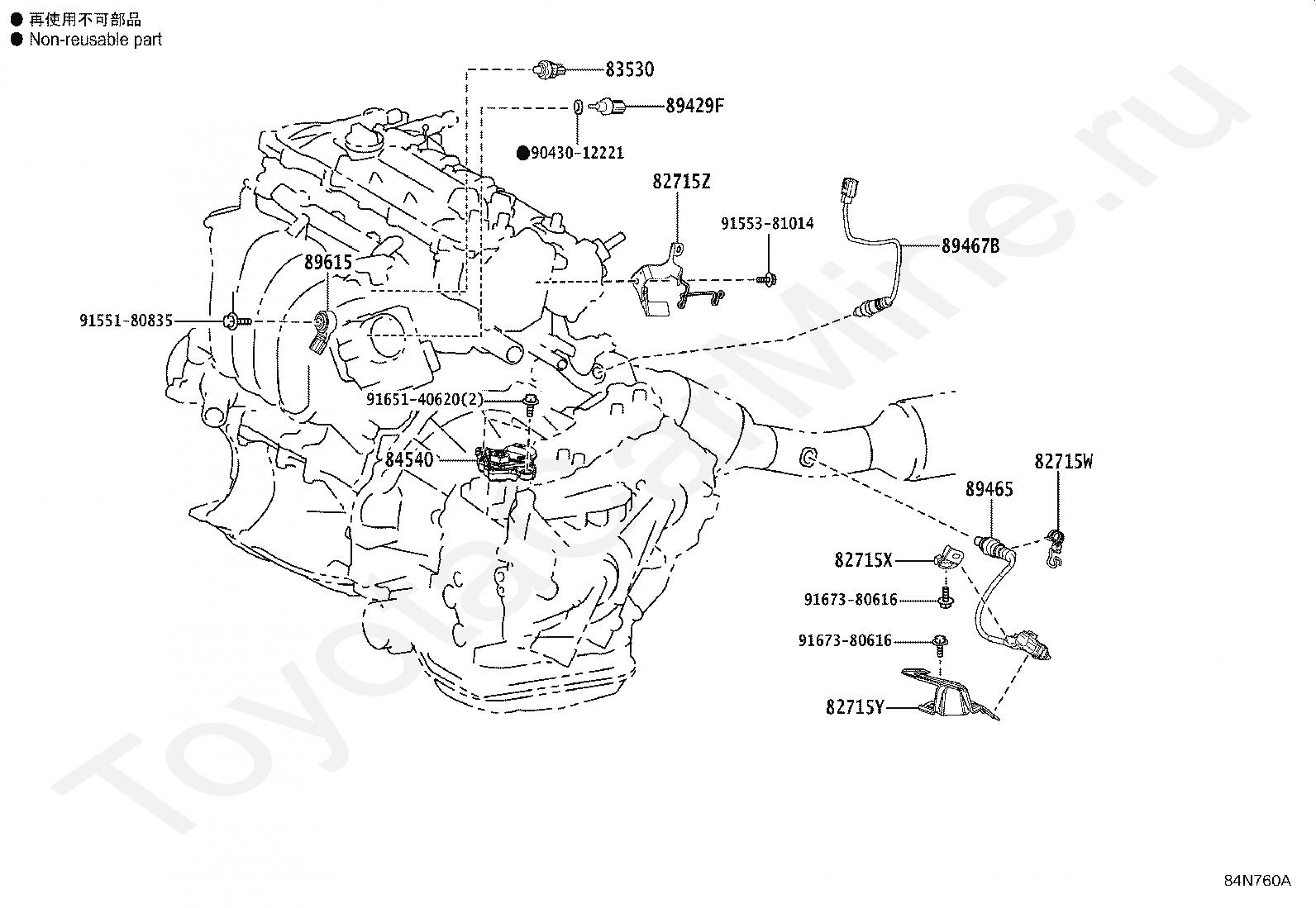

Код
Описание
82715W
BRACKET, WIRING HARNESS CLAMP
82715X
BRACKET, WIRING HARNESS CLAMP, NO.2
82715Y
BRACKET, WIRING HARNESS CLAMP, NO.3
82715Z
BRACKET, WIRING HARNESS CLAMP
83530
SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84540
SWITCH ASSY, NEUTRAL START
89429F
SENSOR, TEMPERATURE
89465
SENSOR, OXYGEN
89467B
SENSOR, AIR FUEL RATIO
89615
SENSOR, KNOCK CONTROL
9043012221
Крепеж
9155180835
Крепеж
9155381014
Крепеж
9165140620
Крепеж
9167380616
Крепеж

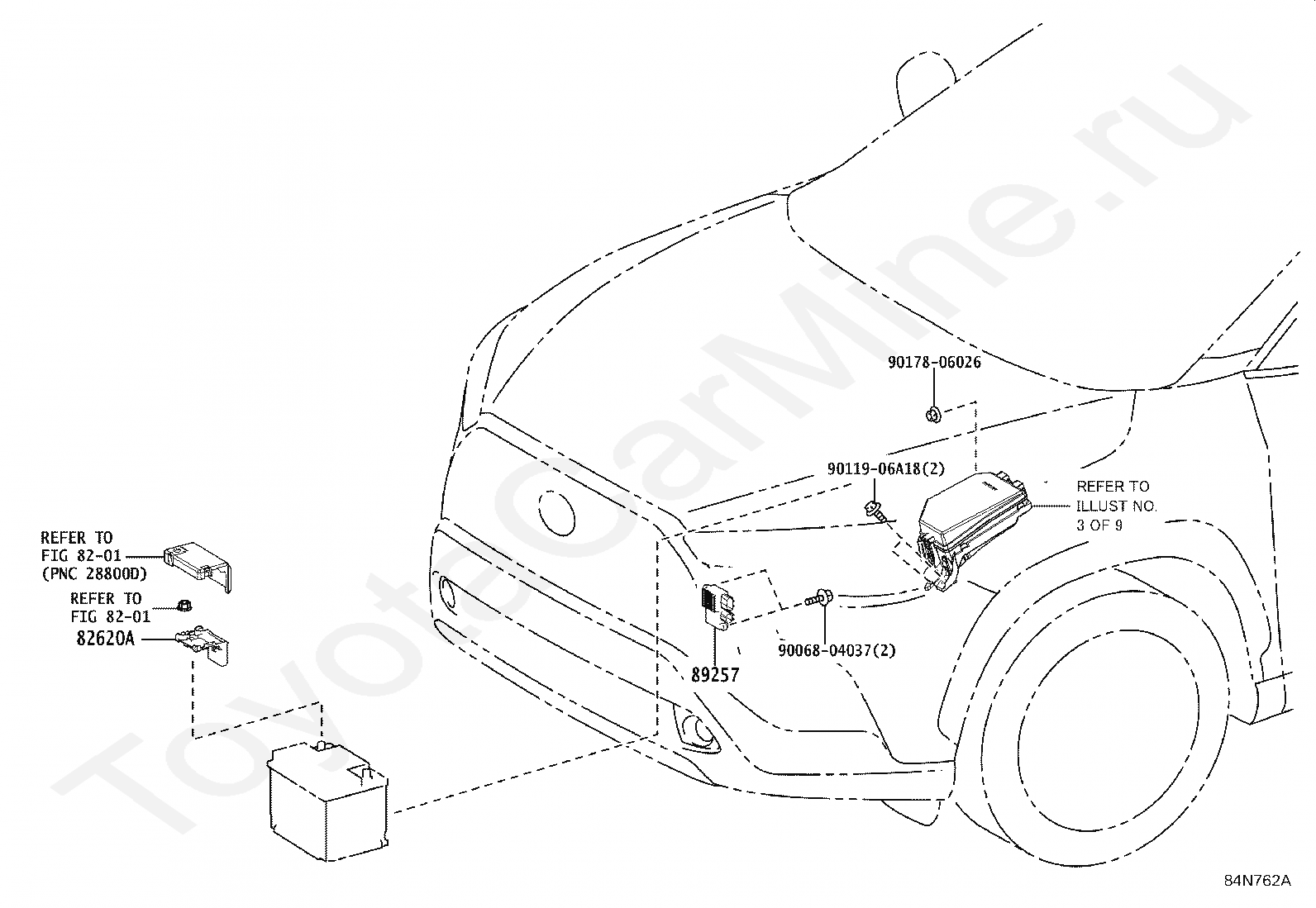

Код
Описание
8201
переход к группе запчастей
82620A
BLOCK ASSY, FUSIBLE LINK
89257
COMPUTER, COOLING FAN
9006804037
Крепеж
9011906A18
Крепеж
9017806026
Крепеж

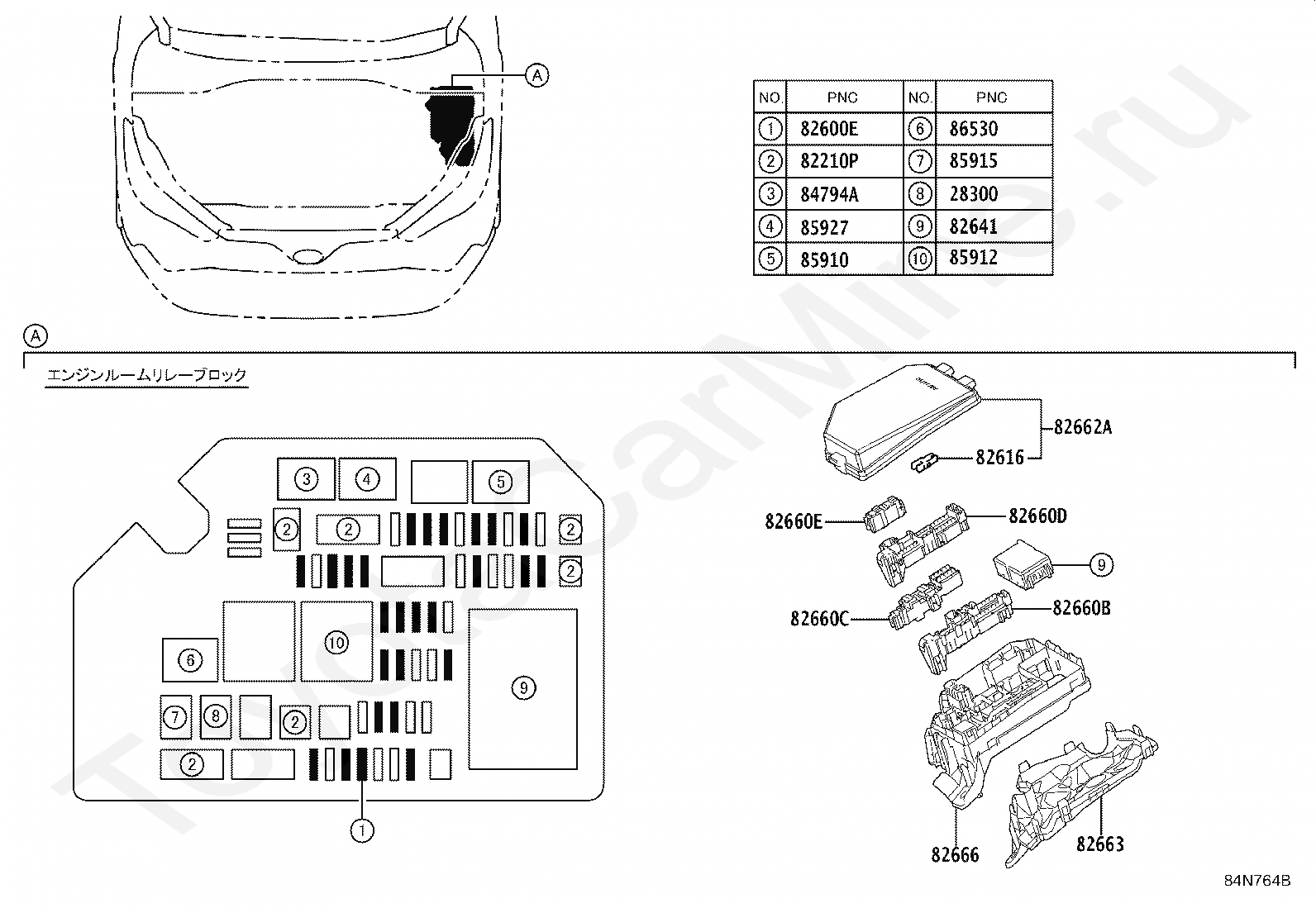

Код
Описание
28300
RELAY ASSY, STARTER
82210P
ENGINE ROOM FUSIBLE LINK
82600E
ENGINE ROOM FUSE
82616
PULLER, FUSE
82641
RELAY, INTEGRATION NO.1
82660B
BLOCK ASSY, RELAY
82660C
BLOCK ASSY, RELAY
82660D
BLOCK ASSY, RELAY
82660E
BLOCK ASSY, RELAY
82662A
COVER, RELAY BLOCK, UPPER, NO.1
82663
COVER, RELAY BLOCK, LOWER
82666
HOLDER, CONNECTOR
84794A
RELAY, FR WIPER DEICER
85910
RELAY ASSY, CIRCUIT OPENING
85912
RELAY, DEFOGGER
85915
RELAY, MAIN
85927
RELAY, COOLING FAN
86530
RELAY ASSY, HORN

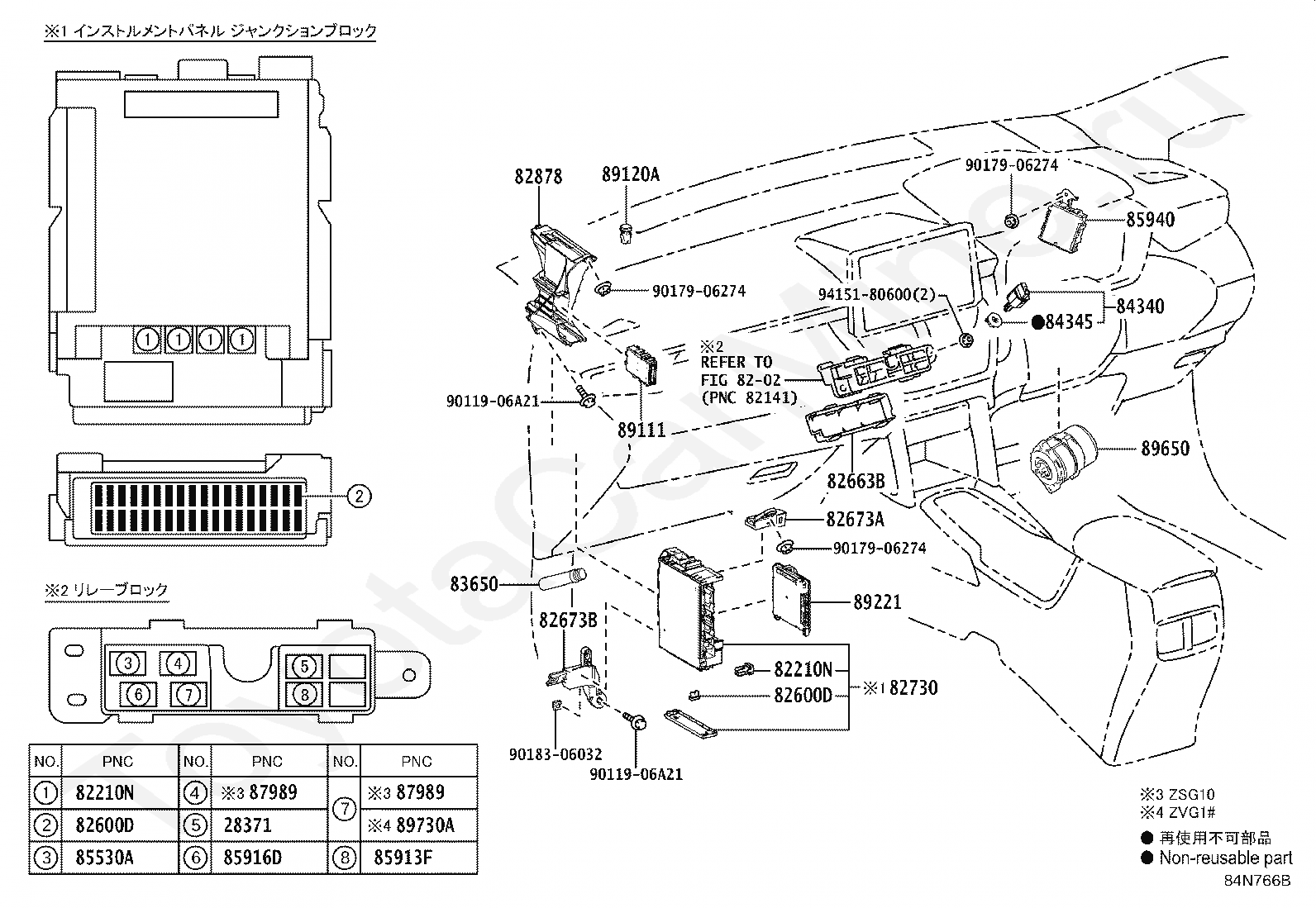

Код
Описание
28371
RELAY, IGNITION, NO.1
8202
переход к группе запчастей
82210N
INSTRUMENT PANEL FUSIBLE LINK
82600D
INSTRUMENT PANEL FUSE
82663B
COVER, RELAY BLOCK, LOWER, NO.3
82673A
BRACKET, JUNCTION BLOCK
82673B
BRACKET, JUNCTION BLOCK
82730
BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82878
BOX, COMPUTER INTEGRATION, LH
83650
FUSEE
84340
SWITCH ASSY, STOP LAMP
84345
ADJUSTER, STOP LAMP SWITCH MOUNTING
85530A
RELAY, POWER OUTLET SOCKET
85913F
RELAY, STEERING HEATER
85916D
RELAY, FOG LAMP
85940
RELAY ASSY, WINDSHIELD WIPER
87989
RELAY, MIRROR CONTROL
89111
COMPUTER, NETWORK GATEWAY
89120A
SENSOR, AUTOMATIC LIGHT CONTROL
89221
COMPUTER, MULTIPLEX NETWORK BODY
89650
COMPUTER ASSY, POWER STEERING
89730A
RELAY(FOR SECURITY WARNING)
9011906A21
Крепеж
9017906274
Крепеж
9018306032
Крепеж
9415180600
Крепеж

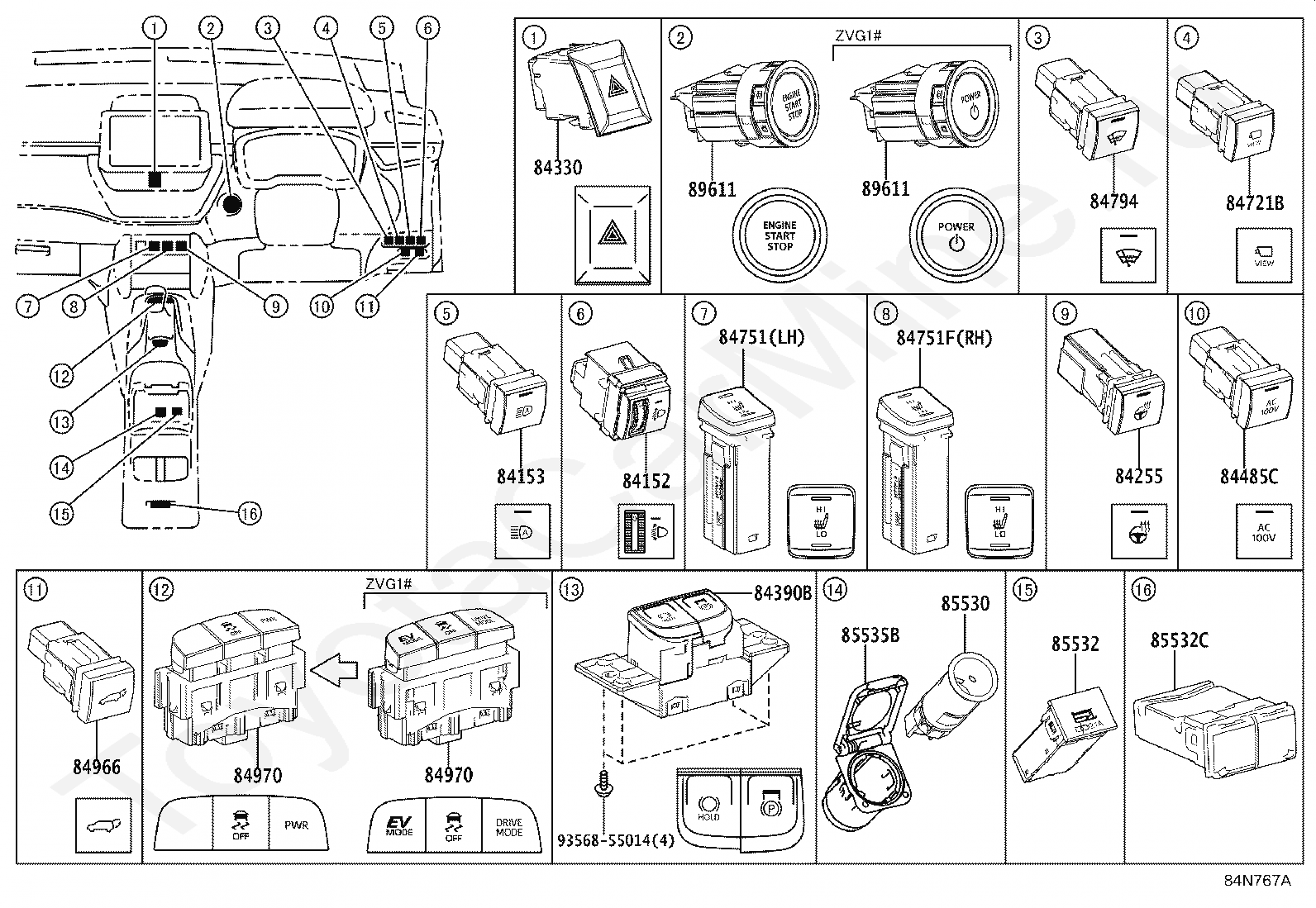

Код
Описание
84152
SWITCH, HEADLAMP LEVELING
84153
SWITCH, AUTO HIGH BEAM
84255
SWITCH, STEERING HEATER
84330
SWITCH ASSY, HAZARD WARNING SIGNAL
84390B
SWITCH ASSY, ELECTRIC PARKING BRAKE
84485C
SWITCH, POWER OUTLET
84721B
SWITCH, PANORAMIC VIEW MONITOR
84751
SWITCH, SEAT HEATER
84751F
SWITCH, SEAT HEATER
84794
SWITCH, FR WIPER DEICER
84966
SWITCH, POWER BACK DOOR CONTROL
84970
SWITCH ASSY, COMBINATION
85530
SOCKET ASSY, POWER OUTLET, NO.1
85532
SOCKET, USB CHARGER
85532C
SOCKET, USB CHARGER, NO.2
85535B
COVER, POWER OUTLET SOCKET, NO.1
89611
SWITCH, PUSH START
9356855014
Крепеж

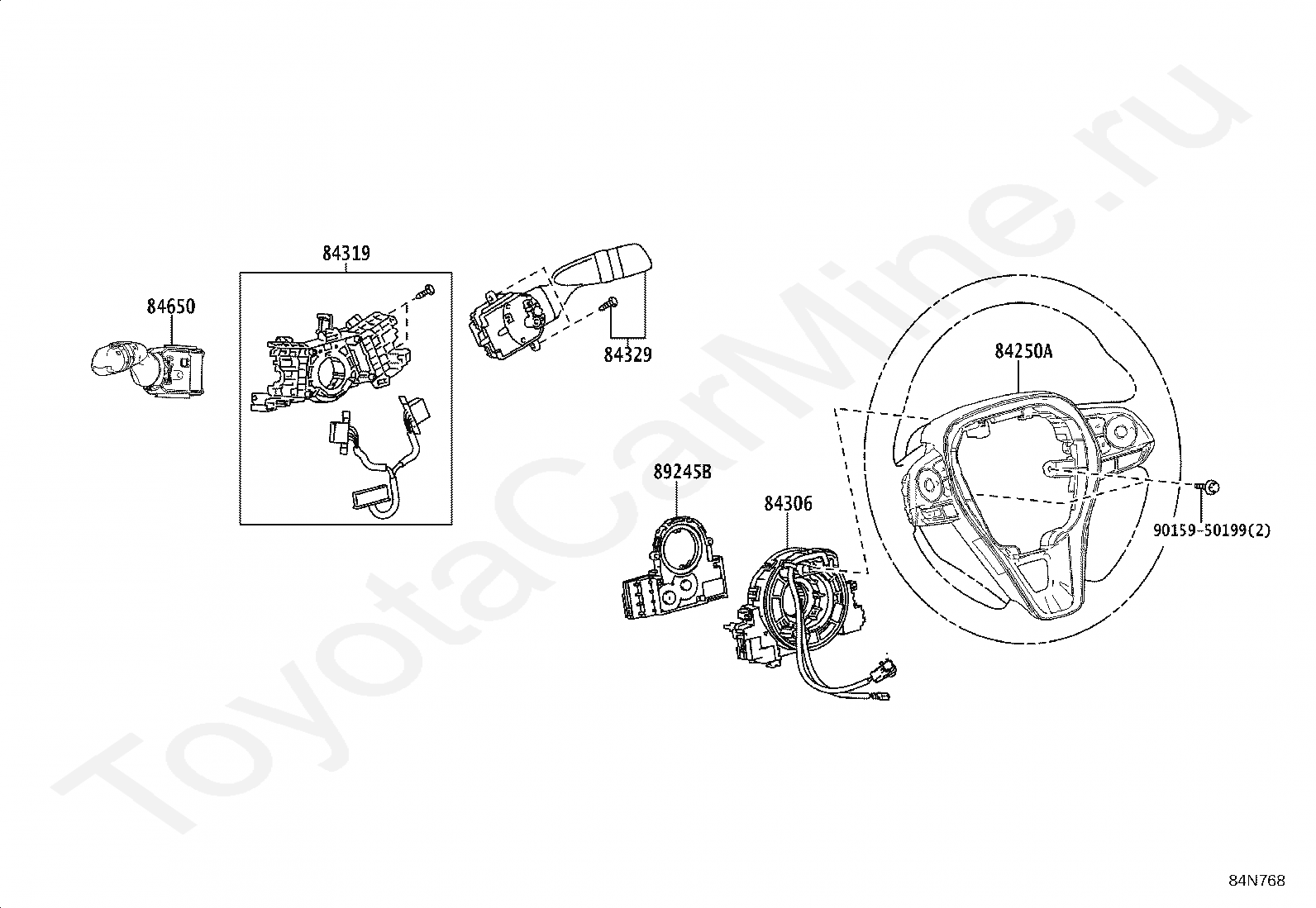

Код
Описание
84250A
SWITCH ASSY, STEERING PAD
84306
CABLE SUB-ASSY, SPIRAL
84319
HOUSING, STEERING WHEEL SWITCH
84329
SWITCH, TURN SIGNAL
84650
SWITCH ASSY, WINDSHIELD WIPER
89245B
SENSOR, STEERING
9015950199
Крепеж

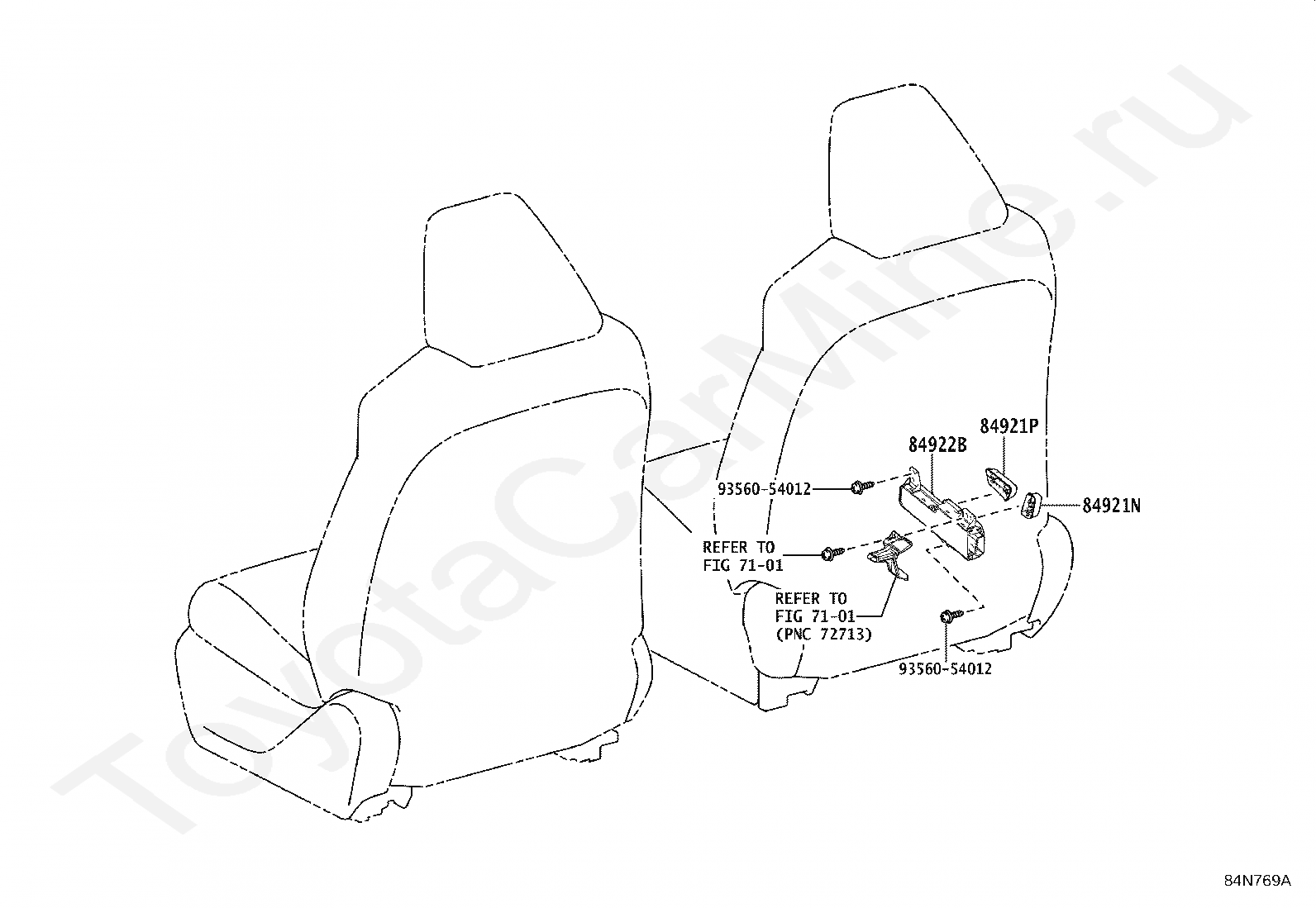

Код
Описание
7101
переход к группе запчастей
84921N
KNOB, POWER SEAT SWITCH, RH (FOR RECLINING)
84921P
KNOB, POWER SEAT SWITCH, RH (FOR SLIDE & VERTICAL)
84922B
SWITCH, FRONT POWER SEAT, RH
9356054012
Крепеж

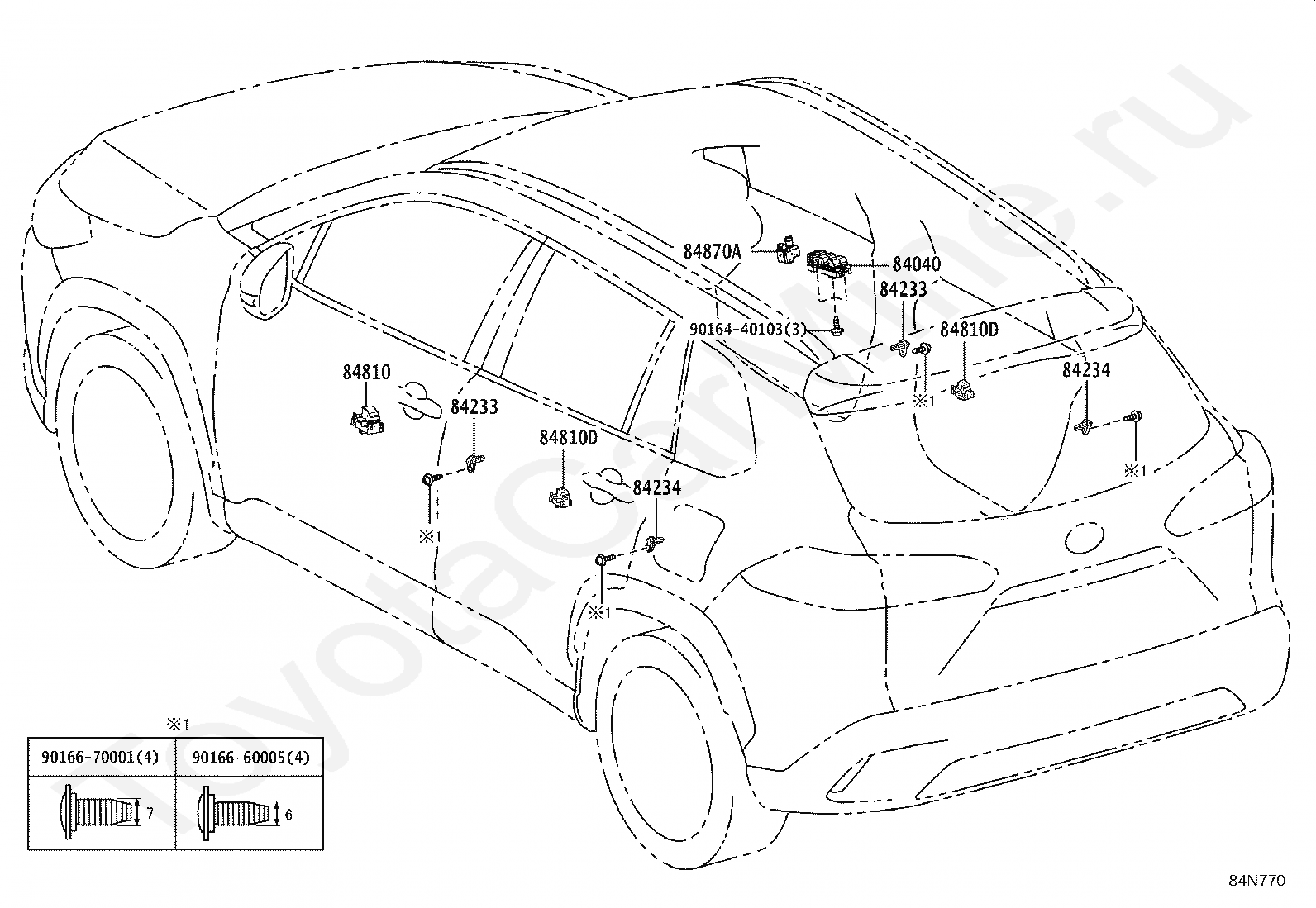

Код
Описание
84040
MASTER SWITCH ASSY,MULTIPLEX NETWORK
84233
SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84234
SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84810
SWITCH ASSY, POWER WINDOW REGULATOR
84810D
SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84870A
SWITCH ASSY, OUTER MIRROR
9016440103
Крепеж
9016660005
Крепеж
9016670001
Крепеж

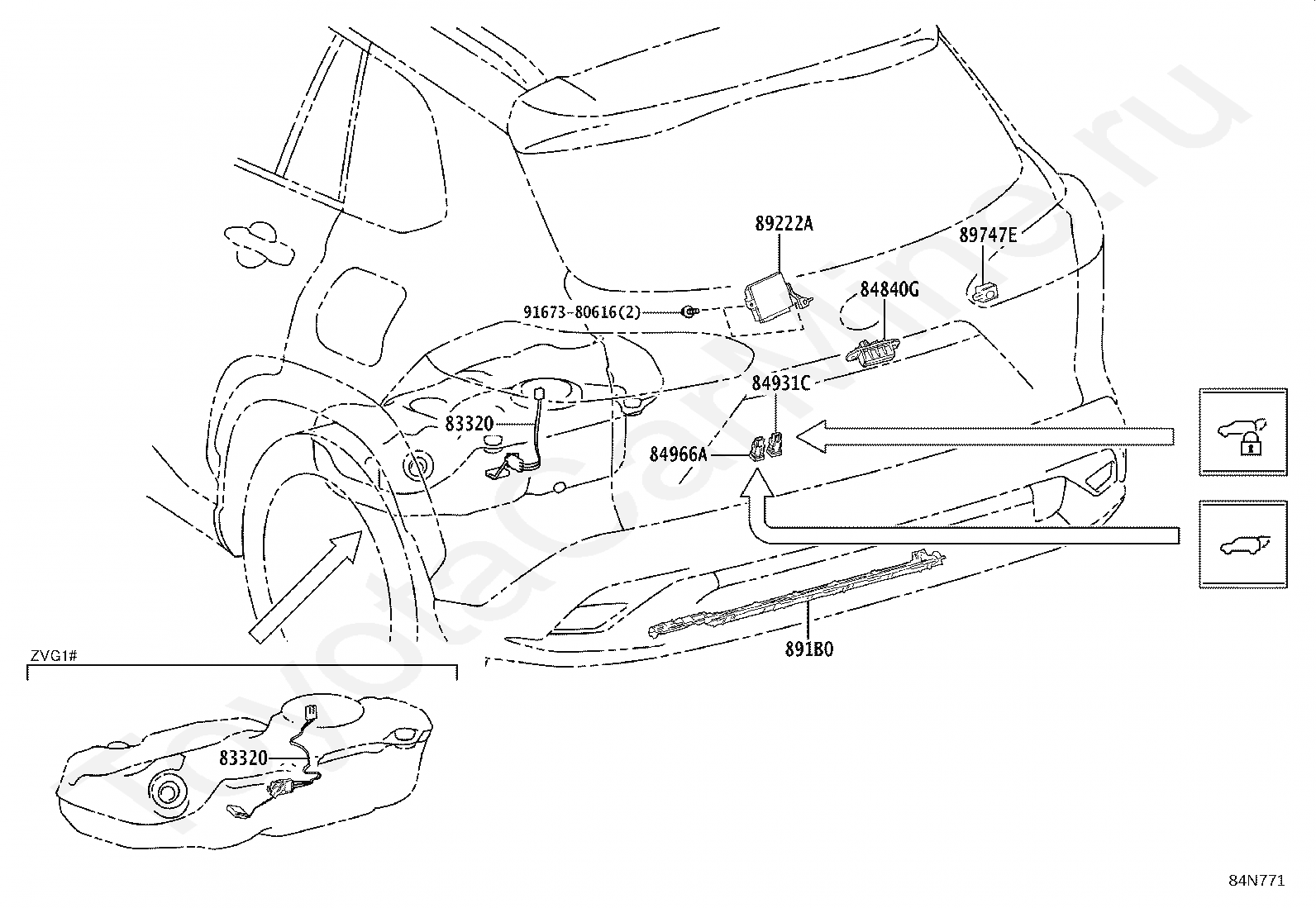

Код
Описание
83320
GAGE ASSY, FUEL SENDER
84840G
SWITCH ASSY, BACK DOOR OPENER
84931C
SWITCH, BACK DOOR CONTROL
84966A
SWITCH, POWER BACK DOOR CONTROL, NO.1
891B0
SENSOR ASSY, KICK DOOR CONTROL
89222A
COMPUTER, MULTIPLEX NETWORK DOOR
89747E
BUZZER, POWER BACK DOOR WARNING
9167380616
Крепеж

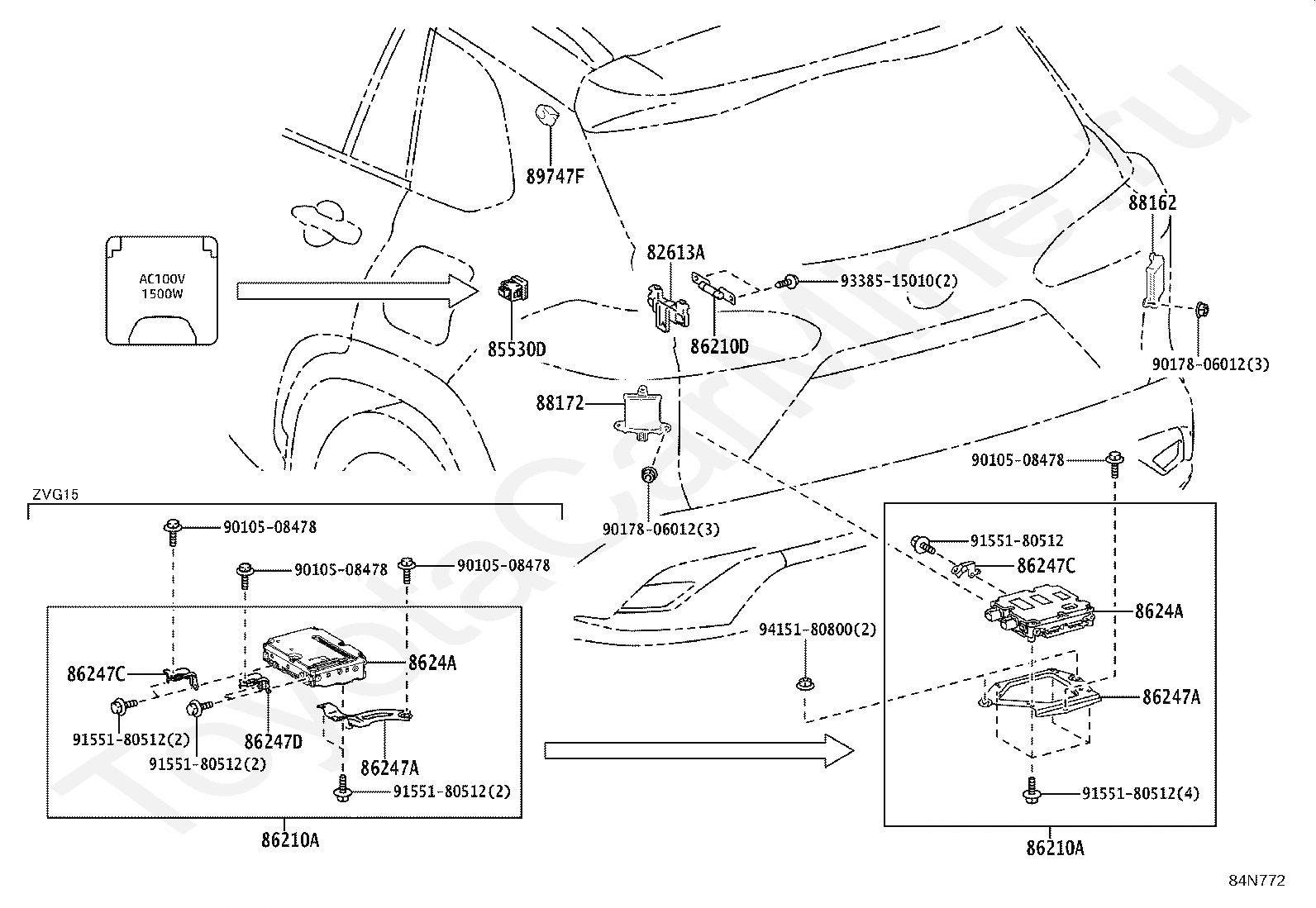

Код
Описание
82613A
BLOCK, FUSE BASE
85530D
SOCKET ASSY, POWER OUTLET, NO.2
86210A
INVERTER ASSY, VOLTAGE
86210D
FUSE, HIGH VOLTAGE
86247A
BRACKET, VOLTAGE INVERTER
86247C
BRACKET, VOLTAGE INVERTER, NO.2
86247D
BRACKET, VOLTAGE INVERTER, NO.3
8624A
INVERTER, VOLTAGE
88162
SENSOR, BLIND SPOT MONITOR, RH
88172
SENSOR, BLIND SPOT MONITOR, LH
89747F
BUZZER, BLIND SPOT MONITOR
9010508478
Крепеж
9017806012
Крепеж
9155180512
Крепеж
9338515010
Крепеж
9415180800
Крепеж
