Каталог
Ближний ВостокМодель
COROLLA (S.AMERICA)Двигатель
2000CC 16-VALVE DOHCКузов
седанФрейм
MZEA12Трансмиссия
вариаторОпции
левый руль 4 двери D(MODEL MARK) HIGH EFFICIENCY TWIN CAM Бразилия 867W

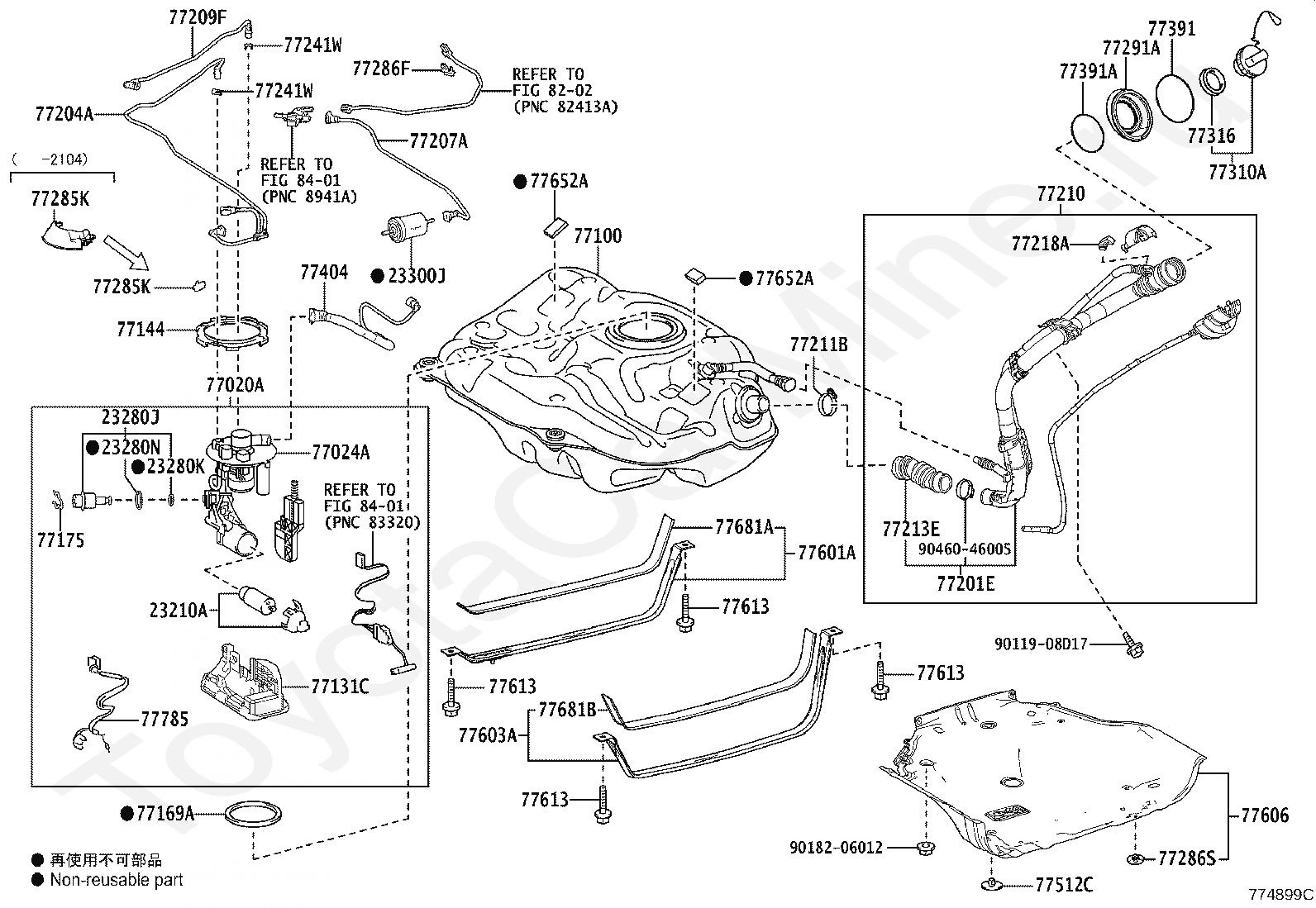

Код
Описание
23210A
PUMP ASSY, FUEL W/MOTOR & BRACKET
23280J
REGULATOR ASSY, FUEL PRESSURE
23280K
RING, O(FOR FUEL PRESSURE REGULATOR)
23280N
RING, O(FOR FUEL PRESSURE REGULATOR), NO.2
23300J
FILTER ASSY, FUEL
77020A
TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024A
PLATE SUB-ASSY, FUEL SUCTION
77100
TANK ASSY, FUEL
77131C
SUB-TANK, FUEL, NO.1
77144
RETAINER, FUEL PUMP GAUGE
77169A
GASKET, FUEL SUCTION TUBE SET
77175
SUPPORT, FUEL SUCTION, NO.2
77201E
PIPE SUB-ASSY, FUEL TANK FILLER
77204A
TUBE, FUEL TANK RETURN
77207A
TUBE SUB-ASSY, FUEL RETURN
77209F
TUBE SUB-ASSY, FUEL TANK MAIN
77210
PIPE ASSY, FUEL TANK FILLER
77211B
CLAMP (FOR FUEL FILLER PIPE)
77213E
HOSE, FUEL TANK TO FILLER PIPE
77218A
SUPPORT, FUEL TANK FILLER PIPE, NO.3
77241W
CLIP, TUBE JOINT
77285K
CLAMP, FUEL TUBE, NO.1
77286F
CLAMP, FUEL TUBE, NO.2
77286S
CUSHION, FUEL TANK PROTECTOR
77291A
SHIELD, FUEL TANK FILLER PIPE
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77391
RING, FUEL INLET BOX
77391A
RING, FUEL INLET BOX
77404
HOSE SUB-ASSY, FUEL TANK VENT
77512C
BRACKET, FUEL TANK
77601A
BAND SUB-ASSY, FUEL TANK, NO.1
77603A
BAND SUB-ASSY, FUEL TANK, NO.2
77606
PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77613
BOLT, FUEL TANK BAND SET
77652A
CUSHION, FUEL TANK, NO.2
77681A
SEAT, FUEL TANK BAND
77681B
SEAT, FUEL TANK BAND
77785
HARNESS, FUEL PUMP
8202
переход к группе запчастей
8401
переход к группе запчастей
9011908D17
Крепеж
9018206012
Крепеж
9046046005
Крепеж

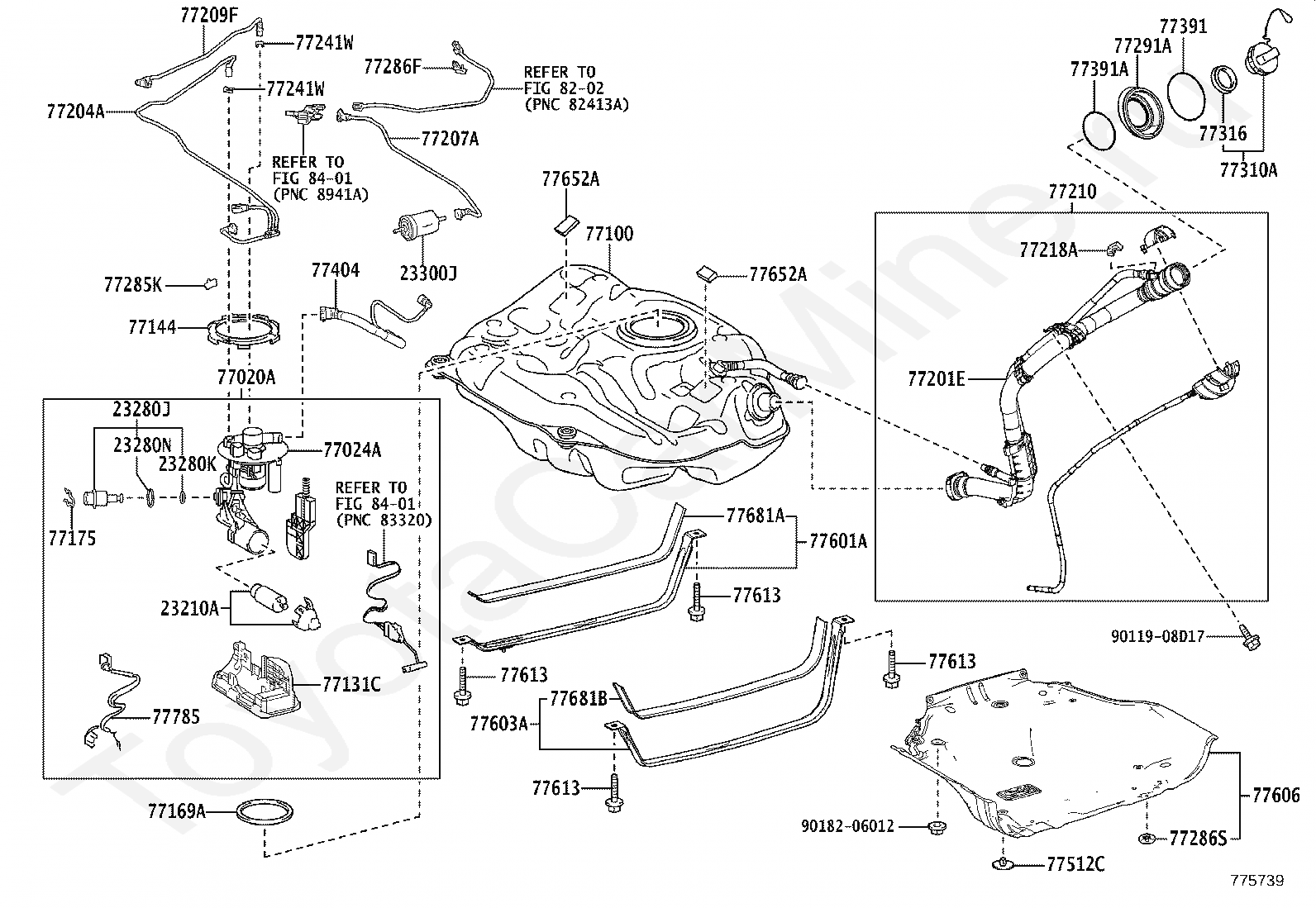

Код
Описание
23210A
PUMP ASSY, FUEL W/MOTOR & BRACKET
23280J
REGULATOR ASSY, FUEL PRESSURE
23280K
RING, O(FOR FUEL PRESSURE REGULATOR)
23280N
RING, O(FOR FUEL PRESSURE REGULATOR), NO.2
23300J
FILTER ASSY, FUEL
77020A
TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024A
PLATE SUB-ASSY, FUEL SUCTION
77100
TANK ASSY, FUEL
77131C
SUB-TANK, FUEL, NO.1
77144
RETAINER, FUEL PUMP GAUGE
77169A
GASKET, FUEL SUCTION TUBE SET
77175
SUPPORT, FUEL SUCTION, NO.2
77201E
PIPE SUB-ASSY, FUEL TANK FILLER
77204A
TUBE, FUEL TANK RETURN
77207A
TUBE SUB-ASSY, FUEL RETURN
77209F
TUBE SUB-ASSY, FUEL TANK MAIN
77210
PIPE ASSY, FUEL TANK FILLER
77218A
SUPPORT, FUEL TANK FILLER PIPE, NO.3
77241W
CLIP, TUBE JOINT
77285K
CLAMP, FUEL TUBE, NO.1
77286F
CLAMP, FUEL TUBE, NO.2
77286S
CUSHION, FUEL TANK PROTECTOR
77291A
SHIELD, FUEL TANK FILLER PIPE
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77391
RING, FUEL INLET BOX
77391A
RING, FUEL INLET BOX
77404
HOSE SUB-ASSY, FUEL TANK VENT
77512C
BRACKET, FUEL TANK
77601A
BAND SUB-ASSY, FUEL TANK, NO.1
77603A
BAND SUB-ASSY, FUEL TANK, NO.2
77606
PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77613
BOLT, FUEL TANK BAND SET
77652A
CUSHION, FUEL TANK, NO.2
77681A
SEAT, FUEL TANK BAND
77681B
SEAT, FUEL TANK BAND
77785
HARNESS, FUEL PUMP
8202
переход к группе запчастей
8401
переход к группе запчастей
9011908D17
Крепеж
9018206012
Крепеж

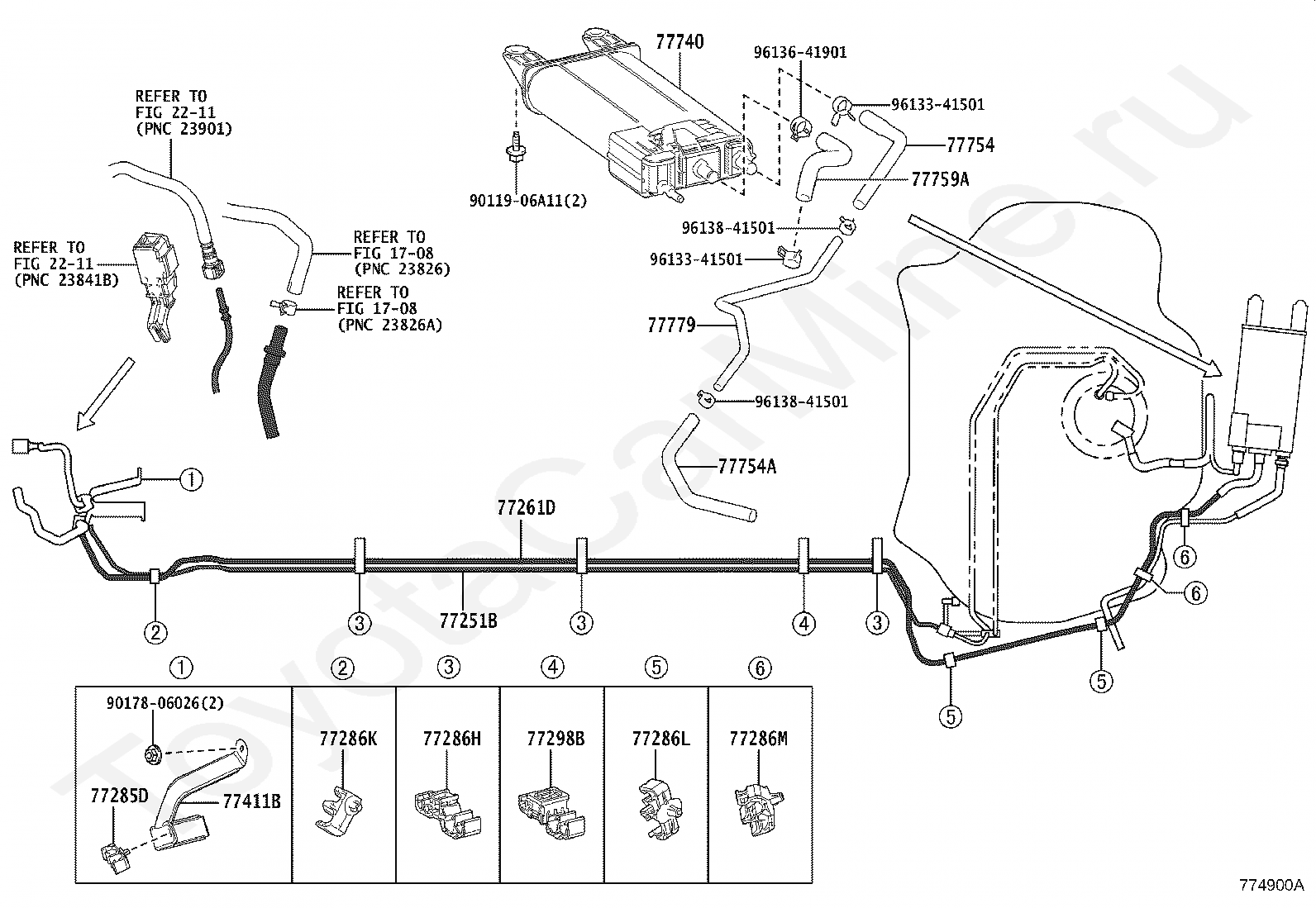

Код
Описание
1708
переход к группе запчастей
2211
переход к группе запчастей
77251B
TUBE, FUEL MAIN
77261D
TUBE, FUEL TANK TO CANISTER
77285D
CLAMP, FUEL TUBE, NO.1
77286H
CLAMP, FUEL TUBE, NO.3
77286K
CLAMP, FUEL TUBE, NO.2
77286L
CLAMP, FUEL TUBE, NO.5
77286M
CLAMP, FUEL TUBE, NO.6
77298B
CLAMP, FUEL TUBE, NO.4
77411B
SUPPORT, FUEL TUBE GROMMET, NO.1
77740
CANISTER ASSY, CHARCOAL
77754
HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754A
HOSE, CHARCOAL CANISTER OUTLET, NO.2
77759A
HOSE, CHARCOAL CANISTER
77779
TUBE, CHARCOAL CANISTER OUTLET
9011906A11
Крепеж
9017806026
Крепеж
9613341501
Крепеж
9613641901
Крепеж
9613841501
Крепеж
Код
Описание
64648A
GROMMET, LUGGAGE DOOR LOCK OPENER
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77306
LEVER SUB-ASSY, FUEL LID LOCK OPEN
77350
LID ASSY, FUEL FILLER OPENING
77360A
SPRING ASSY, FUEL FILLER OPENING LID
77377
RETAINER, FUEL FILLER OPENING LID LOCK
9015960602
Крепеж
9026906017
Крепеж
9054106069
Крепеж
