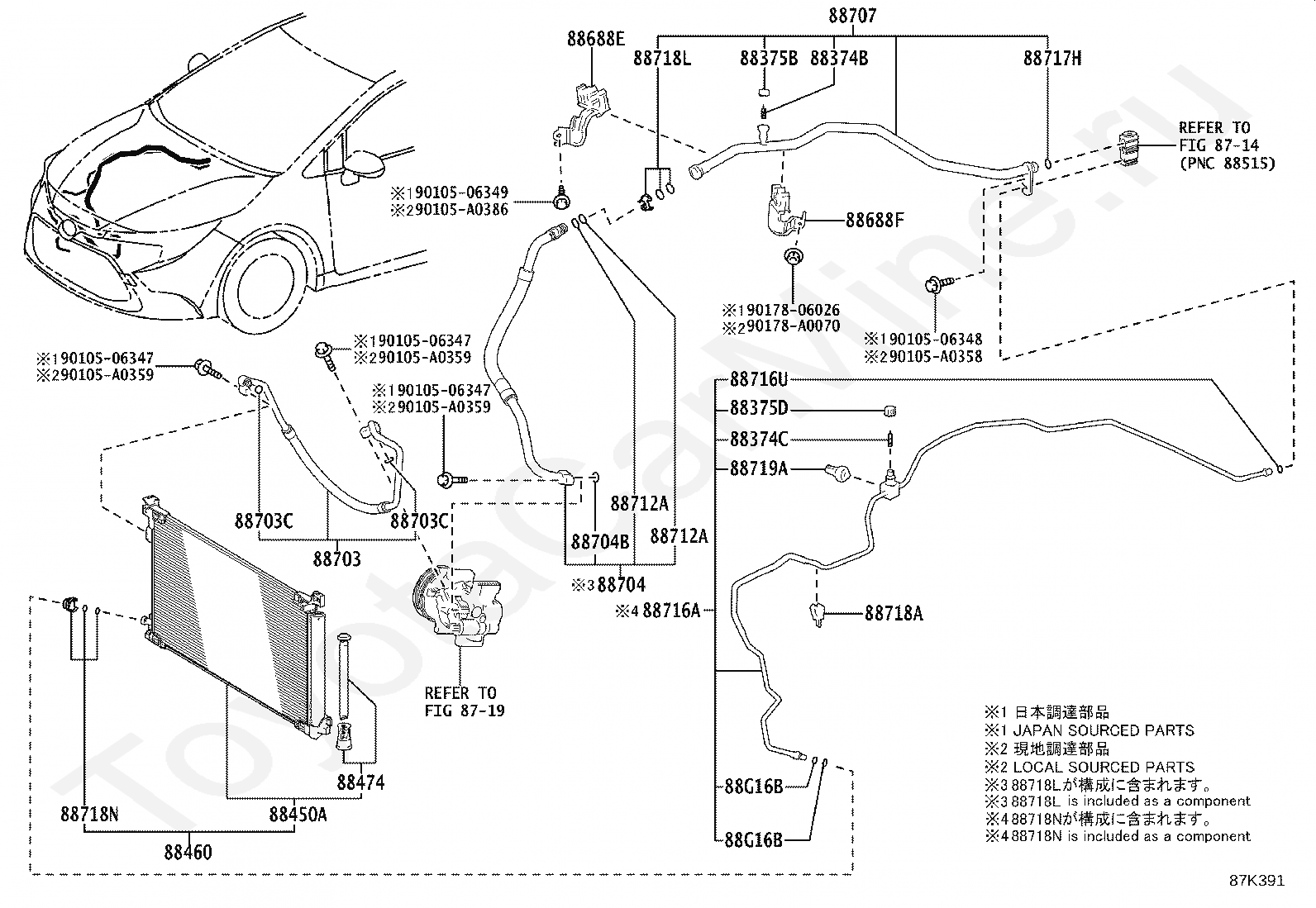

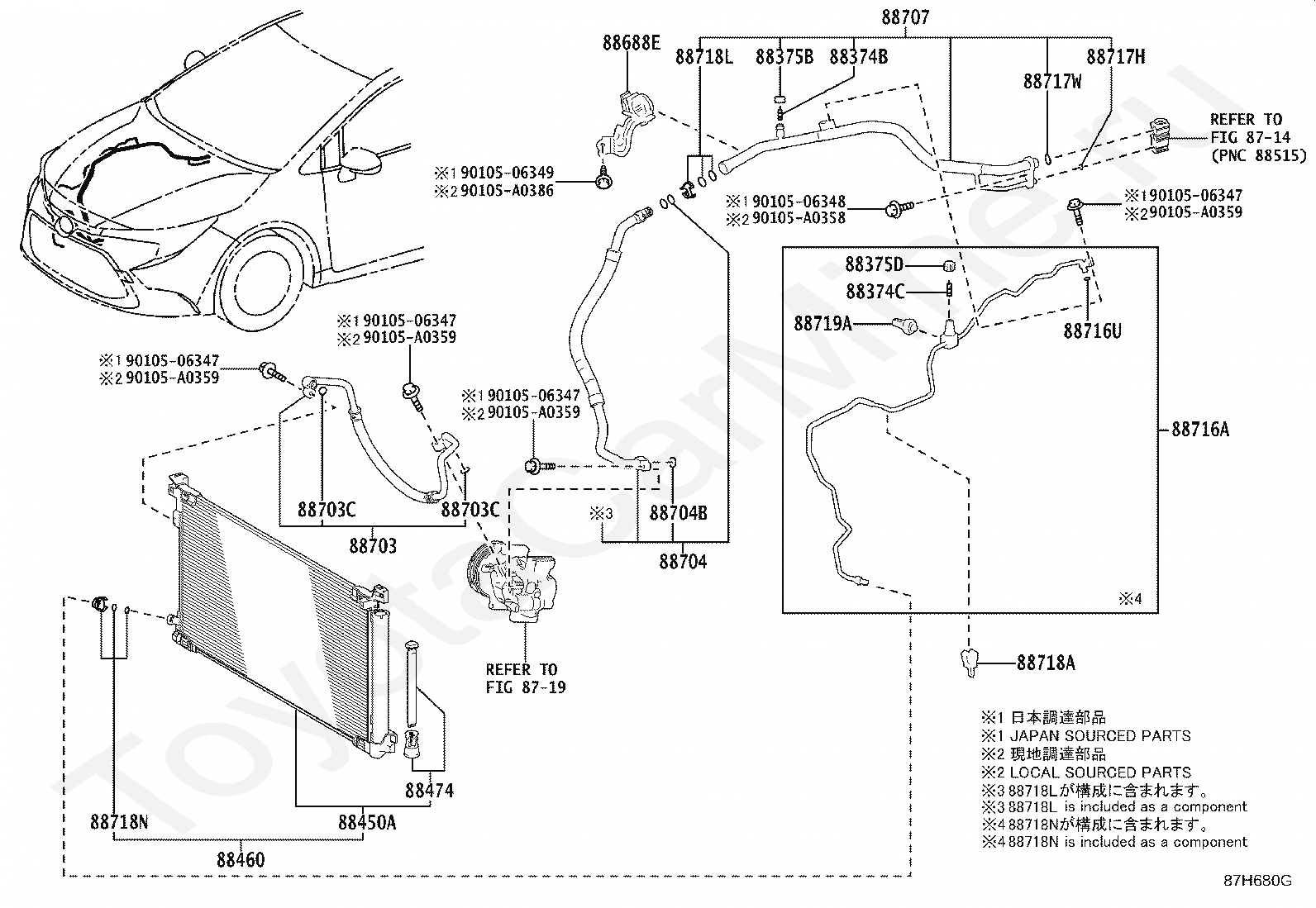

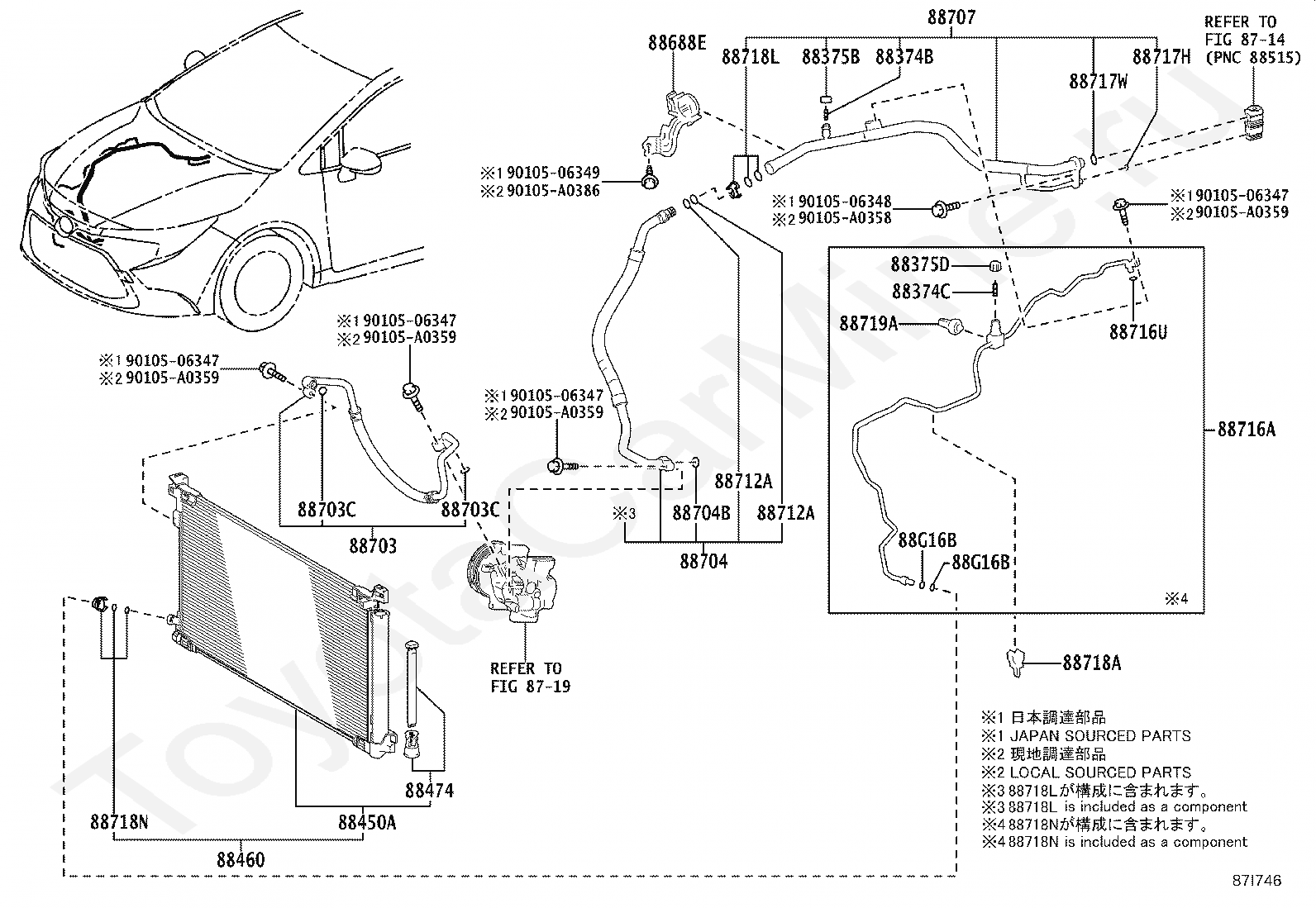

Кондиционер: охлаждающие трубки TOYOTA COROLLA SED (NAP), 2020/07 - 2025, 2000CC 16-VALVE DOHC, седан, MZEA12, вариатор

Каталог

Америка

Модель

COROLLA SED (NAP)

Двигатель

2000CC 16-VALVE DOHC

Кузов

седан

Фрейм

MZEA12

Трансмиссия

вариатор

Опции

4 двери S TYPE США 836W

Код

Описание

8714

переход к группе запчастей

8719

переход к группе запчастей

88374B

VALVE, SERVICE, NO.1

88374C

VALVE, SERVICE, NO.2

88375B

CAP, SERVICE VALVE, NO.1

88375D

CAP, SERVICE VALVE, NO.2

88450A

SUB CONDENSER ASSY

88460

CONDENSER ASSY, COOLER

88474

DRYER, COOLER

88688E

BRACKET, COOLER REFRIGERANT HOSE, NO.1

88703

HOSE SUB-ASSY, DISCHARGE

88703C

RING, O(FOR DISCHARGE HOSE)

88704

HOSE SUB-ASSY, SUCTION

88704B

RING, O(FOR SUCTION HOSE)

88707

PIPE SUB-ASSY, SUCTION

88716A

PIPE, COOLER REFRIGERANT LIQUID, A

88716U

RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)

88717H

RING, O(FOR COOLER REFRIGERANT SUCTION PIPE)

88717W

RING, O(FOR COOLER REFRIGERANT SUCTION PIPE) NO.2

88718A

CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

88718L

CLAMP, PIPING

88718N

CLAMP, PIPING

88719A

SENSOR, AIR CONDITIONER PRESSURE

9010506347

Крепеж

9010506348

Крепеж

9010506349

Крепеж

90105A0358

Крепеж

90105A0359

Крепеж

90105A0386

Крепеж

Код

Описание

8714

переход к группе запчастей

8719

переход к группе запчастей

88374B

VALVE, SERVICE, NO.1

88374C

VALVE, SERVICE, NO.2

88375B

CAP, SERVICE VALVE, NO.1

88375D

CAP, SERVICE VALVE, NO.2

88450A

SUB CONDENSER ASSY

88460

CONDENSER ASSY, COOLER

88474

DRYER, COOLER

88688E

BRACKET, COOLER REFRIGERANT HOSE, NO.1

88703

HOSE SUB-ASSY, DISCHARGE

88703C

RING, O(FOR DISCHARGE HOSE)

88704

HOSE SUB-ASSY, SUCTION

88704B

RING, O(FOR SUCTION HOSE)

88707

PIPE SUB-ASSY, SUCTION

88712A

RING, O(FOR COOLER REFRIGERANT SUCTION HOSE)

88716A

PIPE, COOLER REFRIGERANT LIQUID, A

88716U

RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)

88717H

RING, O(FOR COOLER REFRIGERANT SUCTION PIPE)

88717W

RING, O(FOR COOLER REFRIGERANT SUCTION PIPE) NO.2

88718A

CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

88718L

CLAMP, PIPING

88718N

CLAMP, PIPING

88719A

SENSOR, AIR CONDITIONER PRESSURE

88G16B

RING, O, NO.2(FOR COOLER REFRIGERANT LIQUID PIPE)

9010506347

Крепеж

9010506348

Крепеж

9010506349

Крепеж

90105A0358

Крепеж

90105A0359

Крепеж

90105A0386

Крепеж

Код

Описание

8714

переход к группе запчастей

8719

переход к группе запчастей

88374B

VALVE, SERVICE, NO.1

88374C

VALVE, SERVICE, NO.2

88375B

CAP, SERVICE VALVE, NO.1

88375D

CAP, SERVICE VALVE, NO.2

88450A

SUB CONDENSER ASSY

88460

CONDENSER ASSY, COOLER

88474

DRYER, COOLER

88688E

BRACKET, COOLER REFRIGERANT HOSE, NO.1

88688F

BRACKET, COOLER REFRIGERANT HOSE, NO.2

88703

HOSE SUB-ASSY, DISCHARGE

88703C

RING, O(FOR DISCHARGE HOSE)

88704

HOSE SUB-ASSY, SUCTION

88704B

RING, O(FOR SUCTION HOSE)

88707

PIPE SUB-ASSY, SUCTION

88712A

RING, O(FOR COOLER REFRIGERANT SUCTION HOSE)

88716A

PIPE, COOLER REFRIGERANT LIQUID, A

88716U

RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)

88717H

RING, O(FOR COOLER REFRIGERANT SUCTION PIPE)

88718A

CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

88718L

CLAMP, PIPING

88718N

CLAMP, PIPING

88719A

SENSOR, AIR CONDITIONER PRESSURE

88G16B

RING, O, NO.2(FOR COOLER REFRIGERANT LIQUID PIPE)

9010506347

Крепеж

9010506348

Крепеж

9010506349

Крепеж

90105A0358

Крепеж

90105A0359

Крепеж

90105A0386

Крепеж

9017806026

Крепеж

90178A0070

Крепеж
