Задние кресла TOYOTA COROLLA CROSS, 2020/10 - 2025, 1,8 литра, 16 клапанов, DOHC, EFI, седан, ZVG10

Каталог

Ближний Восток

Модель

COROLLA CROSS

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Фрейм

ZVG10

Опции

левый руль TAIWAN PRODUCED 5 дверей N(MODEL MARK) страны Персидского залива 764W

Код

Описание

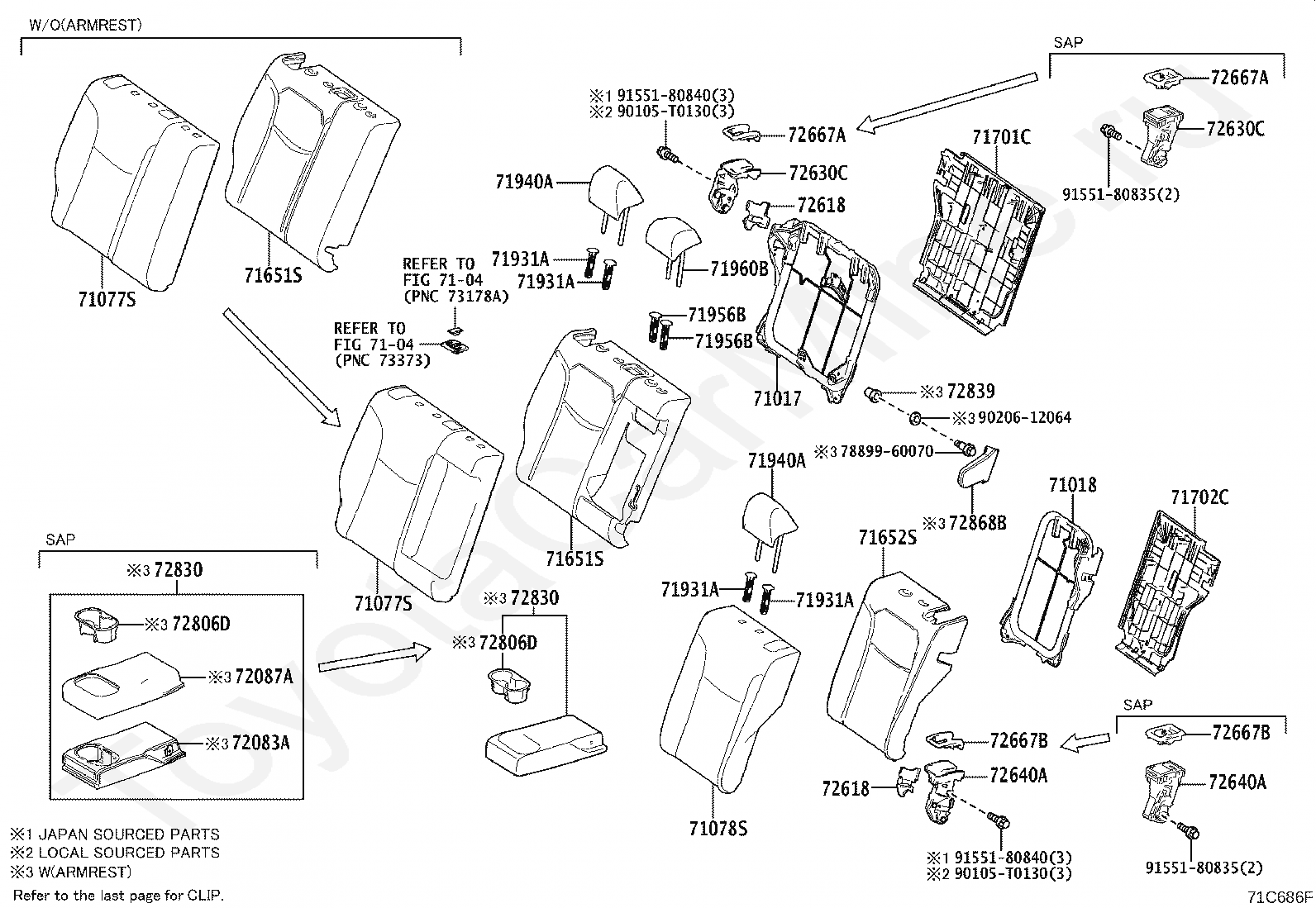

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71701C

BOARD SUB-ASSY, REAR SEAT BACK, RH

71702C

BOARD SUB-ASSY, REAR SEAT BACK, LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71956B

SUPPORT, REAR SEAT HEADREST

71960B

HEADREST ASSY, REAR SEAT, CENTER

72083A

PAD SUB-ASSY, REAR SEAT CENTER ARMREST

72087A

COVER SUB-ASSY, REAR SEAT CENTER ARMREST

72618

PROTECTOR, REAR SEAT BACK LOCK STRIKER

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72667A

BEZEL, REAR SEAT BACK LOCK, UPPER RH

72667B

BEZEL, REAR SEAT BACK LOCK, UPPER LH

72806D

HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

72830

ARMREST ASSY, REAR SEAT, CENTER

72839

SHIM, REAR SEAT ARMREST HINGE

72868B

COVER, CENTER ARMREST HINGE

7889960070

Крепеж

90105T0130

Крепеж

9020612064

Крепеж

9155180835

Крепеж

9155180840

Крепеж

Код

Описание

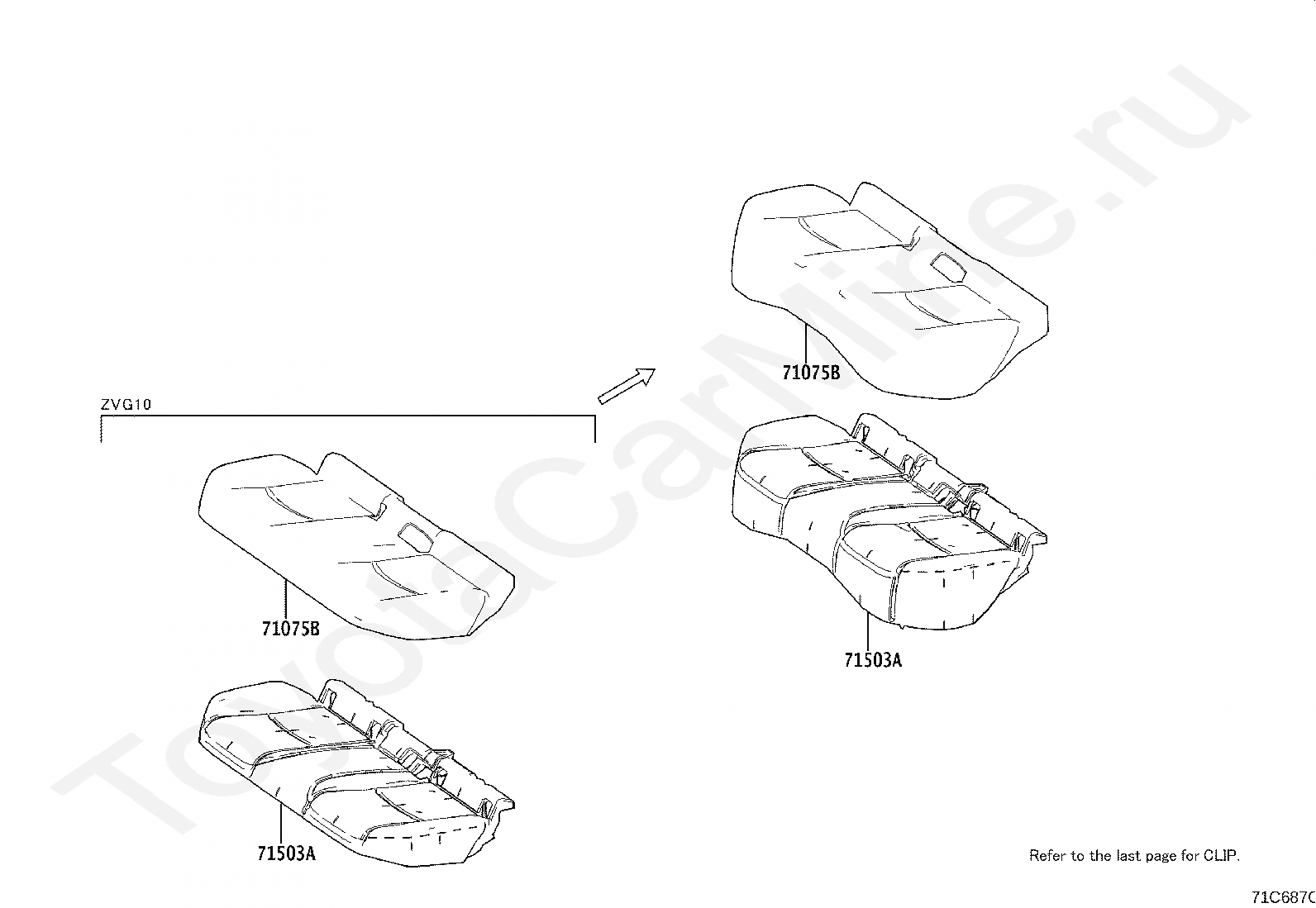

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71503A

PAD SUB-ASSY, REAR SEAT CUSHION

Код

Описание

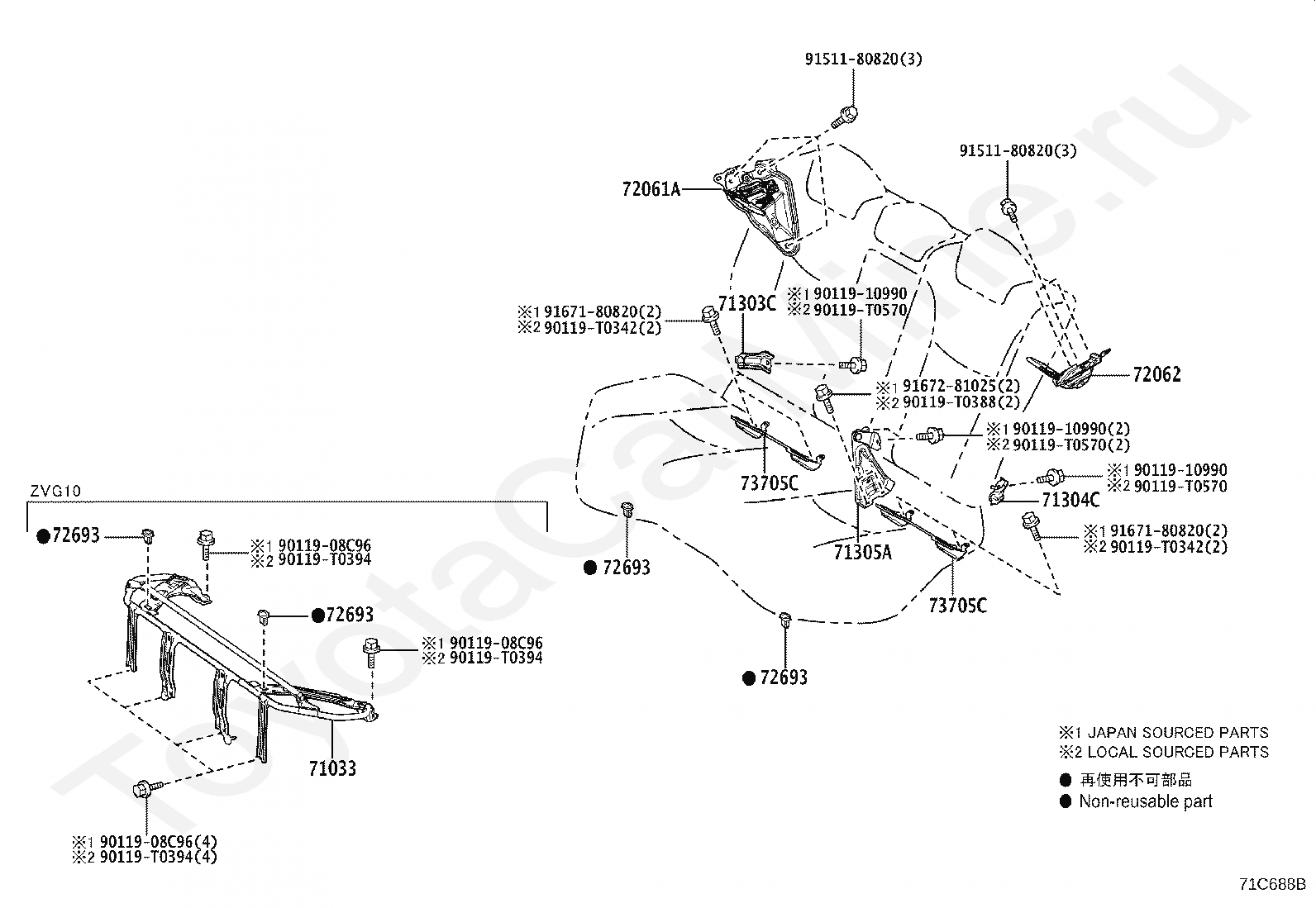

71033

LEG SUB-ASSY, REAR SEAT CUSHION

71303C

HINGE SUB-ASSY, REAR SEAT BACK, RH

71304C

HINGE SUB-ASSY, REAR SEAT BACK, LH

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

72061A

BASE SUB-ASSY, REAR SEAT BACK LOCK, RH

72062

BASE SUB-ASSY, REAR SEAT BACK LOCK, LH

72693

HOOK, REAR SEAT CUSHION LOCK

73705C

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR

9011908C96

Крепеж

9011910990

Крепеж

90119T0342

Крепеж

90119T0388

Крепеж

90119T0394

Крепеж

90119T0570

Крепеж

9151180820

Крепеж

9167180820

Крепеж

9167281025

Крепеж

Код

Описание

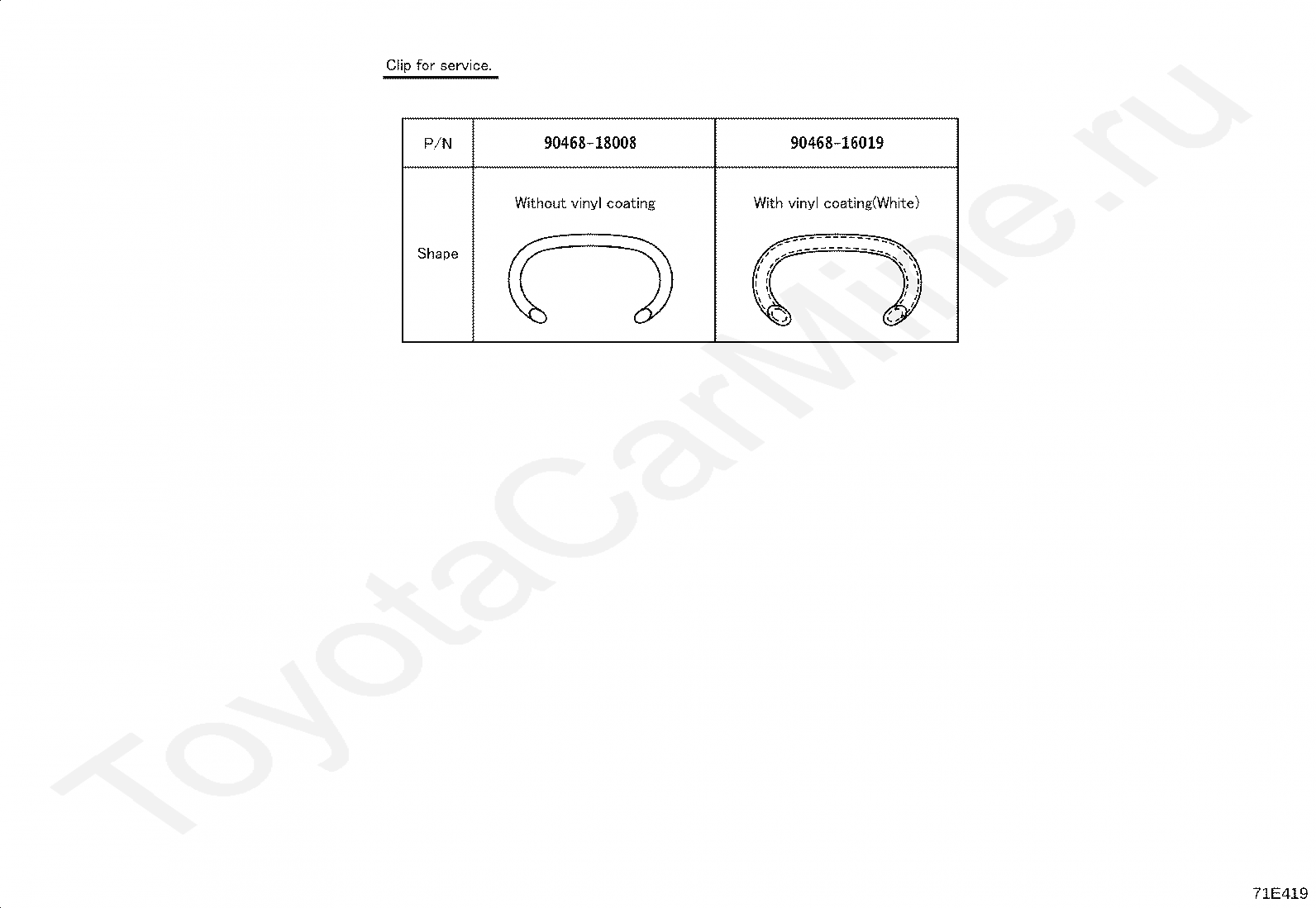

9046816019

Крепеж

9046818008

Крепеж

Задние кресла TOYOTA COROLLA CROSS, 2020/10 - 2025, 1,8 литра, 16 клапанов, DOHC, EFI, седан, ZVG10
