Каталог
Ближний ВостокМодель
COROLLA (UKP)Двигатель
1,2 литра, 16 клапанов, DOHC, D4Кузов
хетчбэкФрейм
NRE210Трансмиссия
механика МКПП, 6 скоростейОпции
левый руль N(MODEL MARK) Европа 713W

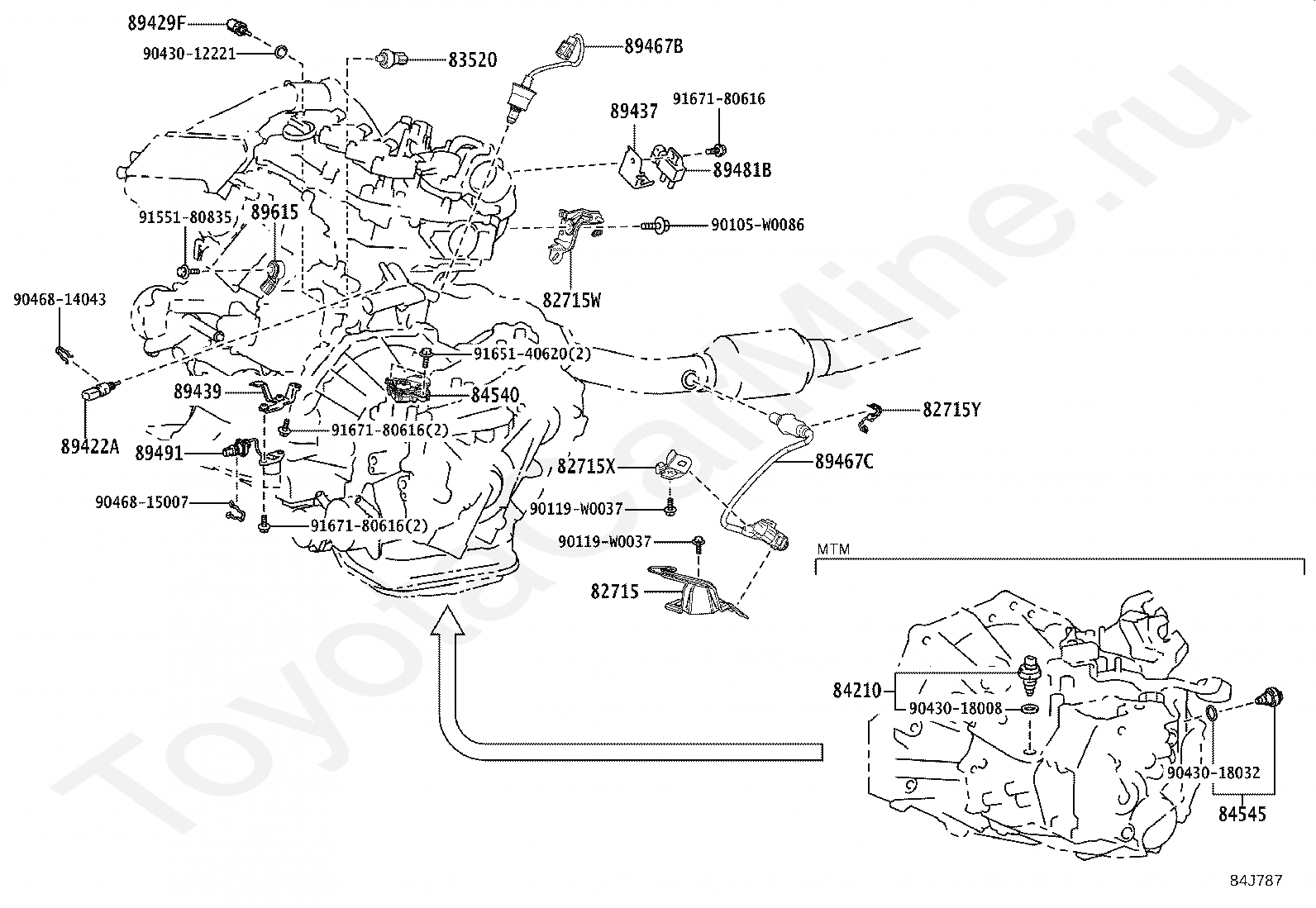

Код
Описание
82715
BRACKET,WIRING HARNESS CLAMP
82715W
BRACKET, WIRING HARNESS CLAMP
82715X
BRACKET, WIRING HARNESS CLAMP, NO.2
82715Y
BRACKET, WIRING HARNESS CLAMP, NO.3
83520
GAGE ASSY,OIL PRESSURE SENDER
84210
SWITCH ASSY, BACK-UP LAMP
84540
SWITCH ASSY, NEUTRAL START
84545
SWITCH, NEUTRAL POSITION
89422A
SENSOR, WATER TEMPERATURE
89429F
SENSOR, TEMPERATURE
89437
COVER, SENSOR
89439
BRACKET, SENSOR
89467B
SENSOR, AIR FUEL RATIO
89467C
SENSOR, AIR FUEL RATIO, NO.2
89481B
SENSOR, DIFFERENTIAL PRESSURE
89491
SENSOR, ENGINE OIL LEVEL
89615
SENSOR, KNOCK CONTROL
90105W0086
Крепеж
90119W0037
Крепеж
9043012221
Крепеж
9043018008
Крепеж
9043018032
Крепеж
9046814043
Крепеж
9046815007
Крепеж
9155180835
Крепеж
9165140620
Крепеж
9167180616
Крепеж

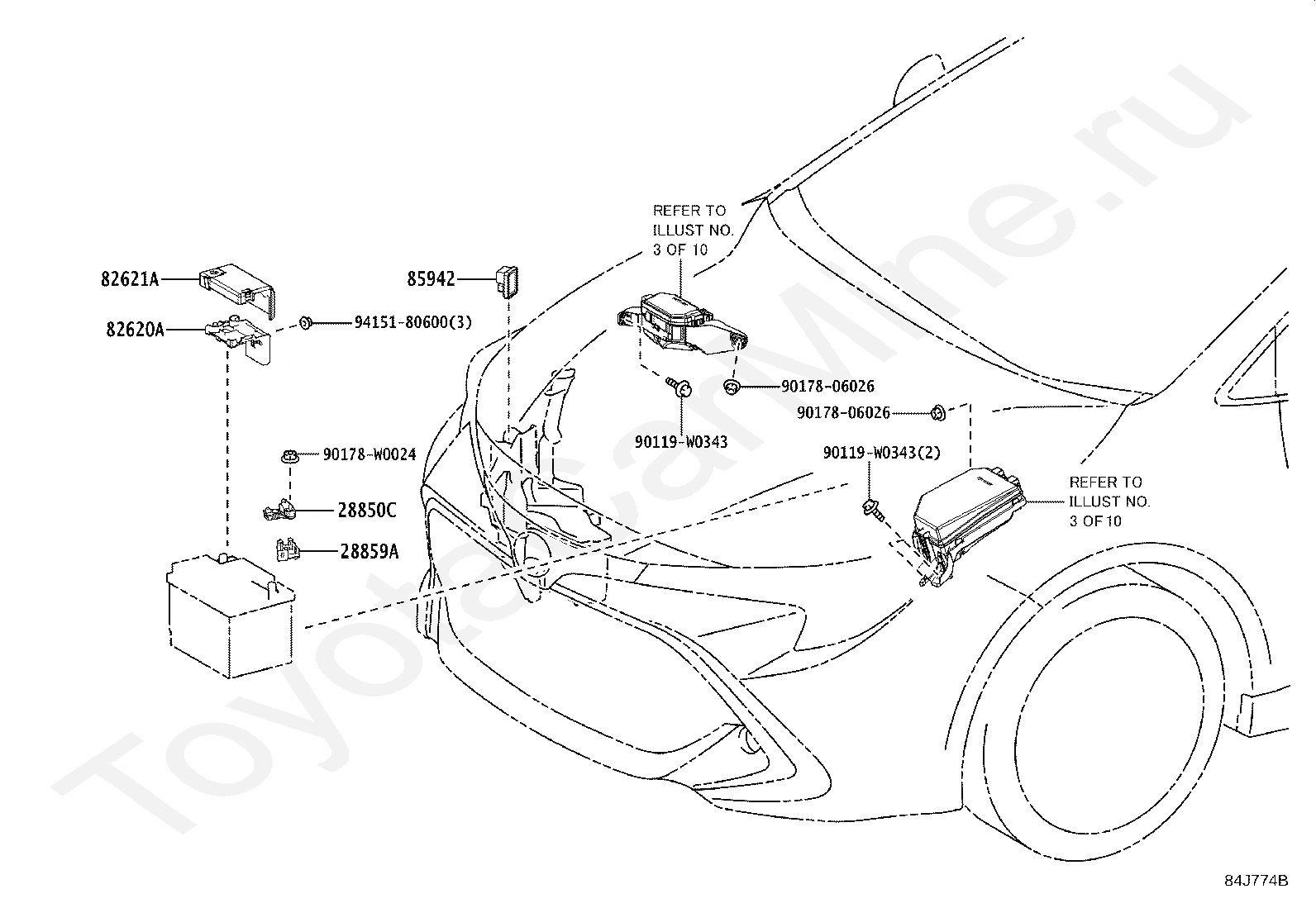

Код
Описание
28850C
SENSOR ASSY, BATTERY STATE
28859A
HOLDER, BATTERY CURRENT SENSOR
82620A
BLOCK ASSY, FUSIBLE LINK
82621A
COVER, FUSIBLE LINK
85942
RELAY, HEADLAMP CLEANER CONTROL
90119W0343
Крепеж
9017806026
Крепеж
90178W0024
Крепеж
9415180600
Крепеж

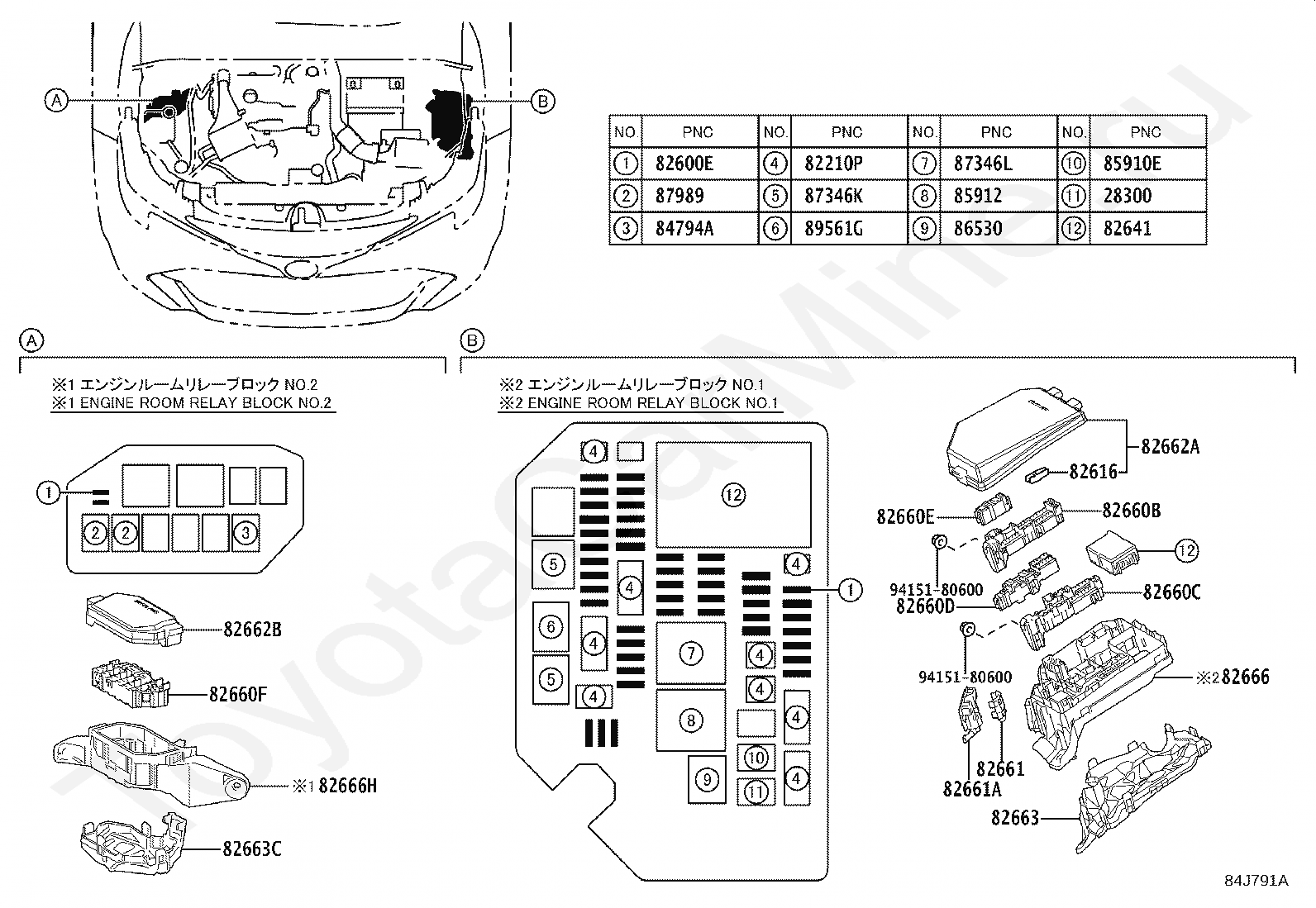

Код
Описание
28300
RELAY ASSY, STARTER
82210P
ENGINE ROOM FUSIBLE LINK
82600E
ENGINE ROOM FUSE
82616
PULLER, FUSE
82641
RELAY, INTEGRATION NO.1
82660B
BLOCK ASSY, RELAY
82660C
BLOCK ASSY, RELAY
82660D
BLOCK ASSY, RELAY
82660E
BLOCK ASSY, RELAY
82660F
BLOCK ASSY, RELAY
82661
COVER, RELAY BLOCK, NO.1
82661A
COVER, RELAY BLOCK, NO.2
82662A
COVER, RELAY BLOCK, UPPER, NO.1
82662B
COVER, RELAY BLOCK, UPPER, NO.2
82663
COVER, RELAY BLOCK, LOWER
82663C
COVER, RELAY BLOCK LOWER, NO.4
82666
HOLDER, CONNECTOR
82666H
HOLDER, CONNECTOR, NO.2
84794A
RELAY, FR WIPER DEICER
85910E
RELAY, INJECTOR
85912
RELAY, DEFOGGER
86530
RELAY ASSY, HORN
87346K
RELAY, PTC HEATER
87346L
RELAY, PTC HEATER
87989
RELAY, MIRROR CONTROL
89561G
RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2
9415180600
Крепеж

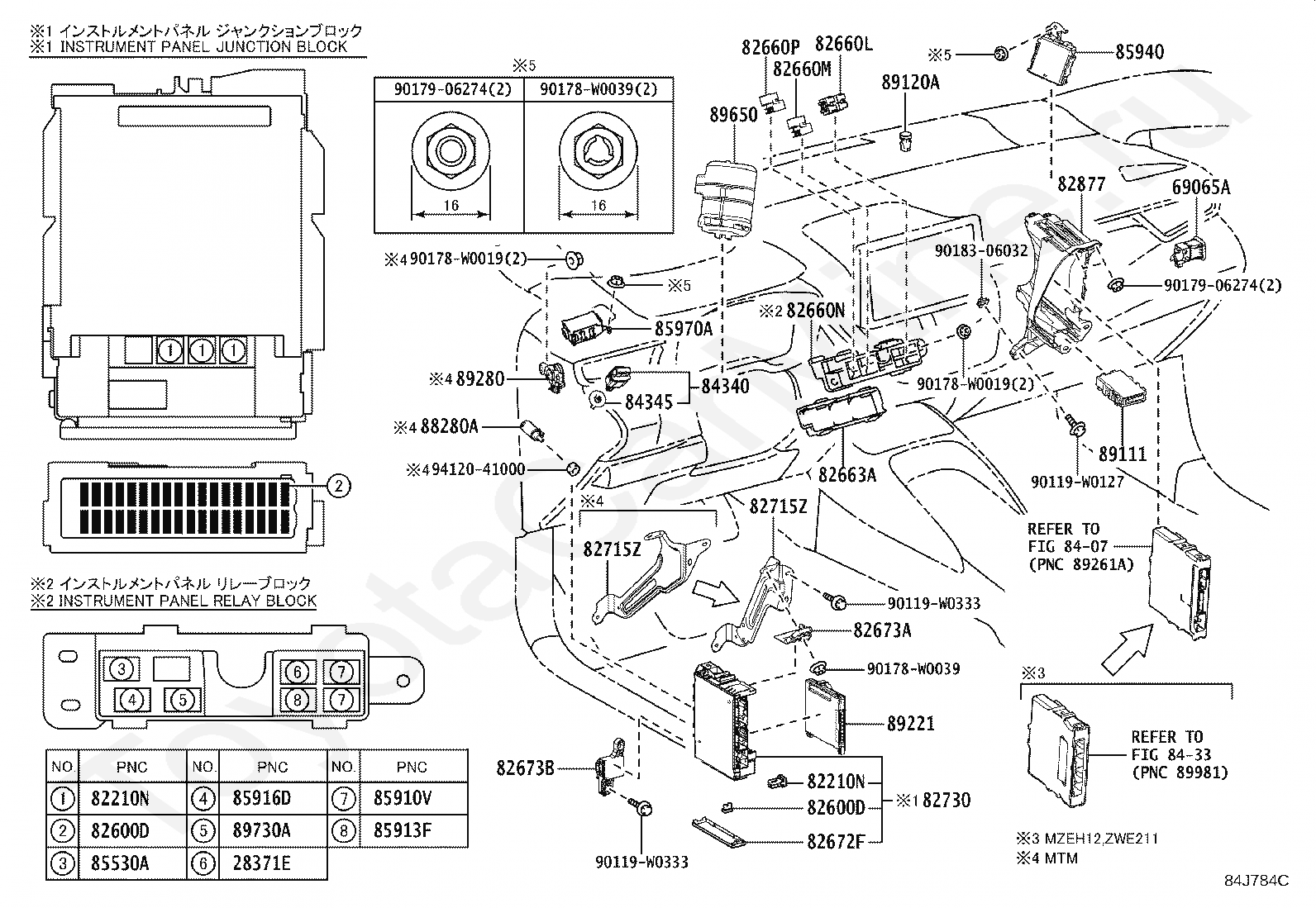

Код
Описание
28371E
RELAY, IGNITION, NO.4
69065A
CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH
82210N
INSTRUMENT PANEL FUSIBLE LINK
82600D
INSTRUMENT PANEL FUSE
82660L
BLOCK ASSY, RELAY
82660M
BLOCK ASSY, RELAY
82660N
BLOCK ASSY, RELAY
82660P
BLOCK ASSY, RELAY
82663A
COVER, RELAY BLOCK, LOWER, NO.2
82672F
COVER, JUNCTION BLOCK
82673A
BRACKET, JUNCTION BLOCK
82673B
BRACKET, JUNCTION BLOCK
82715Z
BRACKET, WIRING HARNESS CLAMP
82730
BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82877
BOX, COMPUTER INTEGRATION, RH
8407
переход к группе запчастей
8433
переход к группе запчастей
84340
SWITCH ASSY, STOP LAMP
84345
ADJUSTER, STOP LAMP SWITCH MOUNTING
85530A
RELAY, POWER OUTLET SOCKET
85910V
RELAY, SEAT HEATER
85913F
RELAY, STEERING HEATER
85916D
RELAY, FOG LAMP
85940
RELAY ASSY, WINDSHIELD WIPER
85970A
RELAY ASSY, DOUBLE LOCK DOOR CONTROL
88280A
SWITCH ASSY, CLUTCH
89111
COMPUTER, NETWORK GATEWAY
89120A
SENSOR, AUTOMATIC LIGHT CONTROL
89221
COMPUTER, MULTIPLEX NETWORK BODY
89280
SENSOR ASSY, CLUTCH PEDAL STROKE
89650
COMPUTER ASSY, POWER STEERING
89730A
RELAY(FOR SECURITY WARNING)
90119W0127
Крепеж
90119W0333
Крепеж
90178W0019
Крепеж
90178W0039
Крепеж
9017906274
Крепеж
9018306032
Крепеж
9412041000
Крепеж

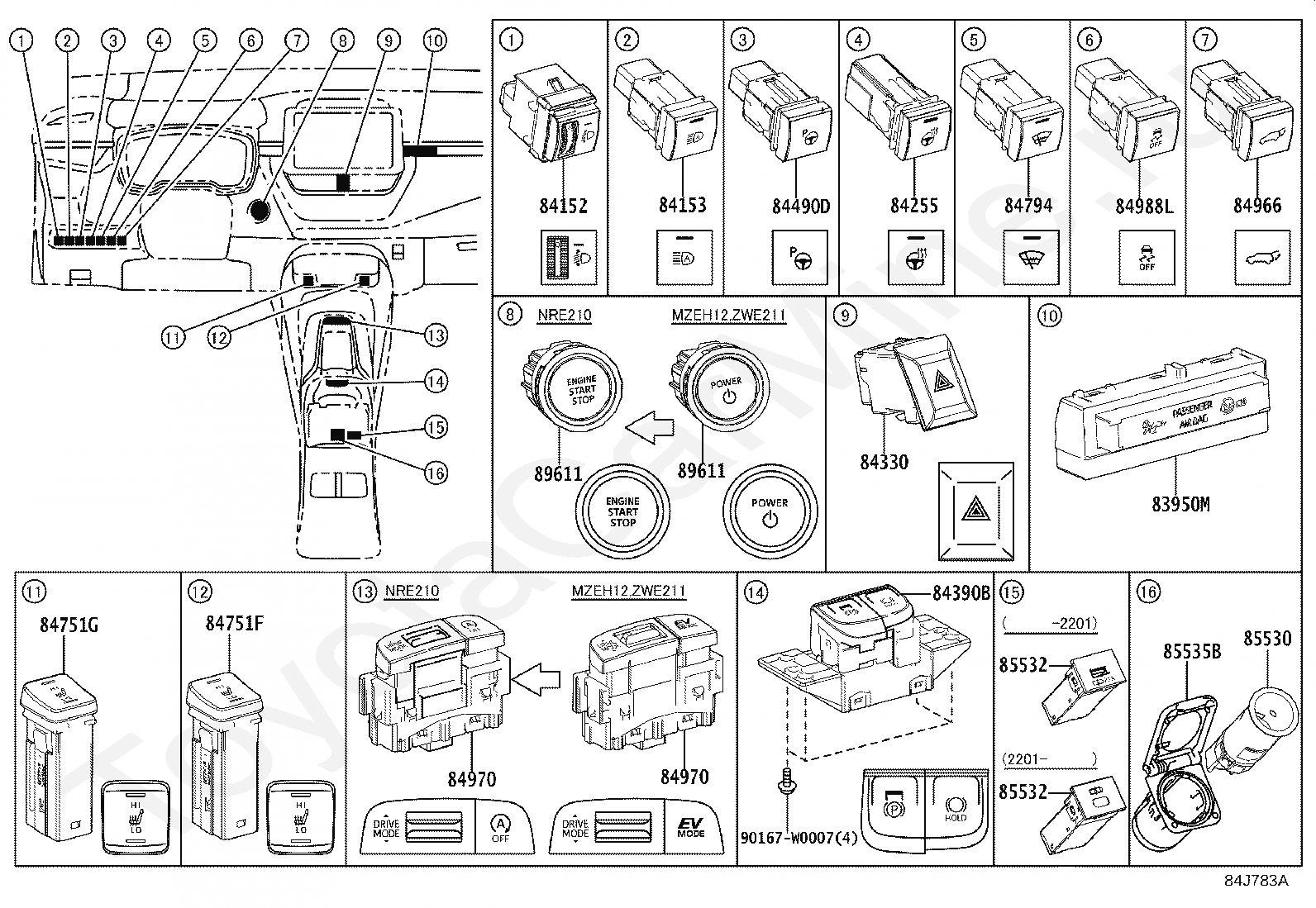

Код
Описание
83950M
LAMP ASSY, TELLTALE
84152
SWITCH, HEADLAMP LEVELING
84153
SWITCH, AUTO HIGH BEAM
84255
SWITCH, STEERING HEATER
84330
SWITCH ASSY, HAZARD WARNING SIGNAL
84390B
SWITCH ASSY, ELECTRIC PARKING BRAKE
84490D
SWITCH ASSY, IPA MAIN
84751F
SWITCH, SEAT HEATER
84751G
SWITCH, SEAT HEATER
84794
SWITCH, FR WIPER DEICER
84966
SWITCH, POWER BACK DOOR CONTROL
84970
SWITCH ASSY, COMBINATION
84988L
SWITCH, VSC OFF
85530
SOCKET ASSY, POWER OUTLET, NO.1
85532
SOCKET, USB CHARGER
85535B
COVER, POWER OUTLET SOCKET, NO.1
89611
SWITCH, PUSH START
90167W0007
Крепеж

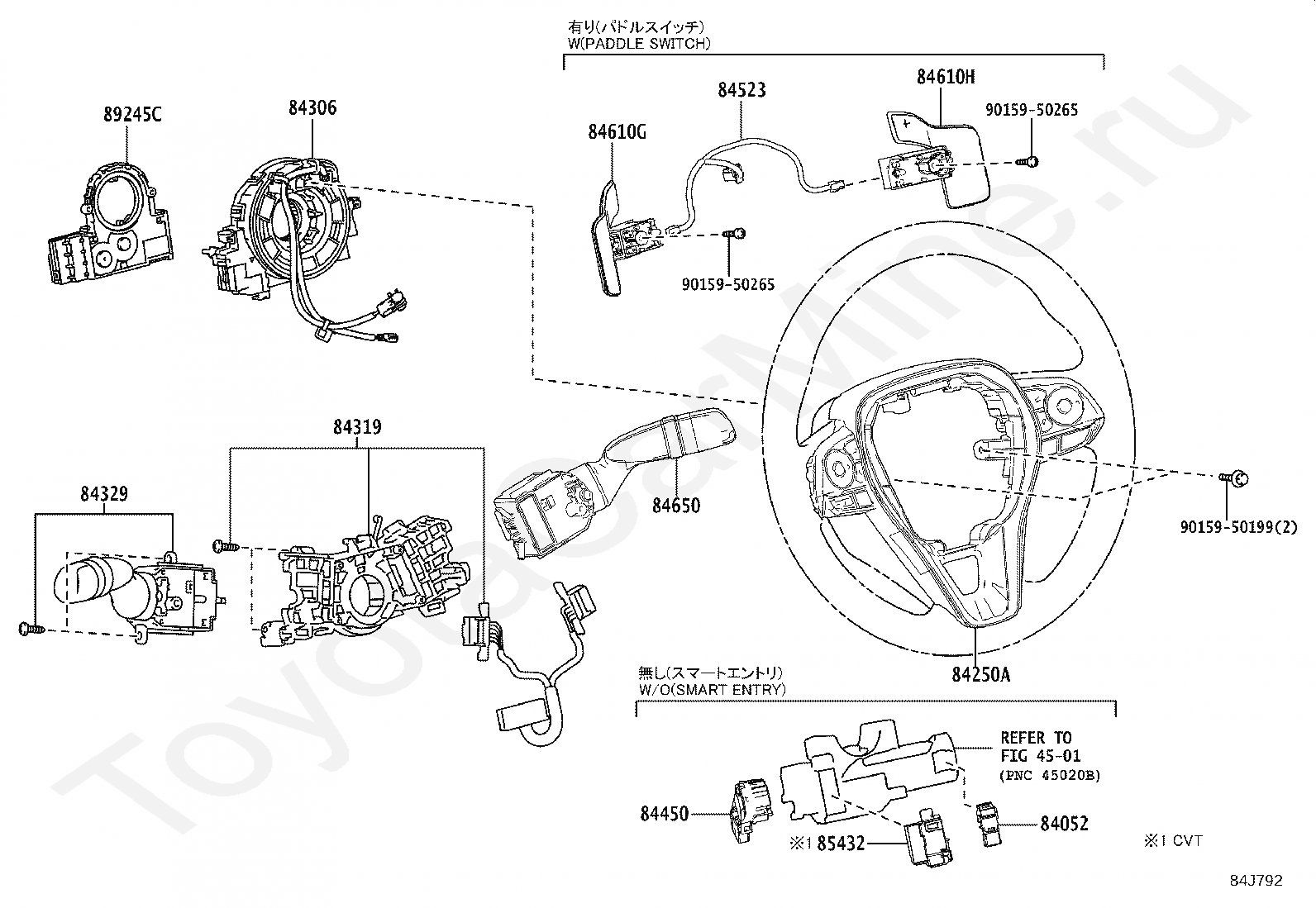

Код
Описание
4501
переход к группе запчастей
84052
SWITCH ASSY, UN-LOCK WARNING
84250A
SWITCH ASSY, STEERING PAD
84306
CABLE SUB-ASSY, SPIRAL
84319
HOUSING, STEERING WHEEL SWITCH
84329
SWITCH, TURN SIGNAL
84450
SWITCH ASSY, IGNITION OR STARTER
84523
WIRE, SWITCH NO.1
84610G
SWITCH ASSY, TRANSMISSION SHIFT, NO.1
84610H
SWITCH ASSY, TRANSMISSION SHIFT, NO.2
84650
SWITCH ASSY, WINDSHIELD WIPER
85432
SOLENOID, KEY INTER LOCK
89245C
SENSOR, STEERING
9015950199
Крепеж
9015950265
Крепеж

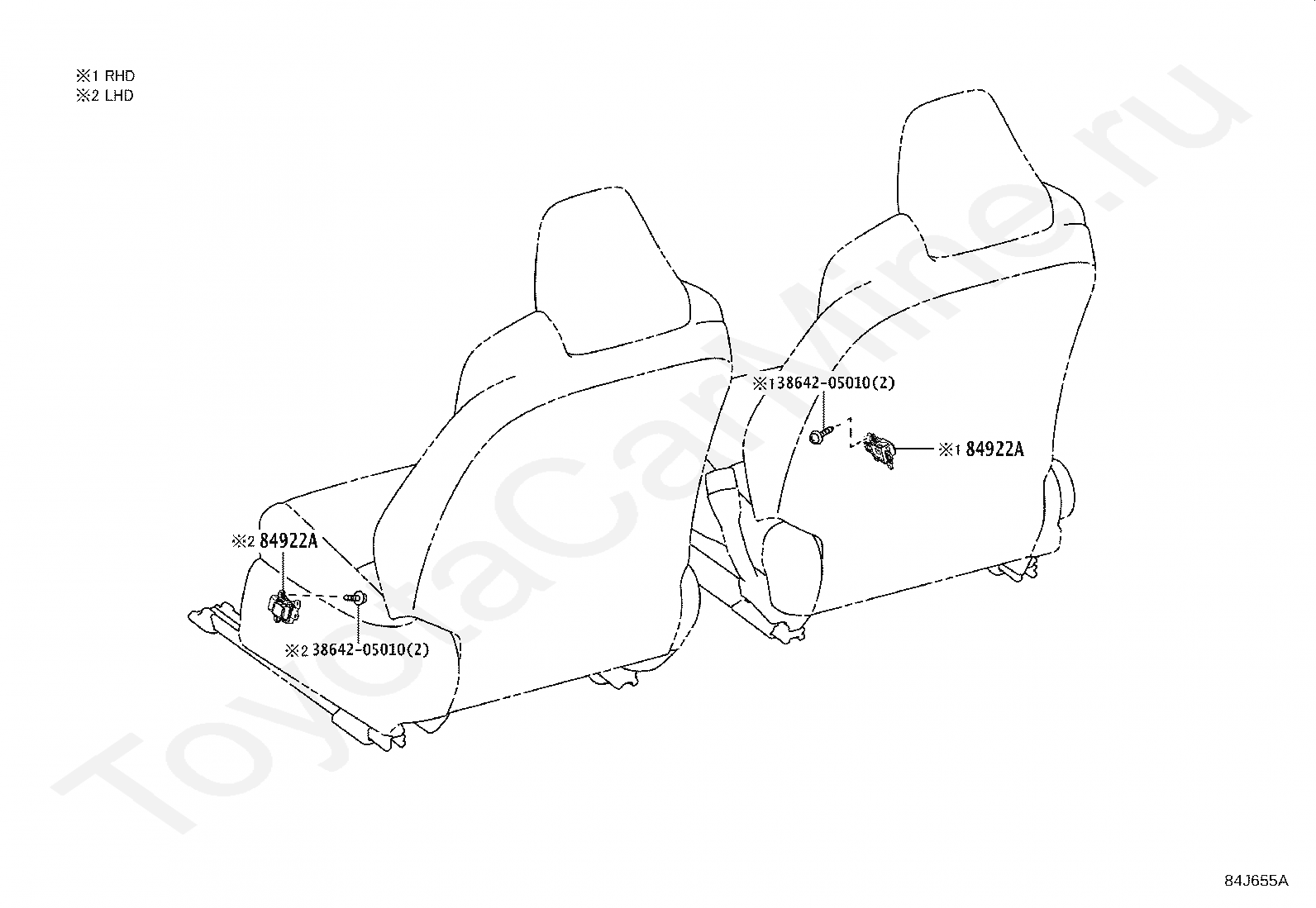

Код
Описание
3864205010
Крепеж
84922A
SWITCH, FRONT POWER SEAT(FOR LUMBAR)

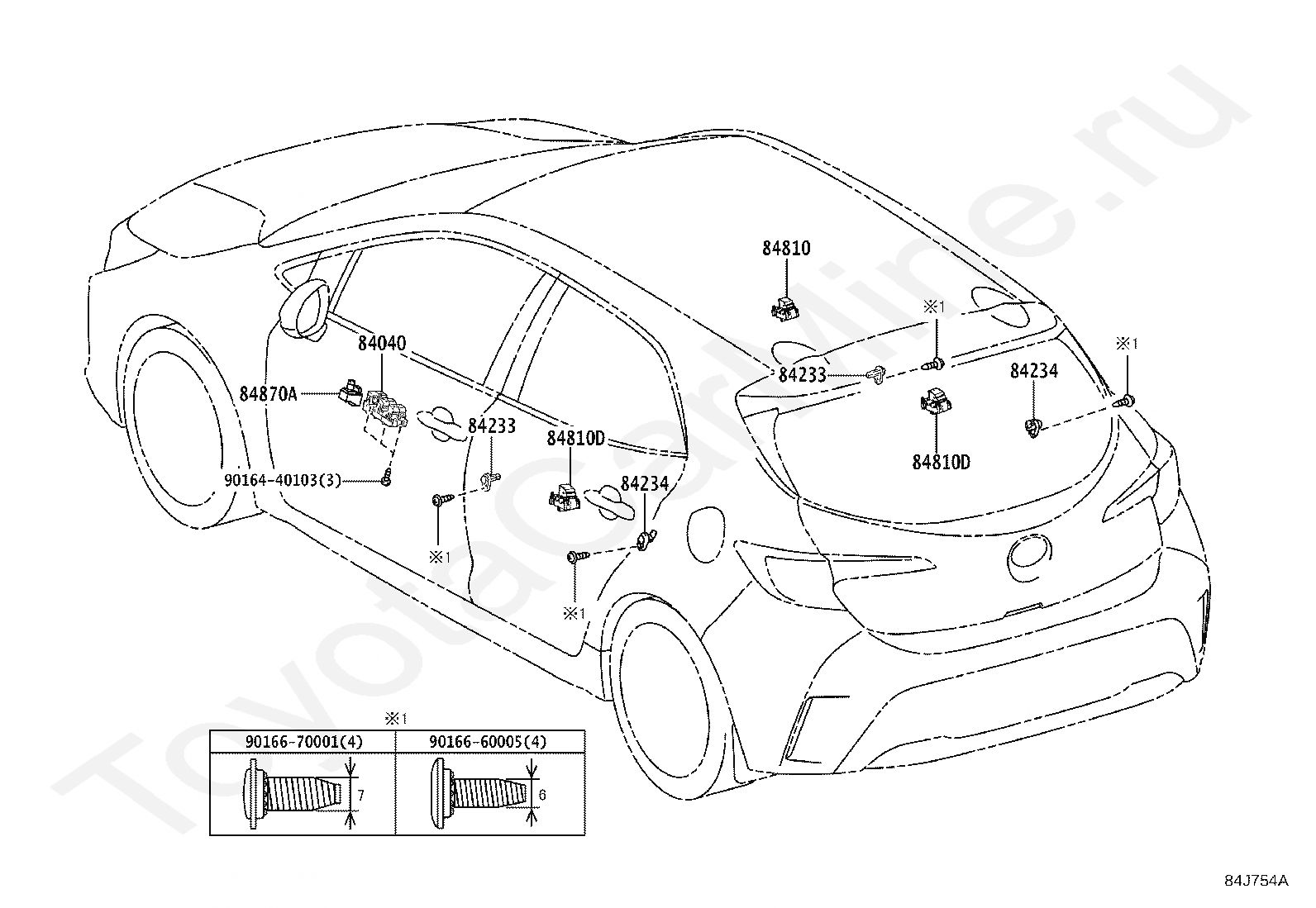

Код
Описание
84040
MASTER SWITCH ASSY,MULTIPLEX NETWORK
84233
SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84234
SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84810
SWITCH ASSY, POWER WINDOW REGULATOR
84810D
SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84870A
SWITCH ASSY, OUTER MIRROR
9016440103
Крепеж
9016660005
Крепеж
9016670001
Крепеж

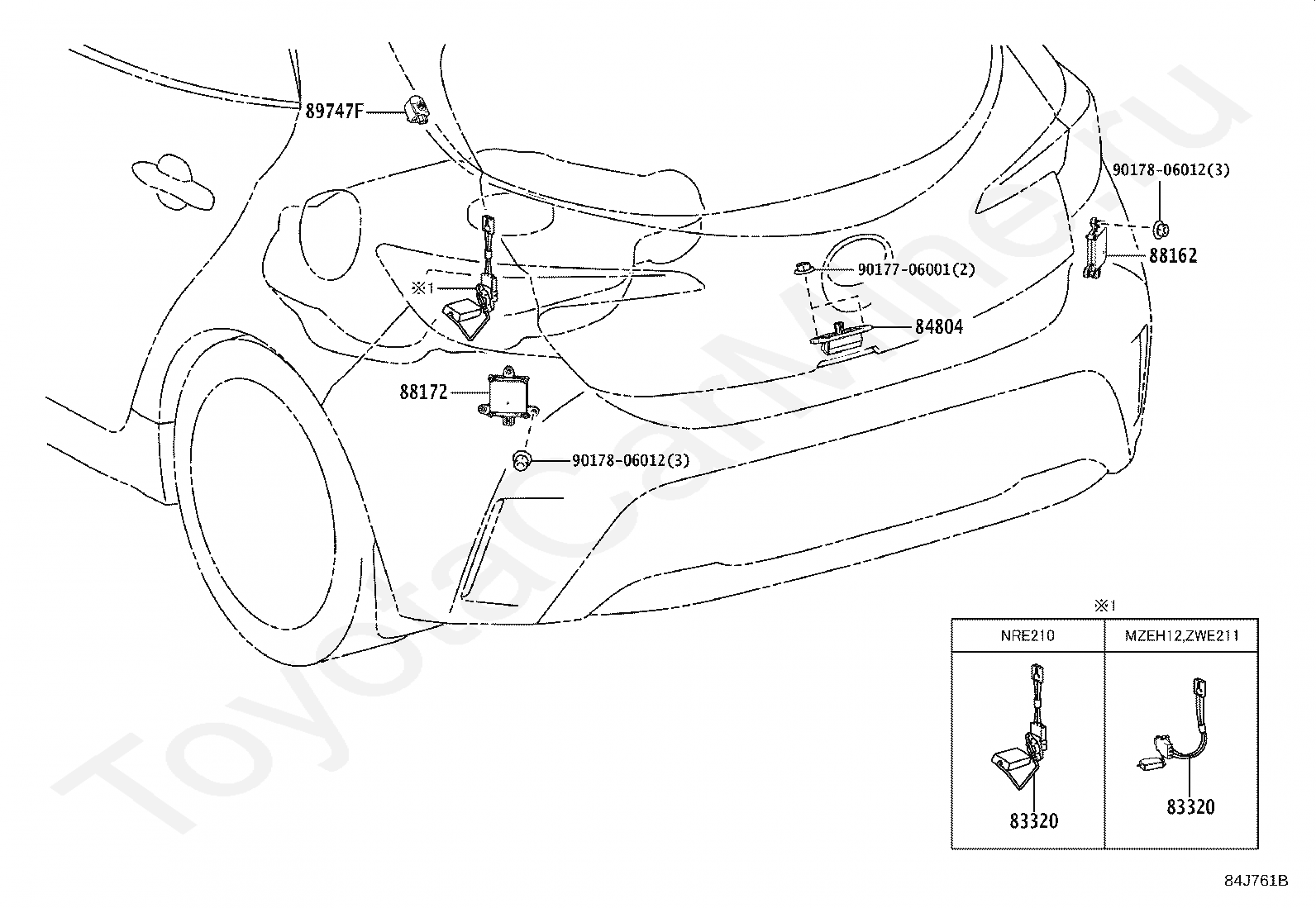

Код
Описание
83320
GAGE ASSY, FUEL SENDER
84804
SWITCH SUB-ASSY, BACK DOOR OPENER
88162
SENSOR, BLIND SPOT MONITOR, RH
88172
SENSOR, BLIND SPOT MONITOR, LH
89747F
BUZZER, BLIND SPOT MONITOR
9017706001
Крепеж
9017806012
Крепеж
