Каталог
АмерикаМодель
COROLLA (MEXICO)Двигатель
1,8 литра, 16 клапанов, DOHC, EFIКузов
седанФрейм
ZRE212Трансмиссия
вариаторОпции
левый руль 4 двери L TYPE MEXICO 710W
Код
Описание

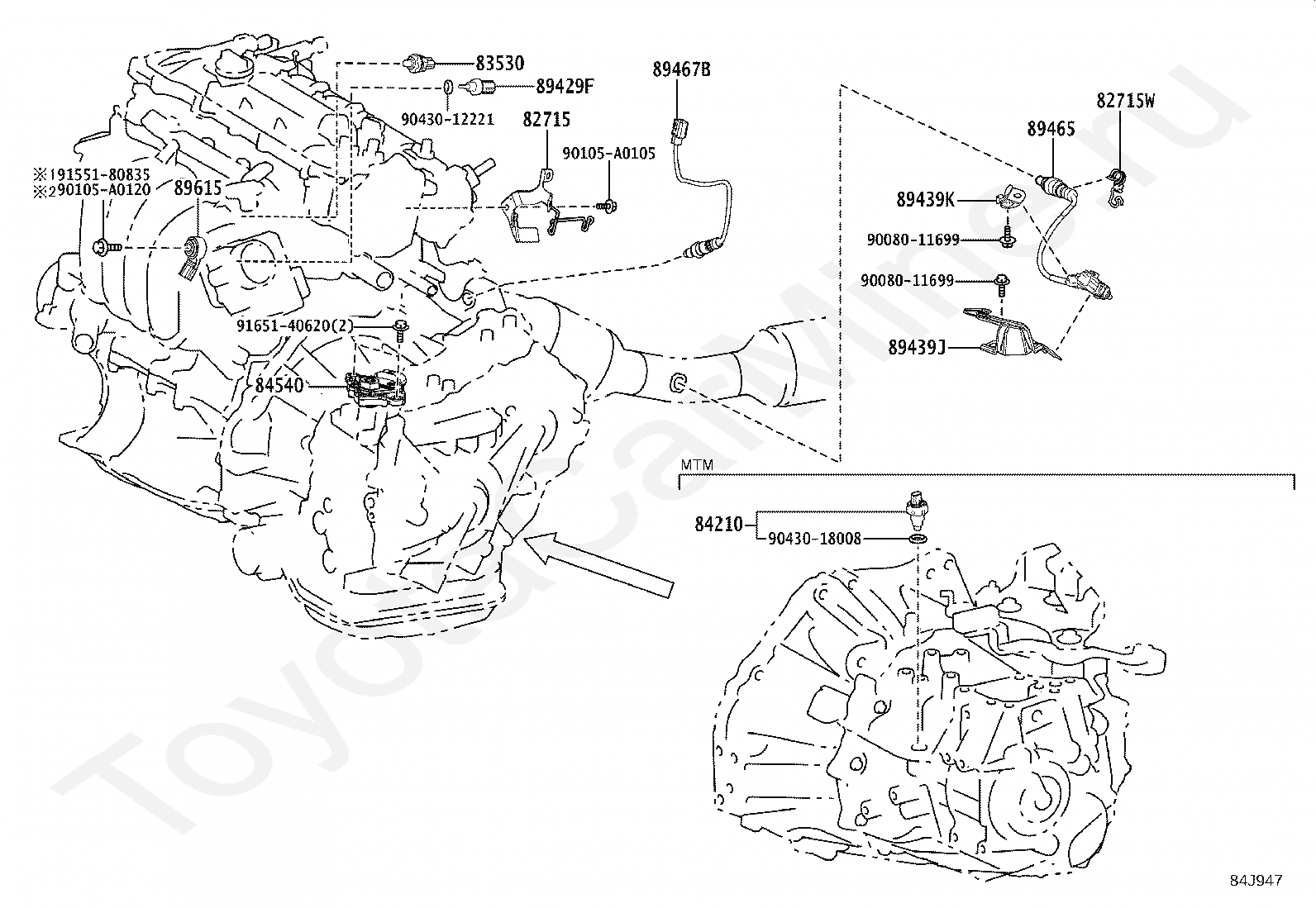

82715
BRACKET,WIRING HARNESS CLAMP
82715W
BRACKET, WIRING HARNESS CLAMP
83530
SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84210
SWITCH ASSY, BACK-UP LAMP
84540
SWITCH ASSY, NEUTRAL START
89429F
SENSOR, TEMPERATURE
89439J
BRACKET, SENSOR, NO.2
89439K
BRACKET, SENSOR, NO.3
89465
SENSOR, OXYGEN
89467B
SENSOR, AIR FUEL RATIO
89615
SENSOR, KNOCK CONTROL
9008011699
Крепеж
90105A0105
Крепеж
90105A0120
Крепеж
9043012221
Крепеж
9043018008
Крепеж
9155180835
Крепеж
9165140620
Крепеж
Код
Описание

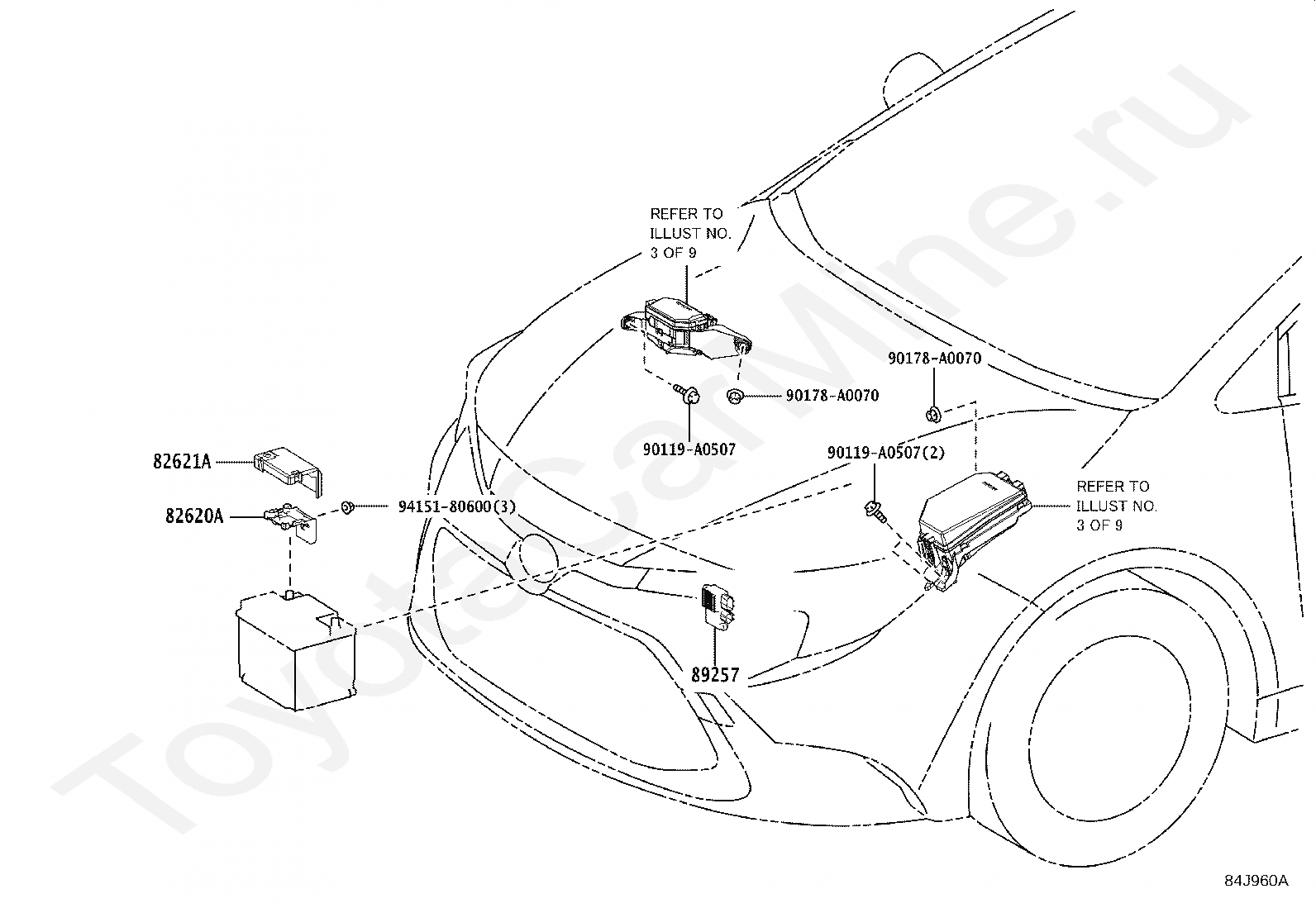

82620A
BLOCK ASSY, FUSIBLE LINK
82621A
COVER, FUSIBLE LINK
89257
COMPUTER, COOLING FAN
90119A0507
Крепеж
90178A0070
Крепеж
9415180600
Крепеж
Код
Описание

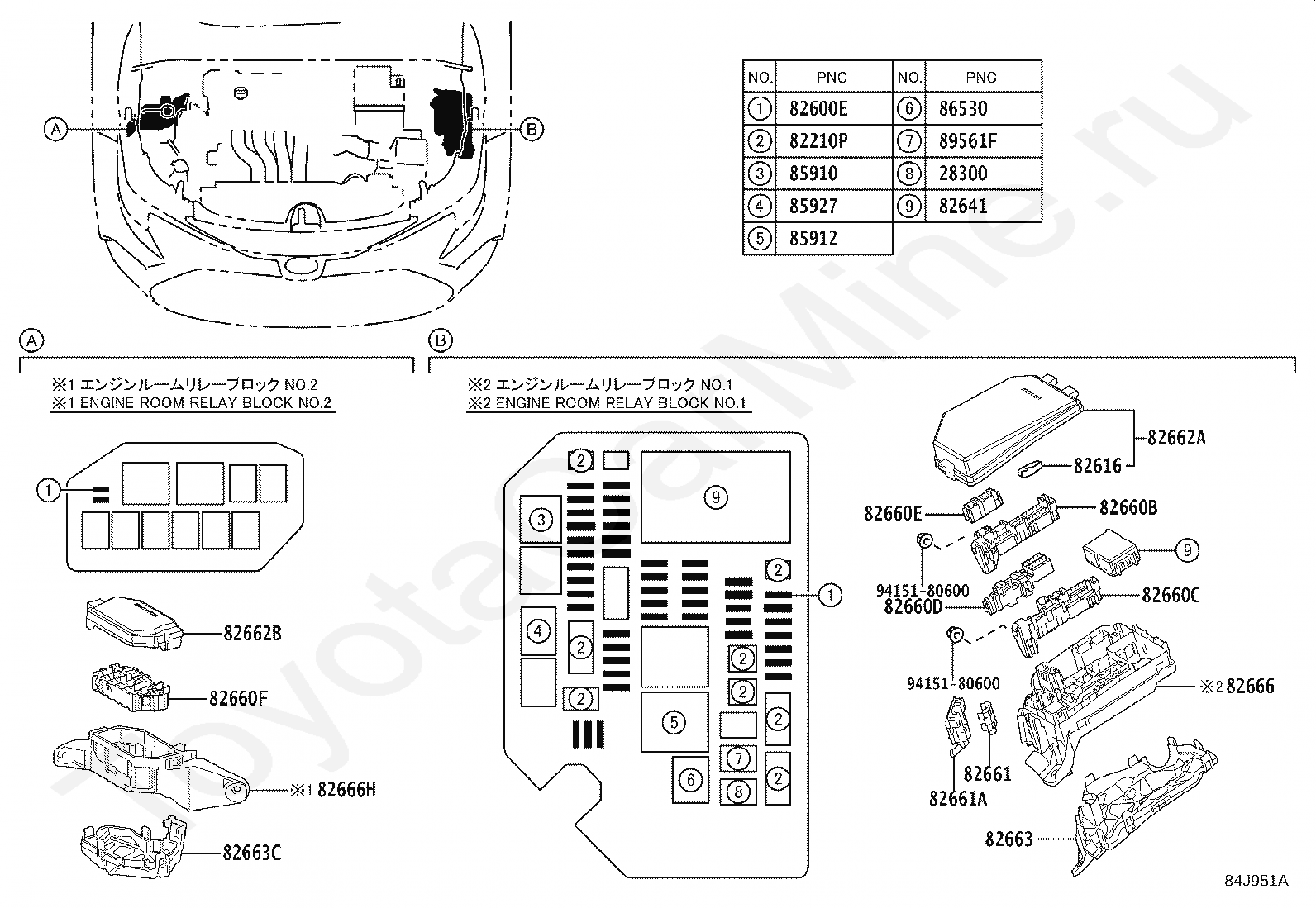

28300
RELAY ASSY, STARTER
82210P
ENGINE ROOM FUSIBLE LINK
82600E
ENGINE ROOM FUSE
82616
PULLER, FUSE
82641
RELAY, INTEGRATION NO.1
82660B
BLOCK ASSY, RELAY
82660C
BLOCK ASSY, RELAY
82660D
BLOCK ASSY, RELAY
82660E
BLOCK ASSY, RELAY
82660F
BLOCK ASSY, RELAY
82661
COVER, RELAY BLOCK, NO.1
82661A
COVER, RELAY BLOCK, NO.2
82662A
COVER, RELAY BLOCK, UPPER, NO.1
82662B
COVER, RELAY BLOCK, UPPER, NO.2
82663
COVER, RELAY BLOCK, LOWER
82663C
COVER, RELAY BLOCK LOWER, NO.4
82666
HOLDER, CONNECTOR
82666H
HOLDER, CONNECTOR, NO.2
85910
RELAY ASSY, CIRCUIT OPENING
85912
RELAY, DEFOGGER
85927
RELAY, COOLING FAN
86530
RELAY ASSY, HORN
89561F
RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1
9415180600
Крепеж
Код
Описание

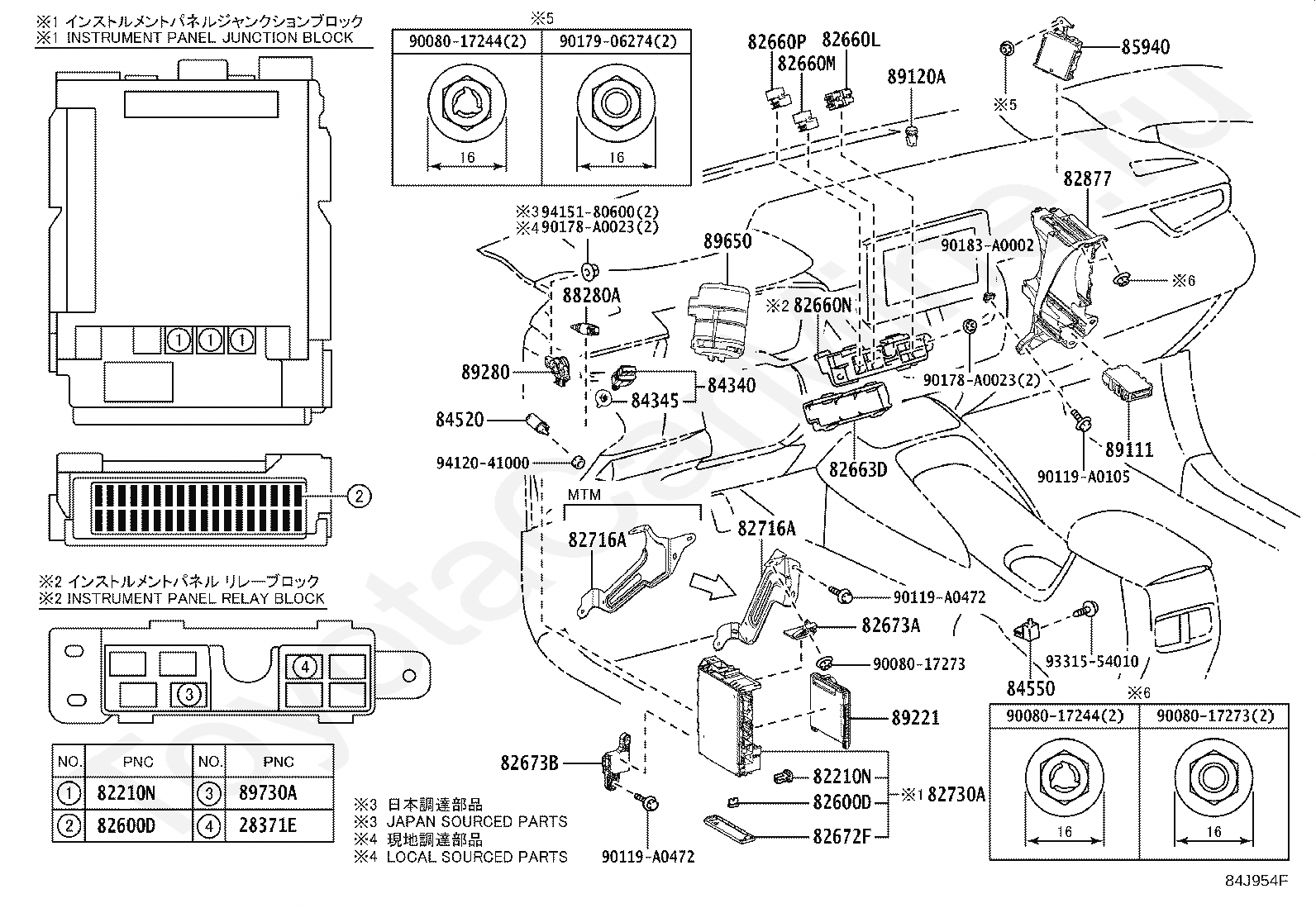

28371E
RELAY, IGNITION, NO.4
82210N
INSTRUMENT PANEL FUSIBLE LINK
82600D
INSTRUMENT PANEL FUSE
82660L
BLOCK ASSY, RELAY
82660M
BLOCK ASSY, RELAY
82660N
BLOCK ASSY, RELAY
82660P
BLOCK ASSY, RELAY
82663D
COVER, RELAY BLOCK, LOWER, NO.5
82672F
COVER, JUNCTION BLOCK
82673A
BRACKET, JUNCTION BLOCK
82673B
BRACKET, JUNCTION BLOCK
82716A
BRACKET, WIRING HARNESS CLAMP
82730A
BLOCK ASSY, DRIVER SIDE JUNCTION
82877
BOX, COMPUTER INTEGRATION, RH
84340
SWITCH ASSY, STOP LAMP
84345
ADJUSTER, STOP LAMP SWITCH MOUNTING
84520
SWITCH ASSY, CLUTCH START
84550
SWITCH ASSY, PARKING BRAKE
85940
RELAY ASSY, WINDSHIELD WIPER
88280A
SWITCH ASSY, CLUTCH
89111
COMPUTER, NETWORK GATEWAY
89120A
SENSOR, AUTOMATIC LIGHT CONTROL
89221
COMPUTER, MULTIPLEX NETWORK BODY
89280
SENSOR ASSY, CLUTCH PEDAL STROKE
89650
COMPUTER ASSY, POWER STEERING
89730A
RELAY(FOR SECURITY WARNING)
9008017244
Крепеж
9008017273
Крепеж
90119A0105
Крепеж
90119A0472
Крепеж
90178A0023
Крепеж
9017906274
Крепеж
90183A0002
Крепеж
9331554010
Крепеж
9412041000
Крепеж
9415180600
Крепеж
Код
Описание

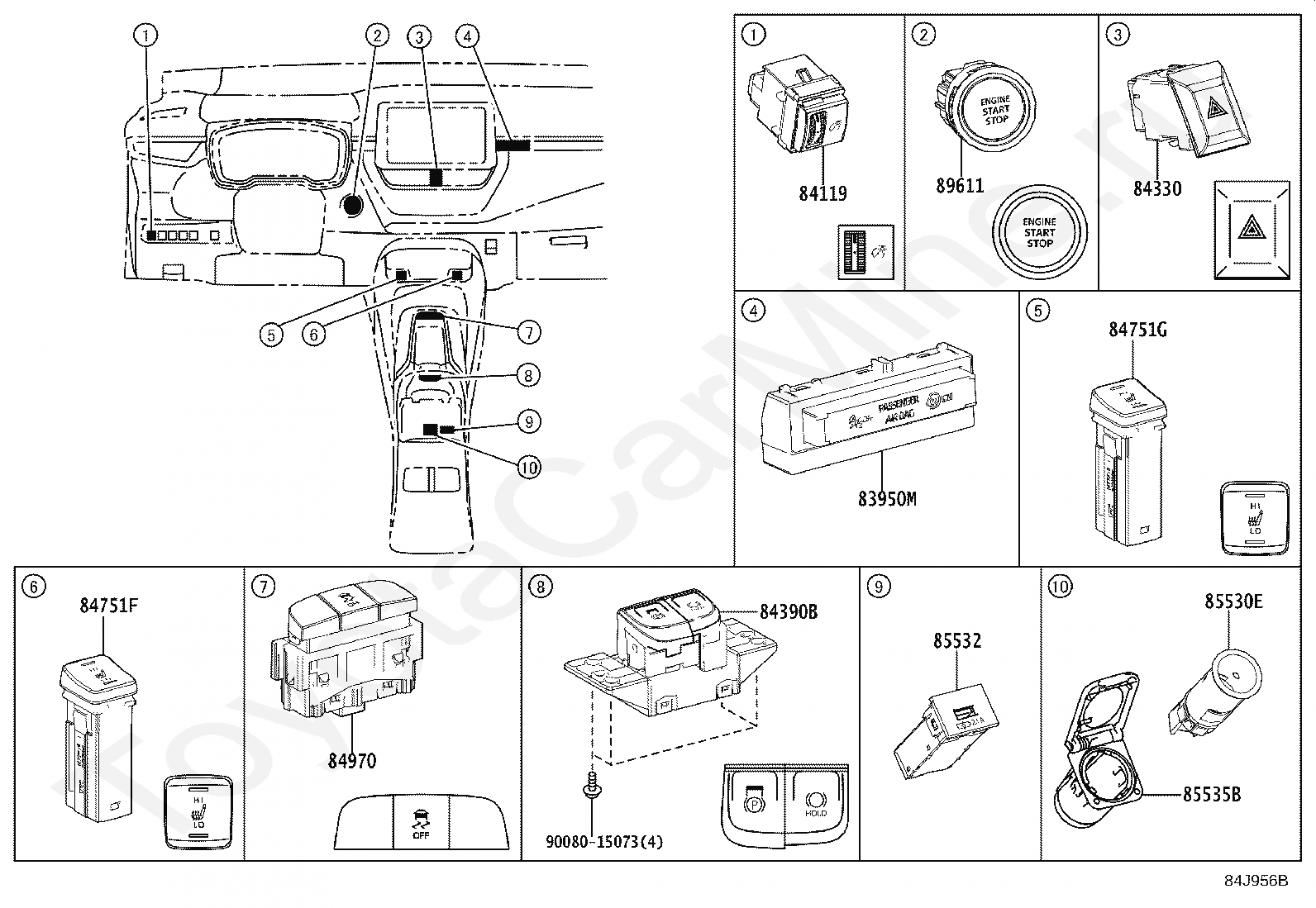

83950M
LAMP ASSY, TELLTALE
84119
RHEOSTAT, LIGHT CONTROL
84330
SWITCH ASSY, HAZARD WARNING SIGNAL
84390B
SWITCH ASSY, ELECTRIC PARKING BRAKE
84751F
SWITCH, SEAT HEATER
84751G
SWITCH, SEAT HEATER
84970
SWITCH ASSY, COMBINATION
85530E
SOCKET ASSY, POWER OUTLET, NO.3
85532
SOCKET, USB CHARGER
85535B
COVER, POWER OUTLET SOCKET, NO.1
89611
SWITCH, PUSH START
9008015073
Крепеж
Код
Описание
4501
переход к группе запчастей
84052
SWITCH ASSY, UN-LOCK WARNING
84250A
SWITCH ASSY, STEERING PAD
84306
CABLE SUB-ASSY, SPIRAL
84319
HOUSING, STEERING WHEEL SWITCH
84329
SWITCH, TURN SIGNAL
84450
SWITCH ASSY, IGNITION OR STARTER
84523
WIRE, SWITCH NO.1
84610G
SWITCH ASSY, TRANSMISSION SHIFT, NO.1
84610H
SWITCH ASSY, TRANSMISSION SHIFT, NO.2
84650
SWITCH ASSY, WINDSHIELD WIPER
85432
SOLENOID, KEY INTER LOCK
89245C
SENSOR, STEERING
9008015079
Крепеж
9015950265
Крепеж
Код
Описание
7101
переход к группе запчастей
84921A
KNOB, POWER SEAT SWITCH (FOR RECLINING)
84921B
KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)
84922
SWITCH, FRONT POWER SEAT
84922A
SWITCH, FRONT POWER SEAT(FOR LUMBAR)
9008016105
Крепеж
9356054012
Крепеж
Код
Описание

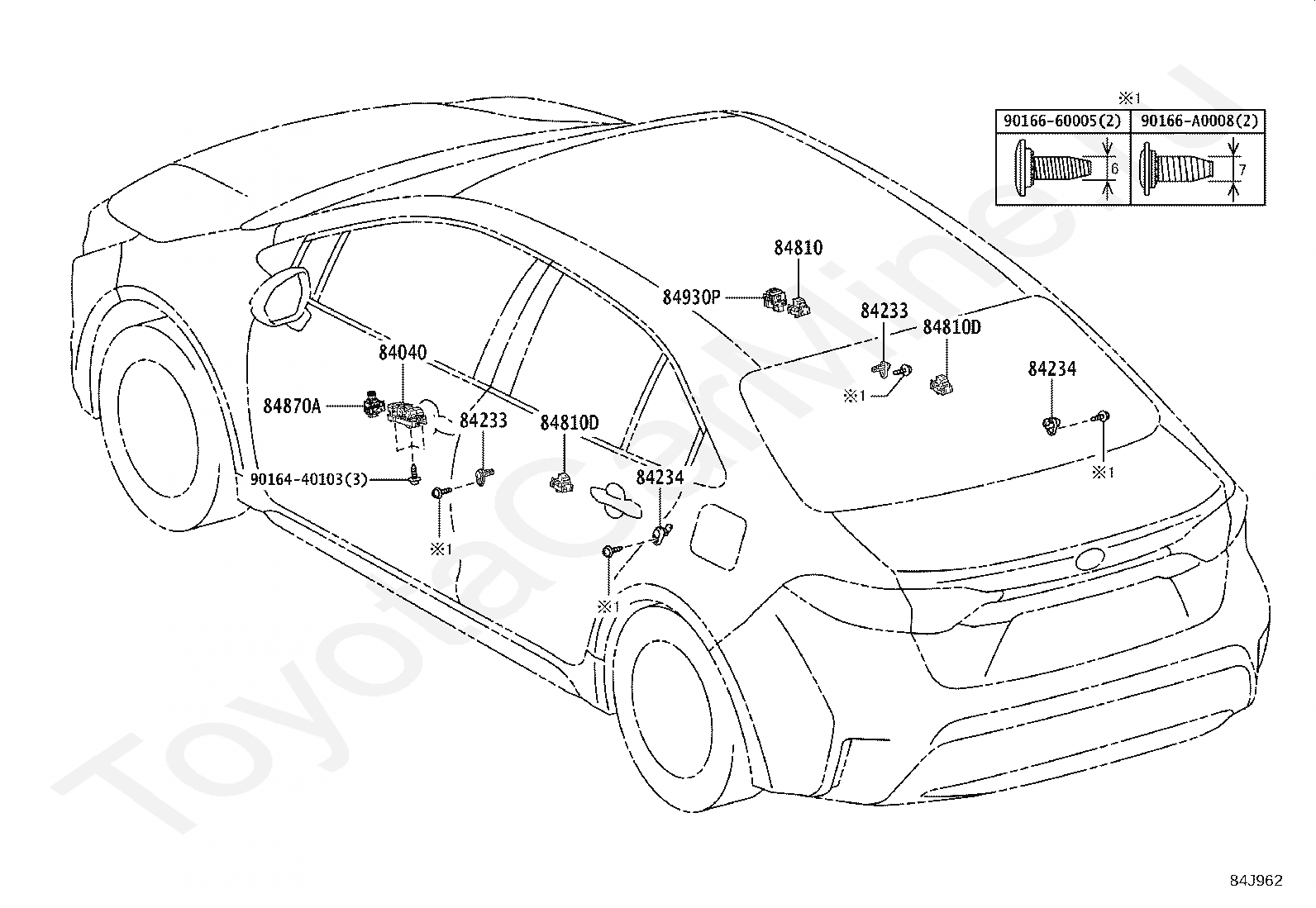

84040
MASTER SWITCH ASSY,MULTIPLEX NETWORK
84233
SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84234
SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84810
SWITCH ASSY, POWER WINDOW REGULATOR
84810D
SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84870A
SWITCH ASSY, OUTER MIRROR
84930P
SWITCH ASSY, DOOR CONTROL
9016440103
Крепеж
9016660005
Крепеж
90166A0008
Крепеж
Код
Описание

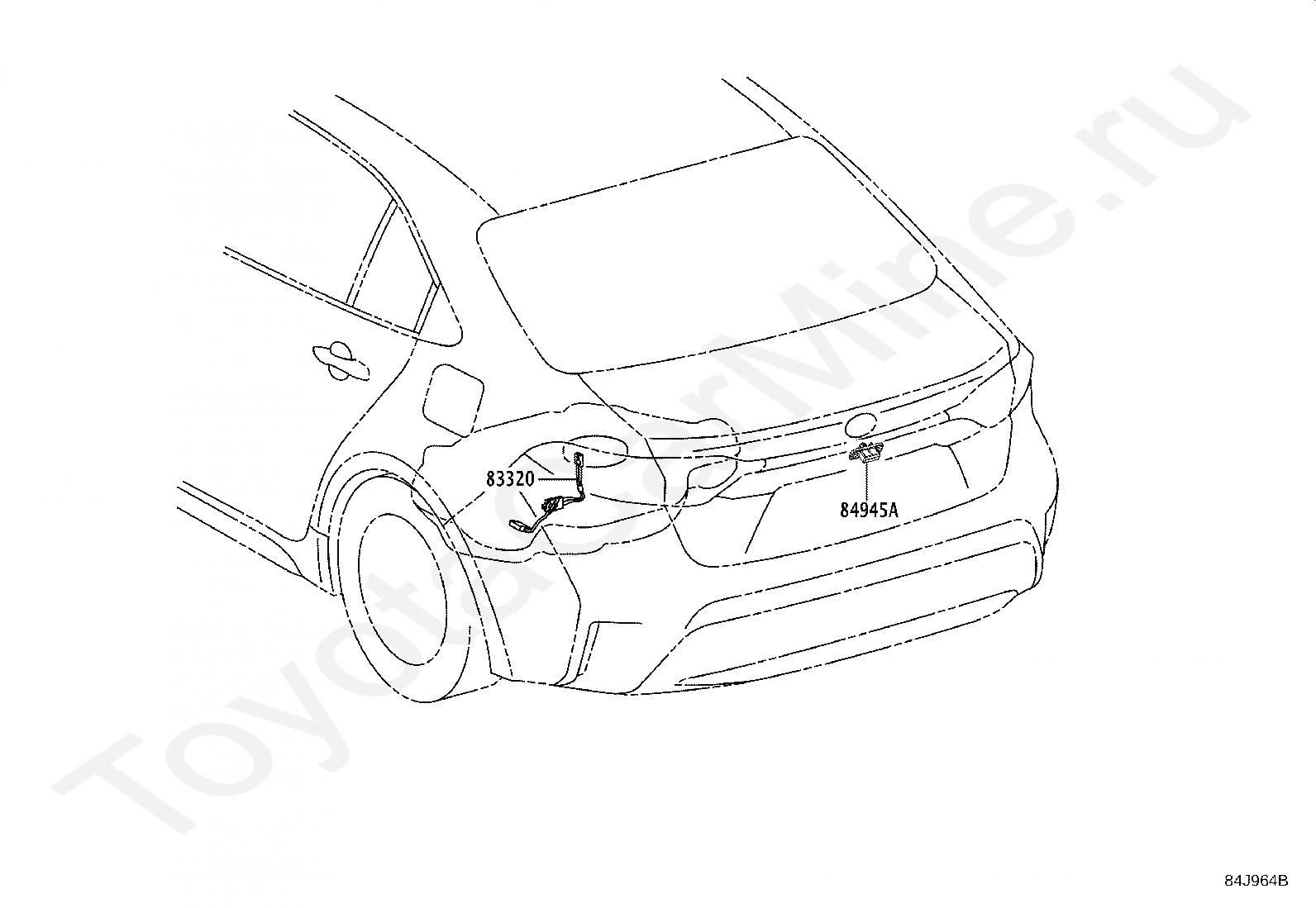

83320
GAGE ASSY, FUEL SENDER
84945A
SWITCH, LUGGAGE ELECTRICAL KEY
