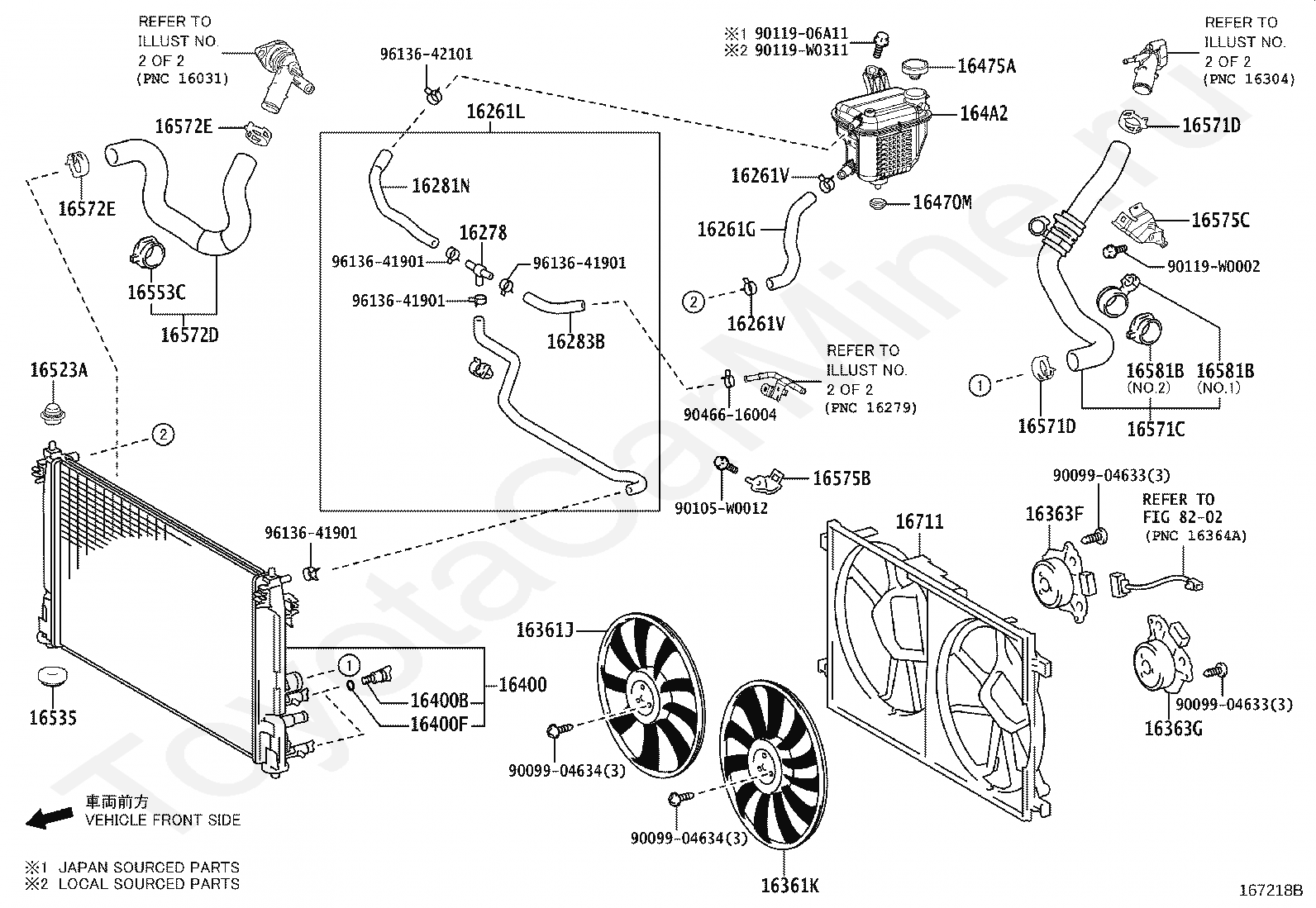

Радиатор и шланги TOYOTA COROLLA (UKP), 2019/02 - 2025, 2000CC 16-VALVE DOHC, хетчбэк, MZEH12, вариатор

Каталог

Европа

Модель

COROLLA (UKP)

Двигатель

2000CC 16-VALVE DOHC

Кузов

хетчбэк

Фрейм

MZEH12

Трансмиссия

вариатор

Опции

левый руль GRAMS Европа 713W

Код

Описание

16261G

HOSE, WATER BY-PASS, NO.1

16261L

HOSE, WATER BY-PASS

16261V

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16278

PIPE, WATER BY-PASS, NO.2

16281N

HOSE, WATER BY-PASS, NO.4

16283B

HOSE, WATER BY-PASS

16361J

FAN, RH

16361K

FAN, LH

16363F

MOTOR, COOLING FAN, RH

16363G

MOTOR, COOLING FAN, LH

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16470M

GROMMET

16475A

CAP, RESERVE TANK

164A2

TANK, RESERVE SEALED W/O CAP

16523A

CUSHION, RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16553C

CLAMP, HOSE

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16575B

BRACKET, WATER HOSE CLAMP, NO.2

16575C

BRACKET, WATER HOSE CLAMP, NO.1

16581B

CLAMP, HOSE(FOR RADIATOR HOSE)

16711

SHROUD, FAN

8202

переход к группе запчастей

9009904633

Крепеж

9009904634

Крепеж

90105W0012

Крепеж

9011906A11

Крепеж

90119W0002

Крепеж

90119W0311

Крепеж

9046616004

Крепеж

9613641901

Крепеж

9613642101

Крепеж

Код

Описание

1503

переход к группе запчастей

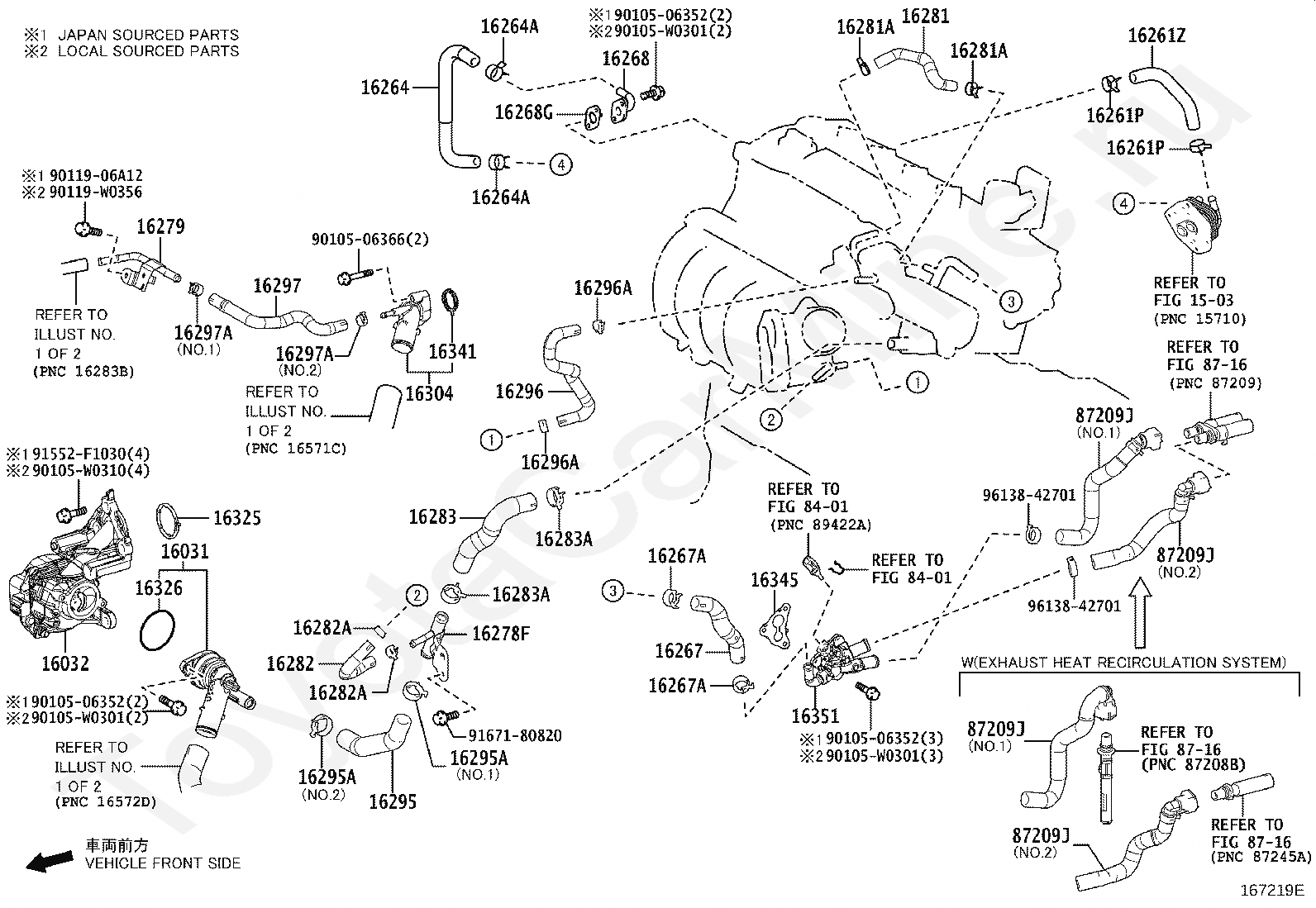

16031

WATER INLET SUB-ASSY, W/THERMOSTAT

16032

HOUSING SUB-ASSY, WATER INLET W/WATER PUMP

16261P

CLIP(FOR WATER BY-PASS HOSE NO.2)

16261Z

HOSE, WATER BY-PASS, NO.1

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16268

PIPE, WATER BY-PASS, NO.1

16268G

GASKET(FOR WATER BY-PASS PIPE)

16278F

HOSE, WATER BY-PASS, NO.2

16279

PIPE, WATER BY-PASS, NO.3

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16283

HOSE, WATER BY-PASS, NO.6

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16295

HOSE, WATER BY-PASS, NO.7

16295A

CLIP(FOR WATER BY-PASS HOSE NO.7)

16296

HOSE, WATER BY-PASS, NO.8

16296A

CLIP(FOR WATER BY-PASS HOSE NO.8)

16297

HOSE, WATER BY-PASS, NO.9

16297A

CLIP(FOR WATER BY-PASS HOSE NO.9)

16304

OUTLET SUB-ASSY, WATER

16325

GASKET, WATER INLET HOUSING, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

16341

GASKET, WATER OUTLET

16345

GASKET, WATER OUTLET PIPE

16351

OUTLET, WATER BY-PASS

8401

переход к группе запчастей

8716

переход к группе запчастей

87209J

HOSE SUB-ASSY, WATER

9010506352

Крепеж

9010506366

Крепеж

90105W0301

Крепеж

90105W0310

Крепеж

9011906A12

Крепеж

90119W0356

Крепеж

91552F1030

Крепеж

9167180820

Крепеж

9613842701

Крепеж

Радиатор и шланги TOYOTA COROLLA (UKP), 2019/02 - 2025, 2000CC 16-VALVE DOHC, хетчбэк, MZEH12, вариатор
