Радиатор и шланги TOYOTA COROLLA (CHINA), 2016/10 - 2017/03, 1,2 литра, 16 клапанов, DOHC, седан, GLX-I TYPE, NRE181, вариатор

Каталог

Ближний Восток

Модель

COROLLA (CHINA)

Двигатель

1,2 литра, 16 клапанов, DOHC

Кузов

седан

Класс

GLX-I TYPE

Фрейм

NRE181

Трансмиссия

вариатор

Опции

левый руль 4 двери WITH TURBO (HARGER) Китай 599W

Код

Описание

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16361J

FAN, RH

16361K

FAN, LH

16363

MOTOR, COOLING FAN

16363A

MOTOR, COOLING FAN, NO.2

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16470M

GROMMET

16471B

CAP, RESERVE TANK

16475A

CAP, RESERVE TANK

16523A

CUSHION, RADIATOR SUPPORT

16533

SUPPORT, RADIATOR, UPPER

16535

SUPPORT, RADIATOR, LOWER

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16581B

CLAMP, HOSE(FOR RADIATOR HOSE)

16611

BRACKET, RADIATOR RESERVE TANK

16640

TANK ASSY, INTERCOOLER RESERVE

16711

SHROUD, FAN

16712

SHROUD, FAN, NO.2

16716

CUSHION, FAN SHROUD

8401

переход к группе запчастей

9009904119

Крепеж

9009904612

Крепеж

9009905164

Крепеж

90119C0107

Крепеж

90119C0403

Крепеж

9167180616

Крепеж

91671A0818

Крепеж

9167380616

Крепеж

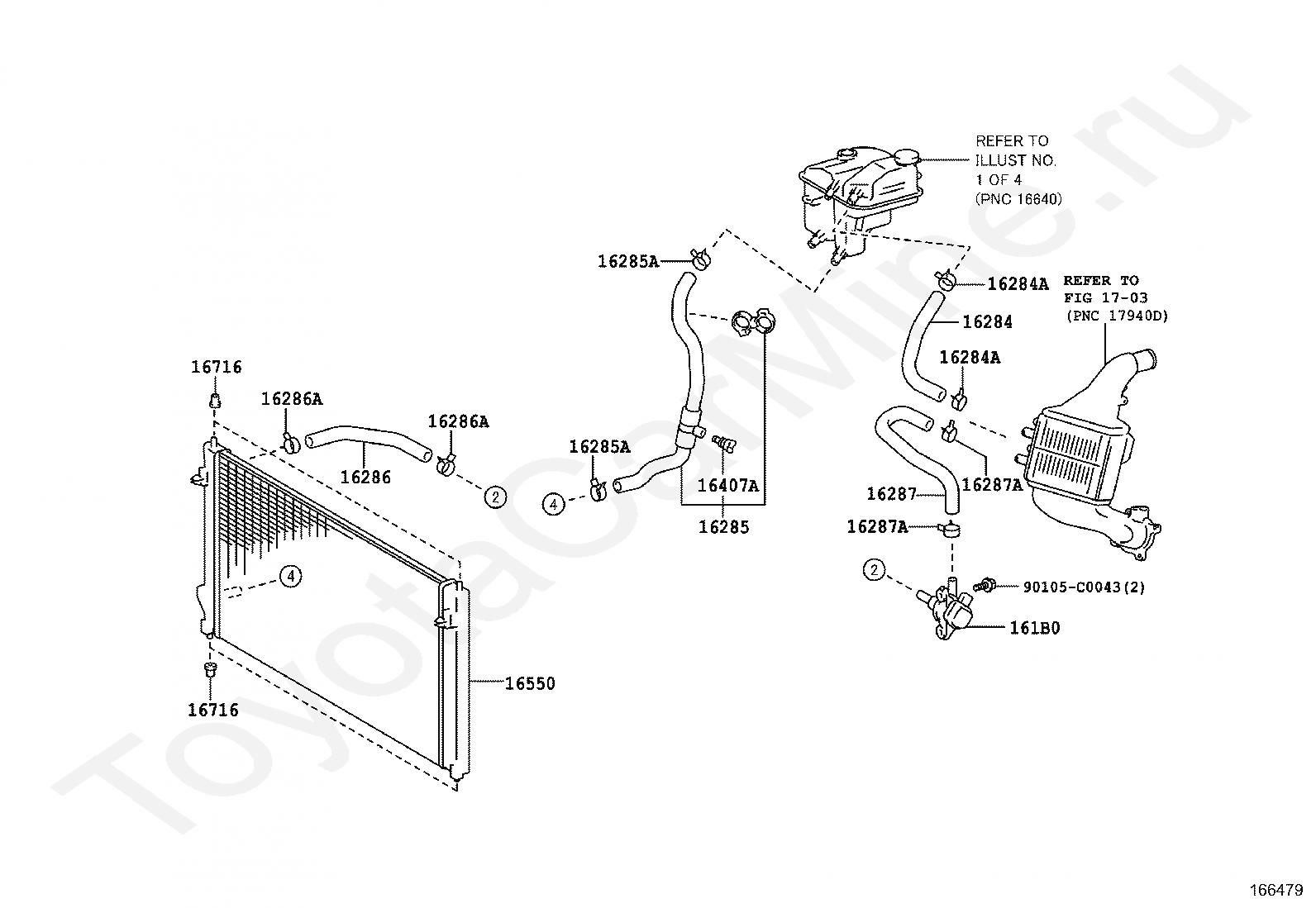

Код

Описание

161B0

PUMP ASSY, ELECTRIC WATER

16284

HOSE, TURBO WATER, NO.1

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16285

HOSE, TURBO WATER, NO.2

16285A

CLIP(FOR TURBO WATER HOSE NO.2)

16286

HOSE, TURBO WATER, NO.3

16286A

CLIP(FOR TURBO WATER HOSE NO.3)

16287

HOSE, TURBO WATER, NO.4

16287A

CLIP(FOR TURBO WATER HOSE NO.4)

16407A

COCK SUB-ASSY, RADIATOR DRAIN

16550

RADIATOR ASSY, INTERCOOLER COOLING

16716

CUSHION, FAN SHROUD

1703

переход к группе запчастей

90105C0043

Крепеж

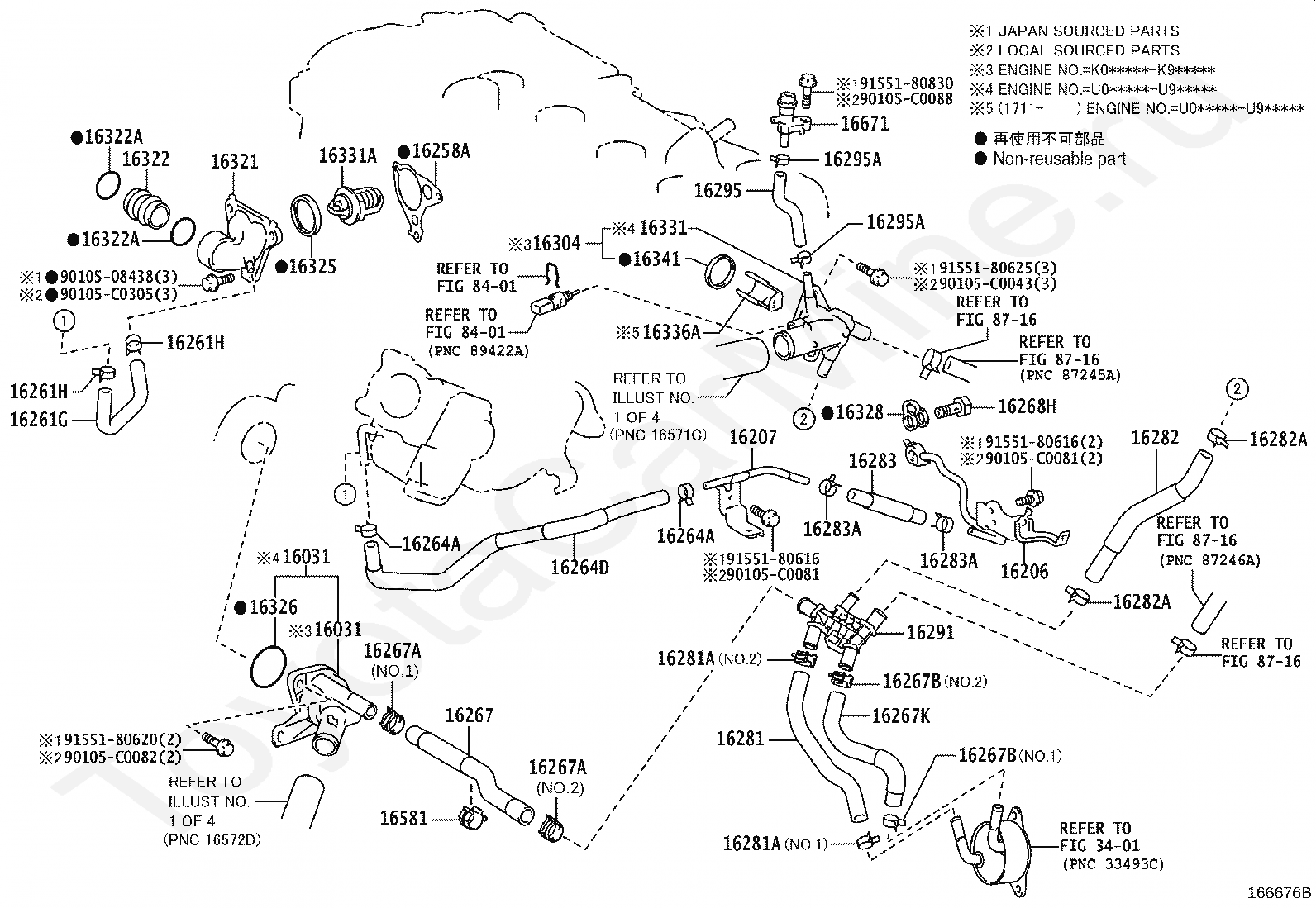

Код

Описание

16031

WATER INLET SUB-ASSY, W/THERMOSTAT

16206

PIPE SUB-ASSY, WATER BY-PASS

16207

PIPE SUB-ASSY, WATER BY-PASS, NO.2

16258A

GASKET(FOR HEATER RETURN)

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264D

HOSE, WATER BY-PASS, NO.2

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267B

CLIP(FOR WATER BY-PASS HOSE)

16267K

HOSE, WATER BY-PASS, NO.3

16268H

BOLT, UNION(FOR WATER BY-PASS PIPE)

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16283

HOSE, WATER BY-PASS, NO.6

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16291

JOINT, WATER HOSE

16295

HOSE, WATER BY-PASS, NO.7

16295A

CLIP(FOR WATER BY-PASS HOSE NO.7)

16304

OUTLET SUB-ASSY, WATER

16321

INLET, WATER

16322

PIPE, WATER INLET

16322A

RING, O(FOR WATER INLET)

16325

GASKET, WATER INLET HOUSING, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

16328

GASKET, WATER INLET PIPE

16331

OUTLET, WATER

16331A

THERMOSTAT

16341

GASKET, WATER OUTLET

16581

CLAMP, HOSE(FOR WATER HOSE)

16671

VALVE, WATER

3401

переход к группе запчастей

8401

переход к группе запчастей

8716

переход к группе запчастей

90105C0043

Крепеж

90105C0081

Крепеж

90105C0082

Крепеж

90105C0088

Крепеж

90105C0305

Крепеж

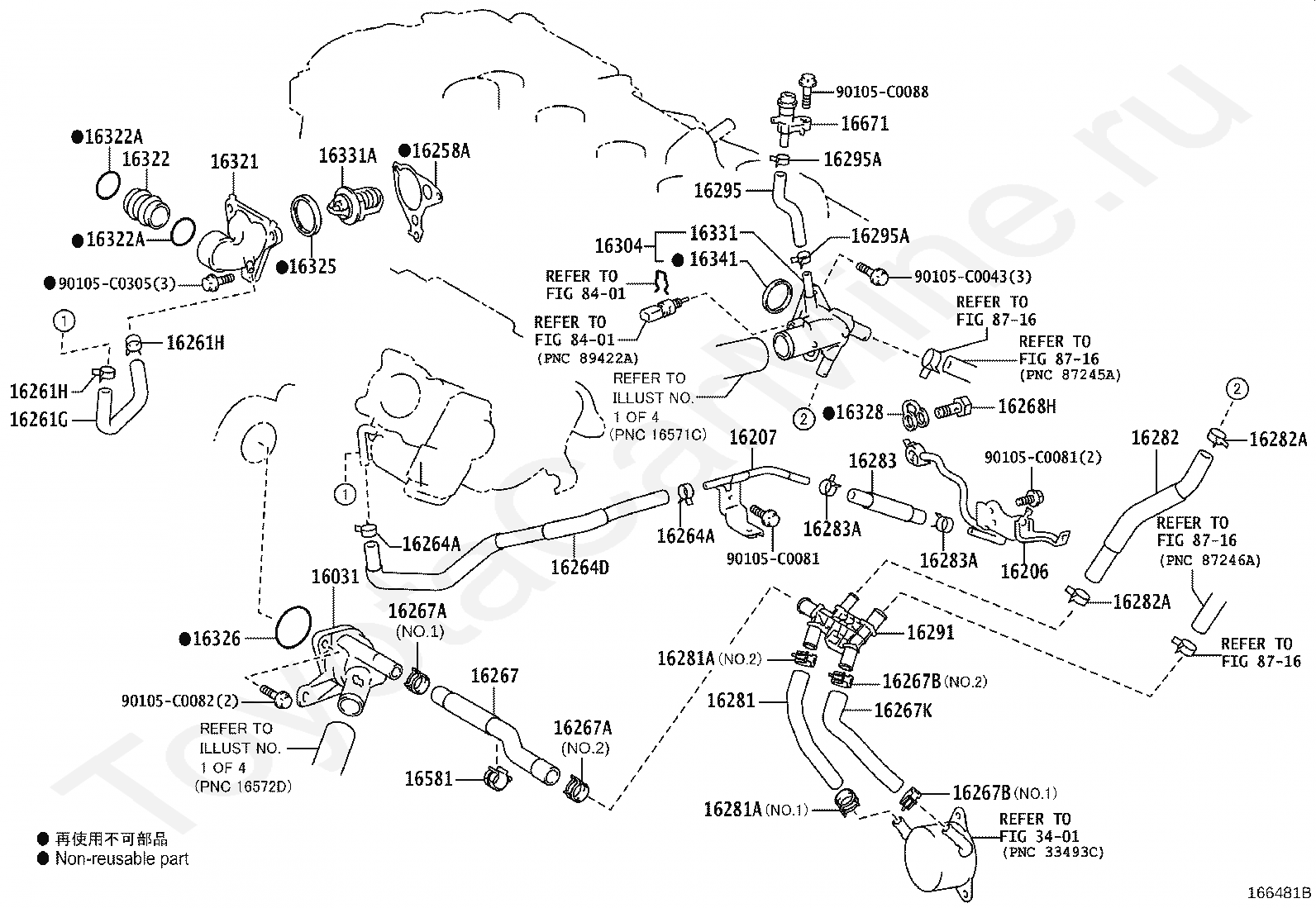

Код

Описание

16031

WATER INLET SUB-ASSY, W/THERMOSTAT

16206

PIPE SUB-ASSY, WATER BY-PASS

16207

PIPE SUB-ASSY, WATER BY-PASS, NO.2

16258A

GASKET(FOR HEATER RETURN)

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264D

HOSE, WATER BY-PASS, NO.2

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267B

CLIP(FOR WATER BY-PASS HOSE)

16267K

HOSE, WATER BY-PASS, NO.3

16268H

BOLT, UNION(FOR WATER BY-PASS PIPE)

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16283

HOSE, WATER BY-PASS, NO.6

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16291

JOINT, WATER HOSE

16295

HOSE, WATER BY-PASS, NO.7

16295A

CLIP(FOR WATER BY-PASS HOSE NO.7)

16304

OUTLET SUB-ASSY, WATER

16321

INLET, WATER

16322

PIPE, WATER INLET

16322A

RING, O(FOR WATER INLET)

16325

GASKET, WATER INLET HOUSING, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

16328

GASKET, WATER INLET PIPE

16331

OUTLET, WATER

16331A

THERMOSTAT

16336A

INSERT, WATER OUTLET

16341

GASKET, WATER OUTLET

16581

CLAMP, HOSE(FOR WATER HOSE)

16671

VALVE, WATER

3401

переход к группе запчастей

8401

переход к группе запчастей

8716

переход к группе запчастей

9010508438

Крепеж

90105C0043

Крепеж

90105C0081

Крепеж

90105C0082

Крепеж

90105C0088

Крепеж

90105C0305

Крепеж

9155180616

Крепеж

9155180620

Крепеж

9155180625

Крепеж

9155180830

Крепеж

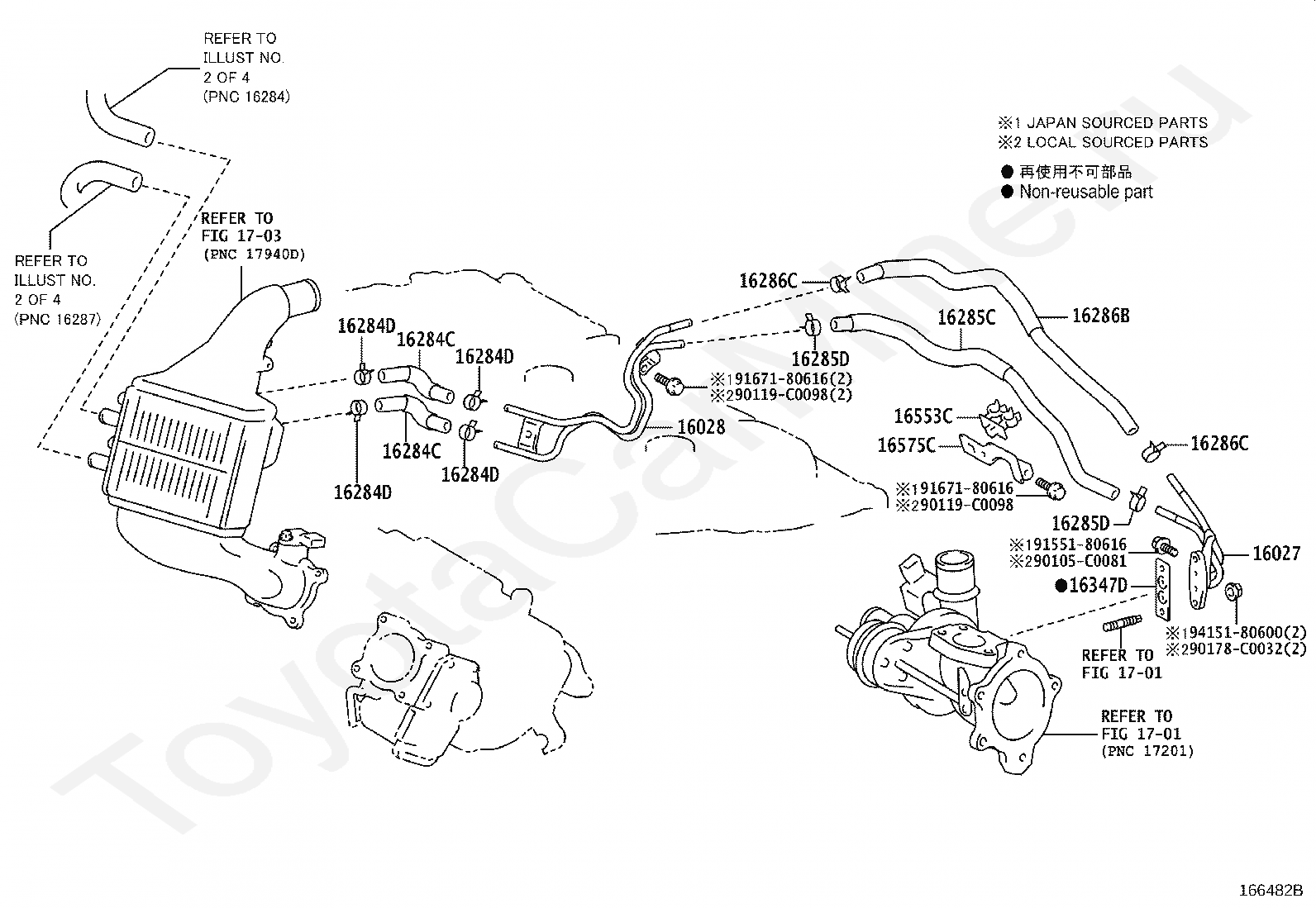

Код

Описание

16027

PIPE SUB-ASSY, TURBO WATER, NO.1

16028

PIPE SUB-ASSY, TURBO WATER, NO.2

16284C

HOSE, INTERCOOLER WATER, NO.1

16284D

CLIP(FOR INTERCOOLER WATER HOSE NO.1)

16285C

HOSE, INTERCOOLER WATER, NO.2

16285D

CLIP(FOR INTERCOOLER WATER HOSE NO.2)

16286B

HOSE, INTERCOOLER WATER, NO.3

16286C

CLIP(FOR INTERCOOLER WATER HOSE NO.3)

16347D

GASKET, WATER BY-PASS

16553C

CLAMP, HOSE

16575C

BRACKET, WATER HOSE CLAMP, NO.1

1701

переход к группе запчастей

1703

переход к группе запчастей

90105C0081

Крепеж

90119C0098

Крепеж

90178C0032

Крепеж

9155180616

Крепеж

9167180616

Крепеж

9415180600

Крепеж

Радиатор и шланги TOYOTA COROLLA (CHINA), 2016/10 - 2017/03, 1,2 литра, 16 клапанов, DOHC, седан, GLX-I TYPE, NRE181, вариатор
