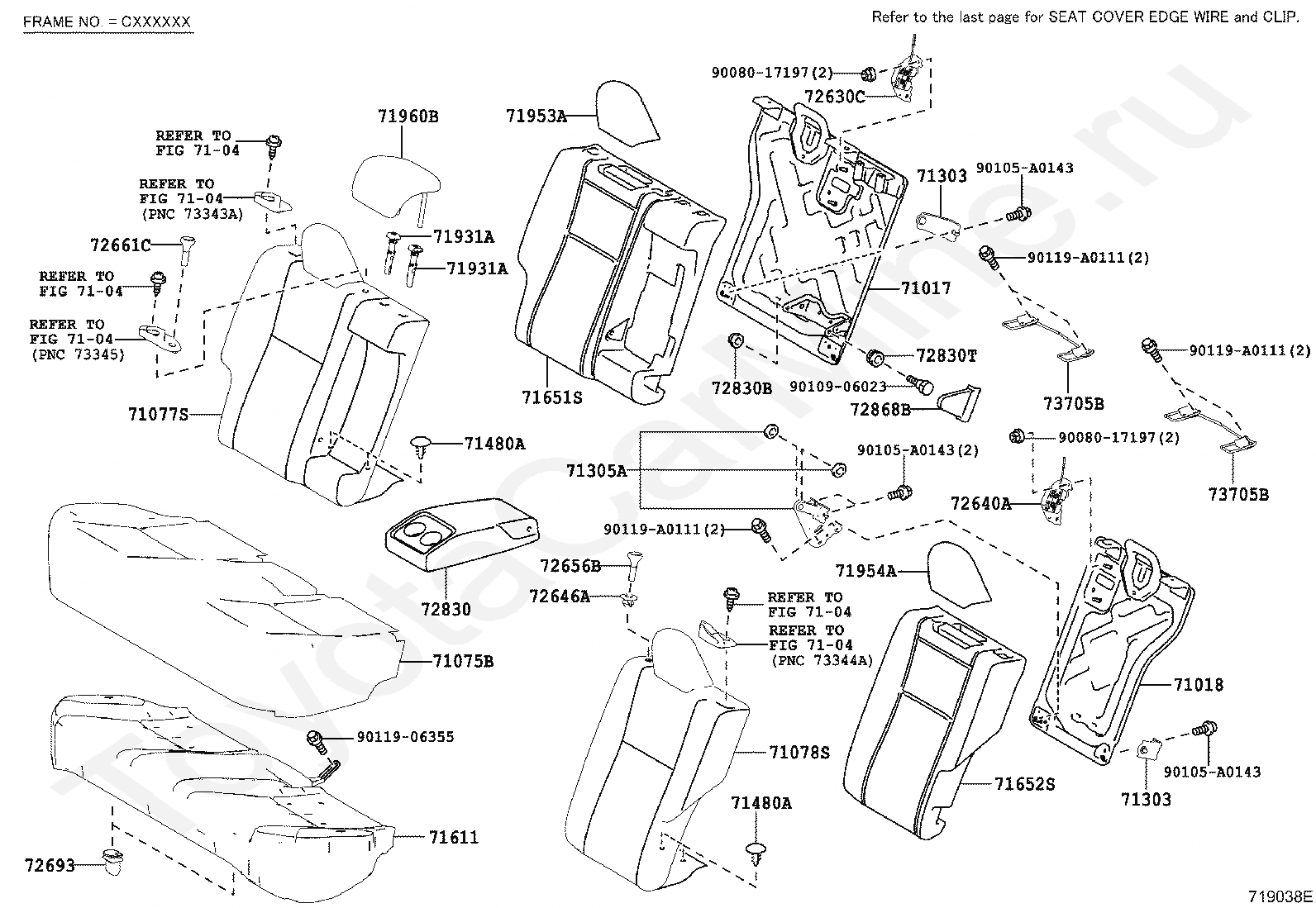

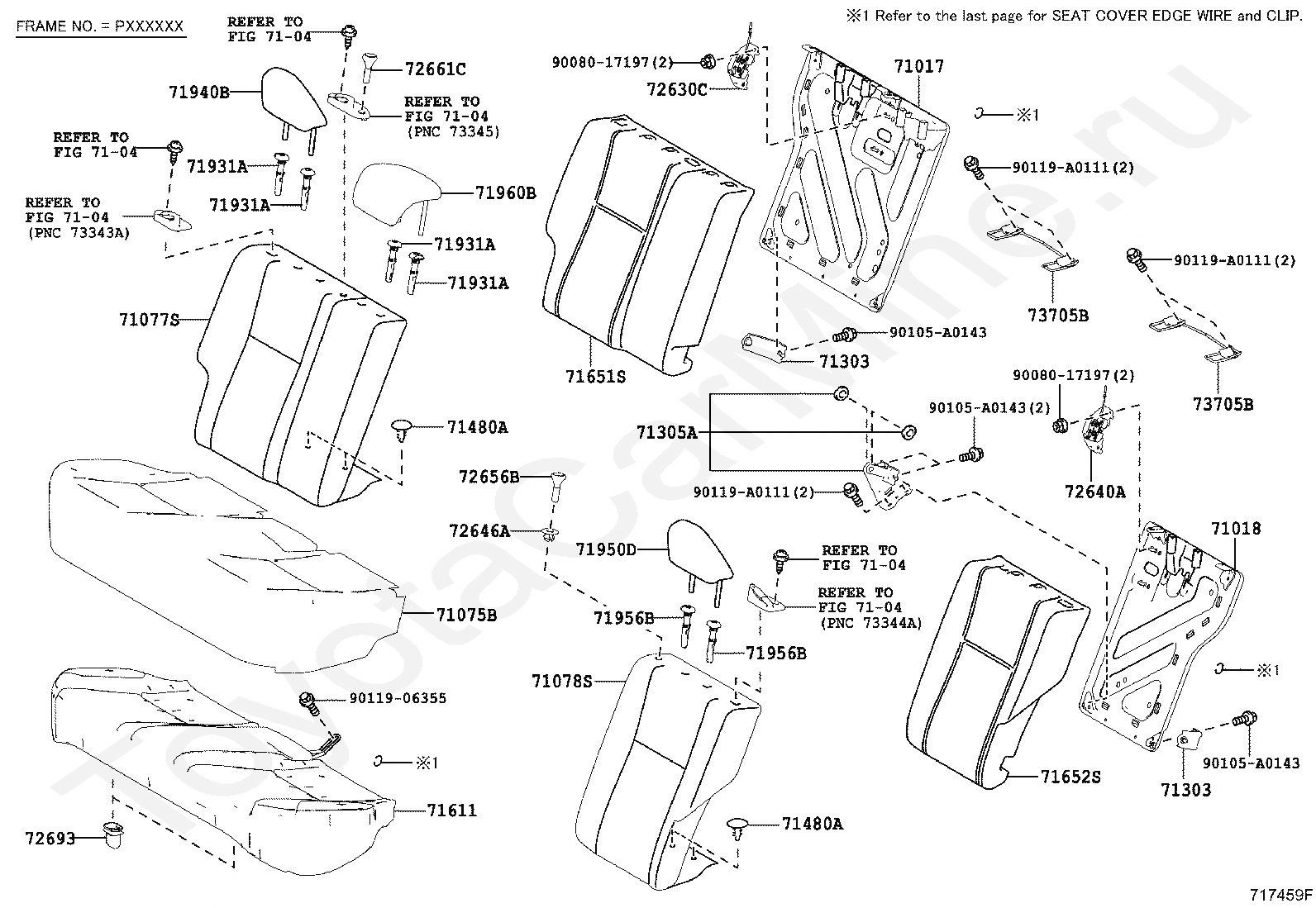

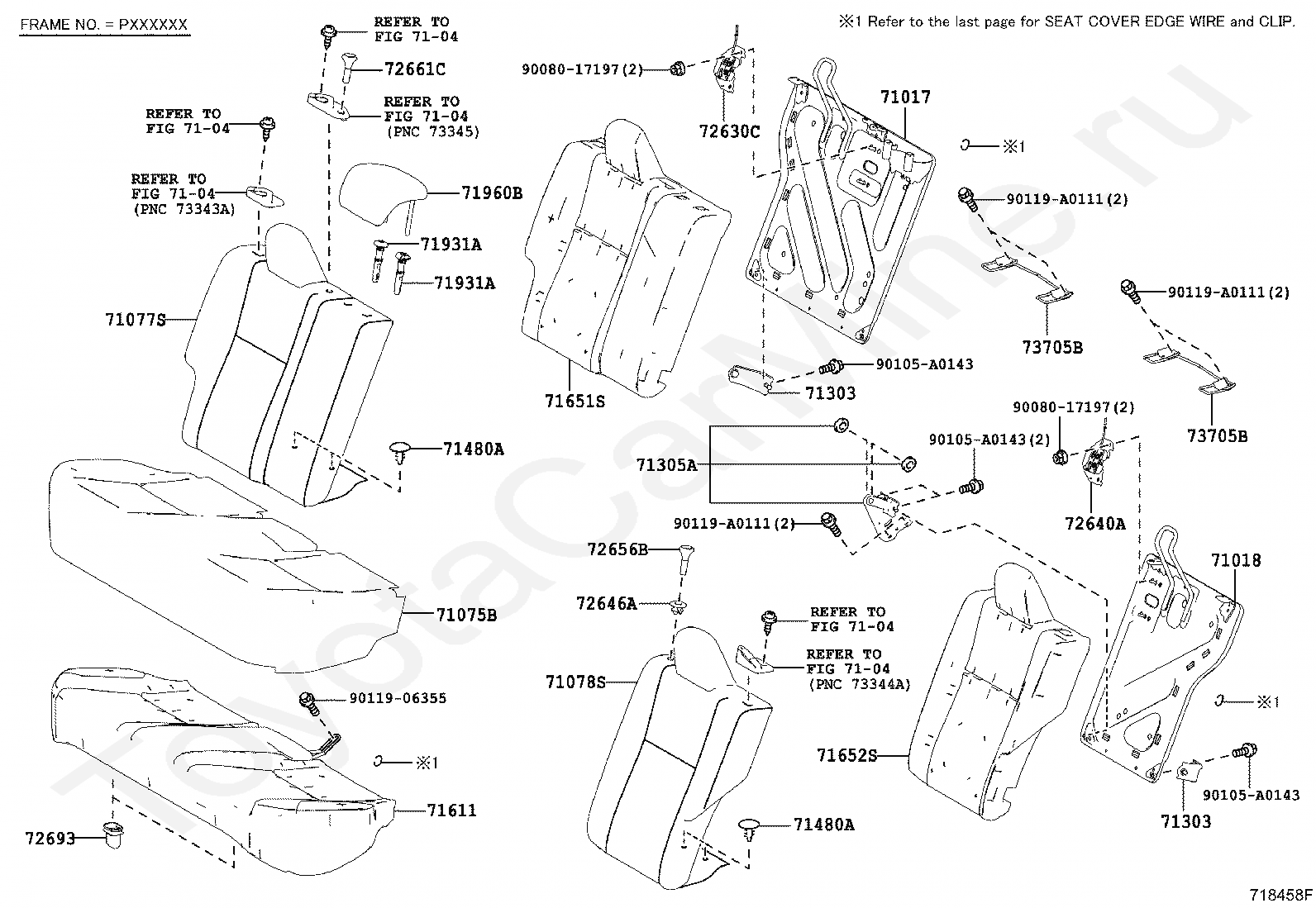

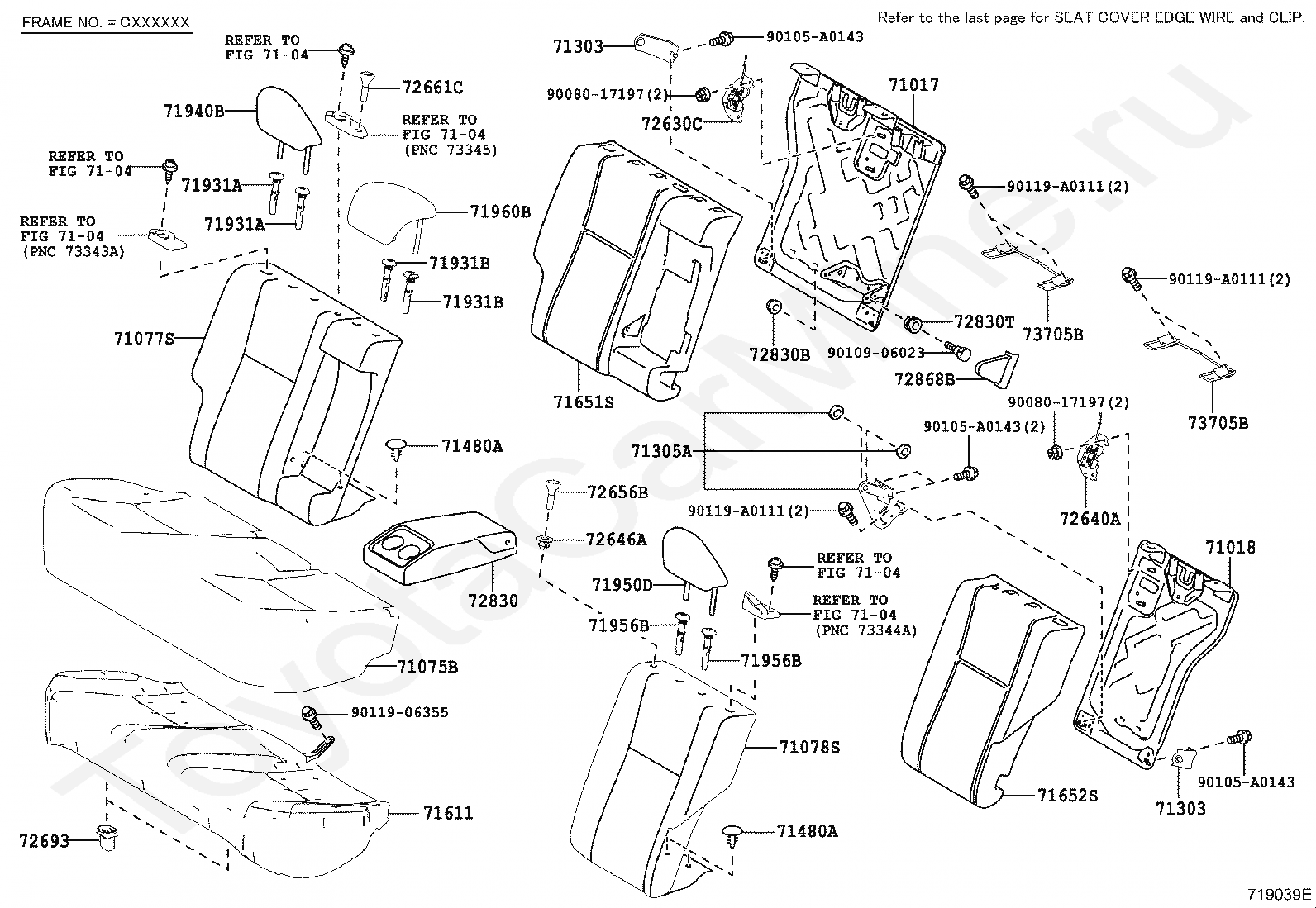

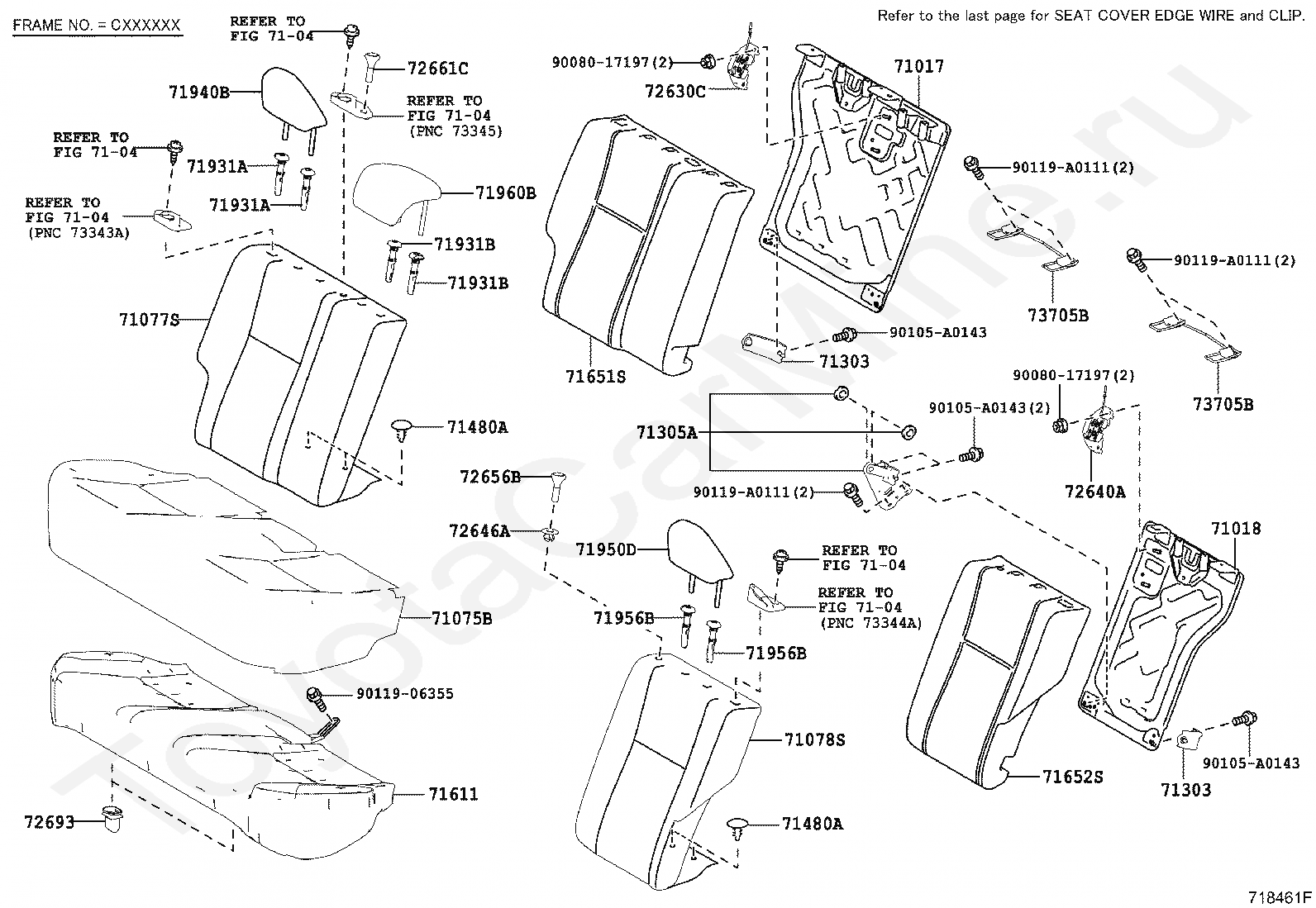

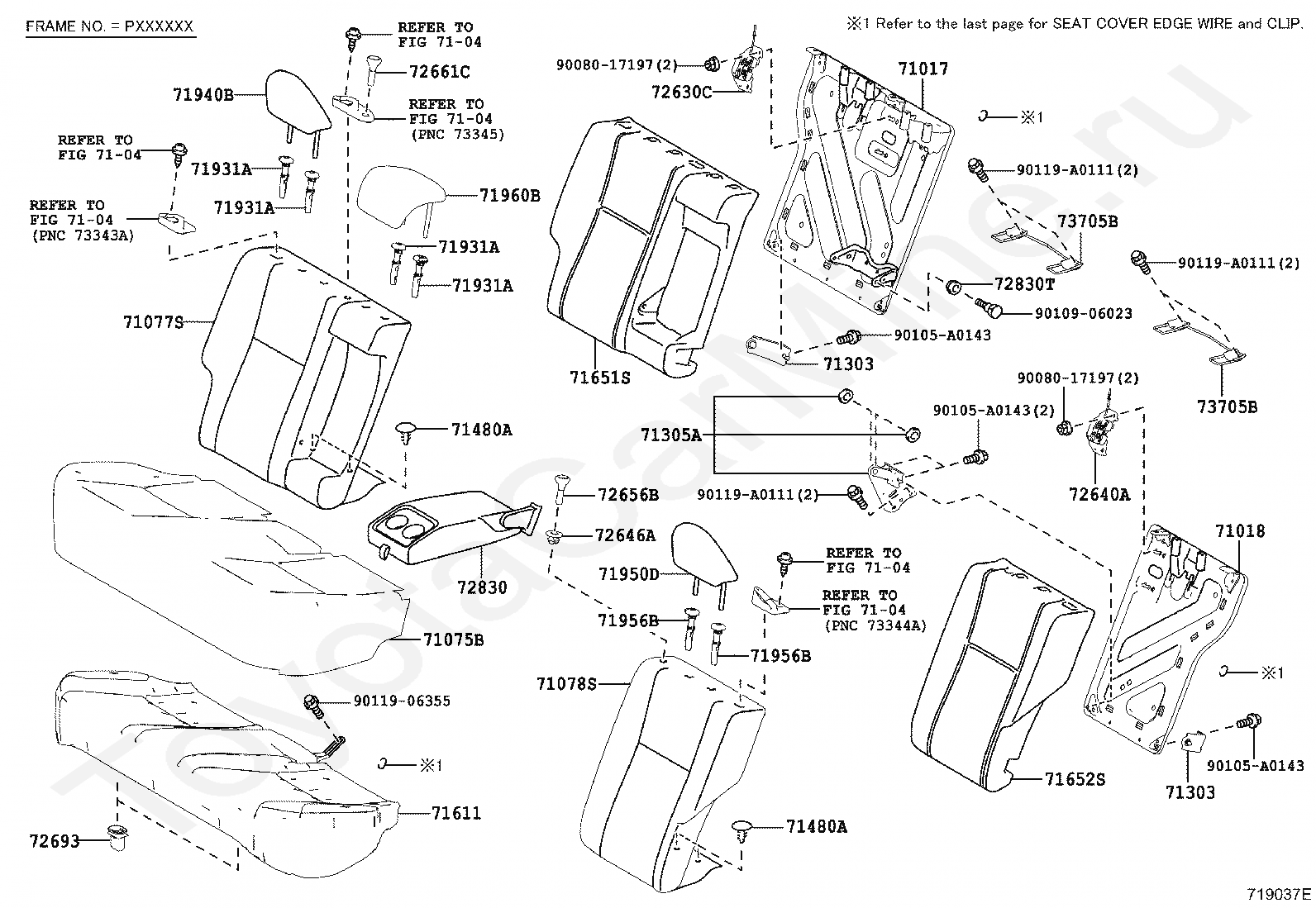

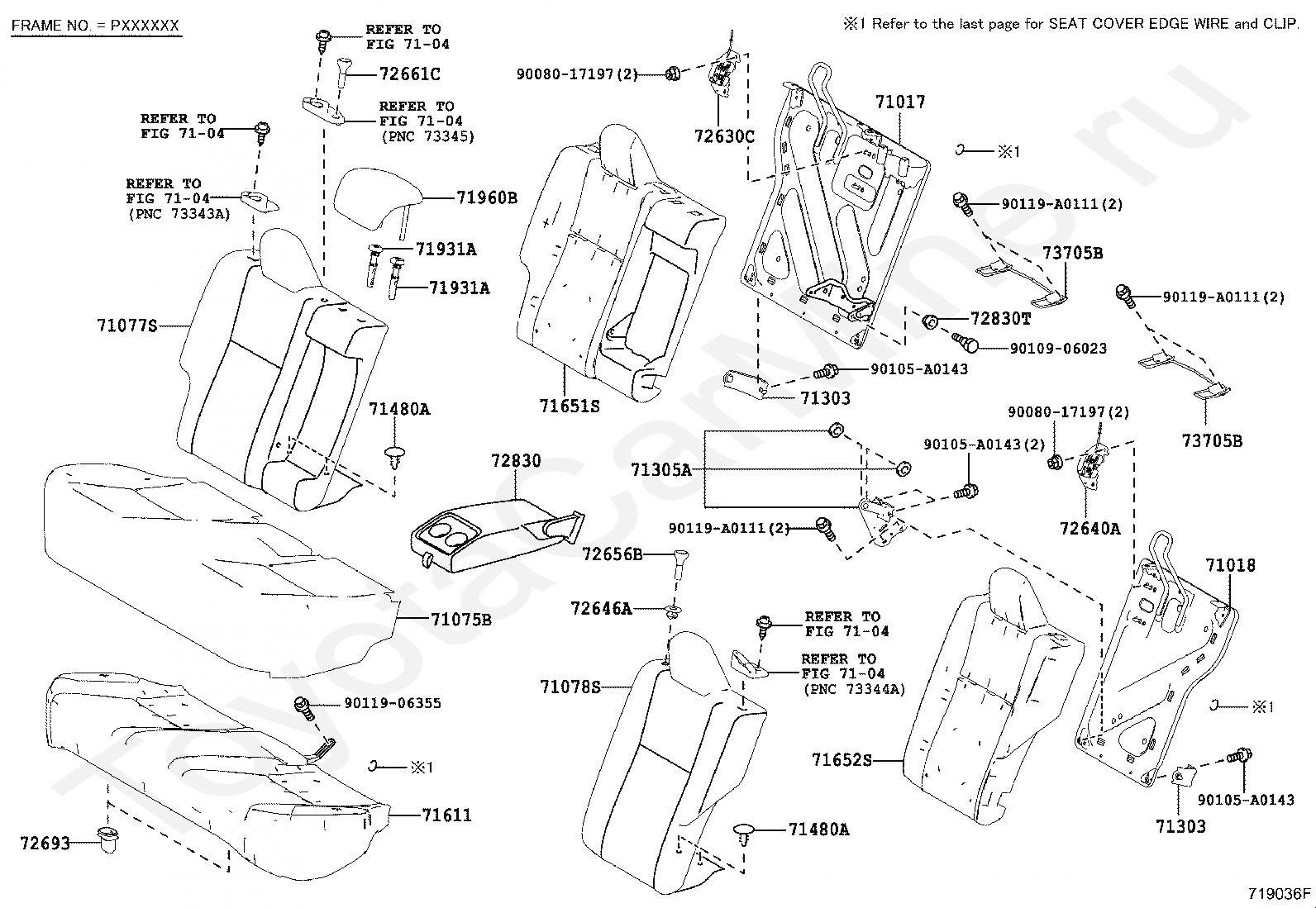

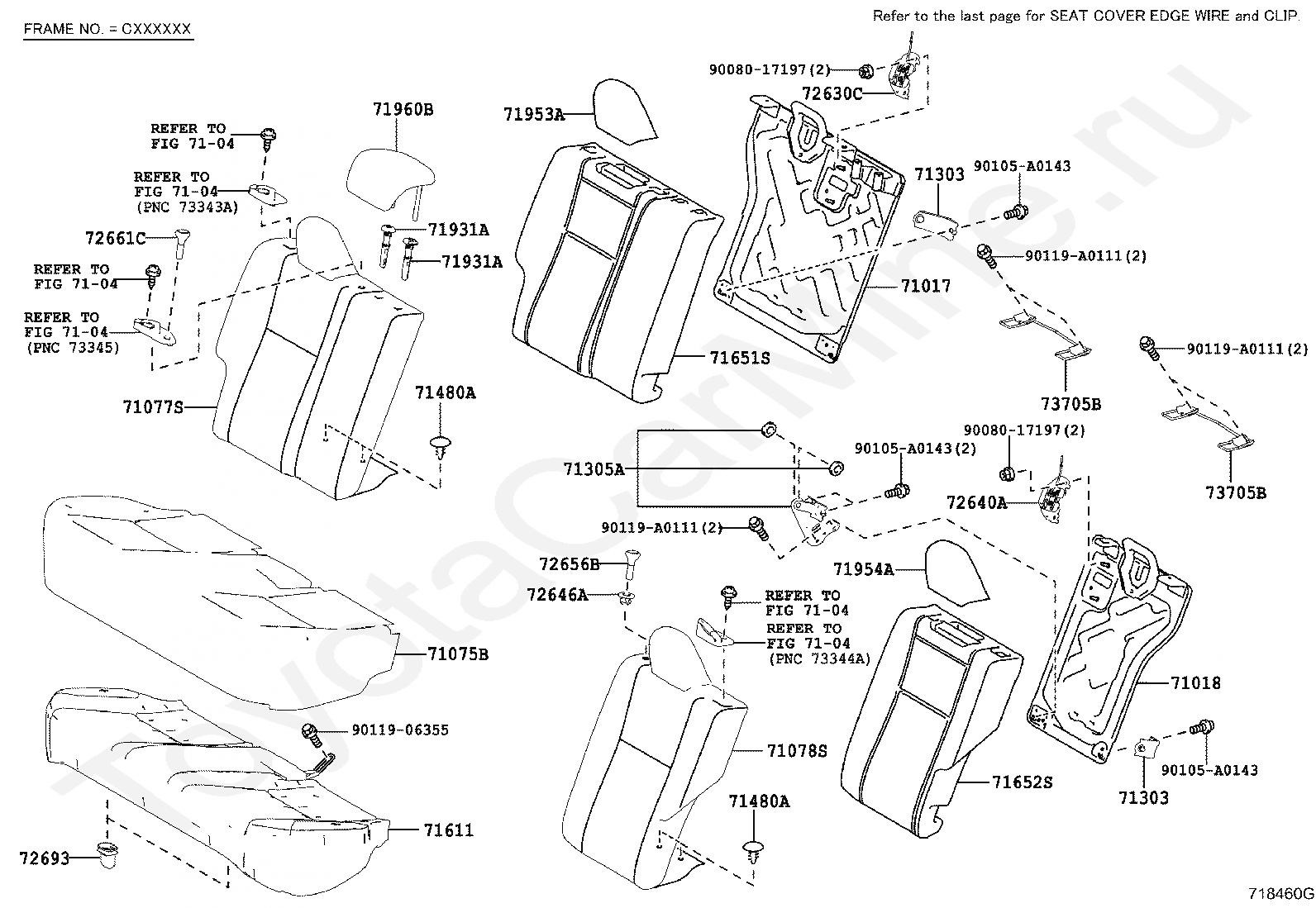

Задние кресла TOYOTA COROLLA, 2013/08 - 2016/08, 1,8 литра, 16 клапанов, DOHC, EFI, седан, S TYPE, ZRE172, вариатор

Каталог

Америка

Модель

COROLLA

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Класс

S TYPE

Фрейм

ZRE172

Трансмиссия

вариатор

Опции

4 двери HIGH EFFICIENCY TWIN CAM США 590W

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71303

HINGE SUB-ASSY, REAR SEAT BACK

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71480A

CLIP (FOR REAR SEAT BACK)

71611

PAD, REAR SEAT CUSHION

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71931A

SUPPORT, REAR SEAT HEADREST

71960B

HEADREST ASSY, REAR SEAT, CENTER

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72646A

GROMMET, REAR SEAT BACK STOP BUTTON

72656B

BUTTON, REAR SEAT BACK STOP RELEASE

72661C

BUTTON, REAR SEAT BACK LOCK RELEASE

72693

HOOK, REAR SEAT CUSHION LOCK

73705B

BRACKET SUB-ASSY, CROSS ANCHOR

9008017197

Крепеж

90105A0143

Крепеж

9011906355

Крепеж

90119A0111

Крепеж

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71303

HINGE SUB-ASSY, REAR SEAT BACK

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71480A

CLIP (FOR REAR SEAT BACK)

71611

PAD, REAR SEAT CUSHION

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71931A

SUPPORT, REAR SEAT HEADREST

71940B

HEADREST ASSY, REAR SEAT, RH

71950D

HEADREST ASSY, REAR SEAT, LH

71956B

SUPPORT, REAR SEAT HEADREST

71960B

HEADREST ASSY, REAR SEAT, CENTER

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72646A

GROMMET, REAR SEAT BACK STOP BUTTON

72656B

BUTTON, REAR SEAT BACK STOP RELEASE

72661C

BUTTON, REAR SEAT BACK LOCK RELEASE

72693

HOOK, REAR SEAT CUSHION LOCK

73705B

BRACKET SUB-ASSY, CROSS ANCHOR

9008017197

Крепеж

90105A0143

Крепеж

9011906355

Крепеж

90119A0111

Крепеж

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71303

HINGE SUB-ASSY, REAR SEAT BACK

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71480A

CLIP (FOR REAR SEAT BACK)

71611

PAD, REAR SEAT CUSHION

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71931A

SUPPORT, REAR SEAT HEADREST

71953A

PAD, REAR SEAT HEADREST, RH

71954A

PAD, REAR SEAT HEADREST, LH

71960B

HEADREST ASSY, REAR SEAT, CENTER

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72646A

GROMMET, REAR SEAT BACK STOP BUTTON

72656B

BUTTON, REAR SEAT BACK STOP RELEASE

72661C

BUTTON, REAR SEAT BACK LOCK RELEASE

72693

HOOK, REAR SEAT CUSHION LOCK

73705B

BRACKET SUB-ASSY, CROSS ANCHOR

9008017197

Крепеж

90105A0143

Крепеж

9011906355

Крепеж

90119A0111

Крепеж

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71303

HINGE SUB-ASSY, REAR SEAT BACK

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71480A

CLIP (FOR REAR SEAT BACK)

71611

PAD, REAR SEAT CUSHION

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71931A

SUPPORT, REAR SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940B

HEADREST ASSY, REAR SEAT, RH

71950D

HEADREST ASSY, REAR SEAT, LH

71956B

SUPPORT, REAR SEAT HEADREST

71960B

HEADREST ASSY, REAR SEAT, CENTER

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72646A

GROMMET, REAR SEAT BACK STOP BUTTON

72656B

BUTTON, REAR SEAT BACK STOP RELEASE

72661C

BUTTON, REAR SEAT BACK LOCK RELEASE

72693

HOOK, REAR SEAT CUSHION LOCK

73705B

BRACKET SUB-ASSY, CROSS ANCHOR

9008017197

Крепеж

90105A0143

Крепеж

9011906355

Крепеж

90119A0111

Крепеж

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71303

HINGE SUB-ASSY, REAR SEAT BACK

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71480A

CLIP (FOR REAR SEAT BACK)

71611

PAD, REAR SEAT CUSHION

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71931A

SUPPORT, REAR SEAT HEADREST

71960B

HEADREST ASSY, REAR SEAT, CENTER

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72646A

GROMMET, REAR SEAT BACK STOP BUTTON

72656B

BUTTON, REAR SEAT BACK STOP RELEASE

72661C

BUTTON, REAR SEAT BACK LOCK RELEASE

72693

HOOK, REAR SEAT CUSHION LOCK

72830

ARMREST ASSY, REAR SEAT, CENTER

72830T

BUSH (FOR REAR SEAT CENTER ARMREST)

73705B

BRACKET SUB-ASSY, CROSS ANCHOR

9008017197

Крепеж

90105A0143

Крепеж

9010906023

Крепеж

9011906355

Крепеж

90119A0111

Крепеж

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71303

HINGE SUB-ASSY, REAR SEAT BACK

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71480A

CLIP (FOR REAR SEAT BACK)

71611

PAD, REAR SEAT CUSHION

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71931A

SUPPORT, REAR SEAT HEADREST

71940B

HEADREST ASSY, REAR SEAT, RH

71950D

HEADREST ASSY, REAR SEAT, LH

71956B

SUPPORT, REAR SEAT HEADREST

71960B

HEADREST ASSY, REAR SEAT, CENTER

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72646A

GROMMET, REAR SEAT BACK STOP BUTTON

72656B

BUTTON, REAR SEAT BACK STOP RELEASE

72661C

BUTTON, REAR SEAT BACK LOCK RELEASE

72693

HOOK, REAR SEAT CUSHION LOCK

72830

ARMREST ASSY, REAR SEAT, CENTER

72830T

BUSH (FOR REAR SEAT CENTER ARMREST)

73705B

BRACKET SUB-ASSY, CROSS ANCHOR

9008017197

Крепеж

90105A0143

Крепеж

9010906023

Крепеж

9011906355

Крепеж

90119A0111

Крепеж

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71303

HINGE SUB-ASSY, REAR SEAT BACK

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71480A

CLIP (FOR REAR SEAT BACK)

71611

PAD, REAR SEAT CUSHION

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71931A

SUPPORT, REAR SEAT HEADREST

71953A

PAD, REAR SEAT HEADREST, RH

71954A

PAD, REAR SEAT HEADREST, LH

71960B

HEADREST ASSY, REAR SEAT, CENTER

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72646A

GROMMET, REAR SEAT BACK STOP BUTTON

72656B

BUTTON, REAR SEAT BACK STOP RELEASE

72661C

BUTTON, REAR SEAT BACK LOCK RELEASE

72693

HOOK, REAR SEAT CUSHION LOCK

72830

ARMREST ASSY, REAR SEAT, CENTER

72830B

BUSH(FOR REAR SEAT CENTER ARMREST)

72830T

BUSH (FOR REAR SEAT CENTER ARMREST)

72868B

COVER, CENTER ARMREST HINGE

73705B

BRACKET SUB-ASSY, CROSS ANCHOR

9008017197

Крепеж

90105A0143

Крепеж

9010906023

Крепеж

9011906355

Крепеж

90119A0111

Крепеж

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71303

HINGE SUB-ASSY, REAR SEAT BACK

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71480A

CLIP (FOR REAR SEAT BACK)

71611

PAD, REAR SEAT CUSHION

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71931A

SUPPORT, REAR SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940B

HEADREST ASSY, REAR SEAT, RH

71950D

HEADREST ASSY, REAR SEAT, LH

71956B

SUPPORT, REAR SEAT HEADREST

71960B

HEADREST ASSY, REAR SEAT, CENTER

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72646A

GROMMET, REAR SEAT BACK STOP BUTTON

72656B

BUTTON, REAR SEAT BACK STOP RELEASE

72661C

BUTTON, REAR SEAT BACK LOCK RELEASE

72693

HOOK, REAR SEAT CUSHION LOCK

72830

ARMREST ASSY, REAR SEAT, CENTER

72830B

BUSH(FOR REAR SEAT CENTER ARMREST)

72830T

BUSH (FOR REAR SEAT CENTER ARMREST)

72868B

COVER, CENTER ARMREST HINGE

73705B

BRACKET SUB-ASSY, CROSS ANCHOR

9008017197

Крепеж

90105A0143

Крепеж

9010906023

Крепеж

9011906355

Крепеж

90119A0111

Крепеж

Код

Описание

7114930050

Крепеж

9046816019

Крепеж

9046818008

Крепеж

Задние кресла TOYOTA COROLLA, 2013/08 - 2016/08, 1,8 литра, 16 клапанов, DOHC, EFI, седан, S TYPE, ZRE172, вариатор
