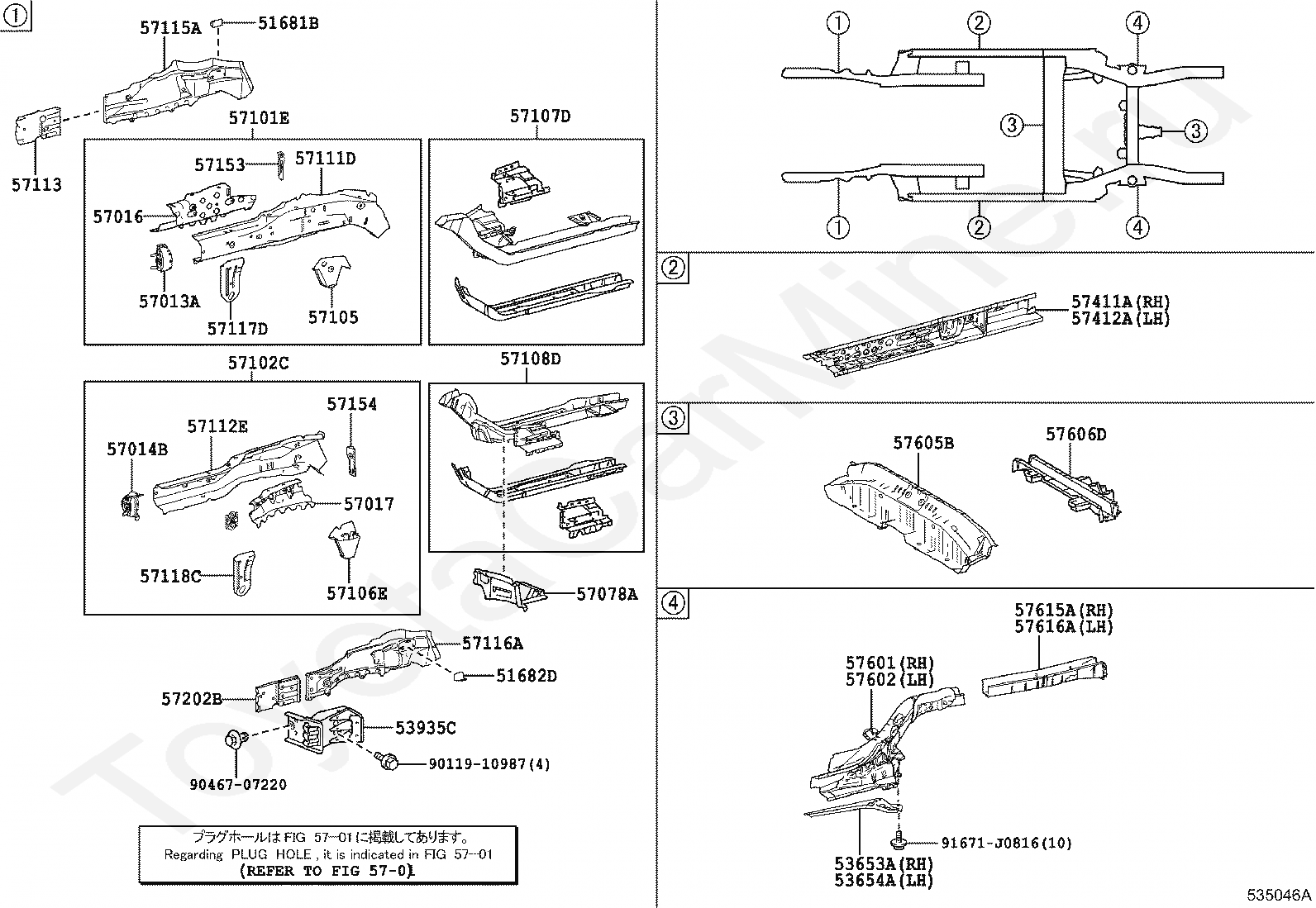

FLOOR SIDE MEMBER TOYOTA COROLLA, 2013/08 - 2016/08, 1,8 литра, 16 клапанов, DOHC, EFI, седан, S TYPE, ZRE172, вариатор

Каталог

Америка

Модель

COROLLA

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Класс

S TYPE

Фрейм

ZRE172

Трансмиссия

вариатор

Опции

4 двери HIGH EFFICIENCY TWIN CAM США 590W

Код

Описание

51681B

PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH

51682D

PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

53653A

BRACE, REAR SUSPENSION, LOWER RH

53654A

BRACE, REAR SUSPENSION, LOWER LH

53936B

PROTECTOR, FRONT END PANEL, LH

5701

переход к группе запчастей

57013A

MEMBER SUB-ASSY, FLOOR, FRONT RH

57014B

BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

57016

REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

57017

REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

57101

MEMBER SUB-ASSY, FRONT SIDE, RH

57102

MEMBER SUB-ASSY, FRONT SIDE, LH

57105

BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

57106E

BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

57107D

REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

57108D

REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

57111D

MEMBER, FRONT SIDE, INNER RH

57112E

MEMBER, FRONT SIDE, INNER LH

57113

EXTENSION, FRONT SIDE MEMBER, RH

57114

EXTENSION, FRONT SIDE MEMBER, LH

57115A

PLATE, FRONT SIDE MEMBER, OUTER RH

57116A

PLATE, FRONT SIDE MEMBER, OUTER LH

57117D

RETAINER, FRONT BUMPER ARM, RH

57118C

RETAINER, FRONT BUMPER ARM, LH

57153

REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

57154

REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH

57158

REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH

57247

RETAINER, FRONT BUMPER SUPPORT SPACER, NO.1

57411A

MEMBER, FLOOR SIDE, INNER RH

57412A

MEMBER, FLOOR SIDE, INNER LH

57601

MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

57602

MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

57605B

MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

57606D

MEMBER SUB-ASSY, REAR ABSORBER MOUNTING

57615A

MEMBER, REAR FLOOR SIDE, REAR RH

57616A

MEMBER, REAR FLOOR SIDE, REAR LH

9011910986

Крепеж

9011910987

Крепеж

91671J0816

Крепеж

Код

Описание

51681B

PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH

51682D

PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

53653A

BRACE, REAR SUSPENSION, LOWER RH

53654A

BRACE, REAR SUSPENSION, LOWER LH

53935C

PROTECTOR, FRONT END PANEL

5701

переход к группе запчастей

57013A

MEMBER SUB-ASSY, FLOOR, FRONT RH

57014B

BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

57016

REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

57017

REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

57078A

BOX SUB-ASSY, TORQUE, FRONT LH

57101E

MEMBER SUB-ASSY, FRONT SIDE, INNER RH

57102C

MEMBER SUB-ASSY, FRONT SIDE, INNER LH

57105

BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

57106E

BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

57107D

REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

57108D

REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

57111D

MEMBER, FRONT SIDE, INNER RH

57112E

MEMBER, FRONT SIDE, INNER LH

57113

EXTENSION, FRONT SIDE MEMBER, RH

57115A

PLATE, FRONT SIDE MEMBER, OUTER RH

57116A

PLATE, FRONT SIDE MEMBER, OUTER LH

57117D

RETAINER, FRONT BUMPER ARM, RH

57118C

RETAINER, FRONT BUMPER ARM, LH

57153

REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

57154

REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH

57202B

EXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

57411A

MEMBER, FLOOR SIDE, INNER RH

57412A

MEMBER, FLOOR SIDE, INNER LH

57601

MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

57602

MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

57605B

MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

57606D

MEMBER SUB-ASSY, REAR ABSORBER MOUNTING

57615A

MEMBER, REAR FLOOR SIDE, REAR RH

57616A

MEMBER, REAR FLOOR SIDE, REAR LH

9011910987

Крепеж

9046707220

Крепеж

91671J0816

Крепеж
