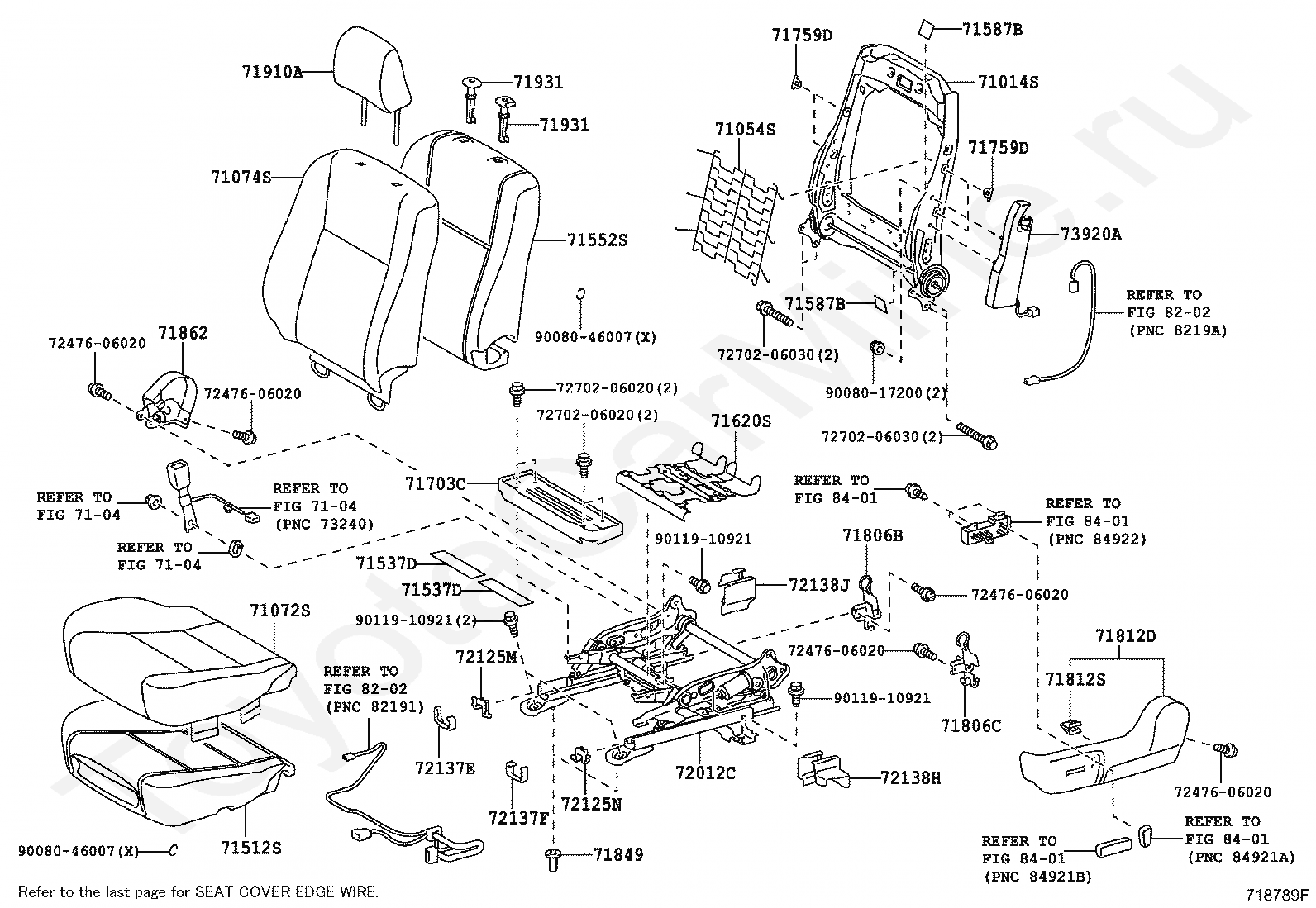

Передние кресла TOYOTA COROLLA (S.AMERICA), 2014/03 - 2017/03, 2 литра, 16 клапанов, DOHC, EFI, седан, ZRE173, вариатор

Каталог

Ближний Восток

Модель

COROLLA (S.AMERICA)

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Фрейм

ZRE173

Трансмиссия

вариатор

Опции

левый руль 4 двери E(MODEL MARK) HIGH EFFICIENCY TWIN CAM(FLEX FUEL) Бразилия 587W

Код

Описание

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

7104

переход к группе запчастей

71054S

SPRING SUB-ASSY, FRONT SEAT BACK, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587B

PROTECTOR, FRONT SEAT BACK EDGE

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71703C

PANEL SUB-ASSY, FRONT SEAT CUSHION

71759D

HOOK, FRONT SEAT BACK, NO.2

71806B

SHIELD SUB-ASSY, FRONT SEAT CUSHION, LH NO.1

71806C

SHIELD SUB-ASSY, FRONT SEAT CUSHION, LH NO.2

71812D

SHIELD, FRONT SEAT CUSHION, LH

71812S

CLIP, FRONT SEAT CUSHION SHIELD, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72012C

ADJUSTER SUB-ASSY, FRONT SEAT, LH

72125M

COVER, SEAT TRACK, UPPER NO.3

72125N

COVER, SEAT TRACK, UPPER NO.4

72137E

COVER, SEAT TRACK, NO.1

72137F

COVER, SEAT TRACK, NO.2

72138H

COVER, FRONT SEAT TRACK, LH REAR INNER

72138J

COVER, FRONT SEAT TRACK, LH REAR OUTER

7247606020

Крепеж

7270206020

Крепеж

7270206030

Крепеж

73920A

AIR BAG ASSY, FRONT SEAT, LH

8202

переход к группе запчастей

8401

переход к группе запчастей

9008017200

Крепеж

9008046007

Крепеж

9011910921

Крепеж

Код

Описание

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

7104

переход к группе запчастей

71053S

SPRING SUB-ASSY, FRONT SEAT BACK, RH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71759C

HOOK, FRONT SEAT BACK, NO.1

71811D

SHIELD, FRONT SEAT CUSHION, RH

71811R

CLIP, FRONT SEAT CUSHION SHIELD, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71848M

CAP, SEAT ADJUSTER COVER, FRONT UPPER

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72137J

COVER, FRONT SEAT TRACK, RH REAR OUTER

72137K

COVER, FRONT SEAT TRACK, RH REAR INNER

72211

HANDLE, SEAT TRACK ADJUSTING

72265D

COVER, SEAT TRACK UPPER RAIL

7247606020

Крепеж

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72573

LEVER, RECLINING CONTROL, RH

7270206030

Крепеж

7270206040

Крепеж

73910A

AIR BAG ASSY, FRONT SEAT, RH

9008017200

Крепеж

9008046007

Крепеж

9011910921

Крепеж

Код

Описание

7114930050

Крепеж

Передние кресла TOYOTA COROLLA (S.AMERICA), 2014/03 - 2017/03, 2 литра, 16 клапанов, DOHC, EFI, седан, ZRE173, вариатор
