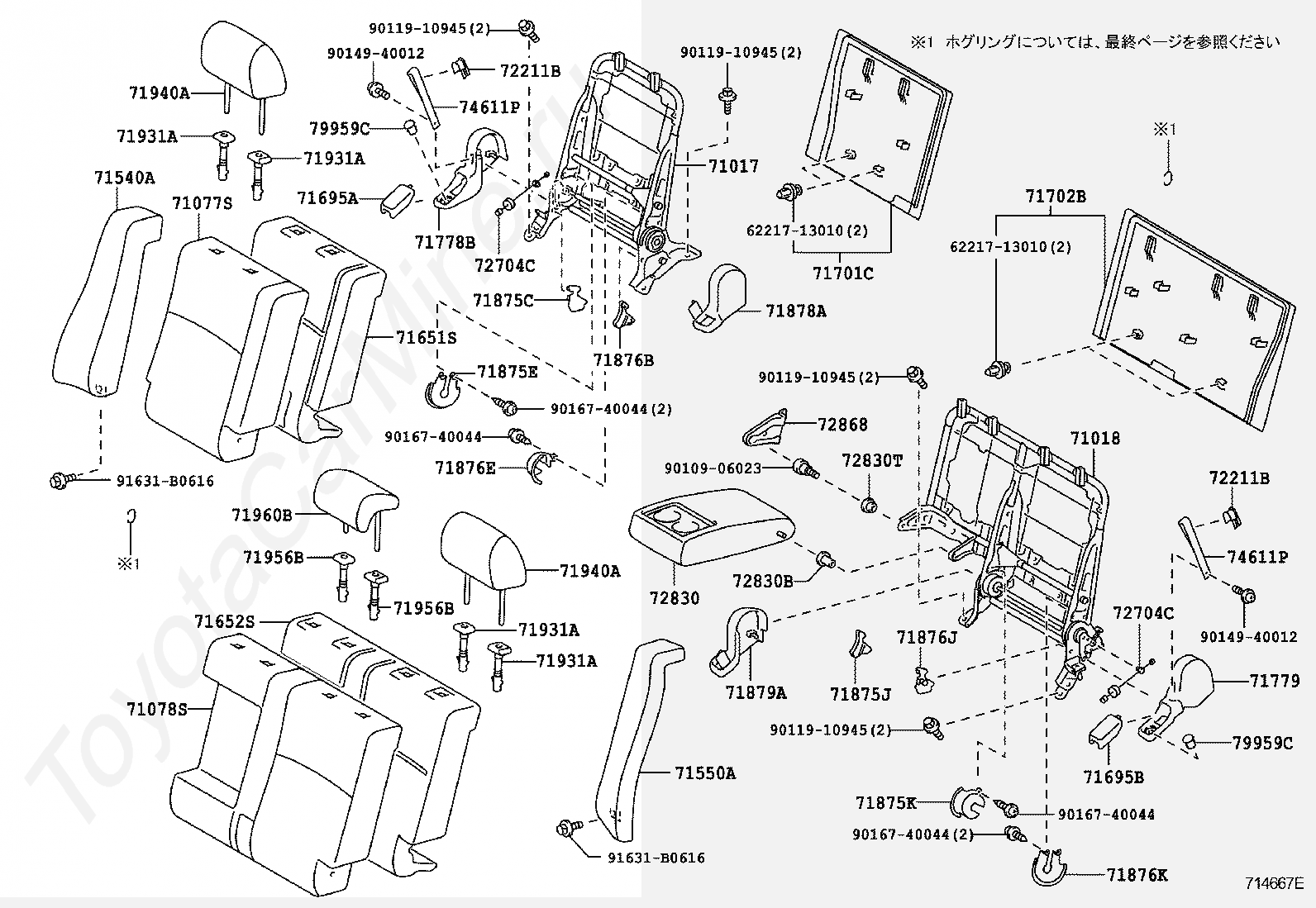

Задние кресла TOYOTA COROLLA AXIO/FIELDER, 2008/10 - 2012/04, 1,5 литра, 16 клапанов DOHC, EFI, фургон, X TYPE, NZE144, автомат, бесступенчатая АКПП

Каталог

Япония

Модель

COROLLA AXIO/FIELDER

Двигатель

1,5 литра, 16 клапанов DOHC, EFI

Кузов

фургон

Класс

X TYPE

Фрейм

NZE144

Трансмиссия

автомат бесступенчатая АКПП

Опции

HIGH EFFICIENCY TWIN CAM 439W

Код

Описание

6221713010

Крепеж

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71540A

BACK ASSY, REAR SIDE SEAT, RH

71550A

BACK ASSY, REAR SIDE SEAT, LH

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71695A

PROTECTOR, REAR SEAT, NO.1 RH

71695B

PROTECTOR, REAR SEAT, NO.1 LH

71701C

BOARD SUB-ASSY, REAR SEAT BACK, RH

71702B

BOARD SUB-ASSY, REAR SEAT BACK, LH

71778B

COVER, REAR SEAT SIDE HINGE MALE, RH

71779

COVER, REAR SEAT SIDE HINGE MALE, LH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71875E

COVER, RECLINING ADJUSTER INSIDE, RH

71875J

COVER, RECLINING ADJUSTER INSIDE, RH

71875K

COVER, RECLINING ADJUSTER INSIDE, RH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71876E

COVER, RECLINING ADJUSTER INSIDE, LH

71876J

COVER, RECLINING ADJUSTER INSIDE, LH

71876K

COVER, RECLINING ADJUSTER INSIDE, LH

71878A

COVER, REAR SEAT RECLINING, INNER RH

71879A

COVER, REAR SEAT RECLINING, INNER LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71956B

SUPPORT, REAR SEAT HEADREST

71960B

HEADREST ASSY, REAR SEAT, CENTER

72211B

HANDLE, SEAT TRACK ADJUSTING

72704C

CABLE, REAR NO.2 SEAT RECLINING CONTROL

72830

ARMREST ASSY, REAR SEAT, CENTER

72830B

BUSH(FOR REAR SEAT CENTER ARMREST)

72830T

BUSH (FOR REAR SEAT CENTER ARMREST)

72868

COVER, CENTER ARMREST HINGE, RH

74611P

PAD, ASSIST GRIP

79959C

COVER, REAR SEAT LEG

9010906023

Крепеж

9011910945

Крепеж

9014940012

Крепеж

9016740044

Крепеж

91631B0616

Крепеж

Код

Описание

6221713010

Крепеж

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71540A

BACK ASSY, REAR SIDE SEAT, RH

71550A

BACK ASSY, REAR SIDE SEAT, LH

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71695A

PROTECTOR, REAR SEAT, NO.1 RH

71695B

PROTECTOR, REAR SEAT, NO.1 LH

71701C

BOARD SUB-ASSY, REAR SEAT BACK, RH

71702B

BOARD SUB-ASSY, REAR SEAT BACK, LH

71778B

COVER, REAR SEAT SIDE HINGE MALE, RH

71779

COVER, REAR SEAT SIDE HINGE MALE, LH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71875E

COVER, RECLINING ADJUSTER INSIDE, RH

71875J

COVER, RECLINING ADJUSTER INSIDE, RH

71875K

COVER, RECLINING ADJUSTER INSIDE, RH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71876E

COVER, RECLINING ADJUSTER INSIDE, LH

71876J

COVER, RECLINING ADJUSTER INSIDE, LH

71876K

COVER, RECLINING ADJUSTER INSIDE, LH

71878A

COVER, REAR SEAT RECLINING, INNER RH

71879A

COVER, REAR SEAT RECLINING, INNER LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71956B

SUPPORT, REAR SEAT HEADREST

71960B

HEADREST ASSY, REAR SEAT, CENTER

72211B

HANDLE, SEAT TRACK ADJUSTING

72704C

CABLE, REAR NO.2 SEAT RECLINING CONTROL

72830

ARMREST ASSY, REAR SEAT, CENTER

72830B

BUSH(FOR REAR SEAT CENTER ARMREST)

72830T

BUSH (FOR REAR SEAT CENTER ARMREST)

72868

COVER, CENTER ARMREST HINGE, RH

74611P

PAD, ASSIST GRIP

79959C

COVER, REAR SEAT LEG

9010906023

Крепеж

9011910945

Крепеж

9014940012

Крепеж

9016740044

Крепеж

91631B0616

Крепеж

Код

Описание

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71499C

DAMPER, REAR SEAT CUSHION SPRING

71611A

PAD, REAR SEAT CUSHION, RH

71612A

PAD, REAR SEAT CUSHION, LH

71691B

COVER, REAR SEAT LOCK, OUTER RH

71691C

COVER, REAR SEAT LOCK, INNER RH

71691D

COVER, REAR SEAT CUSHION HINGE, UPPER RH

71692B

COVER, REAR SEAT LOCK, OUTER LH

71692C

COVER, REAR SEAT LOCK, INNER LH

71692D

COVER, REAR SEAT CUSHION HINGE, UPPER LH

71692E

COVER, REAR SEAT CUSHION HINGE, NO.2

71693

COVER, REAR SEAT CUSHION HINGE, LOWER RH

71693D

COVER, REAR SEAT CUSHION HINGE, INNER RH

71694E

COVER, REAR SEAT CUSHION HINGE, INNER LH

71695C

PROTECTOR, REAR SEAT, NO.1

72125G

COVER, SEAT TRACK LOCK PLATE, NO.1

72125H

COVER, SEAT TRACK LOCK PLATE, NO.2

72125J

COVER, SEAT TRACK LOCK PLATE, NO.3

72670B

LOCK ASSY, REAR SEAT CUSHION, RH

72680B

LOCK ASSY, REAR SEAT CUSHION, LH

7270213030

Крепеж

7270268040

Крепеж

72704A

CABLE, REAR SEAT RECLINING CONTROL

72927

COVER, REAR SEAT CUSHION UNDER, RH

72928

COVER, REAR SEAT CUSHION UNDER, LH

9011910945

Крепеж

9016740044

Крепеж

9017808012

Крепеж

9356855012

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж
