Топливный бак и горловина TOYOTA COROLLA/FIELDER, 2000/08 - 2006/09, 1,5 литра, 16 клапанов DOHC, EFI, фургон, X TYPE, NZE124, автомат, АКПП, 4 ступени

Каталог

Япония

Модель

COROLLA/FIELDER

Двигатель

1,5 литра, 16 клапанов DOHC, EFI

Кузов

фургон

Класс

X TYPE

Фрейм

NZE124

Трансмиссия

автомат АКПП, 4 ступени

Опции

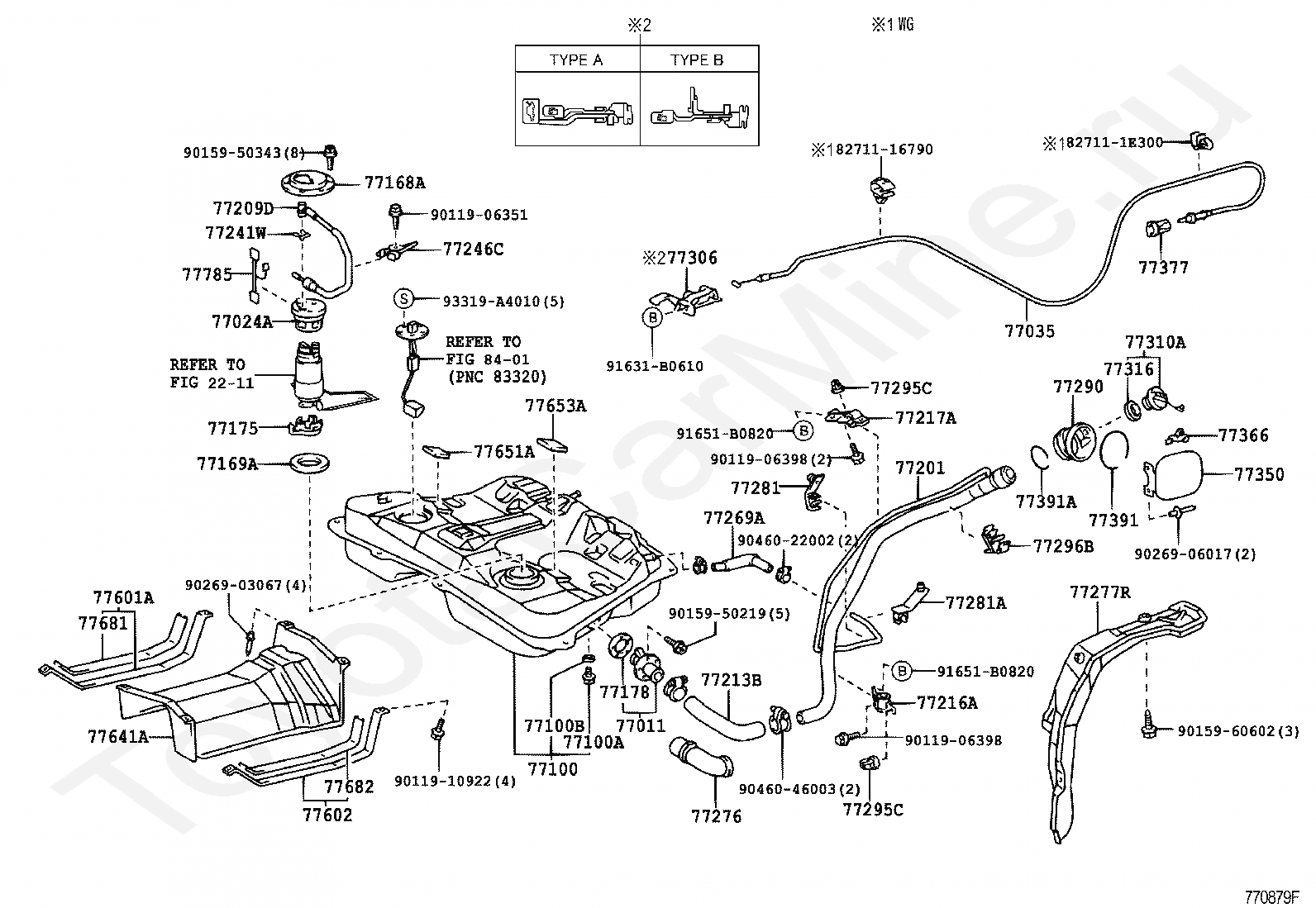

Код

Описание

2211

переход к группе запчастей

77011

PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

77024A

PLATE SUB-ASSY, FUEL SUCTION

77035

CABLE SUB-ASSY, FUEL LID LOCK CONTROL

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77168A

PLATE, FUEL TANK VENT TUBE SET

77169A

GASKET, FUEL SUCTION TUBE SET

77175

SUPPORT, FUEL SUCTION, NO.2

77178

GASKET, FUEL TANK FILLER PIPE, LOWER

77201

PIPE SUB-ASSY, FUEL TANK INLET

77209D

TUBE SUB-ASSY, FUEL TANK MAIN

77213B

HOSE, FUEL TANK TO FILLER PIPE

77216A

SUPPORT, FUEL TANK FILLER PIPE, NO.1

77217A

SUPPORT, FUEL TANK FILLER PIPE, NO.2

77241W

CLIP, TUBE JOINT

77246C

SUPPORT, FUEL MAIN TUBE

77269A

HOSE, FUEL TANK BREATHER

77276

PROTECTOR, FUEL HOSE

77277R

PROTECTOR, FUEL TANK FILLER PIPE

77281

BRACKET, FUEL MAIN TUBE, NO.1

77281A

CLAMP, FUEL FILLER PIPE

77290

SHIELD ASSY, FUEL TANK FILLER PIPE

77295C

GROMMET, FUEL TUBE

77296B

SUPPORT, FUEL TUBE PROTECTOR, NO.1

77306

LEVER SUB-ASSY, FUEL LID LOCK OPEN

77310A

CAP ASSY, FUEL TANK

77316

GASKET, FUEL TANK CAP

77350

LID ASSY, FUEL FILLER OPENING

77366

SPRING, FUEL FILLER OPENING LID HINGE

77377

RETAINER, FUEL FILLER OPENING LID LOCK

77391

RING, FUEL INLET BOX

77391A

RING, FUEL INLET BOX

77601A

BAND SUB-ASSY, FUEL TANK, NO.1

77602

CASE SUB-ASSY, FUEL TANK, UPPER

77641A

PROTECTOR, FUEL TANK, NO.1

77651A

CUSHION, FUEL TANK, NO.1

77653A

CUSHION, FUEL TANK, NO.3

77681

SEAT, FUEL TANK BAND, RH

77682

SEAT, FUEL TANK BAND, LH

77785

HARNESS, FUEL PUMP

8271116790

Крепеж

827111E300

Крепеж

8401

переход к группе запчастей

9011906351

Крепеж

9011906398

Крепеж

9011910922

Крепеж

9015950219

Крепеж

9015950343

Крепеж

9015960602

Крепеж

9026903067

Крепеж

9026906017

Крепеж

9046022002

Крепеж

9046046003

Крепеж

91631B0610

Крепеж

91651B0820

Крепеж

93319A4010

Крепеж

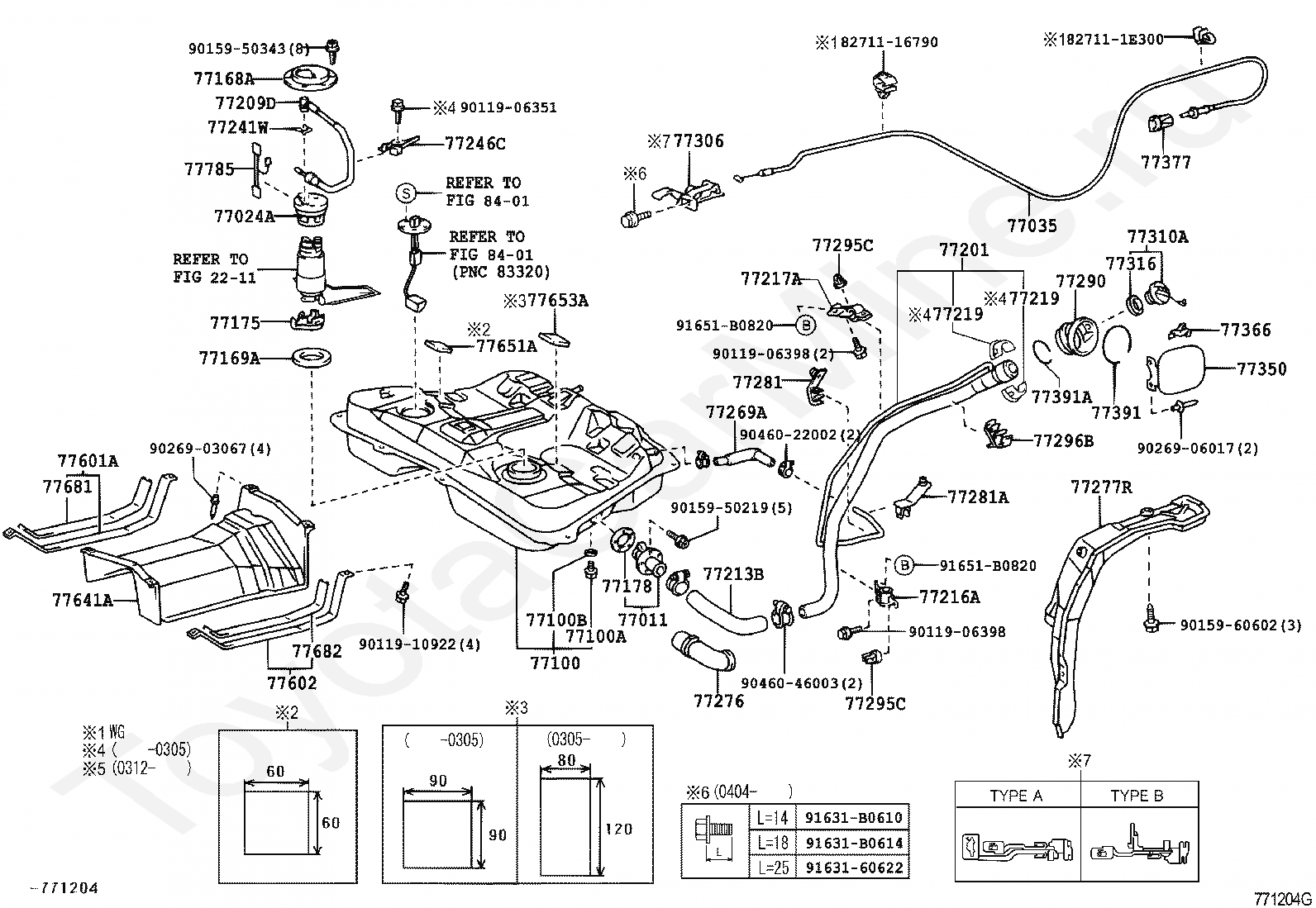

Код

Описание

2211

переход к группе запчастей

77011

PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

77024A

PLATE SUB-ASSY, FUEL SUCTION

77035

CABLE SUB-ASSY, FUEL LID LOCK CONTROL

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77168A

PLATE, FUEL TANK VENT TUBE SET

77169A

GASKET, FUEL SUCTION TUBE SET

77175

SUPPORT, FUEL SUCTION, NO.2

77178

GASKET, FUEL TANK FILLER PIPE, LOWER

77201

PIPE SUB-ASSY, FUEL TANK INLET

77209D

TUBE SUB-ASSY, FUEL TANK MAIN

77213B

HOSE, FUEL TANK TO FILLER PIPE

77216A

SUPPORT, FUEL TANK FILLER PIPE, NO.1

77217A

SUPPORT, FUEL TANK FILLER PIPE, NO.2

77219

COVER, FUEL TANK FILLER PIPE

77241W

CLIP, TUBE JOINT

77246C

SUPPORT, FUEL MAIN TUBE

77269A

HOSE, FUEL TANK BREATHER

77276

PROTECTOR, FUEL HOSE

77277R

PROTECTOR, FUEL TANK FILLER PIPE

77281

BRACKET, FUEL MAIN TUBE, NO.1

77281A

CLAMP, FUEL FILLER PIPE

77290

SHIELD ASSY, FUEL TANK FILLER PIPE

77295C

GROMMET, FUEL TUBE

77296B

SUPPORT, FUEL TUBE PROTECTOR, NO.1

77306

LEVER SUB-ASSY, FUEL LID LOCK OPEN

77310A

CAP ASSY, FUEL TANK

77316

GASKET, FUEL TANK CAP

77350

LID ASSY, FUEL FILLER OPENING

77366

SPRING, FUEL FILLER OPENING LID HINGE

77377

RETAINER, FUEL FILLER OPENING LID LOCK

77391

RING, FUEL INLET BOX

77391A

RING, FUEL INLET BOX

77601A

BAND SUB-ASSY, FUEL TANK, NO.1

77602

CASE SUB-ASSY, FUEL TANK, UPPER

77641A

PROTECTOR, FUEL TANK, NO.1

77651A

CUSHION, FUEL TANK, NO.1

77653A

CUSHION, FUEL TANK, NO.3

77681

SEAT, FUEL TANK BAND, RH

77682

SEAT, FUEL TANK BAND, LH

77785

HARNESS, FUEL PUMP

8271116790

Крепеж

827111E300

Крепеж

8401

переход к группе запчастей

9011906351

Крепеж

9011906398

Крепеж

9011910922

Крепеж

9015950219

Крепеж

9015950343

Крепеж

9015960602

Крепеж

9026903067

Крепеж

9026906017

Крепеж

9046022002

Крепеж

9046046003

Крепеж

9163160622

Крепеж

91631B0610

Крепеж

91631B0614

Крепеж

91651B0820

Крепеж

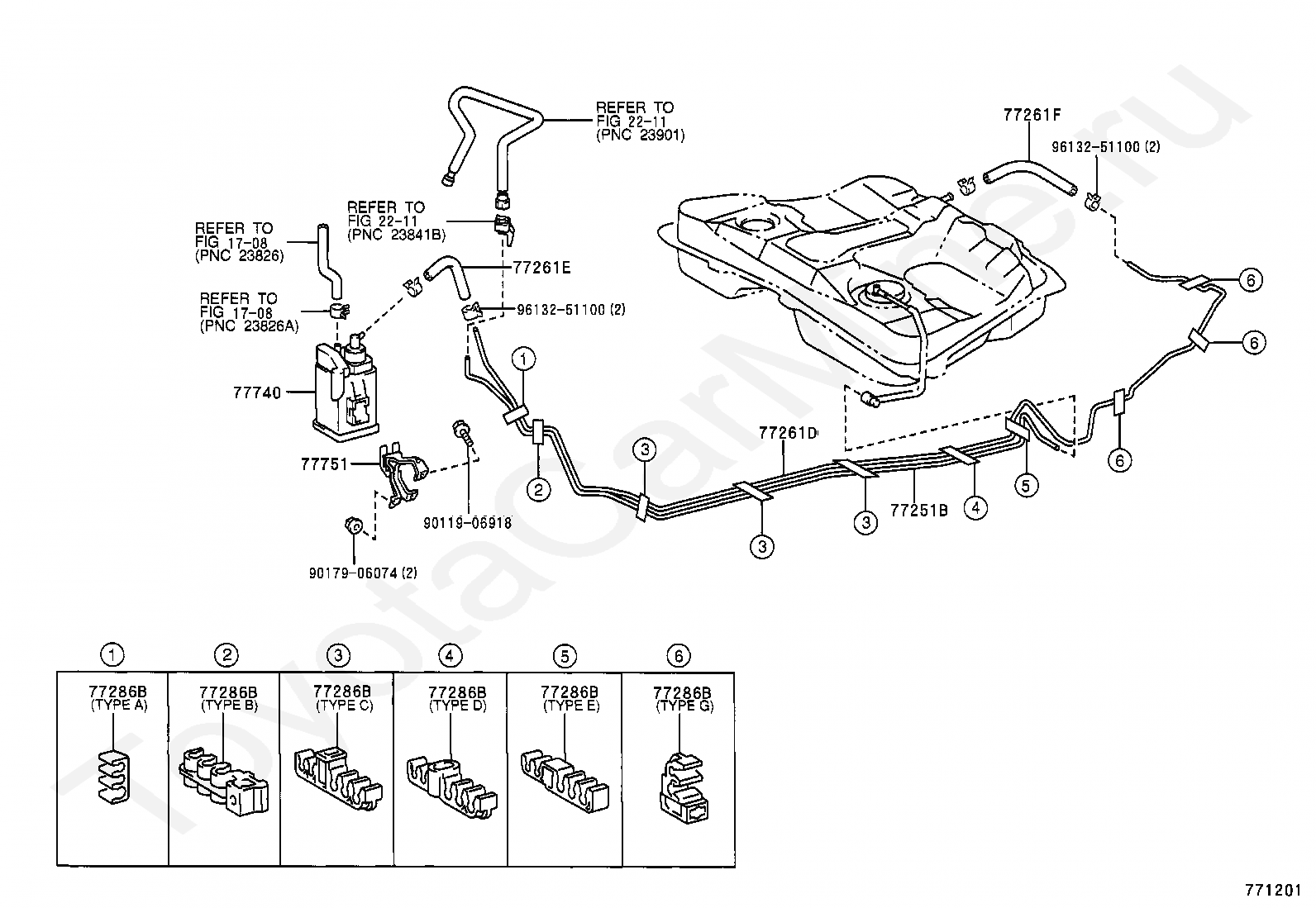

Код

Описание

1708

переход к группе запчастей

2211

переход к группе запчастей

77251B

TUBE, FUEL MAIN

77261D

TUBE, FUEL TANK TO CANISTER

77261E

HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)

77261F

HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)

77286B

CLAMP, FUEL TUBE W/GROMMET, NO.2

77740

CANISTER ASSY, CHARCOAL

77751

BRACKET, CHARCOAL CANISTER BASE

9011906918

Крепеж

9017906074

Крепеж

9613251100

Крепеж

Топливный бак и горловина TOYOTA COROLLA/FIELDER, 2000/08 - 2006/09, 1,5 литра, 16 клапанов DOHC, EFI, фургон, X TYPE, NZE124, автомат, АКПП, 4 ступени
