Передние кресла TOYOTA COROLLA/FIELDER, 2000/08 - 2006/09, 1,5 литра, 16 клапанов DOHC, EFI, фургон, X TYPE, NZE121, автомат, АКПП, 4 ступени

Каталог

Япония

Модель

COROLLA/FIELDER

Двигатель

1,5 литра, 16 клапанов DOHC, EFI

Кузов

фургон

Класс

X TYPE

Фрейм

NZE121

Трансмиссия

автомат АКПП, 4 ступени

Опции

Код

Описание

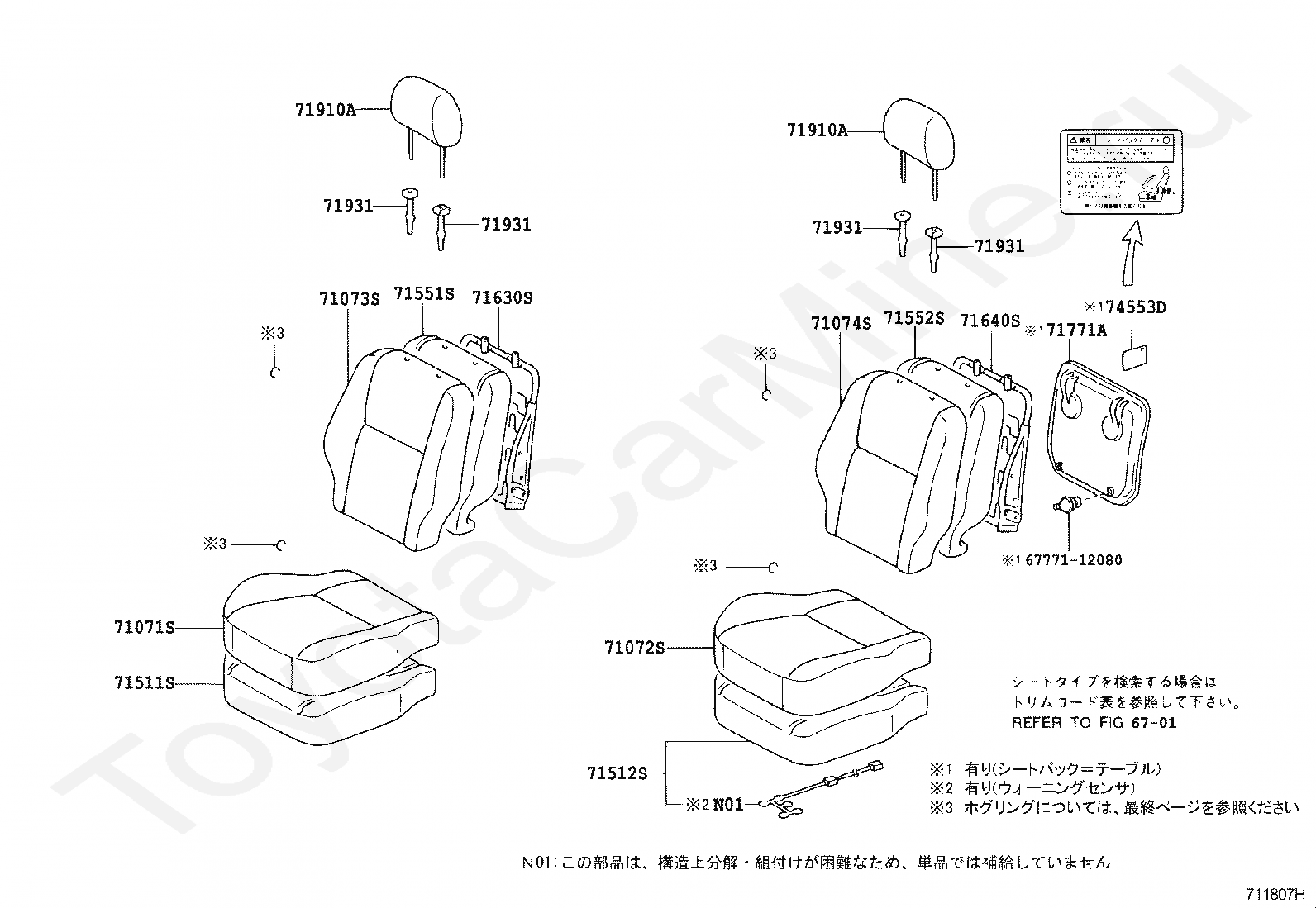

6701

переход к группе запчастей

6777112080

Крепеж

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71771A

BOARD, FRONT SEAT BACK

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

74553D

LABEL, FRONT SEAT CAUTION

Код

Описание

6701

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

Код

Описание

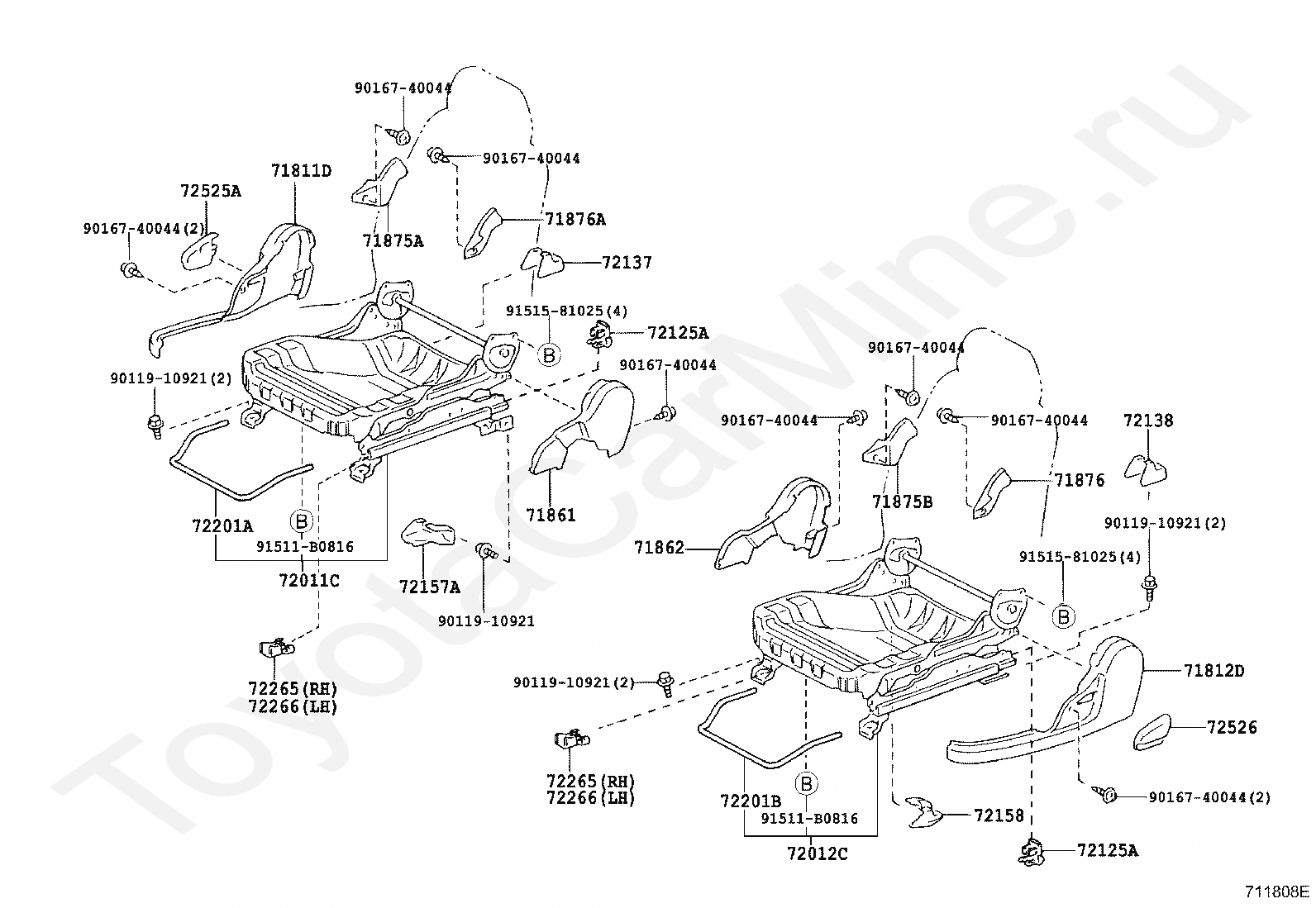

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72012C

ADJUSTER SUB-ASSY, FRONT SEAT, LH

72125A

COVER, SEAT TRACK, UPPER REAR

72137

COVER, SEAT TRACK, OUTER RH

72138

COVER, SEAT TRACK, OUTER LH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72201A

HANDLE SUB-ASSY, SEAT TRACK RH

72201B

HANDLE SUB-ASSY, SEAT TRACK LH

72265

COVER, SEAT TRACK UPPER RAIL, RH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

9011910921

Крепеж

9016740044

Крепеж

91511B0816

Крепеж

9151581025

Крепеж

Код

Описание

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72012C

ADJUSTER SUB-ASSY, FRONT SEAT, LH

72125A

COVER, SEAT TRACK, UPPER REAR

72137

COVER, SEAT TRACK, OUTER RH

72138

COVER, SEAT TRACK, OUTER LH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72201A

HANDLE SUB-ASSY, SEAT TRACK RH

72201B

HANDLE SUB-ASSY, SEAT TRACK LH

72265

COVER, SEAT TRACK UPPER RAIL, RH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72422A

ROD, FRONT SEAT ADJUSTER

72457

KNOB, VERTICAL SEAT ADJUSTER

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

9011910921

Крепеж

9016740044

Крепеж

9052001006

Крепеж

91511B0816

Крепеж

9151581025

Крепеж

9616000600

Крепеж

9616000800

Крепеж

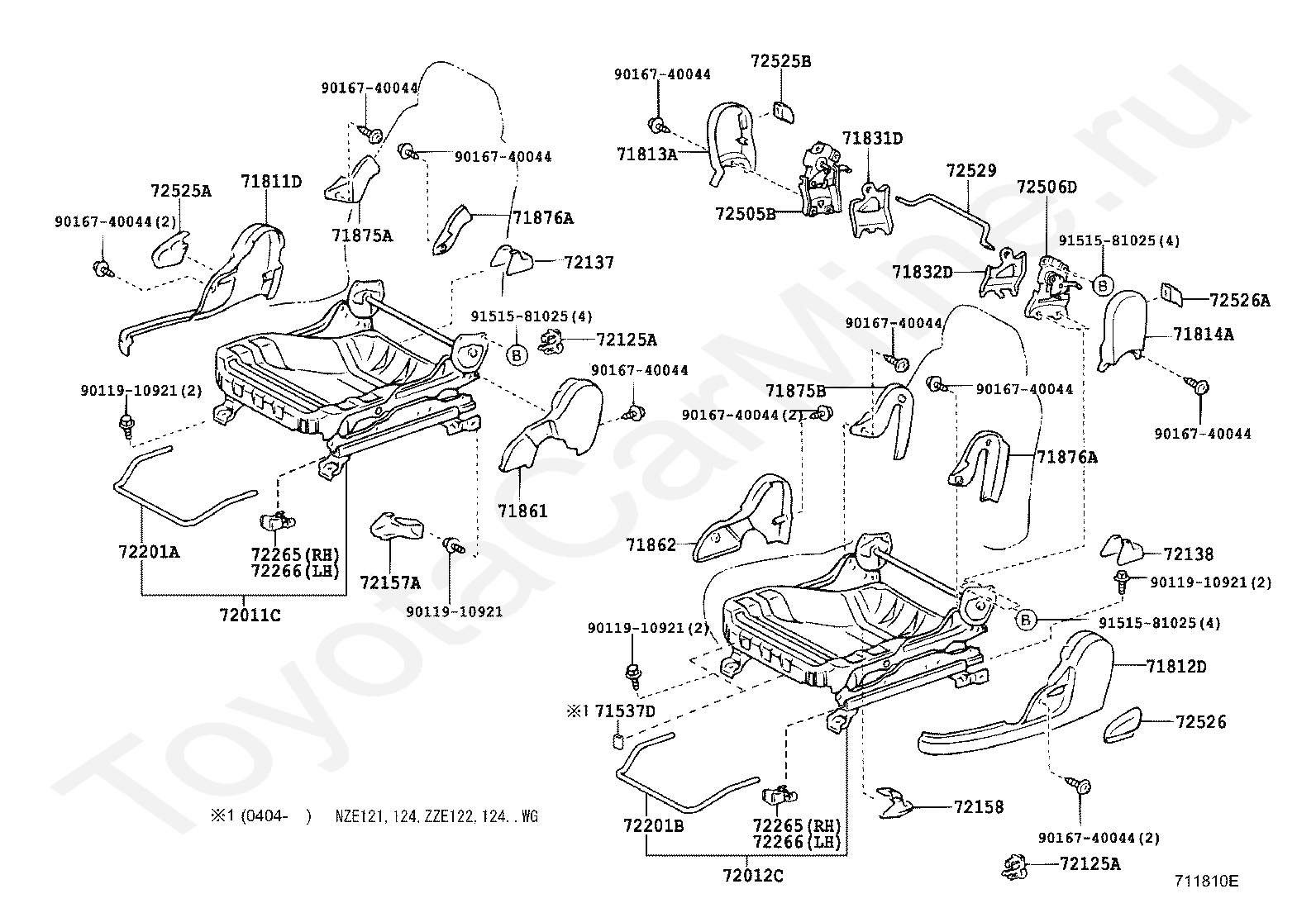

Код

Описание

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71813A

SHIELD, FRONT SEAT BACK, RH

71814A

SHIELD, FRONT SEAT BACK, LH

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72012C

ADJUSTER SUB-ASSY, FRONT SEAT, LH

72125A

COVER, SEAT TRACK, UPPER REAR

72137

COVER, SEAT TRACK, OUTER RH

72138

COVER, SEAT TRACK, OUTER LH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72201A

HANDLE SUB-ASSY, SEAT TRACK RH

72201B

HANDLE SUB-ASSY, SEAT TRACK LH

72265

COVER, SEAT TRACK UPPER RAIL, RH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72505B

LOCK SUB-ASSY, FRONT SEAT BACK, RH

72506D

LOCK SUB-ASSY, FRONT SEAT BACK, LH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72529

ROD, FRONT SEAT BACK LOCK HANDLE

9011910921

Крепеж

9016740044

Крепеж

9151581025

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

Передние кресла TOYOTA COROLLA/FIELDER, 2000/08 - 2006/09, 1,5 литра, 16 клапанов DOHC, EFI, фургон, X TYPE, NZE121, автомат, АКПП, 4 ступени
