Боковая панель кузова TOYOTA COROLLA/FIELDER, 2000/08 - 2006/09, 1,5 литра, 16 клапанов DOHC, EFI, фургон, X TYPE, NZE121, автомат, АКПП, 4 ступени

Каталог

Япония

Модель

COROLLA/FIELDER

Двигатель

1,5 литра, 16 клапанов DOHC, EFI

Кузов

фургон

Класс

X TYPE

Фрейм

NZE121

Трансмиссия

автомат АКПП, 4 ступени

Опции

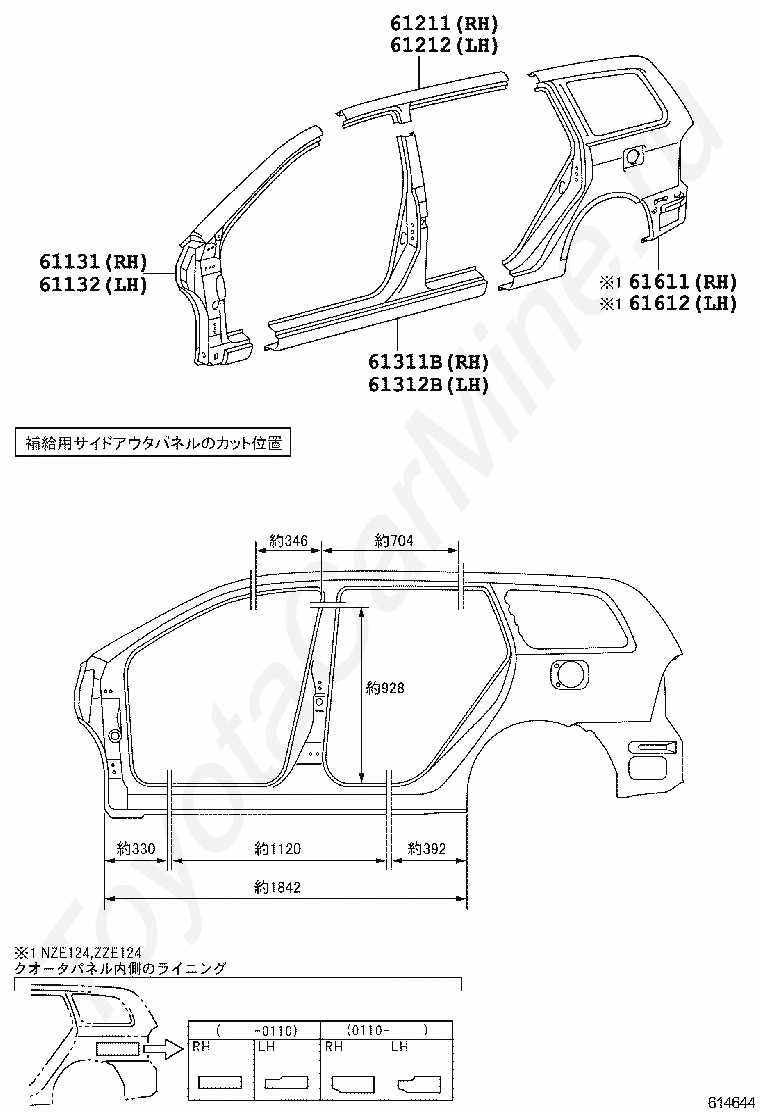

Код

Описание

61131

PILLAR, FRONT BODY, UPPER OUTER RH

61132

PILLAR, FRONT BODY, UPPER OUTER LH

61211

RAIL, ROOF SIDE, OUTER RH

61212

RAIL, ROOF SIDE, OUTER LH

61311B

PILLAR, CENTER BODY, OUTER RH

61312B

PILLAR, CENTER BODY, OUTER LH

61611

PANEL, QUARTER, RH

61612

PANEL, QUARTER, LH

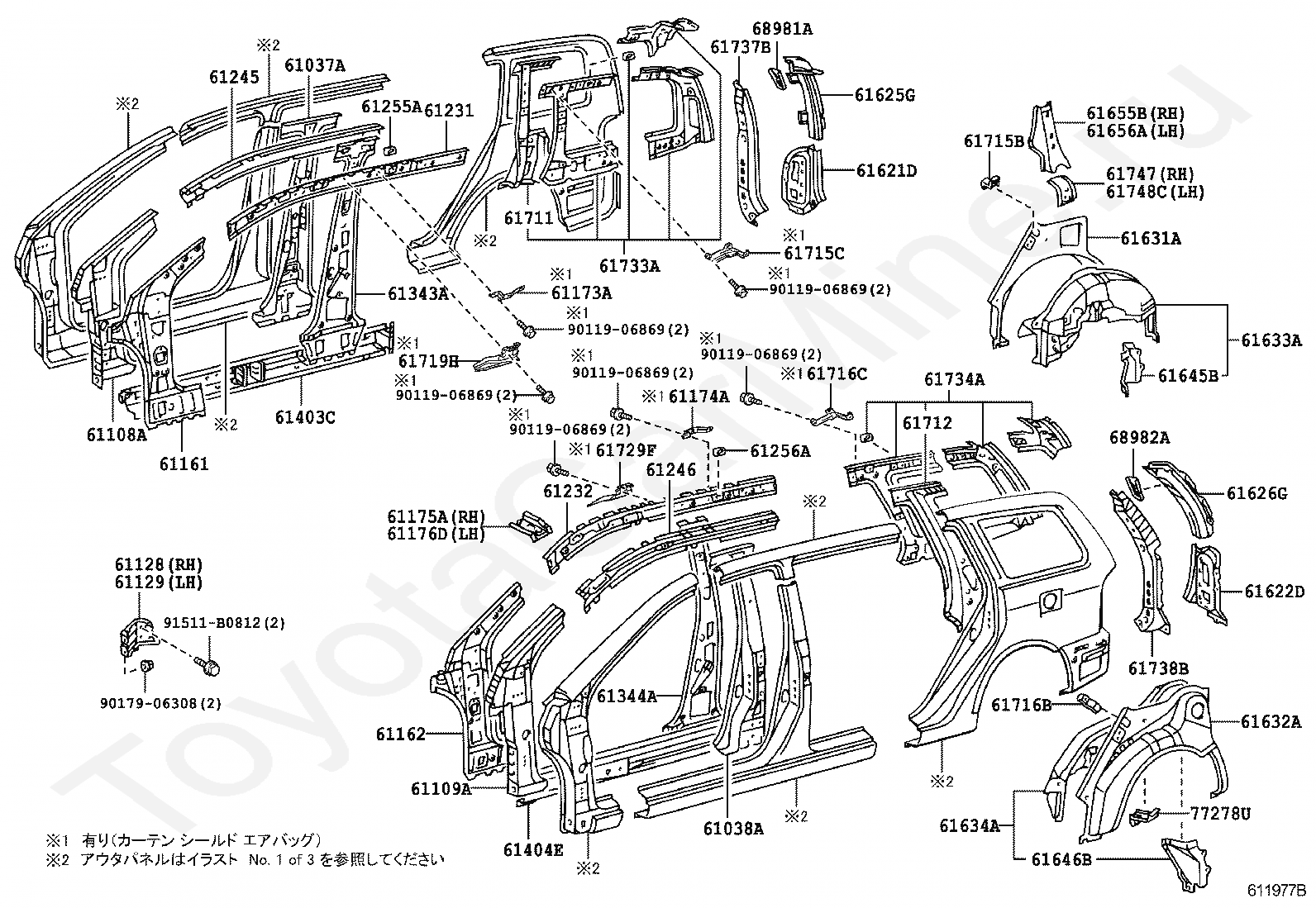

Код

Описание

61037A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

61038A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

61108A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

61109A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

61128

REINFORCEMENT, COWL SIDE PANEL, RH

61129

REINFORCEMENT, COWL SIDE PANEL, LH

61161

PILLAR, FRONT BODY, UPPER INNER RH

61162

PILLAR, FRONT BODY, UPPER INNER LH

61175A

REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH

61176D

REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH

61231

RAIL, ROOF SIDE, INNER RH

61232

RAIL, ROOF SIDE, INNER LH

61245

REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

61246

REINFORCEMENT, ROOF SIDE RAIL, OUTER LH

61255A

PLATE, ROOF SIDE RAIL, OUTER RH

61256A

PLATE, ROOF SIDE RAIL, OUTER LH

61343A

PILLAR, CENTER BODY, INNER RH

61344A

PILLAR, CENTER BODY, INNER LH

61403C

REINFORCE SUB-ASSY, ROCKER, OUTER RH

61404E

REINFORCE SUB-ASSY, ROCKER, OUTER LH

61621D

TROUGH, BACK DOOR OPENING, RH

61622D

TROUGH, BACK DOOR OPENING, LH

61625G

EXTENSION, QUARTER PANEL, REAR RH

61626G

EXTENSION, QUARTER PANEL, REAR LH

61631A

PANEL, QUARTER WHEEL HOUSE, OUTER RH

61632A

PANEL, QUARTER WHEEL HOUSE, OUTER LH

61633A

PANEL, QUARTER WHEEL HOUSE, INNER RH

61634A

PANEL, QUARTER WHEEL HOUSE, INNER LH

61645B

GUSSET, QUARTER WHEEL HOUSE, REAR RH

61646B

GUSSET, QUARTER WHEEL HOUSE, REAR LH

61655B

GUSSET, QUARTER WHEEL HOUSE, INNER RH

61656A

GUSSET, QUARTER WHEEL HOUSE, INNER LH

61711

PANEL, ROOF SIDE, OUTER RH

61712

PANEL, ROOF SIDE, OUTER LH

61715B

EXTENSION, ROOF SIDE, INNER FRONT RH

61716B

EXTENSION, ROOF SIDE, INNER FRONT LH

61733A

PANEL, ROOF SIDE, INNER FRONT RH

61734A

PANEL, ROOF SIDE, INNER FRONT LH

61737B

PANEL, ROOF SIDE, INNER LOWER RH

61738B

PANEL, ROOF SIDE, INNER LOWER LH

61747

BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

61748C

BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

68981A

RETAINER, BACK DOOR STAY, RH

68982A

RETAINER, BACK DOOR STAY, LH

77278U

BRACKET, FUEL TANK FILLER PIPE PROTECTOR

9017906308

Крепеж

91511B0812

Крепеж

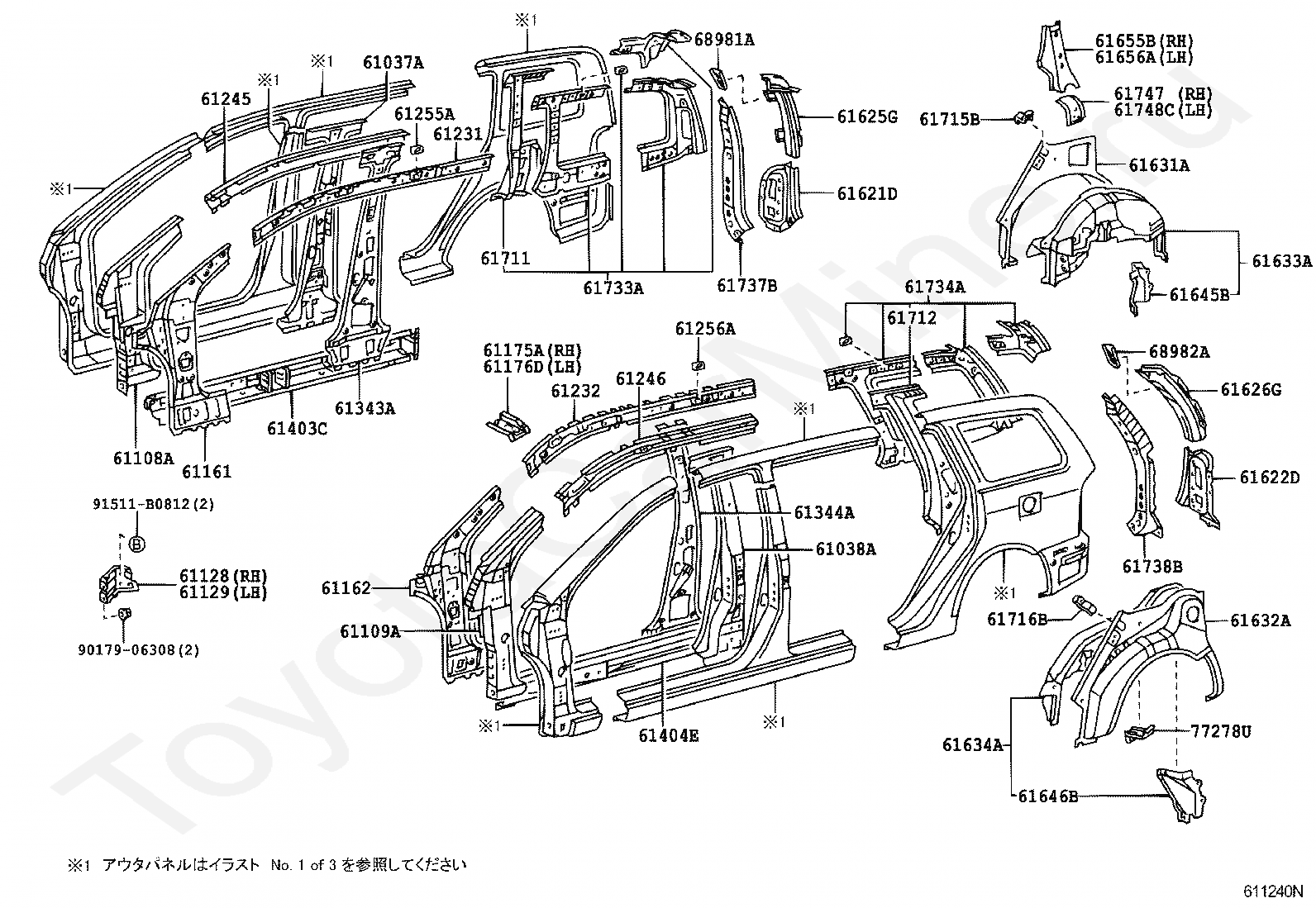

Код

Описание

61037A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

61038A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

61108A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

61109A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

61128

REINFORCEMENT, COWL SIDE PANEL, RH

61129

REINFORCEMENT, COWL SIDE PANEL, LH

61161

PILLAR, FRONT BODY, UPPER INNER RH

61162

PILLAR, FRONT BODY, UPPER INNER LH

61173A

REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER RH

61174A

REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH

61175A

REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH

61176D

REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH

61231

RAIL, ROOF SIDE, INNER RH

61232

RAIL, ROOF SIDE, INNER LH

61245

REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

61246

REINFORCEMENT, ROOF SIDE RAIL, OUTER LH

61255A

PLATE, ROOF SIDE RAIL, OUTER RH

61256A

PLATE, ROOF SIDE RAIL, OUTER LH

61343A

PILLAR, CENTER BODY, INNER RH

61344A

PILLAR, CENTER BODY, INNER LH

61403C

REINFORCE SUB-ASSY, ROCKER, OUTER RH

61404E

REINFORCE SUB-ASSY, ROCKER, OUTER LH

61621D

TROUGH, BACK DOOR OPENING, RH

61622D

TROUGH, BACK DOOR OPENING, LH

61625G

EXTENSION, QUARTER PANEL, REAR RH

61626G

EXTENSION, QUARTER PANEL, REAR LH

61631A

PANEL, QUARTER WHEEL HOUSE, OUTER RH

61632A

PANEL, QUARTER WHEEL HOUSE, OUTER LH

61633A

PANEL, QUARTER WHEEL HOUSE, INNER RH

61634A

PANEL, QUARTER WHEEL HOUSE, INNER LH

61645B

GUSSET, QUARTER WHEEL HOUSE, REAR RH

61646B

GUSSET, QUARTER WHEEL HOUSE, REAR LH

61655B

GUSSET, QUARTER WHEEL HOUSE, INNER RH

61656A

GUSSET, QUARTER WHEEL HOUSE, INNER LH

61711

PANEL, ROOF SIDE, OUTER RH

61712

PANEL, ROOF SIDE, OUTER LH

61715B

EXTENSION, ROOF SIDE, INNER FRONT RH

61715C

BRACKET, ROOF SIDE, RH

61716B

EXTENSION, ROOF SIDE, INNER FRONT LH

61716C

BRACKET, ROOF SIDE, LH

61719H

BRACKET SUB-ASSY, ROOF SIDE RAIL, RH

61729F

BRACKET SUB-ASSY, ROOF SIDE RAIL, LH

61733A

PANEL, ROOF SIDE, INNER FRONT RH

61734A

PANEL, ROOF SIDE, INNER FRONT LH

61737B

PANEL, ROOF SIDE, INNER LOWER RH

61738B

PANEL, ROOF SIDE, INNER LOWER LH

61747

BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

61748C

BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

68981A

RETAINER, BACK DOOR STAY, RH

68982A

RETAINER, BACK DOOR STAY, LH

77278U

BRACKET, FUEL TANK FILLER PIPE PROTECTOR

9011906869

Крепеж

9017906308

Крепеж

91511B0812

Крепеж

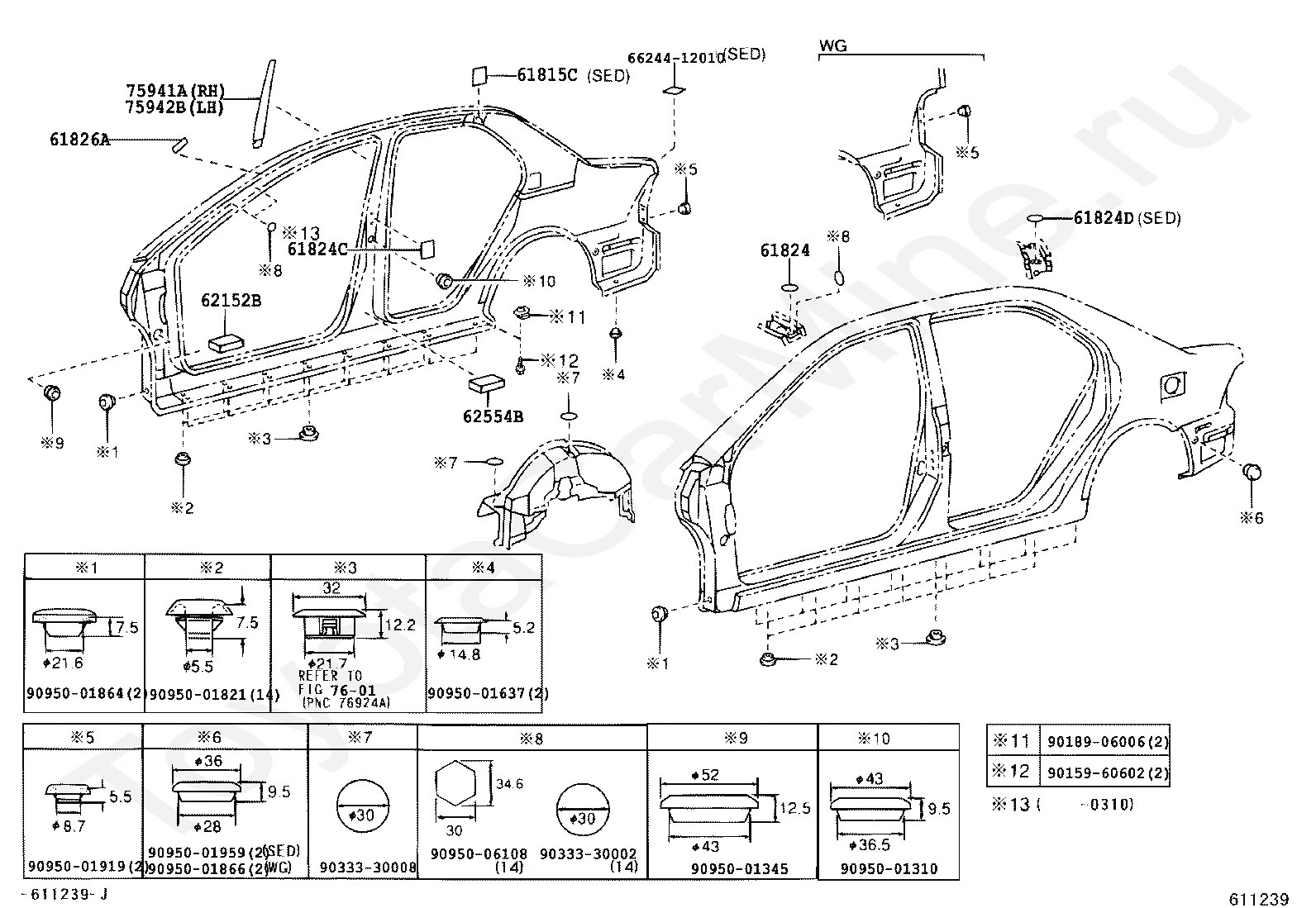

Код

Описание

61815C

COVER, ROOF SIDE, INNER UPPER

61824

PLATE, NOISE CONTROL, NO.1

61824C

PAD, NOISE SHUTTER, NO.1

61824D

PLATE, NOISE CONTROL, NO.1

61826A

PLATE, NOISE CONTROL, NO.3

62152B

PAD, COWL SIDE SILENCER, NO.2

62554B

PAD, PILLAR, NO.4

6624412010

Крепеж

75941A

STRIPE, CENTER PILLAR, RH

75942B

STRIPE, CENTER PILLAR, LH

7601

переход к группе запчастей

9015960602

Крепеж

9018906006

Крепеж

9033330002

Крепеж

9033330008

Крепеж

9095001310

Крепеж

9095001345

Крепеж

9095001637

Крепеж

9095001821

Крепеж

9095001864

Крепеж

9095001866

Крепеж

9095001919

Крепеж

9095001959

Крепеж

9095006108

Крепеж
