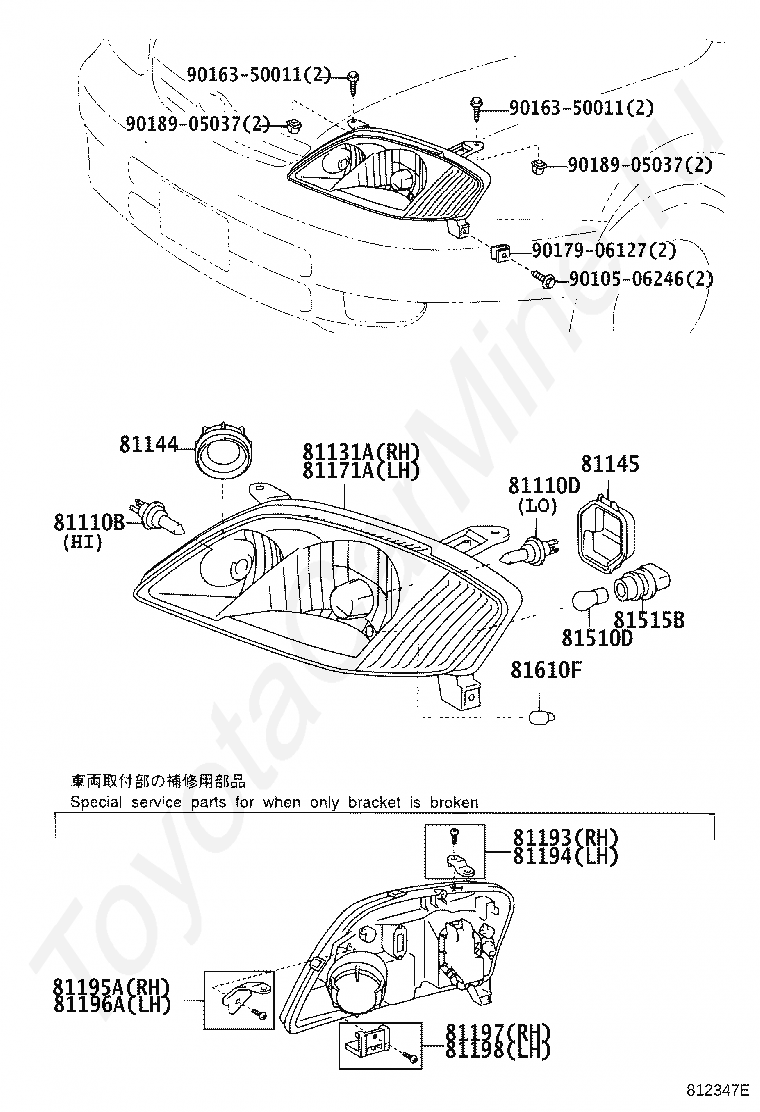

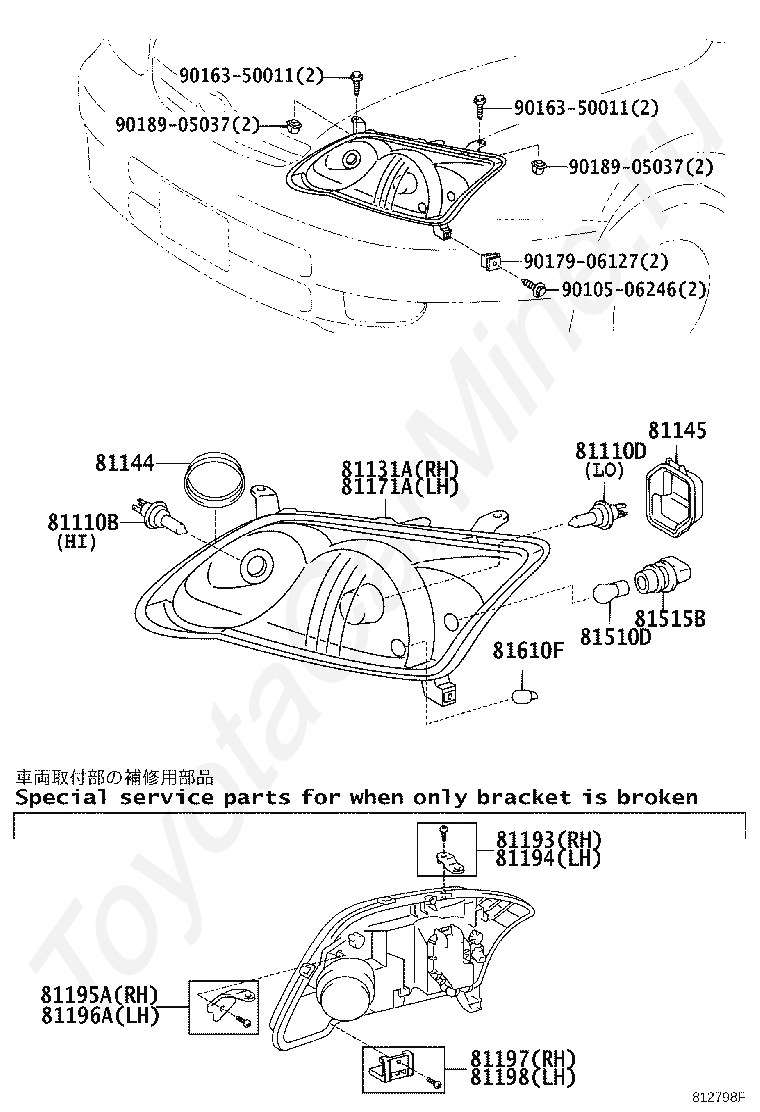

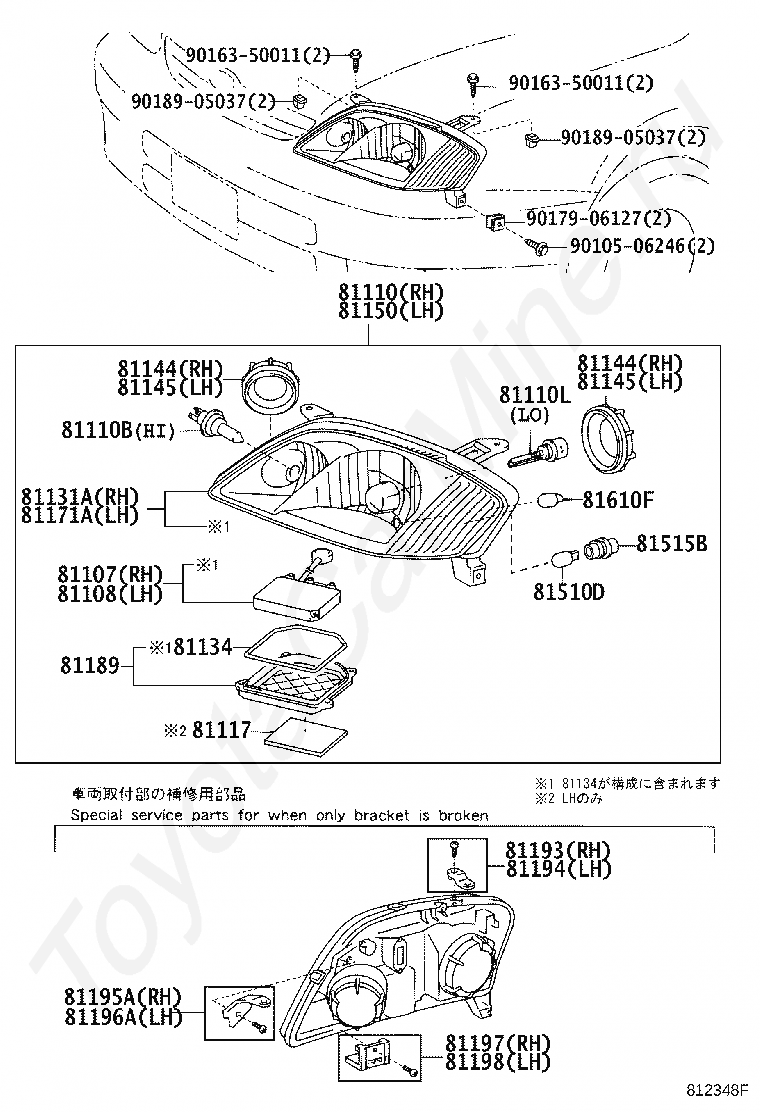

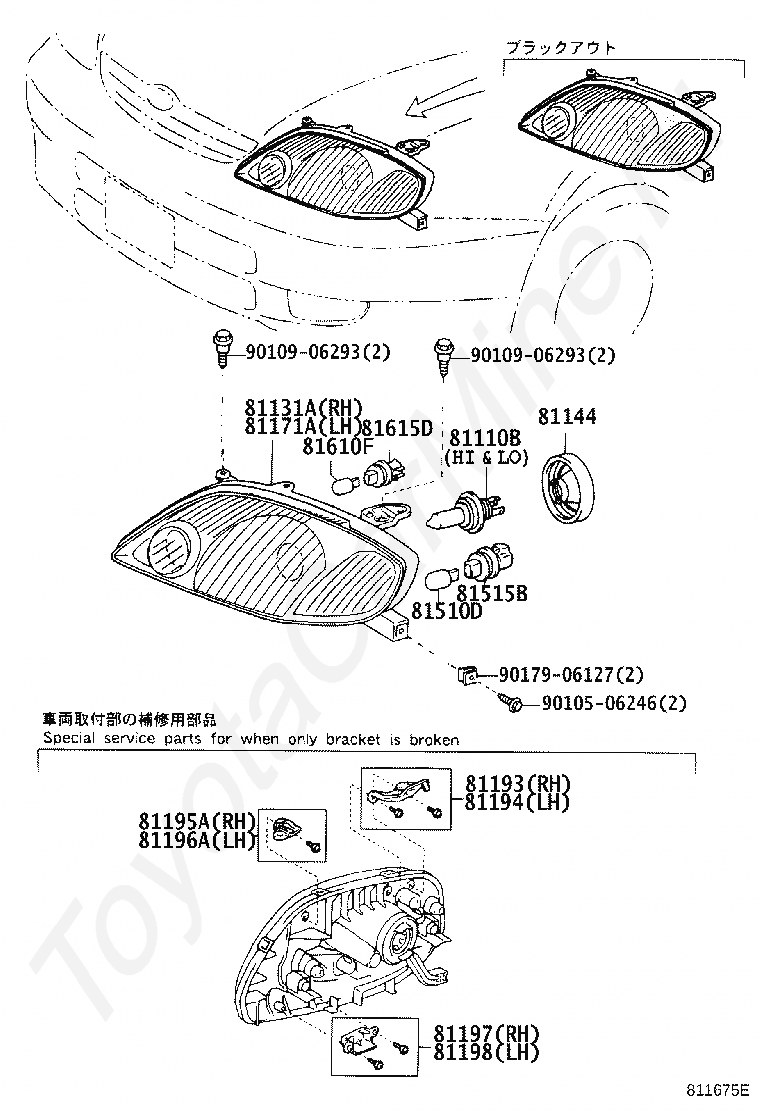

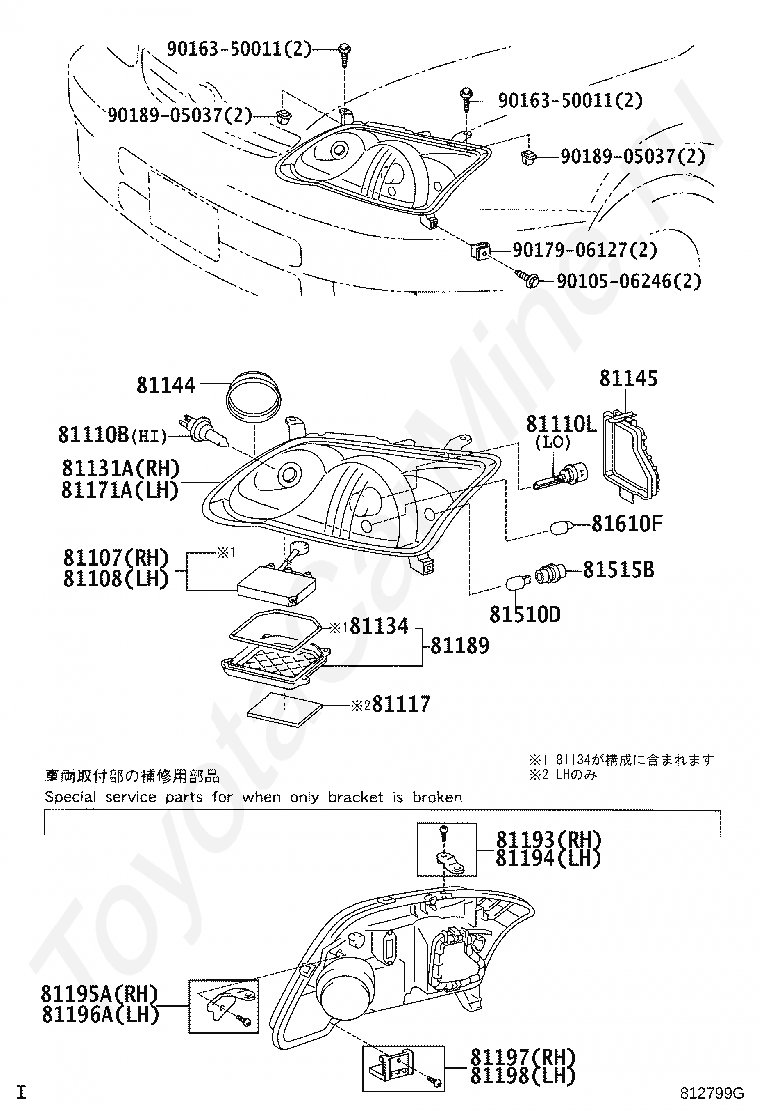

Фары TOYOTA COROLLA RUNX/ALLEX, 2001/01 - 2006/09, 1,5 литра, 16 клапанов DOHC, EFI, NZE121, автомат, АКПП, 4 ступени

Каталог

Япония

Модель

COROLLA RUNX/ALLEX

Двигатель

1,5 литра, 16 клапанов DOHC, EFI

Фрейм

NZE121

Трансмиссия

автомат АКПП, 4 ступени

Опции

COROLLA RUNX

Код

Описание

81110B

BULB(FOR HEADLAMP, NO.1)

81131A

UNIT, HEADLAMP, RH

81144

COVER, HEADLAMP, NO.1

81171A

UNIT, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81197

BRACKET, HEADLAMP, LOWER RH

81198

BRACKET, HEADLAMP, LWR LH

81510D

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615D

SOCKET, CLEARANCE LAMP

9010506246

Крепеж

9010906293

Крепеж

9017906127

Крепеж

Код

Описание

81110B

BULB(FOR HEADLAMP, NO.1)

81110D

BULB(FOR HEADLAMP, NO.2)

81131A

UNIT, HEADLAMP, RH

81144

COVER, HEADLAMP, NO.1

81145

COVER, HEADLAMP, NO.2

81171A

UNIT, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81197

BRACKET, HEADLAMP, LOWER RH

81198

BRACKET, HEADLAMP, LWR LH

81510D

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

9010506246

Крепеж

9016350011

Крепеж

9017906127

Крепеж

9018905037

Крепеж

Код

Описание

81107

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

81108

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81110L

BULB, DISCHARGE HEADLAMP

81117

PACKING, HEADLAMP HOUSING

81131A

UNIT, HEADLAMP, RH

81134

GASKET, HEADLAMP

81144

COVER, HEADLAMP, NO.1

81145

COVER, HEADLAMP, NO.2

81150

HEADLAMP ASSY, LH

81171A

UNIT, HEADLAMP, LH

81189

COVER, HEADLAMP

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81197

BRACKET, HEADLAMP, LOWER RH

81198

BRACKET, HEADLAMP, LWR LH

81510D

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

9010506246

Крепеж

9016350011

Крепеж

9017906127

Крепеж

9018905037

Крепеж

Код

Описание

81110B

BULB(FOR HEADLAMP, NO.1)

81110D

BULB(FOR HEADLAMP, NO.2)

81131A

UNIT, HEADLAMP, RH

81144

COVER, HEADLAMP, NO.1

81145

COVER, HEADLAMP, NO.2

81171A

UNIT, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81197

BRACKET, HEADLAMP, LOWER RH

81198

BRACKET, HEADLAMP, LWR LH

81510D

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

9010506246

Крепеж

9016350011

Крепеж

9017906127

Крепеж

9018905037

Крепеж

Код

Описание

81107

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

81108

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

81110B

BULB(FOR HEADLAMP, NO.1)

81110L

BULB, DISCHARGE HEADLAMP

81117

PACKING, HEADLAMP HOUSING

81131A

UNIT, HEADLAMP, RH

81134

GASKET, HEADLAMP

81144

COVER, HEADLAMP, NO.1

81145

COVER, HEADLAMP, NO.2

81171A

UNIT, HEADLAMP, LH

81189

COVER, HEADLAMP

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81197

BRACKET, HEADLAMP, LOWER RH

81198

BRACKET, HEADLAMP, LWR LH

81510D

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

9010506246

Крепеж

9016350011

Крепеж

9017906127

Крепеж

9018905037

Крепеж

Фары TOYOTA COROLLA RUNX/ALLEX, 2001/01 - 2006/09, 1,5 литра, 16 клапанов DOHC, EFI, NZE121, автомат, АКПП, 4 ступени
