Каталог
Ближний ВостокМодель
COROLLA/TRUENOДвигатель
1,2 литраКузов
седанКласс
DELUX SPECIFICATIONФрейм
KE30Трансмиссия
механика МКПП, 5 скоростейОпции
4 двери правый руль K50 TYPE TRANSMISSION 4 двери GENERAL COUNTRIES
Код
Описание
21061
VALVE SUB-ASSY, THERMOSTATIC
21112
HORN, AIR
21129
COVER(FOR THERMOSTATIC VALVE)
21205
JET SUB-ASSY, SLOW
21209
FLOAT SUB-ASSY
21211
VENTURI, 1ST SMALL
21212
VENTURI, 2ND SMALL
21234
PIPE OR HOSE
21235
PIPE OR HOSE, CONNECTING
21251
JET, 1ST MAIN
21253
JET, 2ND MAIN
21255
JET, POWER
21272
SCREW, 1ST IDLE ADJUSTING
21301
VALVE SUB-ASSY, NEEDLE
21313
BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314
BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21334
VALVE, CHOKE
21335
VALVE, THERMOSTATIC
21341
VALVE, POWER
21351
PISTON, POWER
21353
PLUNGER, PUMP
21414
SHAFT, CHOKE
2152424231
Крепеж
21538
RETAINER, BALL CHECK
21561
WEIGHT, PUMP DISCHARGE
21572
STOP, POWER PISTON
21611
GASKET, MAIN JET
21614
GASKET, VENTURI
21617
GASKET, MAIN PASSAGE PLUG
21618
GASKET, NEEDLE VALVE SEAT
21621
GASKET, UNION NIPPLE
21622
GASKET, AIR HORN
21641
GASKET(FOR THERMOSTATIC VALVE COVER)
21659
RING, O(FOR THERMOSTATIC VALVE)
21677
PLUG
21699
BOOT(FOR PUMP PLUNGER)
21722
SPRING, PUMP DAMPING
21726
SPRING, 1ST IDLE ADJUSTING
21734
SPRING, POWER PISTON
21738
SPRING, CHOKE VALVE RELIEF
21751
UNION, NIPPLE
21763
PIN, FLOAT LEVER
21781
PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
2182124030
Крепеж
2182125010
Крепеж
2182131140
Крепеж
21823
SCREW, CHOKE, VALVE SET
21831
SCREW, POWER PISTON STOP
2188544010
Крепеж
21934
SOLENOID, THROTTLE VALVE
21934E
RING, O(FOR SOLENOID VALVE)
21934F
GASKET
9321915025
Крепеж
9328915016
Крепеж
9451100400
Крепеж
9451100500
Крепеж

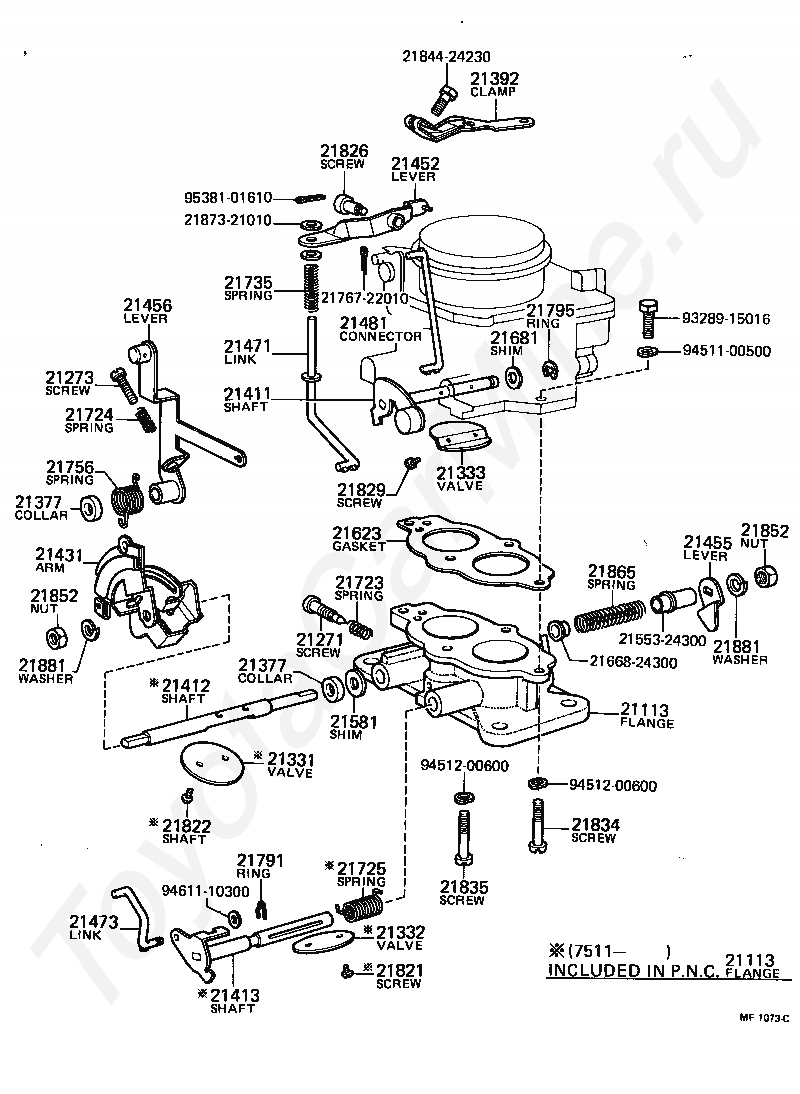

Код
Описание
21113
FLANGE, CARBURETOR
21271
SCREW, IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21331
VALVE, 1ST THROTTLE
21332
VALVE, 2ND THROTTLE
21333
VALVE, HIGH SPEED
21377
COLLAR(FOR 2ND THROTTLE SHAFT)
21392
CLAMP, CHOKE WIRE
21411
SHAFT, HIGH SPEED
21412
SHAFT, 1ST THROTTLE
21413
SHAFT, 2ND THROTTLE
21431
ARM, 1ST THROTTLE SHAFT
21452
LEVER, PUMP
21455
LEVER, THROTTLE
21456
LEVER, 1ST THROTTLE IDLE ADJUSTING, NO.1
21471
LINK, PUMP CONNECTING
21473
LINK, THROTTLE SHAFT
21481
CONNECTOR, 1ST IDLE
2155324300
Крепеж
21581
SHIM, 1ST THROTTLE SHAFT
21623
GASKET, BODY FLANGE
2166824300
Крепеж
21681
SHIM(FOR HIGH SPEED SHAFT)
21723
SPRING, IDLE ADJUSTING
21724
SPRING, THROTTLE ADJUSTING
21725
SPRING, 2ND THROTTLE BACK
21735
SPRING, PUMP ARM
21756
SPRING, BACK(FOR THROTTLE SHAFT)
2176722010
Крепеж
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
21795
RING, RETAINER, NO.2(FOR HIGH SPEED SHAFT)
21821
SCREW, 2ND THROTTLE VALVE SET
21822
SCREW, 1ST THROTTLE VALVE SET
21826
SCREW, PUMP ARM SET
21829
SCREW, HIGH SPEED VALVE SET
21834
SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21835
SCREW, SET, NO.3(FOR CARBURETOR BODY SET)
2184424230
Крепеж
21852
NUT, THROTTLE LEVER SET
21865
SPRING
2187321010
Крепеж
21881
WASHER, LOCK(FOR THROTTLE SHAFT)
9328915016
Крепеж
9451100500
Крепеж
9451200600
Крепеж
9461110300
Крепеж
9538101610
Крепеж
