Каталог
Ближний ВостокМодель
COROLLA SED/LB/WGДвигатель
1,3 литра, 12 клапановКузов
фургонКласс
XL SPECIFICATIONФрейм
EE90Трансмиссия
механика МКПП, 5 скоростейОпции
левый руль страны Персидского залива

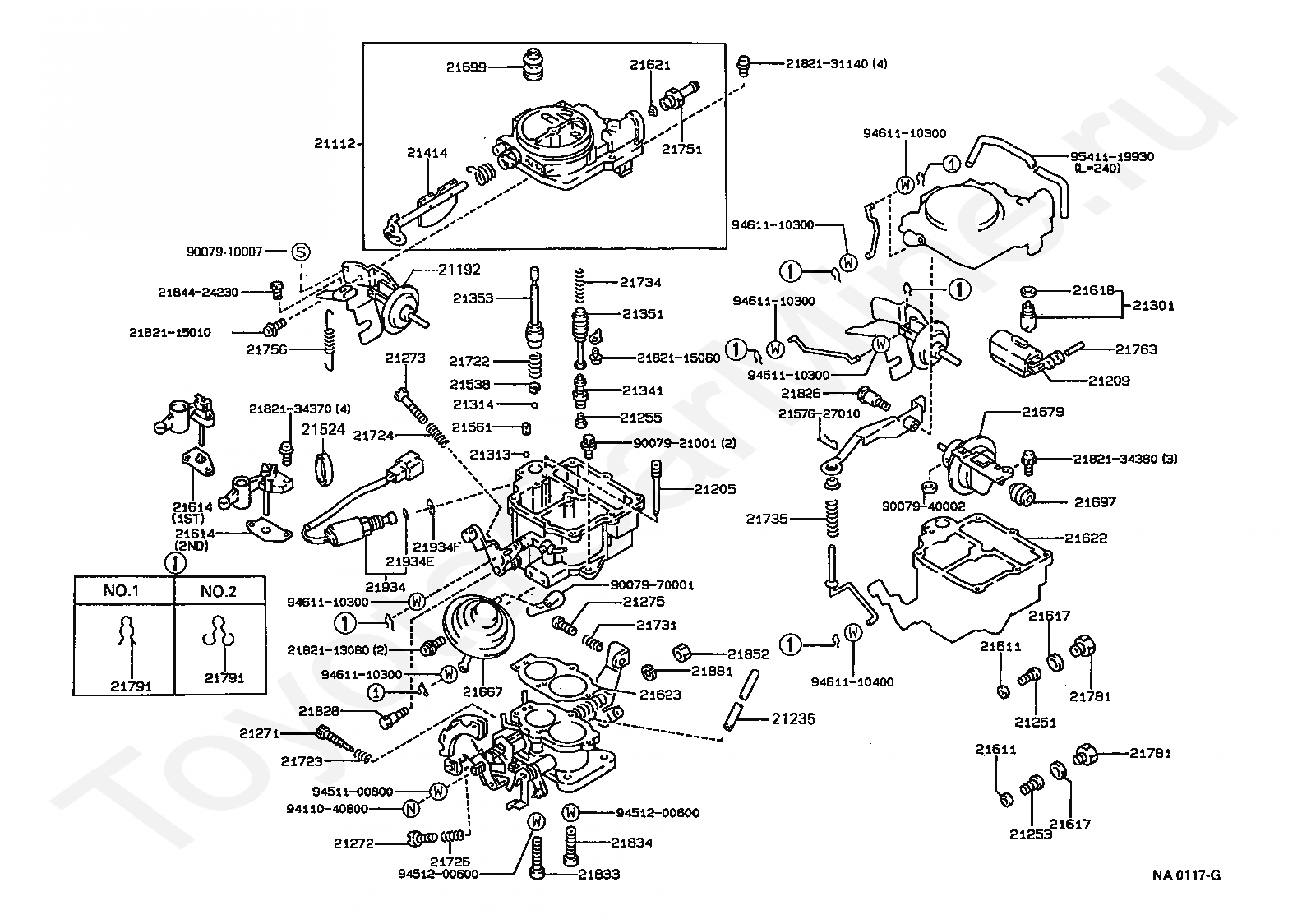

Код
Описание
21112
HORN, AIR
21192
BREAKER
21205
JET SUB-ASSY, SLOW
21209
FLOAT SUB-ASSY
21235
PIPE OR HOSE, CONNECTING
21251
JET, 1ST MAIN
21253
JET, 2ND MAIN
21255
JET, POWER
21271
SCREW, IDLE ADJUSTING
21272
SCREW, 1ST IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21275
SCREW, ADJUSTING
21301
VALVE SUB-ASSY, NEEDLE
21313
BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314
BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21341
VALVE, POWER
21351
PISTON, POWER
21353
PLUNGER, PUMP
21414
SHAFT, CHOKE
21524
BRACKET(FOR DASH POT)
21538
RETAINER, BALL CHECK
21561
WEIGHT, PUMP DISCHARGE
2157627010
Крепеж
21611
GASKET, MAIN JET
21614
GASKET, VENTURI
21617
GASKET, MAIN PASSAGE PLUG
21618
GASKET, NEEDLE VALVE SEAT
21621
GASKET, UNION NIPPLE
21622
GASKET, AIR HORN
21623
GASKET, BODY FLANGE
21667
DIAPHRAGM
21679
POSITIONER
21697
BOOT(FOR SLIDING ROD)
21699
BOOT(FOR PUMP PLUNGER)
21722
SPRING, PUMP DAMPING
21723
SPRING, IDLE ADJUSTING
21724
SPRING, THROTTLE ADJUSTING
21726
SPRING, 1ST IDLE ADJUSTING
21731
SPRING, DASH POT OR POSITIONER ADJUSTING
21734
SPRING, POWER PISTON
21735
SPRING, PUMP ARM
21751
UNION, NIPPLE
21756
SPRING, BACK(FOR THROTTLE SHAFT)
21763
PIN, FLOAT LEVER
21781
PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
2182113080
Крепеж
2182115010
Крепеж
2182115060
Крепеж
2182131140
Крепеж
2182134370
Крепеж
2182134380
Крепеж
21826
SCREW, PUMP ARM SET
21828
SCREW, 1ST IDLE SET
21833
SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21834
SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
2184424230
Крепеж
21852
NUT, THROTTLE LEVER SET
21881
WASHER, LOCK(FOR THROTTLE SHAFT)
21934
SOLENOID, THROTTLE VALVE
21934E
RING, O(FOR SOLENOID VALVE)
21934F
GASKET
9007910007
Крепеж
9007921001
Крепеж
9007940002
Крепеж
9007970001
Крепеж
9411040800
Крепеж
9451100800
Крепеж
9451200600
Крепеж
9461110300
Крепеж
9461110400
Крепеж
9541119930
Крепеж

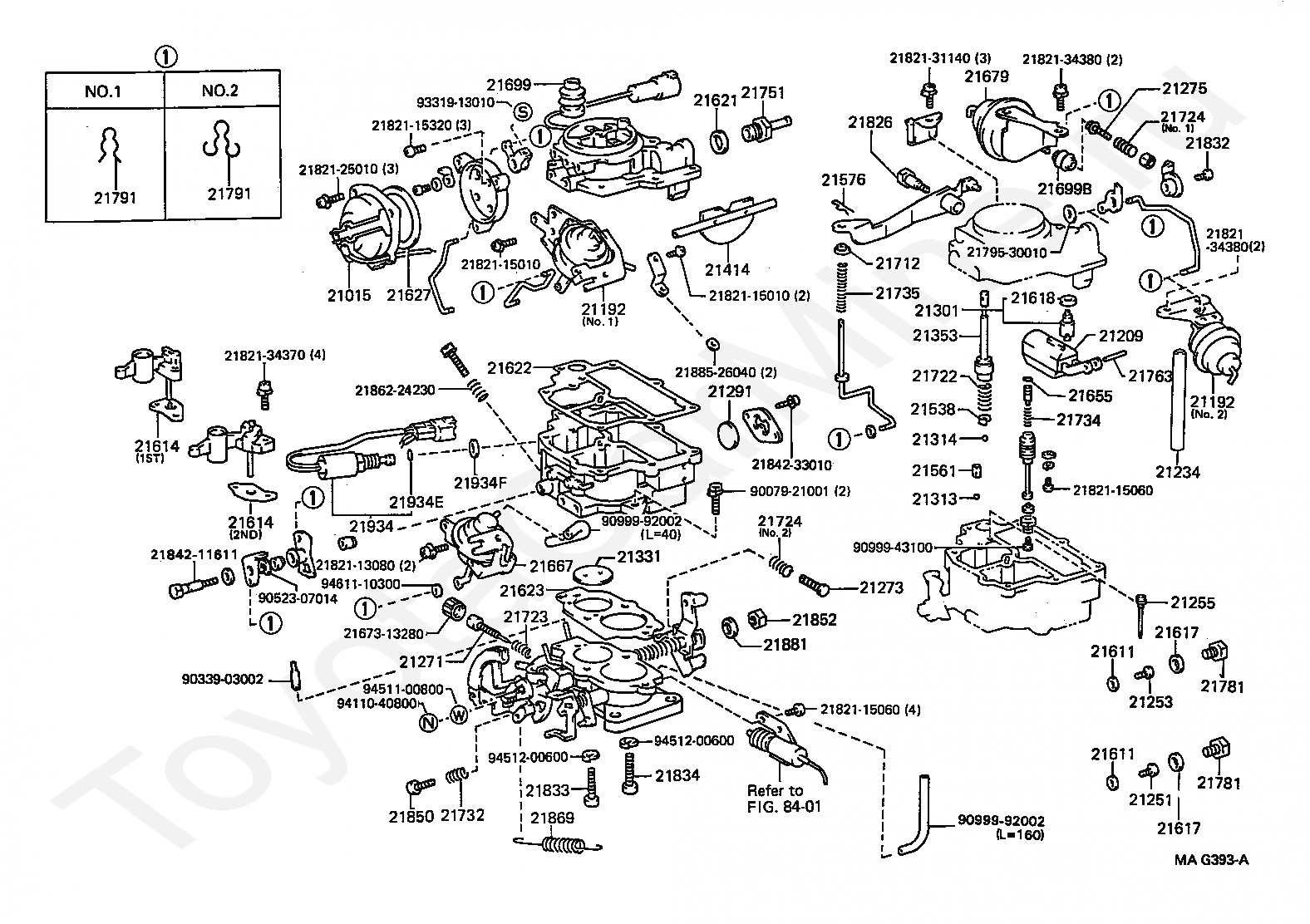

Код
Описание
21015
HOUSING SUB-ASSY, COIL
21192
BREAKER
21209
FLOAT SUB-ASSY
21234
PIPE OR HOSE
21251
JET, 1ST MAIN
21253
JET, 2ND MAIN
21255
JET, POWER
21271
SCREW, IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21275
SCREW, ADJUSTING
21291
GLASS, LEVEL GAGE
21301
VALVE SUB-ASSY, NEEDLE
21313
BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314
BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21331
VALVE, 1ST THROTTLE
21353
PLUNGER, PUMP
21414
SHAFT, CHOKE
21538
RETAINER, BALL CHECK
21561
WEIGHT, PUMP DISCHARGE
21576
CLIP, PUMP STRAINER
21611
GASKET, MAIN JET
21614
GASKET, VENTURI
21617
GASKET, MAIN PASSAGE PLUG
21618
GASKET, NEEDLE VALVE SEAT
21621
GASKET, UNION NIPPLE
21622
GASKET, AIR HORN
21623
GASKET, BODY FLANGE
21627
GASKET, COIL HOUSING
21655
RING, O(FOR LIFTER ROD)
21667
DIAPHRAGM
2167313280
Крепеж
21679
POSITIONER
21699
BOOT(FOR PUMP PLUNGER)
21699B
BOOT(FOR COMPENSATOR)
21712
BUSH, SLIDING ROD
21722
SPRING, PUMP DAMPING
21723
SPRING, IDLE ADJUSTING
21724
SPRING, THROTTLE ADJUSTING
21732
SPRING, THROTTLE ADJUSTING
21734
SPRING, POWER PISTON
21735
SPRING, PUMP ARM
21751
UNION, NIPPLE
21763
PIN, FLOAT LEVER
21781
PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
2179530010
Крепеж
2182113080
Крепеж
2182115010
Крепеж
2182115060
Крепеж
2182115320
Крепеж
2182125010
Крепеж
2182131140
Крепеж
2182134370
Крепеж
2182134380
Крепеж
21826
SCREW, PUMP ARM SET
21832
SCREW(FOR CHOKE LEVER ADAPTER SET)
21833
SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21834
SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
2184211611
Крепеж
2184233010
Крепеж
21850
SCREW, THROTTLE SWITCH ADJUSTING
21852
NUT, THROTTLE LEVER SET
2186224230
Крепеж
21869
SPRING(FOR MAIN JET)
21881
WASHER, LOCK(FOR THROTTLE SHAFT)
2188526040
Крепеж
21934
SOLENOID, THROTTLE VALVE
21934E
RING, O(FOR SOLENOID VALVE)
21934F
GASKET
8401
переход к группе запчастей
9007921001
Крепеж
9033903002
Крепеж
9052307014
Крепеж
9099943100
Крепеж
9099992002
Крепеж
9331913010
Крепеж
9411040800
Крепеж
9451100800
Крепеж
9451200600
Крепеж
9461110300
Крепеж
