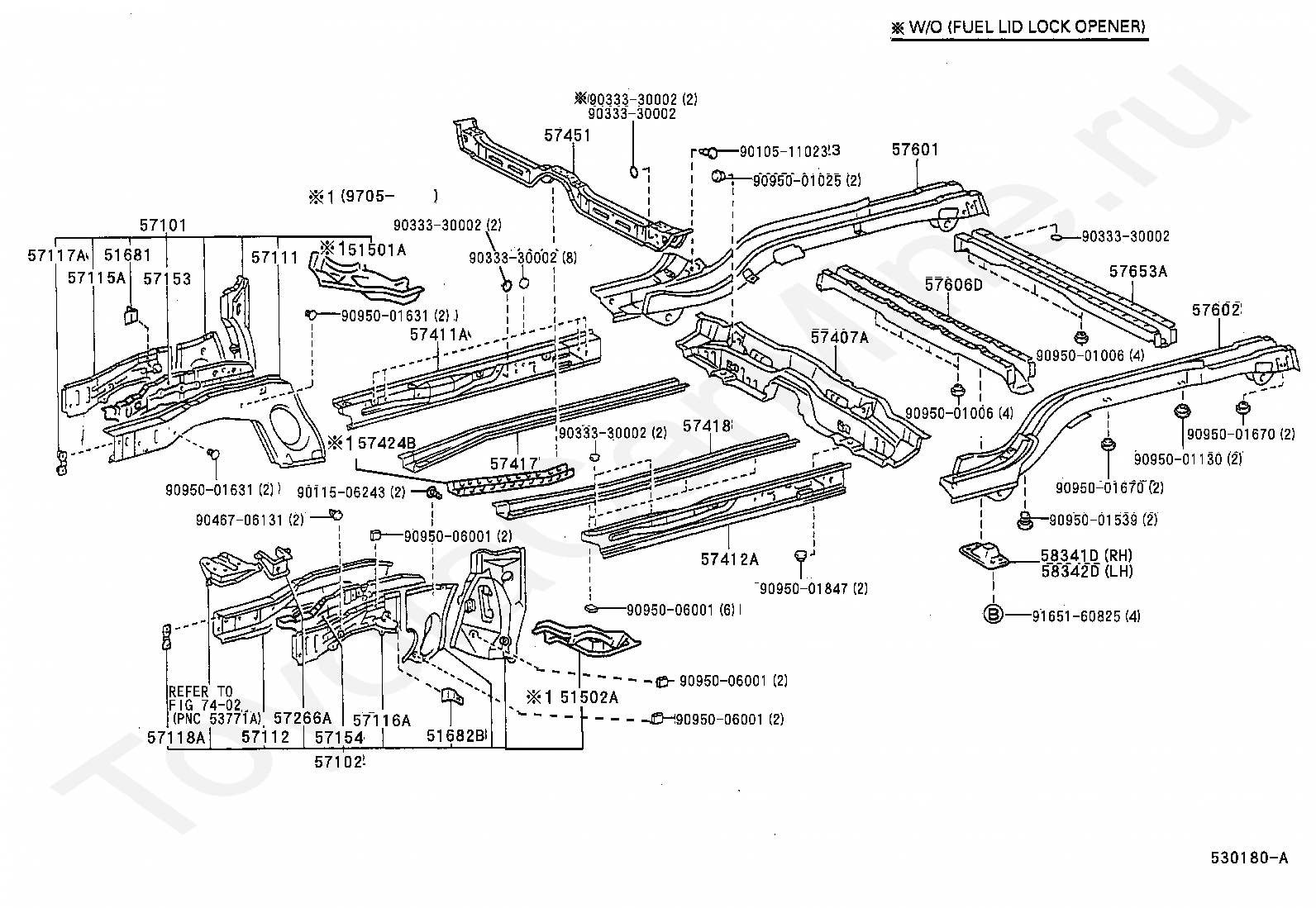

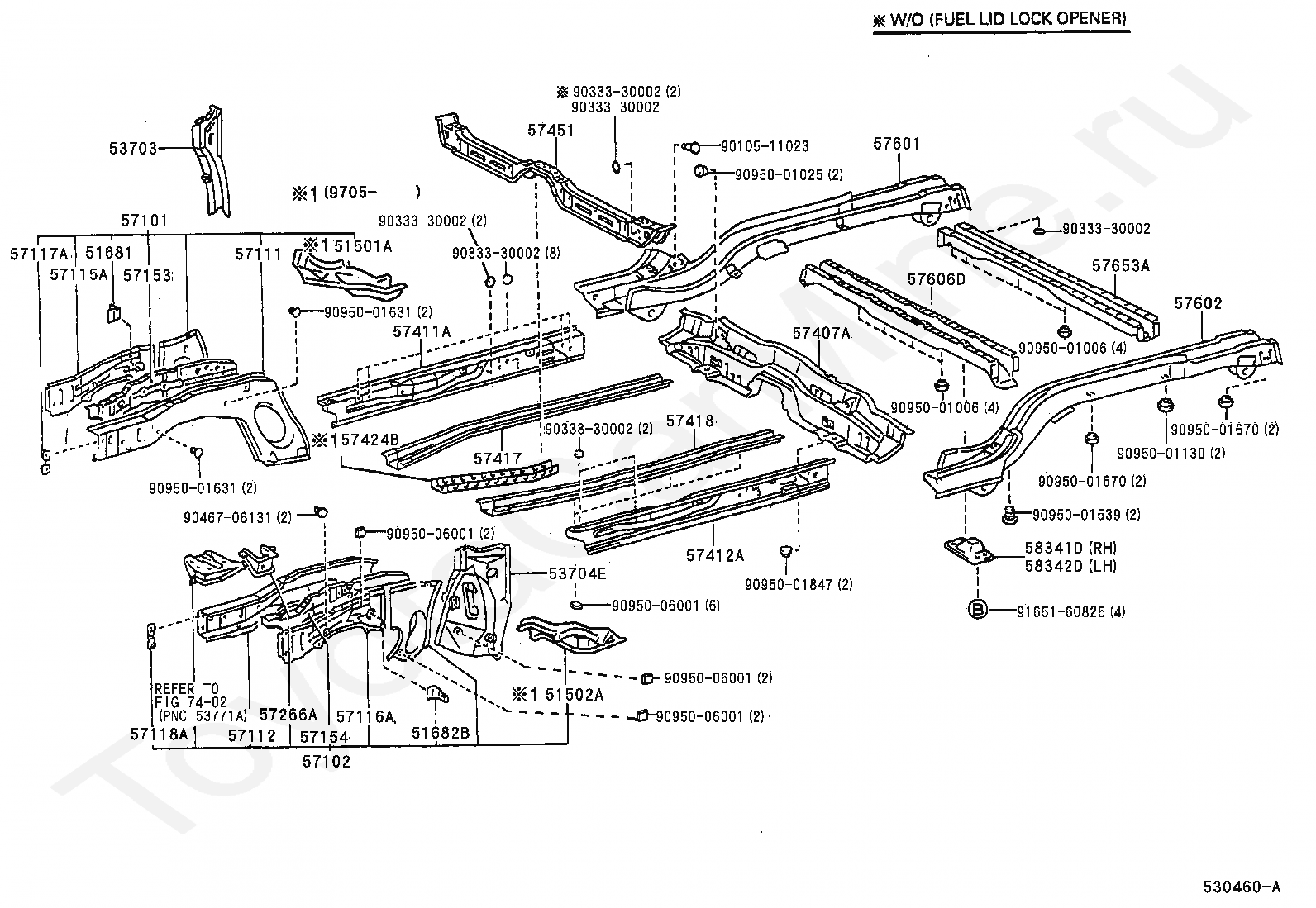

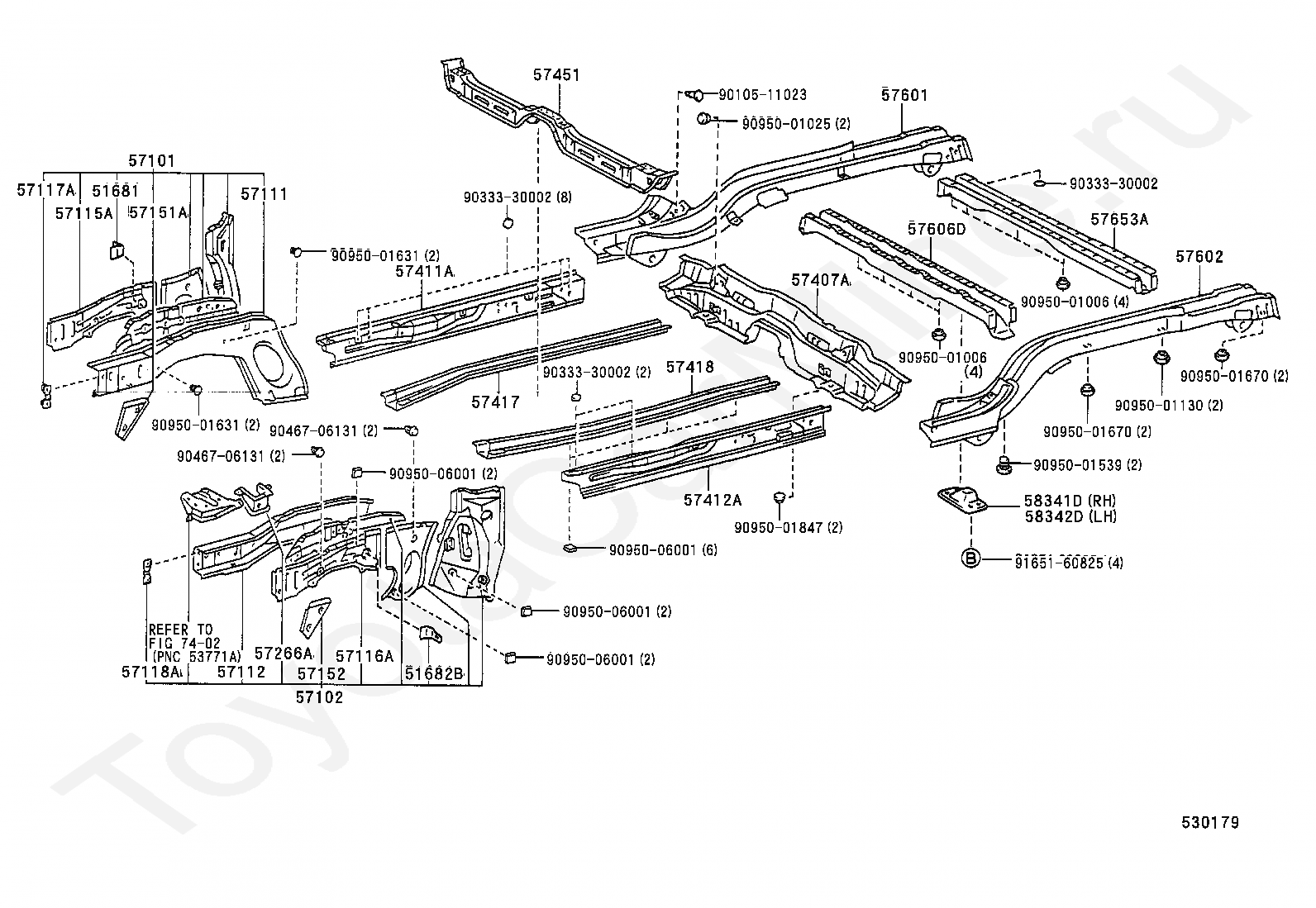

FLOOR SIDE MEMBER TOYOTA COROLLA SED/CP/WG, 1992/05 - 1999/10, 1,3 литра, 12 клапанов, фургон, XL SPECIFICATION, EE105, механика, МКПП, 5 скоростей

Каталог

Ближний Восток

Модель

COROLLA SED/CP/WG

Двигатель

1,3 литра, 12 клапанов

Кузов

фургон

Класс

XL SPECIFICATION

Фрейм

EE105

Трансмиссия

механика МКПП, 5 скоростей

Опции

правый руль GENERAL COUNTRIES

Код

Описание

51681

BRACKET, FLEXIBLE HOSE

51682B

BRACKET, FLEXIBLE HOSE, LH

57101

MEMBER SUB-ASSY, FRONT SIDE, RH

57102

MEMBER SUB-ASSY, FRONT SIDE, LH

57111

MEMBER, FRONT SIDE, RH

57112

MEMBER, FRONT SIDE, LH

57115A

PLATE, FRONT SIDE MEMBER, OUTER RH

57116A

PLATE, FRONT SIDE MEMBER, OUTER LH

57117A

REINFORCEMENT, FRONT BUMPER MOUNTING

57118A

REINFORCEMENT, FRONT BUMPER MOUNTING, LH

57151A

REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

57152

REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

57266A

BRACKET, ENGINE MOUNTING, LH

57407A

MEMBER SUB-ASSY, CENTER FLOOR CROSS

57411A

MEMBER, FLOOR SIDE, INNER RH

57412A

MEMBER, FLOOR SIDE, INNER LH

57417

REINFORCEMENT, FRONT FLOOR UNDER, RH

57418

REINFORCEMENT, FRONT FLOOR UNDER, LH

57451

MEMBER, FRONT FLOOR CROSS

57601

MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

57602

MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

57606D

MEMBER SUB-ASSY, REAR ABSORBER MOUNTING

57653A

MEMBER, REAR FLOOR CROSS, NO.2

58341D

BRACKET, REAR ABSORBER MOUNTING, NO.1 RH

58342D

BRACKET, REAR ABSORBER MOUNTING, NO.1 LH

7402

переход к группе запчастей

9010511023

Крепеж

9033330002

Крепеж

9046706131

Крепеж

9095001006

Крепеж

9095001025

Крепеж

9095001130

Крепеж

9095001539

Крепеж

9095001631

Крепеж

9095001670

Крепеж

9095001847

Крепеж

9095006001

Крепеж

9165160825

Крепеж

Код

Описание

51681

BRACKET, FLEXIBLE HOSE

51682B

BRACKET, FLEXIBLE HOSE, LH

57101

MEMBER SUB-ASSY, FRONT SIDE, RH

57102

MEMBER SUB-ASSY, FRONT SIDE, LH

57111

MEMBER, FRONT SIDE, RH

57112

MEMBER, FRONT SIDE, LH

57115A

PLATE, FRONT SIDE MEMBER, OUTER RH

57116A

PLATE, FRONT SIDE MEMBER, OUTER LH

57117A

REINFORCEMENT, FRONT BUMPER MOUNTING

57118A

REINFORCEMENT, FRONT BUMPER MOUNTING, LH

57151A

REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

57152

REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

57266A

BRACKET, ENGINE MOUNTING, LH

57407A

MEMBER SUB-ASSY, CENTER FLOOR CROSS

57411A

MEMBER, FLOOR SIDE, INNER RH

57412A

MEMBER, FLOOR SIDE, INNER LH

57417

REINFORCEMENT, FRONT FLOOR UNDER, RH

57418

REINFORCEMENT, FRONT FLOOR UNDER, LH

57451

MEMBER, FRONT FLOOR CROSS

57601

MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

57602

MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

57606D

MEMBER SUB-ASSY, REAR ABSORBER MOUNTING

57653A

MEMBER, REAR FLOOR CROSS, NO.2

58341D

BRACKET, REAR ABSORBER MOUNTING, NO.1 RH

58342D

BRACKET, REAR ABSORBER MOUNTING, NO.1 LH

7402

переход к группе запчастей

9010511023

Крепеж

9033330002

Крепеж

9046706131

Крепеж

9095001006

Крепеж

9095001025

Крепеж

9095001130

Крепеж

9095001539

Крепеж

9095001631

Крепеж

9095001670

Крепеж

9095001847

Крепеж

9095006001

Крепеж

9165160825

Крепеж

Код

Описание

51501A

REINFORCEMENT SUB-ASSY, FRONT SUSPENSION MEMBER, RH

51502A

REINFORCEMENT SUB-ASSY, FRONT SUSPENSION MEMBER, LH

51681

BRACKET, FLEXIBLE HOSE

51682B

BRACKET, FLEXIBLE HOSE, LH

57101

MEMBER SUB-ASSY, FRONT SIDE, RH

57102

MEMBER SUB-ASSY, FRONT SIDE, LH

57111

MEMBER, FRONT SIDE, RH

57112

MEMBER, FRONT SIDE, LH

57115A

PLATE, FRONT SIDE MEMBER, OUTER RH

57116A

PLATE, FRONT SIDE MEMBER, OUTER LH

57117A

REINFORCEMENT, FRONT BUMPER MOUNTING

57118A

REINFORCEMENT, FRONT BUMPER MOUNTING, LH

57153

REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

57154

REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH

57266A

BRACKET, ENGINE MOUNTING, LH

57407A

MEMBER SUB-ASSY, CENTER FLOOR CROSS

57411A

MEMBER, FLOOR SIDE, INNER RH

57412A

MEMBER, FLOOR SIDE, INNER LH

57417

REINFORCEMENT, FRONT FLOOR UNDER, RH

57418

REINFORCEMENT, FRONT FLOOR UNDER, LH

57424B

REINFORCEMENT, FRONT FLOOR UNDER, INNER LH

57451

MEMBER, FRONT FLOOR CROSS

57601

MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

57602

MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

57606D

MEMBER SUB-ASSY, REAR ABSORBER MOUNTING

57653A

MEMBER, REAR FLOOR CROSS, NO.2

58341D

BRACKET, REAR ABSORBER MOUNTING, NO.1 RH

58342D

BRACKET, REAR ABSORBER MOUNTING, NO.1 LH

7402

переход к группе запчастей

9010511023

Крепеж

9011506243

Крепеж

9033330002

Крепеж

9046706131

Крепеж

9095001006

Крепеж

9095001025

Крепеж

9095001130

Крепеж

9095001539

Крепеж

9095001631

Крепеж

9095001670

Крепеж

9095001847

Крепеж

9095006001

Крепеж

9165160825

Крепеж

Код

Описание

51501A

REINFORCEMENT SUB-ASSY, FRONT SUSPENSION MEMBER, RH

51502A

REINFORCEMENT SUB-ASSY, FRONT SUSPENSION MEMBER, LH

51681

BRACKET, FLEXIBLE HOSE

51682B

BRACKET, FLEXIBLE HOSE, LH

53703

APRON SUB-ASSY, FRONT FENDER, REAR RH

53704E

APRON SUB-ASSY, FRONT FENDER, REAR LH

57101

MEMBER SUB-ASSY, FRONT SIDE, RH

57102

MEMBER SUB-ASSY, FRONT SIDE, LH

57111

MEMBER, FRONT SIDE, RH

57112

MEMBER, FRONT SIDE, LH

57115A

PLATE, FRONT SIDE MEMBER, OUTER RH

57116A

PLATE, FRONT SIDE MEMBER, OUTER LH

57117A

REINFORCEMENT, FRONT BUMPER MOUNTING

57118A

REINFORCEMENT, FRONT BUMPER MOUNTING, LH

57153

REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

57154

REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH

57266A

BRACKET, ENGINE MOUNTING, LH

57407A

MEMBER SUB-ASSY, CENTER FLOOR CROSS

57411A

MEMBER, FLOOR SIDE, INNER RH

57412A

MEMBER, FLOOR SIDE, INNER LH

57417

REINFORCEMENT, FRONT FLOOR UNDER, RH

57418

REINFORCEMENT, FRONT FLOOR UNDER, LH

57424B

REINFORCEMENT, FRONT FLOOR UNDER, INNER LH

57451

MEMBER, FRONT FLOOR CROSS

57601

MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

57602

MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

57606D

MEMBER SUB-ASSY, REAR ABSORBER MOUNTING

57653A

MEMBER, REAR FLOOR CROSS, NO.2

58341D

BRACKET, REAR ABSORBER MOUNTING, NO.1 RH

58342D

BRACKET, REAR ABSORBER MOUNTING, NO.1 LH

7402

переход к группе запчастей

9010511023

Крепеж

9033330002

Крепеж

9046706131

Крепеж

9095001006

Крепеж

9095001025

Крепеж

9095001130

Крепеж

9095001539

Крепеж

9095001631

Крепеж

9095001670

Крепеж

9095001847

Крепеж

9095006001

Крепеж

9165160825

Крепеж
