Каталог
Ближний ВостокМодель
COROLLA SED/CP/WGДвигатель
1,6 литра, 16 клапанов, DOHCКузов
седанКласс
GL SPECIFICATIONФрейм
AE101Трансмиссия
автомат АКПП, 3 ступениОпции
левый руль GENERAL COUNTRIES

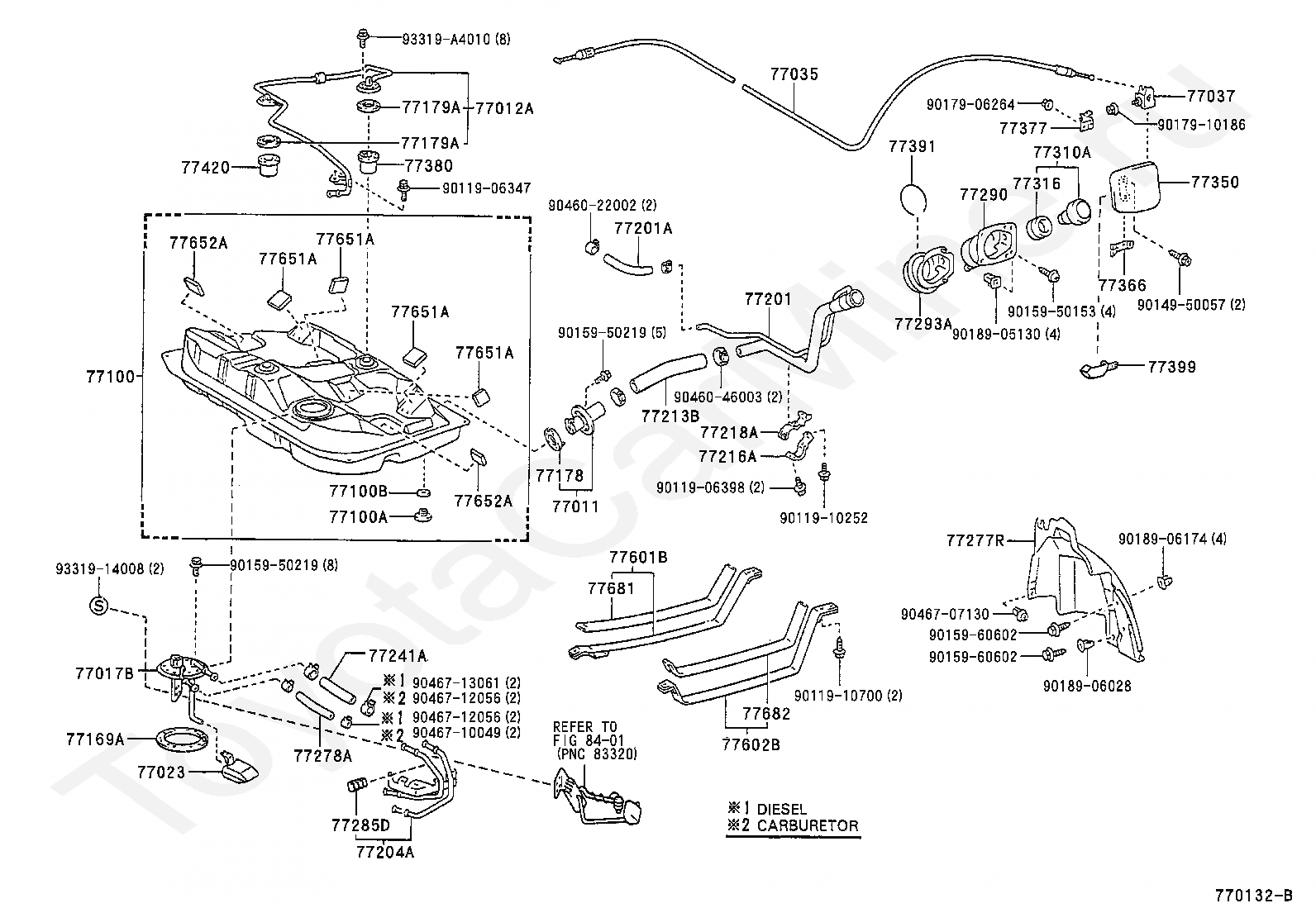

Код
Описание
77011
PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77012A
TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77017B
TUBE SUB-ASSY, FUEL TANK VENT
77023
FILTER SUB-ASSY, FUEL SUCTION TUBE
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037
LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100
TANK ASSY, FUEL
77100A
PLUG(FOR FUEL TANK)
77100B
GASKET(FOR FUEL TANK)
77169A
GASKET, FUEL SUCTION TUBE SET
77178
GASKET, FUEL TANK FILLER PIPE, LOWER
77179A
GASKET, FUEL TANK BREATHER TUBE
77201
PIPE SUB-ASSY, FUEL TANK INLET
77201A
HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77213B
HOSE, FUEL TANK TO FILLER PIPE
77216A
SUPPORT, FUEL TANK FILLER PIPE, NO.1
77218A
SUPPORT, FUEL TANK FILLER PIPE, NO.3
77241A
HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77278A
HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77293A
SHIELD, FUEL TANK FILLER PIPE, NO.3
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77380
VALVE ASSY, FUEL CUT OFF
77391
RING, FUEL INLET BOX
77399
HANGER, FUEL TANK CAP
77420
VALVE ASSY, FUEL CUT OFF, NO.2
77601B
BAND SUB-ASSY, FUEL TANK, NO.1 RH
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77651A
CUSHION, FUEL TANK, NO.1
77652A
CUSHION, FUEL TANK, NO.2
77681
SEAT, FUEL TANK BAND, RH
77682
SEAT, FUEL TANK BAND, LH
8401
переход к группе запчастей
9011906347
Крепеж
9011906398
Крепеж
9011910252
Крепеж
9011910700
Крепеж
9014950057
Крепеж
9015940155
Крепеж
9015950153
Крепеж
9015950219
Крепеж
9015960500
Крепеж
9017906264
Крепеж
9017910186
Крепеж
9018905130
Крепеж
9018906028
Крепеж
9018906174
Крепеж
9046022002
Крепеж
9046046003
Крепеж
9046707130
Крепеж
9046710049
Крепеж
9046712056
Крепеж
9046713061
Крепеж
9331914008
Крепеж
Код
Описание
77011
PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77012A
TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77017B
TUBE SUB-ASSY, FUEL TANK VENT
77023
FILTER SUB-ASSY, FUEL SUCTION TUBE
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037
LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100
TANK ASSY, FUEL
77100A
PLUG(FOR FUEL TANK)
77100B
GASKET(FOR FUEL TANK)
77169A
GASKET, FUEL SUCTION TUBE SET
77178
GASKET, FUEL TANK FILLER PIPE, LOWER
77179A
GASKET, FUEL TANK BREATHER TUBE
77201
PIPE SUB-ASSY, FUEL TANK INLET
77201A
HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77204A
TUBE, FUEL TANK RETURN
77213B
HOSE, FUEL TANK TO FILLER PIPE
77216A
SUPPORT, FUEL TANK FILLER PIPE, NO.1
77218A
SUPPORT, FUEL TANK FILLER PIPE, NO.3
77241A
HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77278A
HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
77285D
CLAMP, FUEL TUBE, NO.1
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77293A
SHIELD, FUEL TANK FILLER PIPE, NO.3
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77380
VALVE ASSY, FUEL CUT OFF
77391
RING, FUEL INLET BOX
77399
HANGER, FUEL TANK CAP
77420
VALVE ASSY, FUEL CUT OFF, NO.2
77601B
BAND SUB-ASSY, FUEL TANK, NO.1 RH
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77651A
CUSHION, FUEL TANK, NO.1
77652A
CUSHION, FUEL TANK, NO.2
77681
SEAT, FUEL TANK BAND, RH
77682
SEAT, FUEL TANK BAND, LH
8401
переход к группе запчастей
9011906347
Крепеж
9011906398
Крепеж
9011910252
Крепеж
9011910700
Крепеж
9014950057
Крепеж
9015950153
Крепеж
9015950219
Крепеж
9015960602
Крепеж
9017906264
Крепеж
9017910186
Крепеж
9018905130
Крепеж
9018906028
Крепеж
9018906174
Крепеж
9046022002
Крепеж
9046046003
Крепеж
9046707130
Крепеж
9046710049
Крепеж
9046712056
Крепеж
9046713061
Крепеж
9331914008
Крепеж
93319A4010
Крепеж

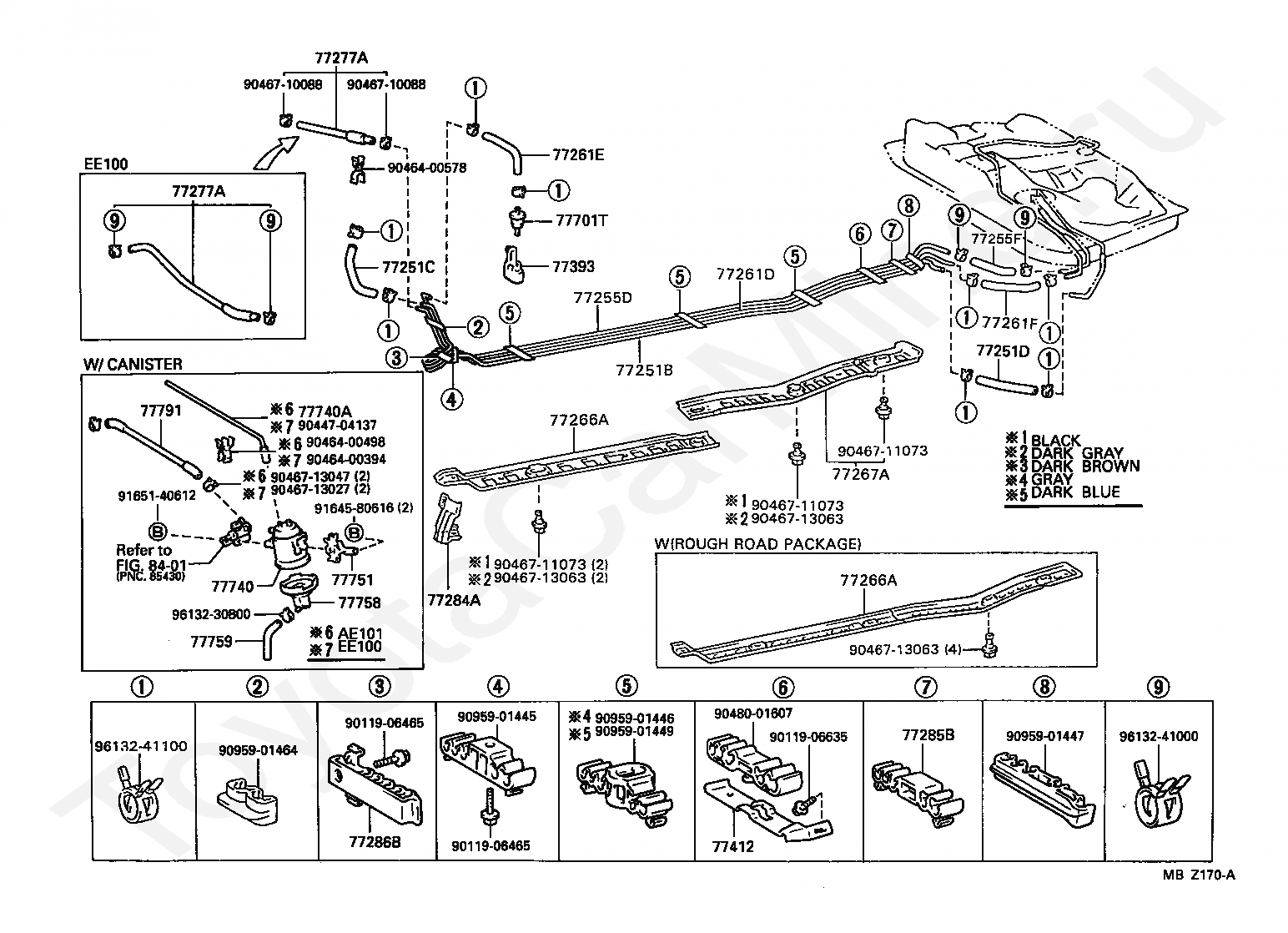

Код
Описание
77251B
TUBE, FUEL MAIN
77251C
HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77251D
HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
77255D
TUBE, FUEL RETURN
77255F
HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
77261D
TUBE, FUEL TANK TO CANISTER
77261E
HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77261F
HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
77266A
PROTECTOR, FUEL TUBE, NO.1
77267A
PROTECTOR, FUEL TUBE, NO.2
77277A
HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
77284A
PROTECTOR, FUEL TUBE, NO.3
77285B
CLAMP, FUEL TUBE W/GROMMET, NO.1
77286B
CLAMP, FUEL TUBE W/GROMMET, NO.2
77393
PROTECTOR, CHECK VALVE
77412
SUPPORT, FUEL TUBE GROMMET, NO.2
77701T
VALVE, CHECK (FOR MAIN FUEL TANK)
77740
CANISTER ASSY, CHARCOAL
77740A
HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
77751
BRACKET, CHARCOAL CANISTER BASE
77758
CAP, CHARCOAL CANISTER
77759
HOSE, CHARCOAL CANISTER
77791
HOSE, OUTER VENT VALVE TO CARBURETOR
8401
переход к группе запчастей
9011906465
Крепеж
9011906635
Крепеж
9044704137
Крепеж
9046400394
Крепеж
9046400498
Крепеж
9046400578
Крепеж
9046710088
Крепеж
9046711073
Крепеж
9046713027
Крепеж
9046713047
Крепеж
9046713063
Крепеж
9048001607
Крепеж
9095901445
Крепеж
9095901446
Крепеж
9095901447
Крепеж
9095901449
Крепеж
9095901464
Крепеж
9164580616
Крепеж
9165140612
Крепеж
9613230800
Крепеж
9613241000
Крепеж
9613241100
Крепеж
