VANE PUMP & RESERVOIR (POWER STEERING) TOYOTA COROLLA SED/CP/WG, 1991/08 - 1995/05, 1,5 литра, 16 клапанов, DOHC, EFI, седан, GLI TYPE, AE100, механика, МКПП, 5 скоростей

Каталог

Ближний Восток

Модель

COROLLA SED/CP/WG

Двигатель

1,5 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Класс

GLI TYPE

Фрейм

AE100

Трансмиссия

механика МКПП, 5 скоростей

Опции

правый руль GENERAL COUNTRIES

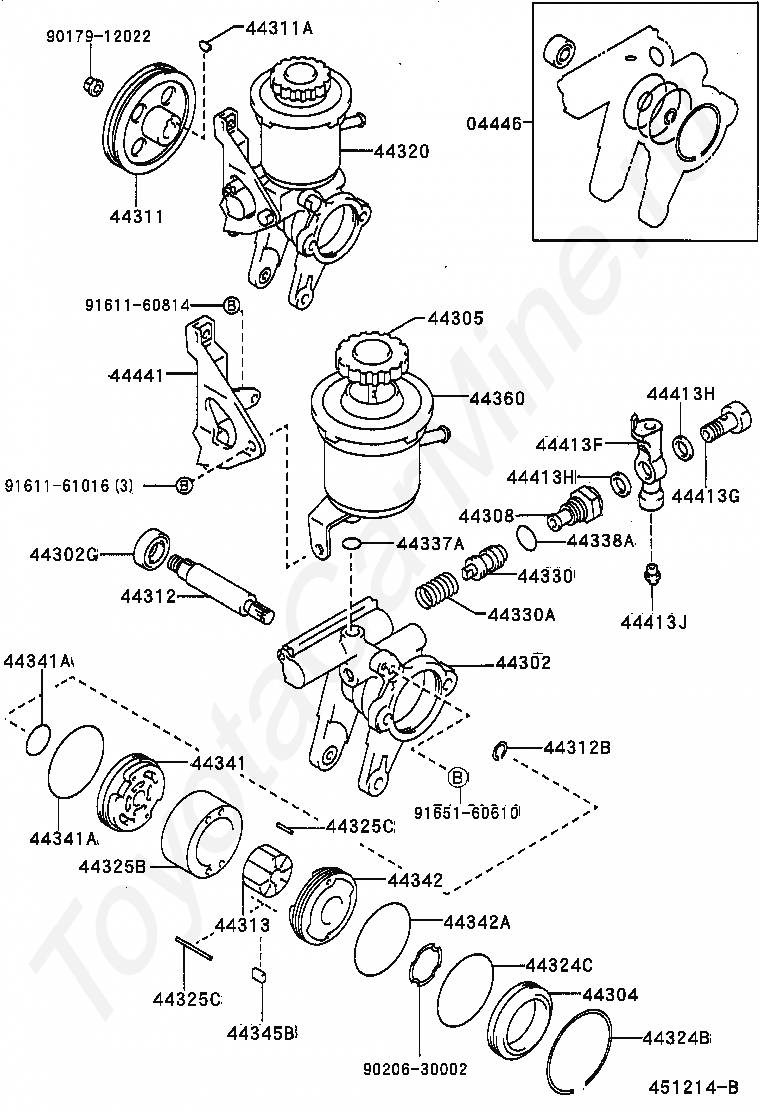

Код

Описание

04446

GASKET KIT, POWER STEERING PUMP

44302

HOUSING SUB-ASSY, VANE PUMP, FRONT

44302G

SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

44304

HOUSING SUB-ASSY, VANE PUMP, REAR

44305

CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

44308

UNION SUB-ASSY, PRESSURE PORT

44311

PULLEY, VANE PUMP

44311A

KEY, VANE PUMP PULLEY

44312

SHAFT, VANE PUMP

44312B

RING, SNAP, NO.1(FOR VANE PUMP SHAFT)

44313

ROTOR, VANE PUMP

44320

PUMP ASSY, VANE

44324B

RING, HOLE SNAP(FOR PUMP HOUSING REAR)

44324C

RING, O(FOR PUMP HOUSING REAR)

44325B

RING, VANE PUMP CAM

44325C

PIN, STRAIGHT(FOR VANE PUMP CAM RING)

44330

VALVE ASSY, FLOW CONTROL

44330A

SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

44337A

RING, O(FOR POWER STEERING SUCTION PORT)

44338A

RING, O(FOR PRESSURE PORT UNION)

44341

PLATE, VANE PUMP SIDE, FRONT

44341A

RING, O(FOR VANE PUMP FRONT SIDE PLATE)

44342

PLATE, VANE PUMP SIDE, REAR

44342A

RING, O(FOR VANE PUMP SIDE PLATE REAR)

44345B

PLATE, VANE PUMP

44360

RESERVOIR ASSY, VANE PUMP OIL

44413F

TUBE, PRESSURE FEED, NO.2

44413G

BOLT, UNION(FOR PRESSURE FEED TUBE NO.2)

44413H

GASKET(FOR PRESSURE FEED TUBE NO.2)

44413J

SEAT, UNION(FOR PRESSURE FEED TUBE NO.2)

44441

BRACKET, PUMP, FRONT

9017912022

Крепеж

9020630002

Крепеж

9161160814

Крепеж

9161161016

Крепеж

9165160610

Крепеж

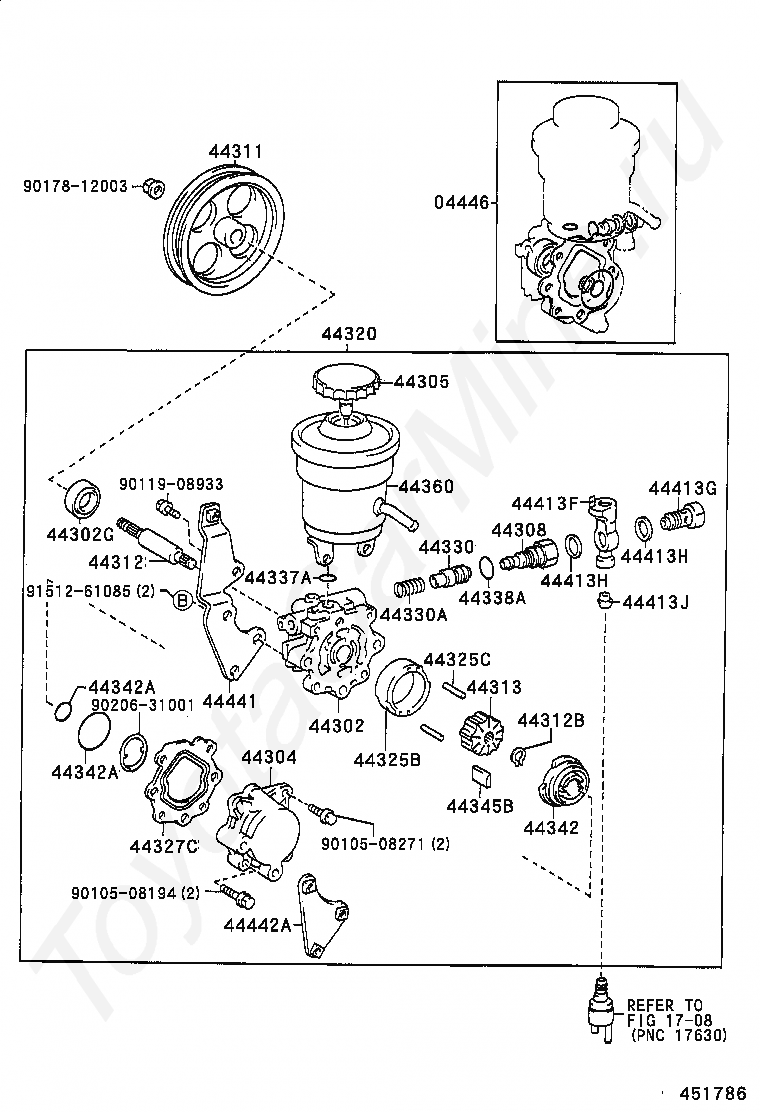

Код

Описание

04446

GASKET KIT, POWER STEERING PUMP

1708

переход к группе запчастей

44302

HOUSING SUB-ASSY, VANE PUMP, FRONT

44302G

SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

44304

HOUSING SUB-ASSY, VANE PUMP, REAR

44305

CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

44308

UNION SUB-ASSY, PRESSURE PORT

44311

PULLEY, VANE PUMP

44312

SHAFT, VANE PUMP

44312B

RING, SNAP, NO.1(FOR VANE PUMP SHAFT)

44313

ROTOR, VANE PUMP

44320

PUMP ASSY, VANE

44325B

RING, VANE PUMP CAM

44325C

PIN, STRAIGHT(FOR VANE PUMP CAM RING)

44327C

GASKET, VANE PUMP HOUSING

44330

VALVE ASSY, FLOW CONTROL

44330A

SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

44337A

RING, O(FOR POWER STEERING SUCTION PORT)

44338A

RING, O(FOR PRESSURE PORT UNION)

44342

PLATE, VANE PUMP SIDE, REAR

44342A

RING, O(FOR VANE PUMP SIDE PLATE REAR)

44345B

PLATE, VANE PUMP

44360

RESERVOIR ASSY, VANE PUMP OIL

44413F

TUBE, PRESSURE FEED, NO.2

44413G

BOLT, UNION(FOR PRESSURE FEED TUBE NO.2)

44413H

GASKET(FOR PRESSURE FEED TUBE NO.2)

44413J

SEAT, UNION(FOR PRESSURE FEED TUBE NO.2)

44441

BRACKET, PUMP, FRONT

44442A

BRACKET, VANE PUMP, REAR

9010508194

Крепеж

9010508271

Крепеж

9011908933

Крепеж

9017812003

Крепеж

9020631001

Крепеж

9151261085

Крепеж

VANE PUMP & RESERVOIR (POWER STEERING) TOYOTA COROLLA SED/CP/WG, 1991/08 - 1995/05, 1,5 литра, 16 клапанов, DOHC, EFI, седан, GLI TYPE, AE100, механика, МКПП, 5 скоростей
