Каталог
ЕвропаМодель
COROLLA SED/WG (JPP)Двигатель
1,6 литра, 16 клапанов, DOHC, EFIКузов
седанКласс
SOL TYPEФрейм
ZZE121Трансмиссия
автомат АКПП, 4 ступениОпции
JAPAN PRODUCT левый руль HIGH EFFICIENCY TWIN CAM

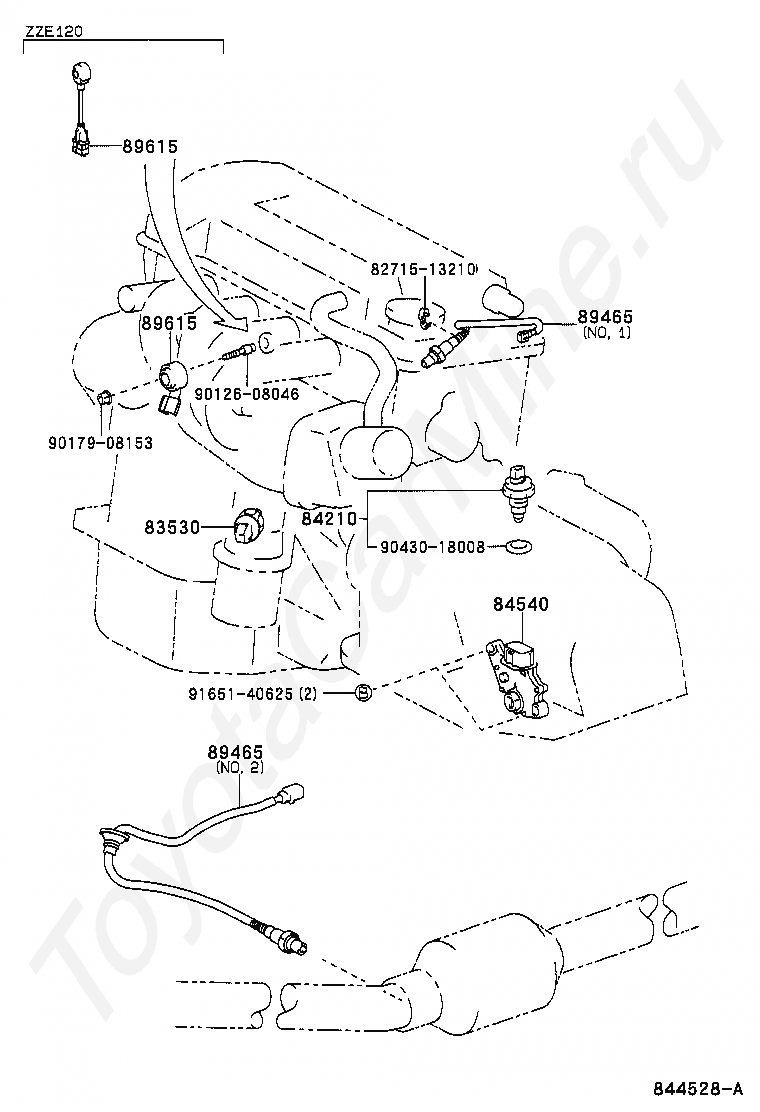

Код
Описание
8271513210
Крепеж
83530
SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84210
SWITCH ASSY, BACK-UP LAMP
84540
SWITCH ASSY, NEUTRAL START
89465
SENSOR, OXYGEN
89615
SENSOR, KNOCK CONTROL
9012608046
Крепеж
9017908153
Крепеж
9043018008
Крепеж
9165140625
Крепеж

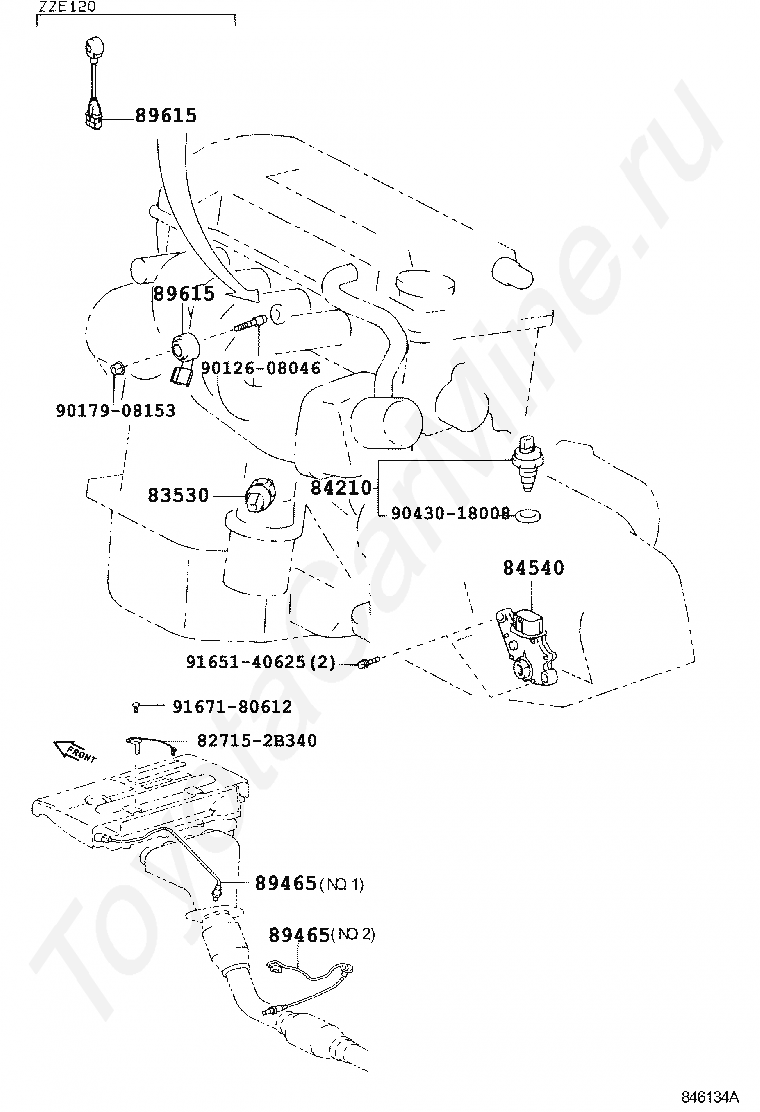

Код
Описание
827152B340
Крепеж
83530
SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84210
SWITCH ASSY, BACK-UP LAMP
84540
SWITCH ASSY, NEUTRAL START
89465
SENSOR, OXYGEN
89615
SENSOR, KNOCK CONTROL
9012608046
Крепеж
9017908153
Крепеж
9043018008
Крепеж
9165140625
Крепеж
9167180612
Крепеж

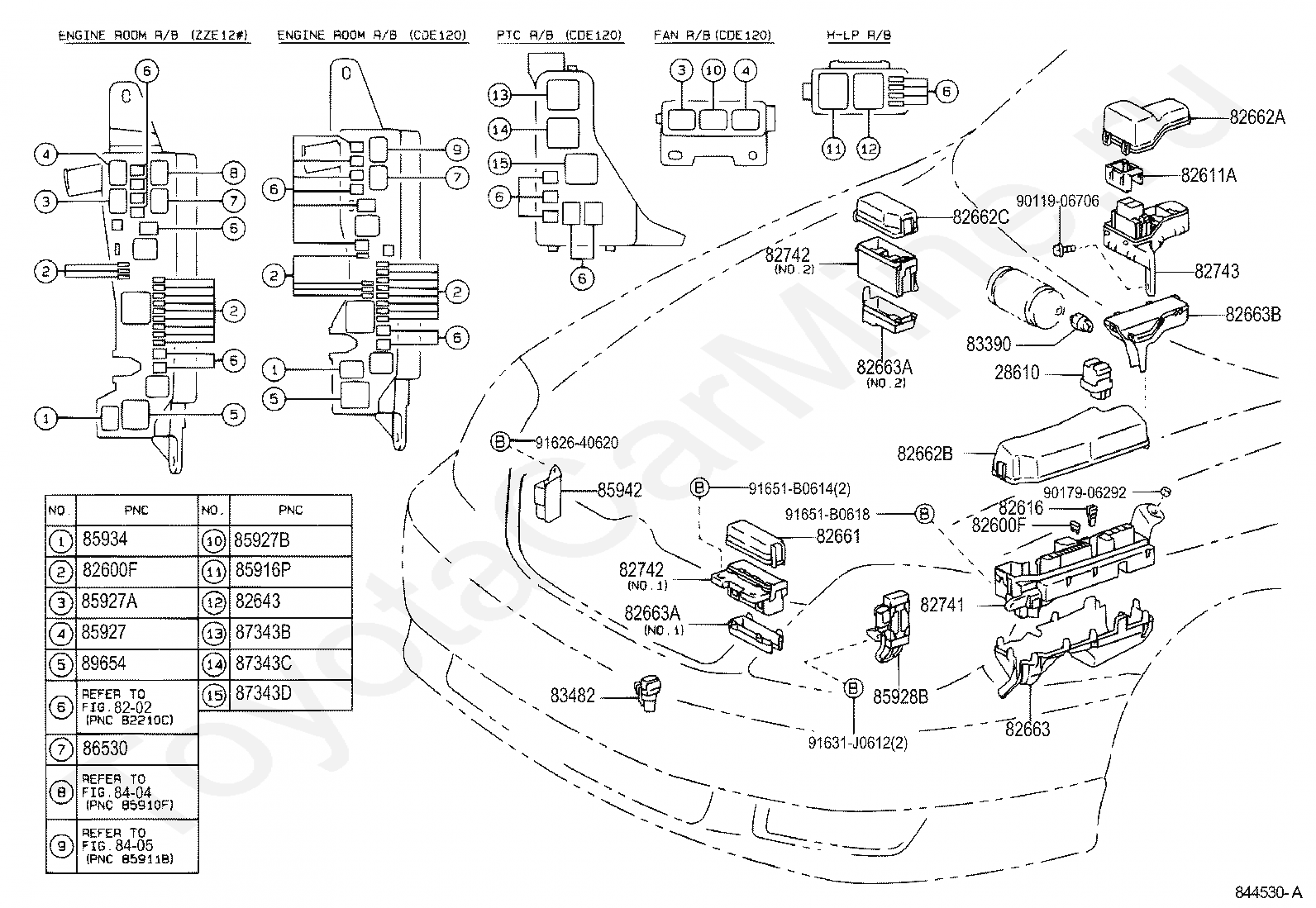

Код
Описание
28610
RELAY ASSY, INTAKE HEATER OR GLOW PLUG
8202
переход к группе запчастей
82600F
FUSE, FUSE BLOCK
82611A
COVER, FUSE BLOCK, NO.2
82616
PULLER, FUSE
82643
RELAY, DIM-DIP LAMP
82661
COVER, RELAY BLOCK, NO.1
82662A
COVER, RELAY BLOCK, UPPER, NO.1
82662B
COVER, RELAY BLOCK, UPPER, NO.2
82662C
COVER, RELAY BLOCK, UPPER, NO.3
82663
COVER, RELAY BLOCK, LOWER
82663A
COVER, RELAY BLOCK, LOWER, NO.2
82663B
COVER, RELAY BLOCK, LOWER, NO.3
82741
BLOCK, ENGINE ROOM RELAY
82742
BLOCK, ENGINE ROOM RELAY, NO.2
82743
BLOCK, ENGINE ROOM RELAY, NO.3
83390
SWITCH ASSY, VACUUM WARNING
83482
SENSOR, OUTER AMBIENT TEMPERATURE
8404
переход к группе запчастей
8405
переход к группе запчастей
85916P
RELAY, HEADLAMP
85927
RELAY, COOLING FAN
85927A
RELAY, COOLING FAN, NO.2
85927B
RELAY, COOLING FAN, NO.3
85928B
RESISTOR, COOLING FAN
85934
RELAY, MAGNET-CLUTCH
85942
RELAY, HEADLAMP CLEANER CONTROL
86530
RELAY ASSY, HORN
87343B
RELAY, HEATER SUB, NO.1(FOR GLOW PLUG HEATER)
87343C
RELAY, HEATER SUB, NO.2(FOR GLOW PLUG HEATER)
87343D
RELAY, HEATER SUB, NO.3(FOR GLOW PLUG HEATER)
89654
RELAY, POWER STEERING
9011906706
Крепеж
9017906292
Крепеж
9162640620
Крепеж
91631J0612
Крепеж
91651B0614
Крепеж
91651B0618
Крепеж

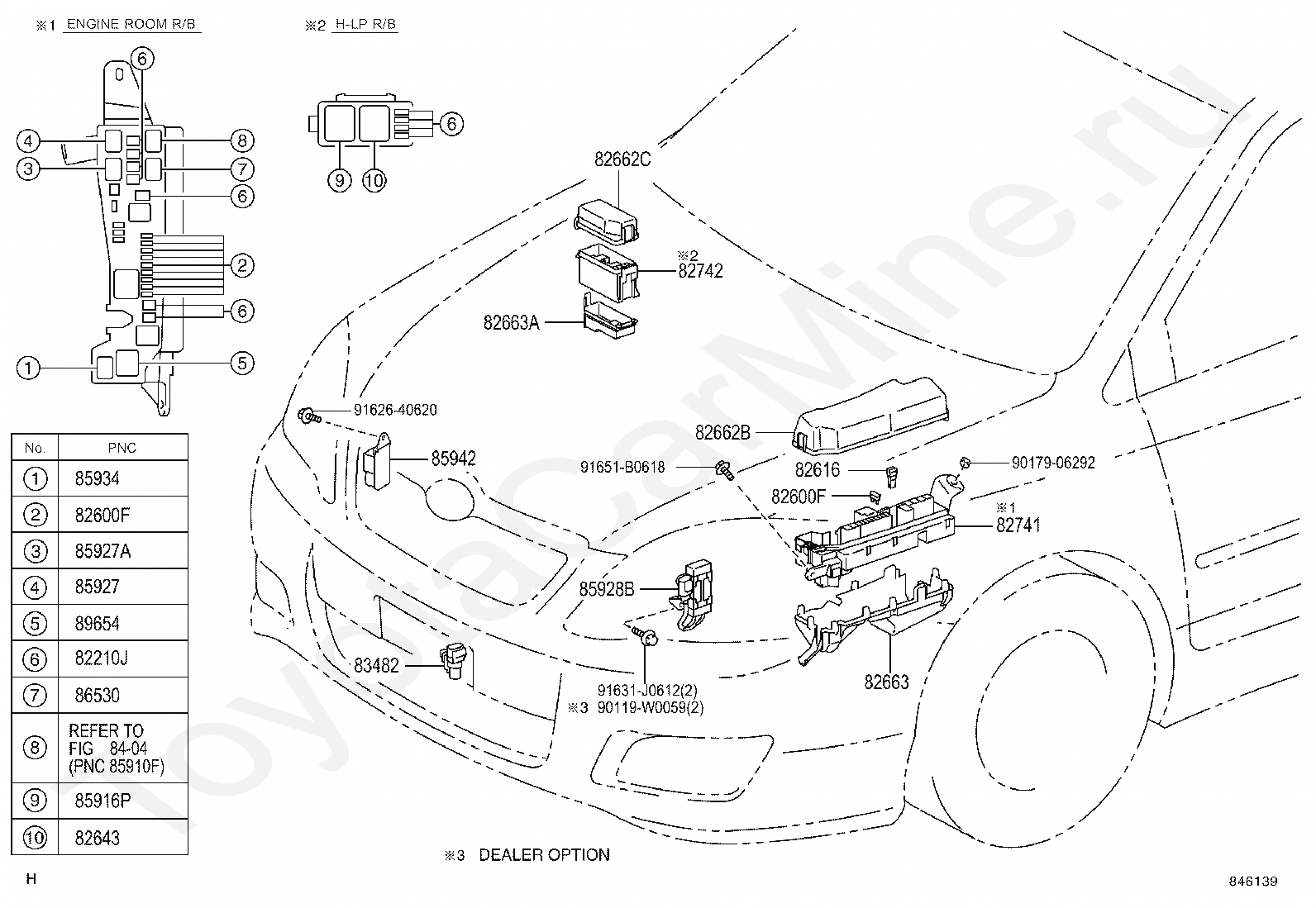

Код
Описание
82210J
FUSIBLE LINK
82600F
FUSE, FUSE BLOCK
82616
PULLER, FUSE
82643
RELAY, DIM-DIP LAMP
82662B
COVER, RELAY BLOCK, UPPER, NO.2
82662C
COVER, RELAY BLOCK, UPPER, NO.3
82663
COVER, RELAY BLOCK, LOWER
82663A
COVER, RELAY BLOCK, LOWER, NO.2
82741
BLOCK, ENGINE ROOM RELAY
82742
BLOCK, ENGINE ROOM RELAY, NO.2
83482
SENSOR, OUTER AMBIENT TEMPERATURE
8404
переход к группе запчастей
85916P
RELAY, HEADLAMP
85927
RELAY, COOLING FAN
85927A
RELAY, COOLING FAN, NO.2
85928B
RESISTOR, COOLING FAN
85934
RELAY, MAGNET-CLUTCH
85942
RELAY, HEADLAMP CLEANER CONTROL
86530
RELAY ASSY, HORN
89654
RELAY, POWER STEERING
90119W0059
Крепеж
9017906292
Крепеж
9162640620
Крепеж
91631J0612
Крепеж
91651B0618
Крепеж

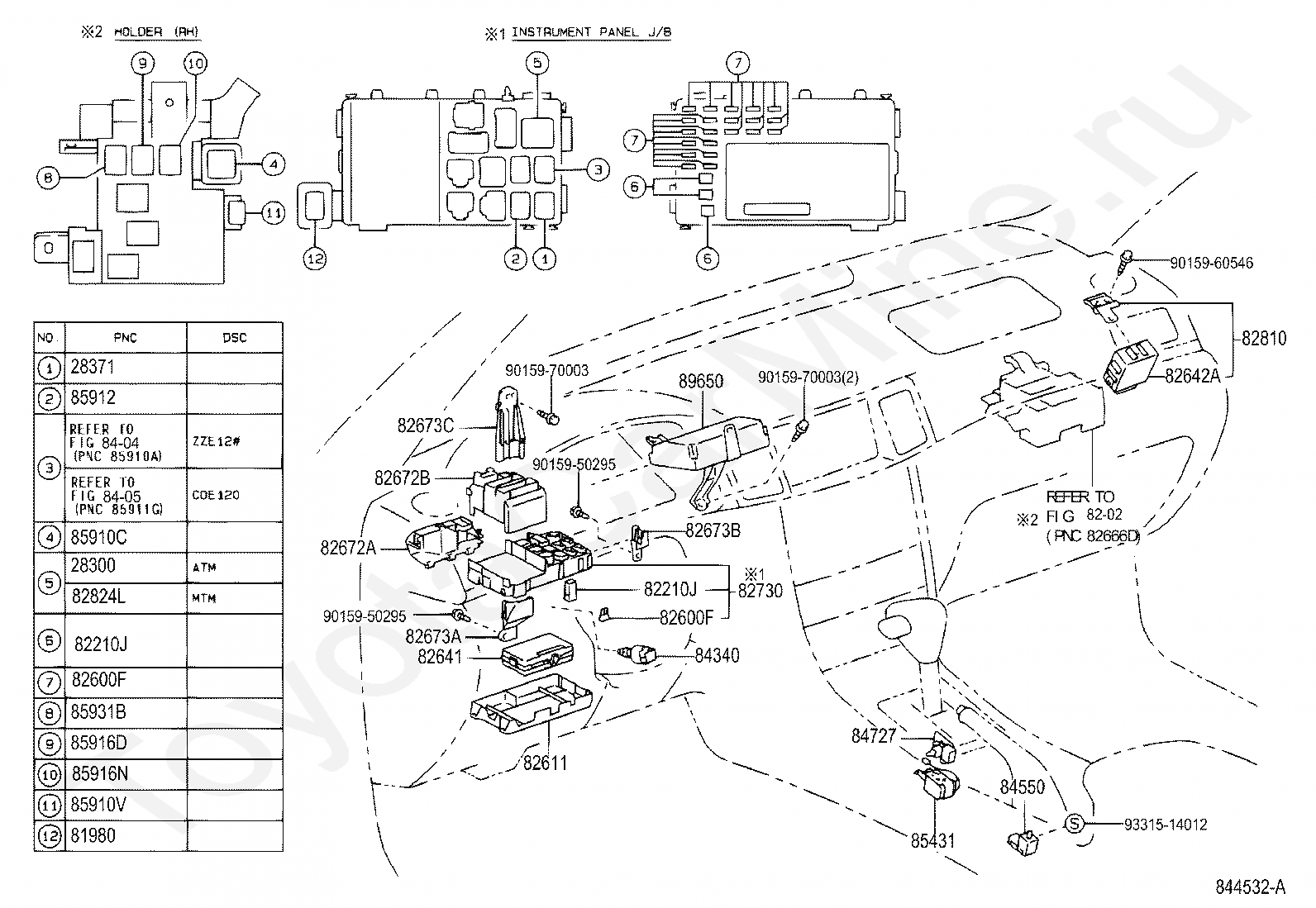

Код
Описание
28300
RELAY ASSY, STARTER
28371
RELAY, IGNITION, NO.1
81980
FLASHER ASSY, TURN SIGNAL
8202
переход к группе запчастей
82210J
FUSIBLE LINK
82600F
FUSE, FUSE BLOCK
82611
COVER, FUSE BLOCK
82641
RELAY, INTEGRATION NO.1
82642A
RELAY, RUNNING LIGHT
82672A
COVER, JUNCTION BLOCK
82672B
COVER, JUNCTION BLOCK
82673A
BRACKET, JUNCTION BLOCK
82673B
BRACKET, JUNCTION BLOCK
82673C
BRACKET, JUNCTION BLOCK
82730
BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82810
RELAY ASSY, RUNNING LIGHT
82824L
PIN, SHORT
8404
переход к группе запчастей
8405
переход к группе запчастей
84340
SWITCH ASSY, STOP LAMP
84550
SWITCH ASSY, PARKING BRAKE
84727
SWITCH, SHIFT LOCK CONTROL
85431
SOLENOID, SHIFT LOCK
85910C
RELAY ASSY (FOR HEATER BLOWER MOTOR)
85910V
RELAY, SEAT HEATER
85912
RELAY, DEFOGGER
85916D
RELAY, FOG LAMP
85916N
RELAY, TAIL LAMP
85931B
RELAY, FUEL HEATER
89650
COMPUTER ASSY, POWER STEERING
9015950295
Крепеж
9015960546
Крепеж
9015970003
Крепеж
9331514012
Крепеж

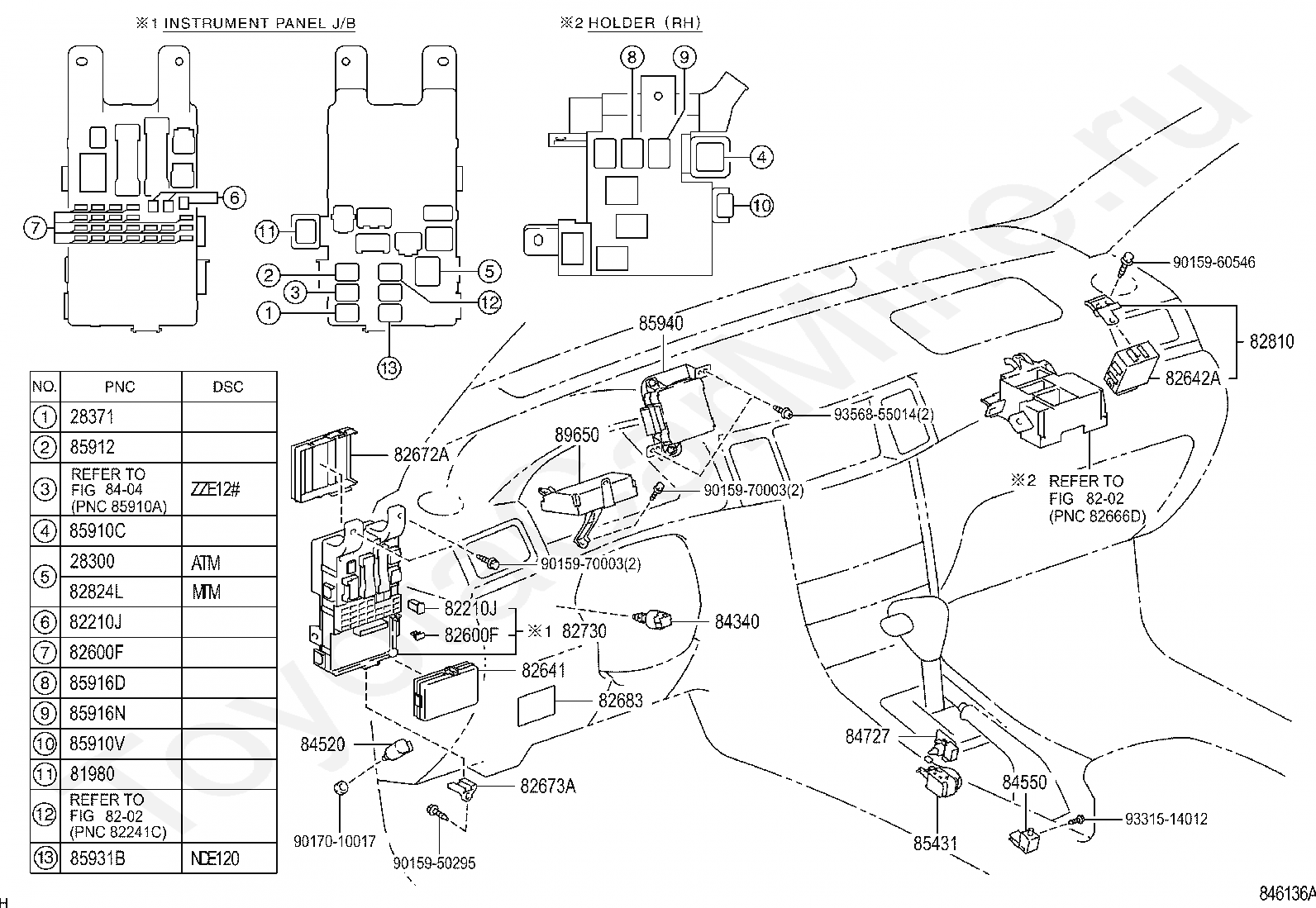

Код
Описание
28300
RELAY ASSY, STARTER
28371
RELAY, IGNITION, NO.1
81980
FLASHER ASSY, TURN SIGNAL
8202
переход к группе запчастей
82210J
FUSIBLE LINK
82600F
FUSE, FUSE BLOCK
82641
RELAY, INTEGRATION NO.1
82642A
RELAY, RUNNING LIGHT
82672A
COVER, JUNCTION BLOCK
82673A
BRACKET, JUNCTION BLOCK
82683
PLATE, FUSE BLOCK CAUTION
82730
BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82810
RELAY ASSY, RUNNING LIGHT
82824L
PIN, SHORT
8404
переход к группе запчастей
84340
SWITCH ASSY, STOP LAMP
84520
SWITCH ASSY, CLUTCH START
84550
SWITCH ASSY, PARKING BRAKE
84727
SWITCH, SHIFT LOCK CONTROL
85431
SOLENOID, SHIFT LOCK
85910C
RELAY ASSY (FOR HEATER BLOWER MOTOR)
85910V
RELAY, SEAT HEATER
85912
RELAY, DEFOGGER
85916D
RELAY, FOG LAMP
85916N
RELAY, TAIL LAMP
85931B
RELAY, FUEL HEATER
85940
RELAY ASSY, WINDSHIELD WIPER
89650
COMPUTER ASSY, POWER STEERING
9015950295
Крепеж
9015960546
Крепеж
9015970003
Крепеж
9017010017
Крепеж
9331514012
Крепеж
9356855014
Крепеж

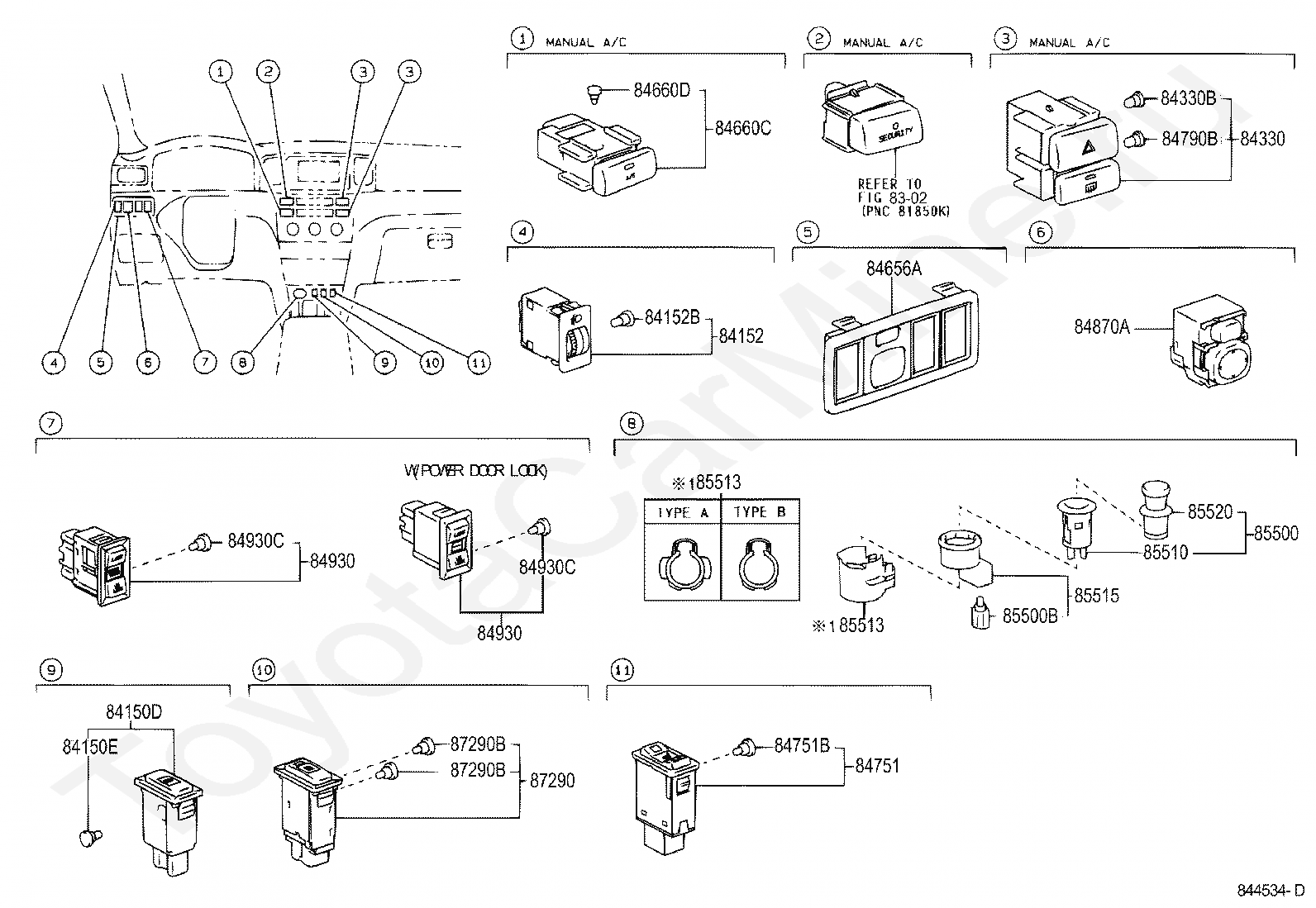

Код
Описание
8302
переход к группе запчастей
84150D
SWITCH ASSY, HEADLAMP CLEANER
84150E
BULB, HEADLAMP CLEANER SWITCH
84152
SWITCH, HEADLAMP LEVELING
84152B
BULB (FOR HEADLAMP LEVELING SWITCH)
84330
SWITCH ASSY, HAZARD WARNING SIGNAL
84330B
BULB, HAZARD WARNING SIGNAL SWITCH
84656A
BEZEL, SWITCH
84660C
SWITCH, COOLER
84660D
BULB(FOR COOLER SWITCH)
84751
SWITCH, SEAT HEATER
84751B
BULB, SEAT HEATER SWITCH
84790B
BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84870A
SWITCH ASSY, OUTER MIRROR
84930
SWITCH ASSY, DOOR CONTROL
84930C
BULB(FOR DOOR CONTROL SWITCH)
85500
LIGHTER ASSY, CIGARETTE
85500B
BULB, CIGARETTE LIGHTER
85510
SOCKET & RETAINER ASSY, CIGARLIGHTER
85513
COVER, CIGARETTE LIGHTER
85515
STAY, CIGARETTE LIGHTER BEZEL
85520
KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
87290
SWITCH ASSY, HEATER
87290B
BULB (FOR HEATER SWITCH)

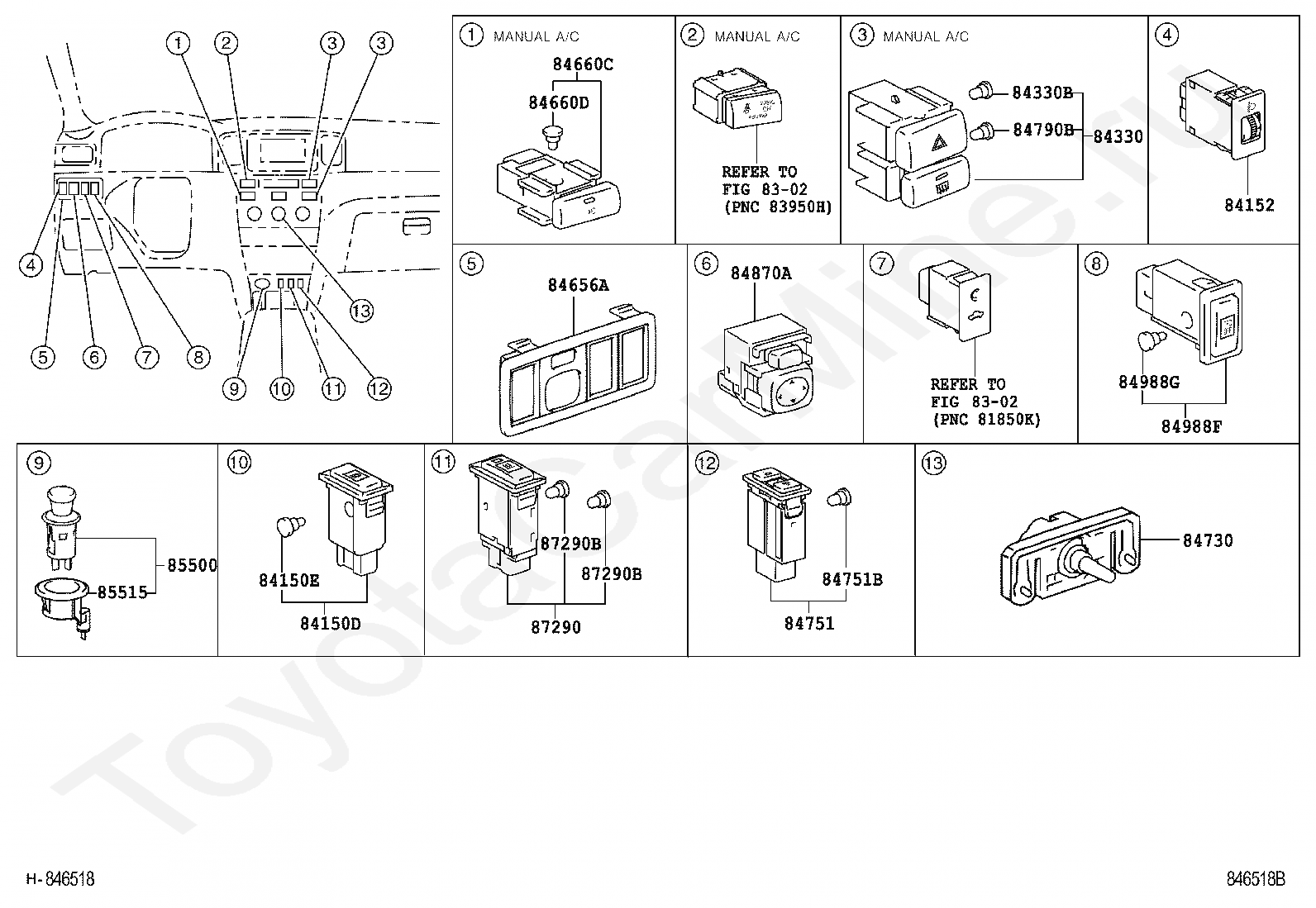

Код
Описание
8302
переход к группе запчастей
84150D
SWITCH ASSY, HEADLAMP CLEANER
84150E
BULB, HEADLAMP CLEANER SWITCH
84152
SWITCH, HEADLAMP LEVELING
84330
SWITCH ASSY, HAZARD WARNING SIGNAL
84330B
BULB, HAZARD WARNING SIGNAL SWITCH
84656A
BEZEL, SWITCH
84660C
SWITCH, COOLER
84660D
BULB(FOR COOLER SWITCH)
84730
SWITCH ASSY, HEATER BLOWER
84751
SWITCH, SEAT HEATER
84751B
BULB, SEAT HEATER SWITCH
84790B
BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84870A
SWITCH ASSY, OUTER MIRROR
84988F
SWITCH, TRACTION CONTROL
84988G
BULB, TRACTION CONTROL SWITCH
85500
LIGHTER ASSY, CIGARETTE
85515
STAY, CIGARETTE LIGHTER BEZEL
87290
SWITCH ASSY, HEATER
87290B
BULB (FOR HEATER SWITCH)

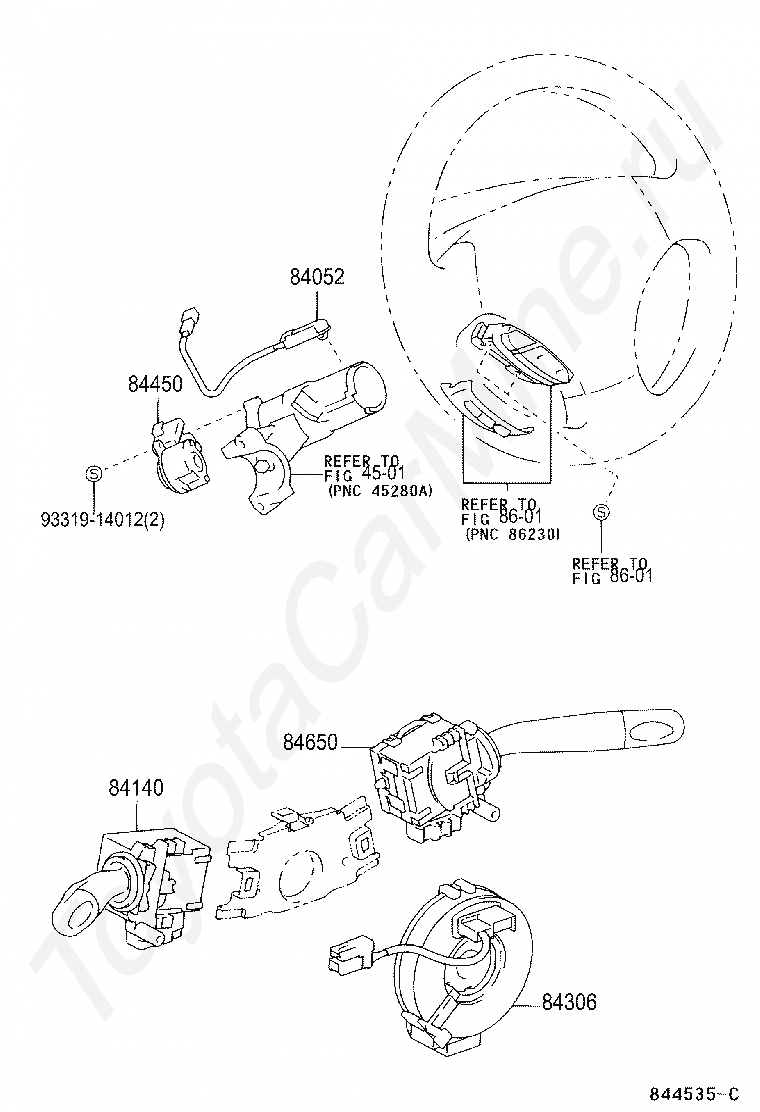

Код
Описание
4501
переход к группе запчастей
84052
SWITCH ASSY, UN-LOCK WARNING
84140
SWITCH ASSY, HEADLAMP DIMMER
84306
CABLE SUB-ASSY, SPIRAL
84450
SWITCH ASSY, IGNITION OR STARTER
84650
SWITCH ASSY, WINDSHIELD WIPER
8601
переход к группе запчастей
9331914012
Крепеж

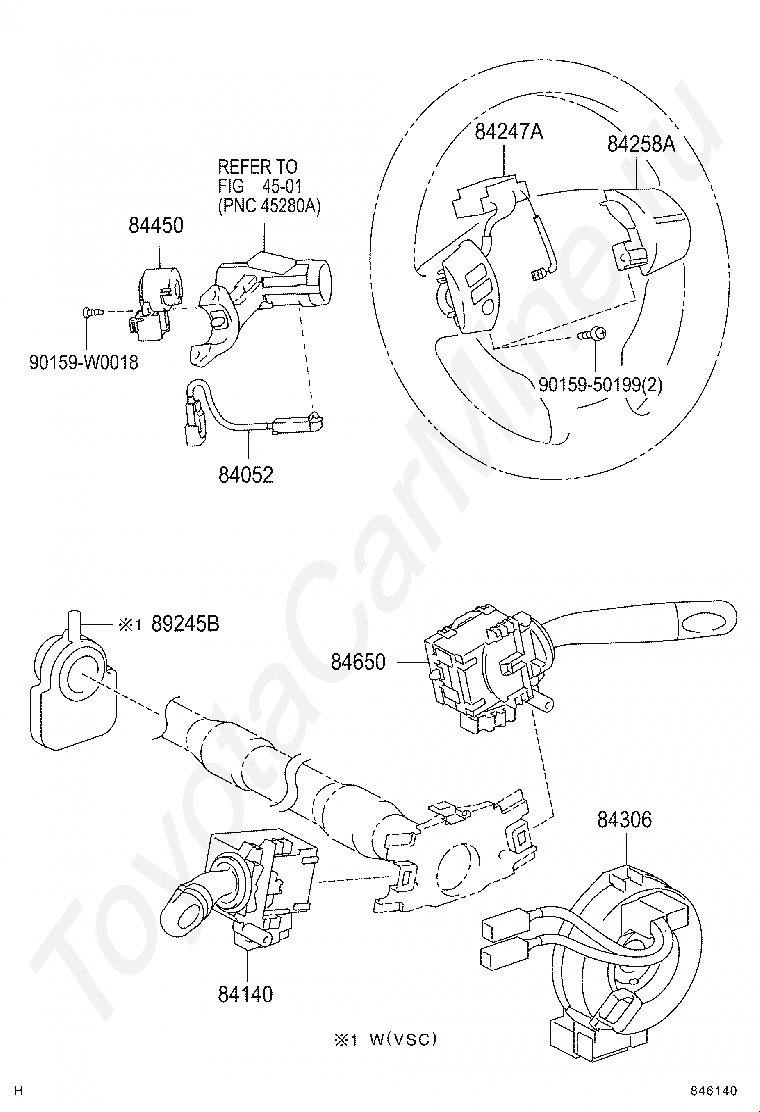

Код
Описание
4501
переход к группе запчастей
84052
SWITCH ASSY, UN-LOCK WARNING
84140
SWITCH ASSY, HEADLAMP DIMMER
84247A
SWITCH, STEERING PAD, LH
84258A
COVER, STEERING PAD, RH
84306
CABLE SUB-ASSY, SPIRAL
84450
SWITCH ASSY, IGNITION OR STARTER
84650
SWITCH ASSY, WINDSHIELD WIPER
89245B
SENSOR, STEERING
9015950199
Крепеж
90159W0018
Крепеж

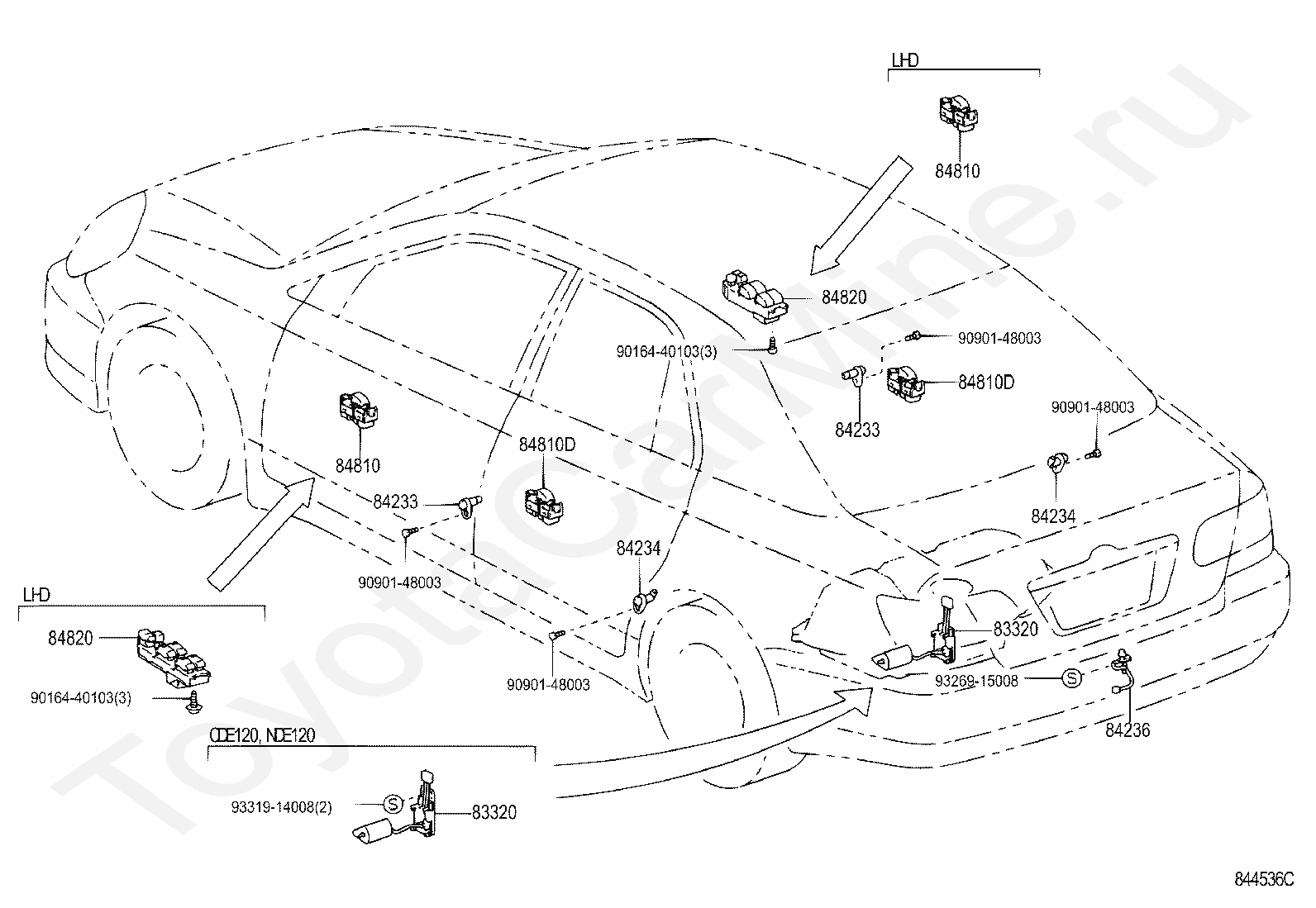

Код
Описание
83320
GAGE ASSY, FUEL SENDER
84233
SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84234
SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84236
SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM)
84810
SWITCH ASSY, POWER WINDOW REGULATOR
84810D
SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84820
MASTER SWITCH ASSY, POWER WINDOW REGULATOR
9016440103
Крепеж
9090148003
Крепеж
9326915008
Крепеж
9331914008
Крепеж
