Кресла TOYOTA COASTER (CHINA), 2013/01 - 2025, 2,7 литра, 32 клапана, DOHC, EFI, STANDARD TYPE, TRB53, механика

Каталог

Ближний Восток

Модель

COASTER (CHINA)

Двигатель

2,7 литра, 32 клапана, DOHC, EFI

Класс

STANDARD TYPE

Фрейм

TRB53

Трансмиссия

механика

Опции

для 23 пассажиров HIGH EFFICIENCY TWIN CAM COMPLETED VEHICLE 560W

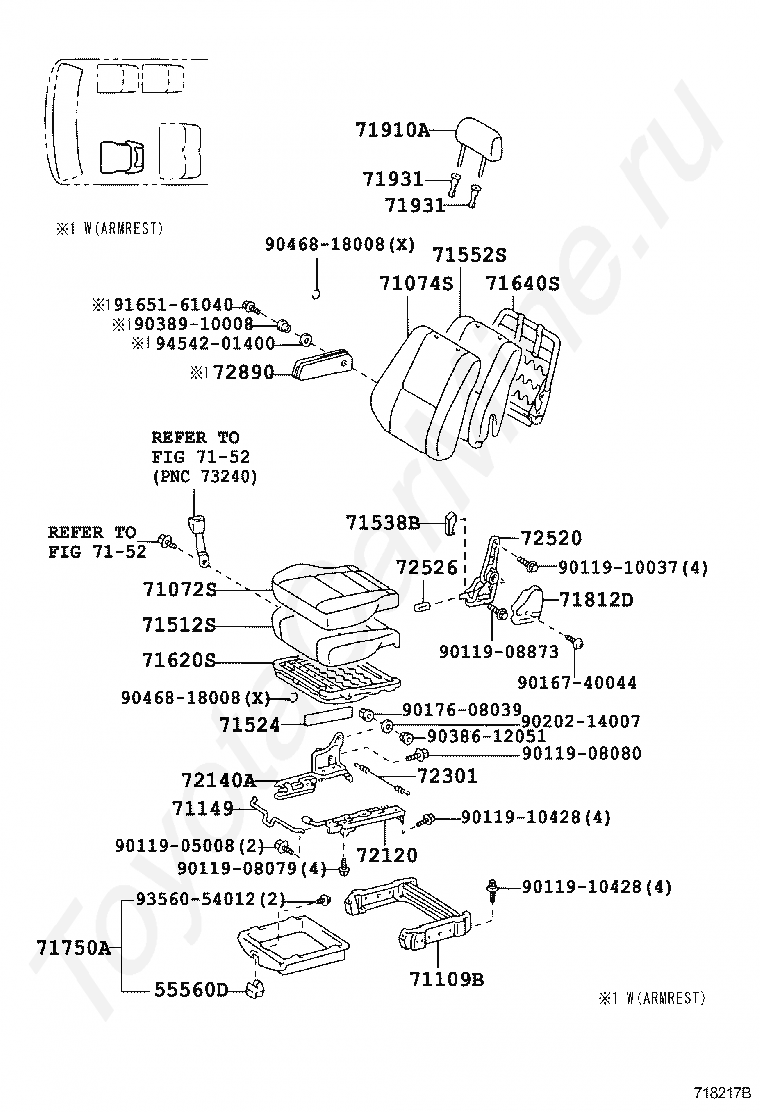

Код

Описание

55560D

LOCK ASSY, SEAT UNDER TRAY

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71109B

LEG SUB-ASSY, FRONT SEAT, LH

71149

WIRE, FRONT SEAT CUSHION CONNECTING

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

71524

PAD, FRONT SEAT CUSHION SILENCER, D

71538B

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71750A

TRAY ASSY, FRONT SEAT UNDER

71812D

SHIELD, FRONT SEAT CUSHION, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72301

WIRE SUB-ASSY, SEAT TRACK EQUALIZING

72520

ADJUSTER ASSY, RECLINING SEAT BACK, LH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72890

ARMREST ASSY, SEAT, C LH

9011905008

Крепеж

9011908079

Крепеж

9011908080

Крепеж

9011908873

Крепеж

9011910037

Крепеж

9011910428

Крепеж

9016740044

Крепеж

9017608039

Крепеж

9020214007

Крепеж

9038612051

Крепеж

9038910008

Крепеж

9046818008

Крепеж

9165161040

Крепеж

9356054012

Крепеж

9454201400

Крепеж

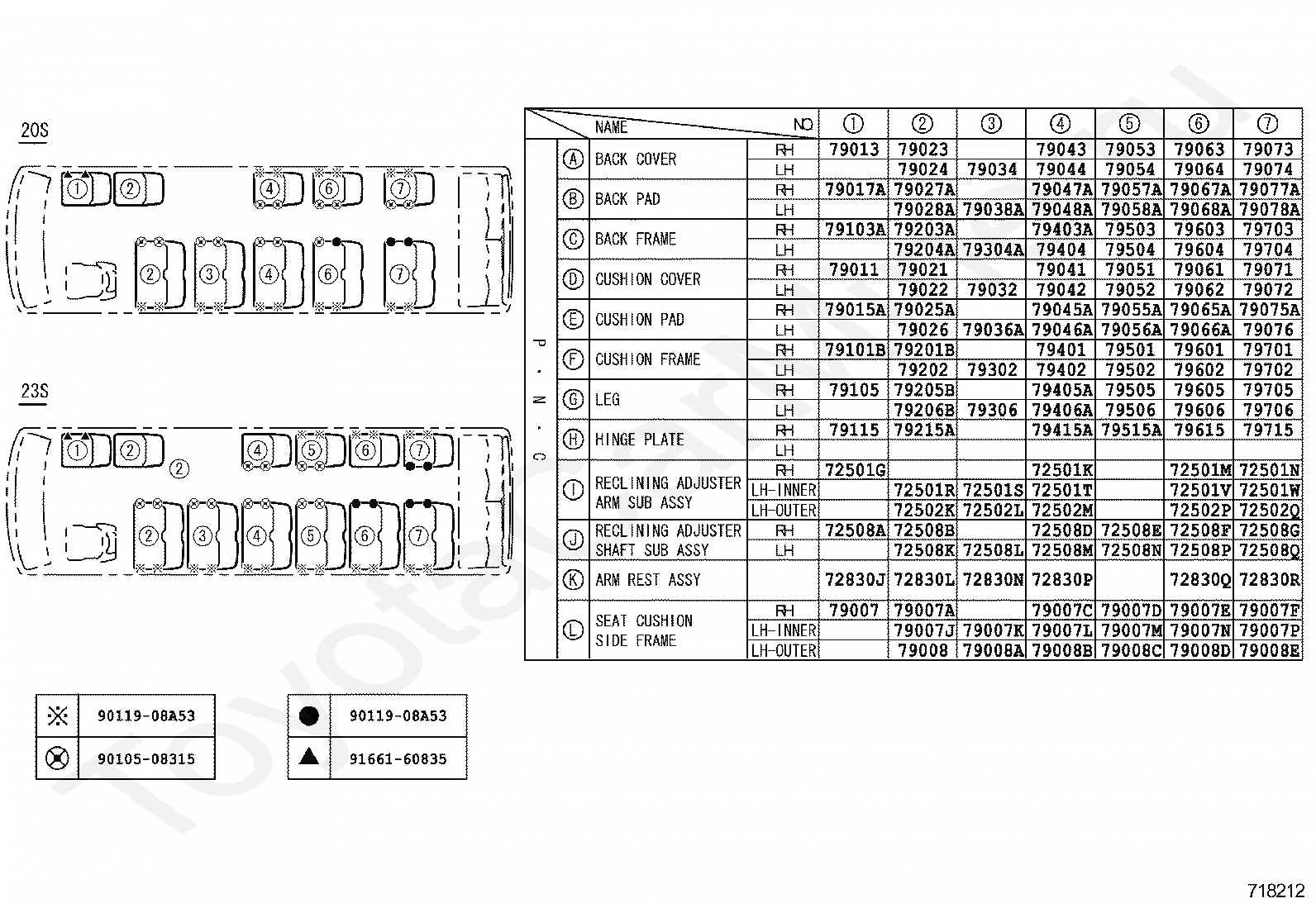

Код

Описание

72501G

ARM SUB-ASSY, NO.1 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501K

ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501M

ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501N

ARM SUB-ASSY, NO.7 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501R

ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.2 RH

72501S

ARM SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, UPPER NO.2 RH

72501T

ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.2 RH

72501V

ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.2 RH

72501W

ARM SUB-ASSY, NO.7 SEAT RECLINING ADJUSTER, UPPER NO.2 RH

72502K

ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502L

ARM SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502M

ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502P

ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502Q

ARM SUB-ASSY, NO.7 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72508A

SHAFT SUB-ASSY, NO.1 RECLINING ADJUSTING, RH

72508B

SHAFT SUB-ASSY, NO.2 SEAT RECLINING ADJUSTING, RH

72508D

SHAFT SUB-ASSY, NO.4 SEAT RECLINING ADJUSTING, RH

72508E

SHAFT SUB-ASSY, NO.5 SEAT RECLINING ADJUSTING, RH

72508F

SHAFT SUB-ASSY, NO.6 SEAT RECLINING ADJUSTING, RH

72508G

SHAFT SUB-ASSY, NO.7 SEAT RECLINING ADJUSTING, RH

72508K

SHAFT SUB-SEAT, NO.2 SEAT RECLINING ADJUSTING, LH

72508L

SHAFT SUB-SEAT, NO.3 SEAT RECLINING ADJUSTING, LH

72508M

SHAFT SUB-SEAT, NO.4 SEAT RECLINING ADJUSTING, LH

72508N

SHAFT SUB-SEAT, NO.5 SEAT RECLINING ADJUSTING, LH

72508P

SHAFT SUB-SEAT, NO.6 SEAT RECLINING ADJUSTING, LH

72508Q

SHAFT SUB-SEAT, NO.7 SEAT RECLINING ADJUSTING, LH

72830J

ARMREST ASSY, REAR NO.1 SEAT, RH

72830L

ARMREST ASSY, REAR NO.2 SEAT, RH

72830N

ARMREST ASSY, NO.3 SEAT, RH

72830P

ARMREST ASSY, NO.4 SEAT, RH

72830Q

ARMREST ASSY, NO.6 SEAT, RH

72830R

ARMREST ASSY, NO.7 SEAT, NO.1 RH

79007

FRAME, SEAT CUSHION SIDE, RH OUTER NO.1

79007A

FRAME, SEAT CUSHION SIDE, RH OUTER NO.2

79007C

FRAME, SEAT CUSHION SIDE, RH OUTER NO.4

79007D

FRAME, SEAT CUSHION SIDE, RH OUTER NO.5

79007E

FRAME, SEAT CUSHION SIDE, RH OUTER NO.6

79007F

FRAME, SEAT CUSHION SIDE, RH OUTER NO.7

79007J

FRAME, SEAT CUSHION SIDE, LH INNER NO.2

79007K

FRAME, SEAT CUSHION SIDE, LH INNER NO.3

79007L

FRAME, SEAT CUSHION SIDE, LH INNER NO.4

79007M

FRAME, SEAT CUSHION SIDE, LH INNER NO.5

79007N

FRAME, SEAT CUSHION SIDE, LH INNER NO.6

79007P

FRAME, SEAT CUSHION SIDE, LH INNER NO.7

79008

FRAME, SEAT CUSHION SIDE, LH OUTER NO.2

79008A

FRAME, SEAT CUSHION SIDE, LH OUTER NO.3

79008B

FRAME, SEAT CUSHION SIDE, LH OUTER NO.4

79008C

FRAME, SEAT CUSHION SIDE, LH OUTER NO.5

79008D

FRAME, SEAT CUSHION SIDE, LH OUTER NO.6

79008E

FRAME, SEAT CUSHION SIDE, LH OUTER NO.7

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79015A

PAD SUB-ASSY, NO.1 SEAT CUSHION, RH

79017A

PAD SUB-ASSY, NO.1 SEAT BACK, RH

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79025A

PAD SUB-ASSY, NO.2 SEAT CUSHION, RH

79026

PAD SUB-ASSY, NO.2 SEAT CUSHION, LH

79027A

PAD SUB-ASSY, NO.2 SEAT BACK, RH

79028A

PAD SUB-ASSY, NO.2 SEAT BACK, LH

79032

COVER SUB-ASSY, NO.3 SEAT CUSHION, LH

79034

COVER SUB-ASSY, NO.3 SEAT BACK, LH

79036A

PAD, SUB-ASSY, NO.3 SEAT CUSHION, LH

79038A

PAD SUB-ASSY, NO.3 SEAT BACK, LH

79041

COVER SUB-ASSY, NO.4 SEAT CUSHION, RH

79042

COVER SUB-ASSY, NO.4 SEAT CUSHION, LH

79043

COVER SUB-ASSY, NO.4 SEAT BACK, RH

79044

COVER SUB-ASSY, NO.4 SEAT BACK, LH

79045A

PAD SUB-ASSY, NO.4 SEAT CUSHION, RH

79046A

PAD SUB-ASSY, NO.4 SEAT CUSHION, LH

79047A

PAD SUB-ASSY, NO.4 SEAT BACK, RH

79048A

PAD SUB-ASSY, NO.4 SEAT BACK, LH

79051

COVER SUB-ASSY, NO.5 SEAT CUSHION, RH

79052

COVER SUB-ASSY, NO.5 SEAT CUSHION, LH

79053

COVER SUB-ASSY, NO.5 SEAT BACK, RH

79054

COVER SUB-ASSY, NO.5 SEAT BACK, LH

79055A

PAD SUB-ASSY, NO.5 SEAT CUSHION, RH

79056A

PAD SUB-ASSY, NO.5 SEAT CUSHION, LH

79057A

PAD SUB-ASSY, NO.5 SEAT BACK, RH

79058A

PAD SUB-ASSY, NO.5 SEAT BACK, LH

79061

COVER SUB-ASSY, NO.6 SEAT CUSHION, RH

79062

COVER SUB-ASSY, NO.6 SEAT CUSHION, LH

79063

COVER SUB-ASSY, NO.6 SEAT BACK, RH

79064

COVER SUB-ASSY, NO.6 SEAT BACK, LH

79065A

PAD SUB-ASSY, NO.6 SEAT CUSHION, RH

79066A

PAD SUB-ASSY, NO.6 SEAT CUSHION, LH

79067A

PAD SUB-ASSY, NO.6 SEAT BACK, RH

79068A

PAD SUB-ASSY, NO.6 SEAT BACK, LH

79071

COVER SUB-ASSY, NO.7 SEAT CUSHION, RH

79072

COVER SUB-ASSY, NO.7 SEAT CUSHION, LH

79073

COVER SUB-ASSY, NO.7 SEAT BACK, RH

79074

COVER SUB-ASSY, NO.7 SEAT BACK, LH

79075A

PAD SUB-ASSY, NO.7 SEAT CUSHION, RH

79076

PAD SUB-ASSY, NO.7 SEAT CUSHION, LH

79077A

PAD SUB-ASSY, NO.7 SEAT BACK, RH

79078A

PAD SUB-ASSY, NO.7 SEAT BACK, LH

79101B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

79103A

FRAME SUB-ASSY, NO.1 SEAT BACK, RH

79105

LEG SUB-ASSY, NO.1 SEAT, RH

79115

PLATE, NO.1 SEAT CUSHION HINGE, NO.1 RH

79201B

FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH

79202

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79203A

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79204A

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79205B

LEG SUB-ASSY, NO.2 SEAT, RH

79206B

LEG SUB-ASSY, NO.2 SEAT, LH

79215A

PLATE, NO.2 SEAT CUSHION HINGE, NO.1 RH

79302

FRAME SUB-ASSY, NO.3 SEAT CUSHION, LH

79304A

FRAME SUB-ASSY, NO.3 SEAT BACK, LH

79306

LEG SUB ASSY, NO.3 SEAT, LH

79401

FRAME SUB-ASSY, NO.4 SEAT CUSHION, RH

79402

FRAME SUB-ASSY, NO.4 SEAT CUSHION, LH

79403A

FRAME SUB-ASSY, NO.4 SEAT BACK, RH

79404

FRAME SUB-ASSY, NO.4 SEAT BACK, LH

79405A

LEG SUB-ASSY, NO.4 SEAT, RH

79406A

LEG SUB-ASSY, NO.4 SEAT, LH

79415A

PLATE, NO.4 SEAT CUSHION HINGE, NO.1 RH

79501

FRAME SUB-ASSY, NO.5 SEAT CUSHION, RH

79502

FRAME SUB-ASSY, NO.5 SEAT CUSHION, LH

79503

FRAME SUB-ASSY, NO.5 SEAT BACK, RH

79504

FRAME SUB-ASSY, NO.5 SEAT BACK, LH

79505

LEG SUB-ASSY, NO.5 SEAT, RH

79506

LEG SUB-ASSY, NO.5 SEAT, LH

79515A

PLATE, NO.5 SEAT CUSHION HINGE, NO.1 RH

79601

FRAME SUB-ASSY, NO.6 SEAT CUSHION, RH

79602

FRAME SUB-ASSY, NO.6 SEAT CUSHION, LH

79603

FRAME SUB-ASSY, NO.6 SEAT BACK, RH

79604

FRAME SUB-ASSY, NO.6 SEAT BACK, LH

79605

LEG SUB-ASSY, NO.6 SEAT, RH

79606

LEG SUB-ASSY, NO.6 SEAT, LH

79615

PLATE, NO.6 SEAT CUSHION HINGE, NO.1 RH

79701

FRAME SUB-ASSY, NO.7 SEAT CUSHION, RH

79702

FRAME SUB-ASSY, NO.7 SEAT CUSHION, LH

79703

FRAME SUB-ASSY, NO.7 SEAT BACK, RH

79704

FRAME SUB-ASSY, NO.7 SEAT BACK, LH

79705

LEG SUB-ASSY, NO.7 SEAT, RH

79706

LEG SUB-ASSY, NO.7 SEAT, LH

79715

PLATE, NO.7 SEAT CUSHION HINGE, NO.1 RH

9010508315

Крепеж

9011908A53

Крепеж

9166160835

Крепеж

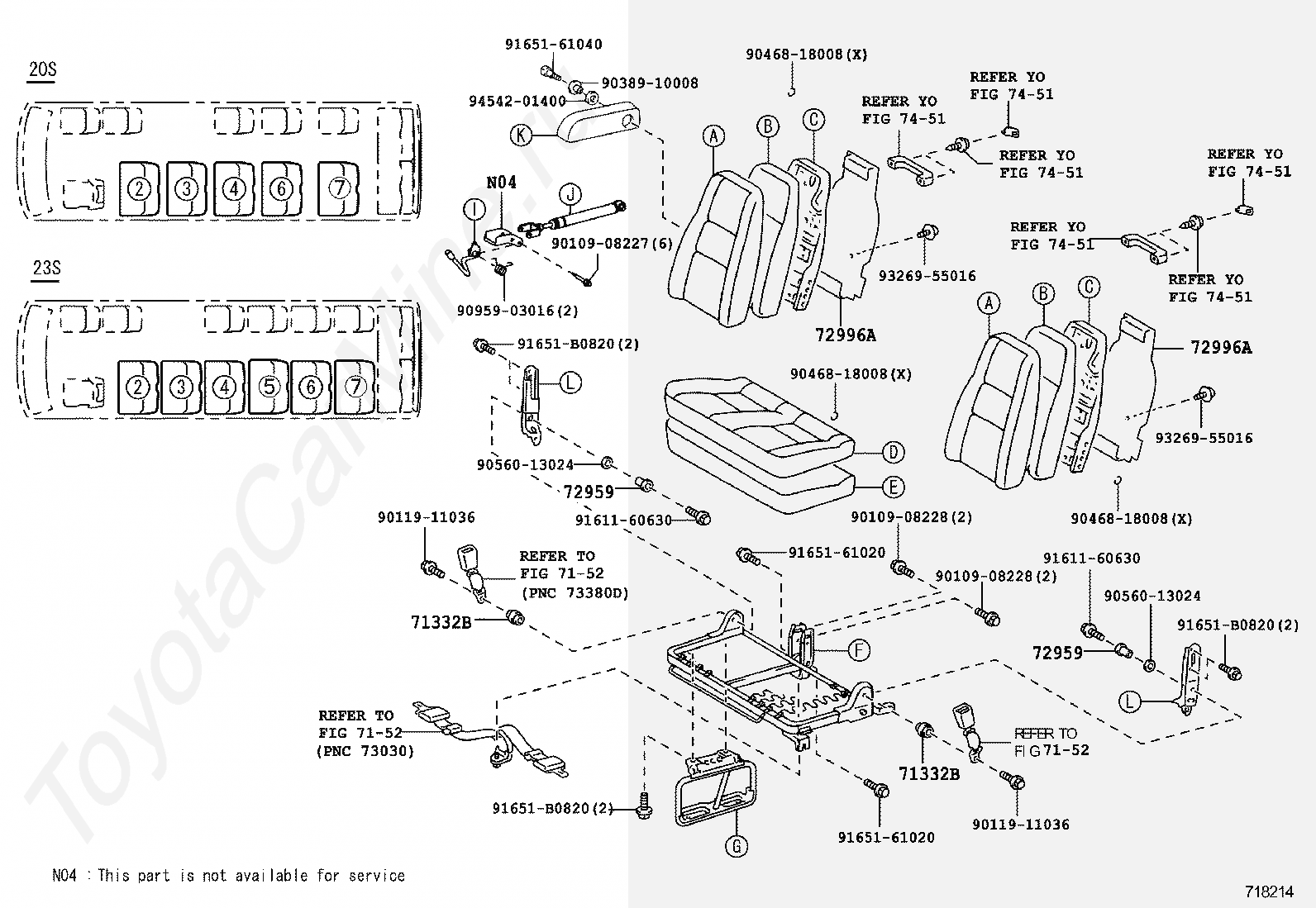

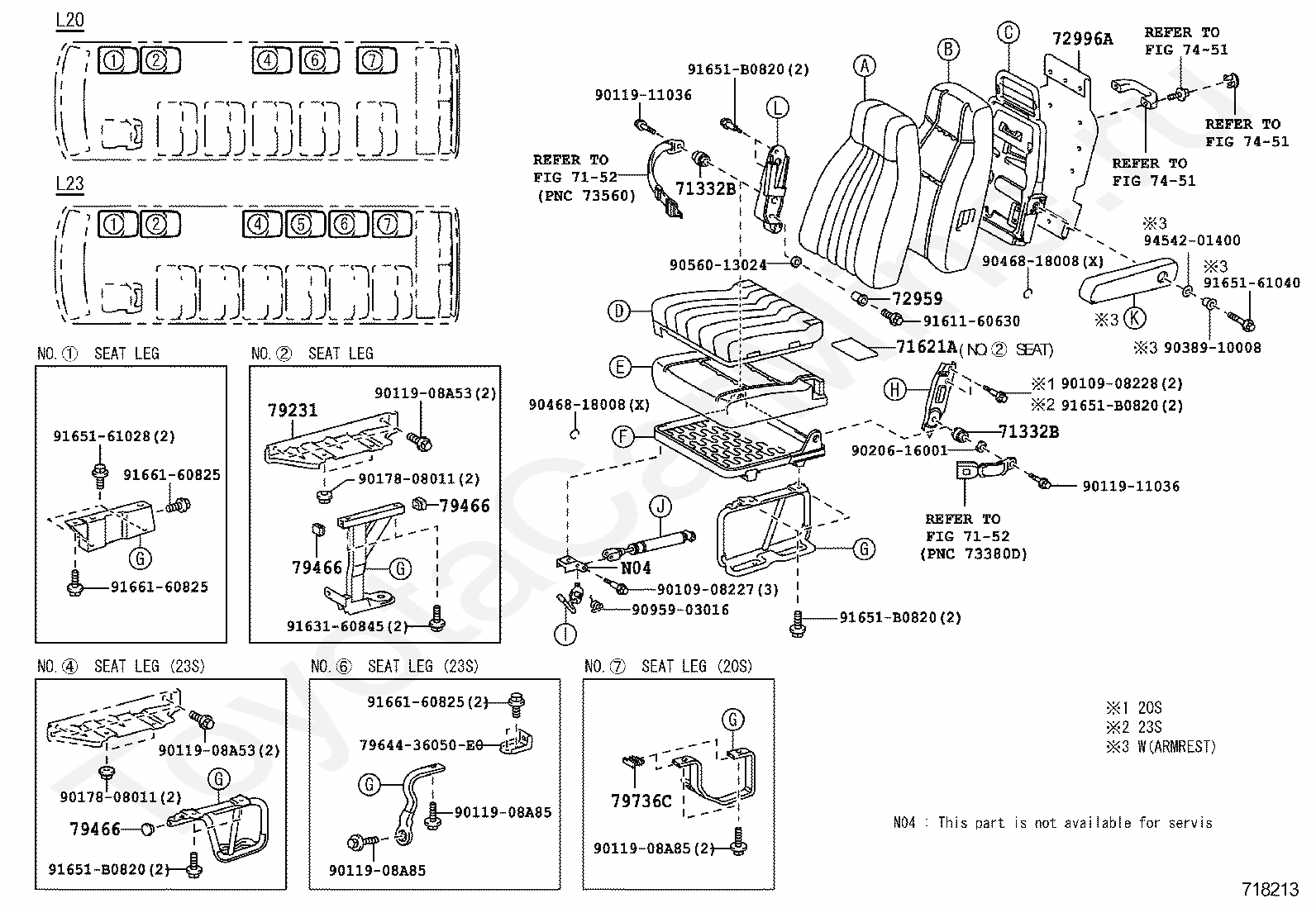

Код

Описание

71332B

SPACER, REAR SEAT BACK HINGE

7152

переход к группе запчастей

71621A

PAD, REAR SEAT CUSHION SILENCER, A

72959

SPACER, REAR SEAT TURN SIDE

72996A

COVER, REAR SEAT BACK

7451

переход к группе запчастей

79231

LEG, NO.2 SEAT, OUTER FRONT

79466

COVER, NO.4 SEAT LEG, NO.1

7964436050E0

Крепеж

79736C

COVER, NO.7 SEAT LEG, RH

9010908227

Крепеж

9010908228

Крепеж

9011908A53

Крепеж

9011908A85

Крепеж

9011911036

Крепеж

9017808011

Крепеж

9020616001

Крепеж

9038910008

Крепеж

9046818008

Крепеж

9056013024

Крепеж

9095903016

Крепеж

9161160630

Крепеж

9163160845

Крепеж

9165161028

Крепеж

9165161040

Крепеж

91651B0820

Крепеж

9166160825

Крепеж

9454201400

Крепеж

Код

Описание

71332B

SPACER, REAR SEAT BACK HINGE

7152

переход к группе запчастей

72959

SPACER, REAR SEAT TURN SIDE

72996A

COVER, REAR SEAT BACK

7451

переход к группе запчастей

9010908227

Крепеж

9010908228

Крепеж

9011911036

Крепеж

9038910008

Крепеж

9046818008

Крепеж

9056013024

Крепеж

9095903016

Крепеж

9161160630

Крепеж

9165161020

Крепеж

9165161040

Крепеж

91651B0820

Крепеж

9454201400

Крепеж

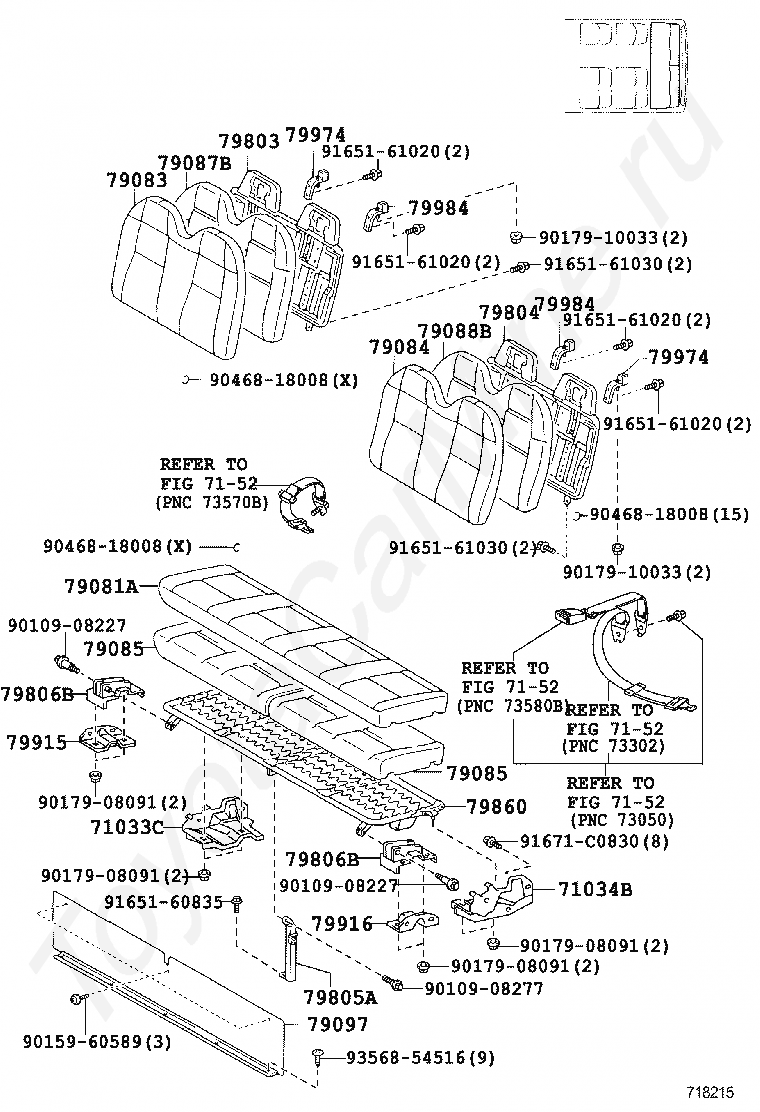

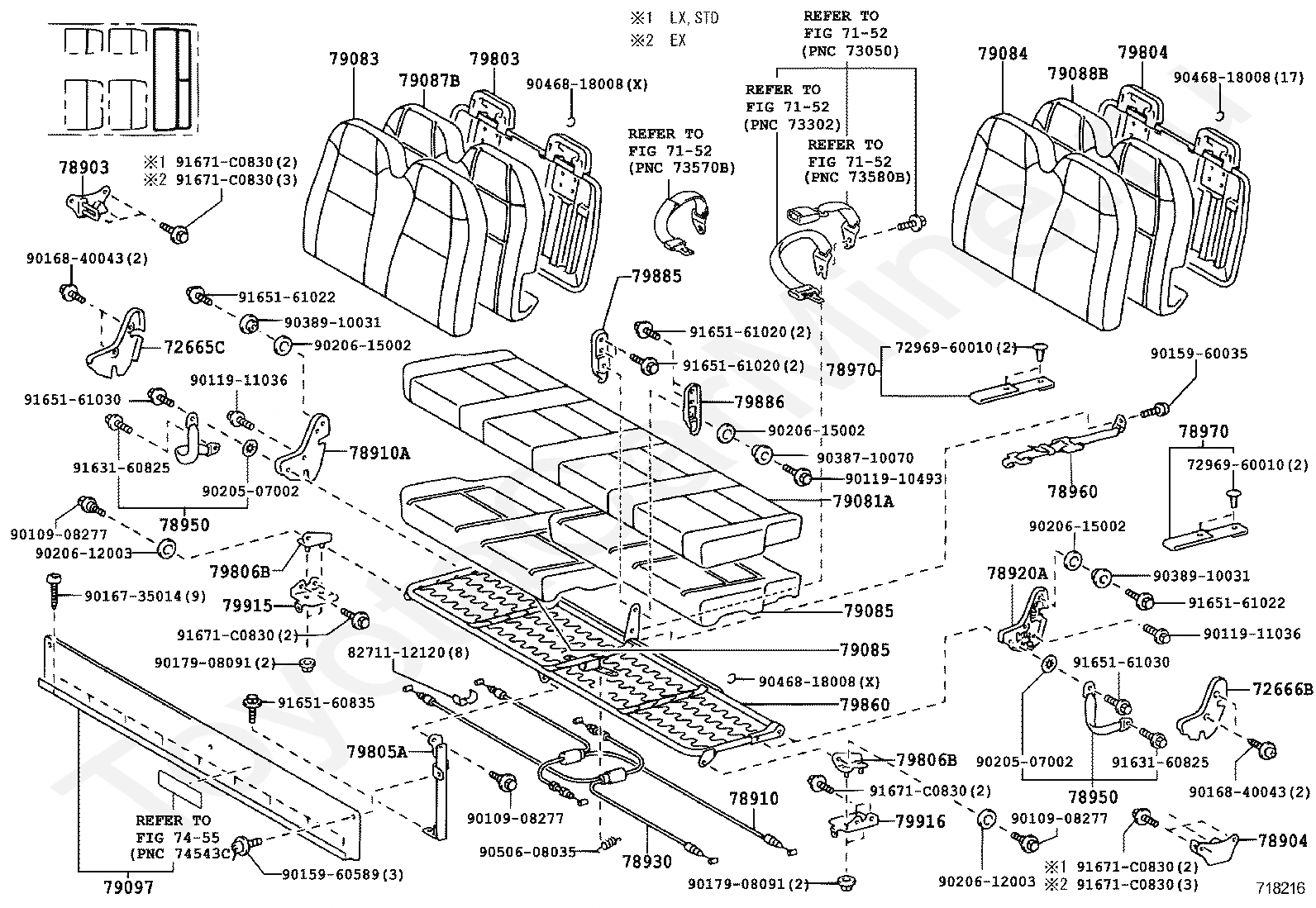

Код

Описание

71033C

LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.2 RH

71034B

LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.2 LH

7152

переход к группе запчастей

79081A

COVER SUB-ASSY, NO.8 SEAT CUSHION

79083

COVER SUB-ASSY, NO.8 SEAT BACK, RH

79084

COVER SUB-ASSY, NO.8 SEAT BACK, LH

79085

PAD SUB-ASSY, NO.8 SEAT CUSHION

79087B

PAD SUB-ASSY, NO.8 SEAT BACK, RH

79088B

PAD SUB-ASSY, NO.8 SEAT BACK, LH

79097

PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL

79803

FRAME SUB-ASSY, NO.8 SEAT BACK, RH

79804

FRAME SUB-ASSY, NO.8 SEAT BACK, LH

79805A

LEG SUB-ASSY, FOLD SEAT, FRONT

79806B

LEG SUB ASSY, FOLD SEAT REAR

79860

SPRING ASSY, NO.8 SEAT CUSHION

79915

BRACKET, SEAT LEG

79916

BRACKET, SEAT LEG, NO.2

79974

BRACKET, SEAT BACK ASSIST, RH

79984

BRACKET, SEAT BACK ASSIST, LH

9010908227

Крепеж

9010908277

Крепеж

9015960589

Крепеж

9017908091

Крепеж

9017910033

Крепеж

9046818008

Крепеж

9165160835

Крепеж

9165161020

Крепеж

9165161030

Крепеж

91671C0830

Крепеж

9356854516

Крепеж

Код

Описание

7152

переход к группе запчастей

72665C

COVER, REAR SEAT LOCK, RH

72666B

COVER, REAR SEAT LOCK, LH

7296960010

Крепеж

7455

переход к группе запчастей

78903

STRIKER SUB-ASSY, FOLD SEAT LEG LOCK

78904

STRIKER SUB-ASSY, FOLD SEAT LOCK, NO.2

78910

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1

78910A

LOCK ASSY, FOLD SEAT, RH

78920A

LOCK ASSY, FOLD SEAT, LH

78930

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.3

78950

BAND ASSY, FOLD SEAT STOPPER, NO.1

78960

BAND ASSY, FOLD SEAT STOPPER, NO.2

78970

BAND ASSY, SEAT LOCK

79081A

COVER SUB-ASSY, NO.8 SEAT CUSHION

79083

COVER SUB-ASSY, NO.8 SEAT BACK, RH

79084

COVER SUB-ASSY, NO.8 SEAT BACK, LH

79085

PAD SUB-ASSY, NO.8 SEAT CUSHION

79087B

PAD SUB-ASSY, NO.8 SEAT BACK, RH

79088B

PAD SUB-ASSY, NO.8 SEAT BACK, LH

79097

PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL

79803

FRAME SUB-ASSY, NO.8 SEAT BACK, RH

79804

FRAME SUB-ASSY, NO.8 SEAT BACK, LH

79805A

LEG SUB-ASSY, FOLD SEAT, FRONT

79806B

LEG SUB ASSY, FOLD SEAT REAR

79860

SPRING ASSY, NO.8 SEAT CUSHION

79885

HINGE, FOLD SEAT BACK SET, RH

79886

HINGE, FOLD SEAT BACK SET, LH

79915

BRACKET, SEAT LEG

79916

BRACKET, SEAT LEG, NO.2

8271112120

Крепеж

9010908277

Крепеж

9011910493

Крепеж

9011911036

Крепеж

9015960035

Крепеж

9015960589

Крепеж

9016735014

Крепеж

9016840043

Крепеж

9017908091

Крепеж

9020507002

Крепеж

9020612003

Крепеж

9020615002

Крепеж

9038710070

Крепеж

9038910031

Крепеж

9046818008

Крепеж

9050608035

Крепеж

9163160825

Крепеж

9165160835

Крепеж

9165161020

Крепеж

9165161022

Крепеж

9165161030

Крепеж

91671C0830

Крепеж

Кресла TOYOTA COASTER (CHINA), 2013/01 - 2025, 2,7 литра, 32 клапана, DOHC, EFI, STANDARD TYPE, TRB53, механика

Товар добавлен в корзину!

Заполните форму
