ROOF PANEL & BACK PANEL TOYOTA COASTER (CHINA), 2013/01 - 2025, 2,7 литра, 32 клапана, DOHC, EFI, STANDARD TYPE, TRB53, механика

Каталог

Ближний Восток

Модель

COASTER (CHINA)

Двигатель

2,7 литра, 32 клапана, DOHC, EFI

Класс

STANDARD TYPE

Фрейм

TRB53

Трансмиссия

механика

Опции

для 23 пассажиров HIGH EFFICIENCY TWIN CAM COMPLETED VEHICLE 560W

Код

Описание

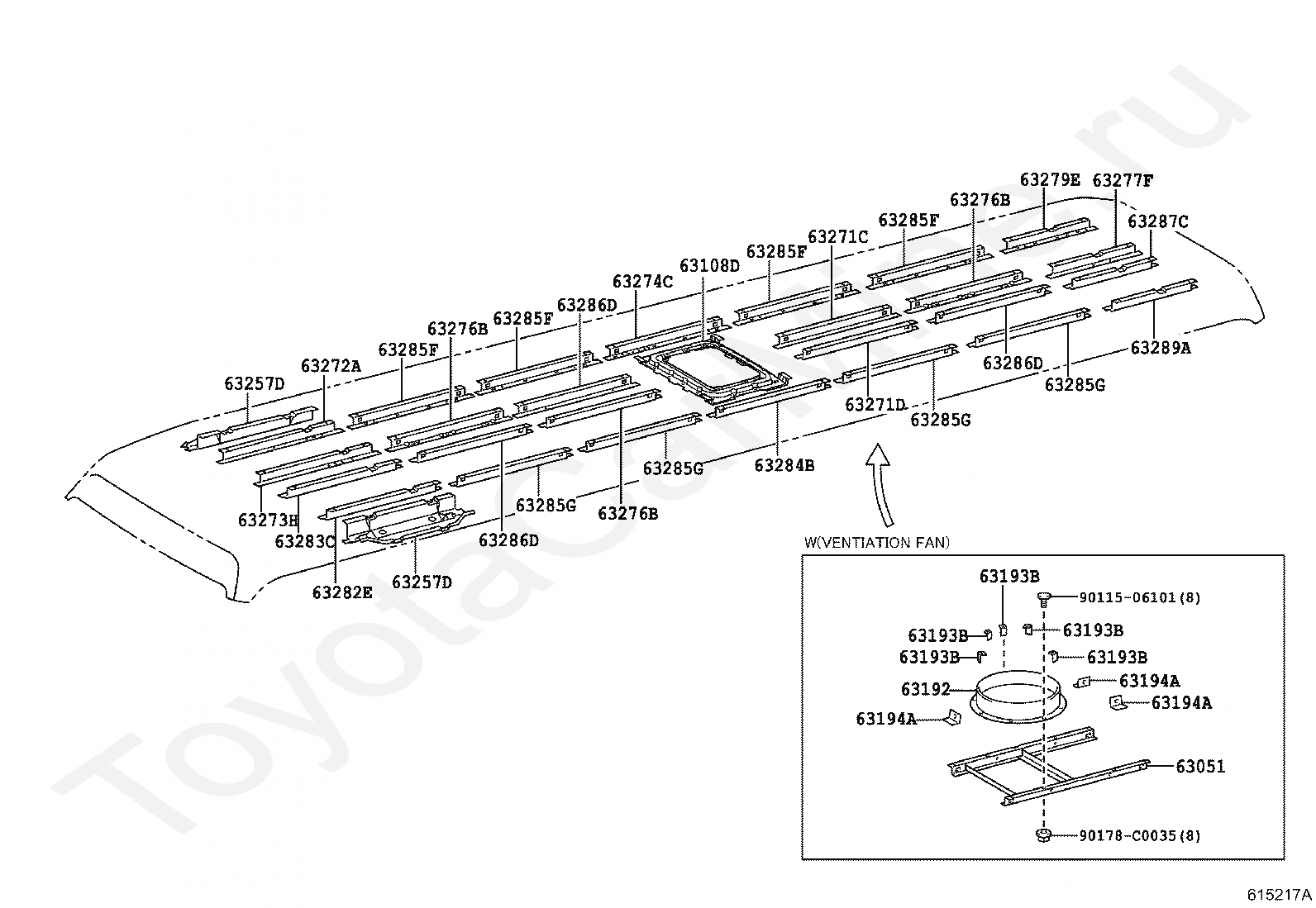

63051

STRENGTH SUB-ASSY, ROOF PANEL, CENTER

63108D

SUPPORT SUB-ASSY, ROOF PANEL

63192

FLANGE, BOOST VENTILATOR HOLE

63193B

BRACKET, BOOST VENTILATOR BLOWER

63194A

BRACKET, BOOST VENTIRATOR COVER, NO.1

63257D

STRENGTH, ROOF PANEL, CENTER NO.7 RH

63271C

STRENGTH, ROOF PANEL, NO.1 RH

63271D

STRENGTH, ROOF PANEL, NO.1 LH

63272A

STRENGTH, ROOF PANEL, NO.2 RH

63273H

STRENGTH, ROOF PANEL, NO.3

63274C

STRENGTH, ROOF PANEL, NO.4 RH

63276B

STRENGTH, ROOF PANEL, NO.6 RH

63277F

STRENGTH, ROOF PANEL, NO.7 RH

63279E

STRENGTH, ROOF PANEL, NO.9 RH

63282E

STRENGTH, ROOF PANEL, NO.2 LH

63283C

STRENGTH, ROOF PANEL, NO.3 LH

63284B

STRENGTH, ROOF PANEL, NO.4 LH

63285F

STRENGTH, ROOF PANEL, NO.5 RH

63285G

STRENGTH, ROOF PANEL, NO.5 LH

63286D

STRENGTH, ROOF PANEL, NO.6 LH

63287C

STRENGTH, ROOF PANEL, NO.7 LH

63289A

STRENGTH, ROOF PANEL, NO.9 LH

9011506101

Крепеж

90178C0035

Крепеж

Код

Описание

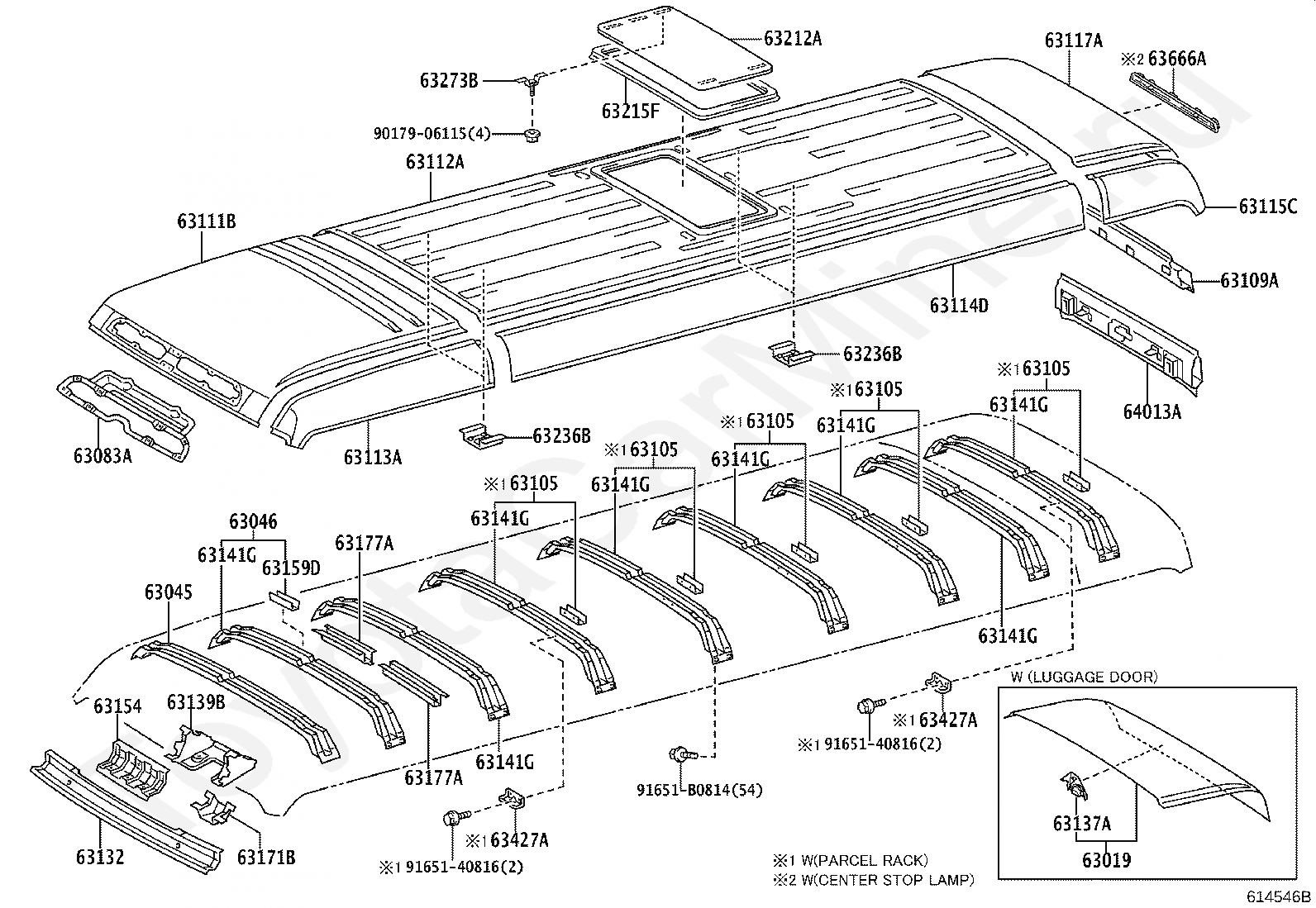

63019

PANEL SUB-ASSY, ROOF, REAR

63045

REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3

63046

REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4 A

63083A

PANEL SUB-ASSY, ROOF VENTILATOR

63105

REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

63109A

PANEL SUB-ASSY, BACK WINDOW, UPPER

63111B

PANEL, ROOF, NO.1

63112A

PANEL, ROOF, NO.2

63113A

PANEL, ROOF, NO.3

63114D

PANEL, ROOF, CENTER SIDE

63115C

PANEL, ROOF, NO.4

63117A

PANEL, ROOF, REAR

63132

PANEL, WINDSHIELD HEADER, INNER

63137A

BRACKET, DOME LAMP, NO.1

63139B

BRACKET, WINDSHIELD HEADER CLOCK SUPPORT

63141G

REINFORCEMENT, ROOF PANEL, NO.1

63154

REINFORCEMENT, WINDSHIELD HEADER PANEL, CENTER

63159D

RETAINER, ROOF PANEL REINFORCEMENT

63171B

BRACKET, INNER MIRROR BASE

63177A

REINFORCEMENT, ROOF PANEL, RH NO.7

63212A

GLASS, ROOF WINDOW

63215F

MOULDING, ROOF WINDOW, UPPER

63236B

BRACKET, ROOM SPEAKER

63273B

RETAINER, ROOF WINDOW HINGE

63427A

BRACKET, ROOM RACK FLAME

63666A

PROTECTOR, ROOF, REAR

64013A

RAIL SUB-ASSY, BACK

9017906115

Крепеж

9165140816

Крепеж

91651B0814

Крепеж

Код

Описание

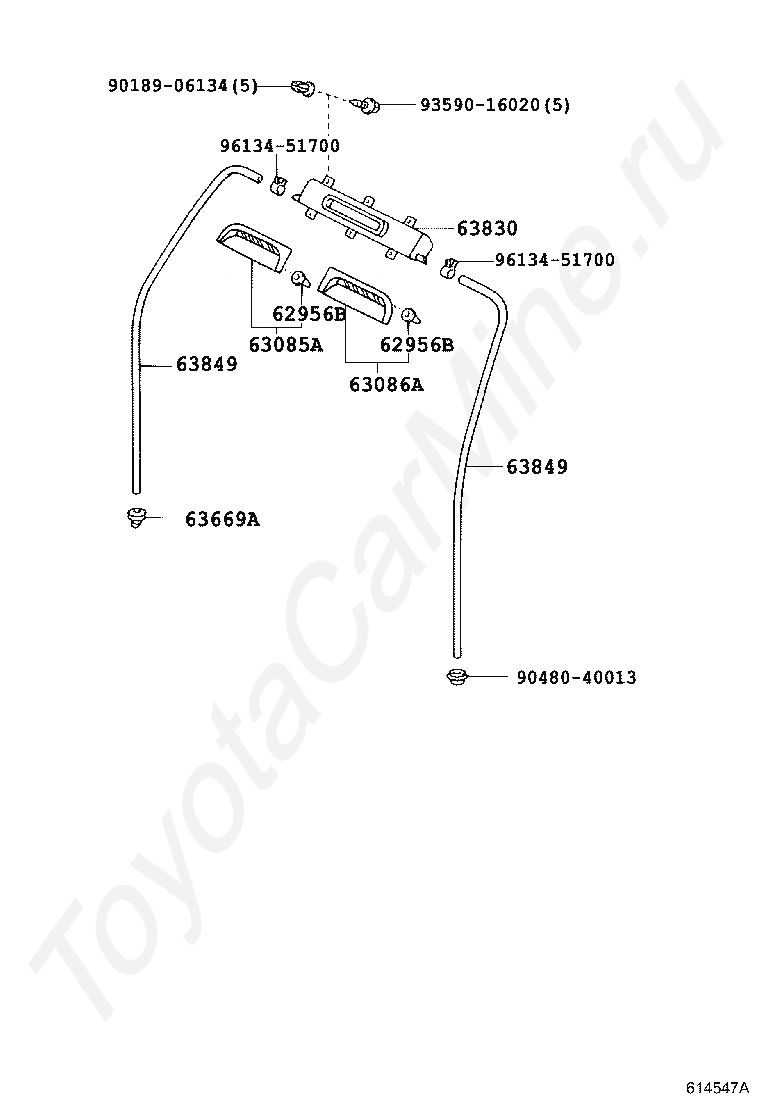

62956B

RETAINER, QUARTER VENT LOUVER, LH

63085A

LOUVER SUB-ASSY, ROOF VENTILATOR, RH

63086A

LOUVER SUB-ASSY, ROOF VENTILATOR, LH

63669A

GROMMET, SLIDING ROOF DRAIN

63830

DUCT ASSY, ROOF VENTILATOR

63849

HOSE, ROOF VENTILATOR DRAIN

9018906134

Крепеж

9048040013

Крепеж

9359016020

Крепеж

9613451700

Крепеж

Код

Описание

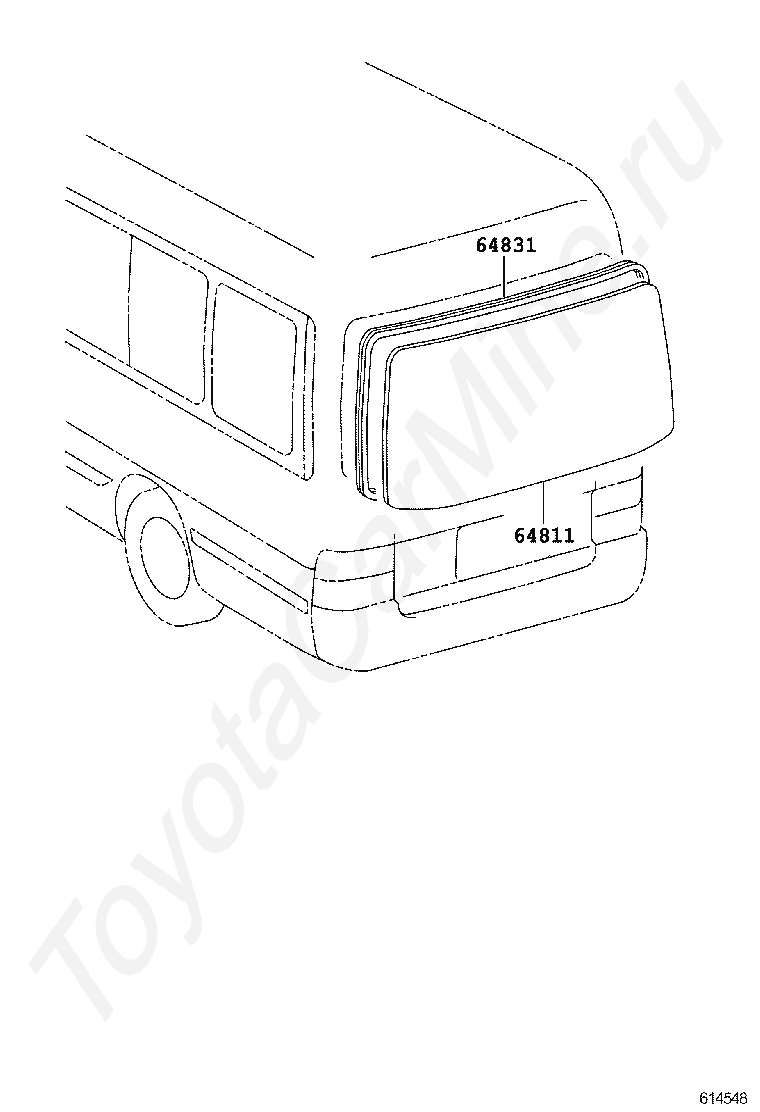

64811

GLASS, BACK WINDOW

64831

WEATHERSTRIP, BACK WINDOW GLASS

ROOF PANEL & BACK PANEL TOYOTA COASTER (CHINA), 2013/01 - 2025, 2,7 литра, 32 клапана, DOHC, EFI, STANDARD TYPE, TRB53, механика
