Каталог
ЕвропаМодель
COASTERДвигатель
4 литра, дизельКласс
DELUX SPECIFICATIONФрейм
XZB50Трансмиссия
автомат АКПП, 4 ступениОпции
правый руль высокая крыша для 21 пассажира WITH COOLER ARL CBU DCR

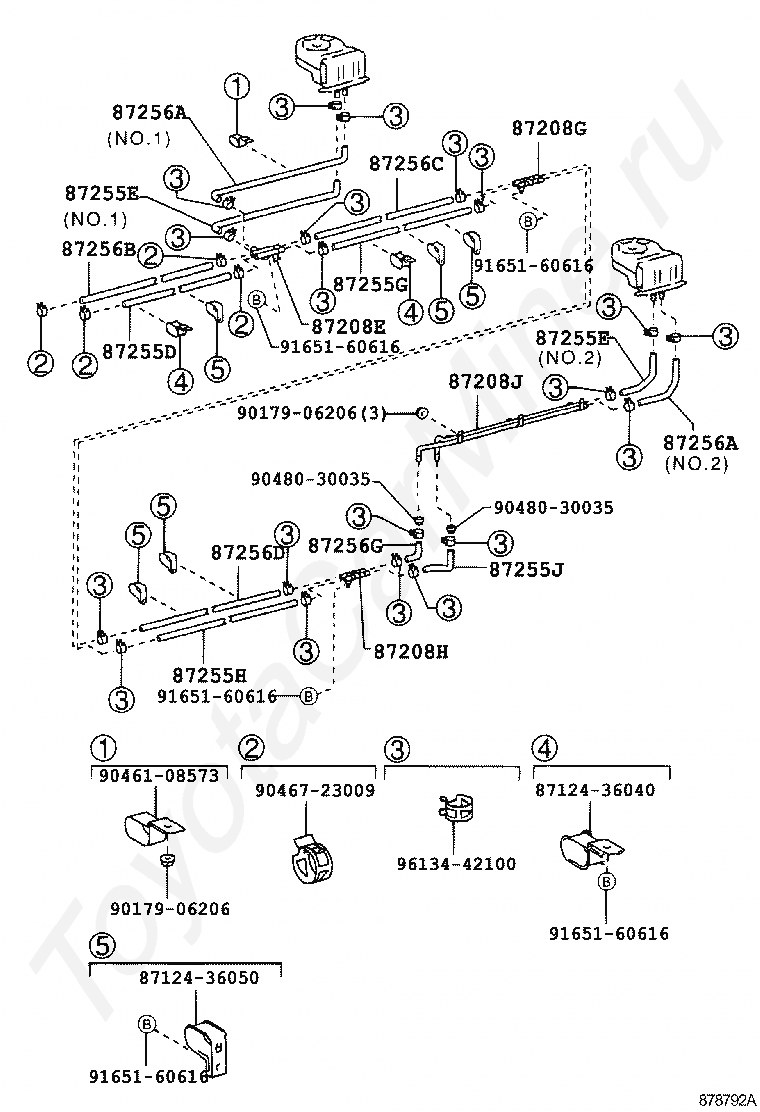

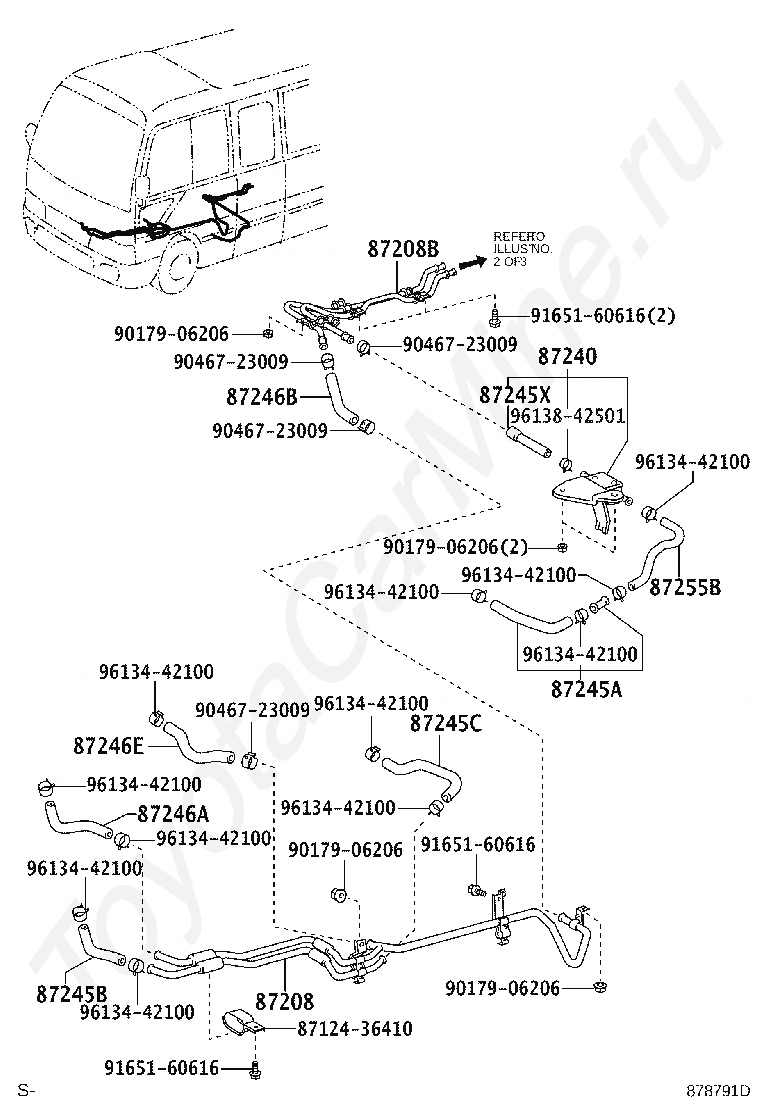

Код
Описание
8712436410
Крепеж
87208
PIPE SUB-ASSY, HEATER WATER
87208B
PIPE SUB-ASSY, HEATER WATER, B
87240
VALVE ASSY, HEATER WATER
87245A
HOSE, HEATER WATER, INLET A
87245B
HOSE, HEATER WATER, INLET B
87245C
HOSE, HEATER WATER ,INLET C
87245X
HOSE, HEATER WATER
87246A
HOSE, HEATER WATER, OUTLET A
87246B
HOSE, HEATER WATER, OUTLET B
87246E
HOSE, HEATER WATER, OUTLET E
87255B
HOSE, REAR HEATER WATER INLET, B
9017906206
Крепеж
9046723009
Крепеж
9165160616
Крепеж
9613442100
Крепеж
9613842501
Крепеж

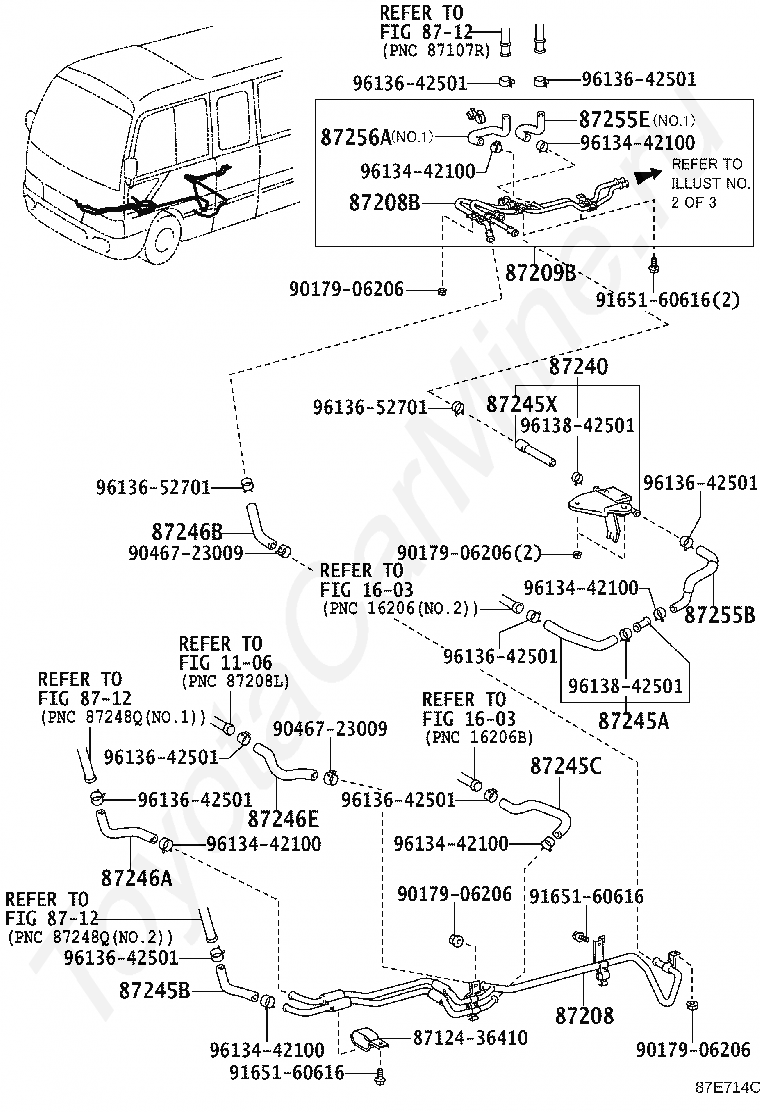

Код
Описание
1106
переход к группе запчастей
1603
переход к группе запчастей
8712
переход к группе запчастей
8712436410
Крепеж
87208
PIPE SUB-ASSY, HEATER WATER
87208B
PIPE SUB-ASSY, HEATER WATER, B
87209B
HOSE SUB-ASSY, WATER, B
87240
VALVE ASSY, HEATER WATER
87245A
HOSE, HEATER WATER, INLET A
87245B
HOSE, HEATER WATER, INLET B
87245C
HOSE, HEATER WATER ,INLET C
87245X
HOSE, HEATER WATER
87246A
HOSE, HEATER WATER, OUTLET A
87246B
HOSE, HEATER WATER, OUTLET B
87246E
HOSE, HEATER WATER, OUTLET E
87255B
HOSE, REAR HEATER WATER INLET, B
87255E
HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87256A
HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
9017906206
Крепеж
9046723009
Крепеж
9165160616
Крепеж
9613442100
Крепеж
9613642501
Крепеж
9613652701
Крепеж
9613842501
Крепеж

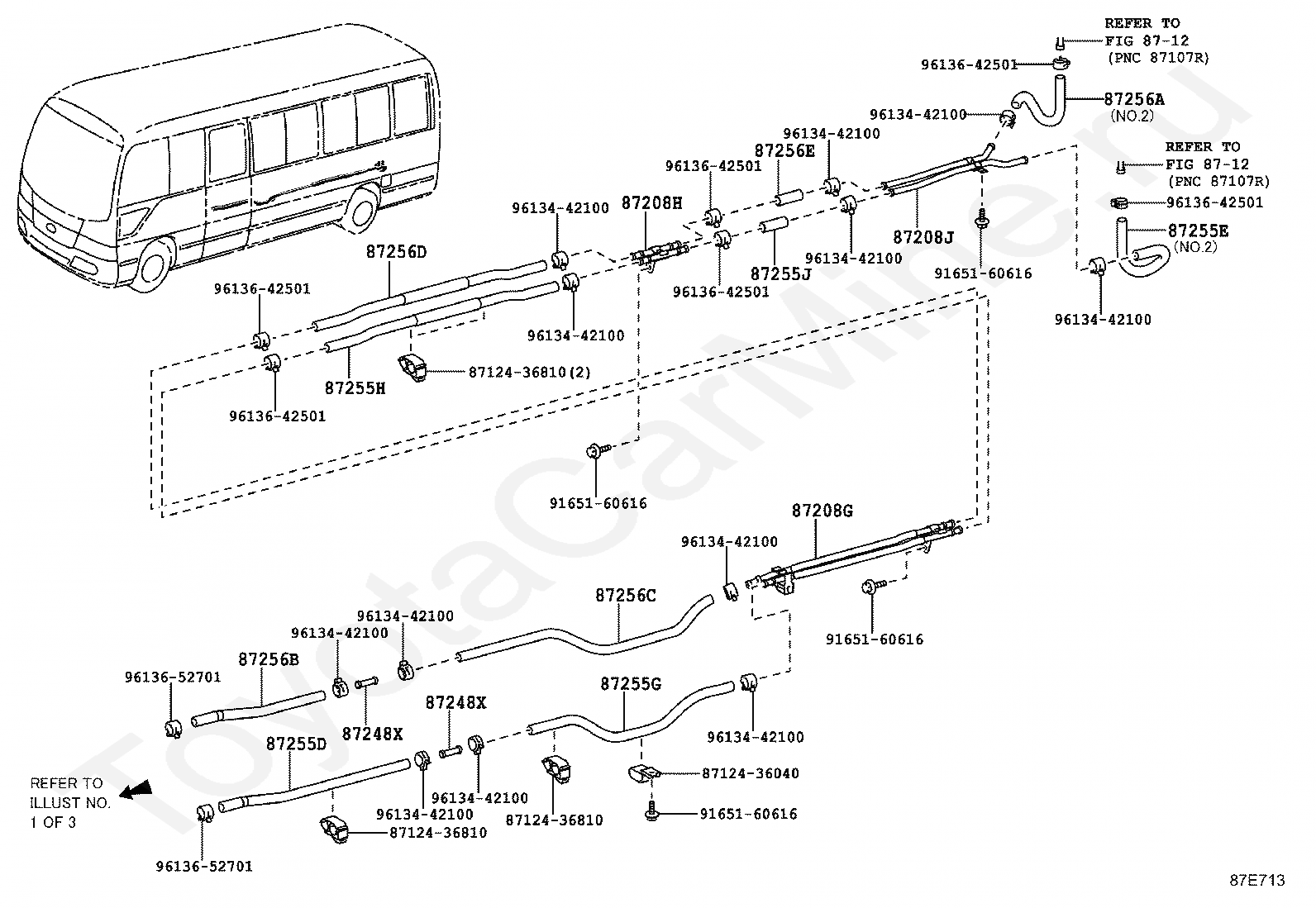

Код
Описание
8712436040
Крепеж
8712436050
Крепеж
87208E
PIPE SUB-ASSY, HEATER WATER, E
87208G
PIPE SUB-ASSY, HEATER WATER, G
87208H
PIPE SUB-ASSY, HEATER WATER, H
87208J
PIPE SUB-ASSY, HEATER WATER, J
87255D
HOSE, REAR HEATER WATER INLET, D
87255E
HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87255G
HOSE, REAR HEATER WATER INLET, G
87255H
HOSE, HEATER WATER INLET, H
87255J
HOSE, HEATER WATER INLET, J
87256A
HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87256B
HOSE, REAR HEATER WATER OUTLET, B
87256C
HOSE, REAR HEATER WATER OUTLET, C
87256D
HOSE, REAR HEATER WATER OUTLET, D
87256E
HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
9046723009
Крепеж
9165160616
Крепеж
9613442100
Крепеж
Код
Описание
8712436040
Крепеж
8712436050
Крепеж
87208E
PIPE SUB-ASSY, HEATER WATER, E
87208G
PIPE SUB-ASSY, HEATER WATER, G
87208H
PIPE SUB-ASSY, HEATER WATER, H
87208J
PIPE SUB-ASSY, HEATER WATER, J
87255D
HOSE, REAR HEATER WATER INLET, D
87255E
HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87255G
HOSE, REAR HEATER WATER INLET, G
87255H
HOSE, HEATER WATER INLET, H
87255J
HOSE, HEATER WATER INLET, J
87256A
HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87256B
HOSE, REAR HEATER WATER OUTLET, B
87256C
HOSE, REAR HEATER WATER OUTLET, C
87256D
HOSE, REAR HEATER WATER OUTLET, D
87256G
HOSE, REAR HEATER WATER OUTLET, G
9017906206
Крепеж
9046108573
Крепеж
9046723009
Крепеж
9048030035
Крепеж
9165160616
Крепеж
9613442100
Крепеж
Код
Описание
8712
переход к группе запчастей
8712436040
Крепеж
8712436810
Крепеж
87208G
PIPE SUB-ASSY, HEATER WATER, G
87208H
PIPE SUB-ASSY, HEATER WATER, H
87208J
PIPE SUB-ASSY, HEATER WATER, J
87248X
PIPE, HEATER WATER
87255D
HOSE, REAR HEATER WATER INLET, D
87255E
HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87255G
HOSE, REAR HEATER WATER INLET, G
87255H
HOSE, HEATER WATER INLET, H
87255J
HOSE, HEATER WATER INLET, J
87256A
HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87256B
HOSE, REAR HEATER WATER OUTLET, B
87256C
HOSE, REAR HEATER WATER OUTLET, C
87256D
HOSE, REAR HEATER WATER OUTLET, D
87256E
HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
9165160616
Крепеж
9613442100
Крепеж
9613642501
Крепеж
9613652701
Крепеж
