Тормозная магистраль TOYOTA COASTER, 2017/01 - 2022/01, 4 литра, дизель, EX SPECIFICATION, XZB70, механика, МКПП, 5 скоростей

Каталог

Ближний Восток

Модель

COASTER

Двигатель

4 литра, дизель

Класс

EX SPECIFICATION

Фрейм

XZB70

Трансмиссия

механика МКПП, 5 скоростей

Опции

правый руль высокая крыша 20-местный WITH COOLER DCR GEN CBU 675W

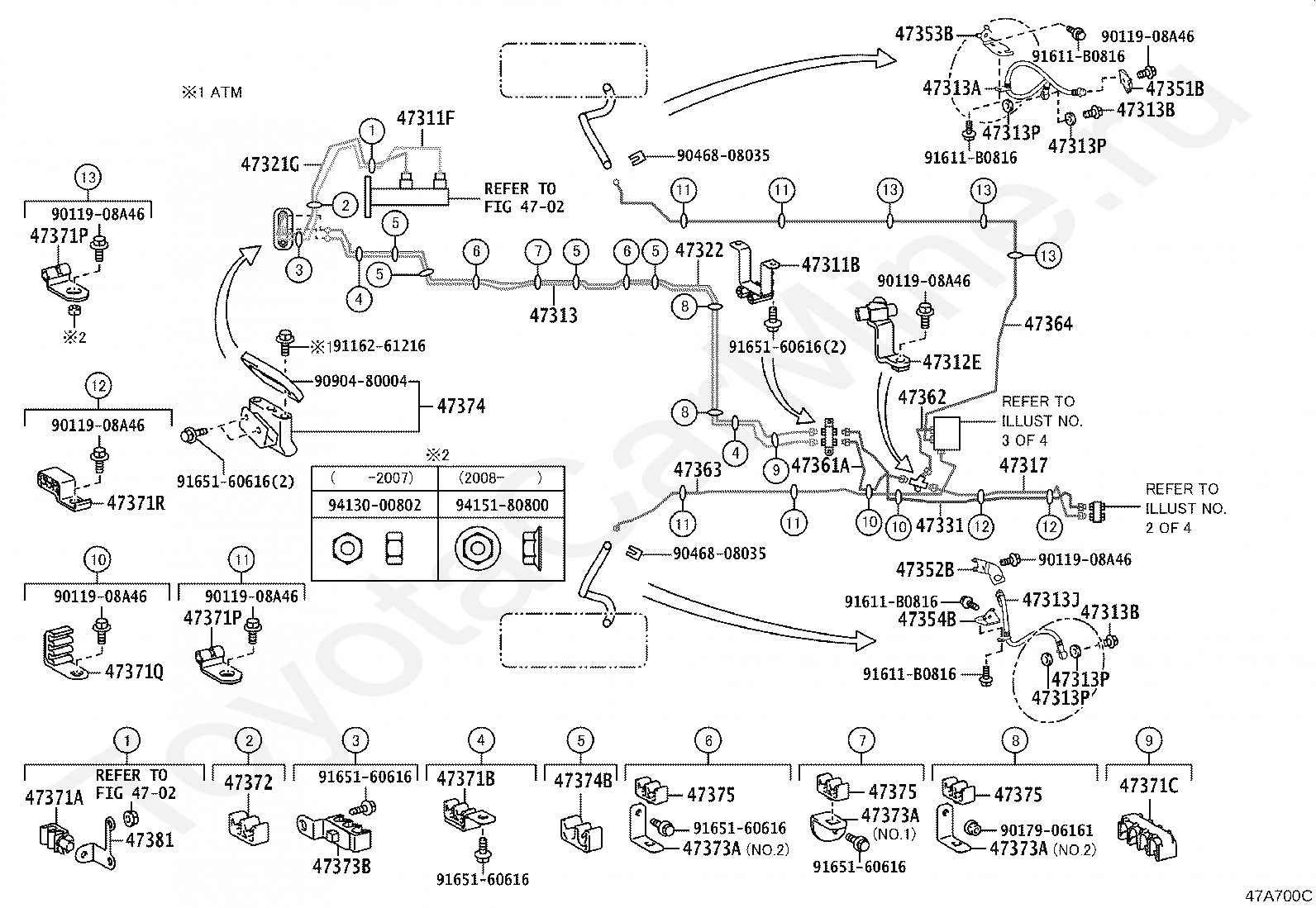

Код

Описание

4702

переход к группе запчастей

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47311F

TUBE, FRONT BRAKE, FRAME NO.1

47312E

WAY, NO.2(FOR FRONT BRAKE TUBE)

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313J

HOSE, FLEXIBLE, NO.2(FOR FRONT)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47317

TUBE, FRONT BRAKE, NO.7

47321G

TUBE, REAR BRAKE, FRAME NO.1

47322

TUBE, REAR BRAKE, NO.2

47331

TUBE, REAR BRAKE, NO.10

47351B

BRACKET, FLEXIBLE HOSE, NO.1

47352B

BRACKET, FLEXIBLE HOSE, NO.2

47353B

BRACKET, FLEXIBLE HOSE, NO.3

47354B

BRACKET, FLEXIBLE HOSE, NO.4

47361A

TUBE, FRONT BRAKE, NO.10

47362

TUBE, FRONT BRAKE, NO.11

47363

TUBE, FRONT BRAKE, NO.12

47364

TUBE, FRONT BRAKE, NO.13

47371A

CLAMP, BRAKE TUBE, NO.1

47371B

CLAMP, BRAKE TUBE, NO.6

47371C

CLAMP, BRAKE TUBE, NO.7

47371P

CLAMP, BRAKE TUBE, NO.14

47371Q

CLAMP, BRAKE TUBE, NO.15

47371R

CLAMP, BRAKE TUBE, NO.16

47372

CLAMP, BRAKE TUBE, NO.2

47373A

BRACKET, TUBE CLAMP

47373B

CLAMP, BRAKE TUBE, NO.3

47374

CONNECTOR, TUBE

47374B

CLAMP, BRAKE TUBE, NO.4

47375

CLAMP, BRAKE TUBE, NO.5

47381

BRACKET, BRAKE TUBE CLAMP NO.1

9011908A46

Крепеж

9017906161

Крепеж

9046808035

Крепеж

9090480004

Крепеж

9116261216

Крепеж

91611B0816

Крепеж

9165160616

Крепеж

9413000802

Крепеж

9415180800

Крепеж

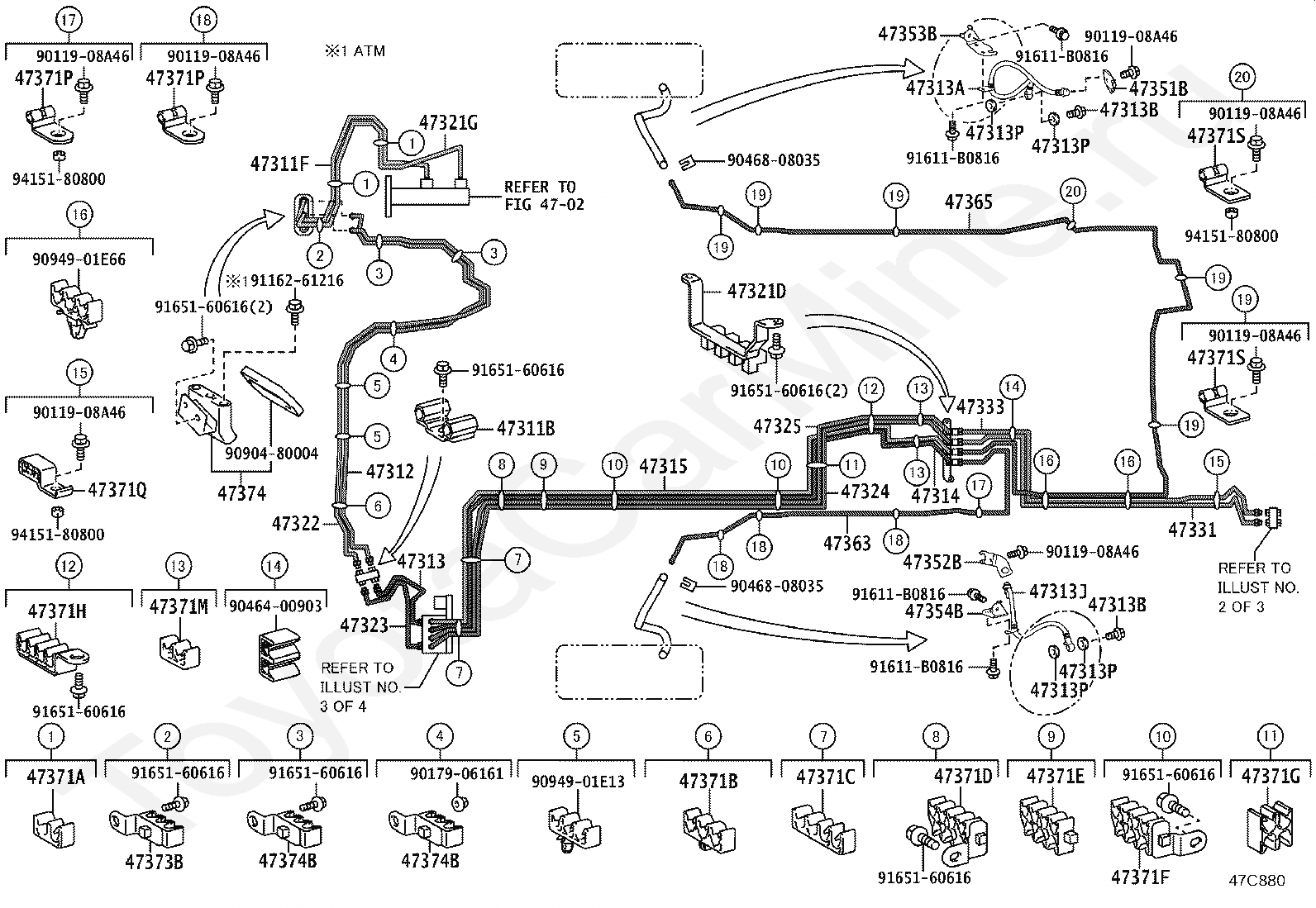

Код

Описание

4702

переход к группе запчастей

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47311F

TUBE, FRONT BRAKE, FRAME NO.1

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313J

HOSE, FLEXIBLE, NO.2(FOR FRONT)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47321G

TUBE, REAR BRAKE, FRAME NO.1

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47325

TUBE, REAR BRAKE, NO.5

47331

TUBE, REAR BRAKE, NO.10

47333

TUBE, REAR BRAKE, NO.12

47351B

BRACKET, FLEXIBLE HOSE, NO.1

47352B

BRACKET, FLEXIBLE HOSE, NO.2

47353B

BRACKET, FLEXIBLE HOSE, NO.3

47354B

BRACKET, FLEXIBLE HOSE, NO.4

47363

TUBE, FRONT BRAKE, NO.12

47365

TUBE, FRONT BRAKE, NO.14

47371A

CLAMP, BRAKE TUBE, NO.1

47371B

CLAMP, BRAKE TUBE, NO.6

47371C

CLAMP, BRAKE TUBE, NO.7

47371D

CLAMP, BRAKE TUBE, NO.8

47371E

CLAMP, BRAKE TUBE, NO.9

47371F

CLAMP, BRAKE TUBE, NO.10

47371G

CLAMP, BRAKE TUBE, NO.11

47371H

CLAMP, BRAKE TUBE, NO.12

47371M

CLAMP, BRAKE TUBE, NO.13

47371P

CLAMP, BRAKE TUBE, NO.14

47371Q

CLAMP, BRAKE TUBE, NO.15

47371S

CLAMP, BRAKE TUBE, NO.17

47373B

CLAMP, BRAKE TUBE, NO.3

47374

CONNECTOR, TUBE

47374B

CLAMP, BRAKE TUBE, NO.4

9011908A46

Крепеж

9017906161

Крепеж

9046400903

Крепеж

9046808035

Крепеж

9090480004

Крепеж

9094901E13

Крепеж

9094901E66

Крепеж

9116261216

Крепеж

91611B0816

Крепеж

9165160616

Крепеж

9415180800

Крепеж

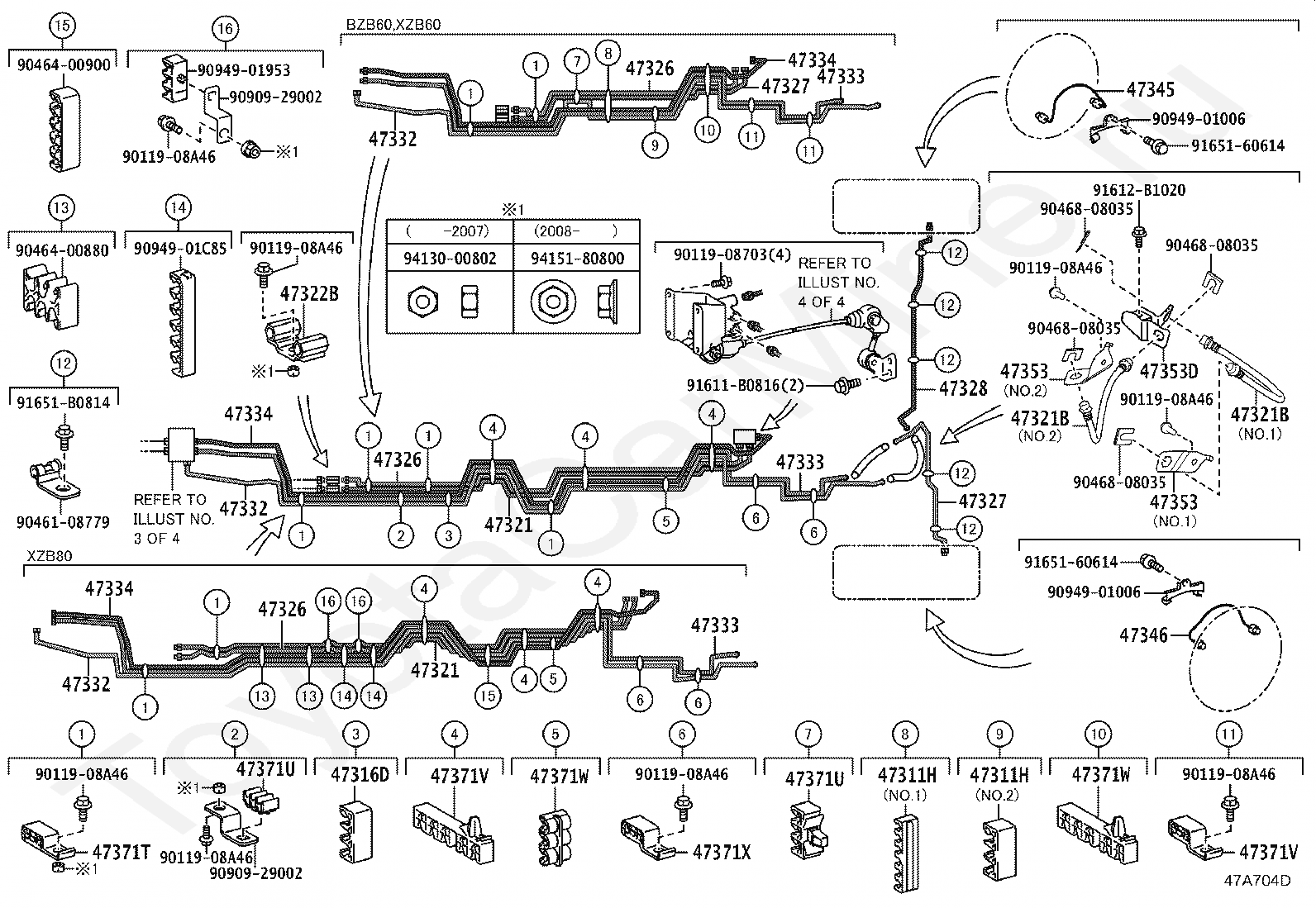

Код

Описание

47311H

GROMMET(FOR BRAKE TUBE)

47316D

GROMMET(FOR REAR BRAKE TUBE)

47321

TUBE, REAR BRAKE, NO.1

47321B

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47322B

WAY, NO.2(FOR REAR BRAKE TUBE)

47326

TUBE, REAR BRAKE, NO.6

47327

TUBE, REAR BRAKE, NO.7

47328

TUBE, REAR BRAKE, NO.8

47332

TUBE, REAR BRAKE, NO.11

47333

TUBE, REAR BRAKE, NO.12

47334

TUBE, REAR BRAKE, NO.13

47345

TUBE, WHEEL CYLINDER, REAR RH

47346

TUBE, WHEEL CYLINDER, REAR LH

47353

BRACKET, FLEXIBLE HOSE(FOR REAR)

47353D

BRACKET, FLEXIBLE HOSE, NO.7

47371T

CLAMP, BRAKE TUBE, NO.18

47371U

CLAMP, BRAKE TUBE, NO.19

47371V

CLAMP, BRAKE TUBE, NO.20

47371W

CLAMP, BRAKE TUBE, NO.21

47371X

CLAMP, BRAKE TUBE, NO.22

9011908703

Крепеж

9011908A46

Крепеж

9046108779

Крепеж

9046400880

Крепеж

9046400900

Крепеж

9046808035

Крепеж

9090929002

Крепеж

9094901006

Крепеж

9094901953

Крепеж

9094901C85

Крепеж

91611B0816

Крепеж

91612B1020

Крепеж

9165160614

Крепеж

91651B0814

Крепеж

9413000802

Крепеж

9415180800

Крепеж

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44590

BRACKET ASSY, BRAKE ACTUATOR

9009905277

Крепеж

9017910071

Крепеж

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44521A

COLLAR, BRAKE ACTUATOR CASE, NO.1

44547B

CUSHION, BRAKE ACTUATOR BRACKET

44590

BRACKET ASSY, BRAKE ACTUATOR

44591

BRACKET, BRAKE ACTUATOR, NO.1

9011906844

Крепеж

91673A0820

Крепеж

Код

Описание

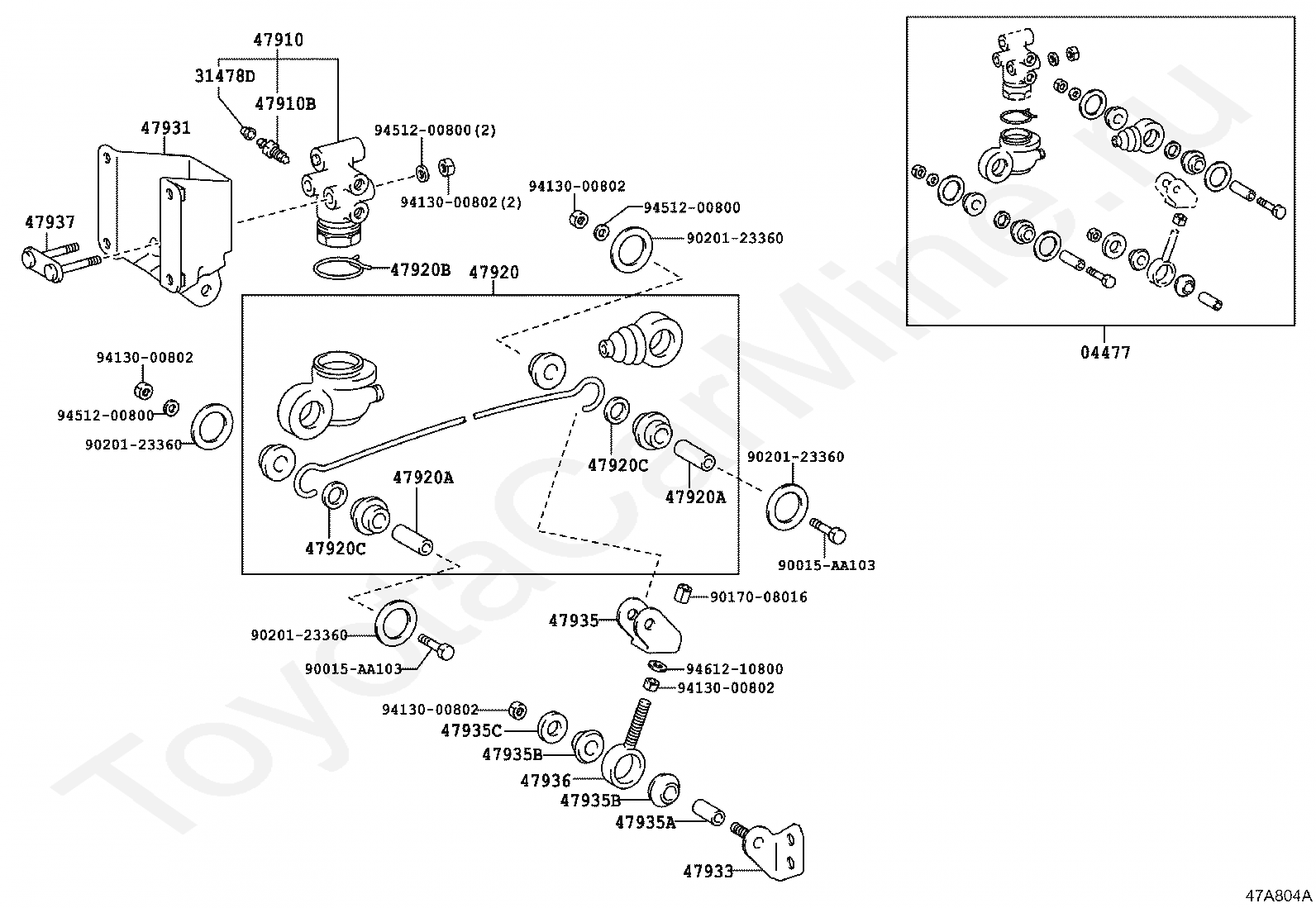

04477

BUSH & BOOT KIT, LOAD SENSING SPRING

31478D

CAP, BLEEDER PLUG(FOR LSPV)

47910

VALVE ASSY, LOAD SENSING PROPORTIONING

47910B

PLUG, BLEEDER

47920

SPRING ASSY, LOAD SENSING

47920A

COLLAR(FOR LOAD SENSING SPRING)

47920B

CLIP(FOR LOAD SENSING VALVE BOOT)

47920C

WASHER(FOR LOAD SENSING SPRING)

47931

BRACKET, LOAD SENSING VALVE

47933

BRACKET, LOAD SENSING SHACKLE, NO.1

47935

SHACKLE, LOAD SENSING SPRING, NO.1

47935A

COLLAR(FOR LOAD SENSING SPRING SHACKLE)

47935B

BUSH(FOR LOAD SENSING SPRING SHACKLE)

47935C

RETAINER(FOR LOAD SENSING SPRING SHACKLE)

47936

SHACKLE, LOAD SENSING SPRING, NO.2

47937

PLATE, LOAD SENSING VALVE SET

90015AA103

Крепеж

9017008016

Крепеж

9020123360

Крепеж

9413000802

Крепеж

9451200800

Крепеж

9461210800

Крепеж
