Каталог
Ближний ВостокМодель
COASTERДвигатель
2,8 литра, турбо-дизельКласс
DELUX SPECIFICATIONФрейм
GDB70Трансмиссия
автомат АКПП, 6 скоростейОпции
правый руль высокая крыша 22-местный WITH COOLER DCR ARL CBU 859W
Код
Описание

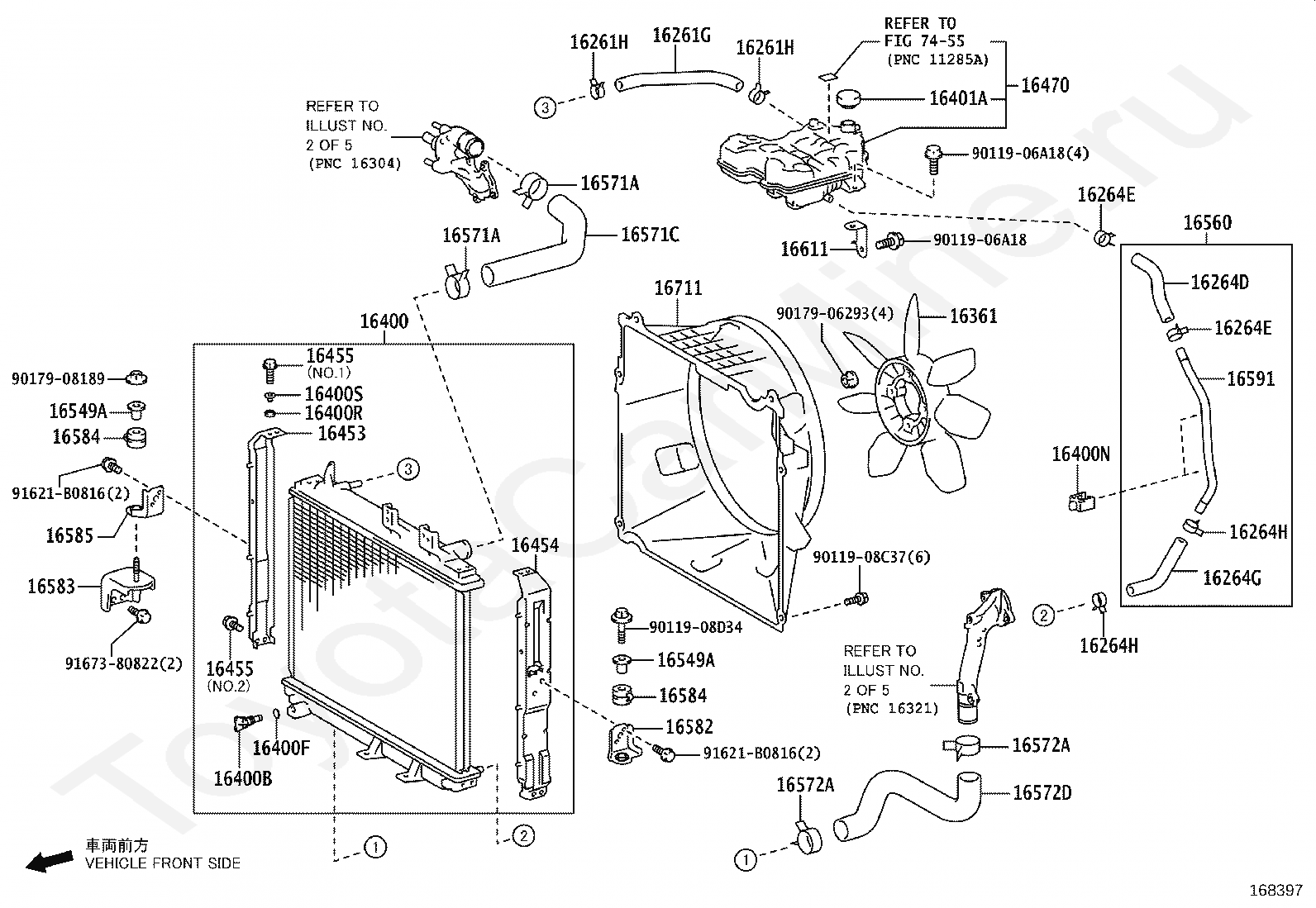

16261G
HOSE, WATER BY-PASS, NO.1
16261H
CLIP(FOR WATER BY-PASS HOSE NO.1)
16264D
HOSE, WATER BY-PASS, NO.2
16264E
CLIP(FOR WATER BY-PASS HOSE NO.2)
16264G
HOSE, WATER BY-PASS, NO.3
16264H
CLIP(FOR WATER BY-PASS HOSE NO.3)
16361
FAN
16400
RADIATOR ASSY
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16400N
CLAMP, NO.2
16400R
BUSHING(FOR RADIATOR)
16400S
COLLAR(FOR RADIATOR)
16401A
CAP SUB-ASSY, RADIATOR RESERVE TANK
16453
PLATE, RADIATOR SIDE
16454
PLATE, RADIATOR SIDE
16455
BOLT, RADIATOR SIDE SUPPORT PLATE
16470
TANK ASSY, RADIATOR RESERVE
16549A
COLLAR, RADIATOR SUPPORT, NO.1
16560
PIPE ASSY, RADIATOR TO RESERVE TANK, NO.1
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16571C
HOSE, RADIATOR, NO.1
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16572D
HOSE, RADIATOR, NO.2
16582
BRACKET, RADIATOR, NO.1
16583
BRACKET, RADIATOR, NO.2
16584
INSULATOR, RADIATOR MOUNTING
16585
BRACKET, RADIATOR, NO.3
16591
PIPE, RADIATOR
16611
BRACKET, RADIATOR RESERVE TANK
16711
SHROUD, FAN
7455
переход к группе запчастей
9011906A18
Крепеж
9011908C37
Крепеж
9011908D34
Крепеж
9017906293
Крепеж
9017908189
Крепеж
91621B0816
Крепеж
9167380822
Крепеж
Код
Описание
1201
переход к группе запчастей
1601
переход к группе запчастей

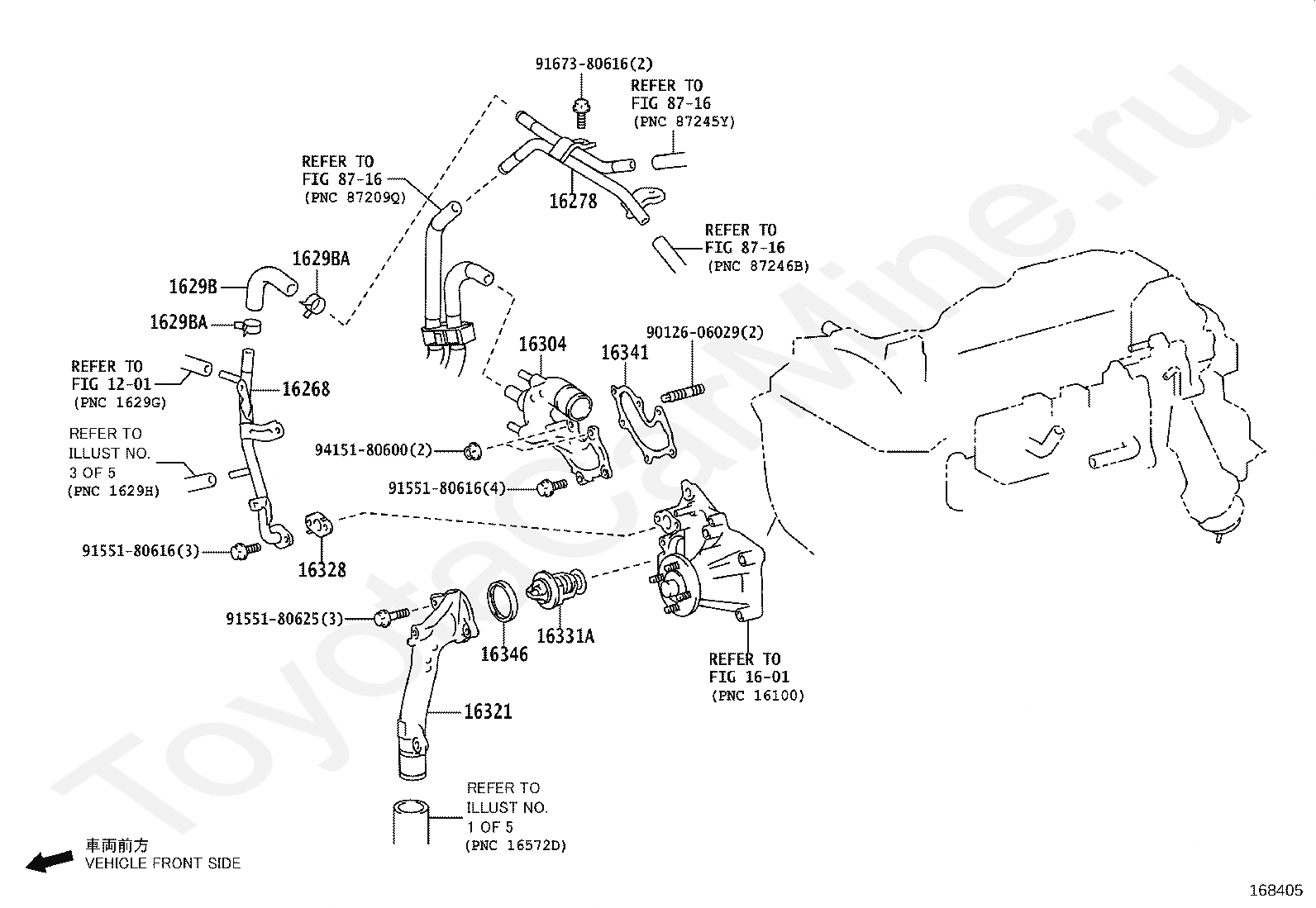

16268
PIPE, WATER BY-PASS, NO.1
16278
PIPE, WATER BY-PASS, NO.2
1629B
HOSE, WATER BY-PASS, NO.15
1629BA
CLIP(FOR WATER BY-PASS HOSE NO.15)
16304
OUTLET SUB-ASSY, WATER
16321
INLET, WATER
16328
GASKET, WATER INLET PIPE
16331A
THERMOSTAT
16341
GASKET, WATER OUTLET
16346
GASKET, THERMOSTAT
8716
переход к группе запчастей
9012606029
Крепеж
9155180616
Крепеж
9155180625
Крепеж
9167380616
Крепеж
9415180600
Крепеж
Код
Описание
1503
переход к группе запчастей
1601
переход к группе запчастей

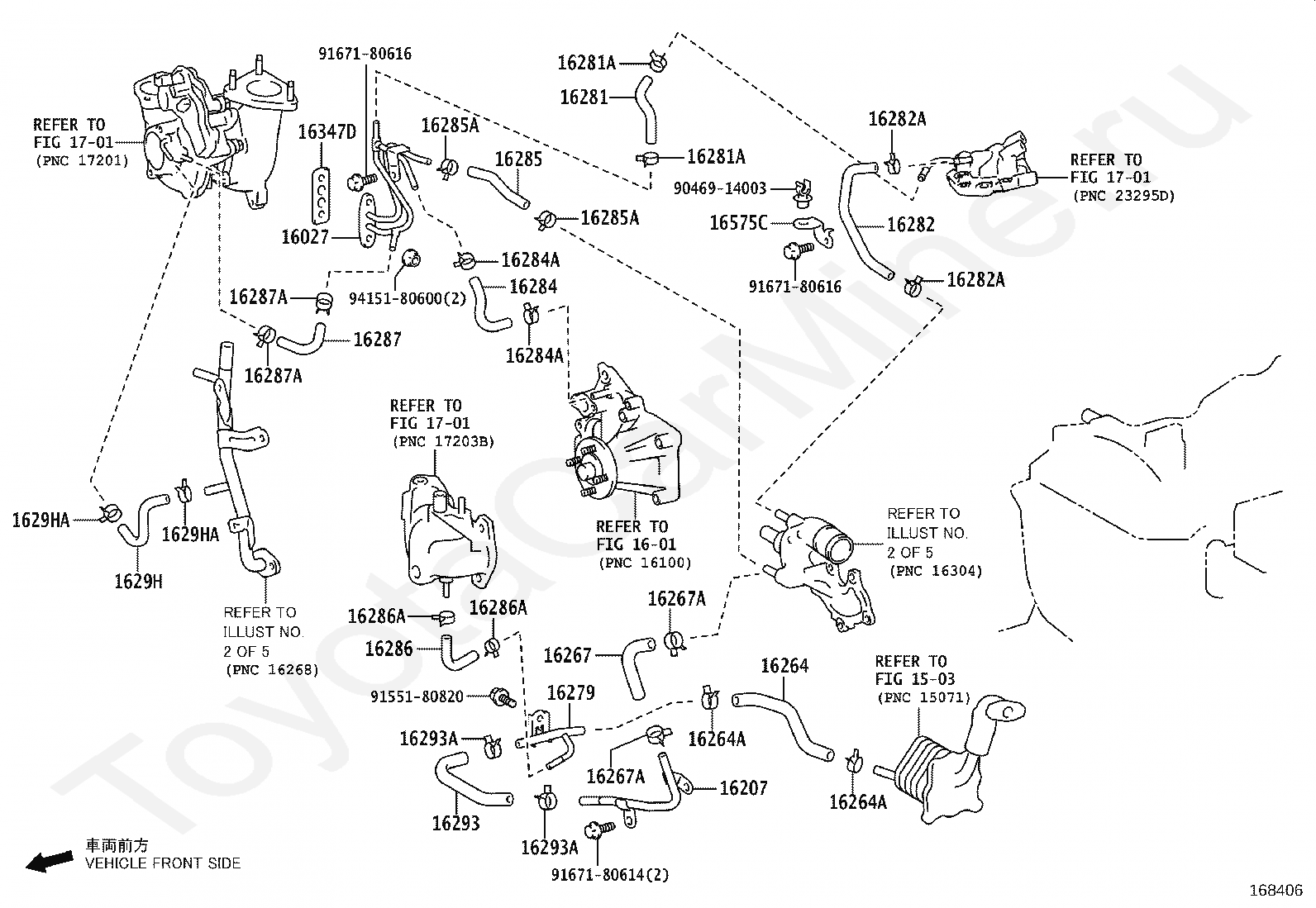

16027
PIPE SUB-ASSY, TURBO WATER, NO.1
16207
PIPE SUB-ASSY, WATER BY-PASS, NO.2
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16267
HOSE, WATER BY-PASS, NO.3
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16279
PIPE, WATER BY-PASS, NO.3
16281
HOSE, WATER BY-PASS, NO.4
16281A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
16282
HOSE, WATER BY-PASS, NO.5
16282A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
16284
HOSE, TURBO WATER, NO.1
16284A
CLIP(FOR TURBO WATER HOSE NO.1)
16285
HOSE, TURBO WATER, NO.2
16285A
CLIP(FOR TURBO WATER HOSE NO.2)
16286
HOSE, TURBO WATER, NO.3
16286A
CLIP(FOR TURBO WATER HOSE NO.3)
16287
HOSE, TURBO WATER, NO.4
16287A
CLIP(FOR TURBO WATER HOSE NO.4)
16293
HOSE, WATER BY-PASS, NO.10
16293A
CLIP(FOR WATER BY-PASS HOSE NO.10)
1629H
HOSE, WATER BY-PASS, NO.21
1629HA
CLIP(FOR WATER BY-PASS HOSE NO.21)
16347D
GASKET, WATER BY-PASS
16575C
BRACKET, WATER HOSE CLAMP, NO.1
1701
переход к группе запчастей
9046914003
Крепеж
9155180820
Крепеж
9167180614
Крепеж
9167180616
Крепеж
9415180600
Крепеж
Код
Описание

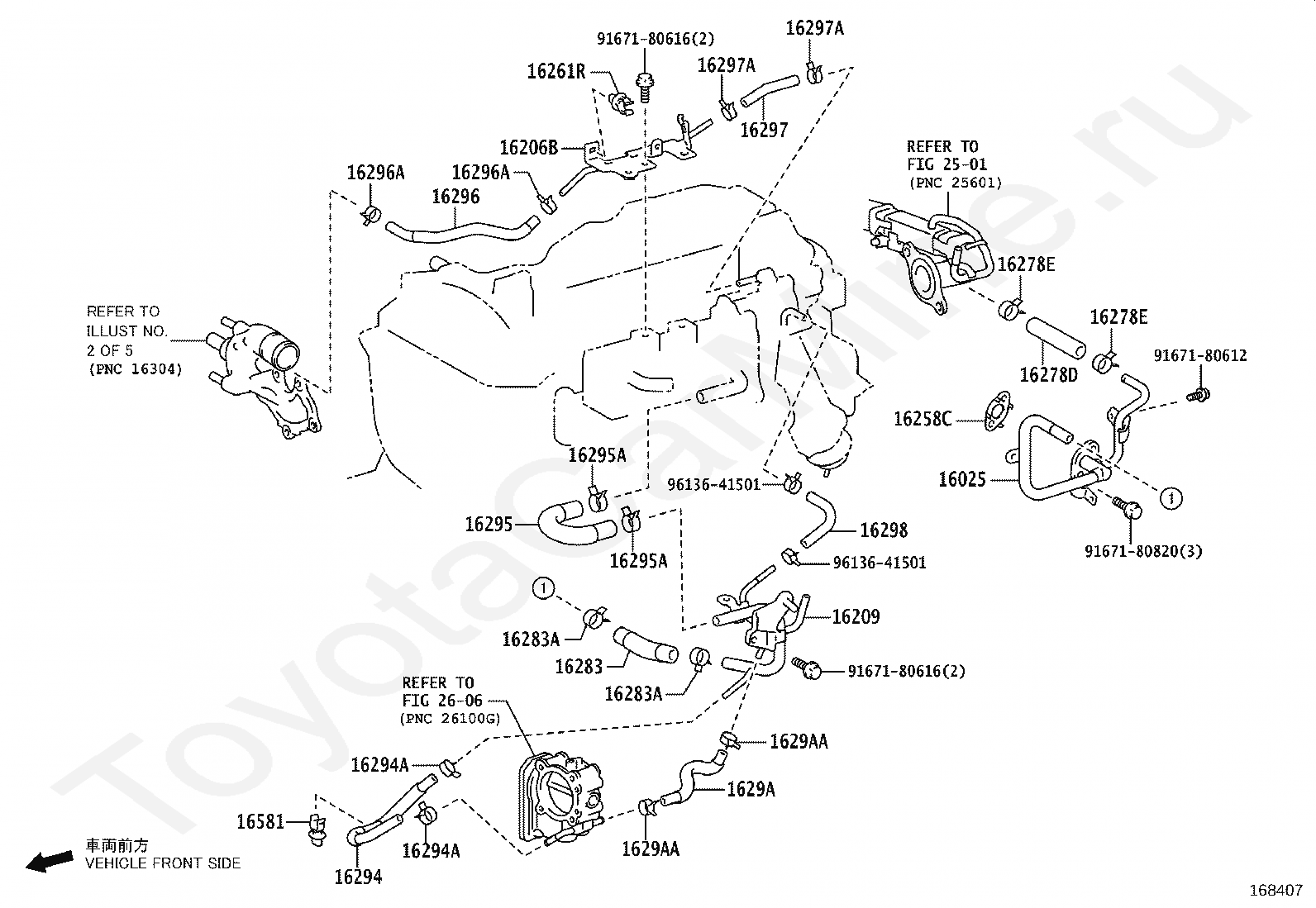

16025
PIPE SUB-ASSY, WATER BY-PASS, NO.5
16206B
PIPE SUB-ASSY, WATER BY-PASS, NO.3
16209
PIPE SUB-ASSY, WATER BY-PASS, NO.4
16258C
GASKET(FOR WATER BY-PASS PIPE)
16261R
CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
16278D
HOSE, WATER BY-PASS
16278E
CLIP(FOR WATER BY-PASS HOSE)
16283
HOSE, WATER BY-PASS, NO.6
16283A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
16294
HOSE, WATER BY-PASS, NO.11
16294A
CLIP(FOR WATER BY-PASS HOSE NO.11)
16295
HOSE, WATER BY-PASS, NO.7
16295A
CLIP(FOR WATER BY-PASS HOSE NO.7)
16296
HOSE, WATER BY-PASS, NO.8
16296A
CLIP(FOR WATER BY-PASS HOSE NO.8)
16297
HOSE, WATER BY-PASS, NO.9
16297A
CLIP(FOR WATER BY-PASS HOSE NO.9)
16298
HOSE, WATER BY-PASS, NO.12
1629A
HOSE, WATER BY-PASS, NO.14
1629AA
CLIP(FOR WATER BY-PASS HOSE NO.14)
16581
CLAMP, HOSE(FOR WATER HOSE)
2501
переход к группе запчастей
2606
переход к группе запчастей
9167180612
Крепеж
9167180616
Крепеж
9167180820
Крепеж
9613641501
Крепеж
Код
Описание

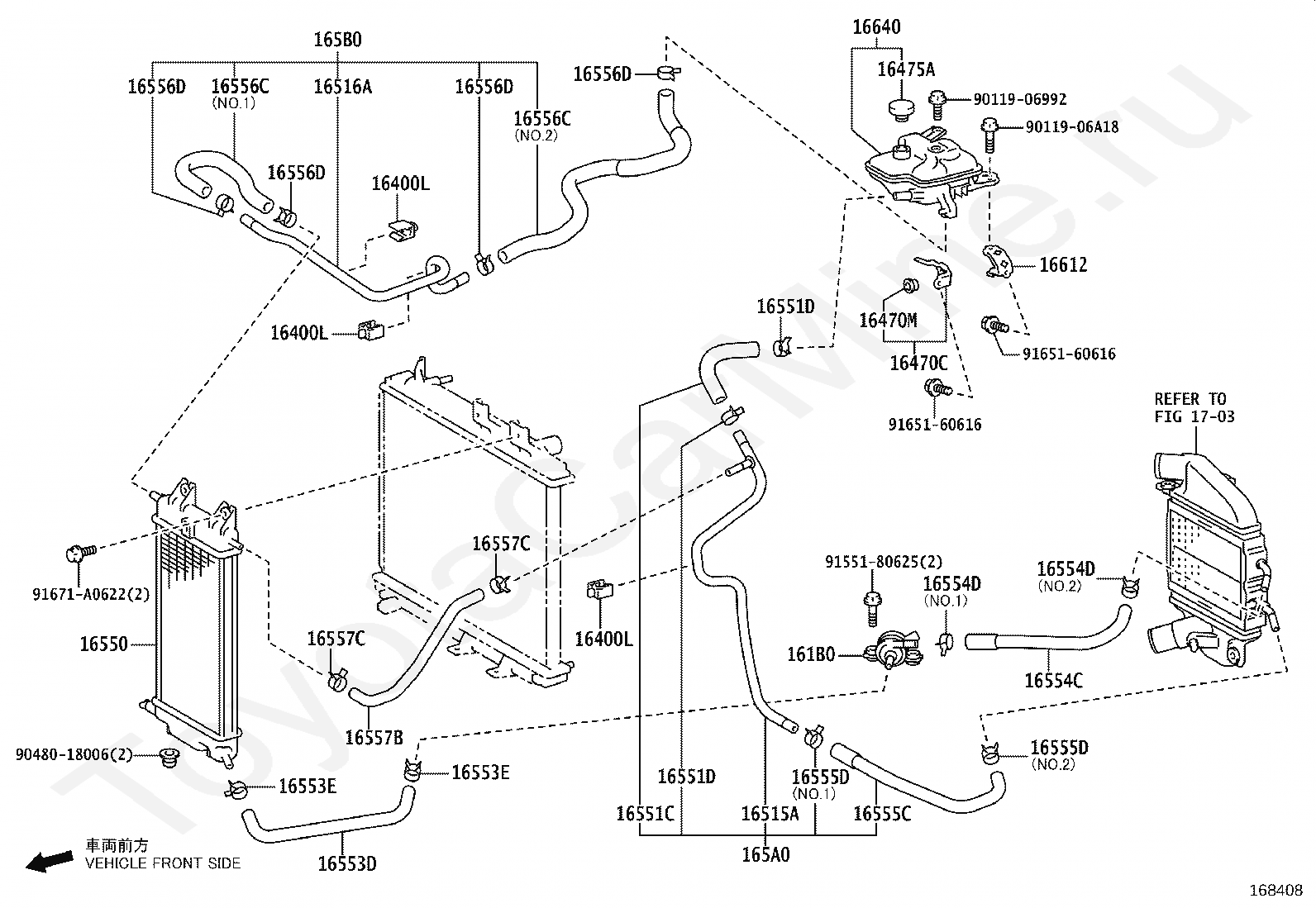

161B0
PUMP ASSY, ELECTRIC WATER
16400L
CLAMP, NO.1
16470C
BRACKET(FOR RADIATOR RESERVE TANK)
16470M
GROMMET
16475A
CAP, RESERVE TANK
16515A
PIPE, INTERCOOLER COOLING WATER, NO.1
16516A
PIPE, INTERCOOLER COOLING WATER, NO.2
16550
RADIATOR ASSY, INTERCOOLER COOLING
16551C
HOSE, INTERCOOLER COOLING WATER, NO.1
16551D
CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.1)
16553D
HOSE, INTERCOOLER COOLING WATER, NO.3
16553E
CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.3)
16554C
HOSE, INTERCOOLER COOLING WATER, NO.4
16554D
CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.4)
16555C
HOSE, INTERCOOLER COOLING WATER, NO.5
16555D
CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.5)
16556C
HOSE, INTERCOOLER COOLING WATER, NO.6
16556D
CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.6)
16557B
HOSE, INTERCOOLER COOLING WATER, NO.7
16557C
CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.7)
165A0
HOSE ASSY, INTERCOOLER COOLING WATER, NO.1
165B0
HOSE ASSY, INTERCOOLER COOLING WATER, NO.2
16612
BRACKET, RADIATOR RESERVE TANK, NO.2
16640
TANK ASSY, INTERCOOLER RESERVE
1703
переход к группе запчастей
9011906992
Крепеж
9011906A18
Крепеж
9048018006
Крепеж
9155180625
Крепеж
9165160616
Крепеж
91671A0622
Крепеж
